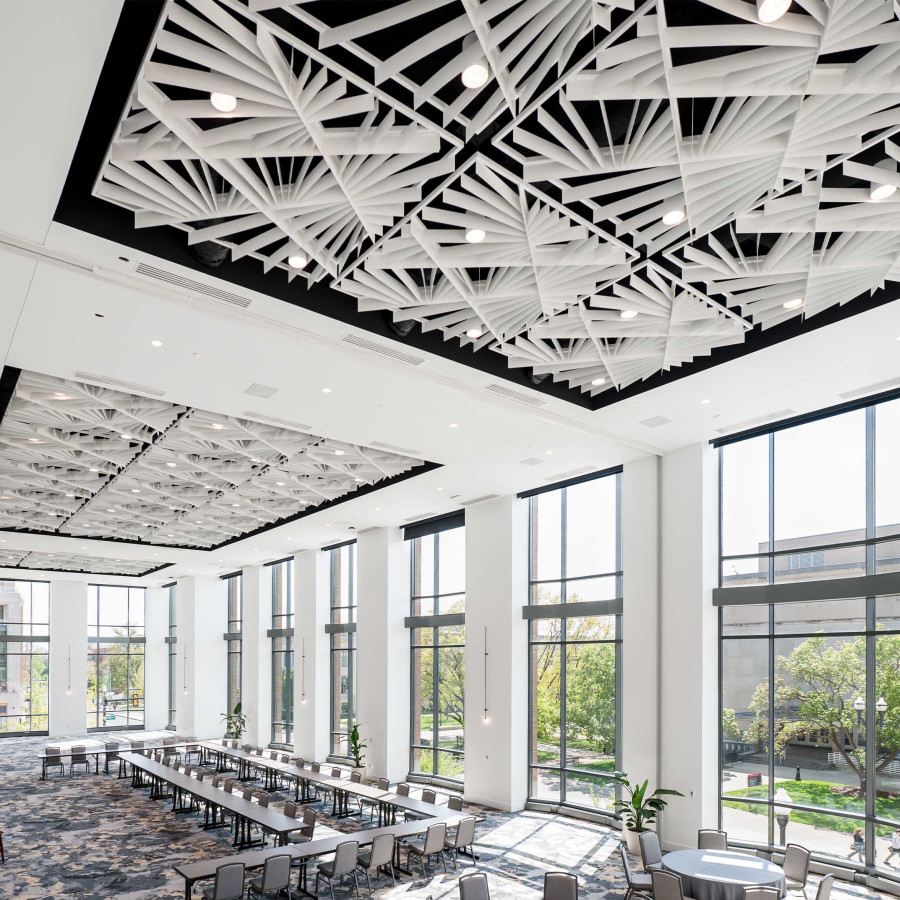

Atmosphera® Adaptive Lotus

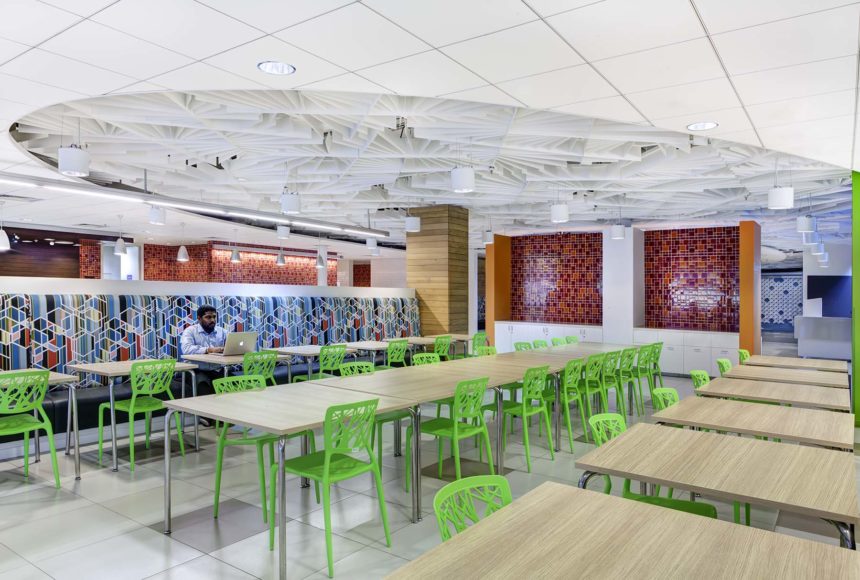

Lotus was inspired by the flower who shares the name. A bearer of enlightenment, this design can be customized to fit with your literal lighting source for a design that will stop people in their tracks. Lotus’s panels are available in steel only and can be powder coated in one of our five standard colors.



Fin Materials & Colors

Powder Coated Steel

Steel

Powder Coated Steel - Premium Metallic Finish

Steel

Frame Color Options

Powder Coated Steel

Steel

Powder Coated Steel - Premium Metallic Finish

Steel

Product Details

Single Module

Multiple Modules

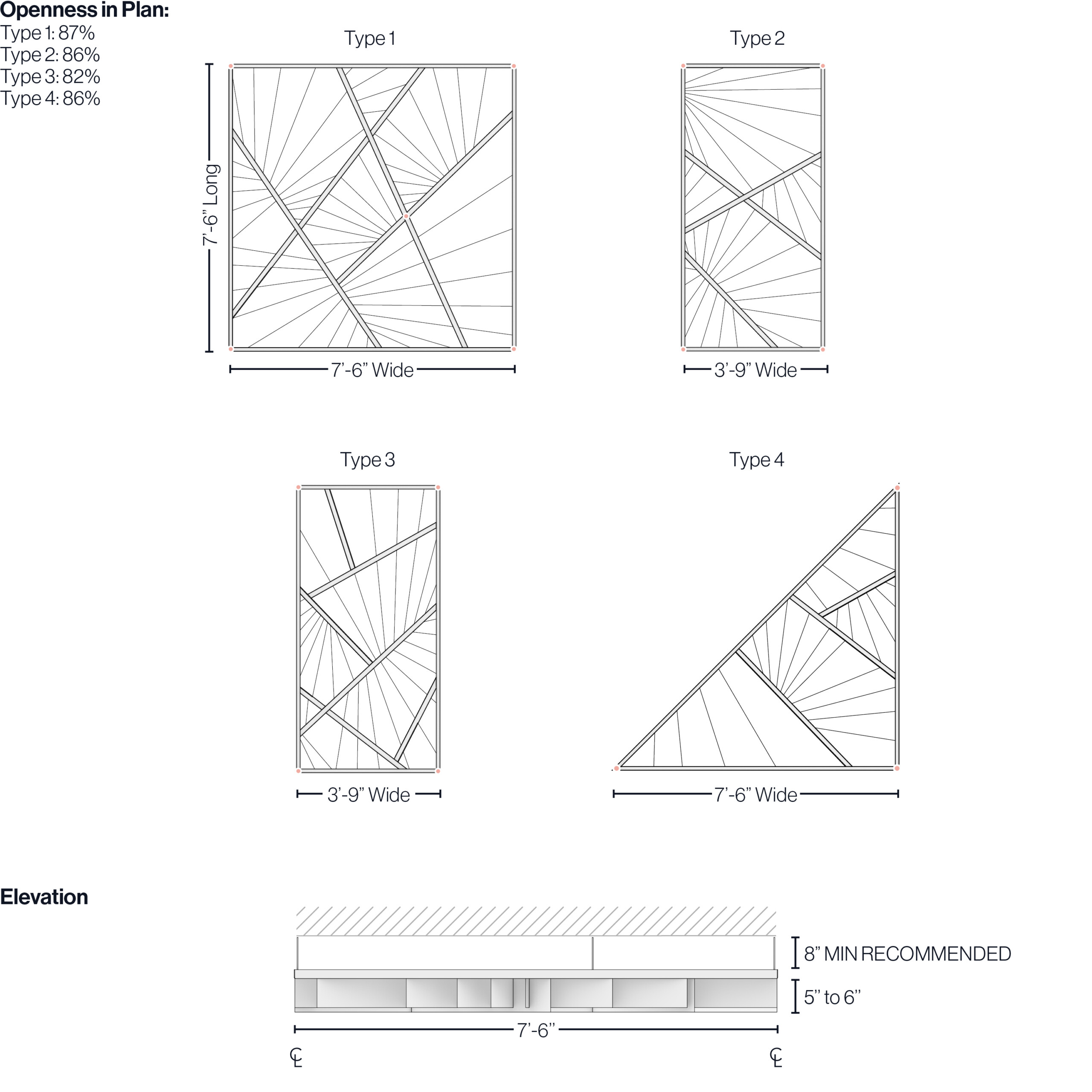

Plans & Elevation

Configuration

Attachment & Install

Attachment Details

System Specs

Dimensions (WxLxD)
Type 1: 7'-6" x 7'-6" x 6" Imperial | 228.5cm x 228.5cm x 15cm Metric
Type 2 & 3: 3'-9" x 7'-6" x 6" Imperial | 114cm x 228.5 cm x 15cm Metric
Type 4: 7'-6" x 7'-6" x 6" Imperial | 228.5cm x 228.5cm x 15cm Metric
Fin Material
12GA Steel
Openness in Plan
Type 1: 87%
Type 2: 86%
Type 3: 82%
Type 4: 86%
Fire Rating
ASTM E84 - Class A
Attachment Method
3/8" Threaded Rod (By Others)
Accessibility
Yes, baffles are removable

Downloads

  • Atmosphera® Lotus – Product Brochure PDF – Imperial
    Brochure
    3.94 MB
    pdf
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Atmosphera Lotus – 3D DWG
    3D Model
    1.08 MB
    zip
  • Atmosphera Lotus – 3D SKP
    3D Model
    1.53 MB
    zip
  • Atmosphera Lotus – 3D RFA
    3D Model
    1.89 MB
    zip

Our Process:

  1. PROJECT QUOTING

    In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.

  2. DESIGN STAGE

    The Atmosphera® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input and final approval.

  3. MANUFACTURING DETAILING

    From the moment we receive your design approval, we work diligently to capture all final details in our easy-to-understand and highly specific shop drawings.

  4. ENGINEERING REVIEW

    Whether coordinating with your own engineering resources or leveraging our engineering team, every Atmosphera® project is carefully evaluated prior to final production.

  5. ADVANCED MANUFACTURING

    Our facilities, equipment and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client and your finished installation.

  6. SHIPPING & DELIVERY

    Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.

  7. INSTALLATION

    Let us connect you with our network of trusted installers. Our team of project managers is here to help you along the way.

Have questions? Reach out to a Rep to get your project started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° US9163402.
