Arborisa® Nest
Arborisa® Nest creates an arrangement of acoustic attenuation by linking its interconnected modules with other Nest modules. These sparse branches were designed with accessibility and openness in mind, as these bisecting baffles feature easily removable fins to reach lighting and HVAC systems below and above the installed modules. Specify this system in a myriad of solid colors, Duo tone finish or Soft Sound® Premium Wood Texture for a more natural, biophilic look.

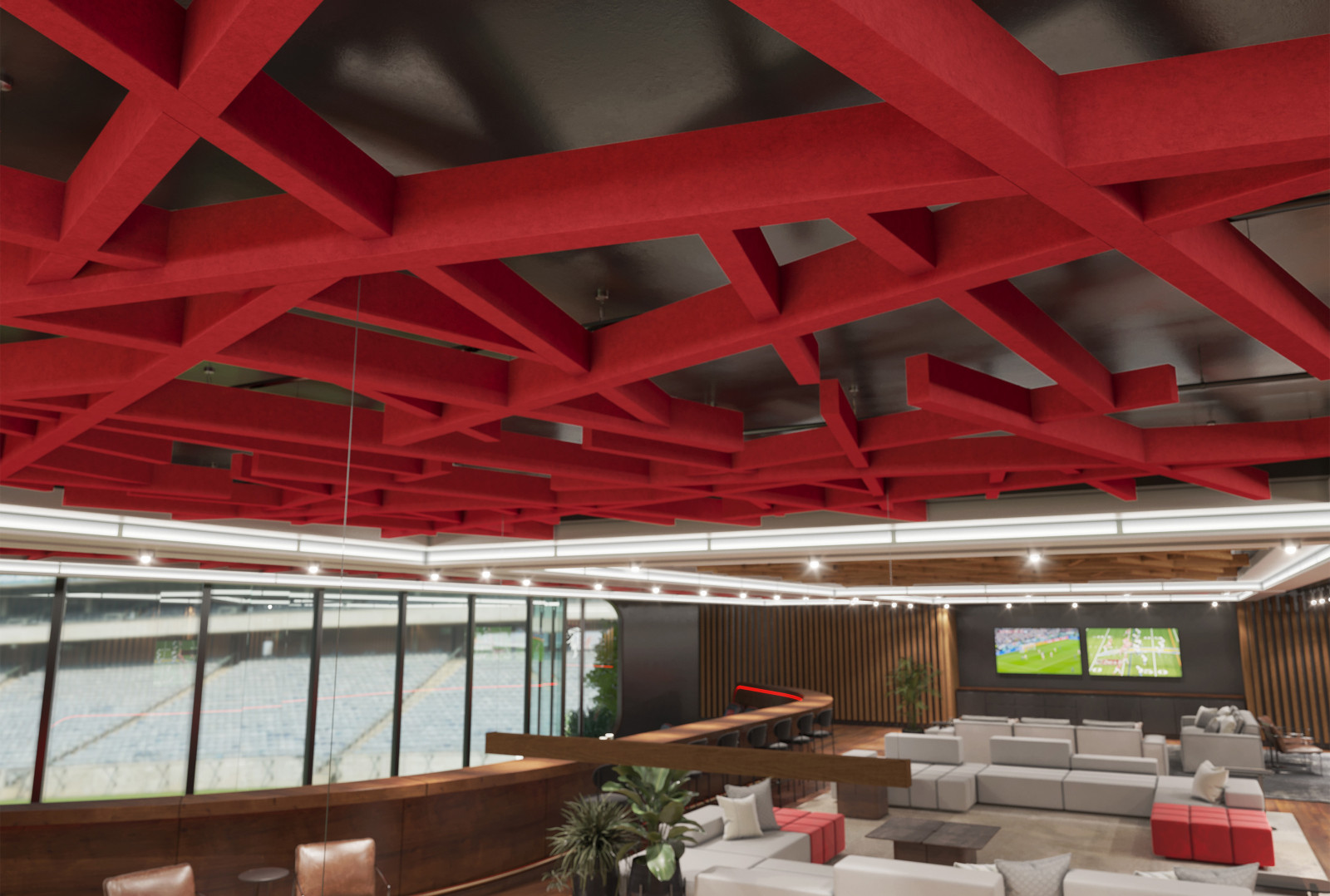

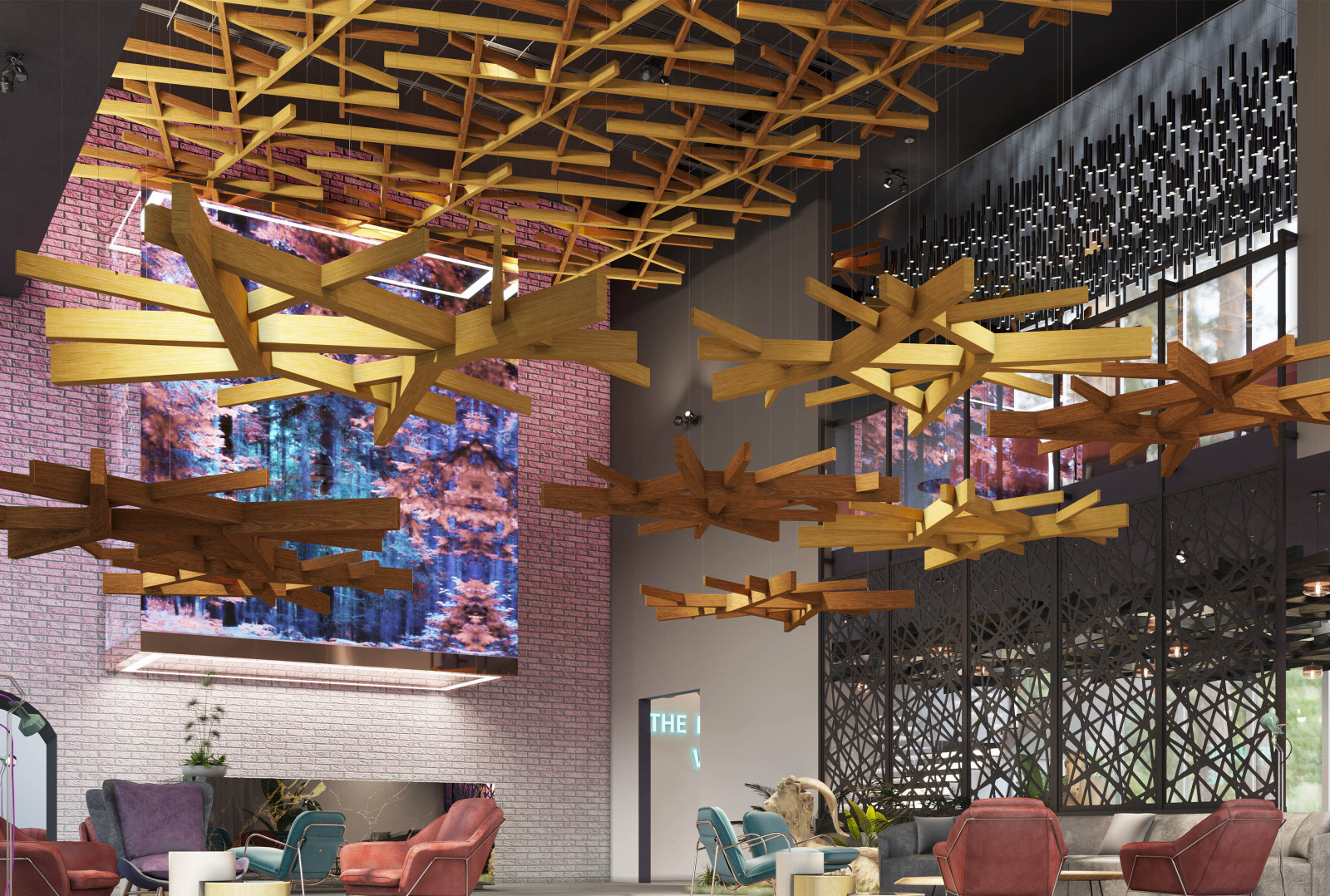

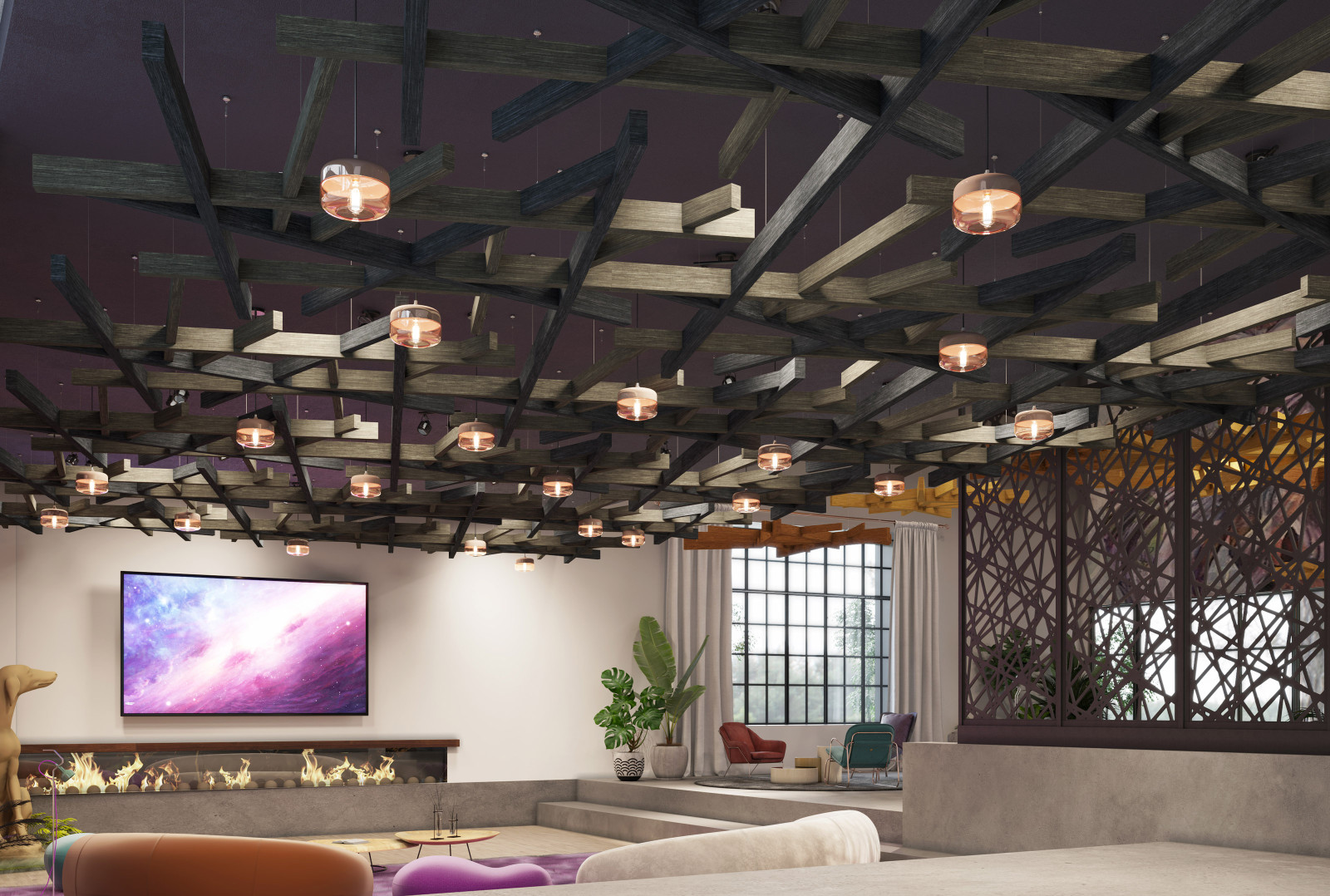

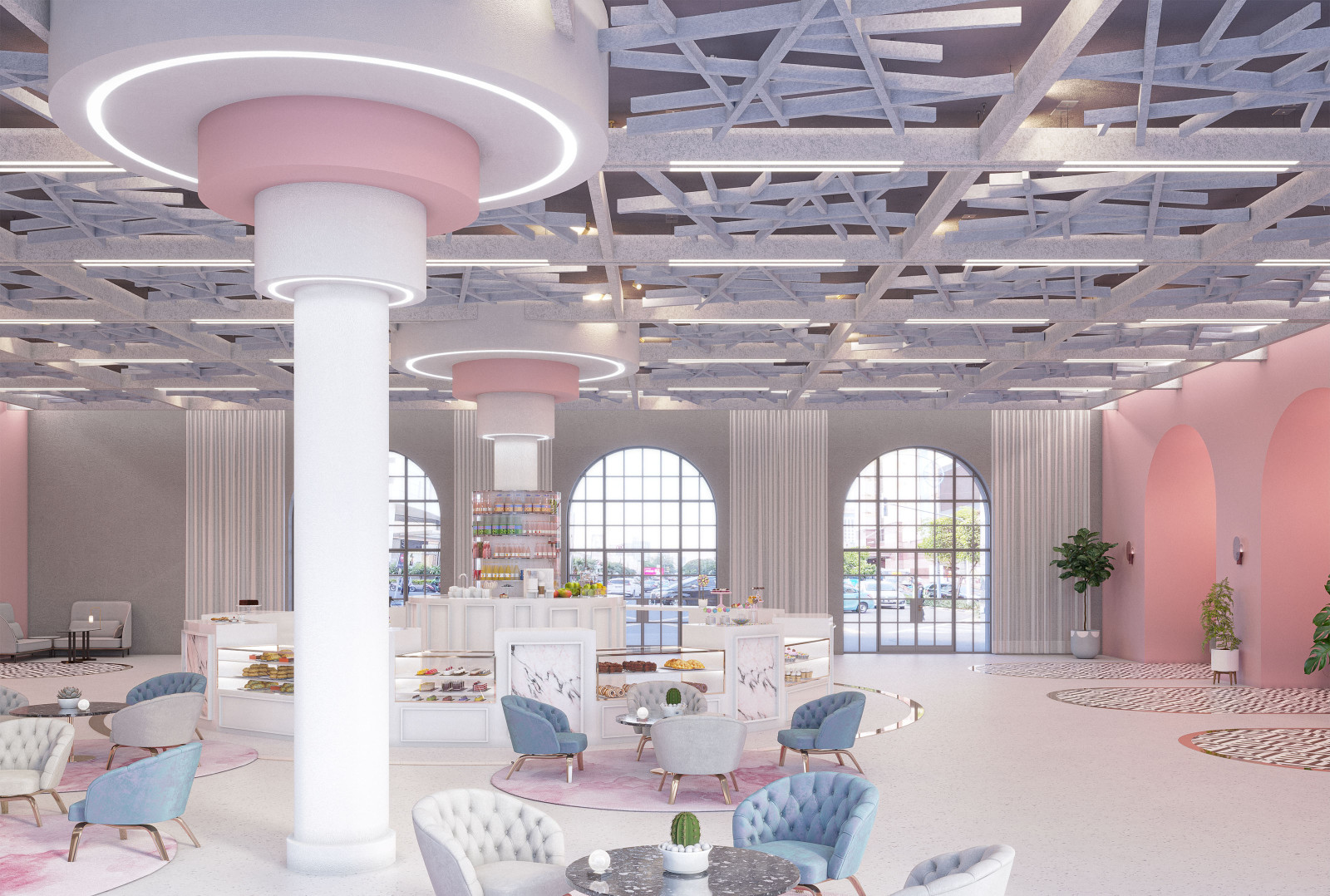

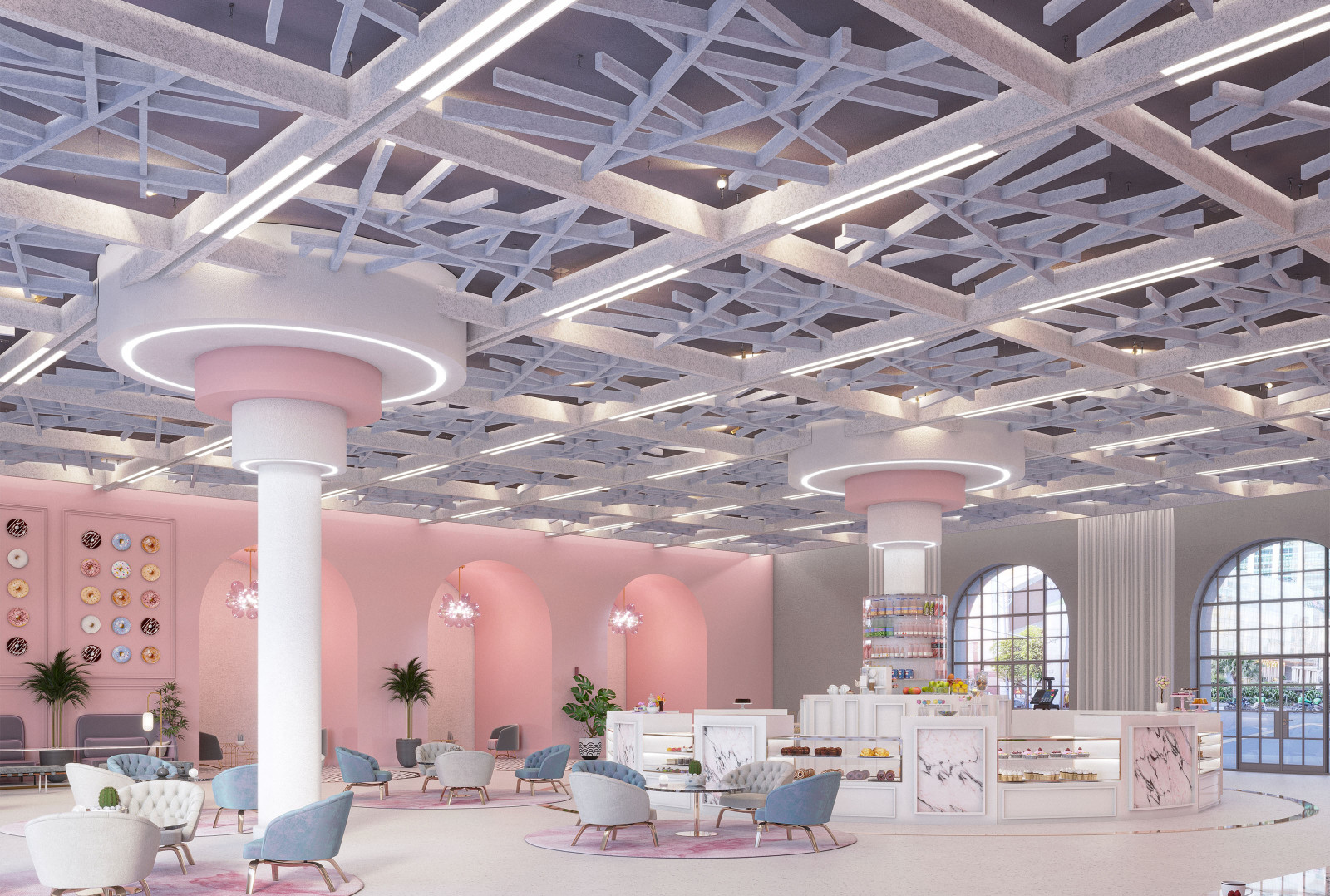

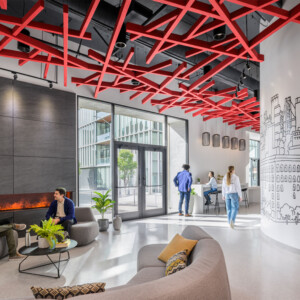

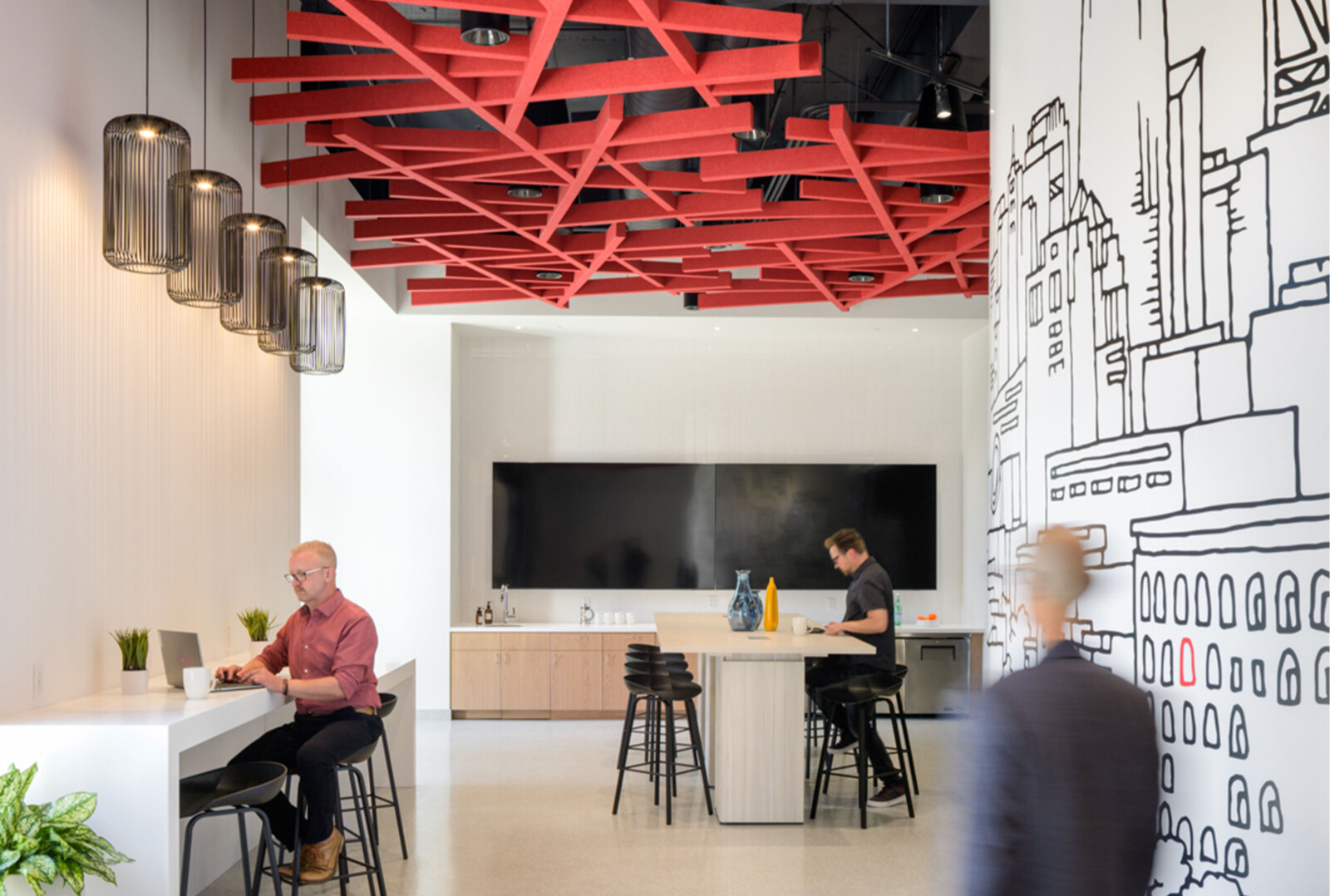

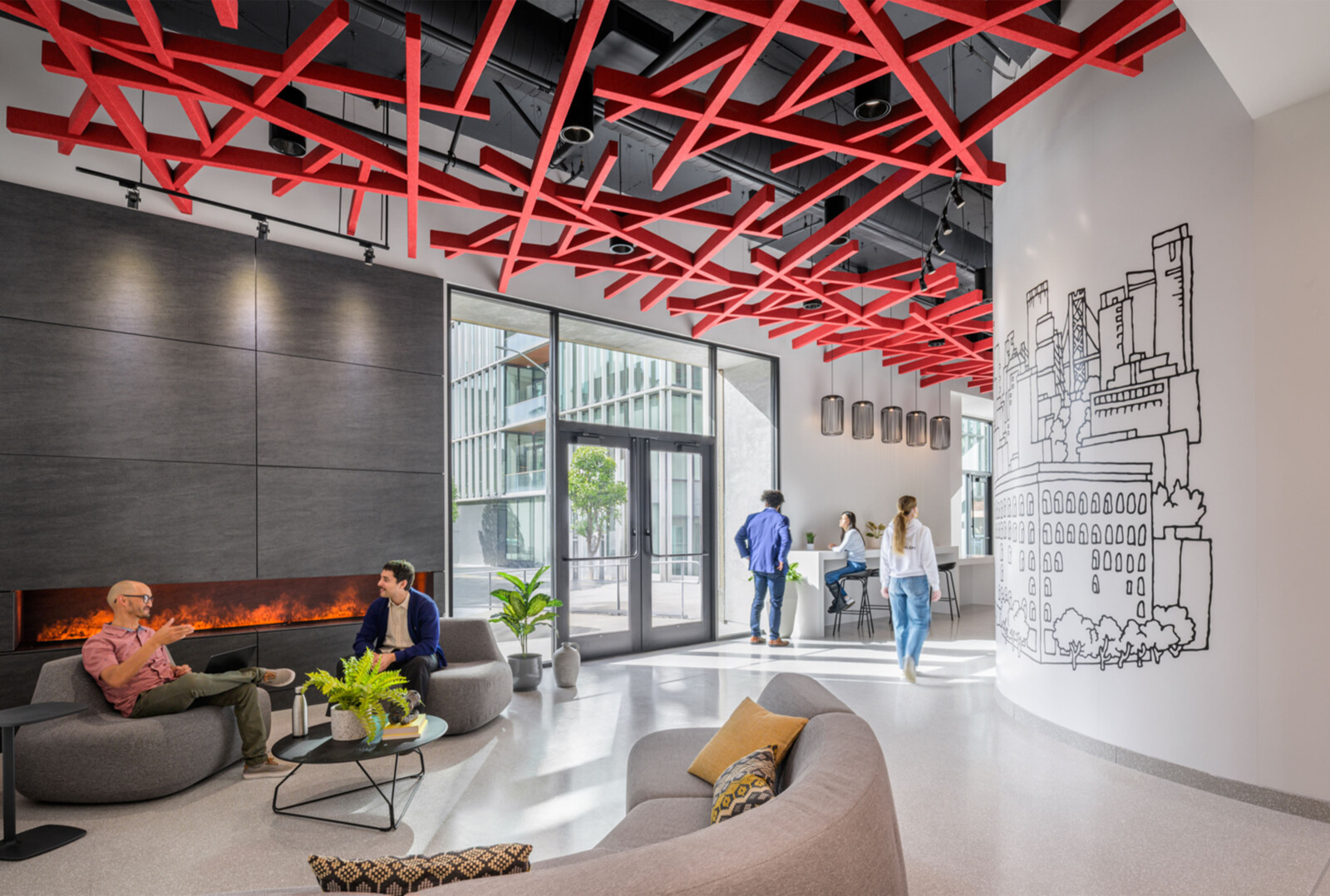

Arborisa™ Nest in use
Key Features
-
Acoustic Performance
Arborisa's Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Organic Biophilic Design
Inspired by the natural look of a lush tree canopy, Arborisa™ mimics the appearance of expansive tree branches to create acoustic cloud systems. Assemble an organic, continuous, and non-repetitive surface with Arborisa™ modules inspired by nature's biomorphic forms and patterns.
-
Open Accessibility in Plan
Arborisa’s open grid design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
-
Expansive Soft Sound® Library
Customize your Arborisa™ system by specifying modules in your preferred finish. Choose from an extensive colorful library of Soft Sound® finishes and premium wood textures.
-
Duo Capability
For further customization of your Arborisa™ system, mix and match colors with Duo finish capabilities. Mix colors and textures in an expanding range of dynamic combinations to fully achieve your design intent. Perfect for incorporating branding or composing a dynamic two-tone transformative field.
Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETProduct Details
Standard Module
Designing with Modules

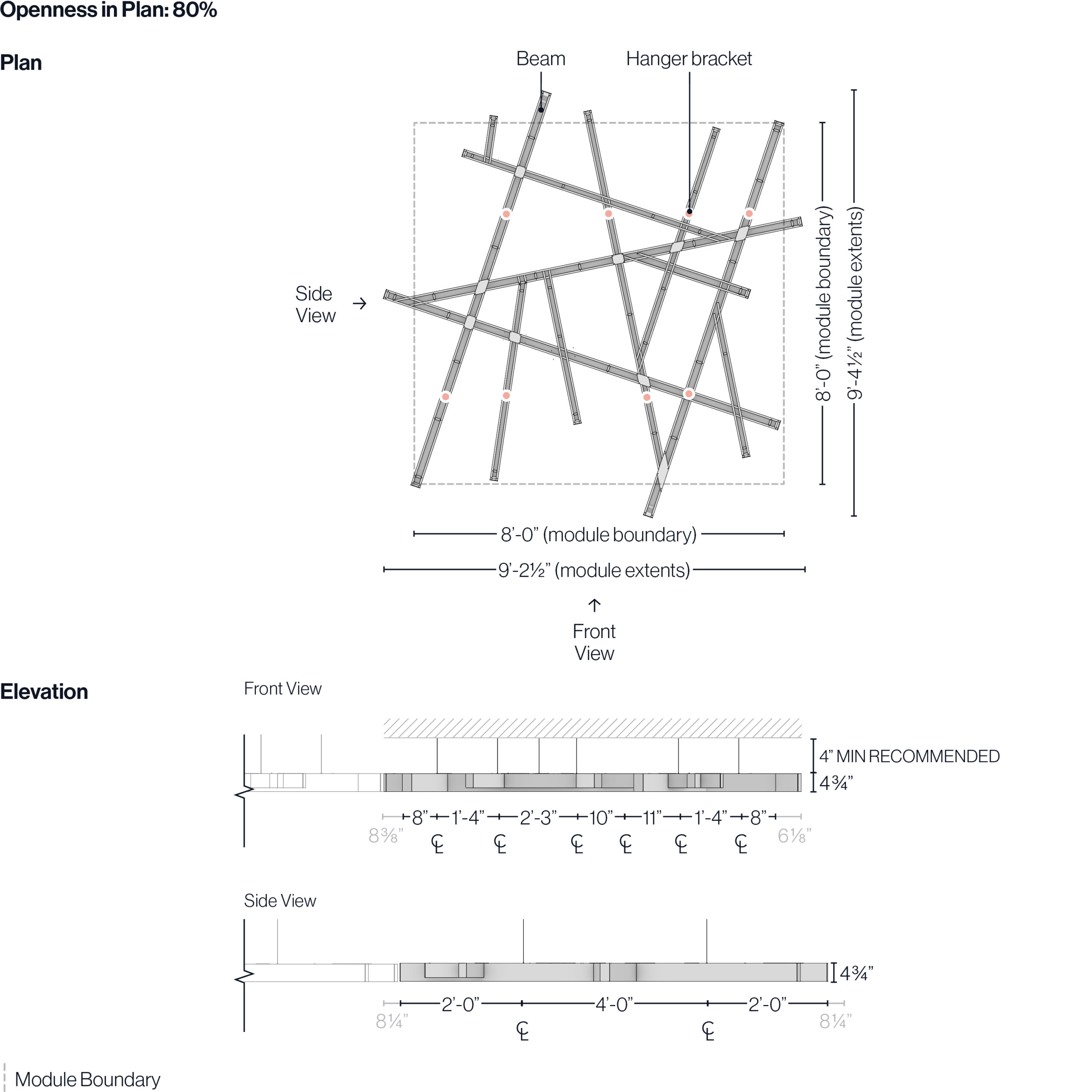

Understanding the Module

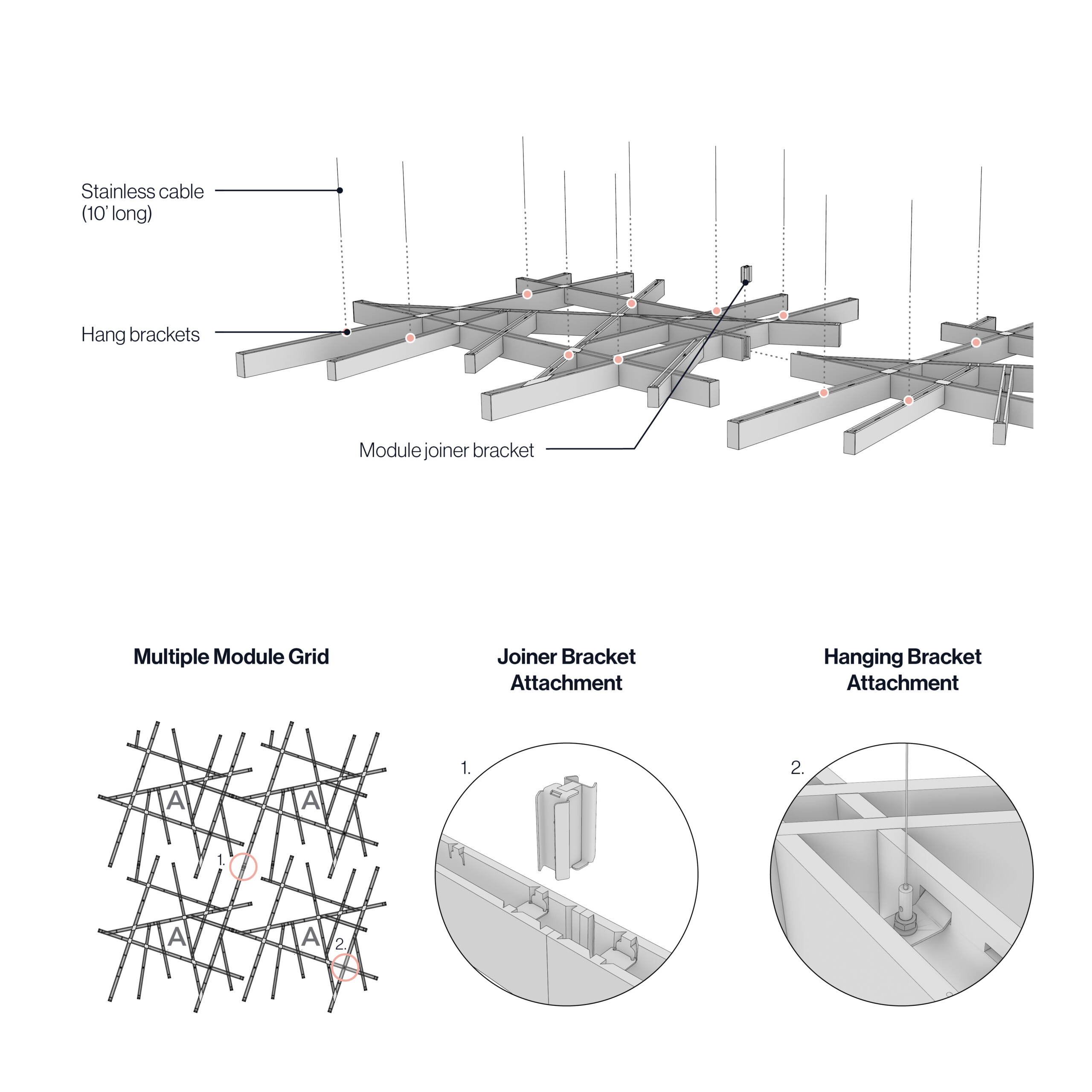

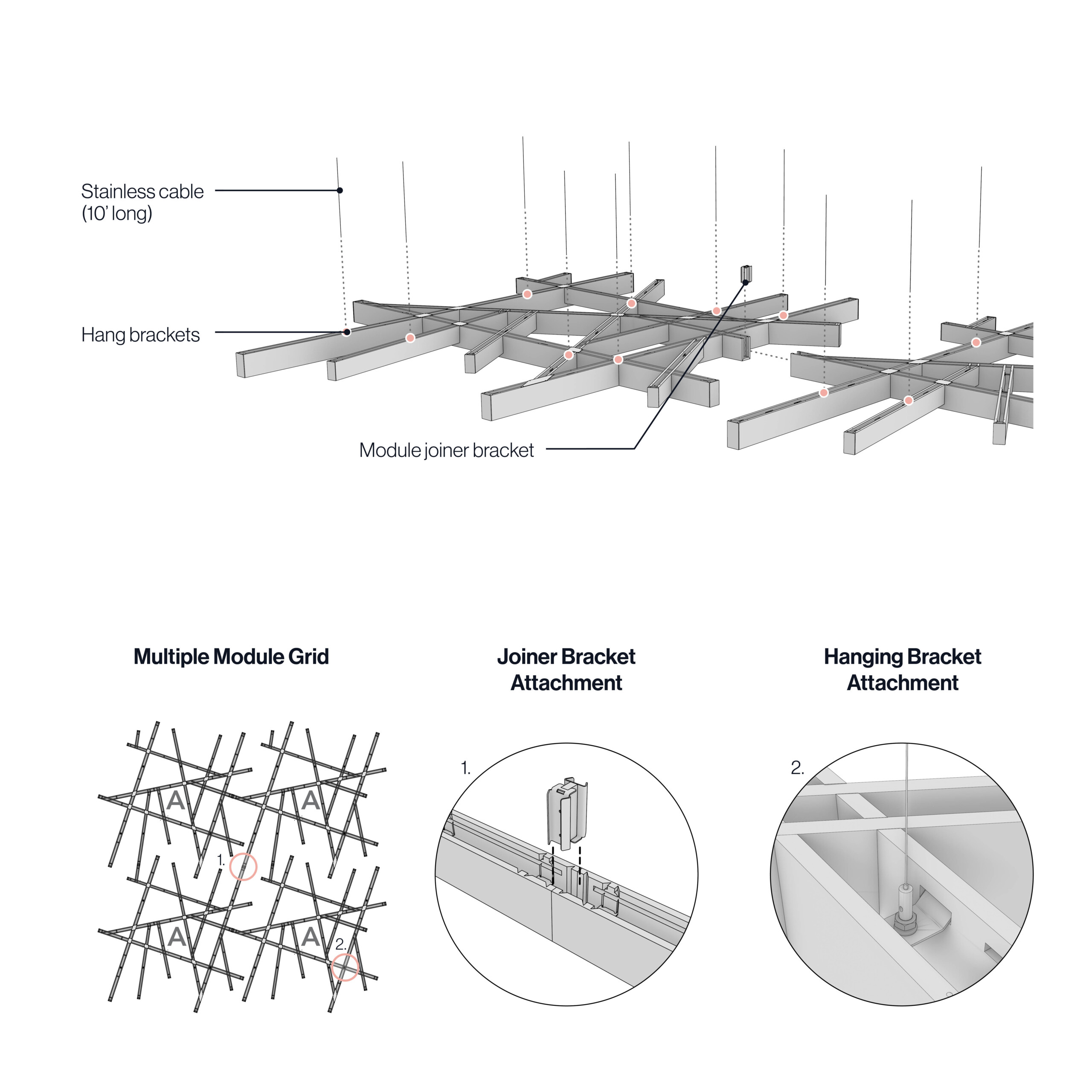

Attachment Details & Grid Configuration
Optional Duo Tone
System Specs
- Dimensions (WxLxD)
- 8’-0” x 8’-0” x (Min. 3 3/4’’ Max. 4 3/4” Hexagon Imperial
- Fin Material
- 12mm Soft Sound® (PET), Stainless Steel
- Openness in Plan
- 80%
- Fire Rating
- ASTM E84 - Class A
- Attachment Method
- 1/16" Stainless Cable and Hardware
- Accessibility
- Yes, quick release cables
- Trimmability
- Yes, per installation manual
Downloads
-
Arborisa® Nest – Product Brochure PDF – ImperialBrochure3 MBpdf
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
Arborisa® Nest – 3D DWG – Imperial3D Model1012.95 KBzip
-
Arborisa® Nest – 3D SKP – Imperial3D Model268.09 KBzip
-
Arborisa® Nest – 3D RFA – Imperial3D Model58.97 MBzip
How to Specify:
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.
-
SELECT A COLOR/DUO OPTION
Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo finish option to your SoftGrid® modules on select styles.
-
SELECT NUMBER OF MODULES
All Arborisa™ modules are scalable by design. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
