Arktura Backlighting

Arktura Backlighting is a lighting solution that fully integrates with Arktura's lines of ceiling and wall panels, Vapor®, VaporSoft®, Vapor® Graphic Perf®, Trace®, and Delta Drop® and is compatible with torsion grid ceiling systems as well as Arktura's Vertika® wall system. Our Backlighting offers even lighting across spaces diffused with our translucent backer.

Downloads Find a rep Add to project

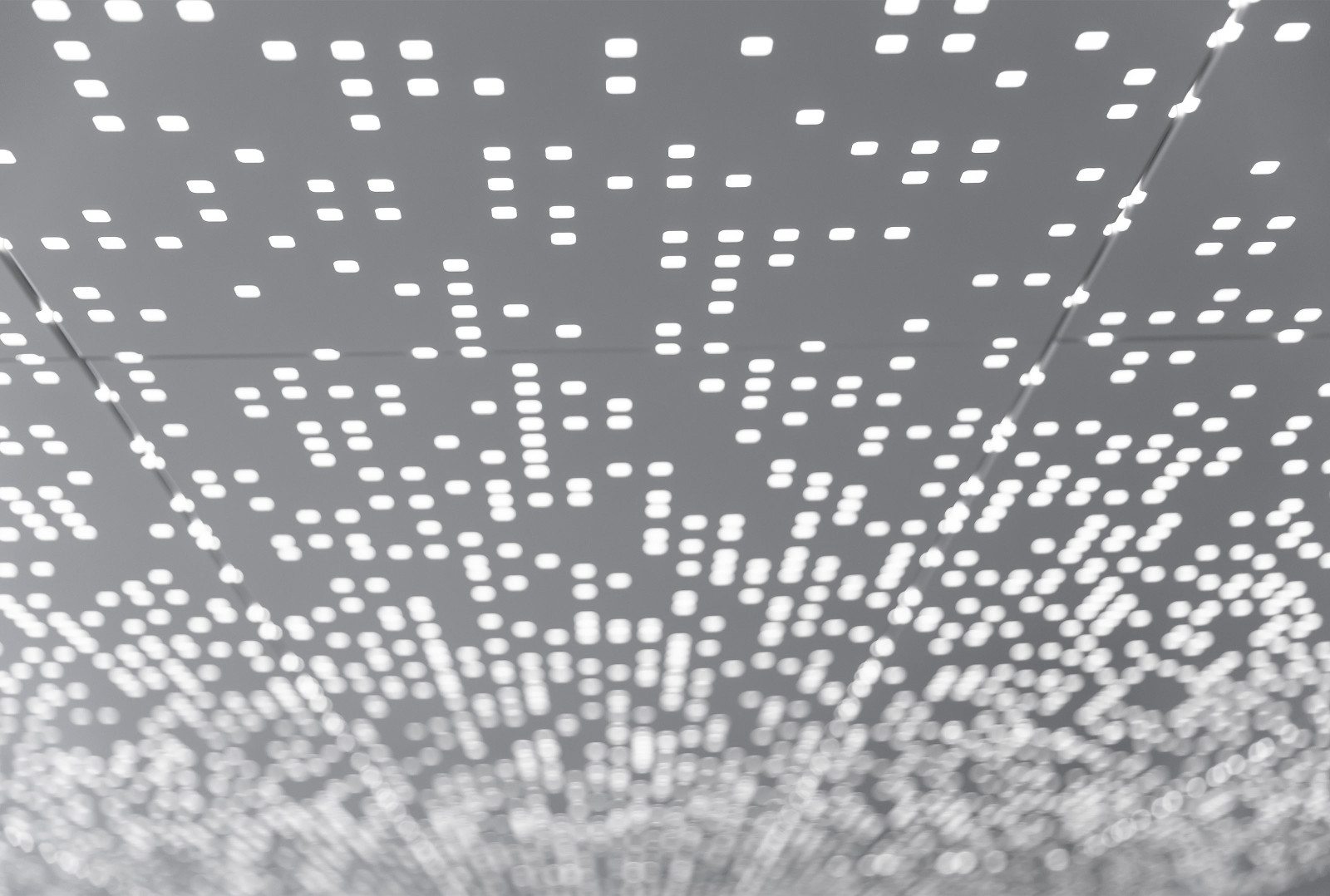

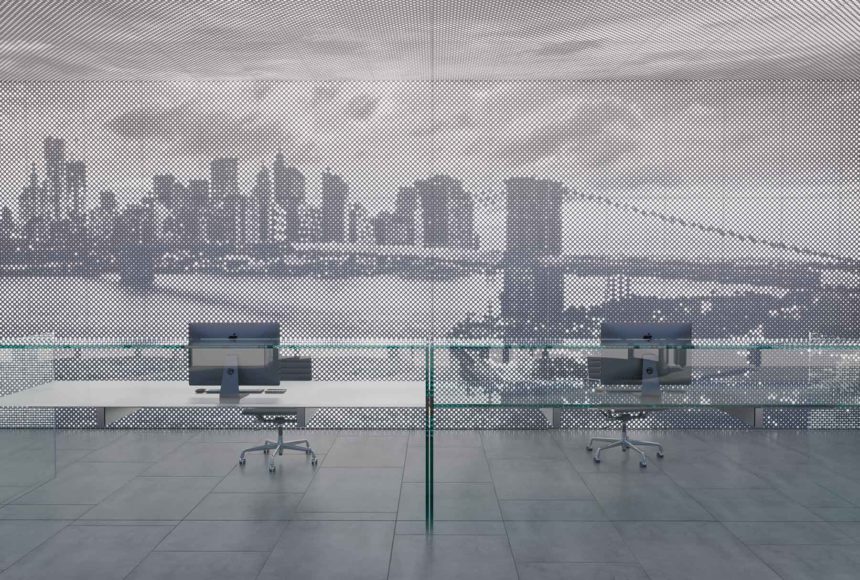

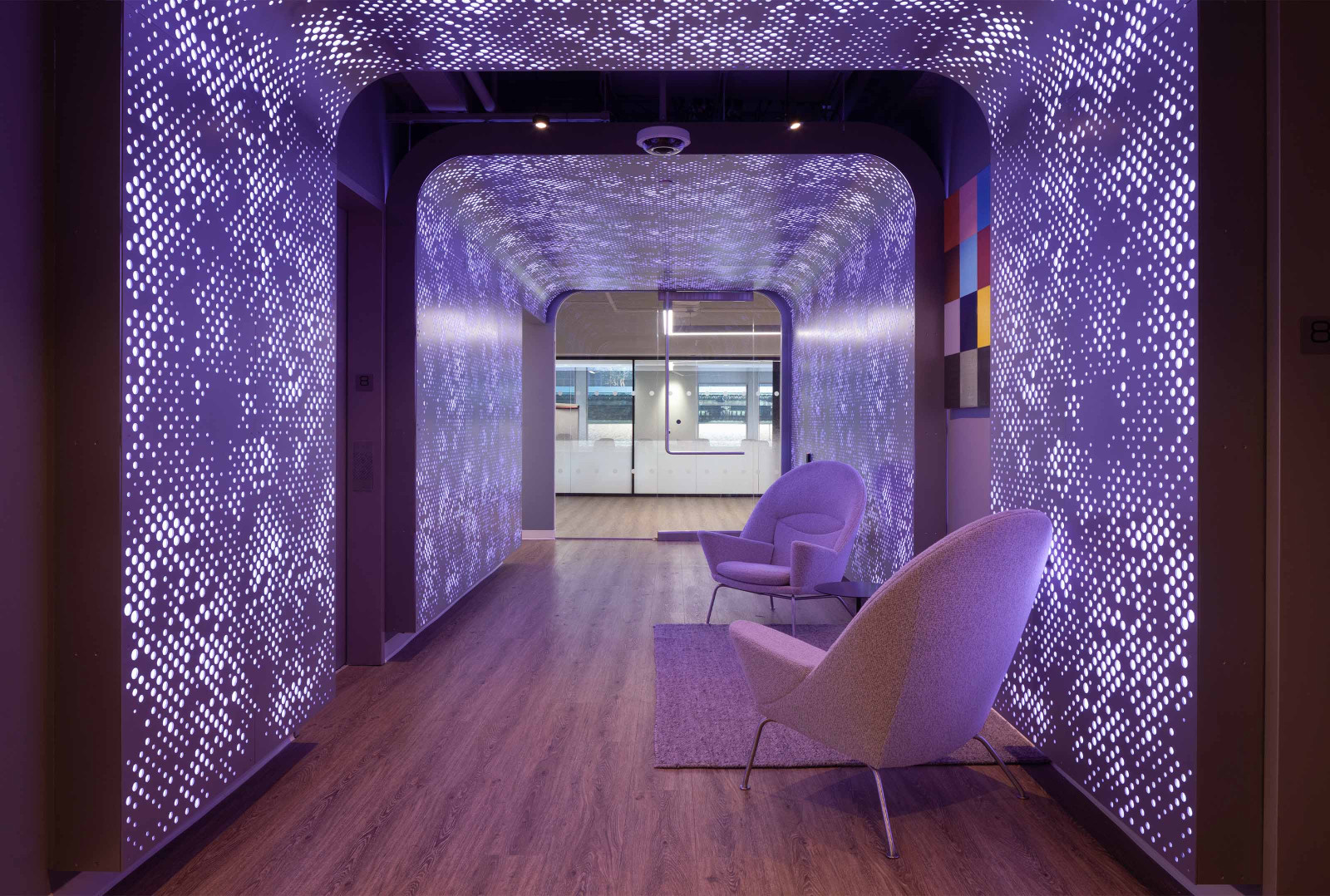

Arktura Backlighting in Use

Expand
Expand
Expand
Expand

Available Across the Following Lines

Backlit Vapor Cora across wall and ceiling.

Vapor®

: A lobby area has a person on their phone walking through the open space.

VaporSoft®

Vapor® Graphic Perf® Adaptive

Graphic Perf® Solutions

Arktura Delta Drop

Delta Drop®

Trace®

Particle®

Product Details

Diagrams Specs

Ceiling

Wall

Front & Side Views

Photometric Diagram

System Specs

Size (WxLxD)
48" x 24" x 3" Imperial |
CRI
80+
Color Temperature
3000K, 3500K, 4100K
UL Rating
Listed
Voltage
24 Volts
Dimming Options
MLV, 1-10V, 0-10V
Plenum Rated Wire
Standard

Arktura Backlighting

Total Lumens
5940 Lm/2x4 Panel
Delivered Lumens
5490 Lm/2x4 Panel
Power Consumption
66 Watts/2x4 Panel

Arktura Backlighting Eco

Total Lumens
2250 Lm/2x4 Panel
Delivered Lumens
2250 Lm/2x4 Panel
Power Consumption
25 Watts/2x4 Panel

Downloads

  • Arktura Backlighting Specifications Brochure PDF
    Brochure
    483.37 KB
    pdf
  • Arktura Backlighting – DWG – Imperial
    3D Model
    204.46 KB
    zip
  • Arktura Backlighting – SKP – Imperial
    3D Model
    1.87 MB
    zip
