SoftSpan® Taper 96
SoftSpan® Taper 96 is a large-scale acoustic statement engineered from our 12mm Soft Sound® material, ensuring sound absorption while showcasing its upscale aesthetic. Ideal for expansive spaces, SoftSpan® Taper 96 seamlessly integrates with existing SoftSpan® structures and SoundBar®, allowing for a cohesive and elegant design throughout. The cable-hung design and trimmable features facilitate easy customization and installation.
Key Features
-
Reduce Noise & Enhance Acoustics
SoftSpan® Taper’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftSpan® Taper’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Modular Design
The adaptive design of SoftSpan® Taper enables you to complete your design with perimeter and corner modules for a cohesive, enclosed look.
-
Timber Trellis without the Weight

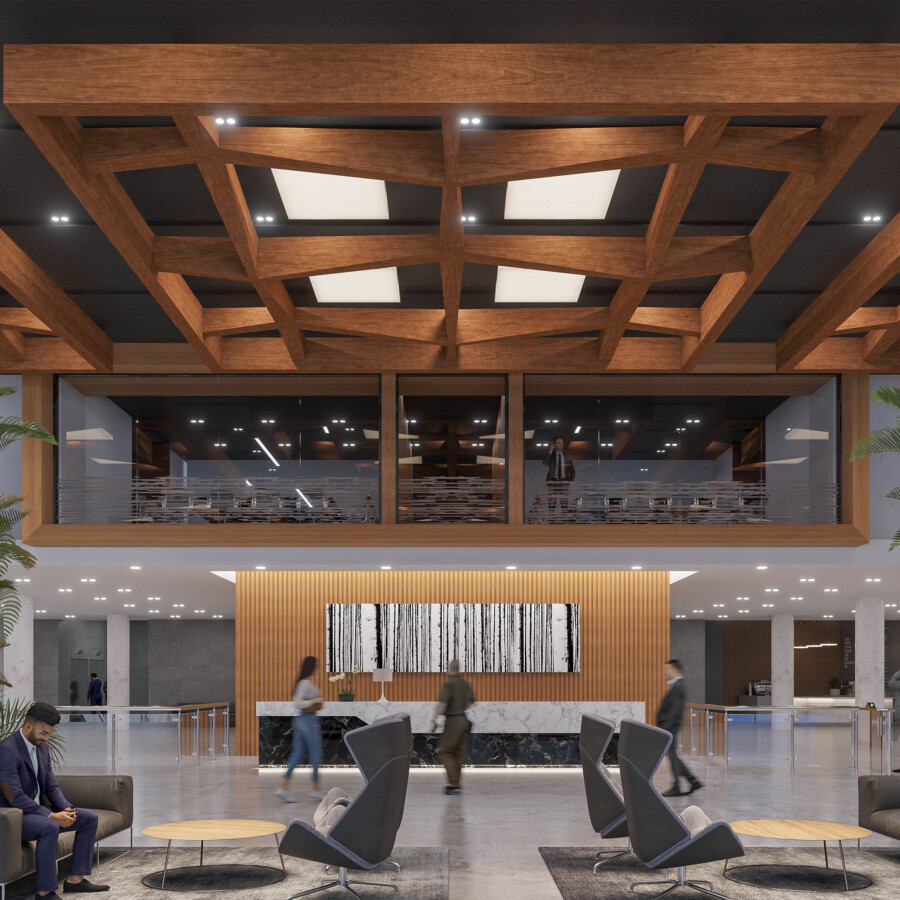

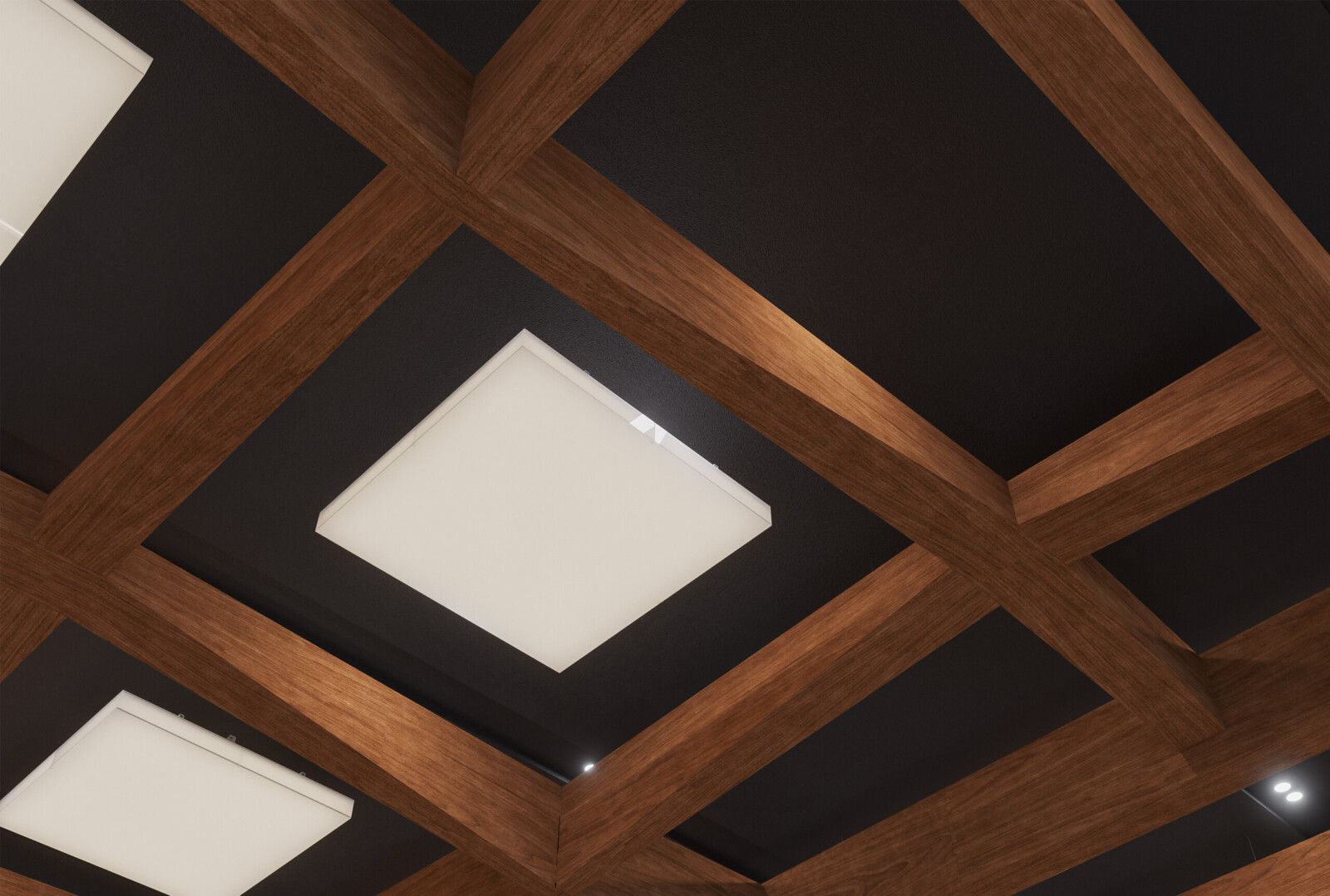

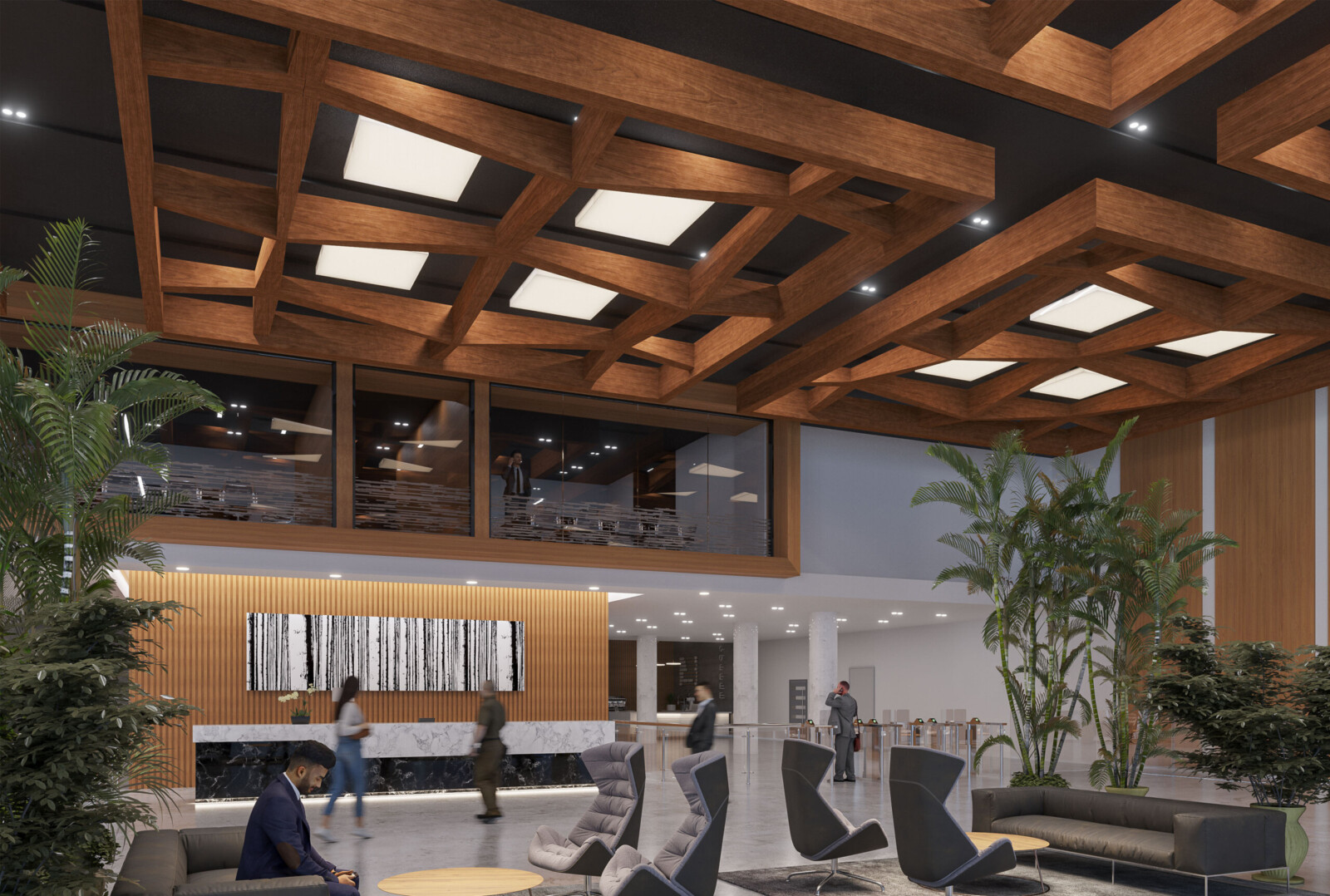

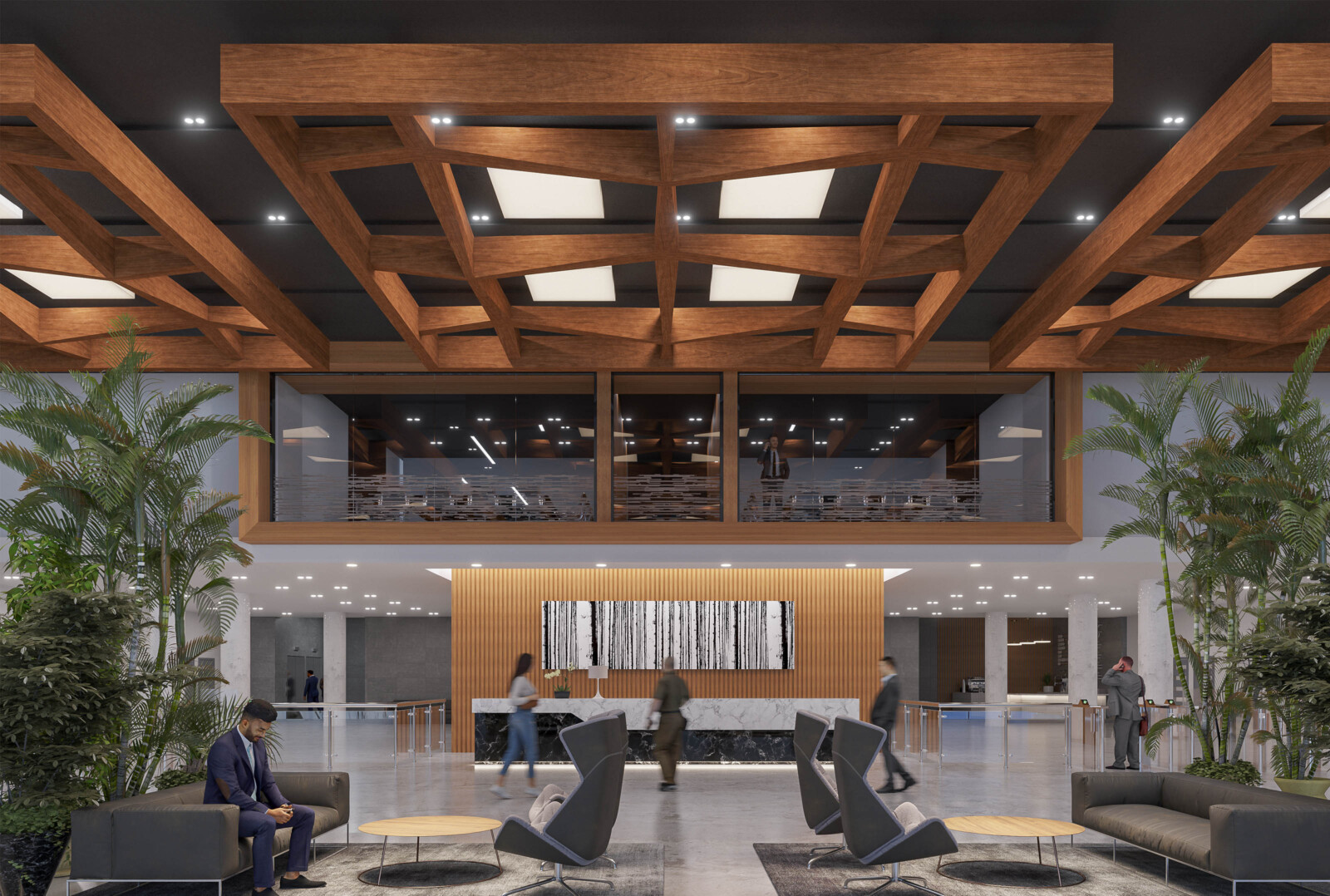

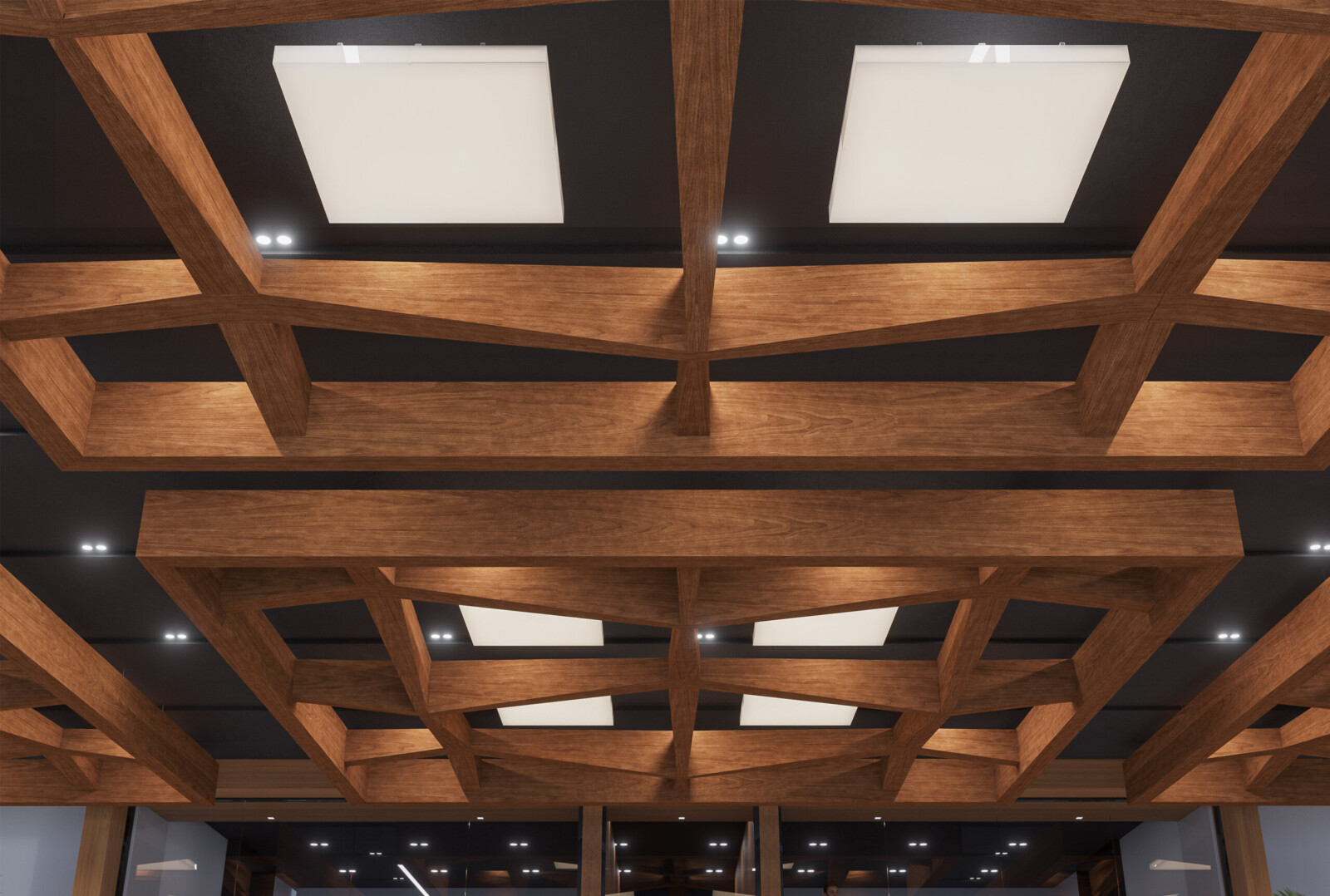

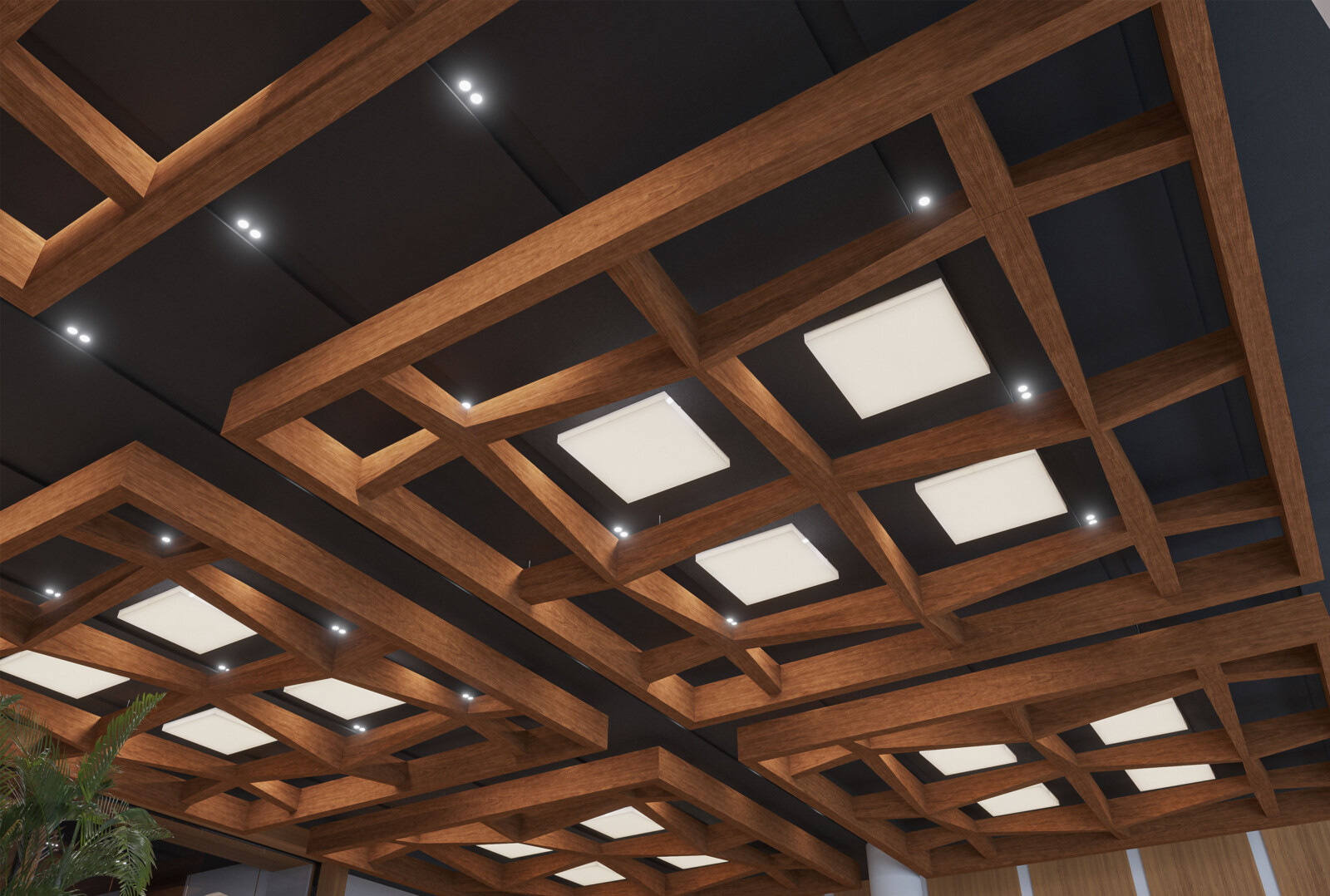

SoftSpan® Taper in Soft Sound® Wood Texture brings the aesthetics of a timber trellis into your space without the weight while also adding acoustic performance.
-
Open Accessibility in Plan
SoftSpan® Taper’s open grid design makes integrating systems above or below the modules simple and feasible. Easily accessible open trellis beam structure makes accessing HVAC, rig points, plumbing, and life safety systems simple.
-
Preconfigured Field Trimmable Solution
SoftSpan® Taper modules can be trimmed in the field. By rearranging our adjustable hangers; we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.
Soft Sound® Baffle & End Cap Finishes
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETMetal End Cap Finishes
Powder Coated Aluminum - Premium Metallic Finish
AluminumProduct Details

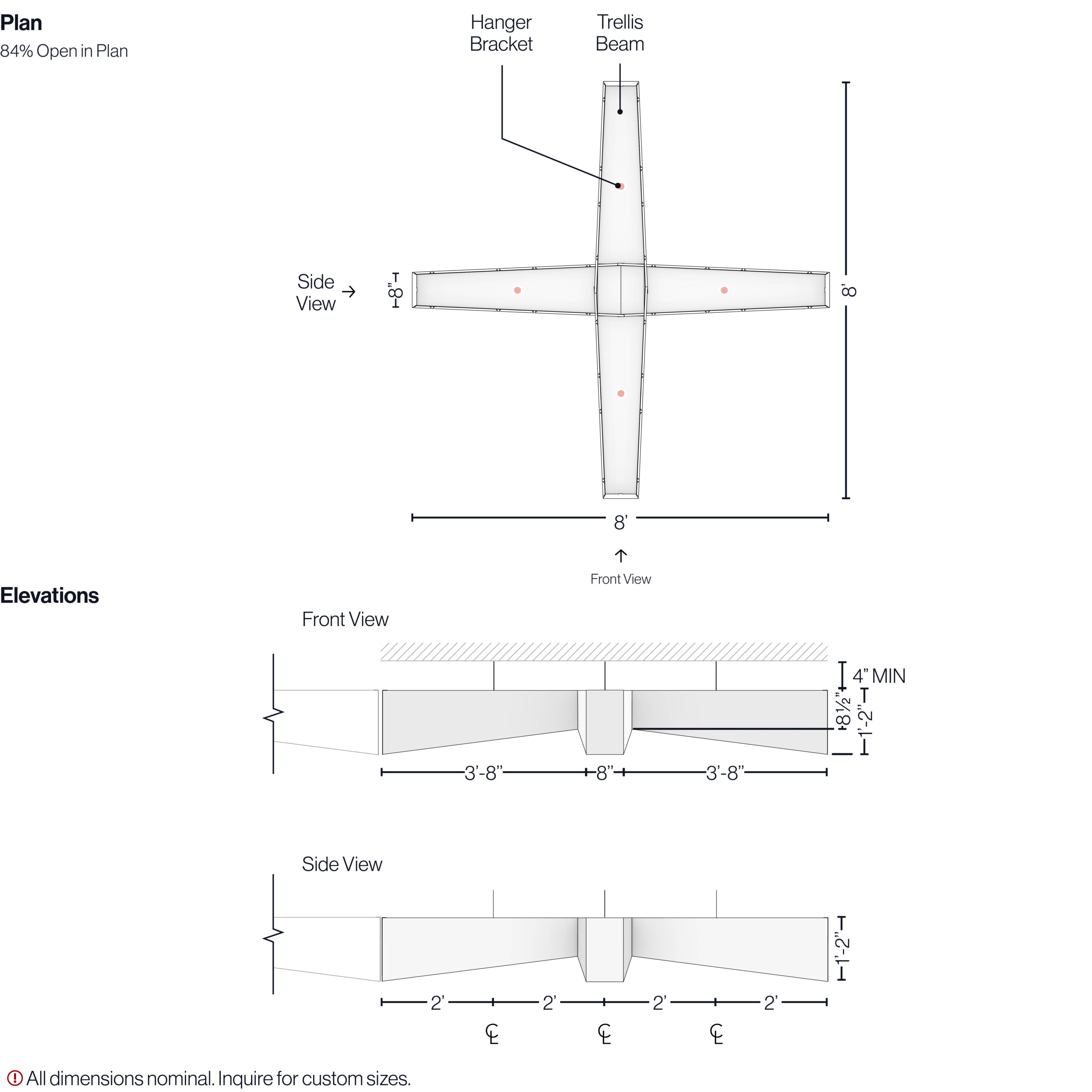

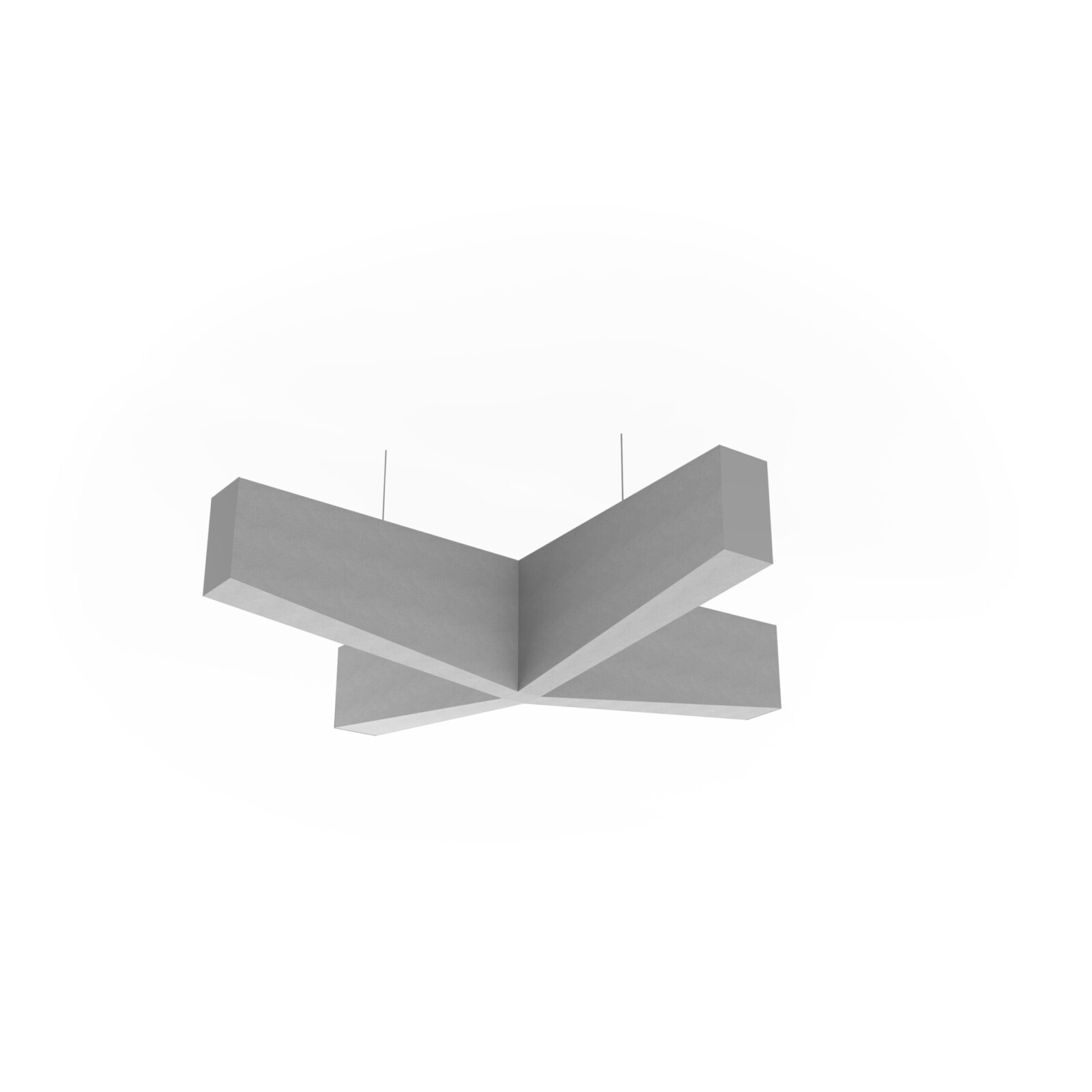

Standard Module

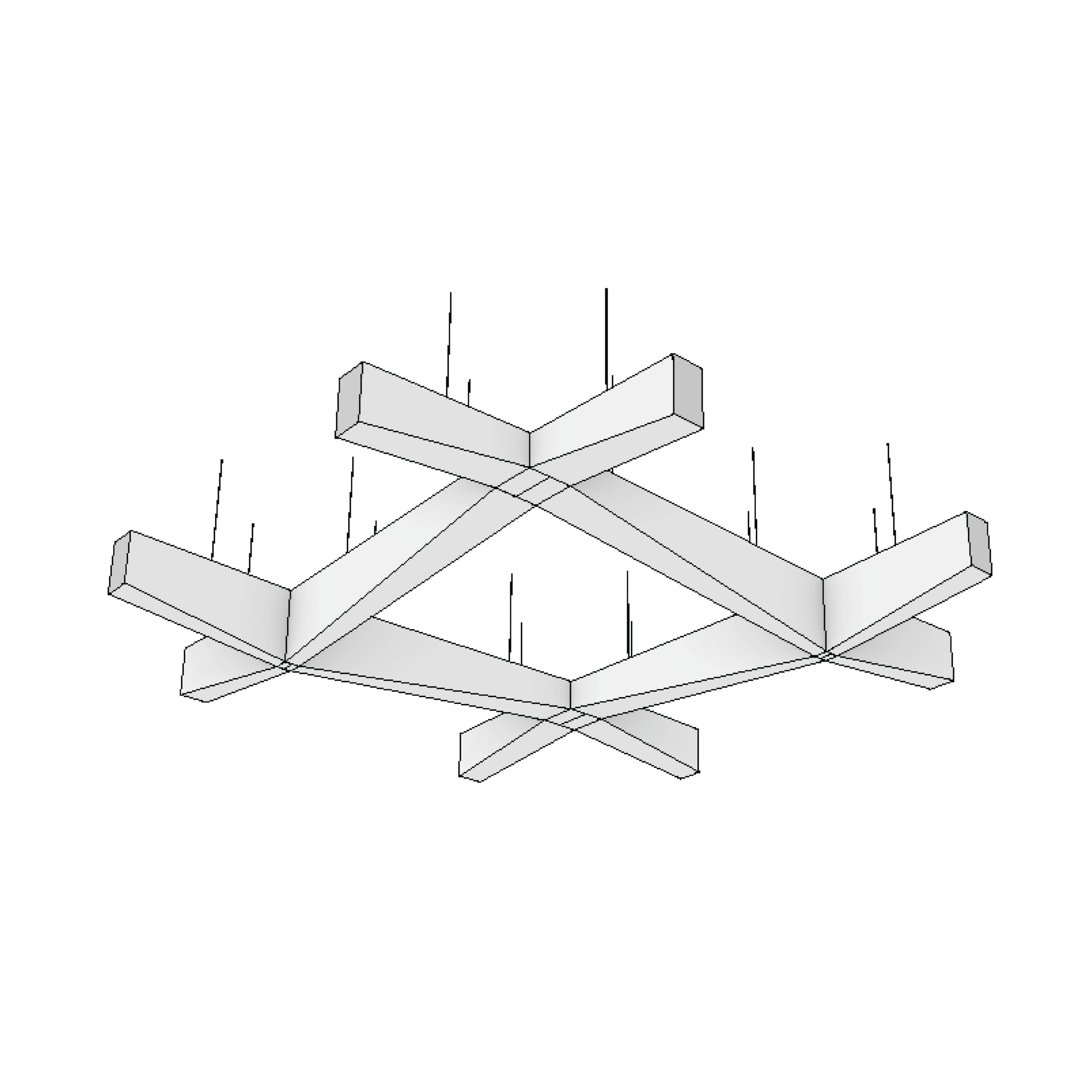

Multiple Modules

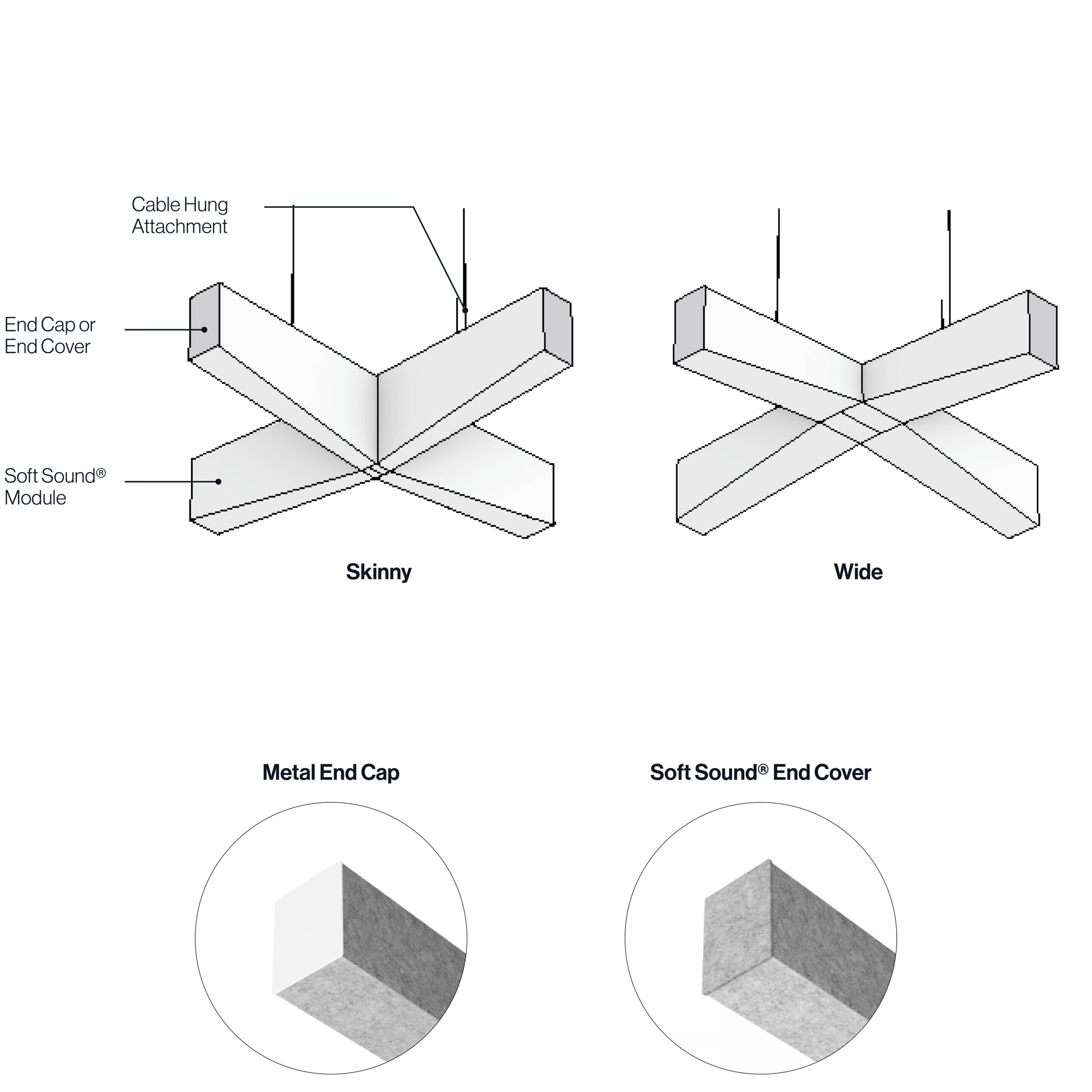

Understanding the Module - Skinny
Understanding the Module - Wide

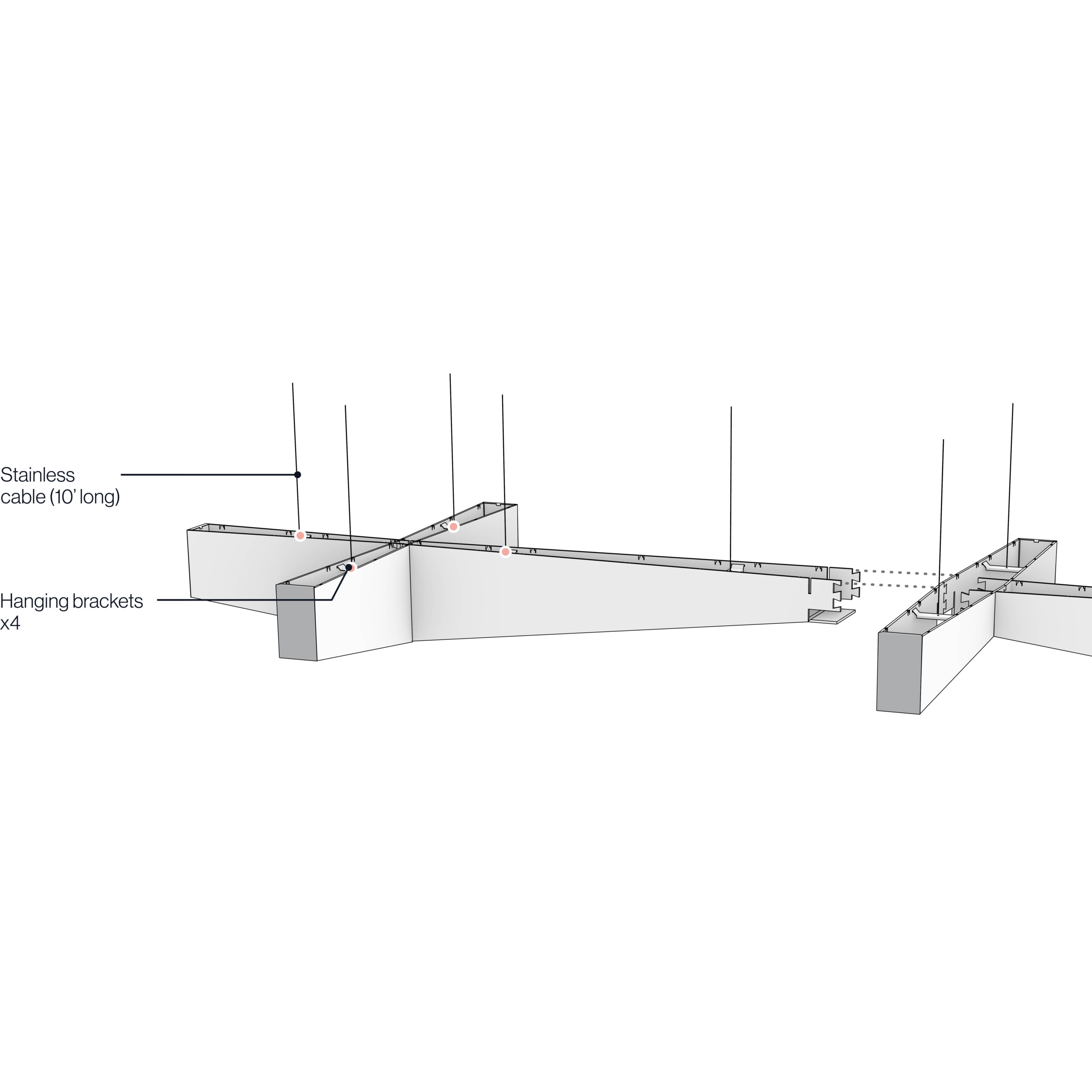

Attachment & Install

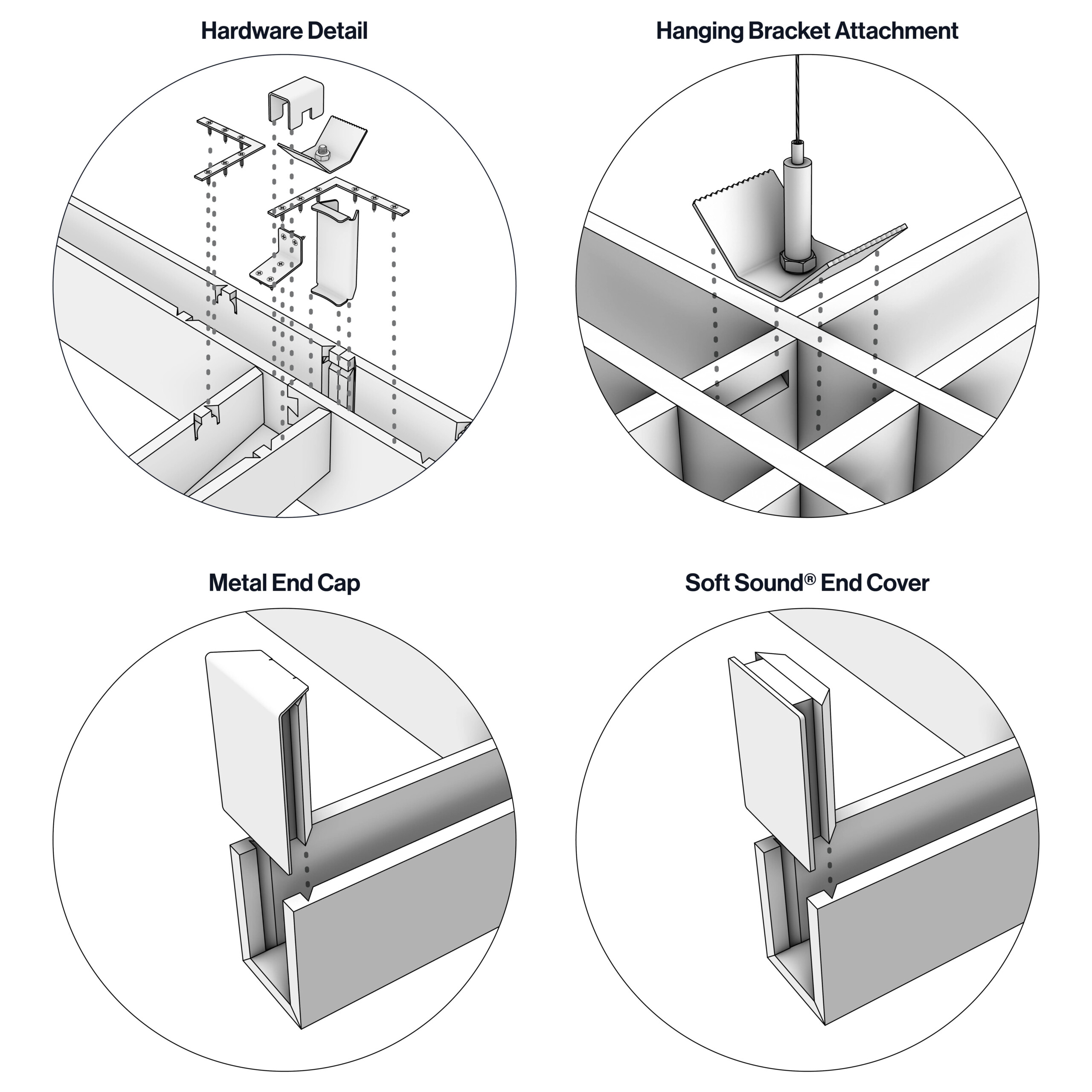

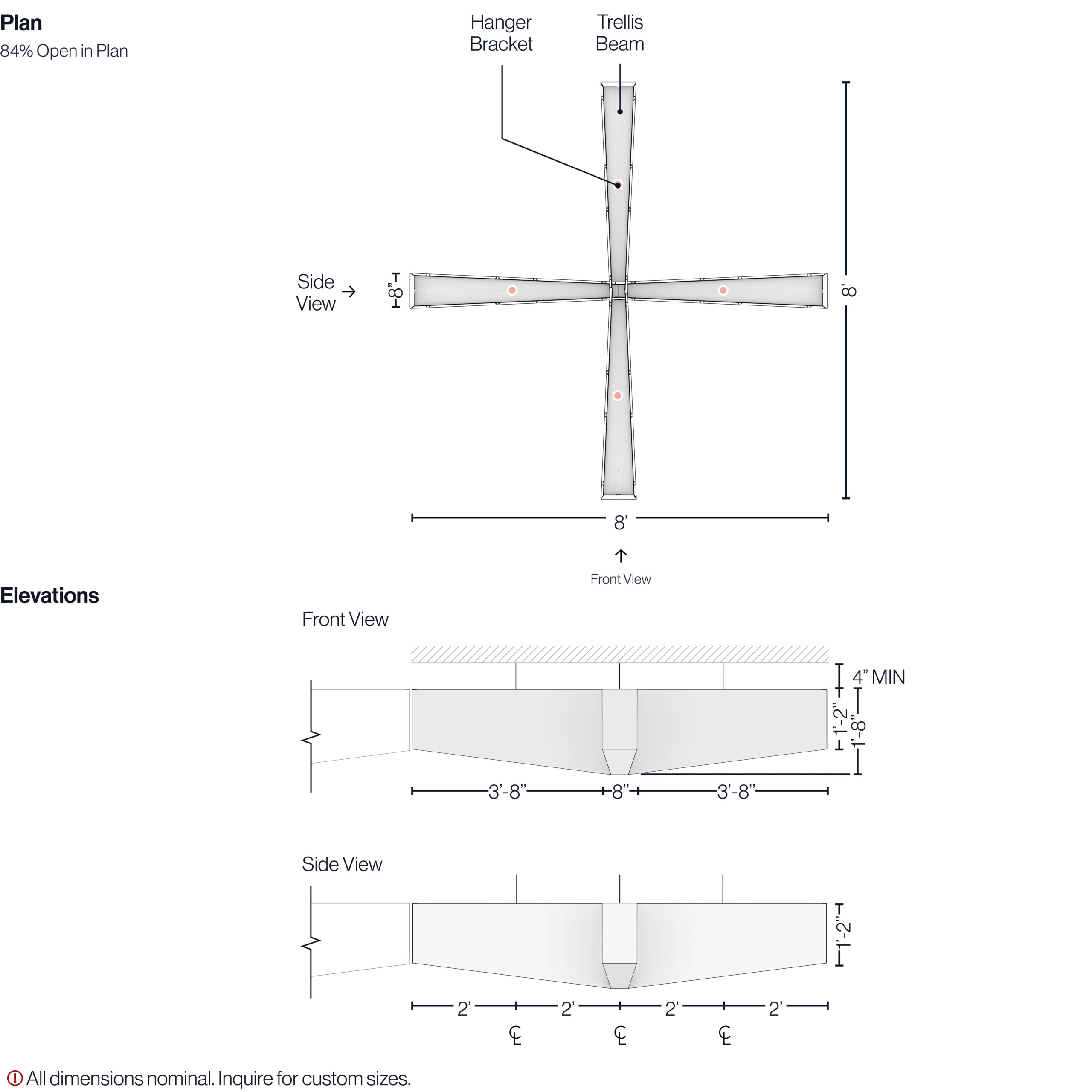

Edge & Attachment Details

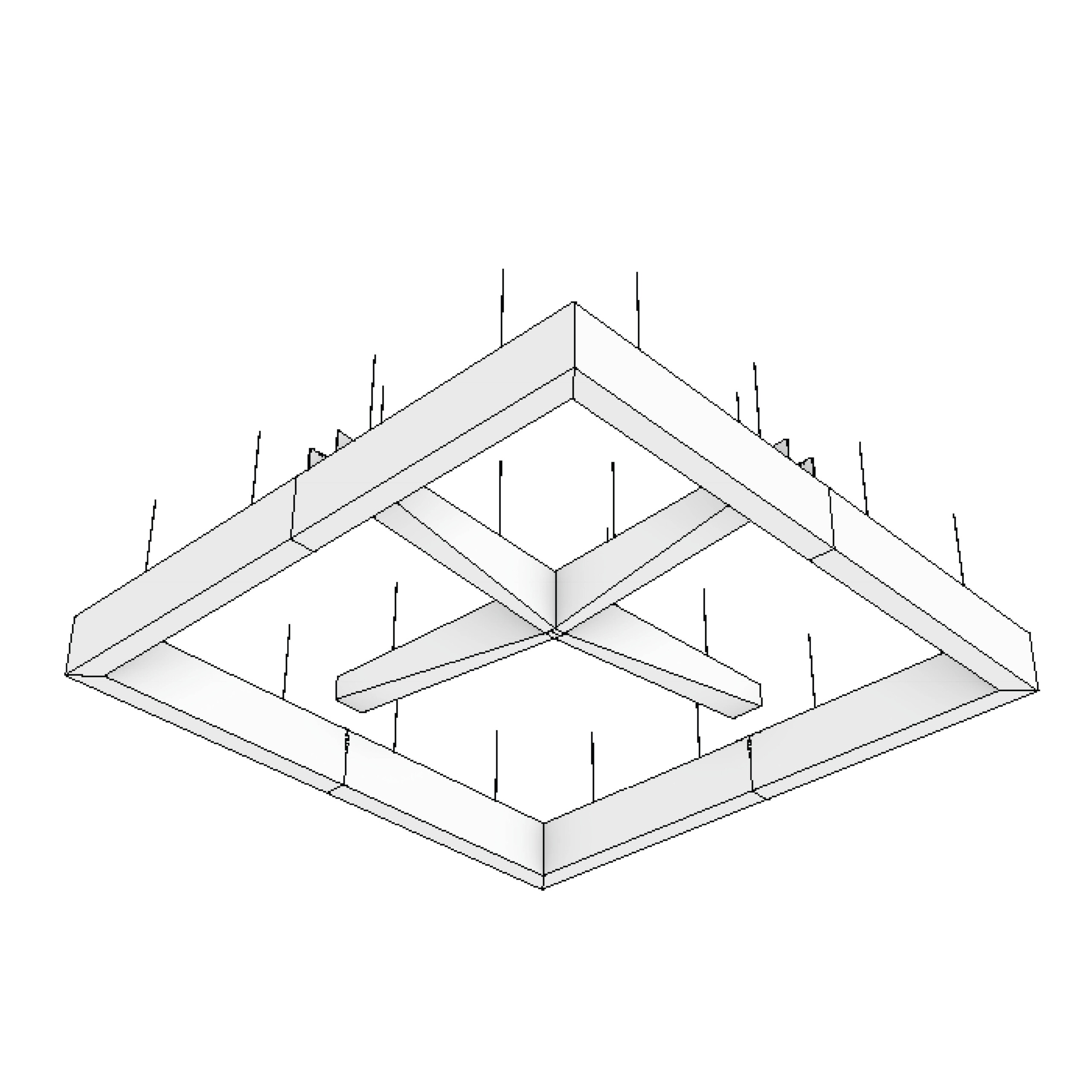

Accessory Option - Closure Beams

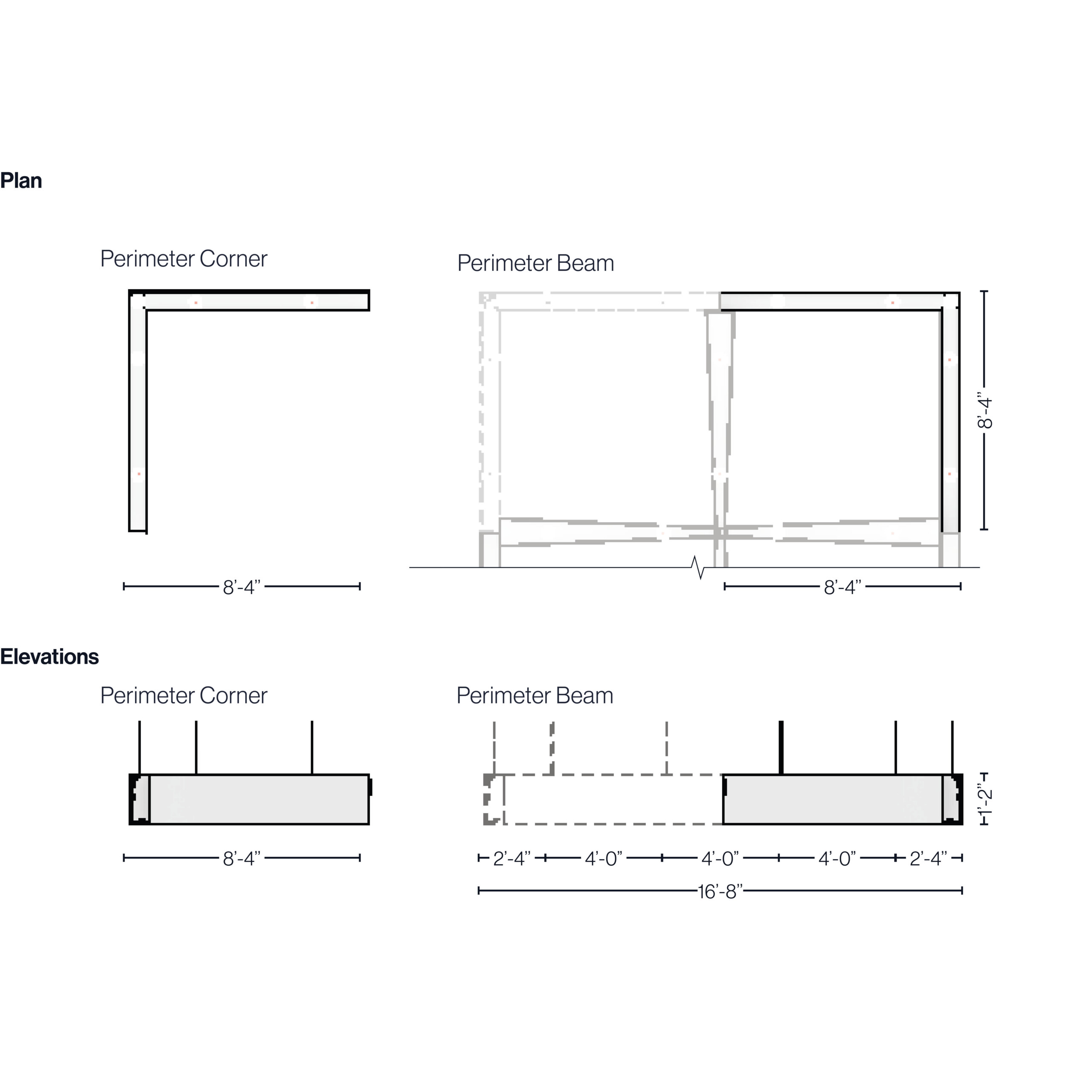

Closure Beams - Plan & Elevations
System Specs
- Dimensions (WxLxD)
- 8' x 8' x 1'-2" Imperial
- Module Material
- 12mm Soft Sound® (PET)
- End Cap Material
- Powder Coated Aluminum or Soft Sound®
- Openness in Plan
- 84%
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- True NRC® 0.60 (Skinny) - True NRC® 0.55 (Wide) ; F-300 Method
- Attachment Method
- Cable Hung
- Accessibility
- Yes, quick release cables
- Trimmability
- Yes, per installation manual
- Accessories
- Perimeter Beams & Corners
Downloads
-
SELECT A STYLE
SoftSpan® Taper is available in a variety designs and sizes. This stage is a good opportunity to choose between an open trellis or closed coffer look.
-
SELECT A COLOR
Modules are available in a variety of colors and wood finishes. See our Soft Sound® color brochure for more information
-
SELECT NUMBER OF MODULES
SoftSpan® Taper is scalable by design. Select the quantity of modules needed for your project.
-
OPTION TO ADD CLOSURE BEAMS
SoftSpan® Taper offers closure beams to give your layout a refined Soft Sound® edge.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
Product Design Consultant Gensler
