Tapestra™ Lace
Tapestra™ Lace offers linear organization to this family of organic, free-flowing structures and a captivating array of cone-like forms creating a dynamic, textured ceiling surface. The three-dimensional geometric design, with its intriguing play of light and shadow through subtle openings, enhances visual interest. Install multiple modules to build an acoustic array in any interior space.
Key Features
-
Reduce Noise & Enhance Acoustics
Tapestra™ is made of Soft Sound® material, reducing the impact of noise from everyday annoyances like ringing, typing, and chatter, resulting in a more pleasant and productive environment. This material works in concert with the design to help reduce and control reverberations, leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Field Modifiable
Tapestra™ Weave, Lace, and Pleat modules can be trimmed down to a minimum of four fin intersections. We make it easy for you to specify standard modules that can be easily field-modified around anticipated or unforeseen site conditions during installation.
-
Dual Acoustic Composition
This unique form factor features 12mm Soft Sound® ribs, which support the module, along with 3mm thin Soft Sound® ribbons. These thinner ribbons enable greater curvature and more organic structures in the design. This innovative design not only enhances acoustic performance but also allows for aesthetic versatility, making it a perfect fit for any contemporary space.
-
Seamless Module Tiling
Tapestra™ Weave, Lace, and Pleat modules can be arranged in a continuous pattern to create a fluid and cohesive aesthetic that enhances any space. Meanwhile, Tapestra™ Spool modules can be installed in tandem to form creative clusters that provide effective acoustic coverage. By combining multiple modules, designers can craft visually striking and harmonious environments.
Ribbon Material & Color
Soft Sound® Ribbons
Acoustic PETRib Structure Material & Color
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Essentials
Acoustic PETProduct Details

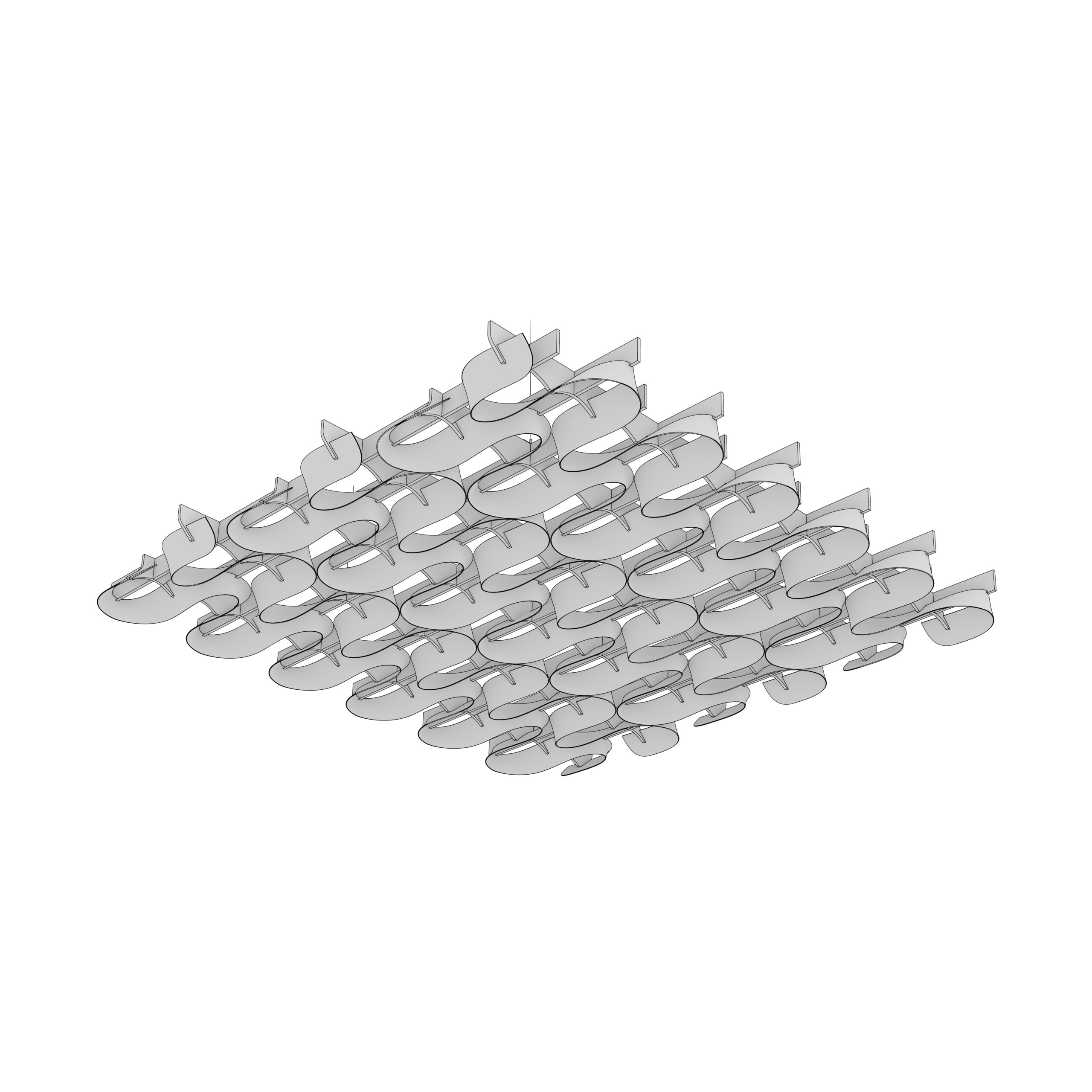

Standard Module

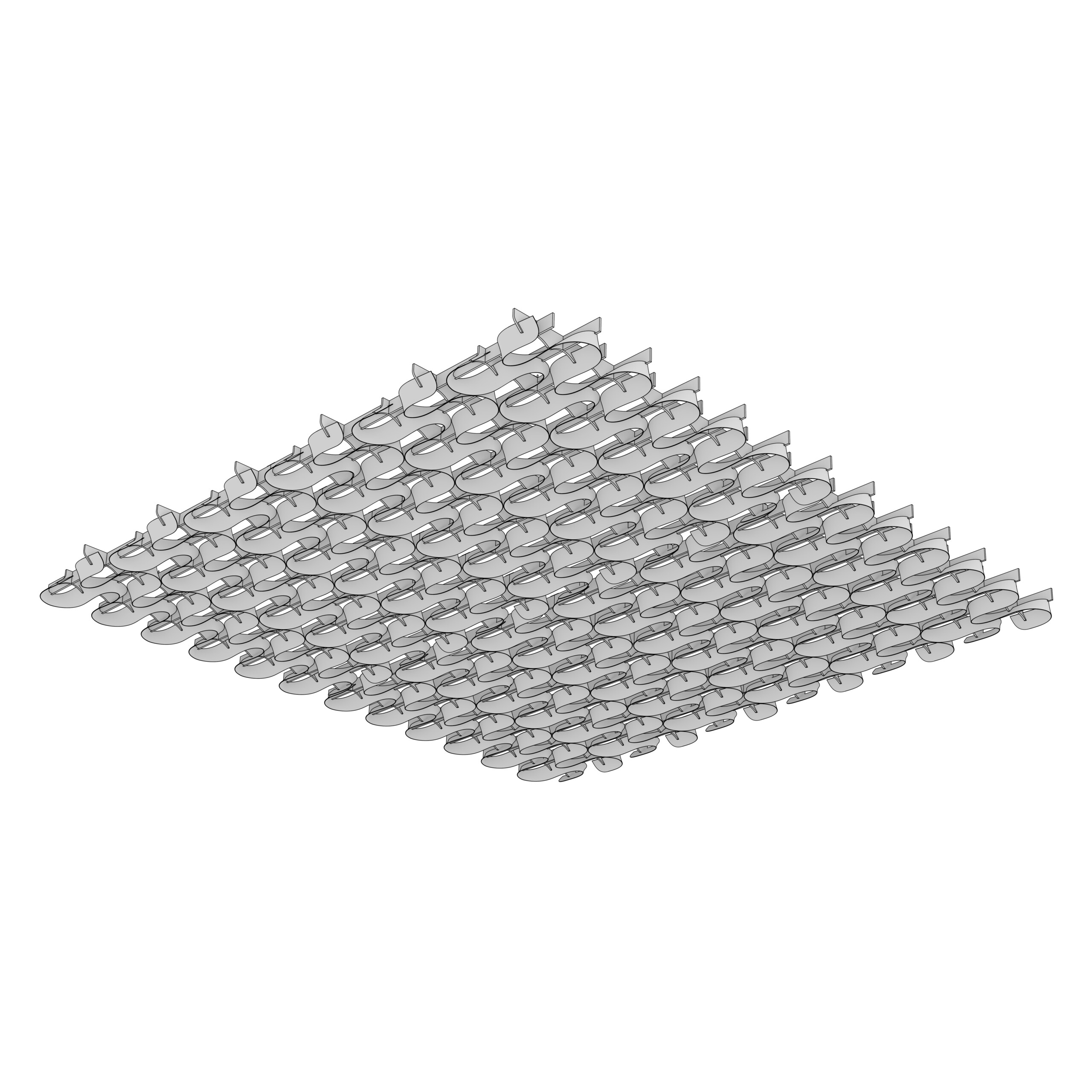

Multiple Modules

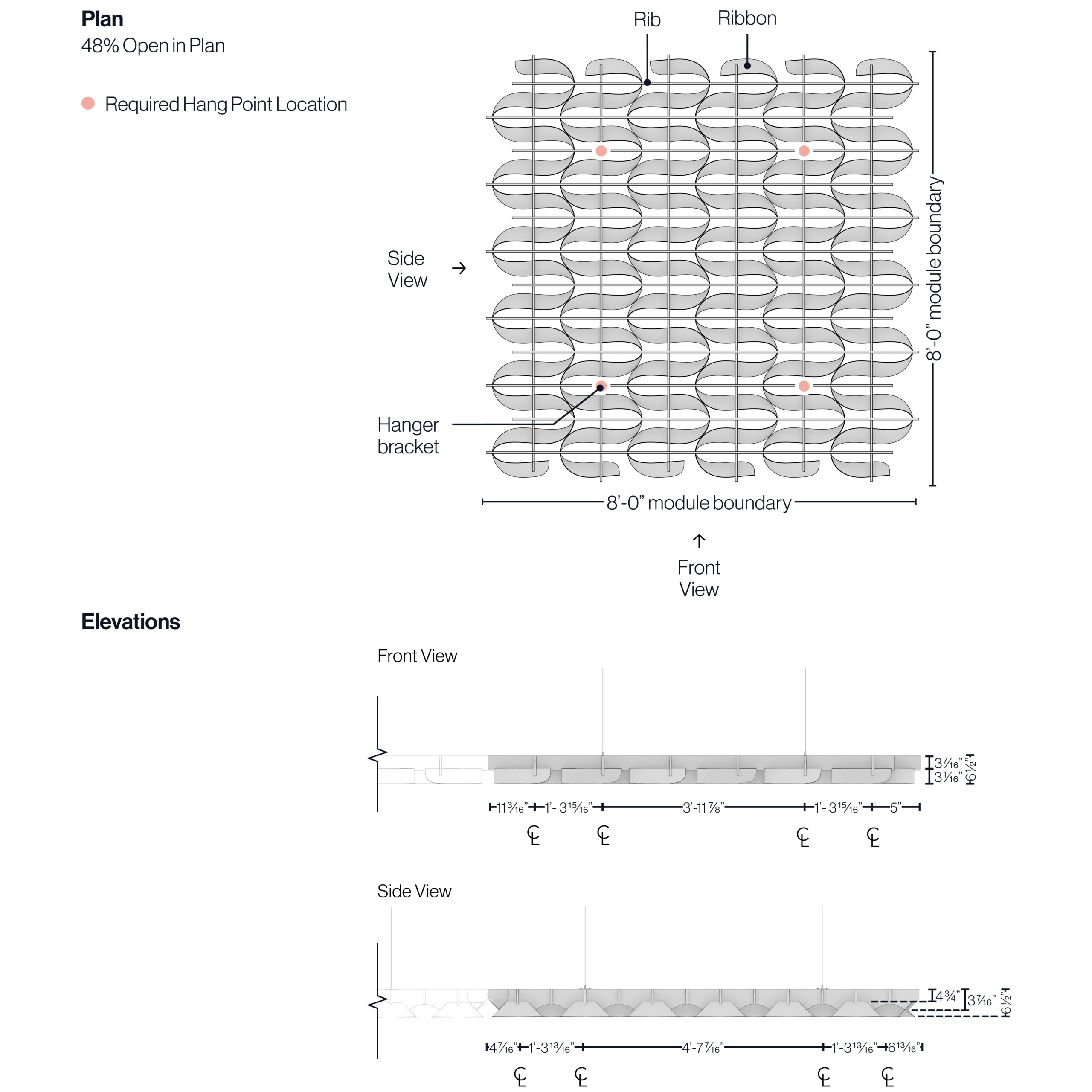

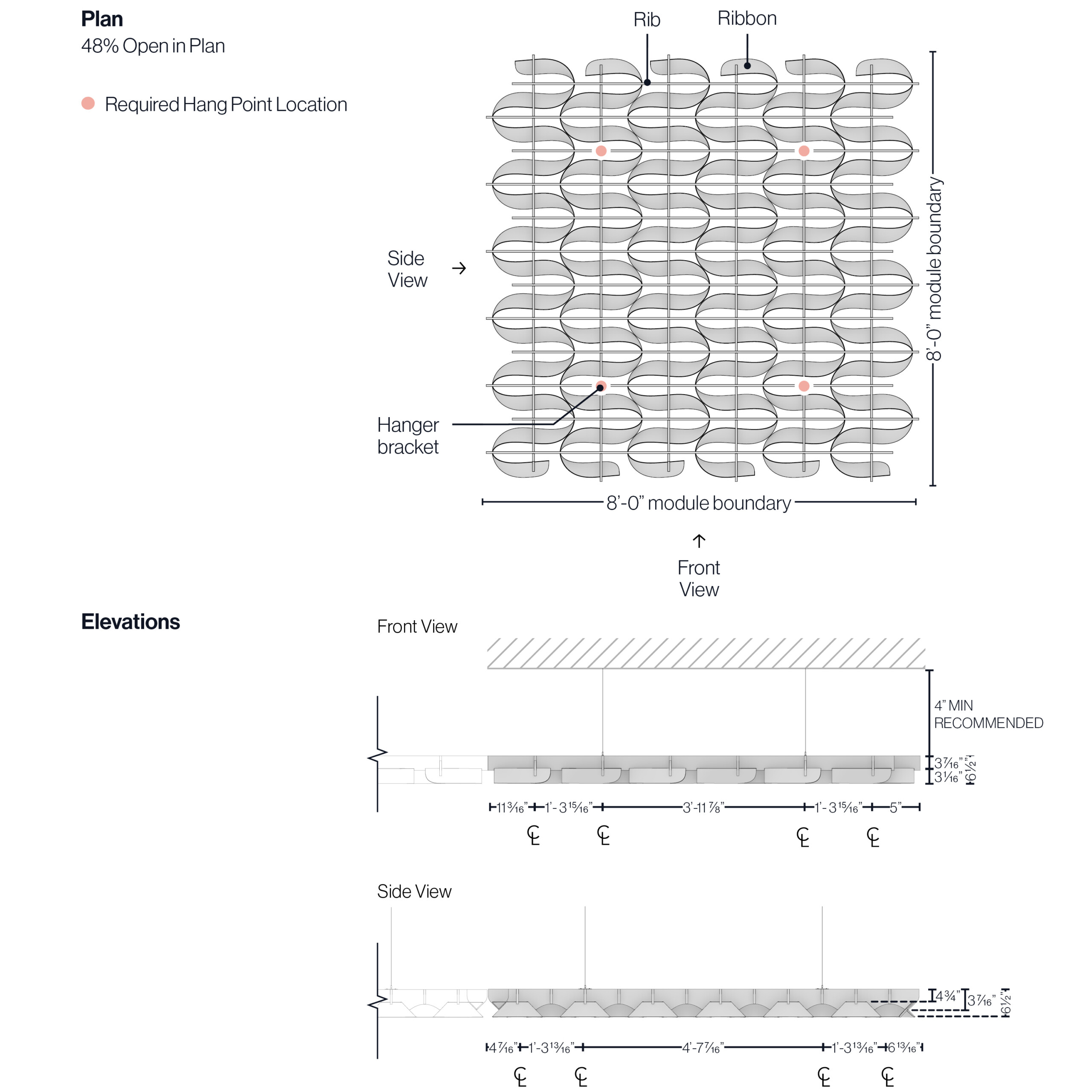

Understanding the Module

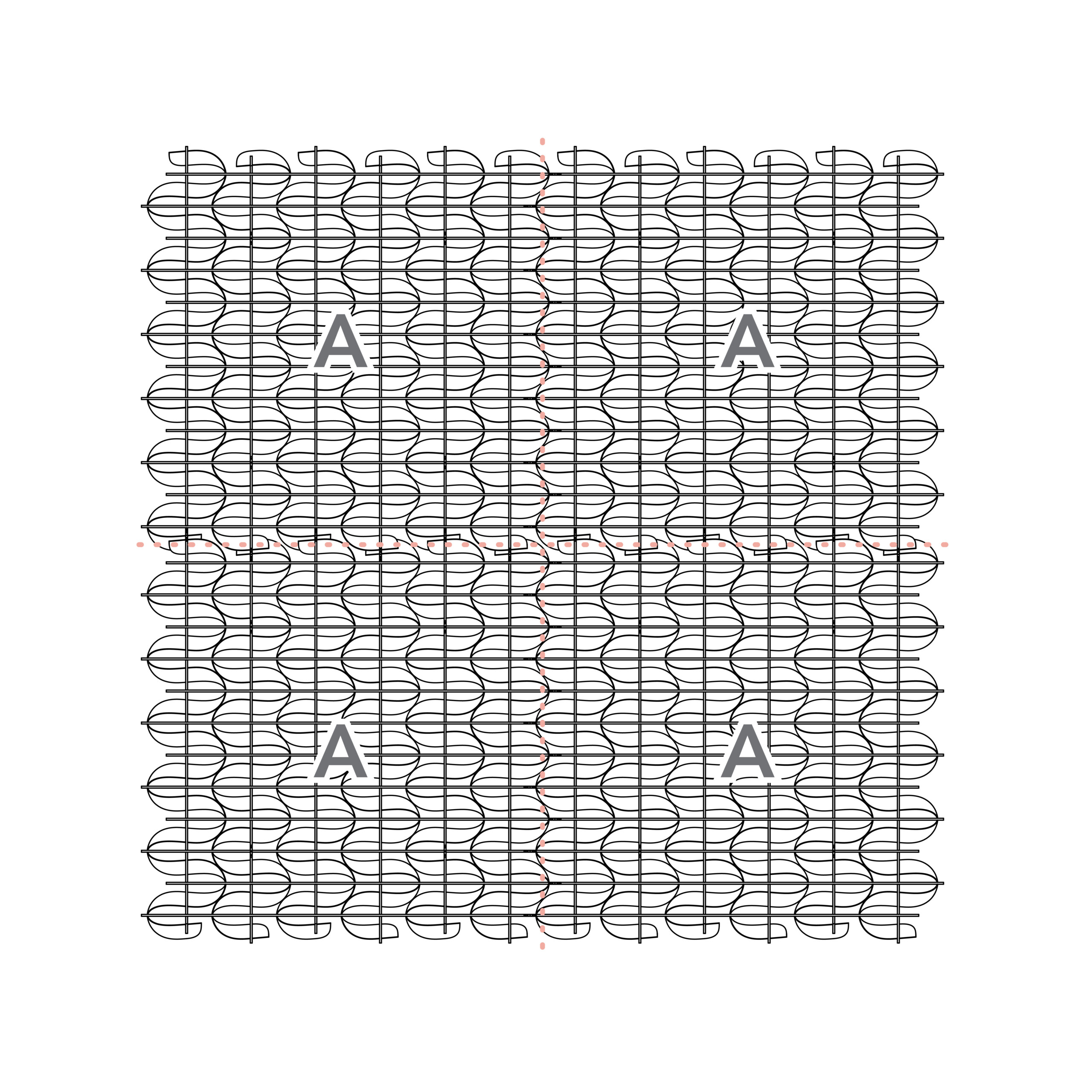

Module Configuration

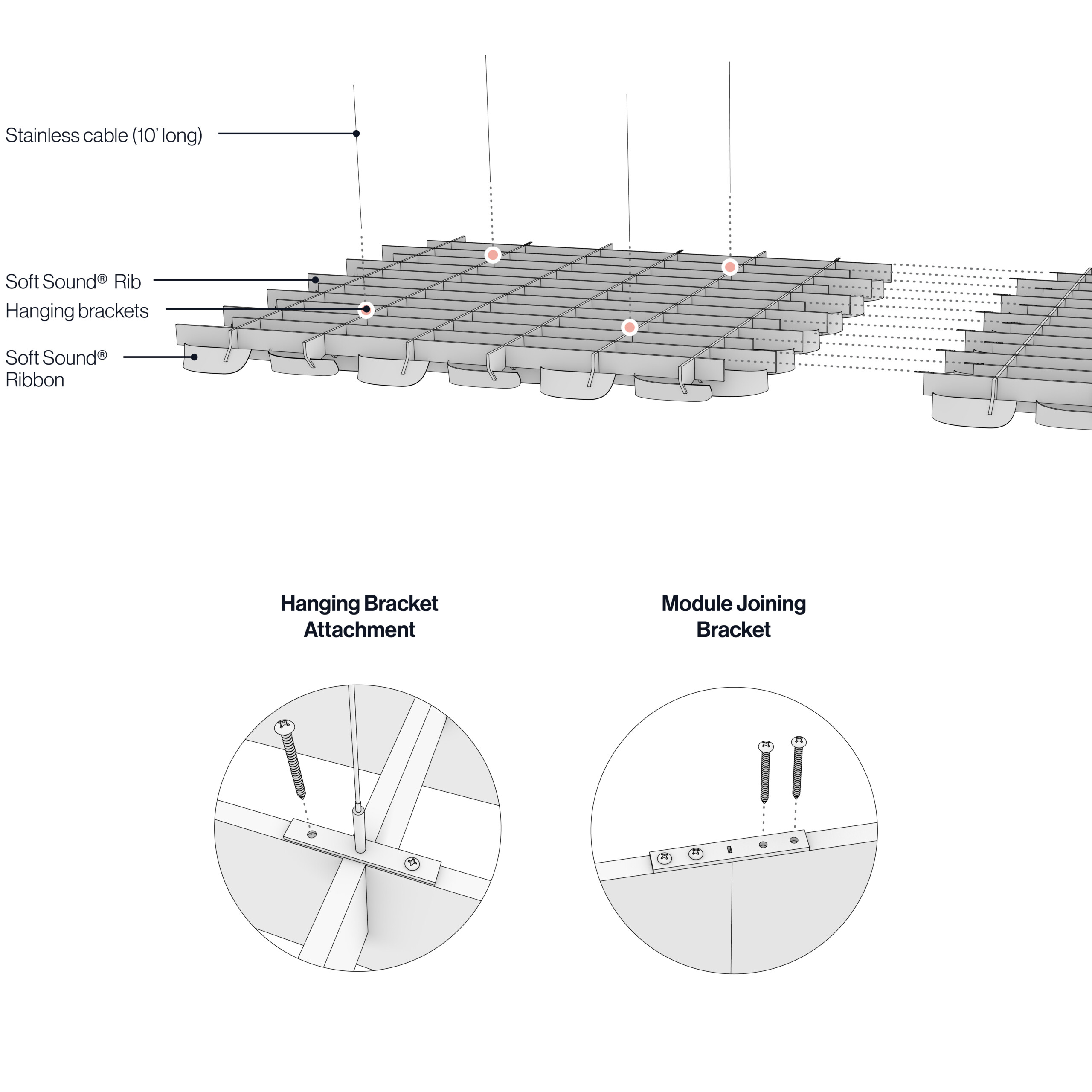

Attachment Details
System Specs
- Dimensions (WxLxD)
- 8' x 8' x 6 1/2"
- Material
- 3mm Soft Sound® (ribbon), 12mm Soft Sound® (rib)
- Openness in Plan
- 48%
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- True NRC® 0.60 (F-100 Method)
- Attachment Method
- 1/32" Stainless Cable and Hardware
- Accessibility
- Yes, quick release cables
- Trimmability
- Yes, per installation manual
Downloads
How To Specify
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.
-
SELECT A COLOR FOR RIBBON AND RIB STRUCTURE OPTION
Modules are available in a variety of colors. Select a finish for both the 12mm rib structure and the 3mm Ribbons below.
-
SELECT NUMBER OF MODULES
Tapestra™ modules Pleat, Weave, and Lace are scalable by design. Spool modules can be installed in clusters for an expansive array. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
