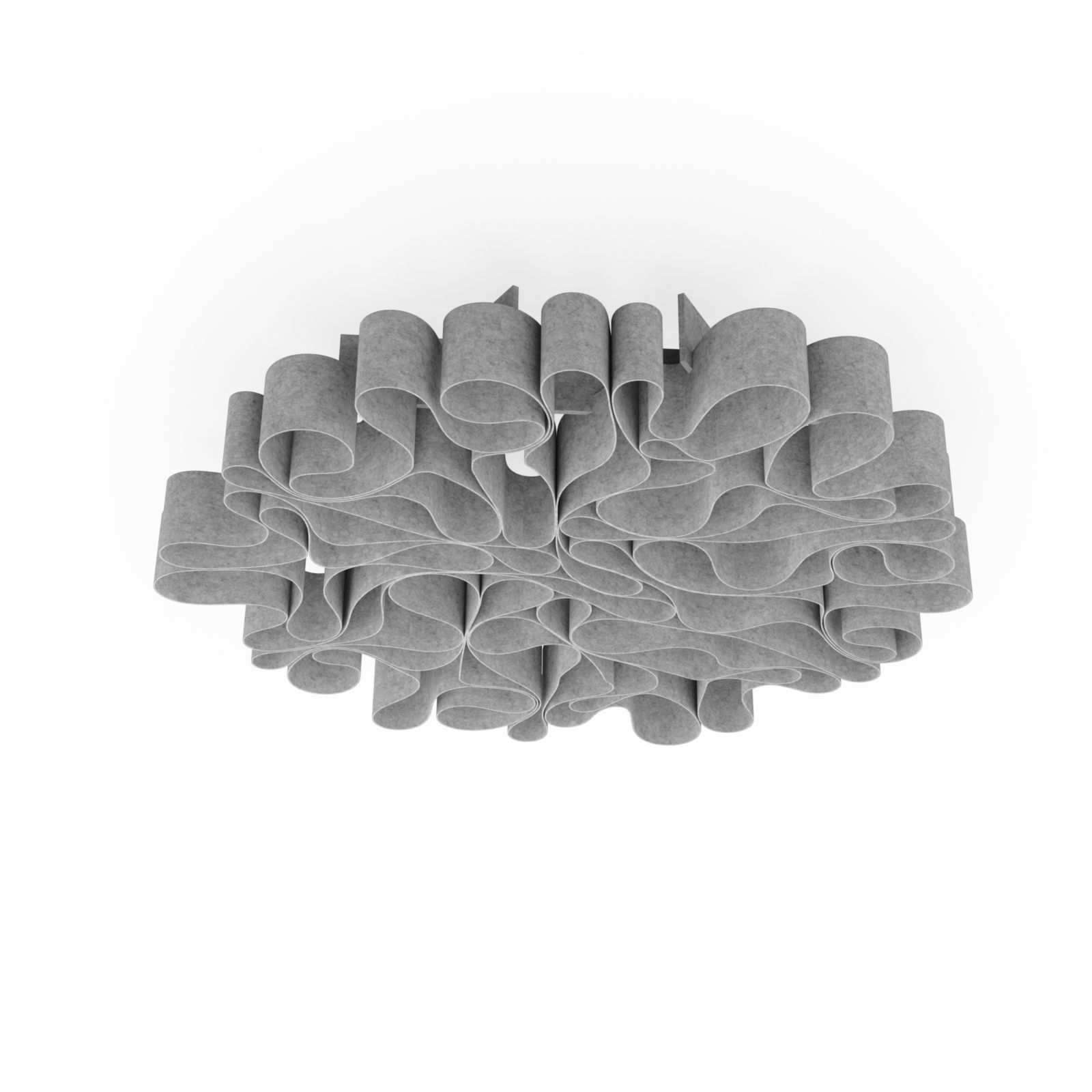

Tapestra™ Spool
Tapestra™ Spool features an organically shaped acoustic module that adds a sense of fluid motion to your next project. Its coil-like design, crafted from a series of continuous, undulating 3mm thin acoustic material, not only helps absorb sound but also serves as a striking visual centerpiece. The circular design can be installed in tandem with other Spool modules to create organic clusters of acoustic coverage.
Key Features
-
Reduce Noise & Enhance Acoustics
Tapestra™ is made of Soft Sound® material, reducing the impact of noise from everyday annoyances like ringing, typing, and chatter, resulting in a more pleasant and productive environment. This material works in concert with the design to help reduce and control reverberations, leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Dual Acoustic Composition
This unique form factor features 12mm Soft Sound® ribs, which support the module, along with 3mm thin Soft Sound® ribbons. These thinner ribbons enable greater curvature and more organic structures in the design. This innovative design not only enhances acoustic performance but also allows for aesthetic versatility, making it a perfect fit for any contemporary space.
-
Seamless Module Tiling
Tapestra™ Weave, Lace, and Pleat modules can be arranged in a continuous pattern to create a fluid and cohesive aesthetic that enhances any space. Meanwhile, Tapestra™ Spool modules can be installed in tandem to form creative clusters that provide effective acoustic coverage. By combining multiple modules, designers can craft visually striking and harmonious environments.
Ribbon Material & Color
Soft Sound® Ribbons
Acoustic PETRib Structure Material & Color
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Essentials
Acoustic PETProduct Details
Standard Module

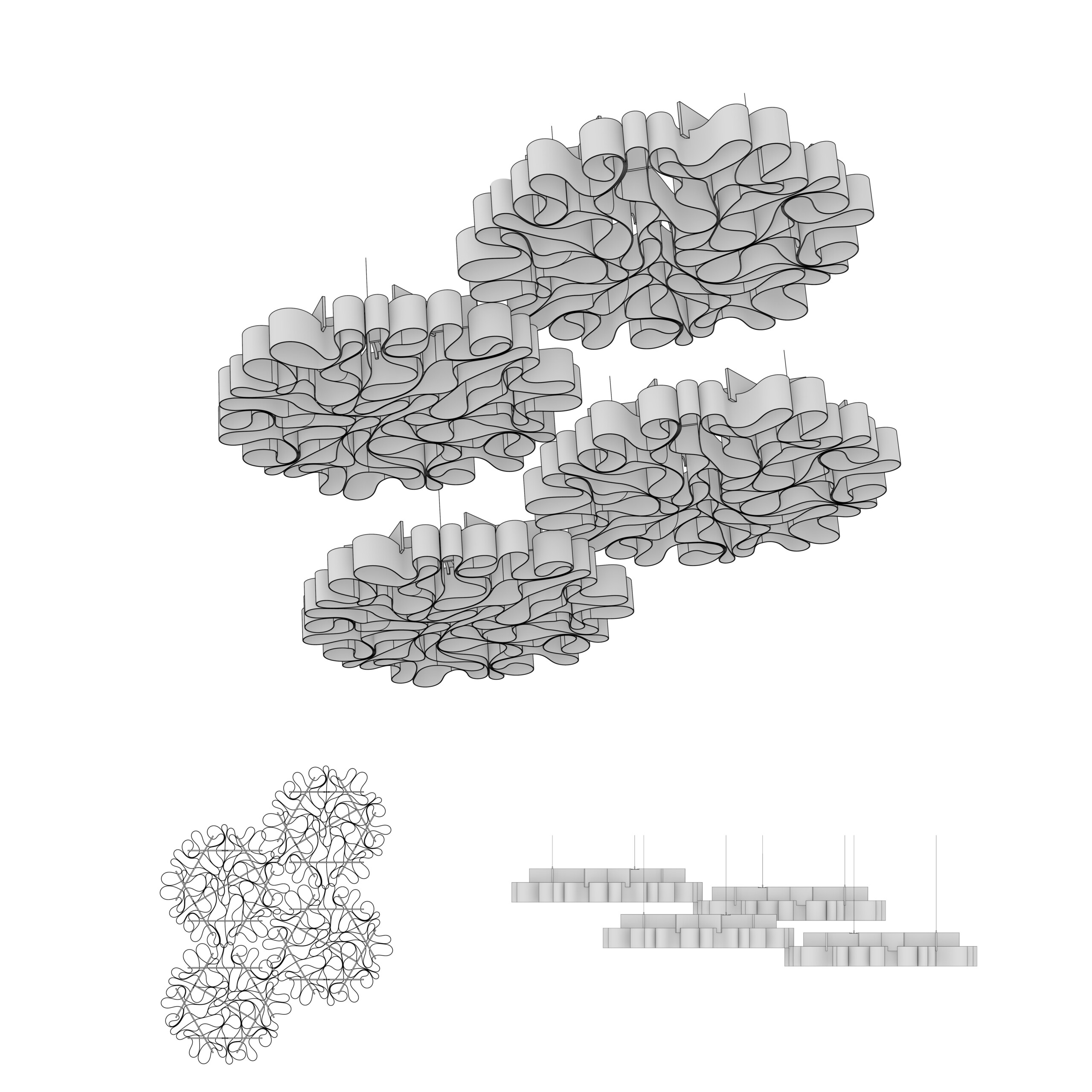

Multiple Modules

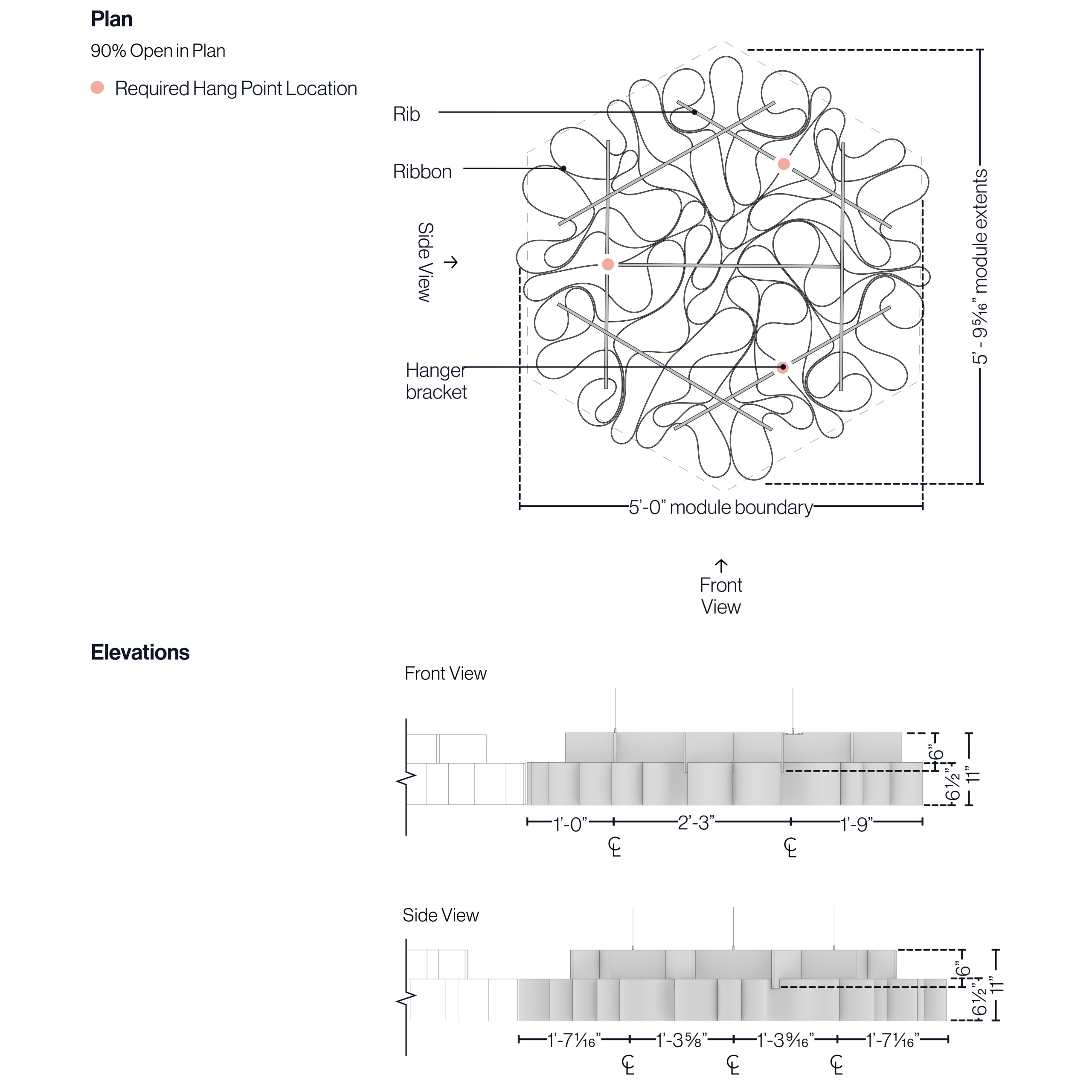

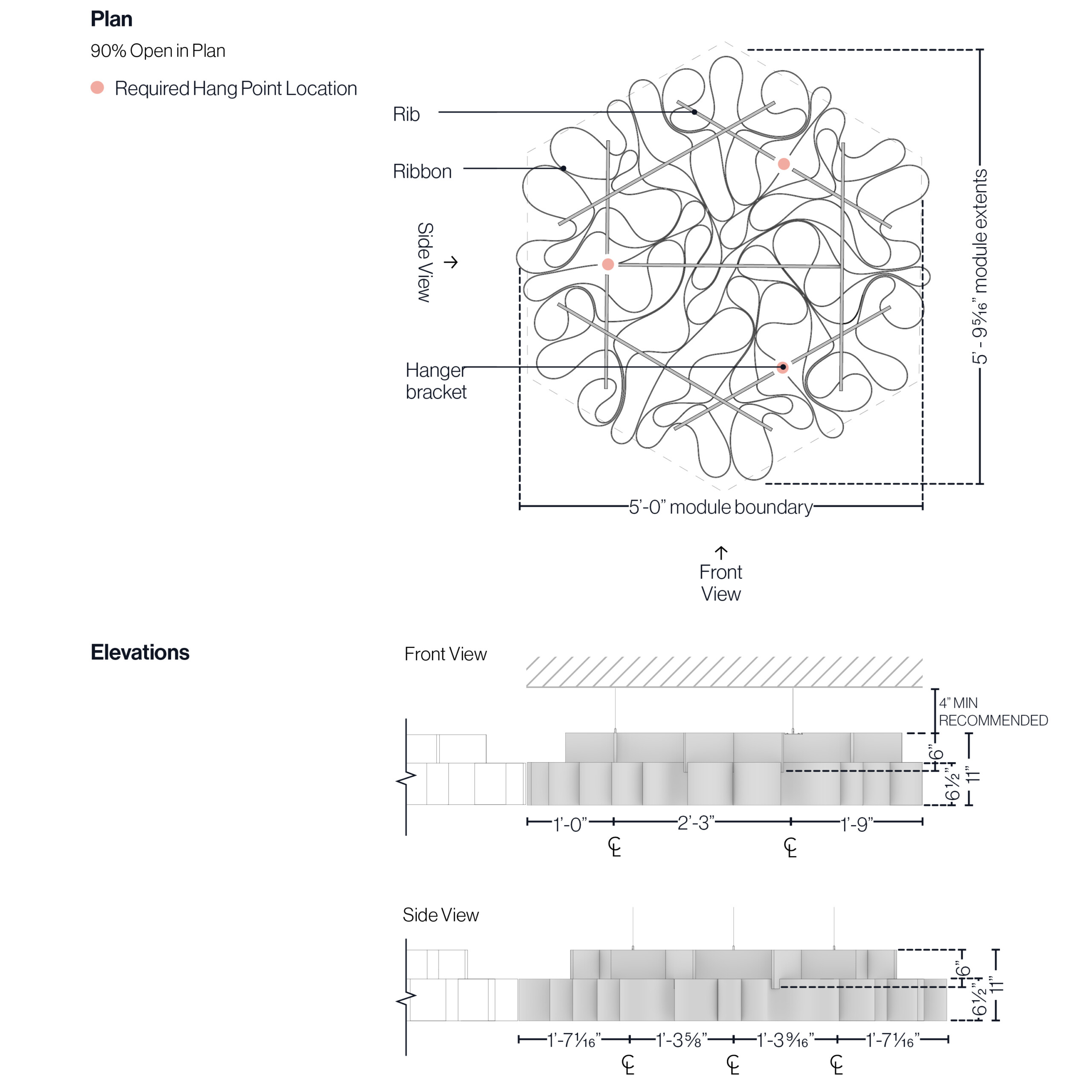

Understanding the Module

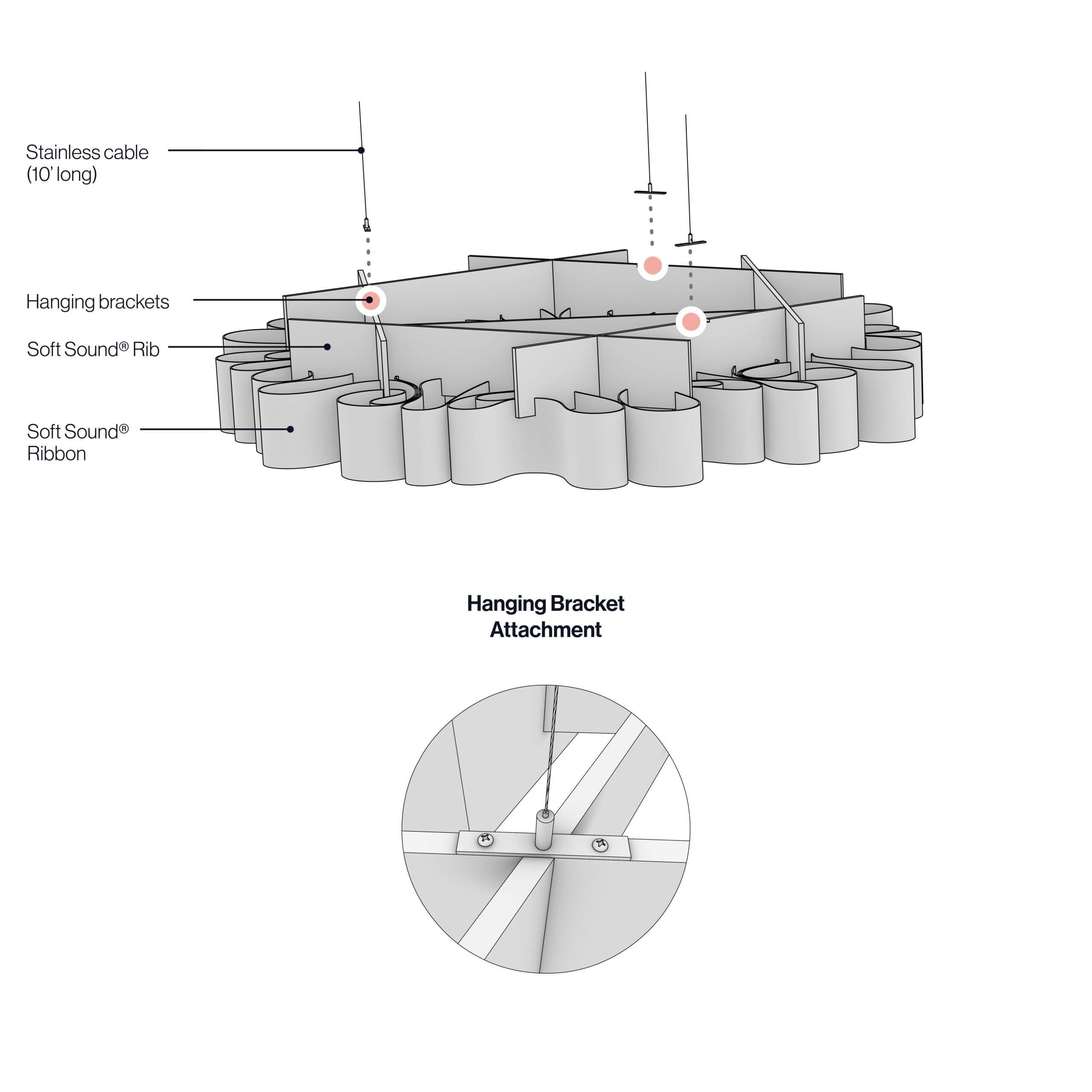

Attachment Details
System Specs
- Dimensions (WxLxD)
- 5' x 5'-9 5/16" x 11"
- Material
- 3mm Soft Sound® (ribbon), 12mm Soft Sound® (rib)
- Openness in Plan
- 90%
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- Pending
- Attachment Method
- 1/32" Stainless Cable and Hardware
- Accessibility
- Yes, quick release cables
- Trimmability
- Yes, per installation manual
Downloads
How To Specify
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.
-
SELECT A COLOR FOR RIBBON AND RIB STRUCTURE OPTION
Modules are available in a variety of colors. Select a finish for both the 12mm rib structure and the 3mm Ribbons below.
-
SELECT NUMBER OF MODULES
Tapestra™ modules Pleat, Weave, and Lace are scalable by design. Spool modules can be installed in clusters for an expansive array. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
