Atmosphera® Adaptive Analog

Analog is the playground for linear experimentation. Customize your baffle ceiling to set the rhythm for your space by altering the fin depth, spacing, and even color. So while your design may be on the straight and narrow, it can still take viewers by surprise when you add your own, custom twist. Analog’s fins are available in powder-coated steel or our acoustic Soft Sound®.

Downloads Find a rep Add to project
Get a Quote



Expand
Expand
Expand
Analog with lights corporate office
Expand
Arktura Atmosphera® Analog with integrated lighting installed in office.
Expand

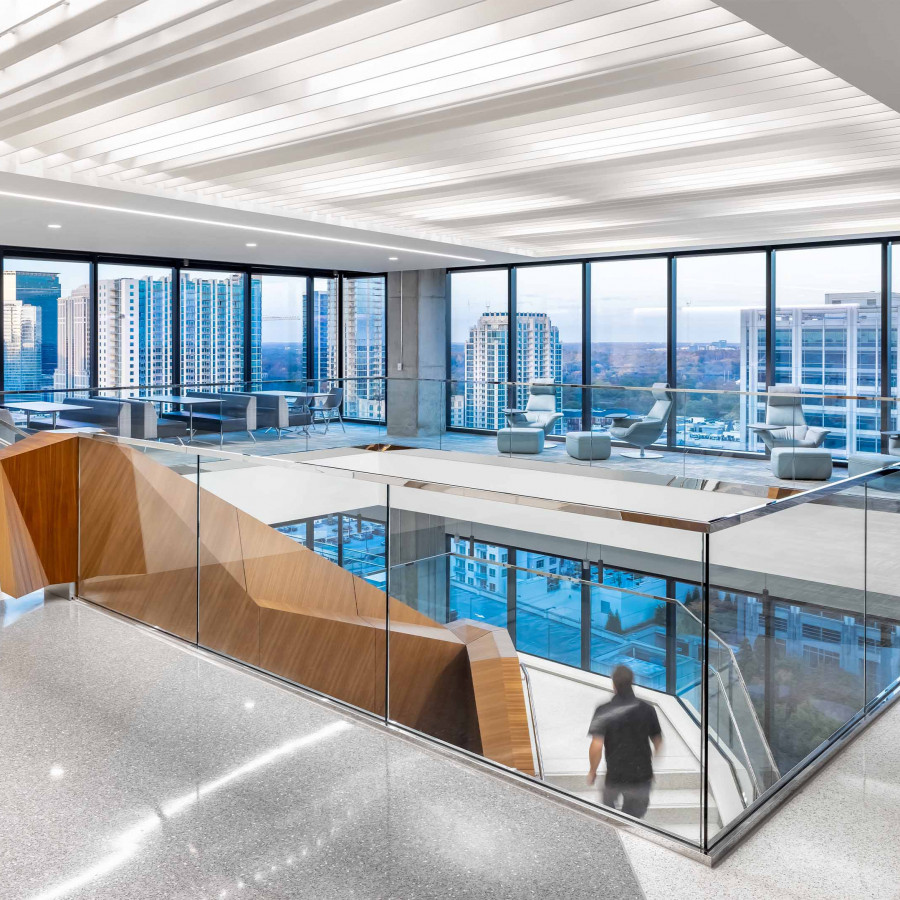

Arktura Atmosphera® Analog installed in office.
Expand
Arktura Atmosphera® Analog installed in office.
Expand
Arktura Atmosphera® Analog installed in convention center
Expand
Arktura Atmosphera® Analog installed in convention center
Expand

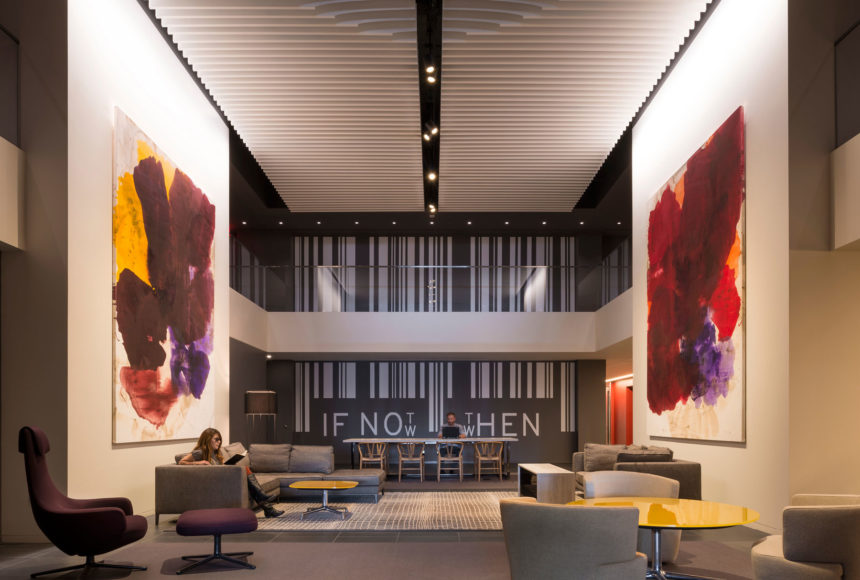

Arktura Atmosphera® Analog installed in lobby
Expand

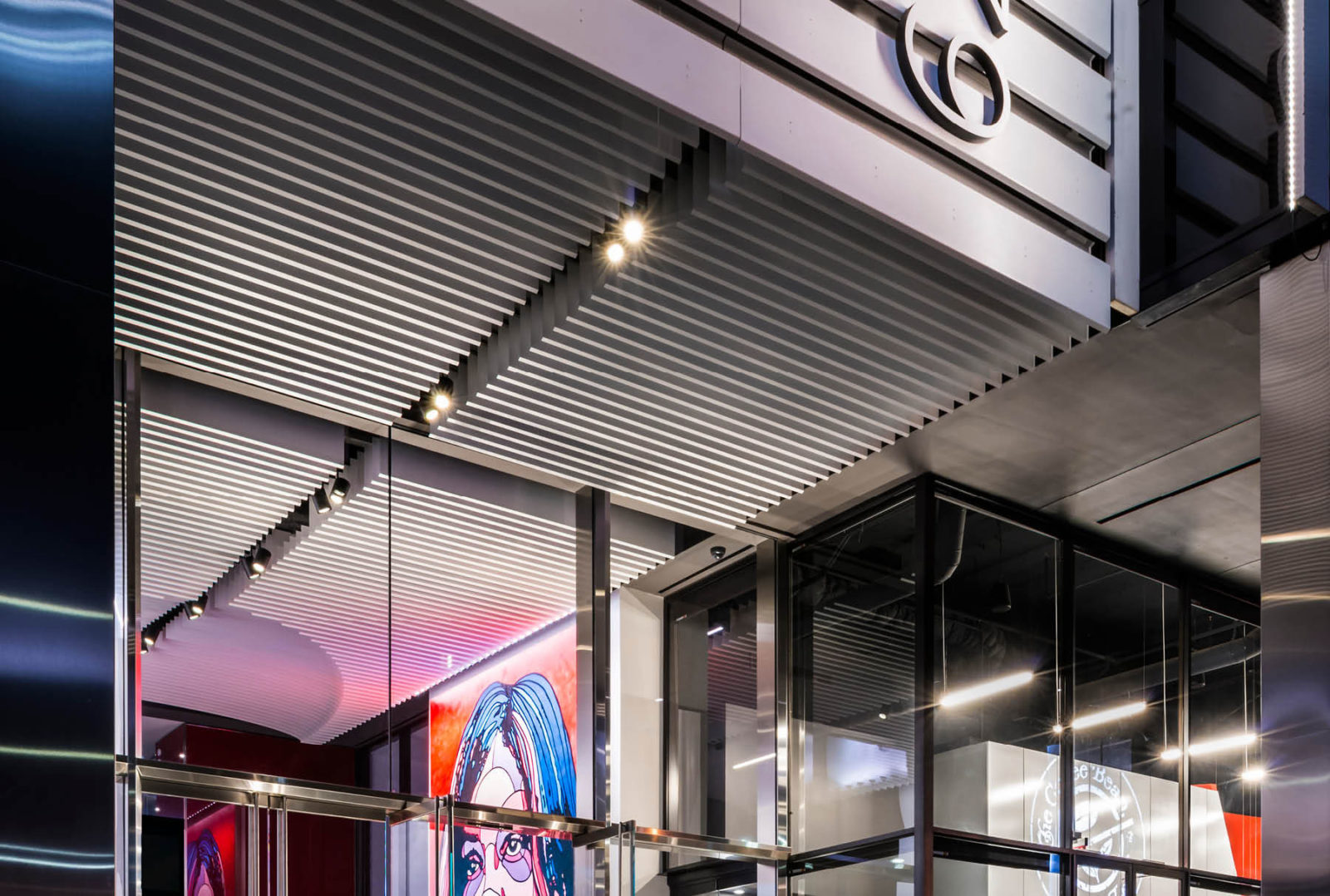

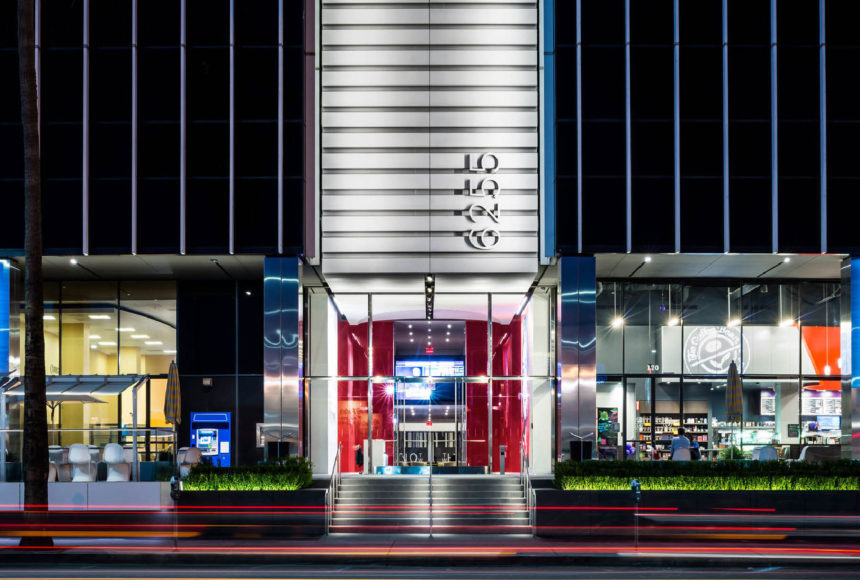

Arktura Atmosphera® Analog exterior installation
Expand
Arktura Atmosphera® Analog exterior installation
Expand
Arktura Atmosphera® Analog exterior installation
Expand

Key Features

  • Acoustic Performance

    Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Customizable Topography

    Atmosphera® offers a range of configurable options, allowing you to customize fin topography to fit your space and design vision, with the help of our project team.

  • No Field Trimming Necessary

    All modules are built to your unique project specifications, removing the need for any field trimming and assuring easy installation.

  • Open Plan Accessibility

    Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

  • Continuous Frames & Fins

    Utilizing a hidden fin and frame alignment system Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Fin Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Powder Coated Steel

Steel

Powder Coated Steel - Premium Metallic Finish

Steel

Ribs Color Options

Powder Coated Steel - Ribs

Steel

Product Details

Diagrams Specs

Single Module

Multiple Modules

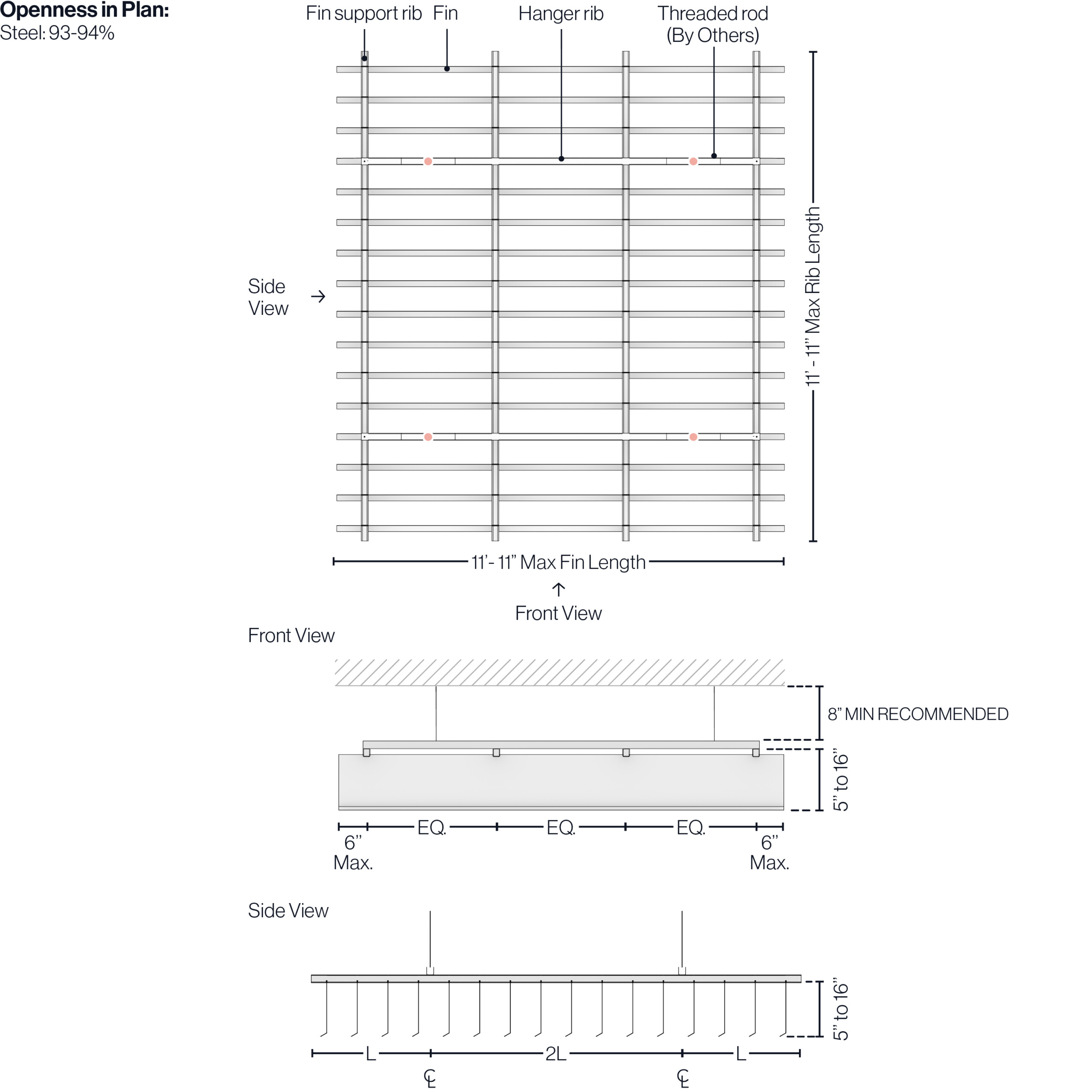

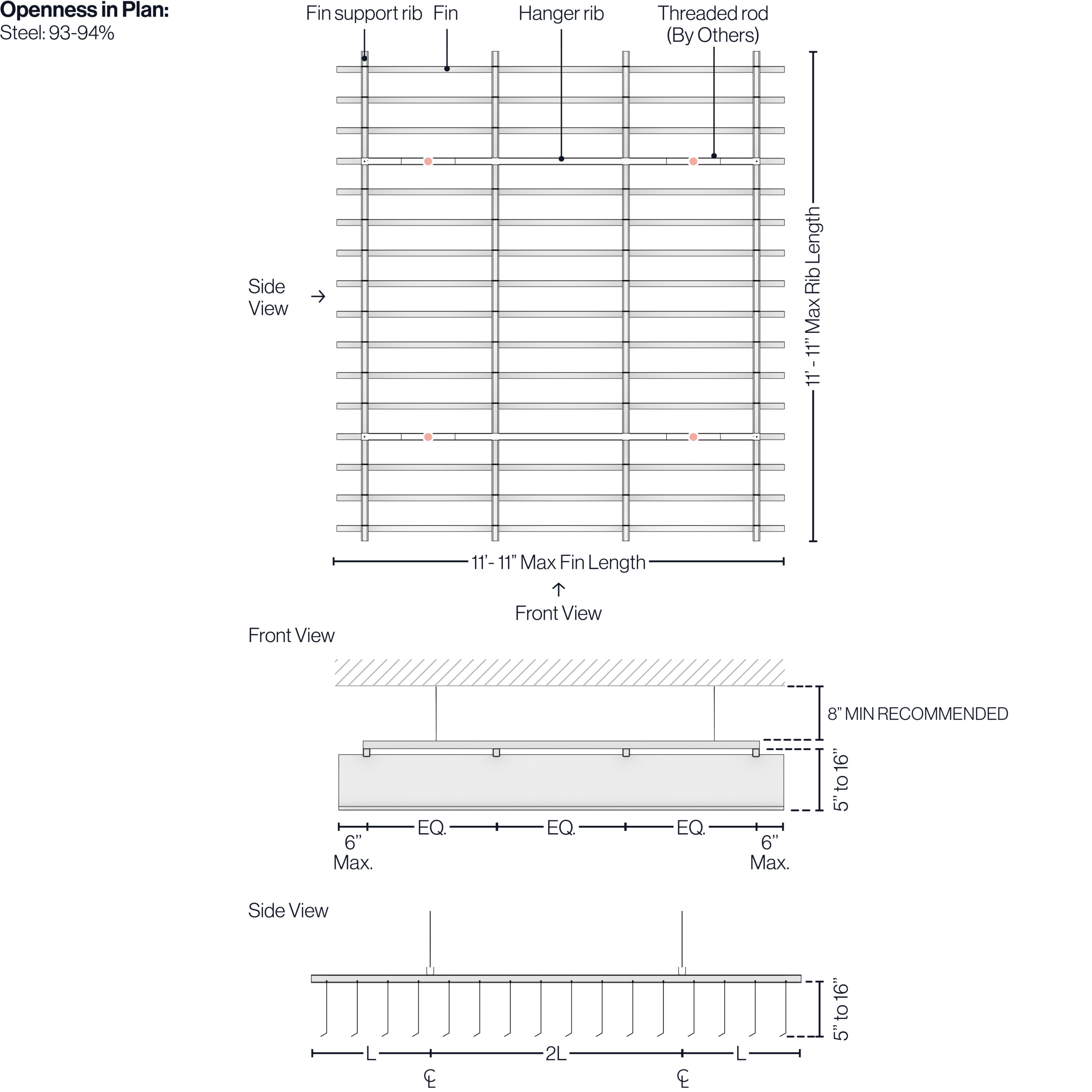

Steel Fin - Plan & Elevations

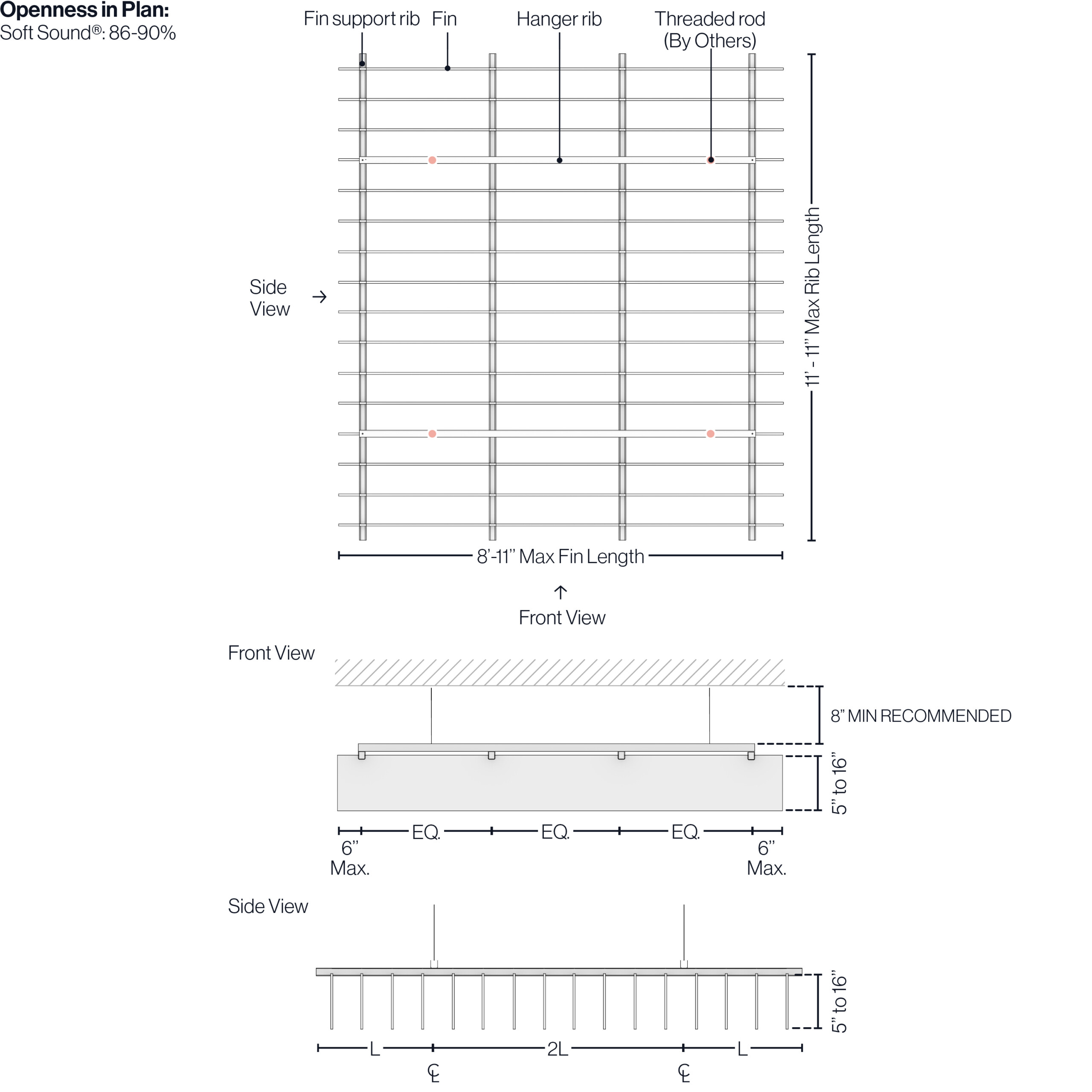

Soft Sound® Fin - Plan & Elevations

Steel Fin - Attachment Details

Soft Sound® Fin - Attachment Details

Acoustic Fin System Specs

Fin Material
12mm Soft Sound® (PET)
Module Dimension
8'-11" Fin x 11'-11" Frame Max Imperial | 272cm x 363cm Frame Max Metric
Fin Depth
5"-16" Imperial | 13cm - 40.5cm Metric
Openness in Plan
86-90%

Steel Fin System Specs

Fin Material
12GA Steel
Module Dimension
11'-11" Fin x 11'-11" Frame Max Imperial | 363cm x 363cm Frame Max Metric
Fin Depth
5"-16" Imperial | 13cm - 40.5cm Metric
Openness in Plan
93-94%

System Specs

Frame Material
Steel
Fire Rating
ASTM E84 - Class A
Acoustics
True NRC® : Results Vary
Attachment Method
3/8" Threaded Rod (By Others)
Accessibility
Yes, removable clips at each fin

Downloads

  • Atmosphera® Analog – Product Brochure PDF – Imperial
    Brochure
    3.01 MB
    pdf
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • Atmosphera® Adaptive Analog – DWG – Imperial
    3D Model
    276.42 KB
    zip
  • Atmosphera® Adaptive Analog – SKP – Imperial
    3D Model
    516.03 KB
    zip
  • Atmosphera® Adaptive Analog – 3D RFA – Imperial
    3D Model
    58.25 MB
    zip

Our Process:

  1. PROJECT QUOTING

    In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.

  2. DESIGN STAGE

    The Atmosphera® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input and final approval.

  3. MANUFACTURING DETAILING

    From the moment we receive your design approval, we work diligently to capture all final details in our easy-to-understand and highly specific shop drawings.

  4. ENGINEERING REVIEW

    Whether coordinating with your own engineering resources or leveraging our engineering team, every Atmosphera® project is carefully evaluated prior to final production.

  5. ADVANCED MANUFACTURING

    Our facilities, equipment and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client and your finished installation.

  6. SHIPPING & DELIVERY

    Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.

  7. INSTALLATION

    Let us connect you with our network of trusted installers. Our team of project managers is here to help you along the way.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
