Atmosphera® Adaptive Contour
Key Features
-
Acoustic Performance
Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Expansive Soft Sound® Library
Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
-
Customizable Topography
Atmosphera® offers a range of configurable options, allowing you to customize fin topography to fit your space and design vision, with the help of our project team.
-
No Field Trimming Necessary
All modules are built to your unique project specifications, removing the need for any field trimming and assuring easy installation.
-
Open Plan Accessibility
Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
-
Dynamic Looks From All Angles
The wavering undulations of Atmosphera® fins provide great looks from wherever you are looking. Steel or Soft Sound® fins offer proprietary curved baffle system with no visible hardware.
Fin Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PET
Powder Coated Steel - Premium Metallic Finish
Steel
Powder Coated Steel
SteelRibs Color Options
Powder Coated Steel - Ribs
SteelProduct Details
Single Module
Multiple Modules

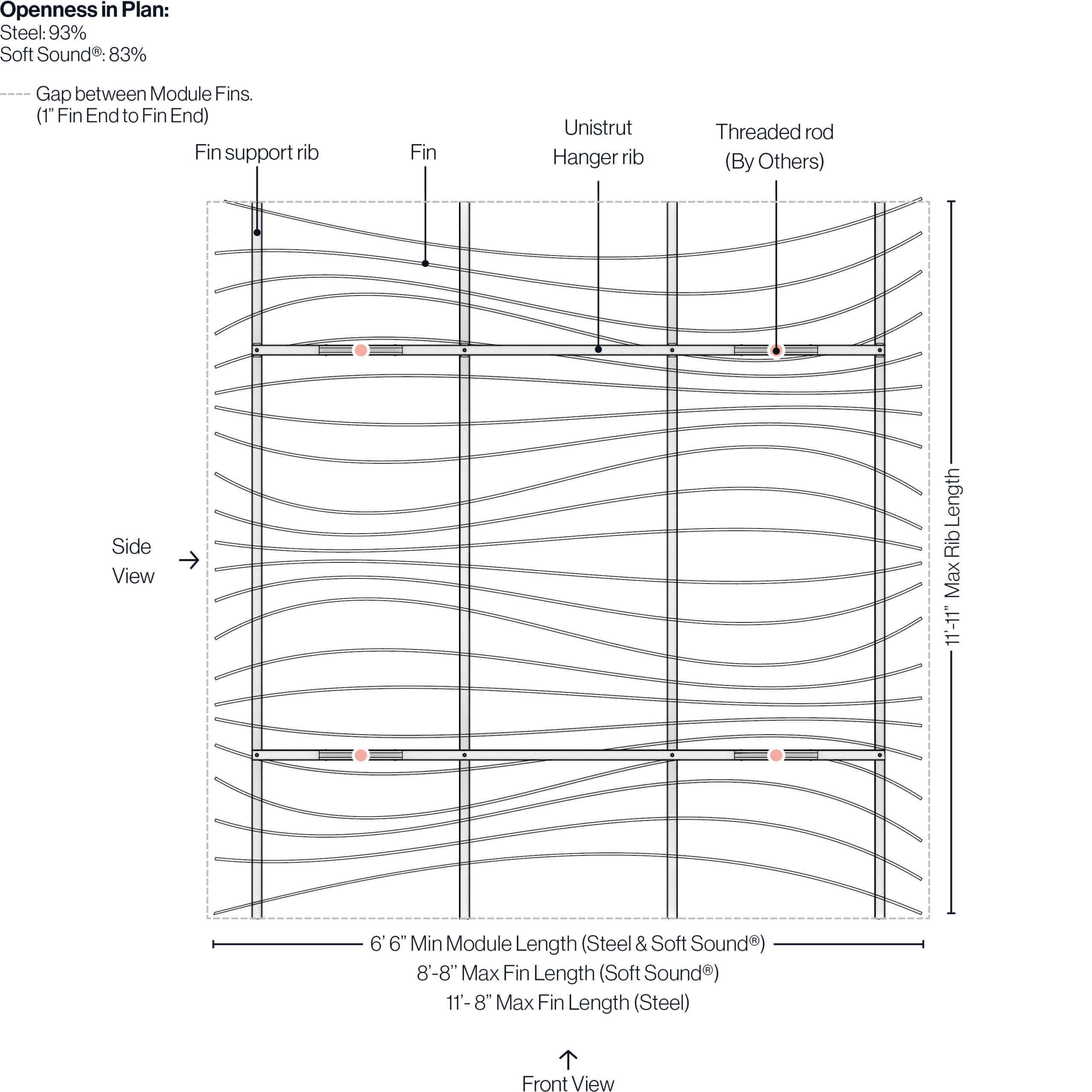

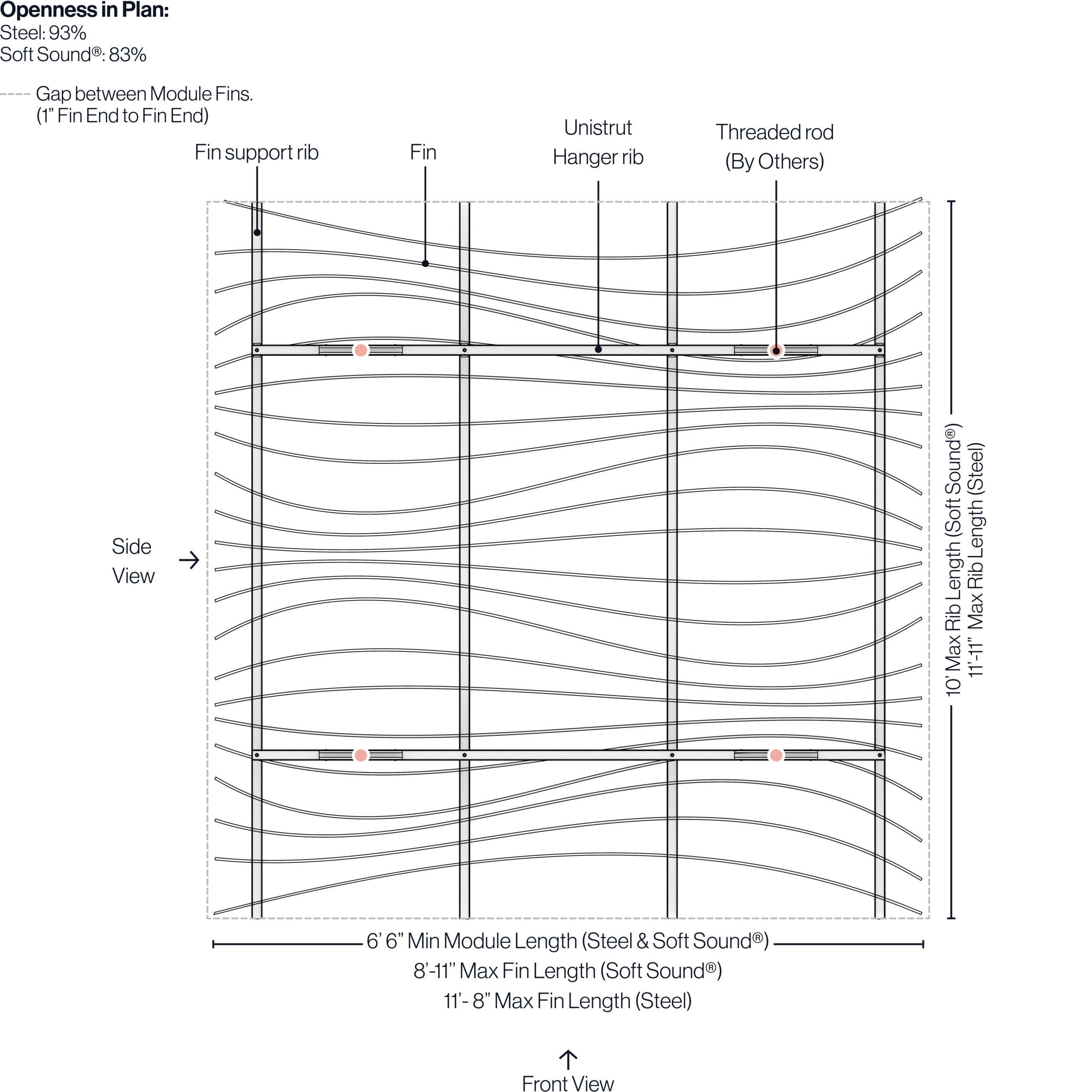

Understanding the Module - Plan

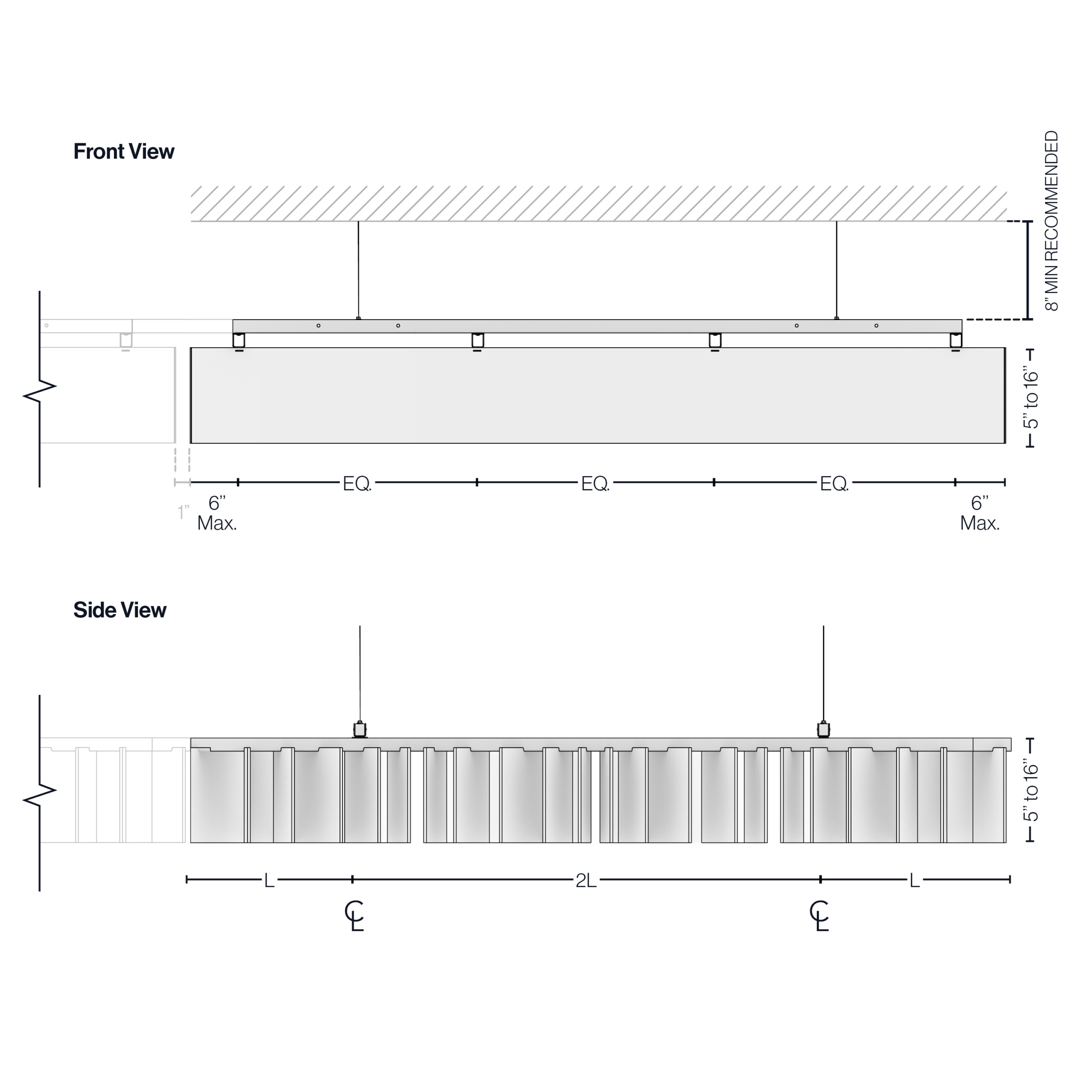

Understanding the Module - Elevations
Attachment & Install
Attachment Details
Acoustic Fin System Specs
- Fin Material
- 12mm Soft Sound® (PET)
- Module Dimensions
- 7’6” Fin x 12’ Frame Max Imperial | 236cm Fin x 363cm Frame Max Metric
- Fin Depth
- 5”-16’’ | 13cm Metric
- Openness in Plan
- 89-92%
Steel Fin System Specs
- Fin Material
- 20GA Steel
- Module Dimension
- 10’ Fin x 12’ Frame Max Imperial | 350.5cm Fin x 363cm Frame Max Metric
- Fin Depth
- 5”-16’’ Imperial | 13cm Metric
- Openness in Plan
- 93-94%
System Specs
- Frame Material
- Steel
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- True NRC® : Results Vary
- Attachment Method
- 3/8" Threaded Rod (By Others)
- Accessibility
- Yes, removable clips at each fin
Downloads
Our Process:
-
PROJECT QUOTING
In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.
-
DESIGN STAGE
The Atmosphera® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input and final approval.
-
MANUFACTURING DETAILING
From the moment we receive your design approval, we work diligently to capture all final details in our easy-to-understand and highly specific shop drawings.
-
ENGINEERING REVIEW
Whether coordinating with your own engineering resources or leveraging our engineering team, every Atmosphera® project is carefully evaluated prior to final production.
-
ADVANCED MANUFACTURING
Our facilities, equipment and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client and your finished installation.
-
SHIPPING & DELIVERY
Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.
-
INSTALLATION
Let us connect you with our network of trusted installers. Our team of project managers is here to help you along the way.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° US8782987 / US9506249.
