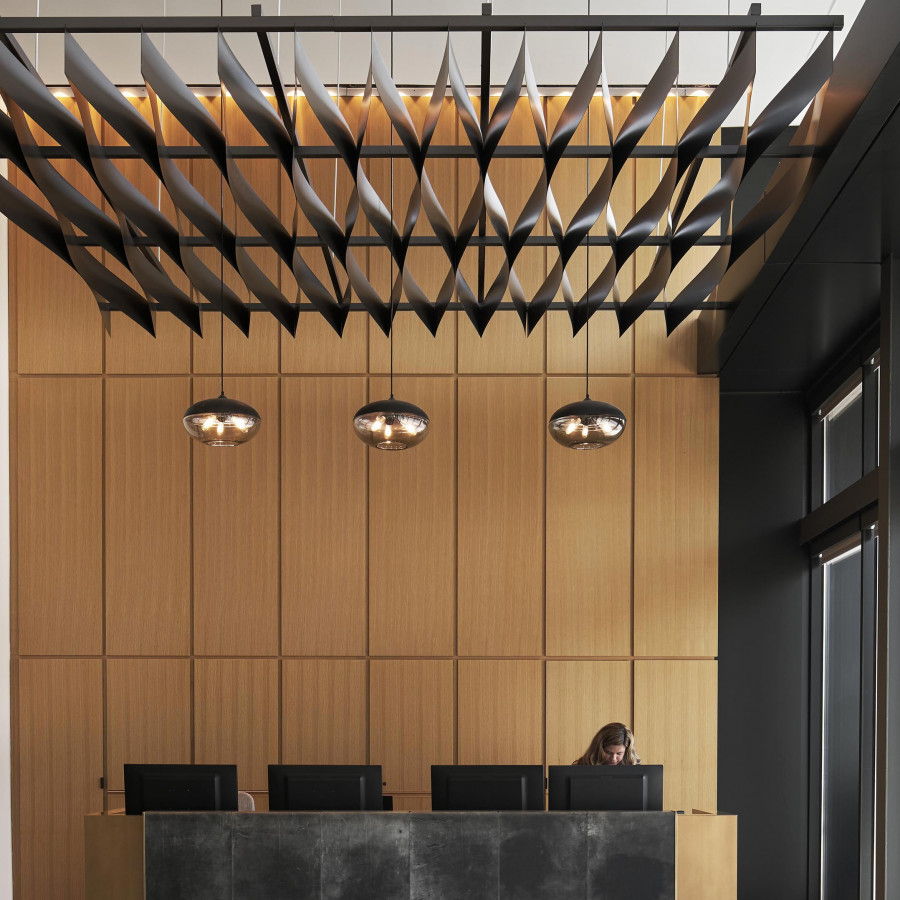

This front desk area features four computers, large windows, three hanging light fixtures and black Arktura panels above the desk. A person is standing behind the desk working.
View Line

Atmosphera® Adaptive Ripple

Ripple’s panels create an undulating effect on your ceiling design, adding movement and flow. Customizable, you can ensure that the amount of curve fits your vision exactly. Ripple’s panels are available in steel only and can be powder coated in one of our five standard colors.

Downloads Find a rep Add to project
Get a Quote



This front desk area features four computers, large windows, three hanging light fixtures and black Arktura panels above the desk. A person is standing behind the desk working.
Expand

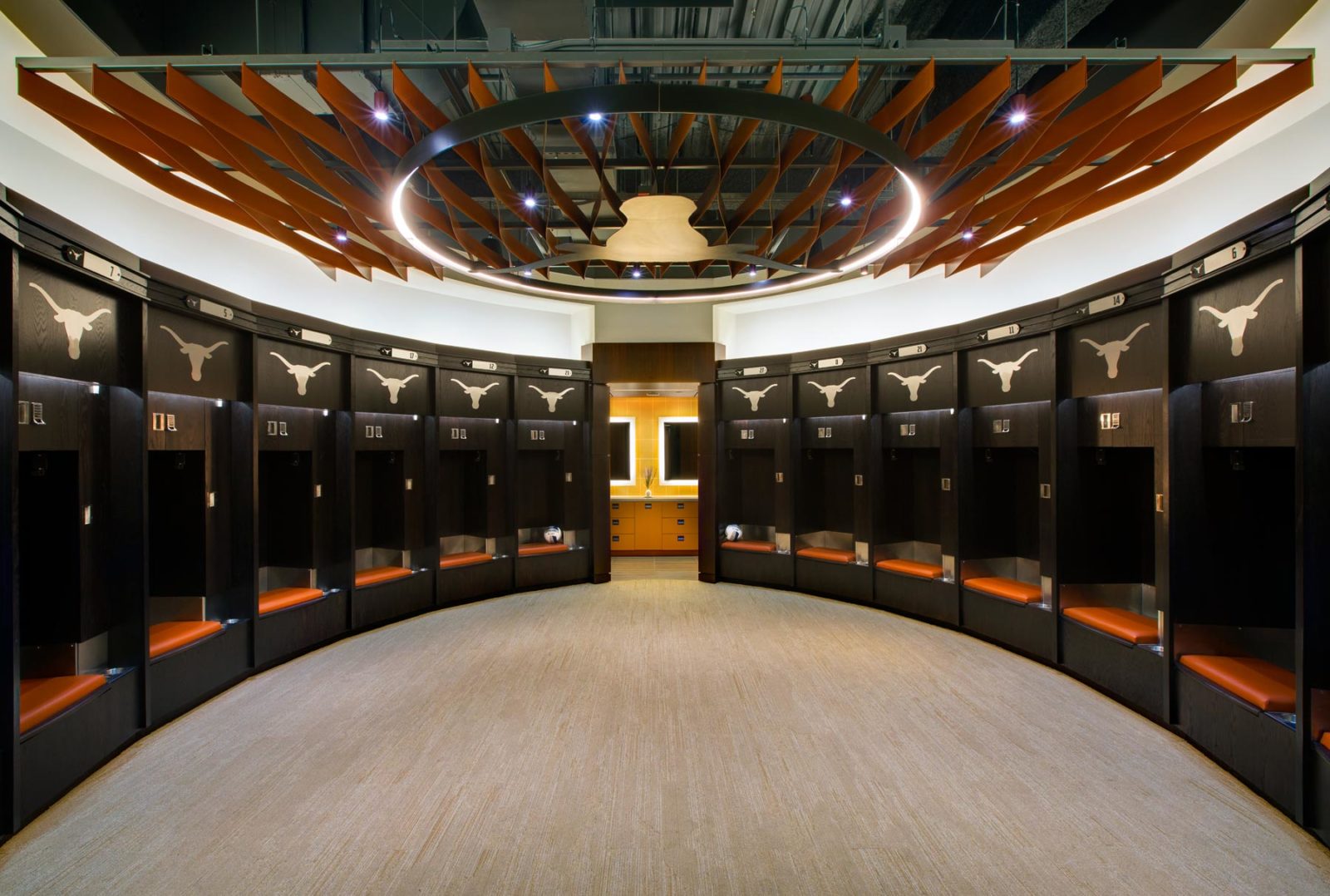

Arktura Atmosphera® Ripple installed in UT Volleyball locker room
Expand

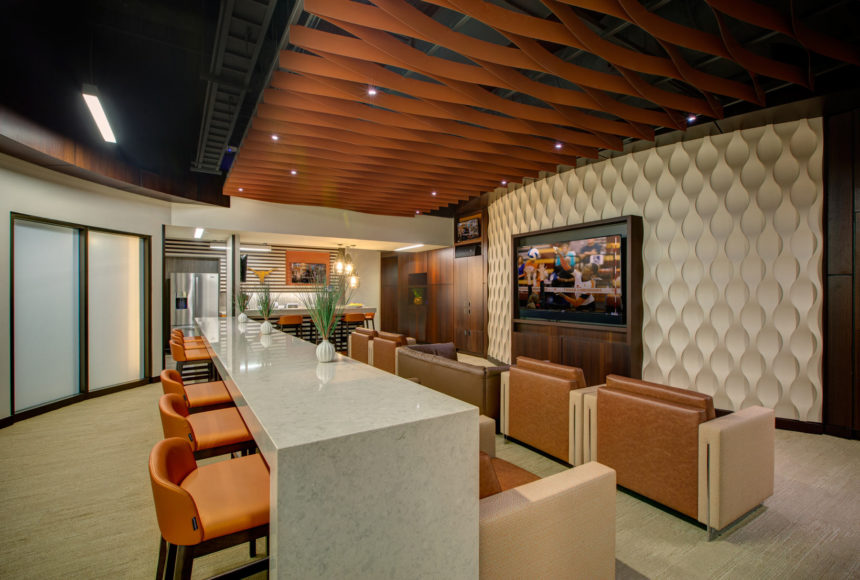

Arktura Atmosphera® Ripple installed in UT Volleyball lounge
Expand

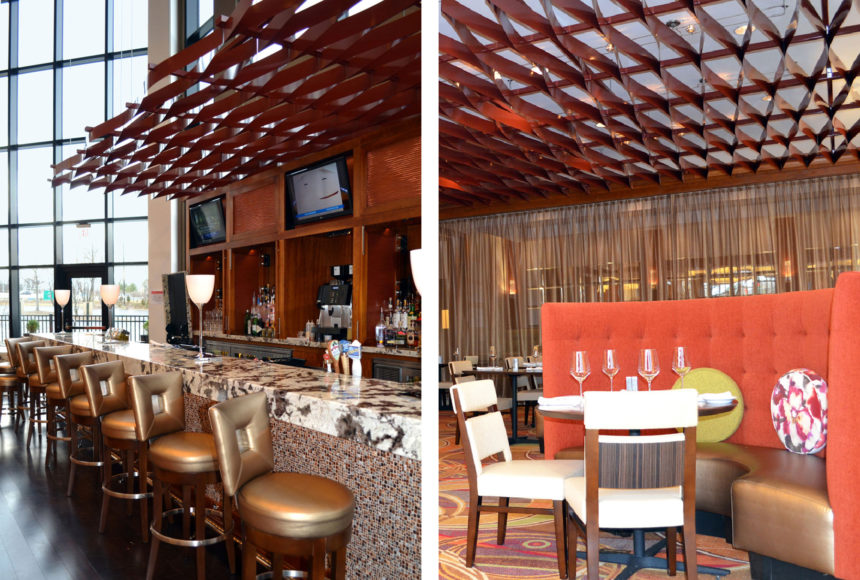

Arktura Atmosphera® Ripple installed in restaurant
Expand
Expand
Arktura_Ripple_01
Expand

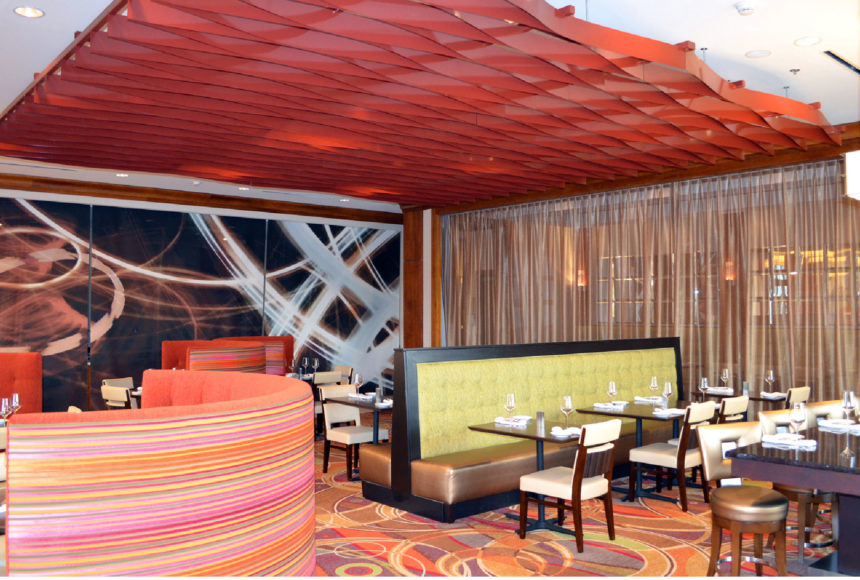

Arktura Atmosphera® Ripple installed in restaurant
Expand

Fin Materials & Colors

Powder Coated Steel

Steel

Powder Coated Steel - Premium Metallic Finish

Steel

Ribs Color Options

Powder Coated Steel - Ribs

Steel

Product Details

Diagrams Specs

Single Module

Multiple Modules

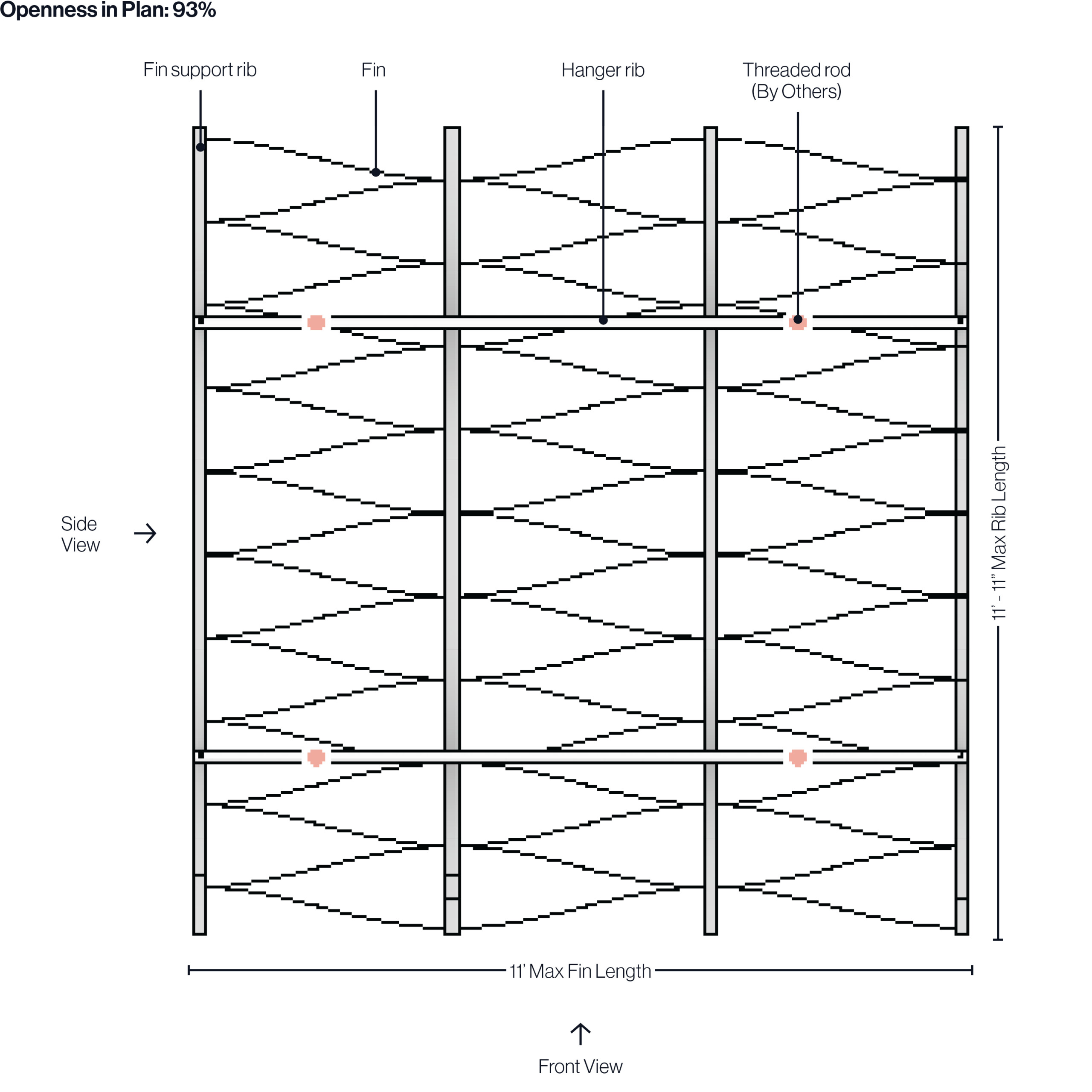

Understanding the Module - Plan

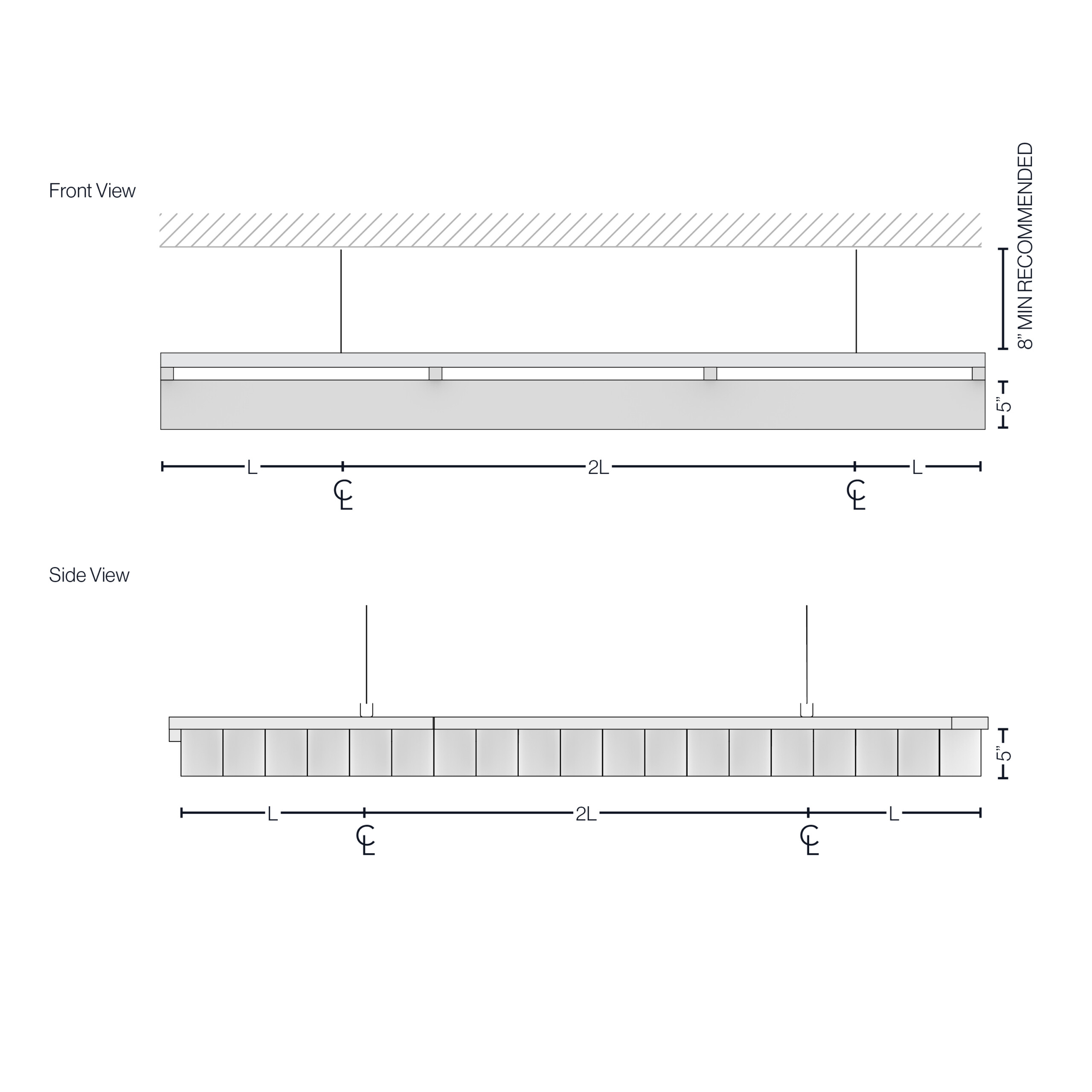

Understanding the Module - Elevations

Attachment & Install

Attachment Details

System Specs

Dimensions (WxLxD)
11' x 11'-11" x 5" Max Imperial | 335cm x 363cm x 13cm Max Imperial
Fin Material
20GA Steel
Openness in Plan
93%
Fire Rating
ASTM E84 - Class A
Attachment Method
3/8" Threaded Rod (By Others)
Accessibility
Yes, removable clips at each fin

Downloads

  • Atmosphera® Ripple – Product Brochure PDF – Imperial
    Brochure
    2.22 MB
    pdf
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Atmosphera® Adaptive Ripple – DWG – Imperial
    3D Model
    152.94 KB
    zip
  • Atmosphera® Adaptive Ripple – SKP – Imperial
    3D Model
    224.07 KB
    zip

Our Process:

  1. PROJECT QUOTING

    In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.

  2. DESIGN STAGE

    The Atmosphera® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input and final approval.

  3. MANUFACTURING DETAILING

    From the moment we receive your design approval, we work diligently to capture all final details in our easy-to-understand and highly specific shop drawings.

  4. ENGINEERING REVIEW

    Whether coordinating with your own engineering resources or leveraging our engineering team, every Atmosphera® project is carefully evaluated prior to final production.

  5. ADVANCED MANUFACTURING

    Our facilities, equipment and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client and your finished installation.

  6. SHIPPING & DELIVERY

    Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.

  7. INSTALLATION

    Let us connect you with our network of trusted installers. Our team of project managers is here to help you along the way.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
