Atmosphera® Rise

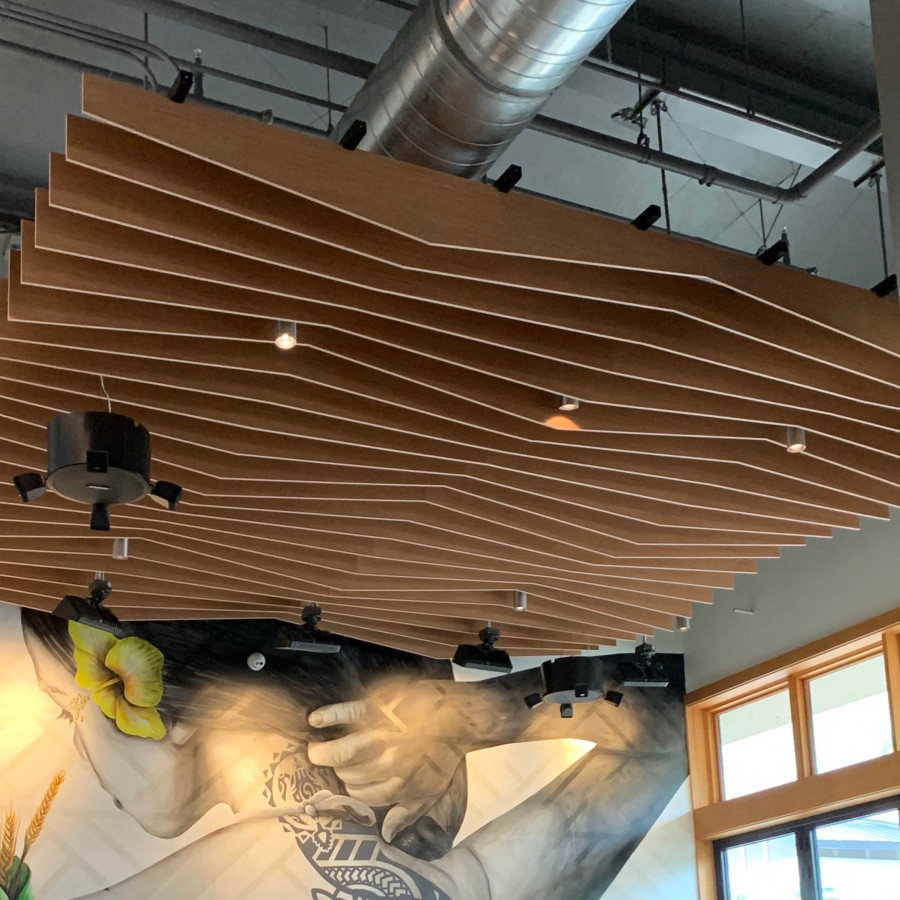

Rise’s ceiling baffles form a faceted series of geometric planes, it’s sharp angles keep your eye engaged along its path as it continues to cut back and forth peeling away new layers. But don’t worry, the path is a quiet one thanks to the Soft Sound® fins which provide acoustic control to any space on Rise’s trail.
Key Features
-
Acoustic Performance
Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Preconfigured Designs & Sizes
For a custom look without the custom price tag, preconfigured Atmosphera® modules offer innovative design impact with a quick and easy installation process. Achieve a cleaner design in a fraction of the time versus independently hung baffles.
-
Faster Shipping & Installation
Because they're preconfigured, production starts as soon as you order. Once complete, Atmosphera®'s easy-to-assemble modules are promptly shipped, helping you cut down installation times and meet your project deadlines.
-
Easily Field Modifiable
This system allows for some simple modifications that can allow it to adapt to your space without having to design a custom system.
-
Open Accessibility in Plan
Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
-
Continuous Straight Baffles
Utilizing a hidden fin and frame alignment system, Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.
Fin Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETRibs Color Options
Powder Coated Steel - Ribs
SteelProduct Details
Standard Module
Multiple Modules

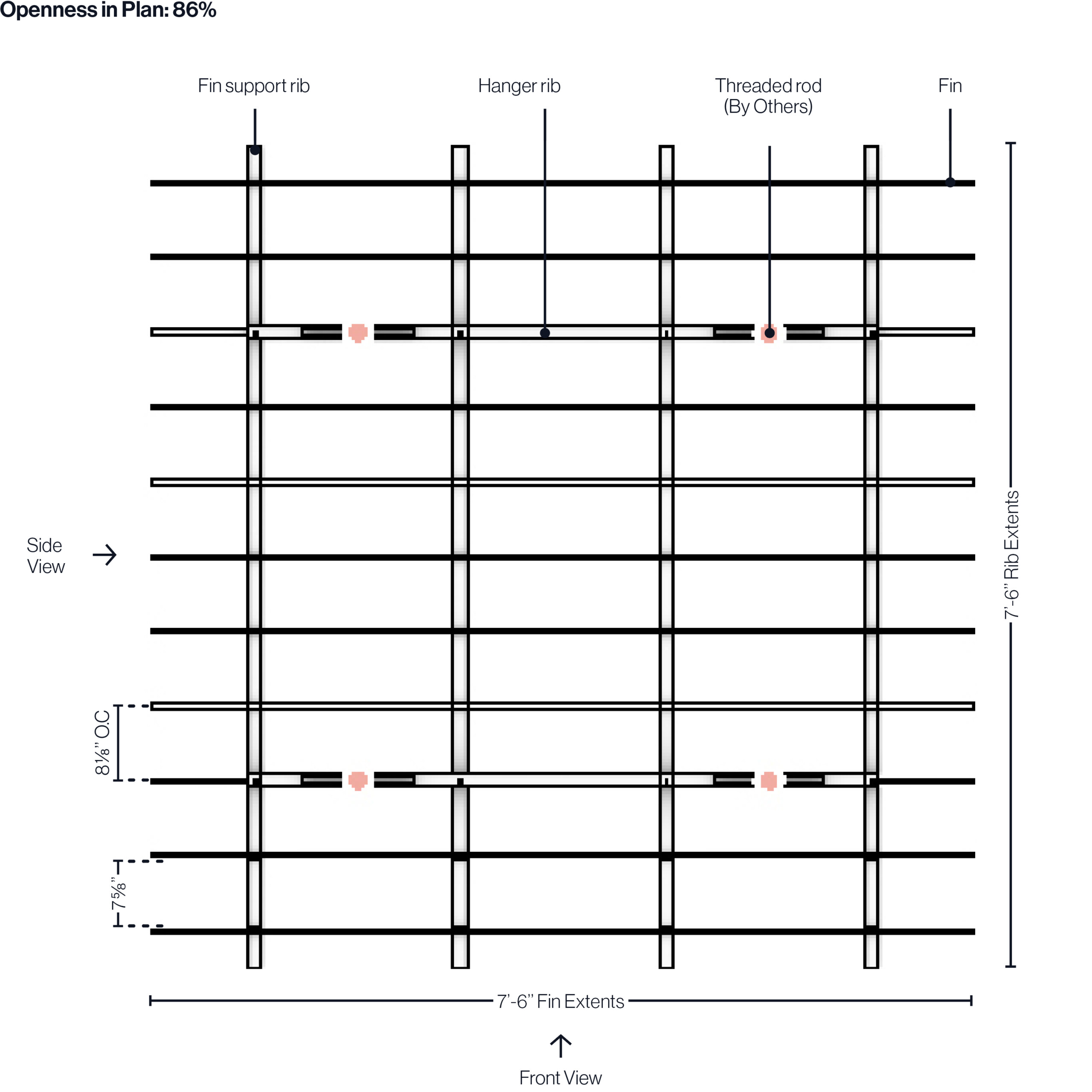

Plan

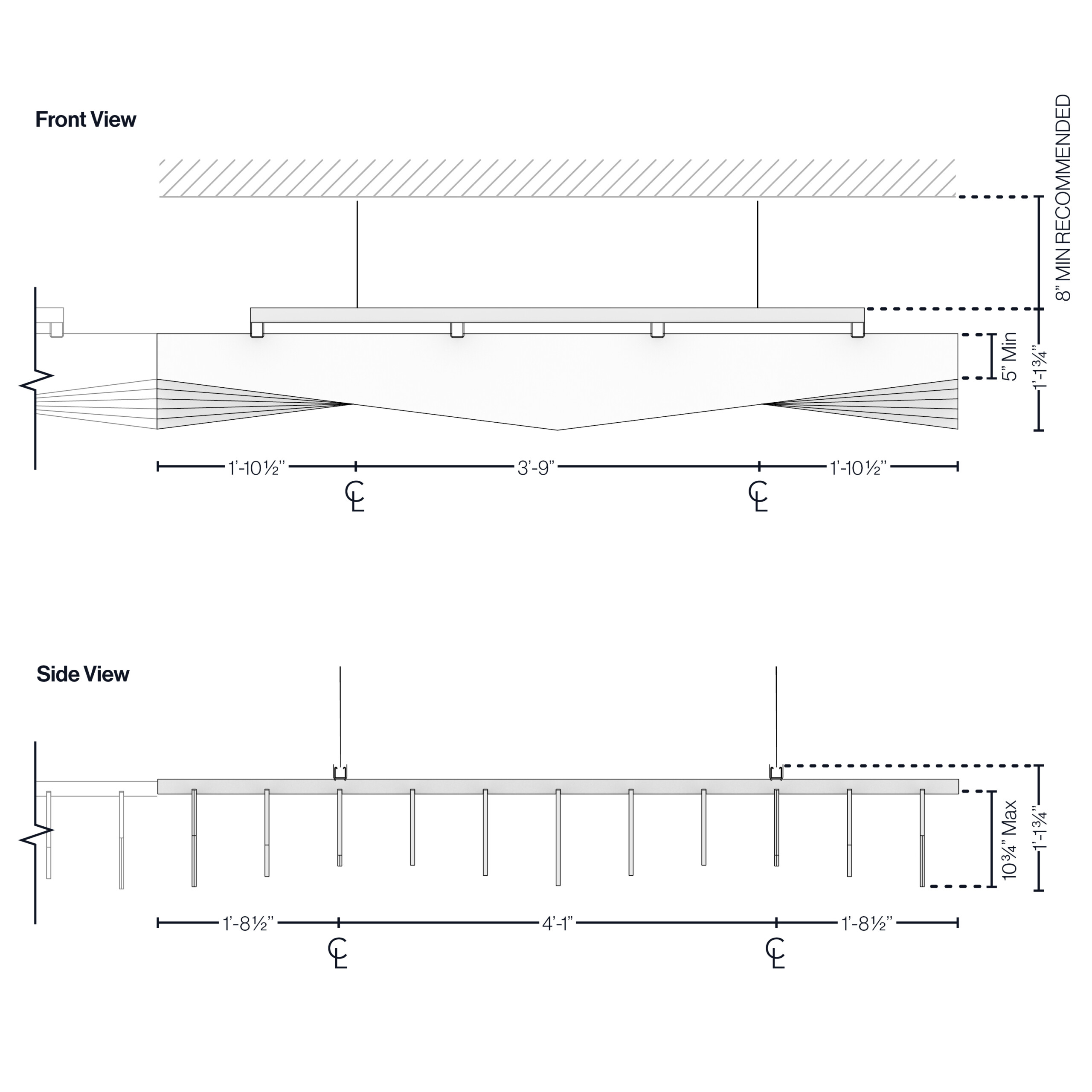

Elevations
Attachment & Install
Attachment Details
System Specs
- Dimensions (WxLxD)
- 7'-6" x 7'-6" x 10 7/8 Imperial | 230cm x 230cm x 27.5cm Metric
- Frame Material
- Steel
- Fin Material
- 12mm Soft Sound® (PET)
- Openness in Plan
- 86%
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
- Attachment Method
- 3/8" Threaded Rod (By Others)
- Accessibility
- Yes, removable clips at each fin
- Trimmability
- Yes, per installation manual
Downloads
-
Atmosphera® Rise – Product Brochure PDF – ImperialTear Sheet1.7 MBpdf
-
Atmosphera® Standard Rise Soft Sound® – 3D RFA – Imperial3D Model58.43 MBzip
-
Atmosphera® Standard Rise Soft Sound® – 3D DWG – Imperial3D Model139.33 KBzip
-
Powder Coat Color BrochureBrochure70.53 KBpdf
-
Atmosphera® Standard Rise Soft Sound® – 3D SKP – Imperial3D Model293.36 KBzip
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
Atmosphera® Standard Rise Soft Sound® – 3D DWG – Metric (EMEA ONLY)3D Model156.76 KBzip
-
Atmosphera® Standard Rise Soft Sound® – Tear Sheet PDF – Metric (EMEA ONLY)Tear Sheet6.56 MBpdf
How to Specify:
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Pick from a variety of linear, undulating, or faceted designs.
-
SELECT A MATERIAL
Select modules are available in both steel and Arktura's performance acoustic Soft Sound® material variants.
-
SELECT A COLOR
Modules are available in a variety of colors. See our powder coat and Soft Sound® color brochures for more information.
-
SELECT NUMBER OF MODULES
All Atmosphera® modules are scalable by design. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° US8733053, AU2012203424B2 / AU2014203325A1.
