Atmosphera® Strata

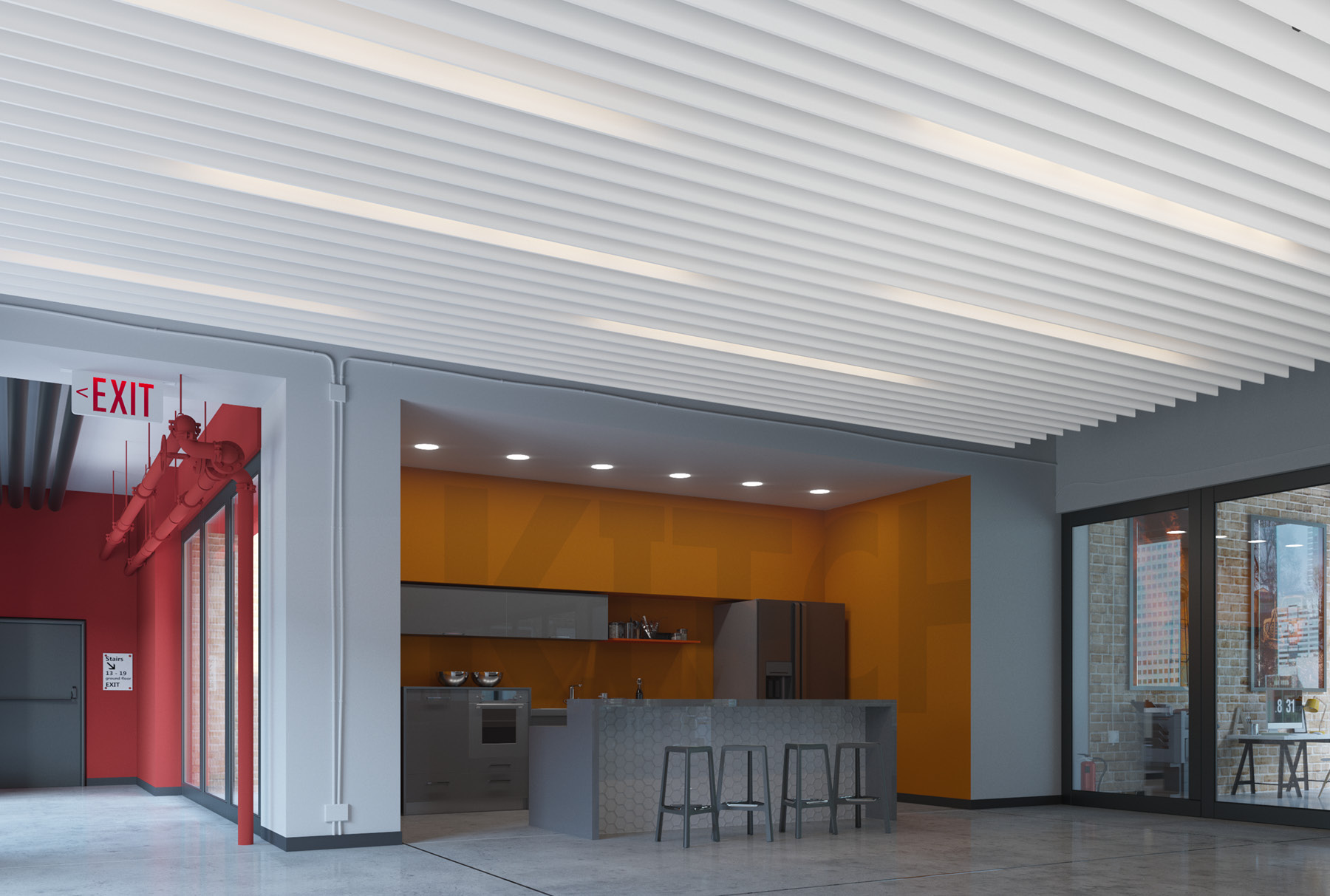

Strata’s ceiling baffles take Linea’s straight design to another level with tighter spacing and shallower fins to hide the plenum and building systems above. With this denser configuration, your design becomes a garden of structure: A peaceful one, thanks to Soft Sound® fins which provide steady acoustic control.
Key Features
-
Acoustic Performance
Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Preconfigured Designs & Sizes
For a custom look without the custom price tag, preconfigured Atmosphera® modules offer innovative design impact with a quick and easy installation process. Achieve a cleaner design in a fraction of the time versus independently hung baffles.
-
Faster Shipping & Installation
Because they're preconfigured, production starts as soon as you order. Once complete, Atmosphera®'s easy-to-assemble modules are promptly shipped, helping you cut down installation times and meet your project deadlines.
-
Easily Field Modifiable
This system allows for some simple modifications that can allow it to adapt to your space without having to design a custom system.
-
Open Accessibility in Plan
Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
-
Continuous Straight Baffles
Utilizing a hidden fin and frame alignment system, Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.
Fin Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETRibs Color Options
Powder Coated Steel - Ribs
SteelProduct Details
Standard Module
Multiple Modules
Plan
Elevations
Attachment & Install
Attachment Details
System Specs
- Dimensions (WxLxD)
- 7'-6" x 7'-6" x 5 1/2" Imperial | 230cm x 230cm x 15cm Metric
- Frame Material
- Steel
- Fin Material
- 12mm Soft Sound® (PET)
- Openness in Plan
- 84%
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
- Attachment Method
- 3/8" Threaded Rod (By Others)
- Accessibility
- Yes, removable clips at each fin
- Trimmability
- Yes, per installation manual
Downloads
-
Atmosphera® Strata – Product Brochure PDF – ImperialTear Sheet1.77 MBpdf
-
Atmosphera® Standard Strata Soft Sound® – 3D RFA – Imperial3D Model58.39 MBzip
-
Atmosphera® Standard Strata Soft Sound® – 3D DWG – Imperial3D Model128.03 KBzip
-
Powder Coat Color BrochureBrochure70.53 KBpdf
-
Atmosphera® Standard Strata Soft Sound® – 3D SKP – Imperial3D Model291.63 KBzip
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
Atmosphera® Standard Strata Soft Sound® – 3D DWG – Metric (EMEA ONLY)3D Model59.19 KBzip
-
Atmosphera® Standard Strata Soft Sound® – Tear Sheet PDF – Metric (EMEA ONLY)Tear Sheet2.33 MBpdf
How to Specify:
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Pick from a variety of linear, undulating, or faceted designs.
-
SELECT A MATERIAL
Select modules are available in both steel and Arktura's performance acoustic Soft Sound® material variants.
-
SELECT A COLOR
Modules are available in a variety of colors. See our powder coat and Soft Sound® color brochures for more information.
-
SELECT NUMBER OF MODULES
All Atmosphera® modules are scalable by design. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° US8733053, AU2012203424B2 / AU2014203325A1.
