Delta Drop® 2×4

Delta Drop® 2x4 brings faceted, dimensional geometry to your design, in a long, narrow panel. Plus, it offers easy installation, using quick torsion spring attachment across standard ceiling grid systems, or simple wall attachment using our Vertika channel system. Integrated backlighting is available if you want to add some light to your design, or try our Soft Sound® backer if you are looking for an acoustic solution.

Downloads Find a rep Add to project
Get a Quote



Arktura Delta Drop
Expand
Expand
Expand
Expand
suspended ceiling system
Expand
Expand
Expand
Expand
Arktura Delta Drop
Expand
Expand
Expand
Expand
Expand
Expand
Delta-Drop-Galleria-Web-001
Expand

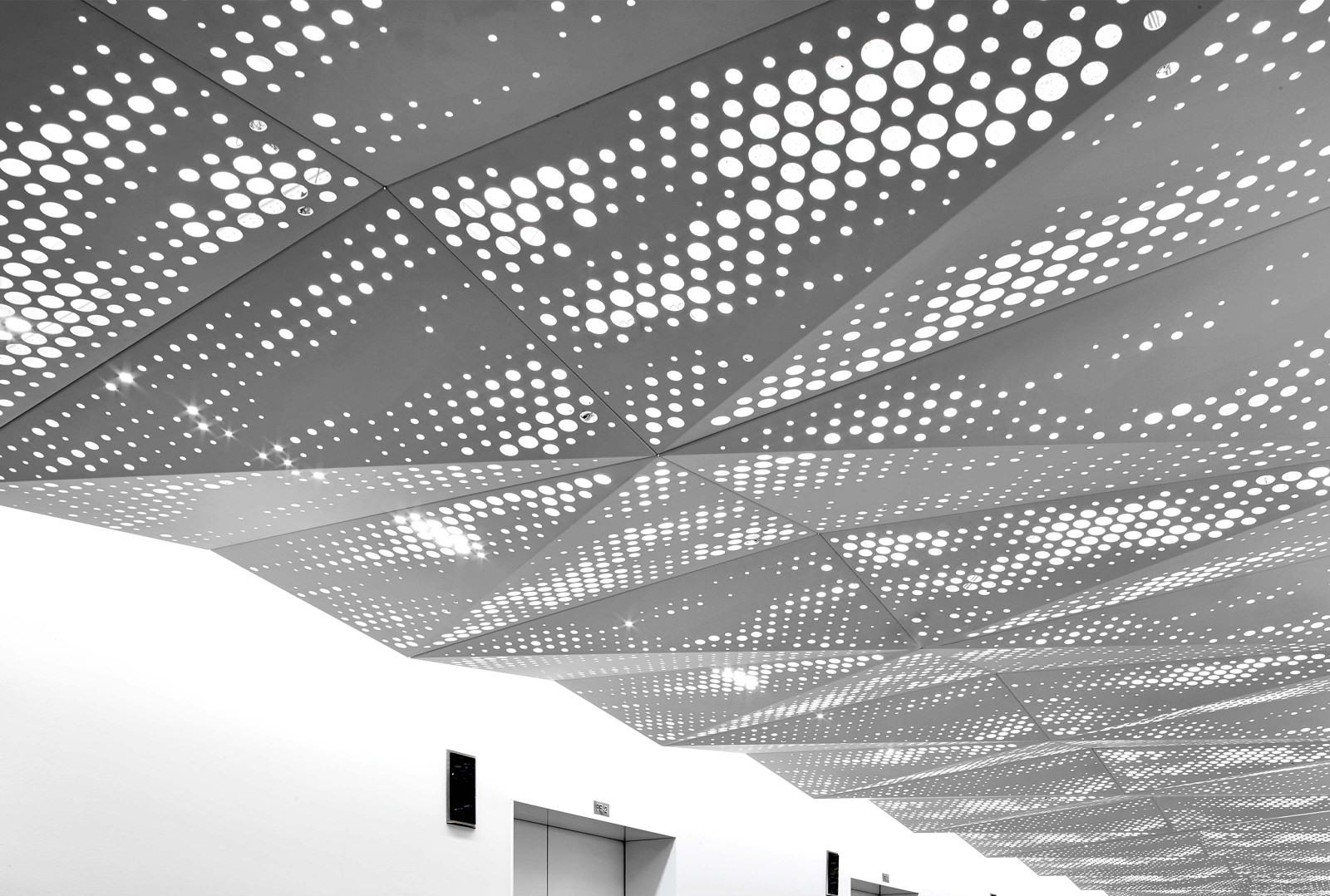

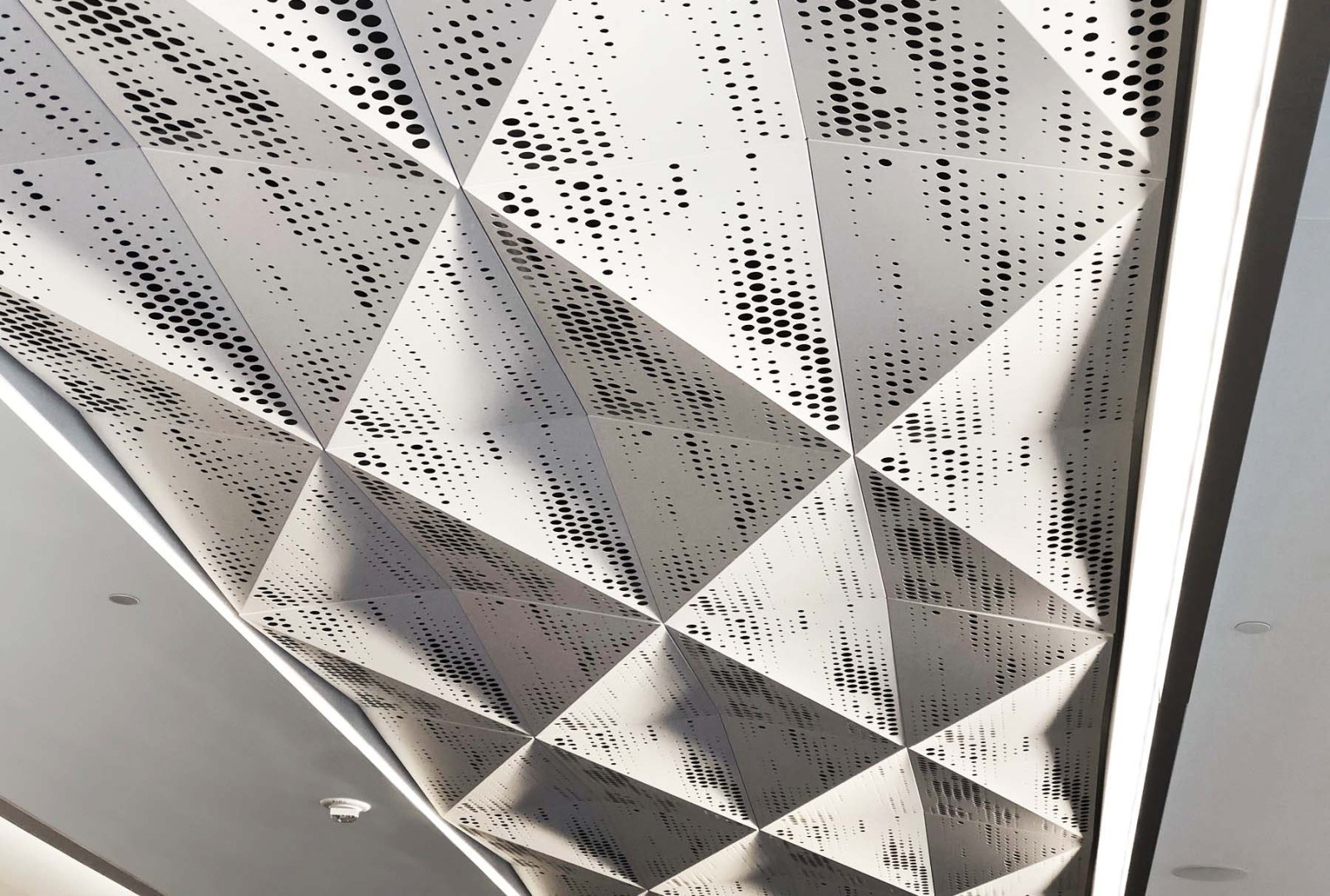

Delta Drop® 2x4 full circle in galleria.
Expand
Delta Drop® 2x4 by Arktura
Expand
Delta Drop® backlit panels installed in a gallery.
Expand
Delta Drop® 2x4 without backlight above gallery.
Expand
suspended ceiling grid systems
Expand

Key Features

  • Acoustic Performance

    Delta Drop®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to to conference rooms.

  • Multiple Pattern Options

    Delta Drop® panels are preconfigured faceted solutions designed with a dynamic array of criteria and effects in mind. Choose from our library of patterns to uniquely impact your project.

  • Multiple Panel Types

    In addition to multiple patterns, select from various panel types including Standard, Transition, and Flat Panels. Use them together to create gradations and increase the aesthetic and functional versatility of the system

  • Easy Installation & Access

    Delta Drop® panels offer easy install and access across walls and ceilings through quick torsion spring attachment to standard grid systems and a simple hook-on attachment to our Vertika® channel system.

  • Design with Standard Panels

    We make it easy to create stunning faceted designs on a standard torsion grid. Mix and match our available panel sizes in stepped or continuous configurations. Choose from our library of patterns or create one that fits the unique needs of your project.

  • Integrated Lighting Options

    We have designed an integrated backlight allowing you to create a variety of functional and decorative lighting solutions.

Panel Materials & Colors

Powder Coated Aluminum

Aluminum

Powder Coated Aluminum - Premium Metallic Finish

Aluminum

Backer Materials & Color Options

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Interior Translucent Backer

1/16" Polycarbonate

Product Details

Diagrams Specs

Standard Panels

Seamlessly Join Walls & Ceilings

Understanding the Panel - Full Solid

Understanding the Panel - Half Pattern Circle

Understanding the Panel - Full Pattern Circle

Accessory Options - Ceiling

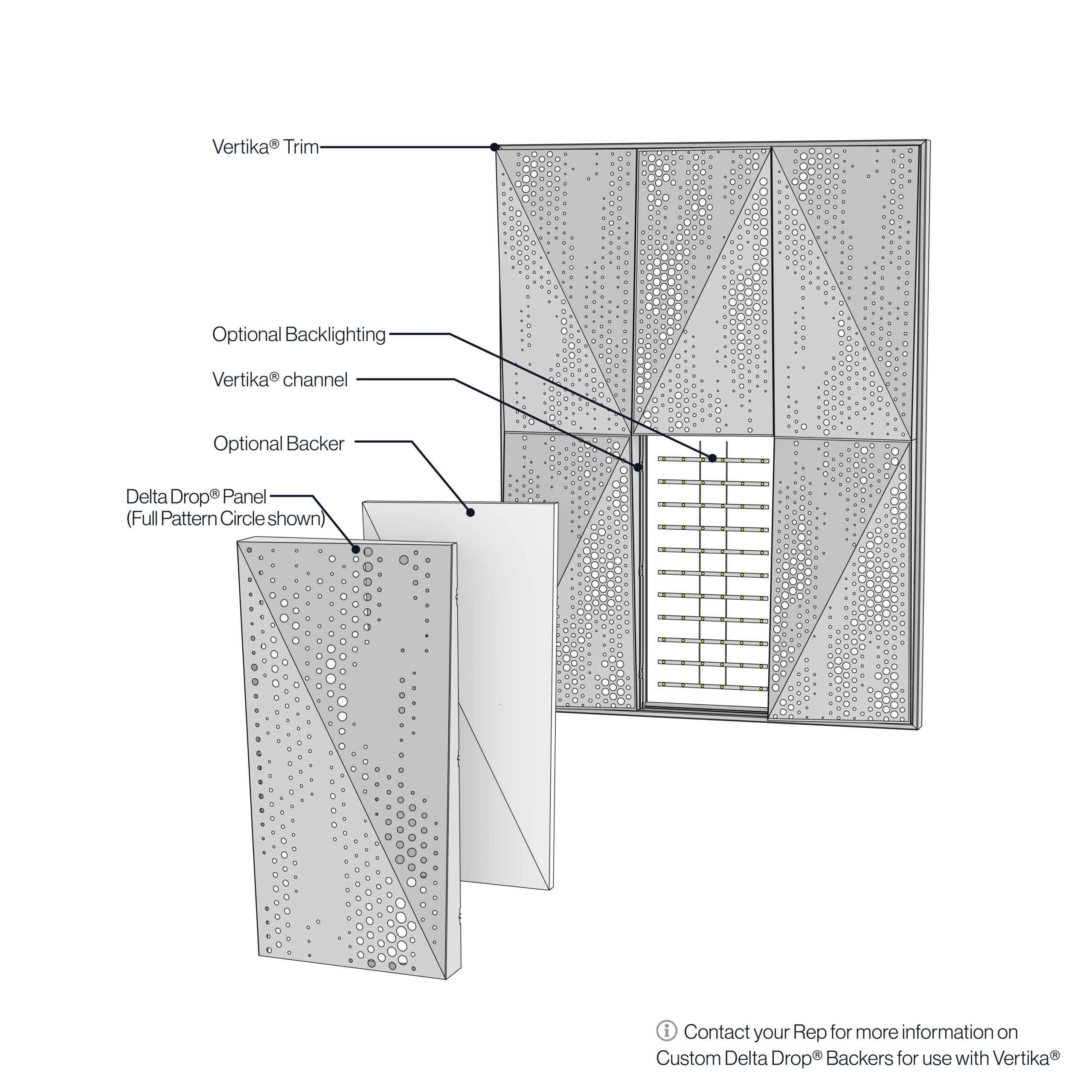

Accessory Options - Wall

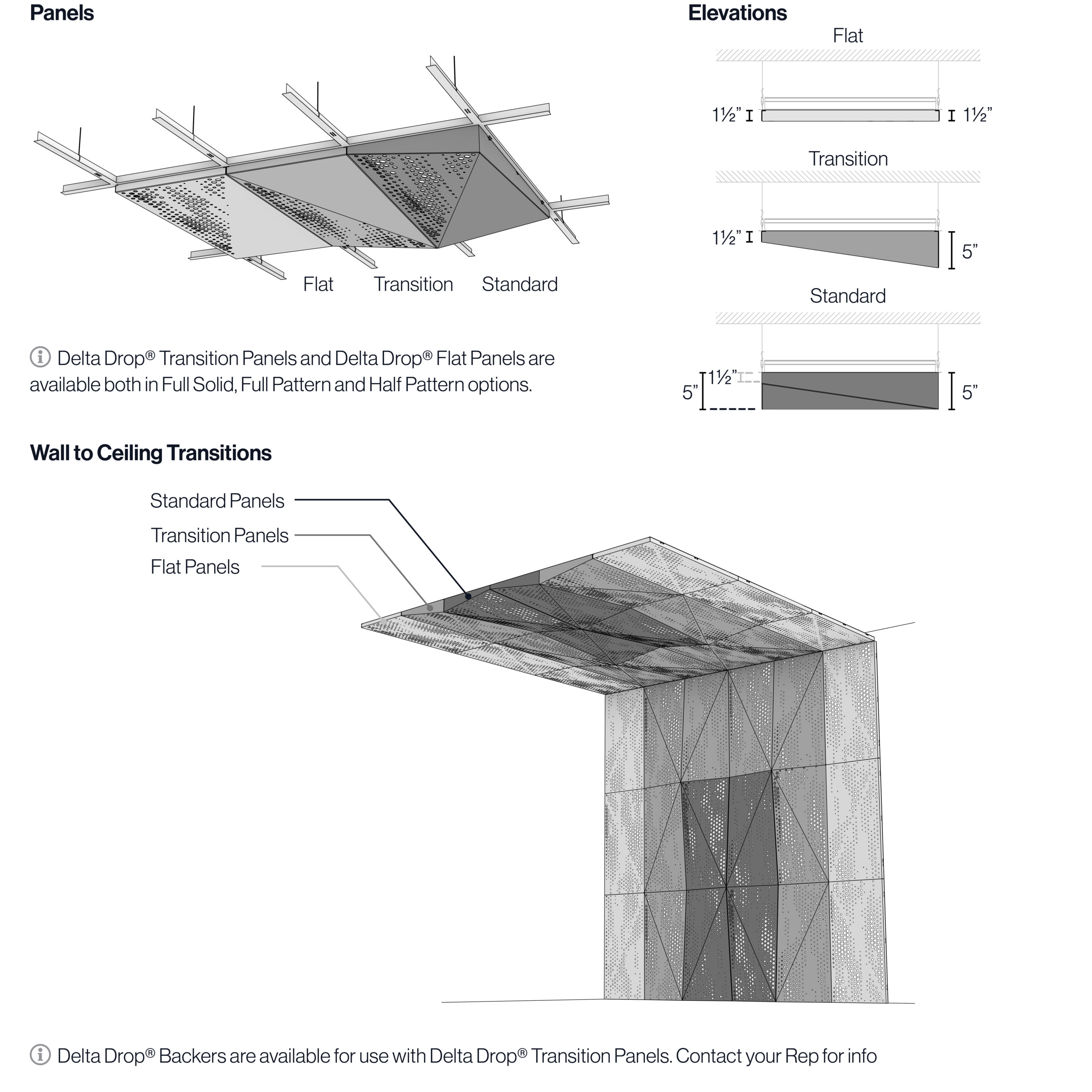

Transition and Flat Panels

System Specs

Dimensions (WxHxD)
2’ x 4’ x 5’’ Imperial | 60cm x 120cm x 13cm Metric
Material
Aluminum
Openness in Plan
Half Pattern: 7%
Full Pattern: 12%
Full Solid: 0%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics (with optional Soft Sound® backer)
True NRC® 0.50: Half Pattern (Ceiling) ; E-200 Method
True NRC® 0.60: Half Pattern (Wall) ; F-70 Method
True NRC® 0.70: Full Pattern (Ceiling) ; E-200 Method
True NRC® 0.70: Full Pattern (Wall) ; F-70 Method
True NRC® 0.20: Full Solid (Ceiling) ; E-200 Method
True NRC® 0.35: Full Solid (Wall) ; F-70 Method
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
Torsion Spring Hinge
Field Trimmability
Please reference Installation Manual (Available by request to your Arktura Rep)
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light

Downloads

  • Delta Drop® 2×4 – Product Brochure PDF – Imperial
    Brochure
    7.79 MB
    pdf
  • Arktura Backlighting – DWG – Imperial
    3D Model
    134.88 KB
    zip
  • Delta Drop® 2×4 – 3D DWG – Imperial
    3D Model
    4.56 MB
    zip
  • Torsion Panel Trim Details – 2D DWG – Imperial
    3D Model
    124.34 KB
    zip
  • Delta Drop® 2×4 – 3D SKP – Imperial
    3D Model
    4.01 MB
    zip
  • Vertika® – 3D DWG – Imperial
    3D Model
    1.27 MB
    zip
  • Delta Drop® 2×4 Full Circle – 3D RFA – Imperial
    3D Model
    44.98 MB
    zip
  • Vertika® – 3D SKP – Imperial
    3D Model
    1.91 MB
    zip
  • Delta Drop® 2×4 Half Circle – 3D RFA – Imperial
    3D Model
    54.2 MB
    zip
  • Vertika® – 3D RFA – Imperial
    3D Model
    9.42 MB
    zip
  • Delta Drop® 2×4 Full Solid – 3D RFA – Imperial
    3D Model
    7.16 MB
    zip
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    828.83 KB
    pdf
  • Delta Drop® 2×4 – 3D DWG – Metric (EMEA ONLY)
    3D Model
    1.46 MB
    zip
  • Delta Drop® 2×4 – PDF Tear Sheet – Metric (EMEA ONLY)
    Tear Sheet
    7.17 MB
    pdf

How to Specify:

  1. SELECT A STYLE

    Find the right panel size and style – including full solid, half perforated, and fully patterned options - for your project.

  2. SELECT A COLOR

    Panels are made available in a variety of colors. See our powder coat brochure for standard and premium options. Customized color matching is also available.

  3. OPTION TO ADD LIGHTING

    Optional - Add integrated lighting. Our Delta Drop® Family makes it easy to incorporate dynamic backlighting, to add another dimension of functionality and visual interest to your project.

  4. OPTION TO ADD BACKER

    Optional - Add backer panels. Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to reduce the impact of noise across spaces.

Let us help you get started.
Find your RepGet a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° USD849969, CA176770S, USD849275, CA176771S, USD859696, CA176774S, USD848035, CA176772S.
