GeoSound™ Diamond
Modern acoustic design as stunning as it is versatile, GeoSound™ Diamond delivers streamlined geometric modularity. Its beveled, diamond-shaped form, inspired by our SoundStar® system, can be used in flat minimalist fields or clustered together to produce dazzling dimensional displays across ceilings or walls. Create hexagonal configurations that easily pair with existing geometric systems from Arktura to bring impressive acoustic coverage to any space. Diamonds can also be used across walls to create immersive installs. Made from our Soft Sound® acoustic material, this angular cloud system can be specified in over 30+ colorful finishes.
Key Features
-
Dynamic Wall & Ceiling Design
GeoSound™ Diamond’s unique gem-shaped design clusters beautifully in open areas or can be centralized where support is needed most. These geometric modules can be suspended individually as an acoustic cloud or wall mounted to create an immersive visual experience.
-
Thoughtful Integration
GeoSound™ Diamond can be installed around integrated building fixtures such as lights, HVAC, audio, or fire suppression systems through field trimming, adding flexibility.
-
Compatible with Hexagonal Systems
GeoSound™ Diamond is compatible with other hexagonal systems from Arktura, including SoundStar®, SoftGrid® Orbit, and SoftShapes® Hex, to fully immerse any space in acoustic attenuation.
-
Reduce Noise and Enhance Acoustics
GeoSound™ Diamond’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter, resulting in a more pleasant and productive environment. This material works with a flat design to help reduce and control reverberations and diffuse sound, leaving a lasting impression at scale.
-
Expansive Soft Sound® library
Choose from an extensive library of Soft Sound® colors. Mix and match colors to accent fins and complement your space's color scheme.
-
Create Unique Configurations
Connect GeoSound™ Diamond modules seamlessly together as clusters, thanks to integrated magnetic attachment, whether across ceilings or on walls. These diamond shaped modules can come together to create unique geometric layouts, the possibilities are nearly limitless.
Module Color
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Essentials
Acoustic PETProduct Details
Standard Modules
Multiple Modules
Understanding the Module - Diamond - Stand Alone
Understanding the Module - Diamond - Hex Configurations

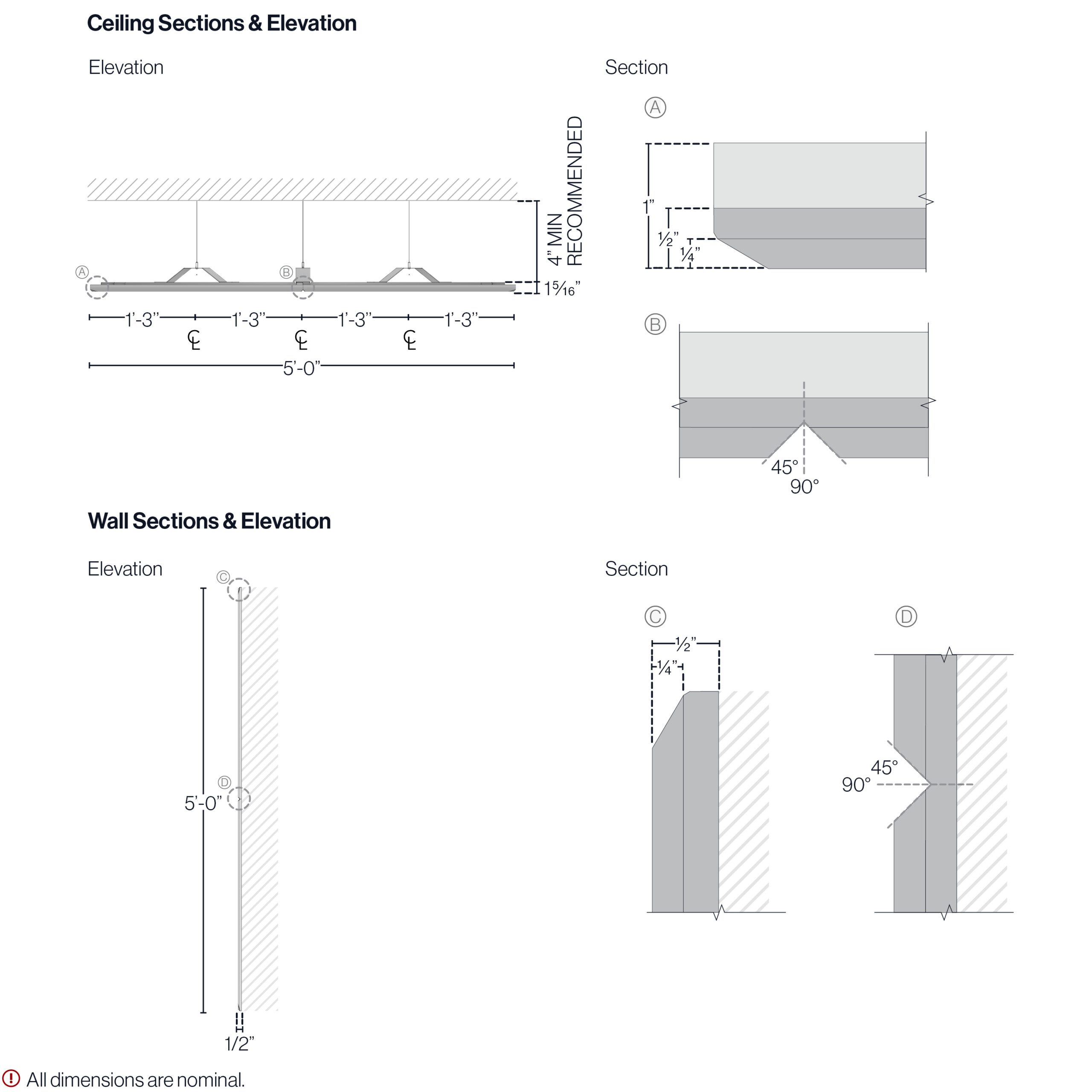

Ceiling Sections & Elevation
Attachment Details - Ceiling
Combining With Other Products
System Specs
- Module Dimension (WxL)
- 5’ x 2’-10 5/8"
- Depth
- 1 5/16” (Ceiling) - 1/2” (Wall)
- Face Material
- 12mm Soft Sound® (PET)
- Stiffener Material
- Raw Aluminum
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- True NRC® 0.95 Ceiling; E-300 Method
- True NRC® 0.45 Wall; A Method (no air gap)
- True NRC® 0.80 Wall; F-50 Method (2” air gap)
- Attachment Method
- 1/16” Cable
- Accessibility
- Yes, quick release cables
- Trimmability
- Yes, in specific areas
Downloads
-
GeoSound – Diamond – Product Brochure PDFBrochure2.27 MBpdf
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
GeoSound™ Diamond – 3D DWG – Imperial3D Model260.89 KBzip
-
GeoSound™ Diamond – 3D SKP – Imperial3D Model469.89 KBzip
-
GeoSound™ Diamond – 3D RFA – Imperial3D Model46.27 MBzip
How to Specify
-
SELECT AN INSTALL METHOD
GeoSound™ Diamonds are available in two distinct styles, cable suspended ceiling clouds, and direct mount units for wall attachment. Select the style or mix of styles to suit your layout vision.
-
SELECT A COLOR
Select from over 30 Soft Sound® colors, mixing and matching as desired. View our GeoSound™ Diamond product brochure for more information.
-
SELECT A NUMBER OF MODULES
GeoSound™ Diamond modules are scalable by design. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
