LumAngle™ 180

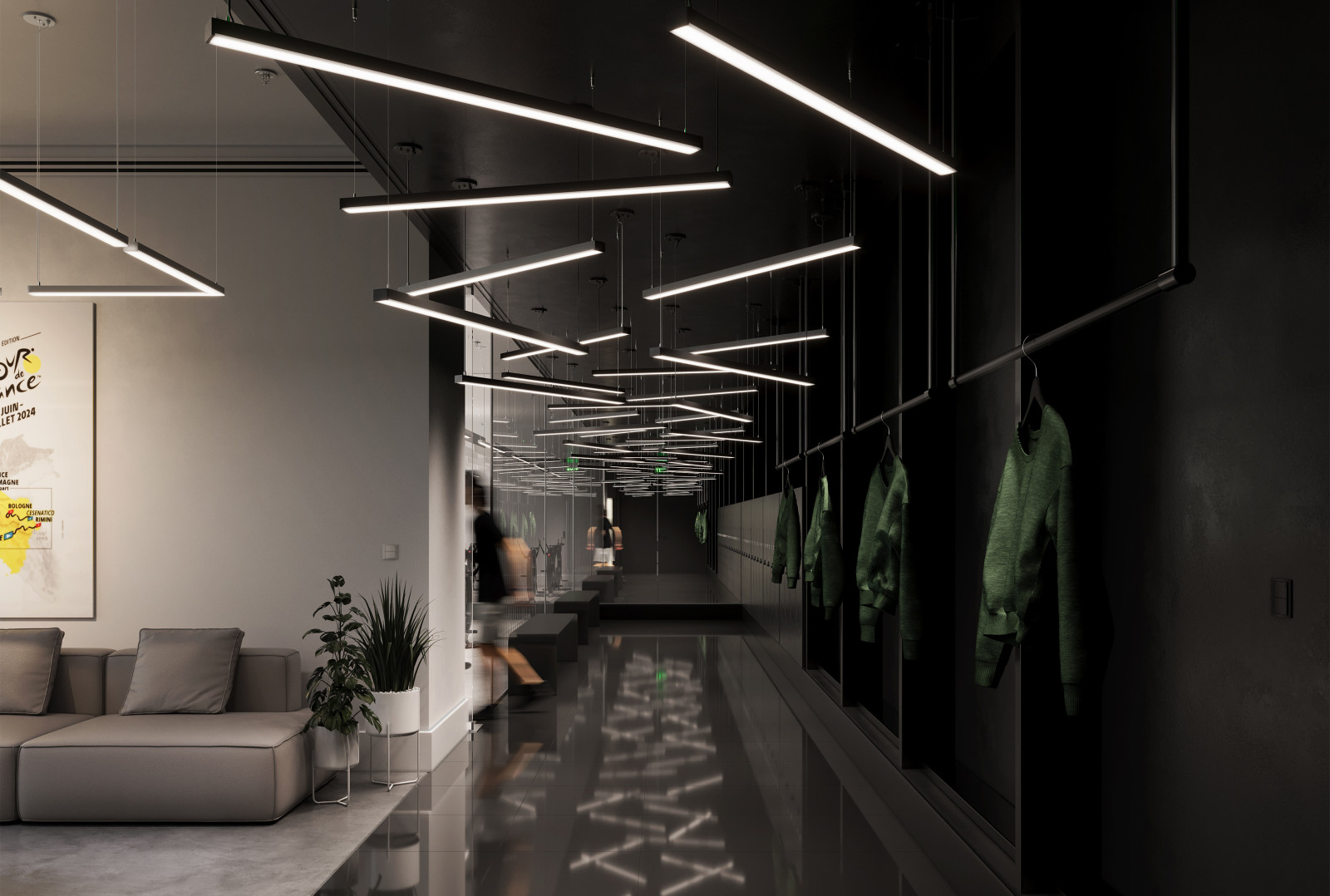

LumAngle™ 180 provides a straightforward, linear way to light up your next project. Offered in 2-8' configurations, this pendant can be installed in tandem with various Arktura architectural systems. For a patterned effect, arrange multiple LumAngle™ pendants in a linear array to create a sense of flow and direction, perfect for hallways, offices, or any large spaces.
Key Features
-
Energy Efficiency
These pendant lights offer high-performance LED lights that provide exceptional brightness while using less energy, making them an energy-efficient lighting solution to enhance your commercial space for years to come.
-
Thoughtful Light Distribution
LumAngle™ features a custom lens and LED configuration designed to optimize light spread and create a more enveloping luminance while increasing efficiency.
-
Range of Profiles
Play with the angled configurations to design dramatic geometric clusters that will captivate any space. Multiple angled form factors and size options allow designers to unleash their creativity. These fixtures are available in various powder-coated finishes to offer even more versatility in your next project.
-
Adjustable Drop Lengths and Locations
These pendant lights offer adjustable drop locations for additional versatility during the installation process. Modify cable drop location along the fixture and adjust cable length for a tailored fit. Ideal for installing in spaces with high ceilings or closer to the ceiling when space is limited. This allows you to experiment with different drop lengths and angles, creating unique and captivating lighting displays.
-
Compatible with Arktura Products
Designed to complement existing Arktura acoustic collections and metal panel systems. LumAngle™ can be installed around the perimeter of select acoustic baffle and cloud systems. LumAngle can be used in tandem with our full range of architectural products but truly shine when used with: (Featured Designs)
Fixture Color Options
Powder Coated Aluminum
Aluminum
Powder Coated Aluminum - Premium Metallic Finish
AluminumHow to Specify
1. Select Profile
2. Select Sizes
3. Select Finish
4. Select Number of Fixtures
Product Details
Top View
Bottom View
Dimensions

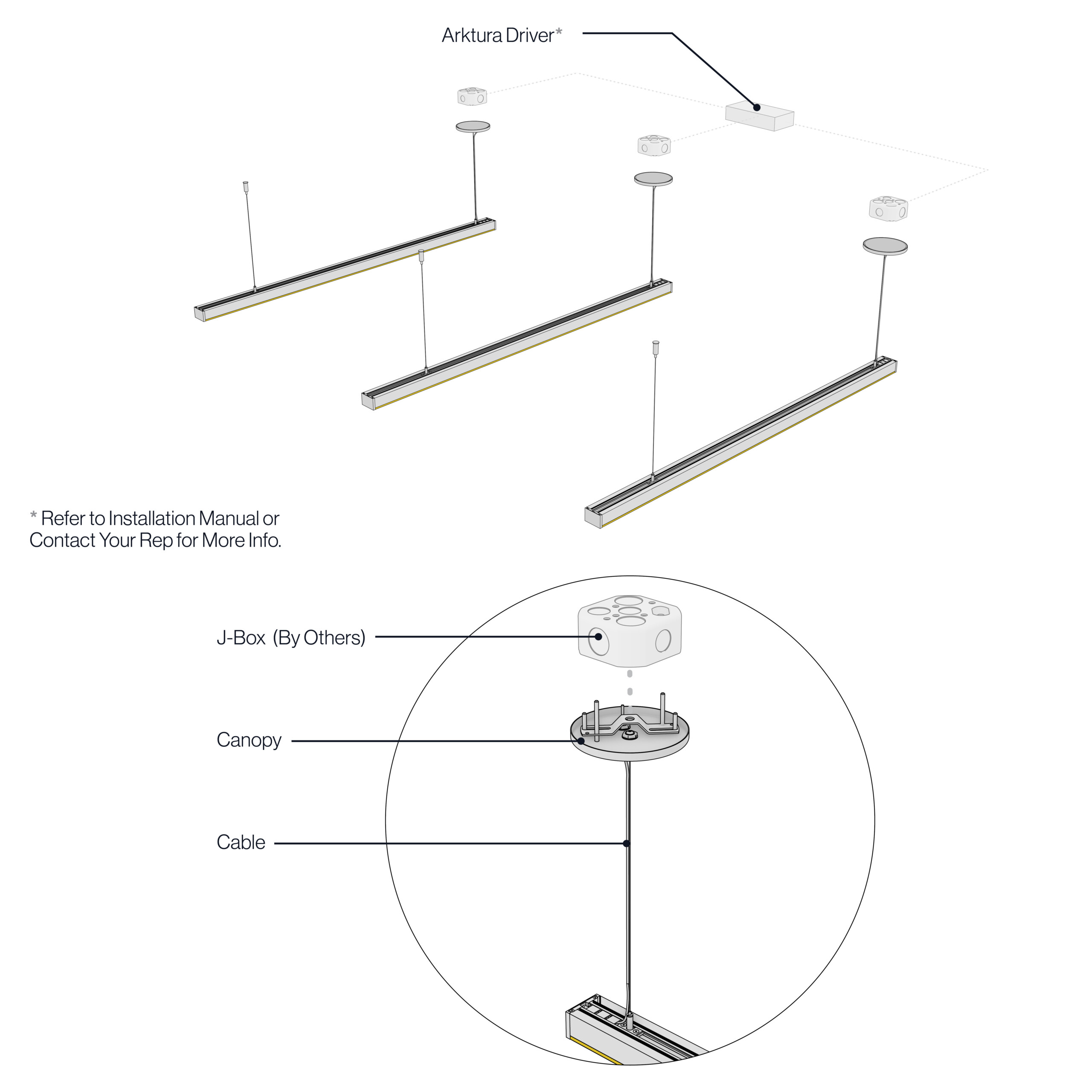

Attachment Details

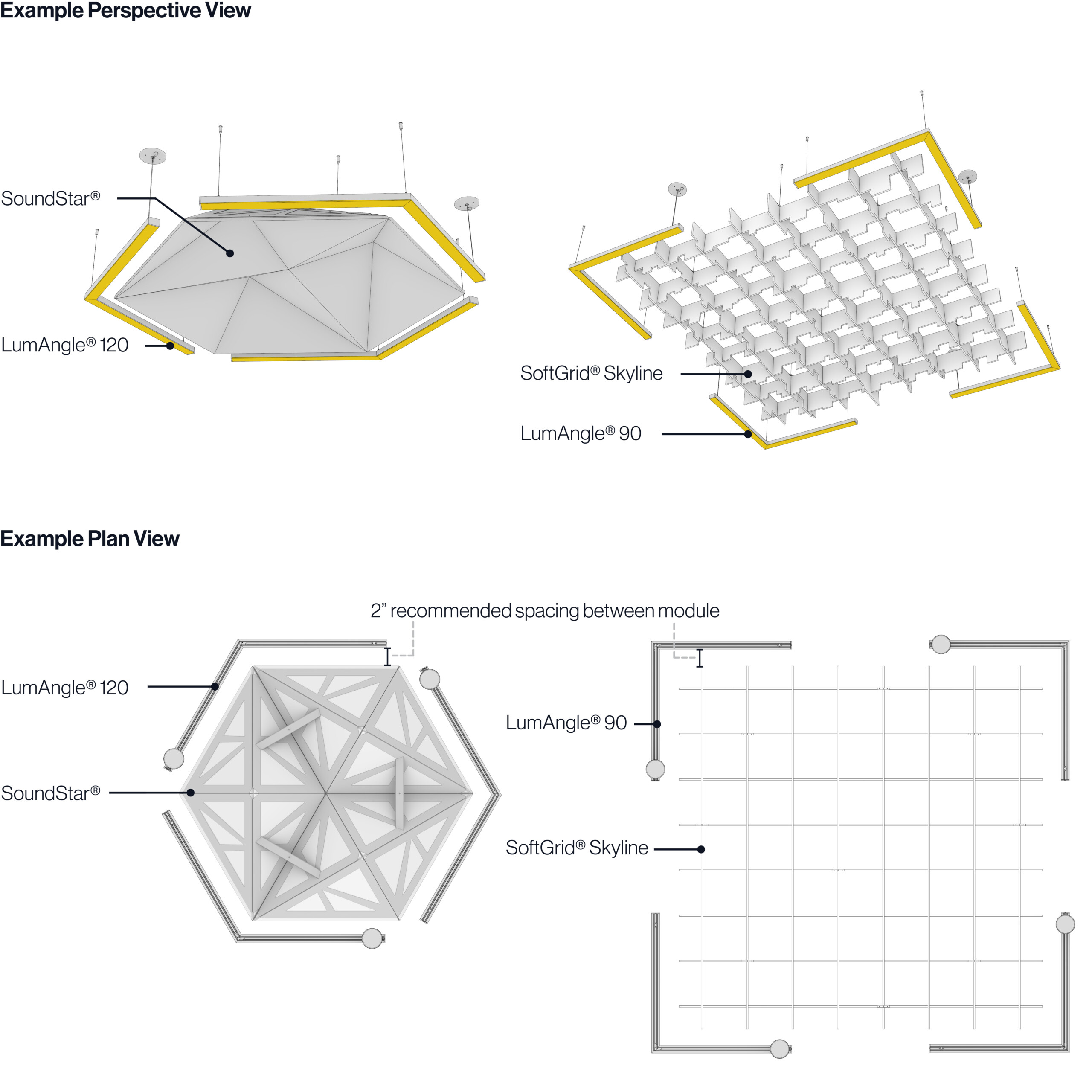

Integration With Other Modules
Dimensions
- Widths
- 2"
- Heights
- 1 3/8’’
- Lengths
- 2’- 1/2”, 3’- 1/2”, 4’- 1/2”, 5’- 1/2”, 6’-1/2”,7’-1/2”&8’-1/2”
Fixture Specs
- Material
- Aluminum, Acrylic
- Color Temperatures
- -20C - +50°C (-4F - +122°F)
- Attachment Method
- Cable Hung
- CRI
- 90+
- Dimming Options
- TRIAC/Phase, ELV, MLV, 0-10V, When Paired with Arktura LED Driver
- Cable
- UL Rated Cable 18AWG 10FT (Longer length available)
- Environment
- Indoor Locations Only
- W/ft & Lm/Ft
- 3.5 W/ft - 349 Lm/Ft, 5W/ft - 525 Lm/Ft, 7W/ft - 614 Lm/Ft, 10W/ft -1021 Lm/Ft
- Fixture Lumens
- See Brochure
- Fixture Watts
- See Brochure
Downloads
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
