Ruelo™

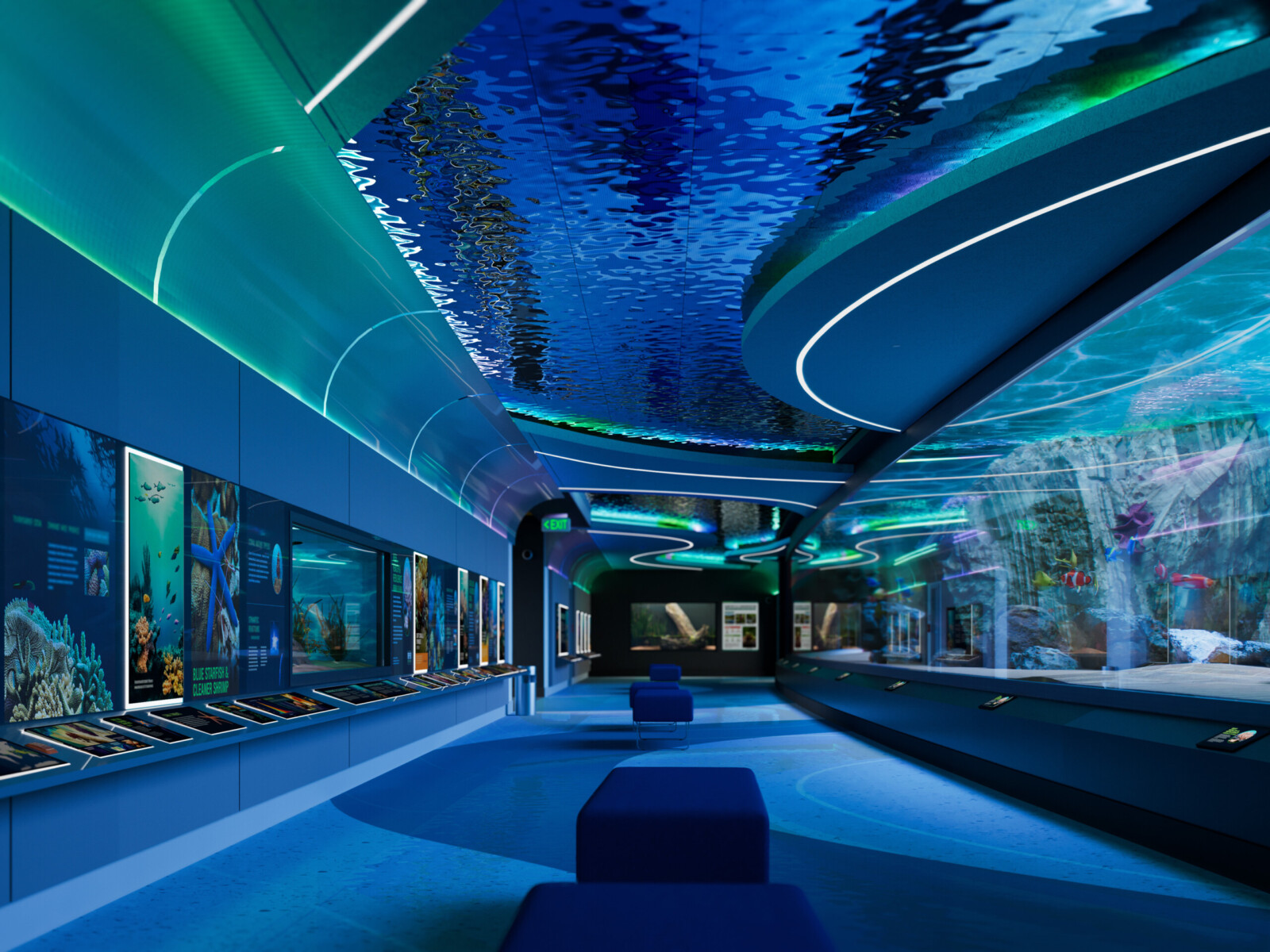

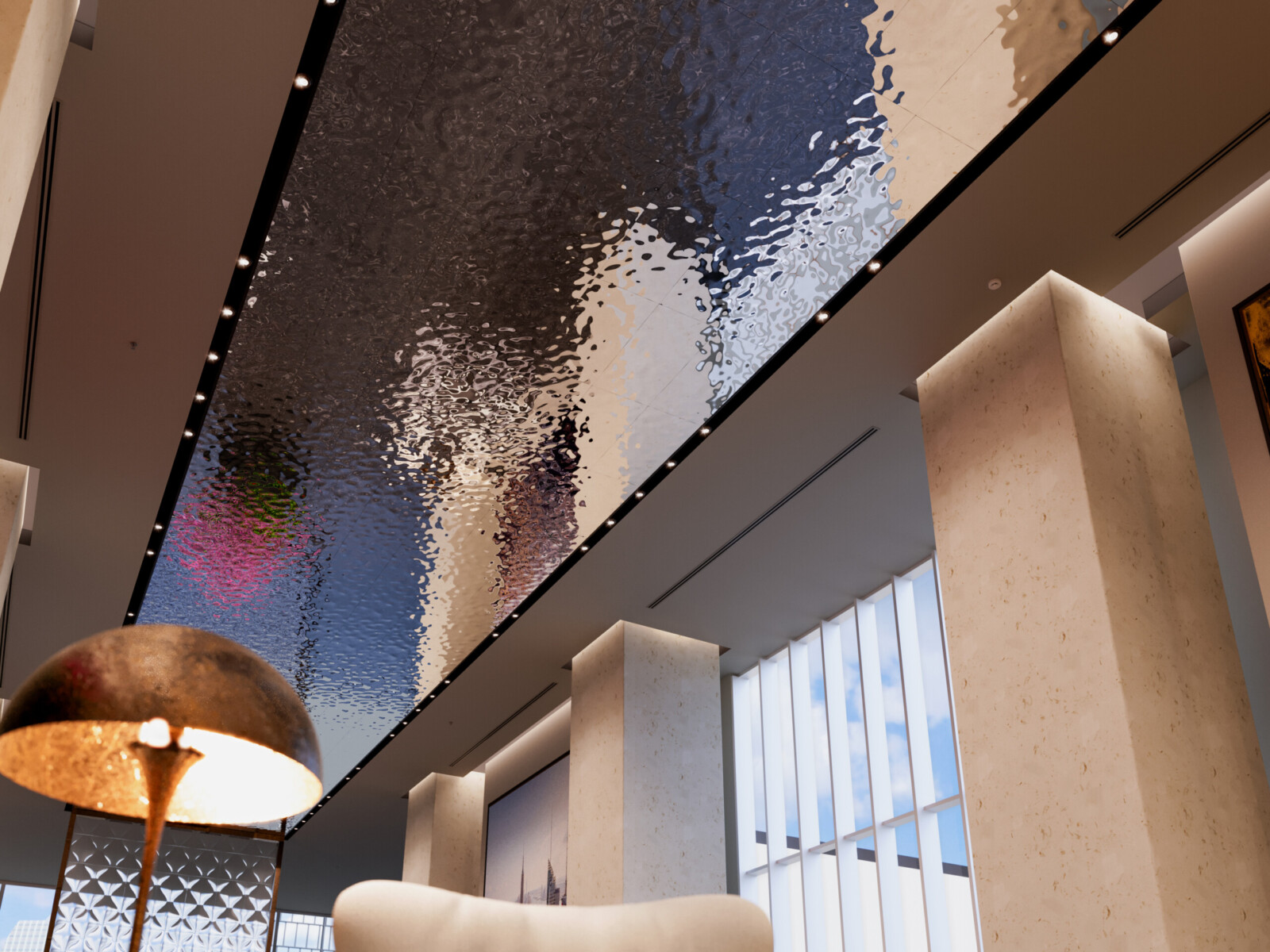

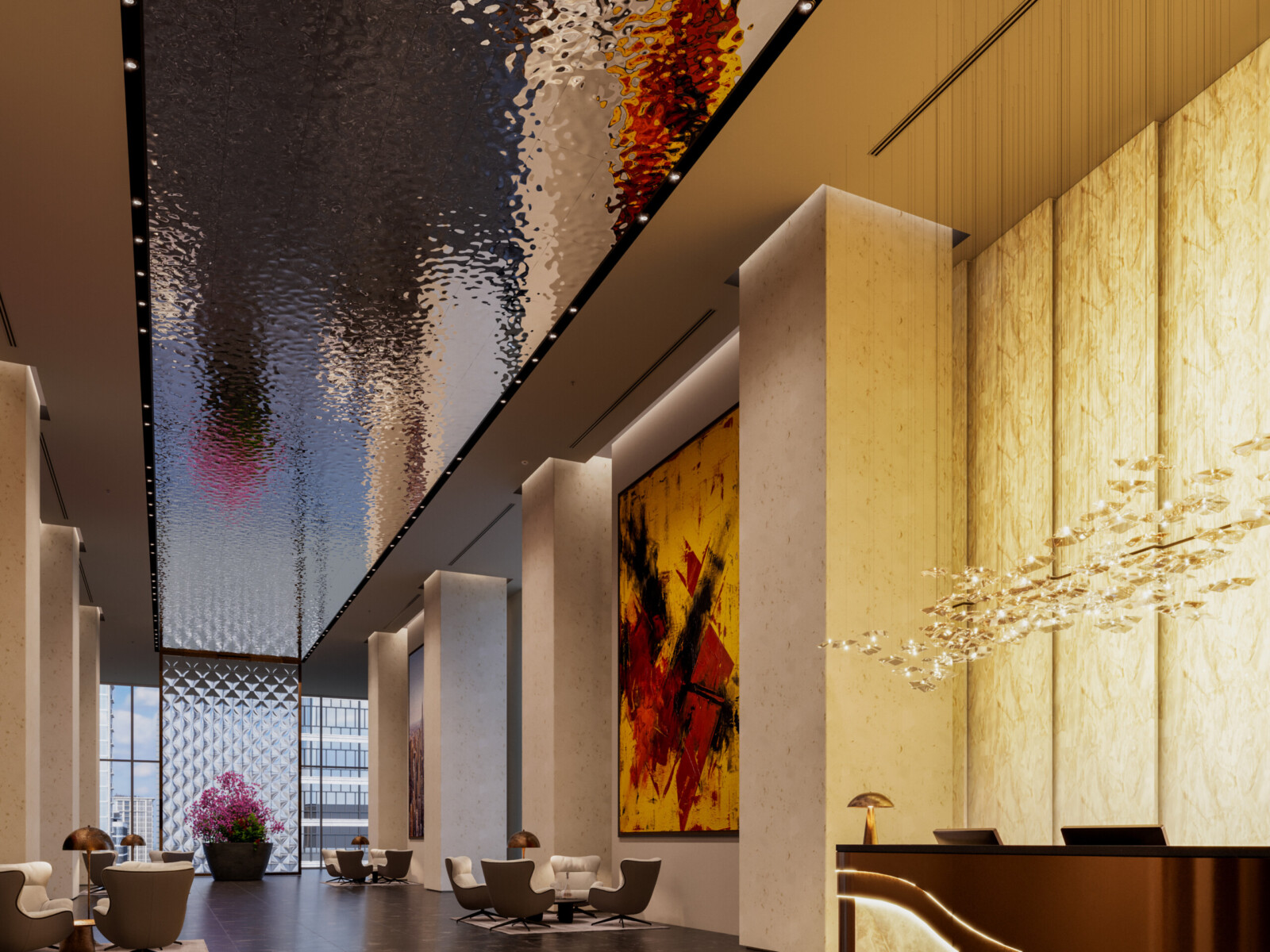

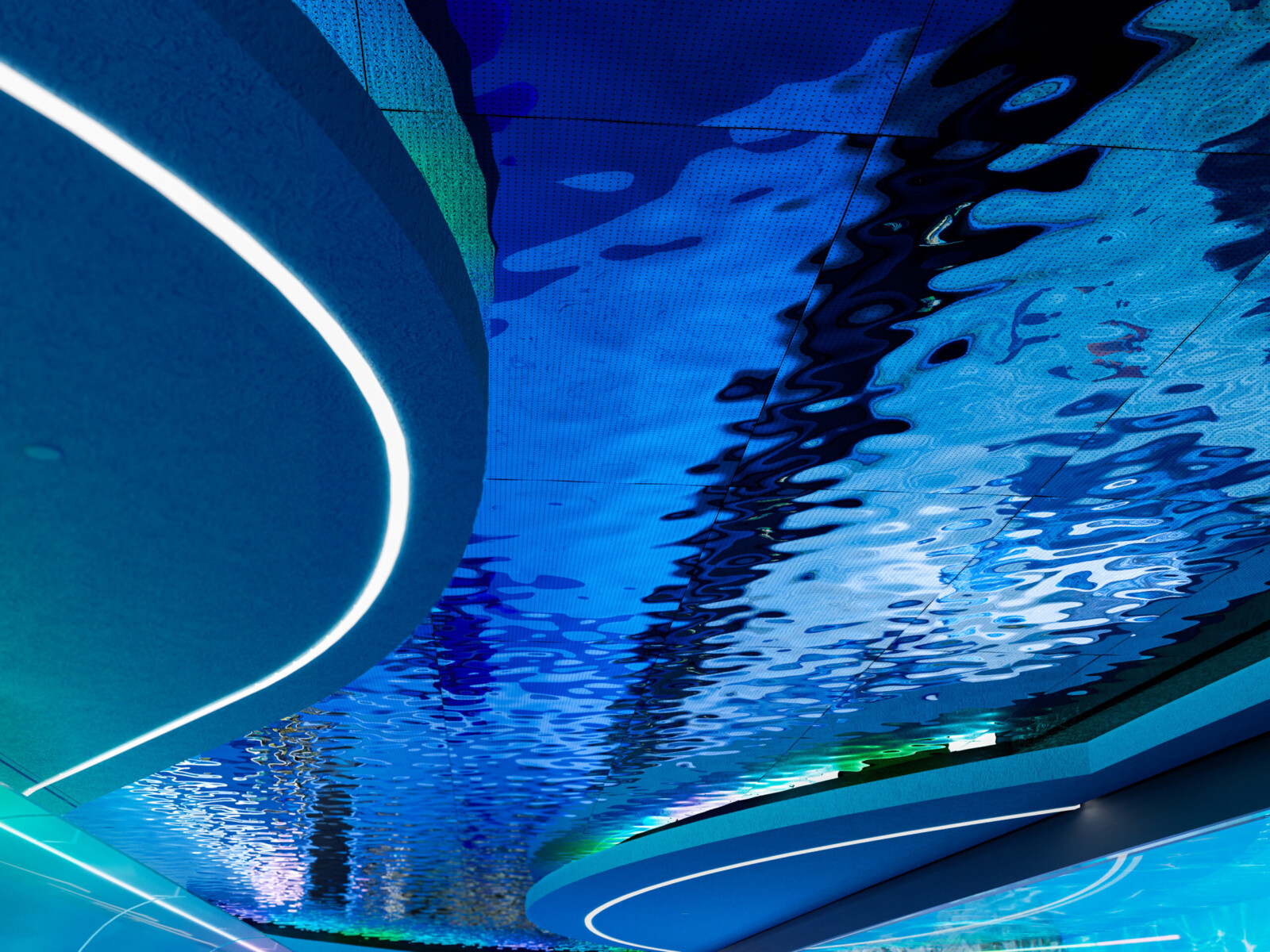

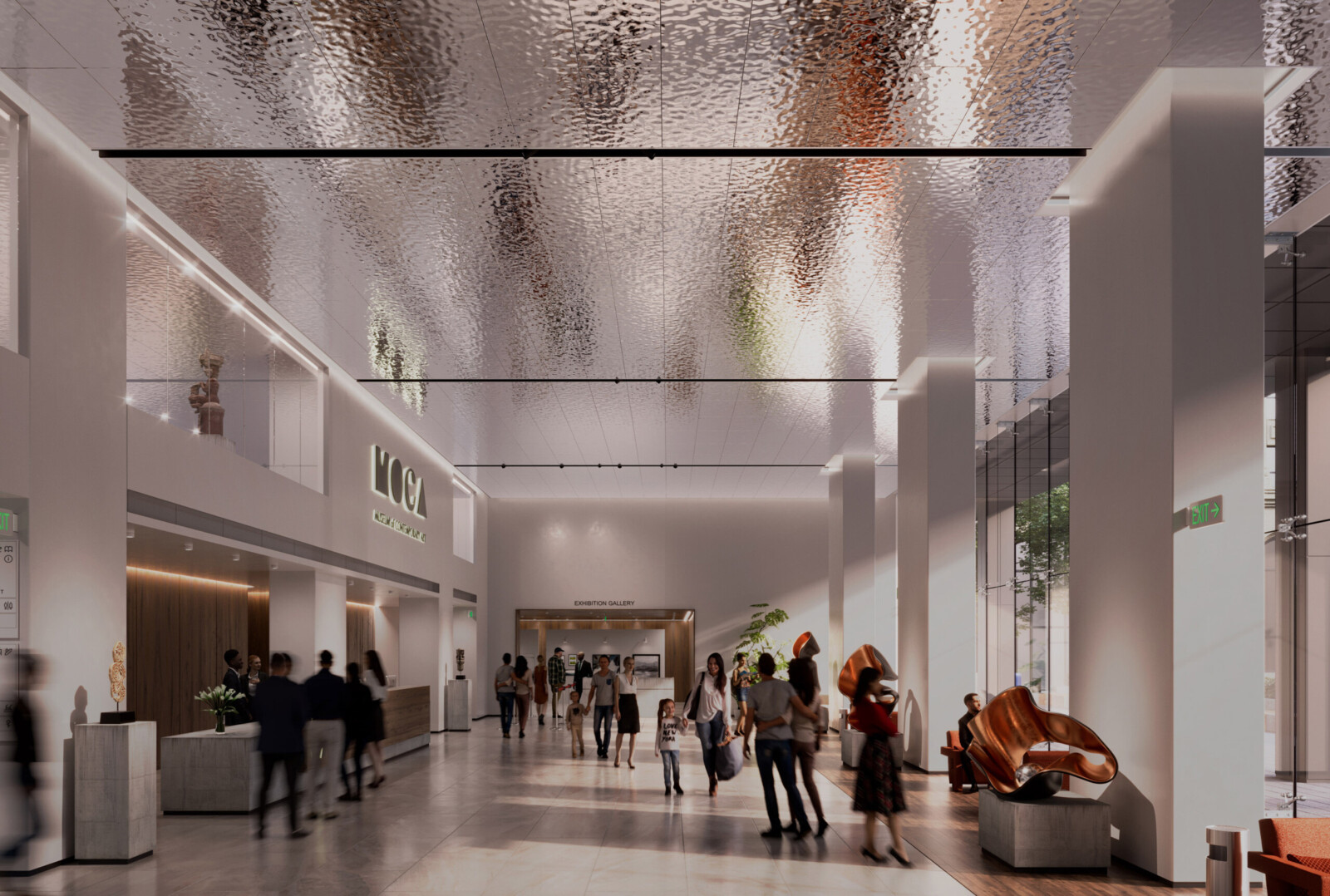

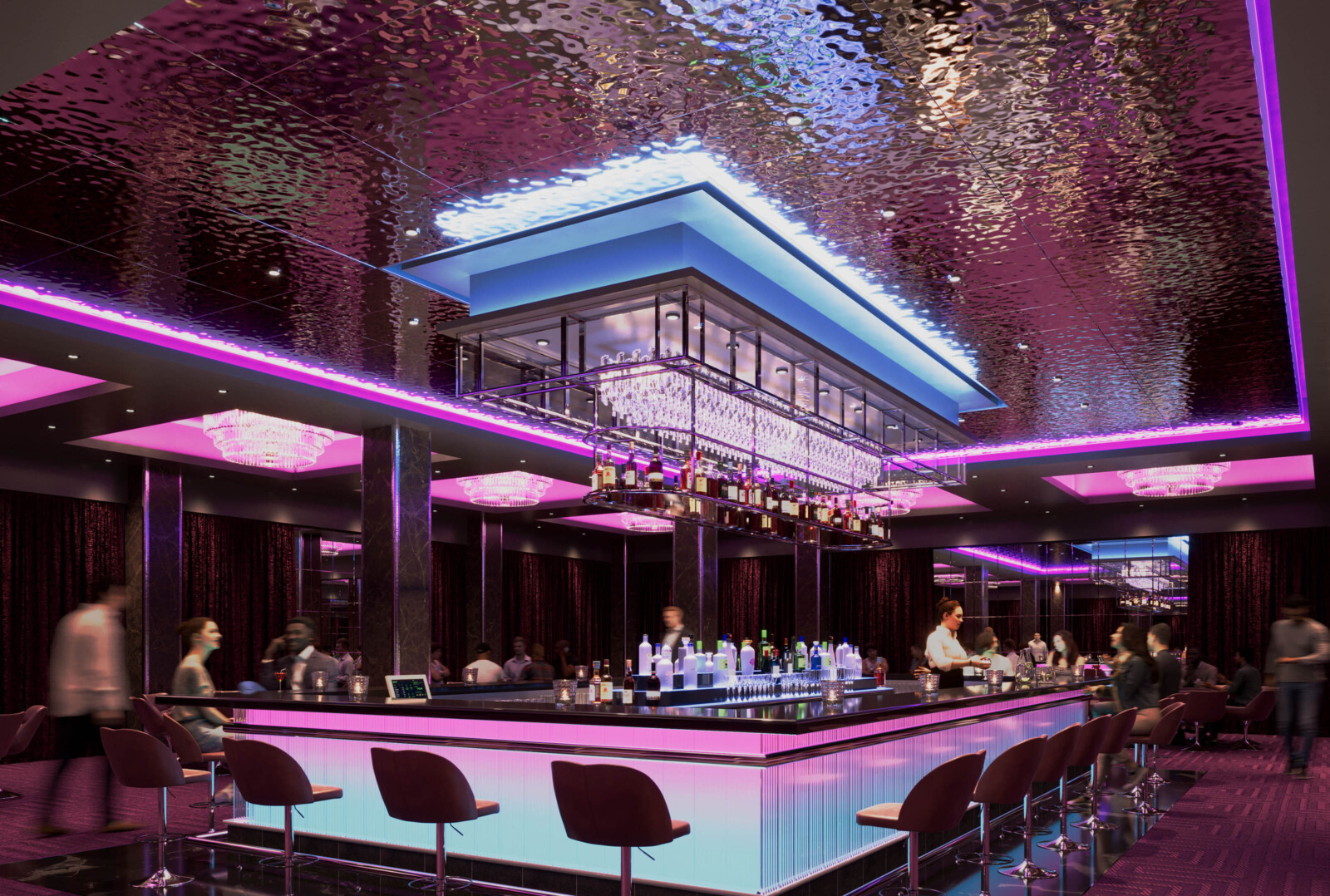

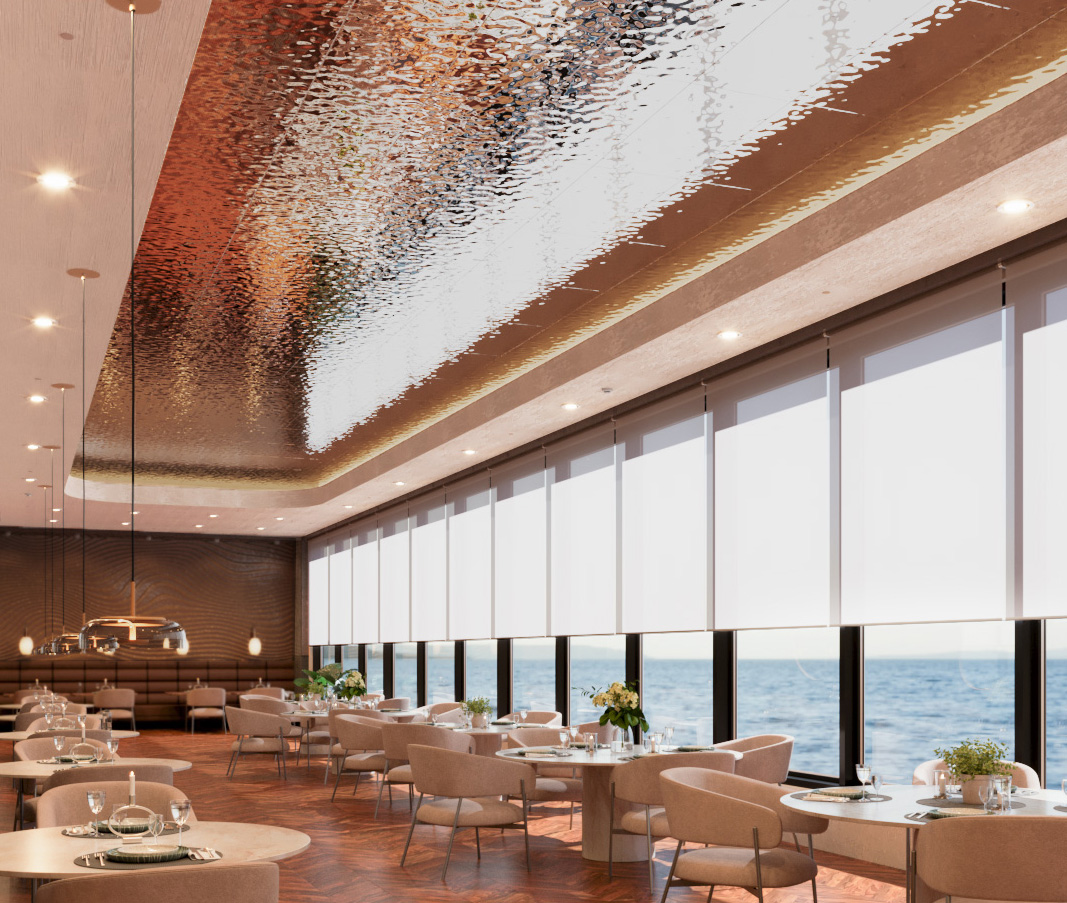

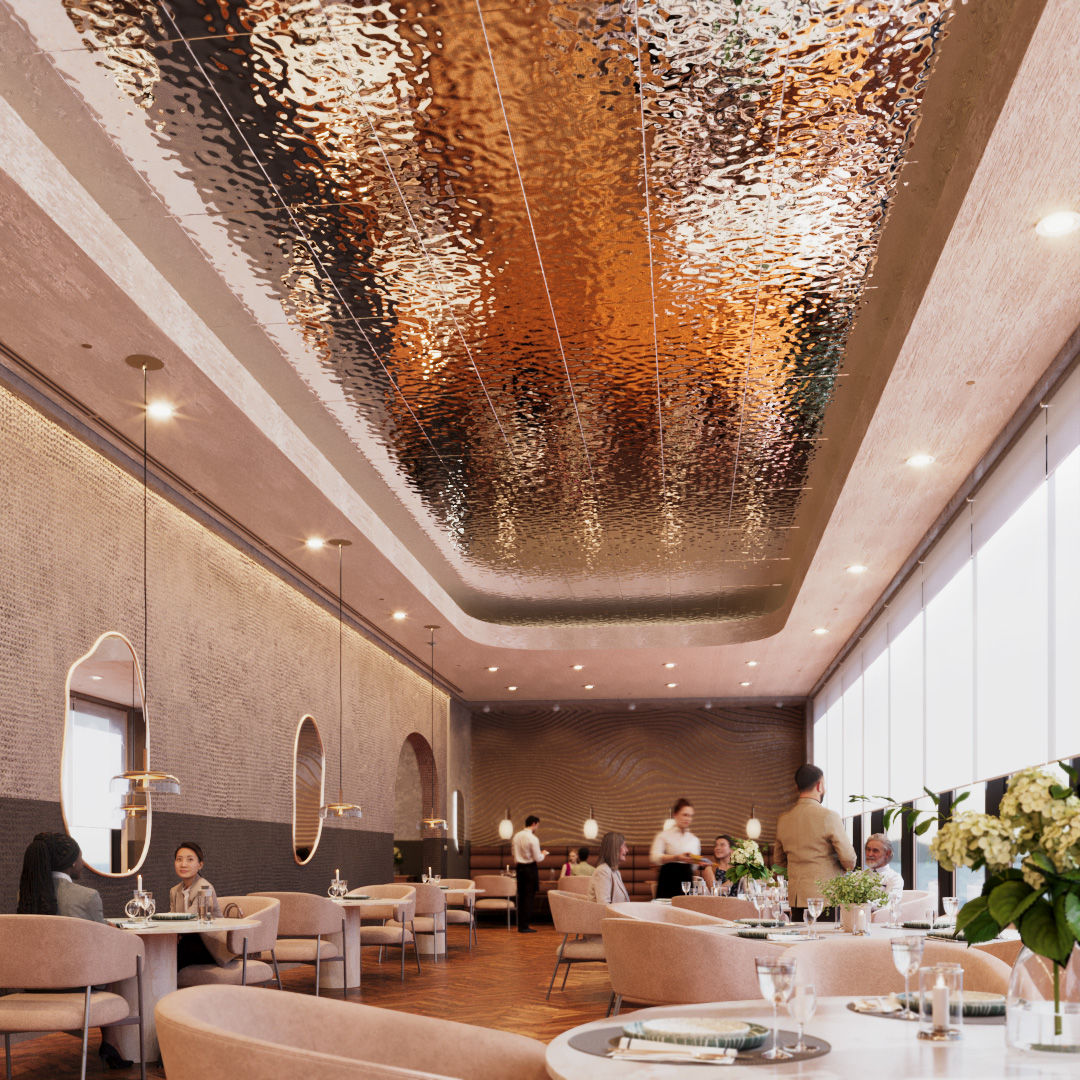

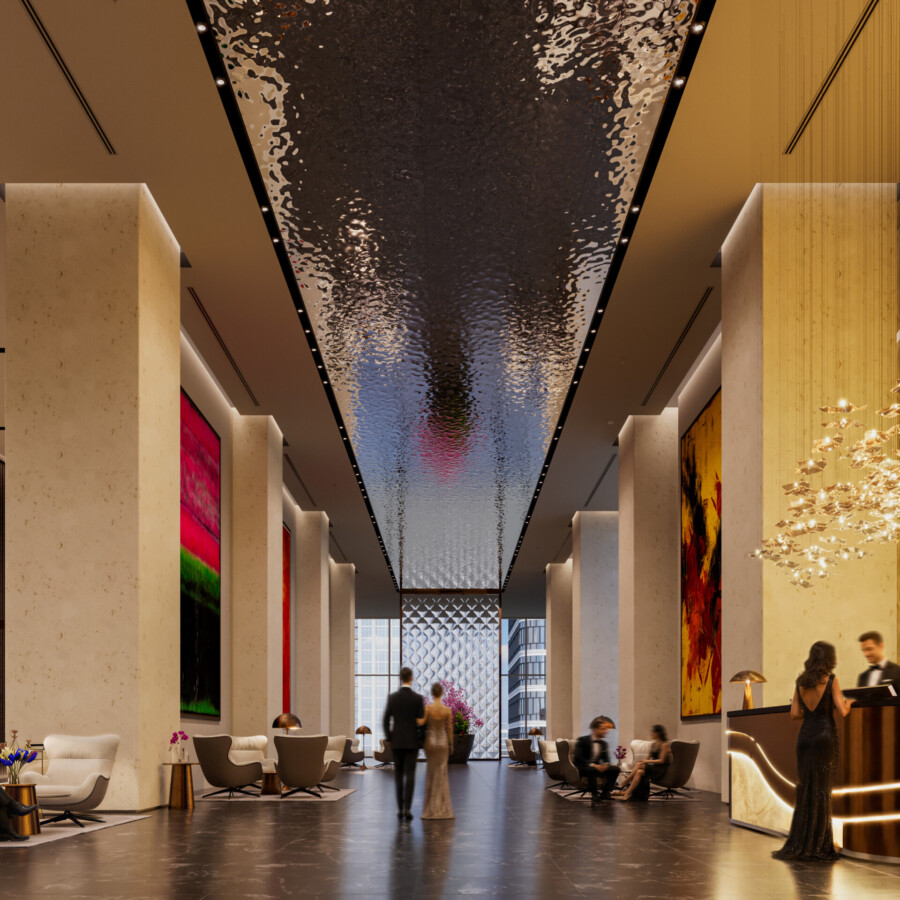

Ruelo™ is a premium architectural ceiling solution that seamlessly combines high-performance elements with an elegant design. Choose between a Solid, highly reflective ripple-finish stainless steel panels or Ruelo™ 1006 for a distinct design with micro-perforations for integrated acoustic absorption for enhanced sound quality. The micro-perforated option includes our Soft Sound® acoustic backer, ensuring effective sound absorption while preserving the unique visual appeal of the ripple surface. With its water ripple finish, the Ruelo™ System creates a biophilic aesthetic that captures the serene and dynamic movement of light across water, bringing a touch of nature indoors.

Downloads Find a rep Add to project



Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand

Key Features

  • Reduce Noise & Enhance Acoustics

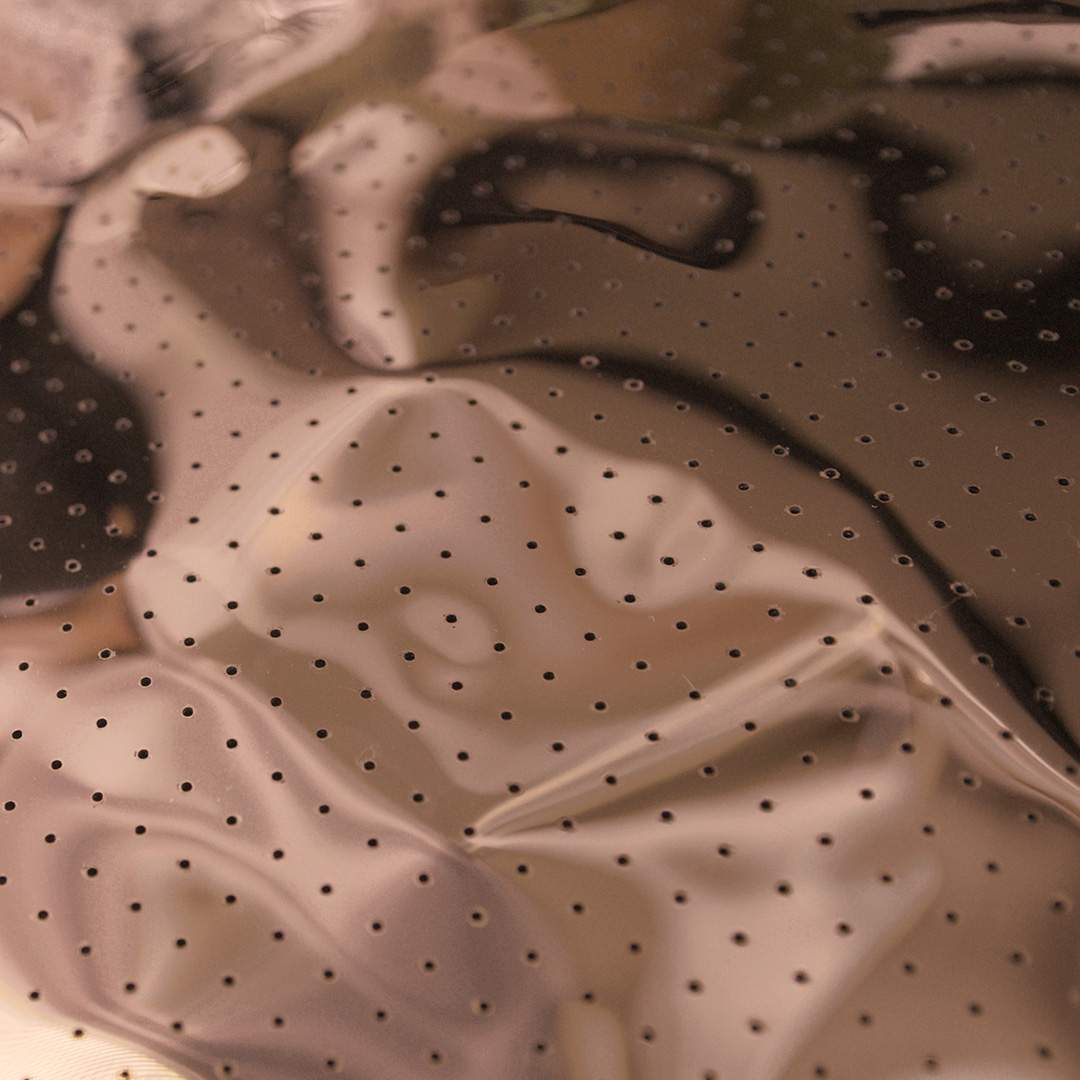

    Ruelo™ panels can be specified with a micro-perforated design to equip an optional Soft Sound® acoustic backer, reducing excess noise throughout your space.

  • Choose Your Style

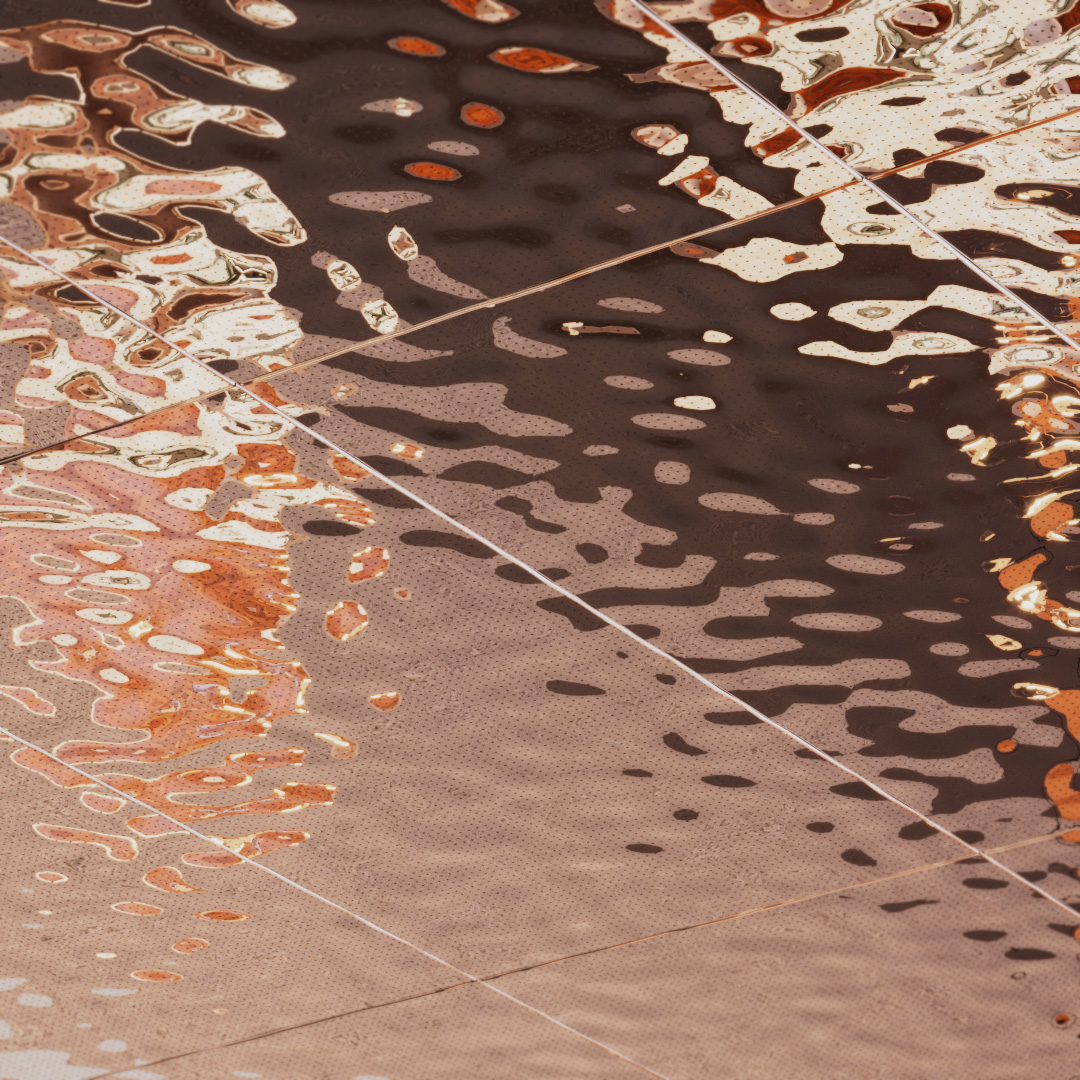

    Ruelo™ panels are offered in a solid stainless steel options for radiant, eye catching aesthetic or choose a micro-perforated option bringing additional texture to the panel system.

  • Easy Installation & Access

    Ruelo™ panels offer easy install and access on ceilings through quick torsion spring attachment to standard ceiling grid systems.

  • Natural Textures

    Each panel features a subtly unique ripple pattern, echoing the natural variations found in water, no two are exactly alike, ensuring every installation feels organic and one-of-a-kind.

  • Field Trimmable

    Every installation is unique, Ruelo™ panels are designed for precise field trimming, allowing seamless integration with building systems, sensors, and site-specific requirements.

  • Integrated Lighting Options

    Add optional lighting to your project by pairing Ruelo™ with Arktura's lnline lighting system.

Panel Color

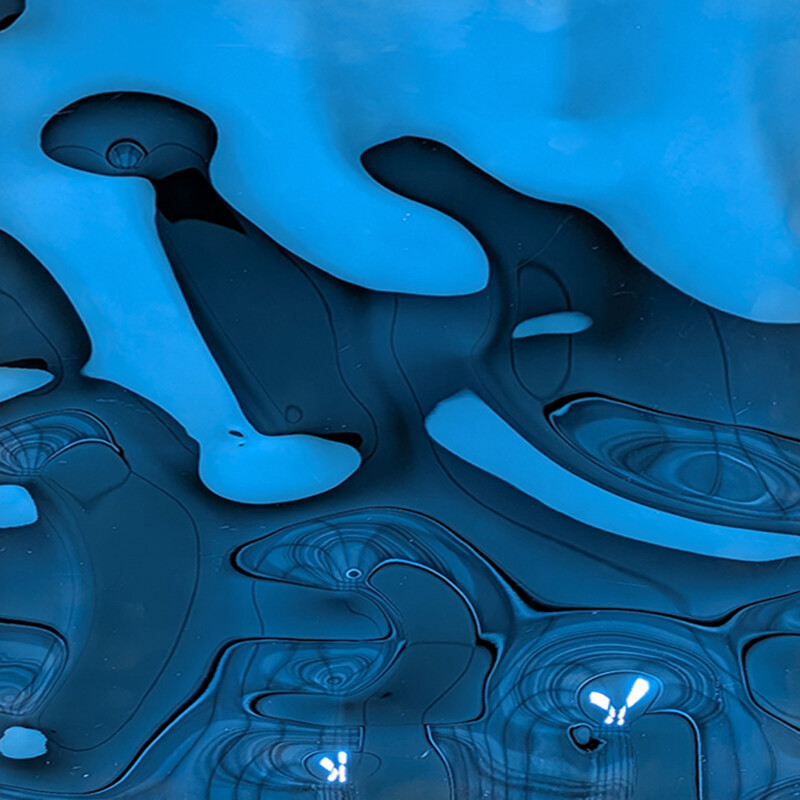

Material Finishes

Optional Soft Sound® Backer

Soft Sound® Backer

Product Details

Diagrams Specs

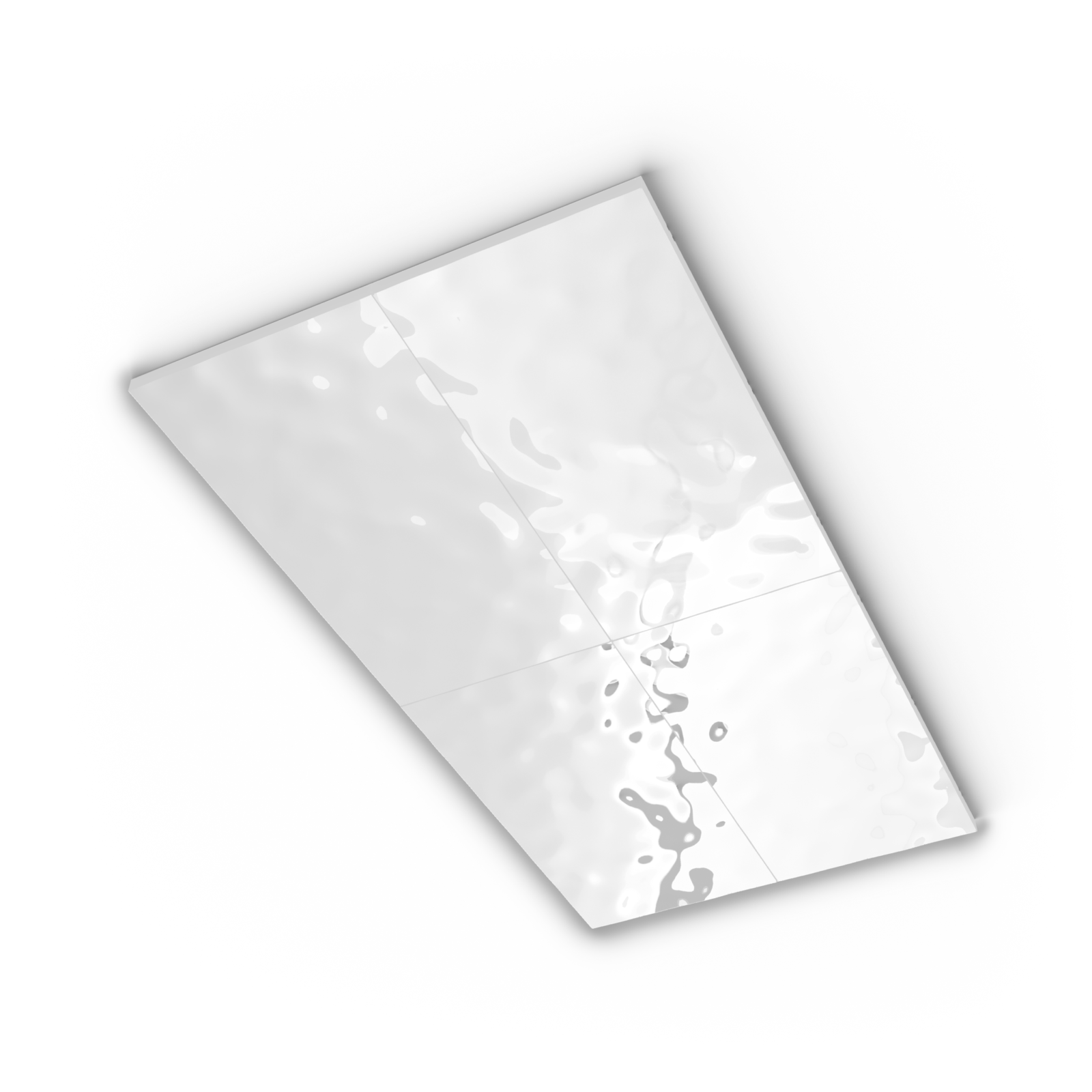

Standard Panels - Ruelo™ Solid

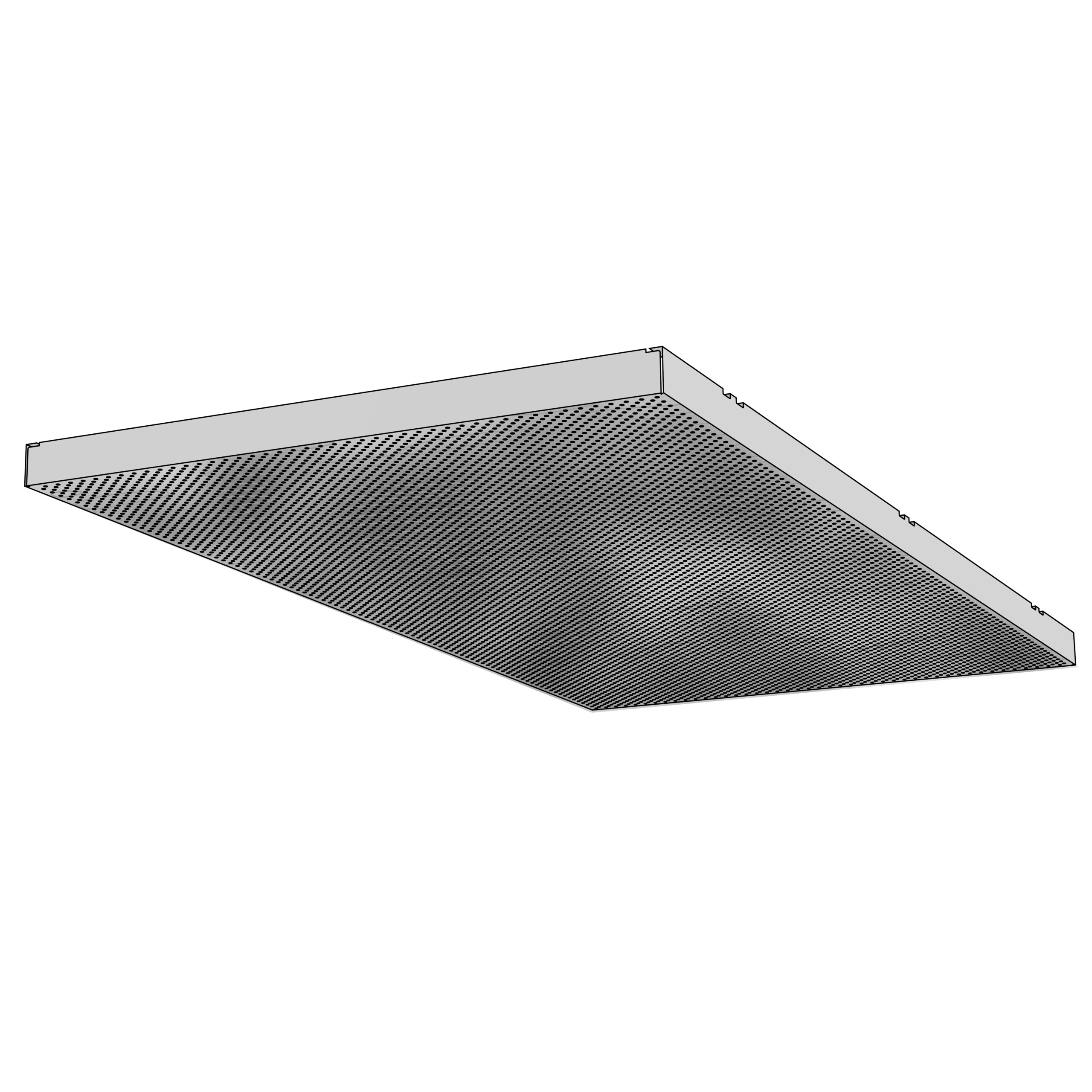

Standard Panels - Ruelo™ 1006

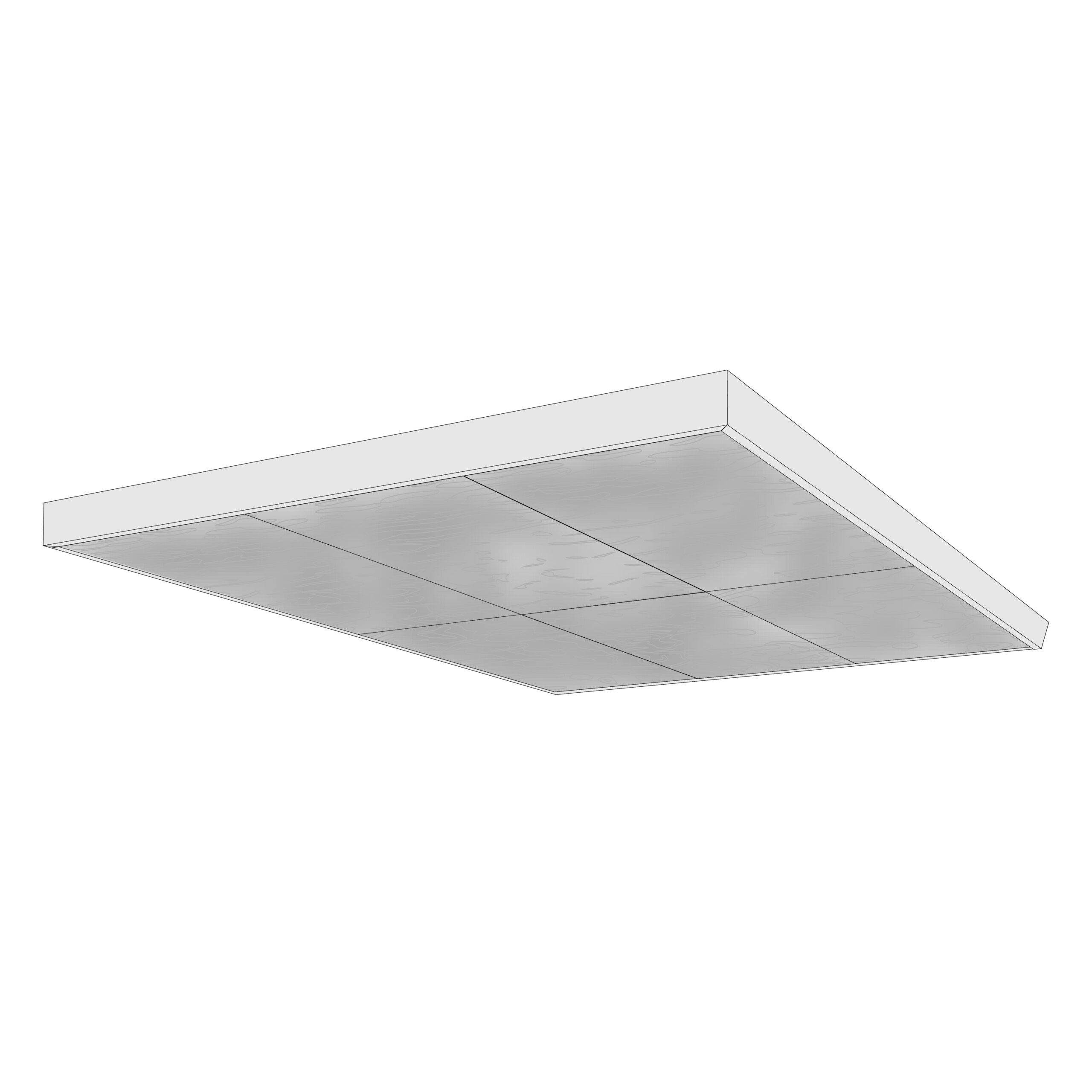

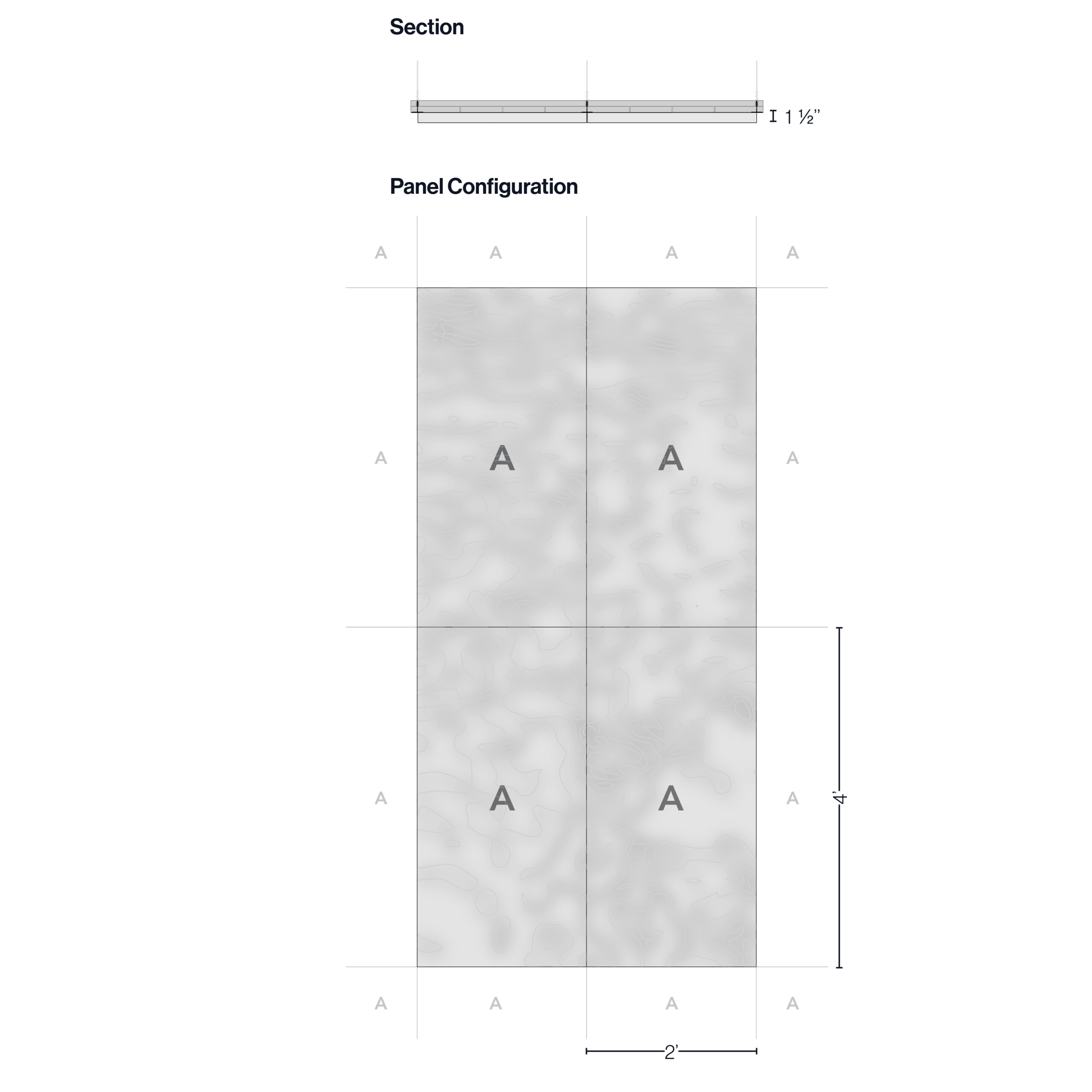

Multiple Panels

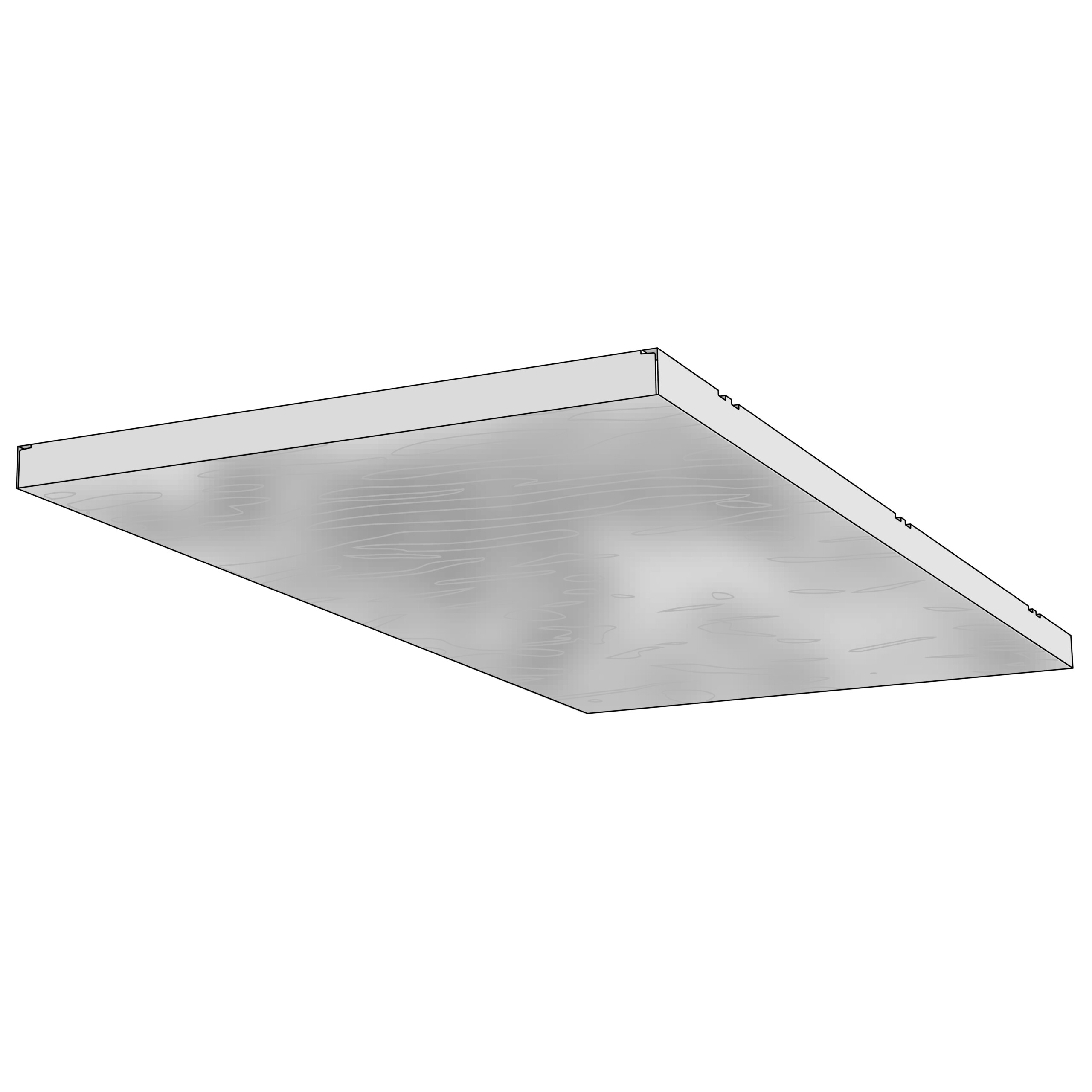

Understanding the Panel

Accessory Options - Ceiling

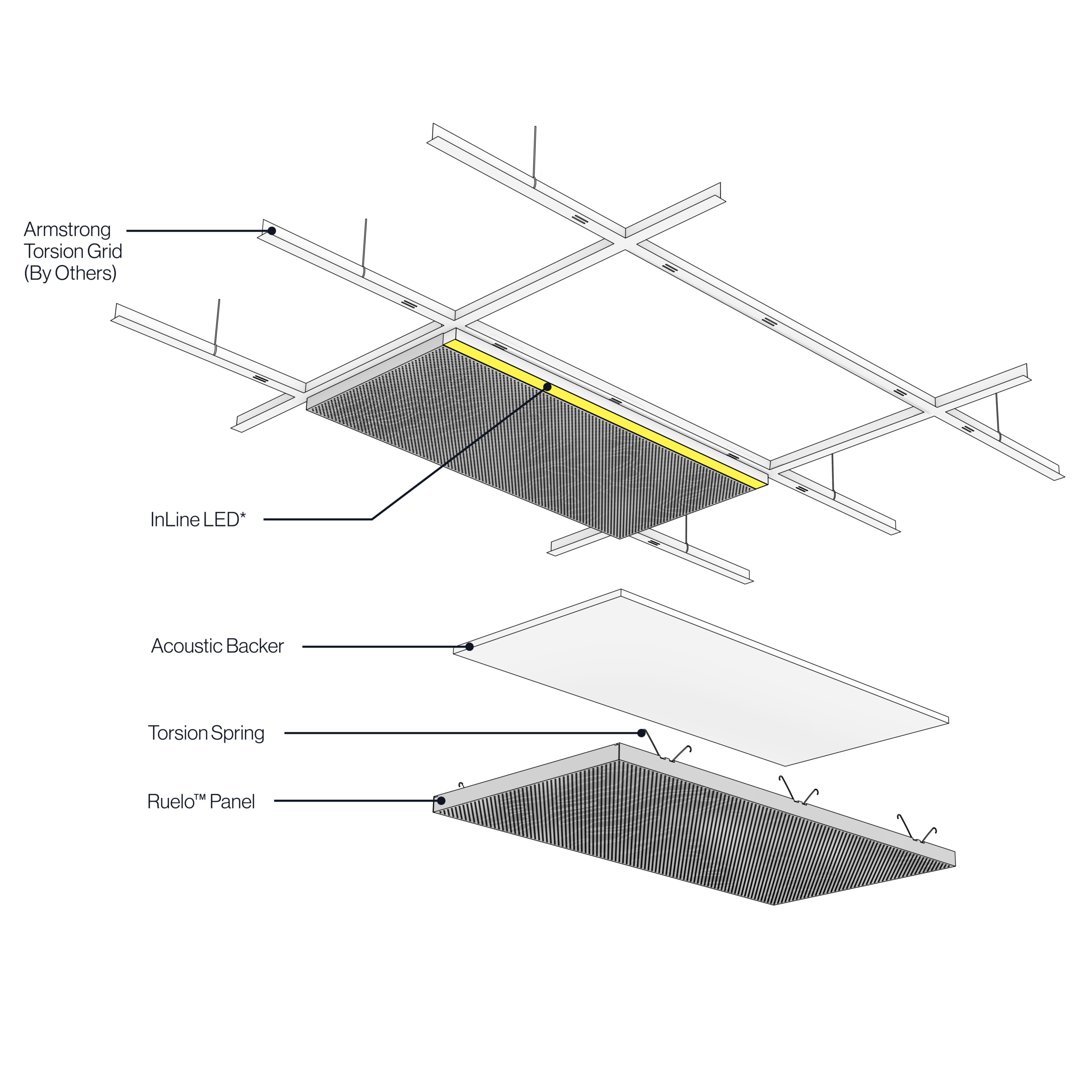

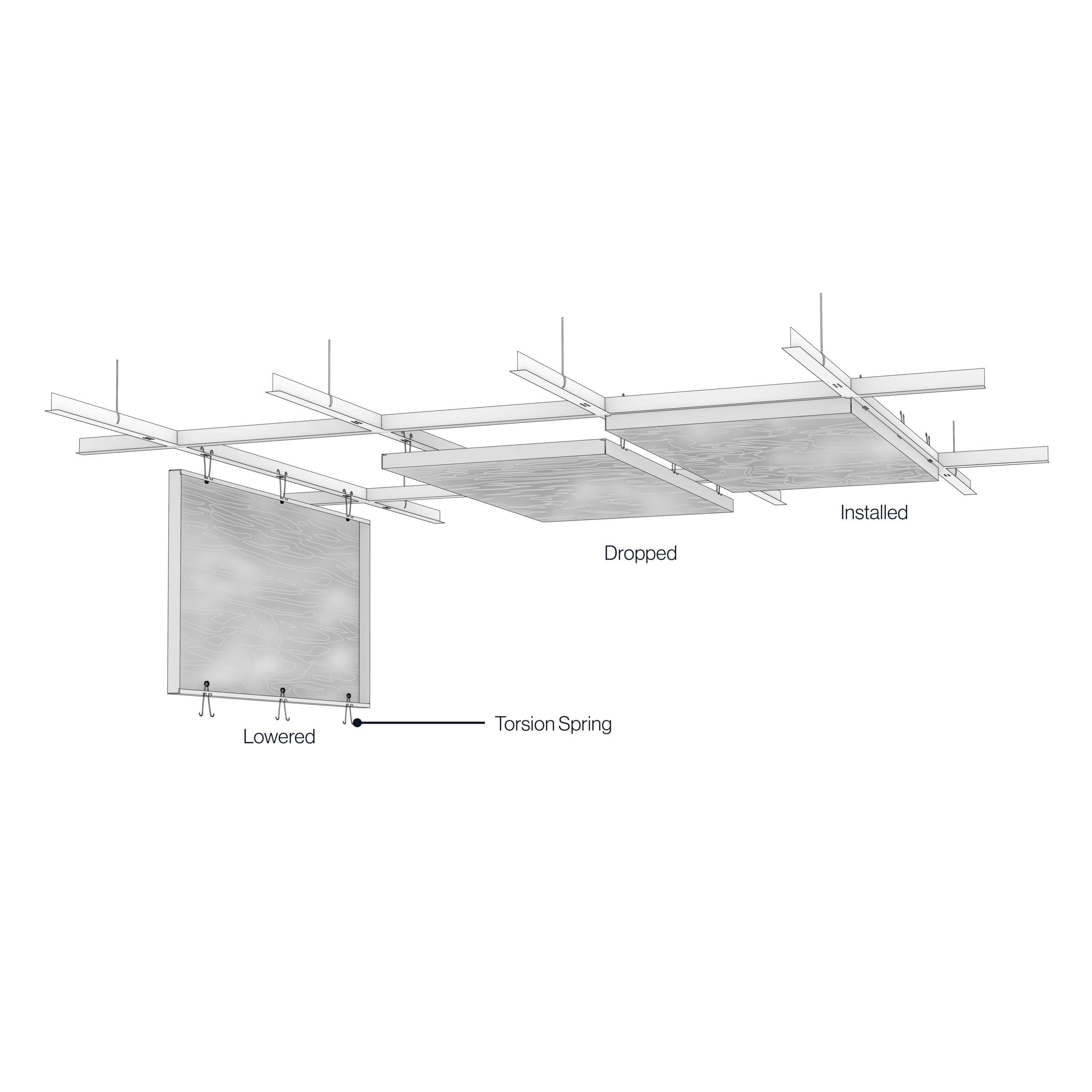

Attachment System - Ceiling

System Specs

Panel Size (WxHxD)
2'x4'x 1½"
Material
.03" Stainless Steel
Openness in Plan
Ruelo™ 1006: 1%
Ruelo™ Solid: 0%
Fire Rating
ASTM E84-ClassA
Acoustics (with optional Soft Sound® backer)
True NRC® 0.80: Ceiling; E-300 Method
Ceiling Attachment
Torsion Grid
Accessibility
Torsion Spring Hinge
Trimmability
Yes, per installation manual
Optional Accessories
Acoustic Backer, In Line Light, Torsion Spring Adapter Clip

Downloads

  • Ruelo™ – Product Brochure PDF
    Brochure
    8.29 MB
    pdf
  • Ruelo™ 2×4 -1006 – 3D SKP
    3D Model
    5.89 MB
    zip
  • Ruelo™ 2×4 -1006 – 3D DWG – Imperial
    3D Model
    1.09 MB
    zip
  • Ruelo™ 2×4 -Solid – 3D SKP
    3D Model
    1.07 MB
    zip
  • Ruelo™ 2×4 -Solid – 3D DWG – Imperial
    3D Model
    922.65 KB
    zip
  • Ruelo™ – Installation Manual
    Manual
    4.13 MB
    pdf

  1. SELECT A STYLE

    Ruelo™ is available as a solid stainless steel panel, or you can specify a micro-perforated option with Soft Sound® acoustic backer.

  2. SELECT A COLOR

    Panels are offered in three distinct metal finish options.

  3. SELECT A NUMBER OF PANELS

    Our Ruelo™ panels can be arrayed in a scalable layout. Select the amount of panels needed for your project.

  4. OPTION TO ADD ACOUSTIC BACKER

    Micro-perforated Ruelo™ panels can add a Soft Sound® acoustic backer.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
