View Line

SoftFold®

The complex interaction of variables lends power to design. Using our Soft Sound® acoustical material (100% PET plastic with up to 60% recycled content) and dimensional patterning, SoftFold® achieves acoustical dampening while creating a subtle play between light and shadow. It offers an award winning combination of design and functionality.



Key Features

  • Reduce & Diffuse Noise

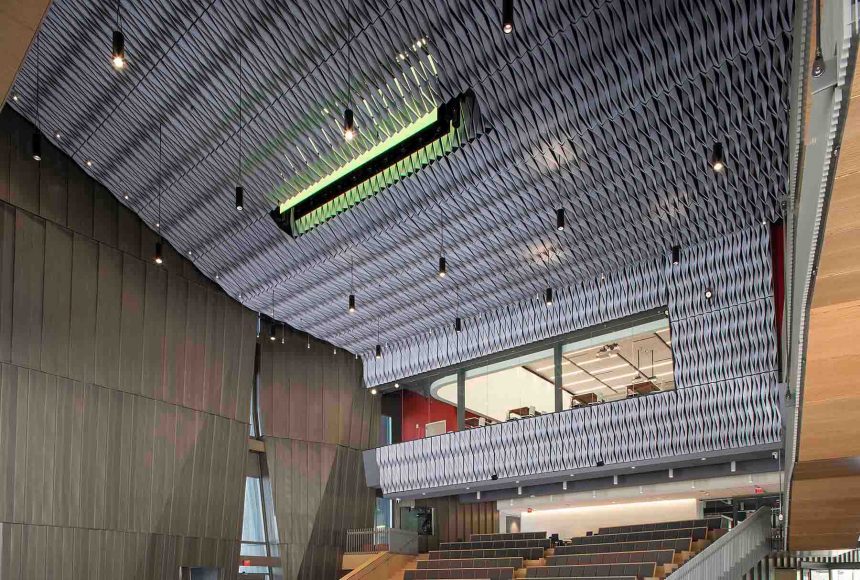

    SoftFold®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftFold®'s material works in concert with the faceted design to help reduce and control reverberations and diffuse sound leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Dynamic Faceted Aesthetics

    Bring striking texture to your space with SoftFold®'s geometric, faceted design, and add complexity to your ceilings with the origami of sound attenuation.

  • Easy Accessibility

    SoftFold® modules offer easy accessibility across ceilings through a hinged attachment, allowing SoftFold® to swing down for access to building systems.

  • Preconfigured Solutions

    SoftFold® is available in full and half-sized modules that seamlessly connect for further flexibility in your space.

  • Thoughtful Integration

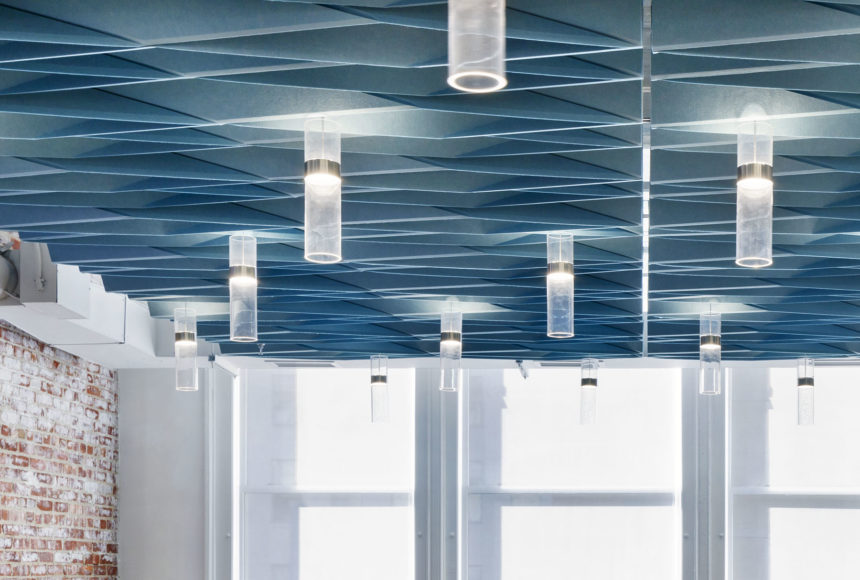

    SoftFold®'s design allows for a straightforward integration of systems such as lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems, above or below the modules.

Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET
Award Win

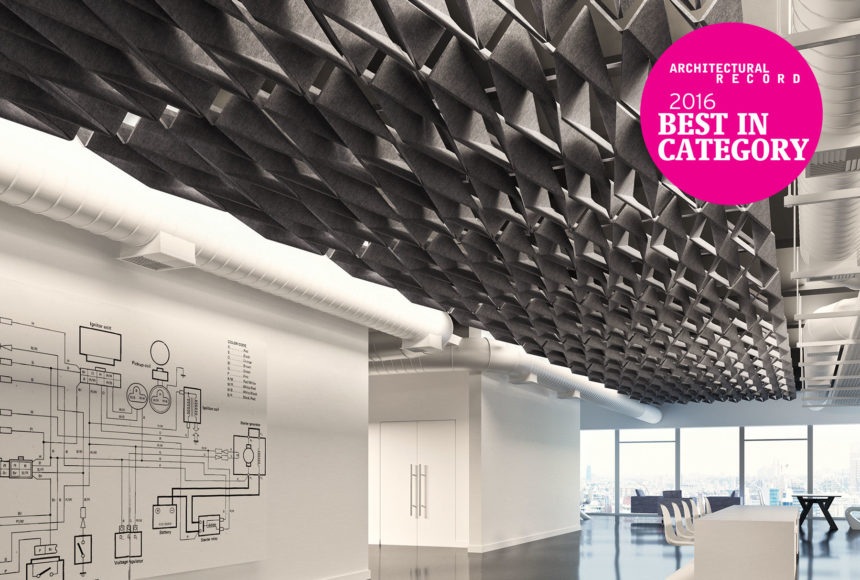

Architectural Record’s 2016 Record Products Best in Category, Finishes and Surfacing

We are proud that Arktura’s SoftFold® Acoustical Ceiling System was recognized as Architectural Record’s 2016 Record Products’ Best in Category – Finishes and Surfacing.

Learn More

Product Details

Standard Modules

Multiple Modules

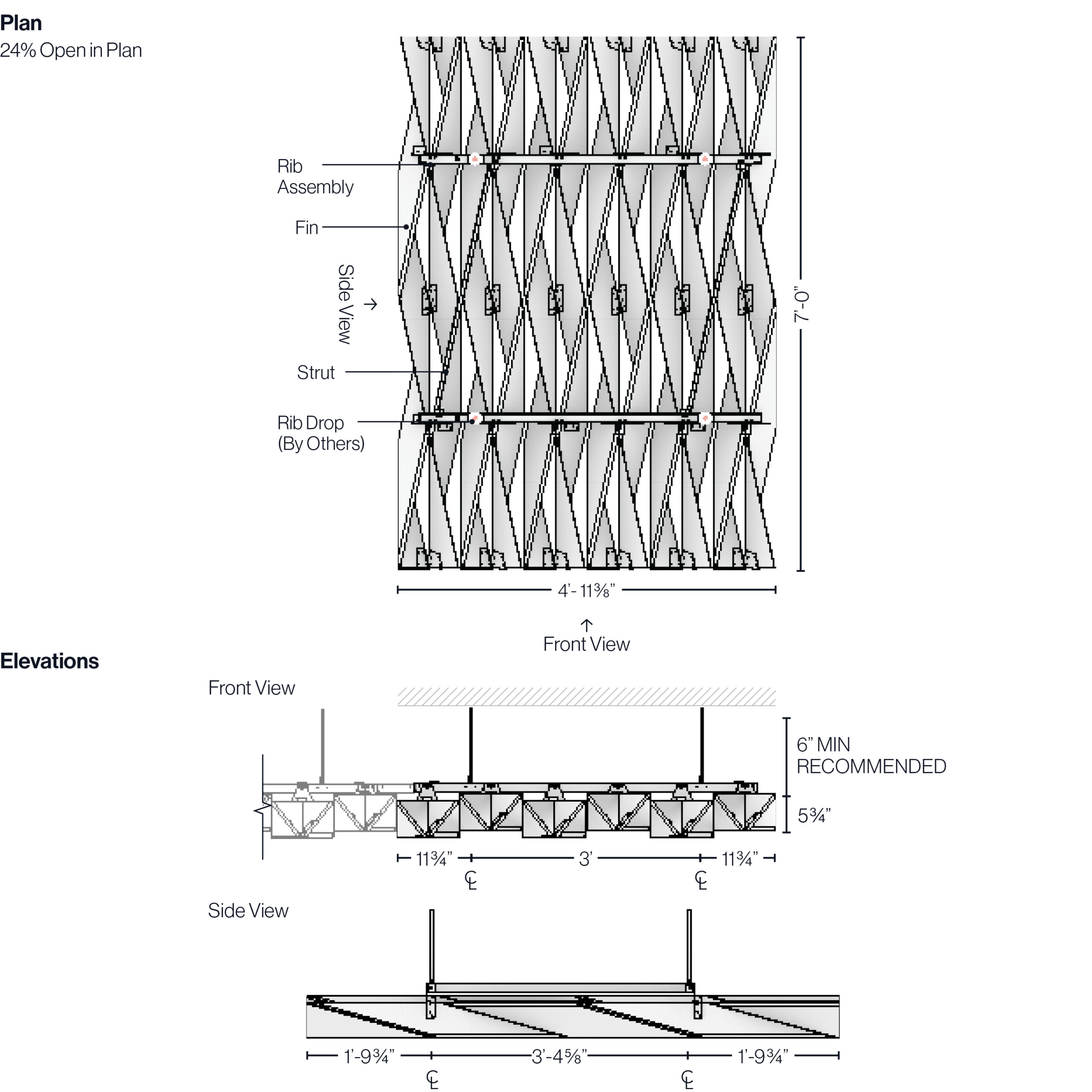

Full Module - Plan & Elevations

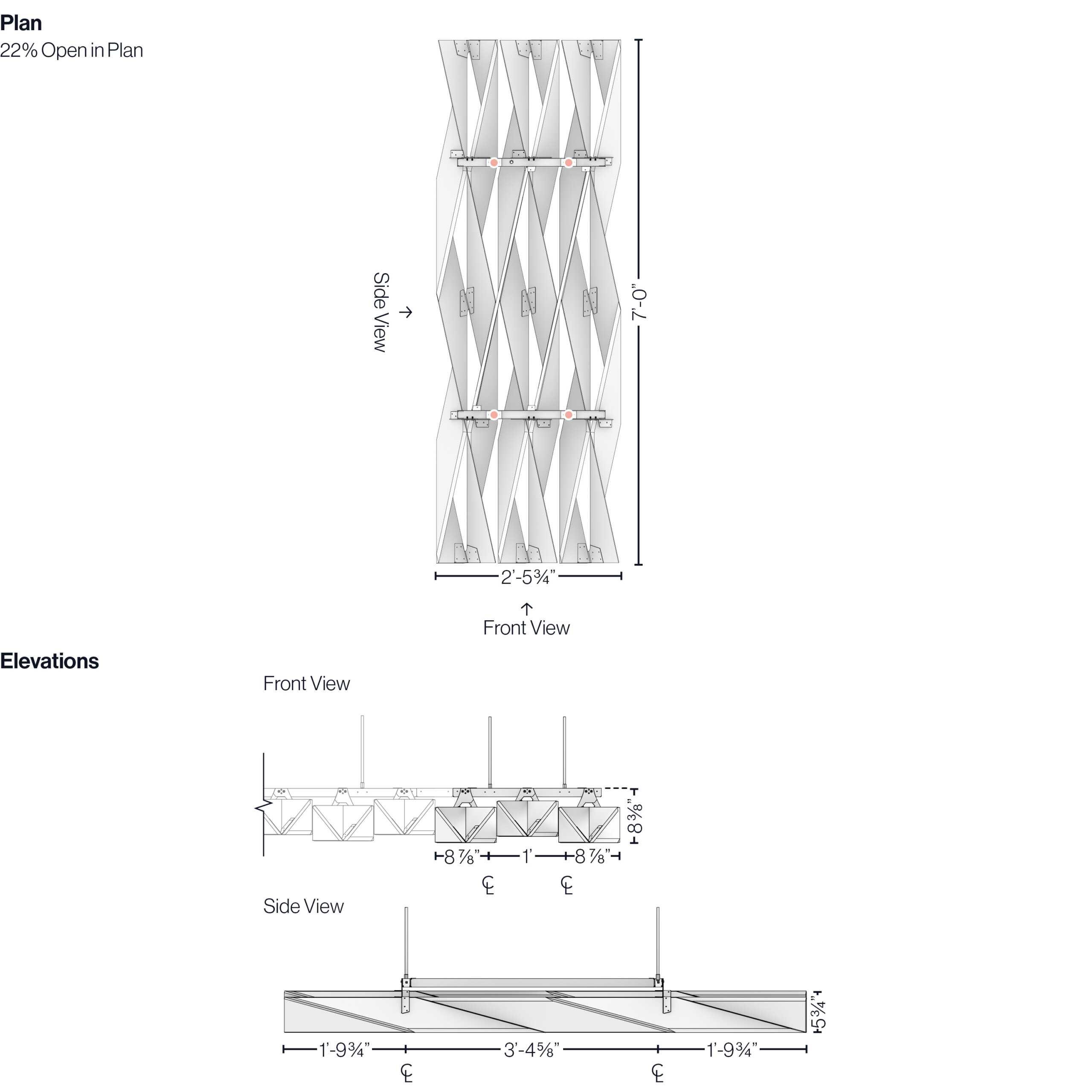

Half Module - Plan & Elevations

Attachment & Install

Attachment Details

Optional Swing-Down Hardware

System Specs

Dimensions (WxLxD)
Full: 4´-11 3/8" x 7´-0" x 5 3/4" Imperial | 150 cmx 215cm x 17cm Metric
Half: 2´-5 3/4" x 7´-0" x 5 3/4" Imperial | 75cm x 215cm x 17cm Metric
Material
12mm Soft Sound® (PET) and Steel Frame
Openness in Plan
Full 24%; Half 22%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC® 0.75; E-300 Method
Attachment Method
Threaded Rod
Accessibility
Optional, hinged hanging bracket (uses 3/8" threaded rod vs wires)

Downloads

  • SoftFold® – Product Brochure PDF – Imperial
    Brochure
    3.32 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • SoftFold® – 3D DWG – Imperial
    3D Model
    1.04 MB
    zip
  • SoftFold® – 3D SKP – Imperial
    3D Model
    752.23 KB
    zip
  • SoftFold® – 3D RFA – Imperial
    3D Model
    59.8 MB
    zip
  • SoftFold® – 3D DWG – Metric (EMEA ONLY)
    3D Model
    222.83 KB
    zip
  • SoftFold® – PDF Tear Sheet – Metric (EMEA ONLY)
    Tear Sheet
    8.72 MB
    pdf
  1. SELECT A COLOR

    Mix or match Soft Sound® colors and wood finishes with aluminum frames. See our powder coat and Soft Sound® color pairing charts in the product brochure for more information.

  2. SELECT NUMBER OF MODULES

    All SoftFold® modules are scalable by design. Select the quantity of full and/or half modules needed for your project.

Have questions? Reach out to a Rep to get your project started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° USD840551, CA176773S, US10662647.
