SoftGrid® Wave

Wave’s acoustic ceiling modules follow their namesake and create a wave pattern that flows easily across your ceiling. You can have a wave that encompasses a whole room or just a small area, thanks to the easy connection of the modules. And with our Soft Sound® material, you can get acoustic support right where you want it. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

Downloads Find a rep Add to project
Get a Quote Watch Video

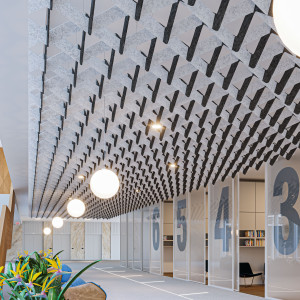

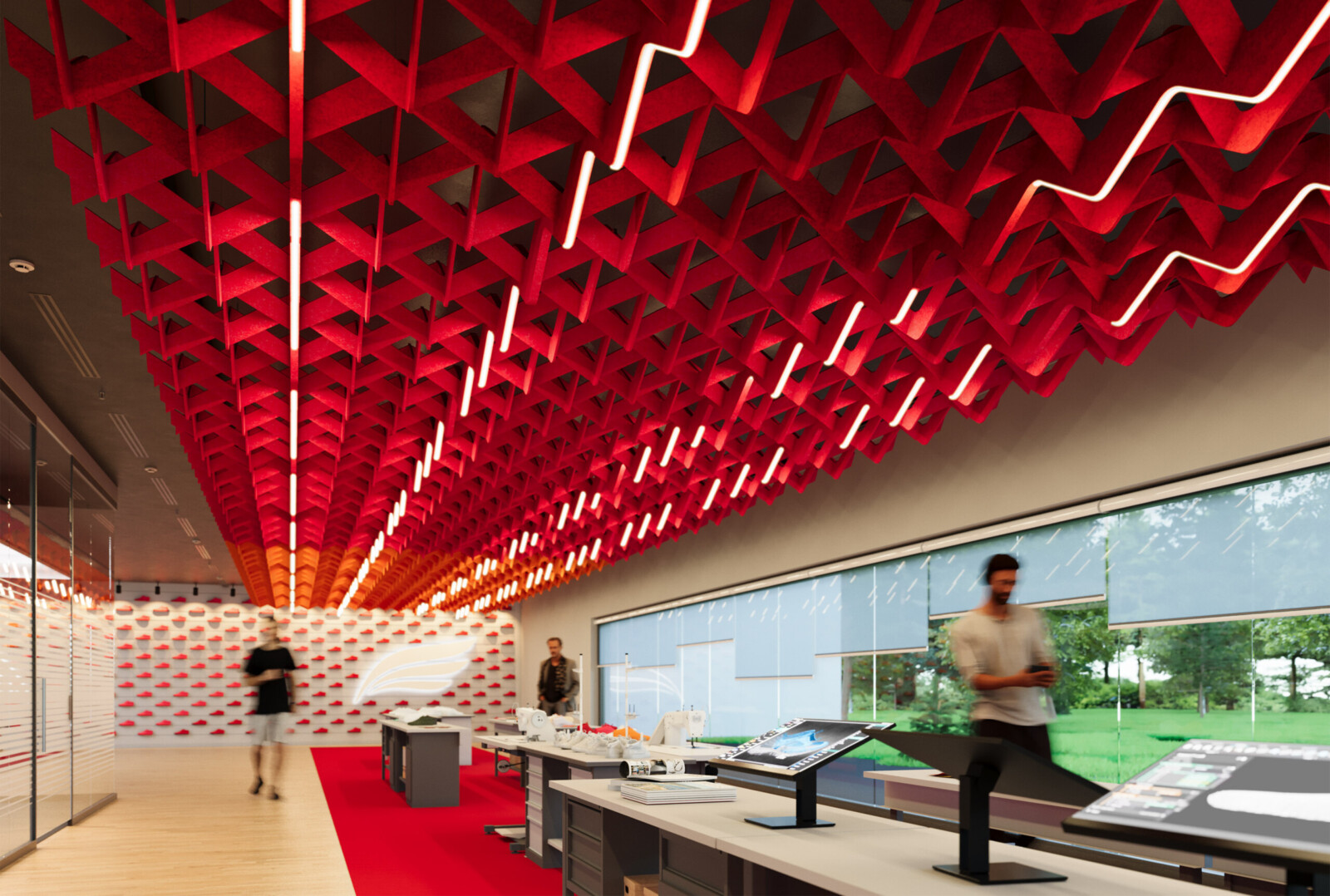

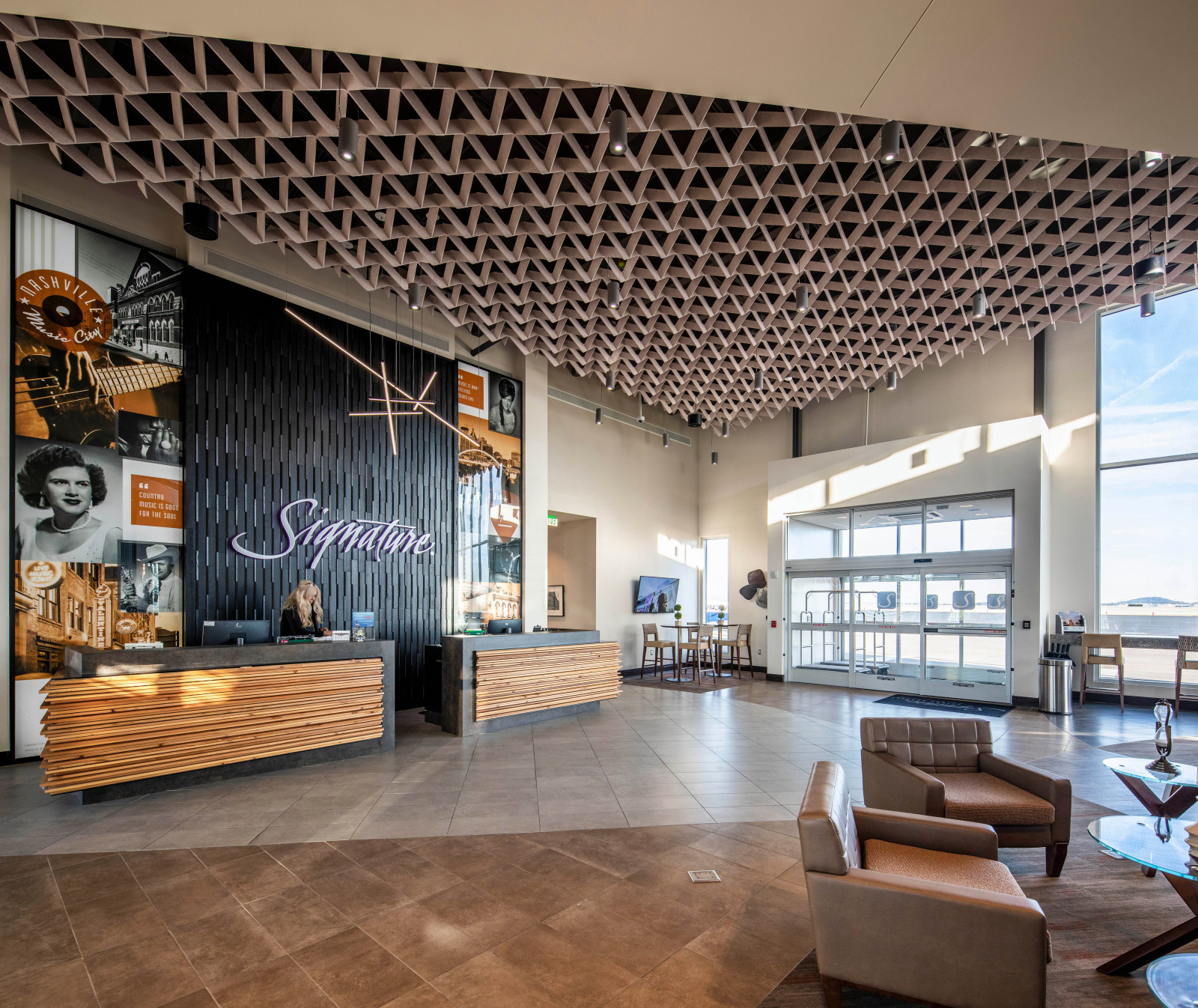

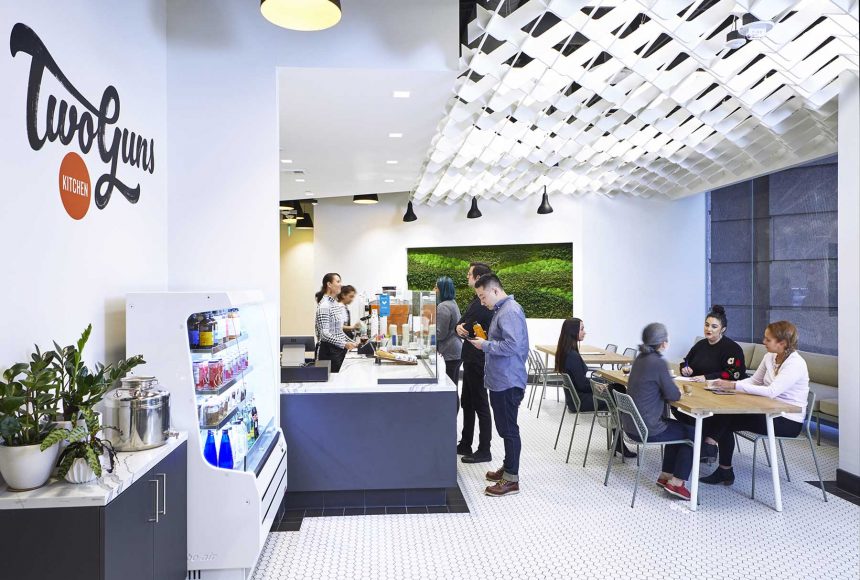

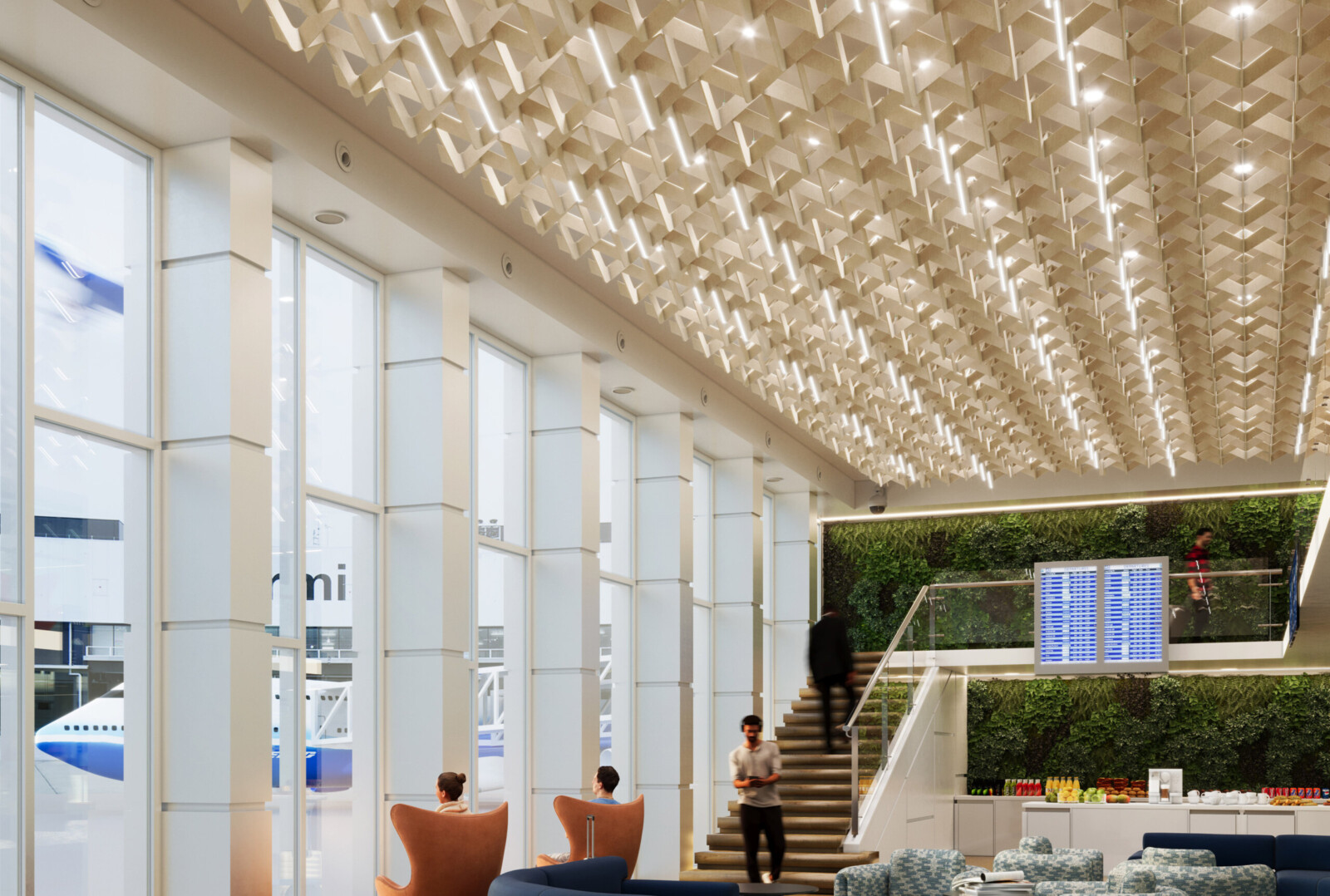

SoftGrid® Wave in use

Expand

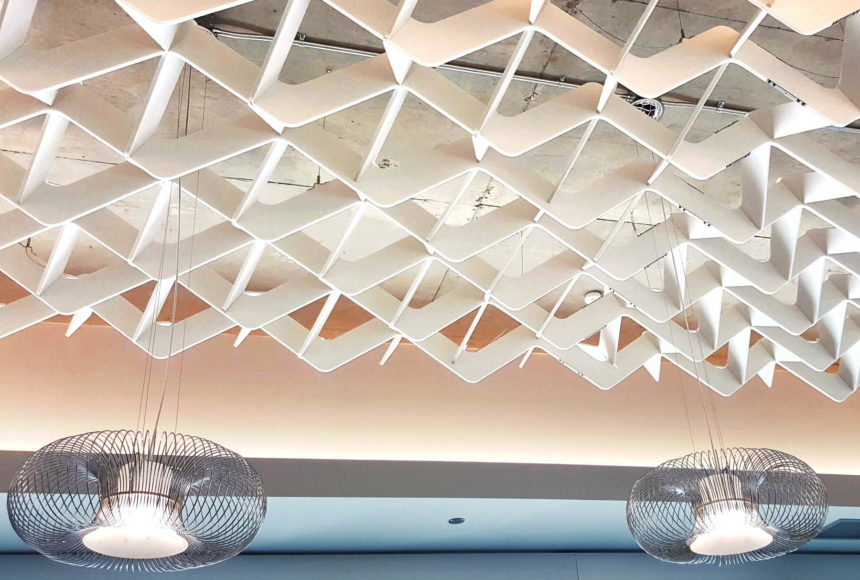

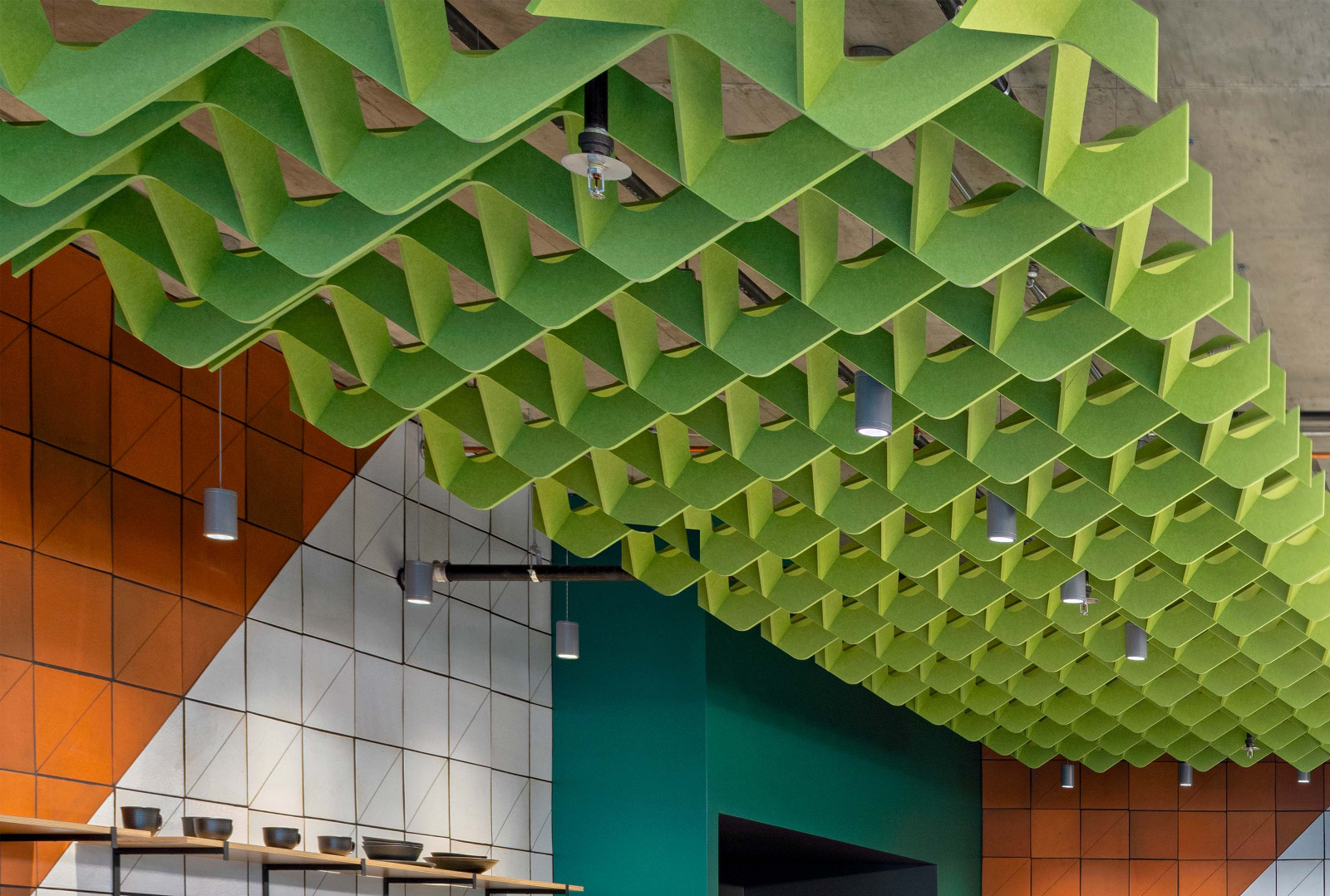

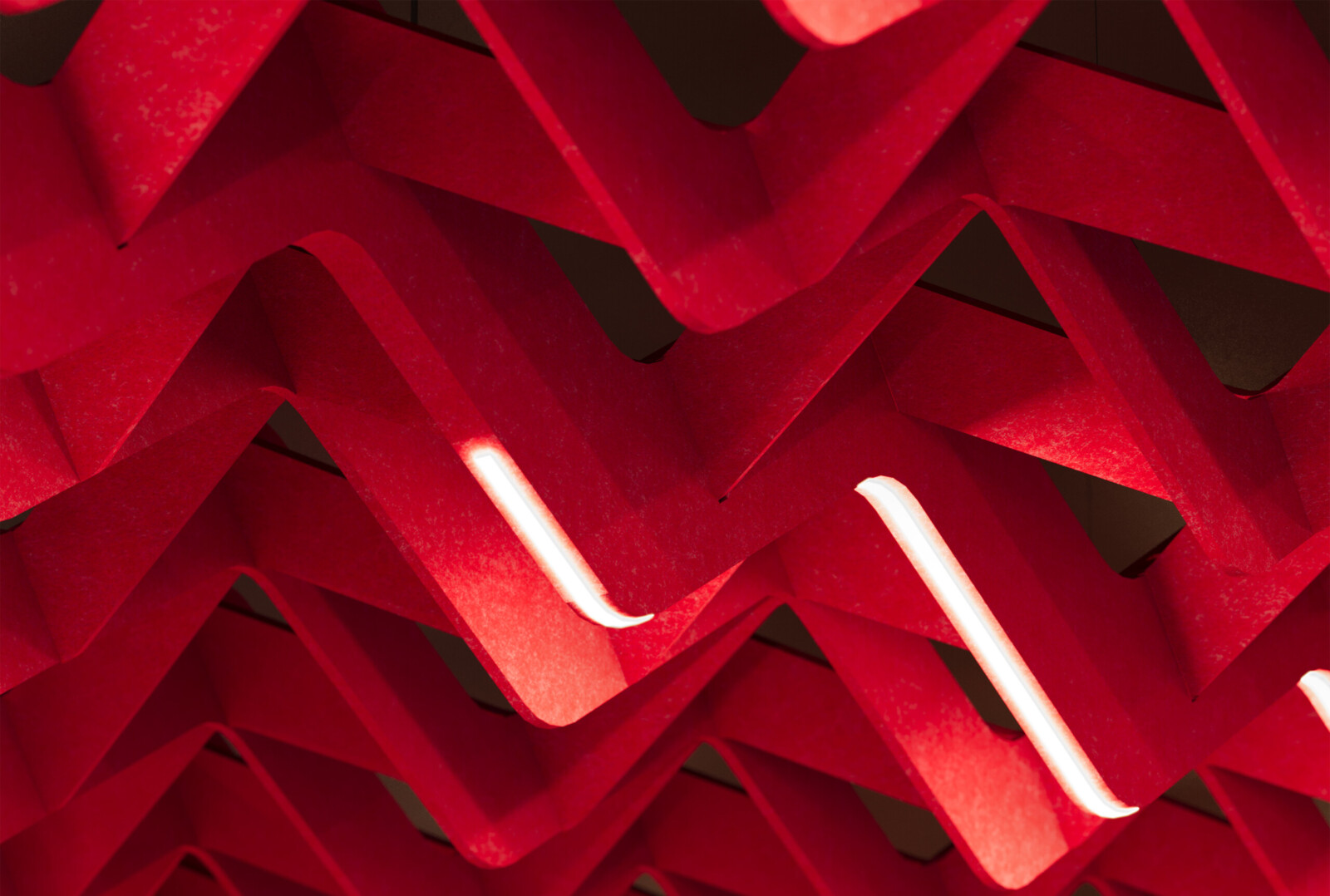

SoftGrid® Wave acoustical system close up
Expand
Expand

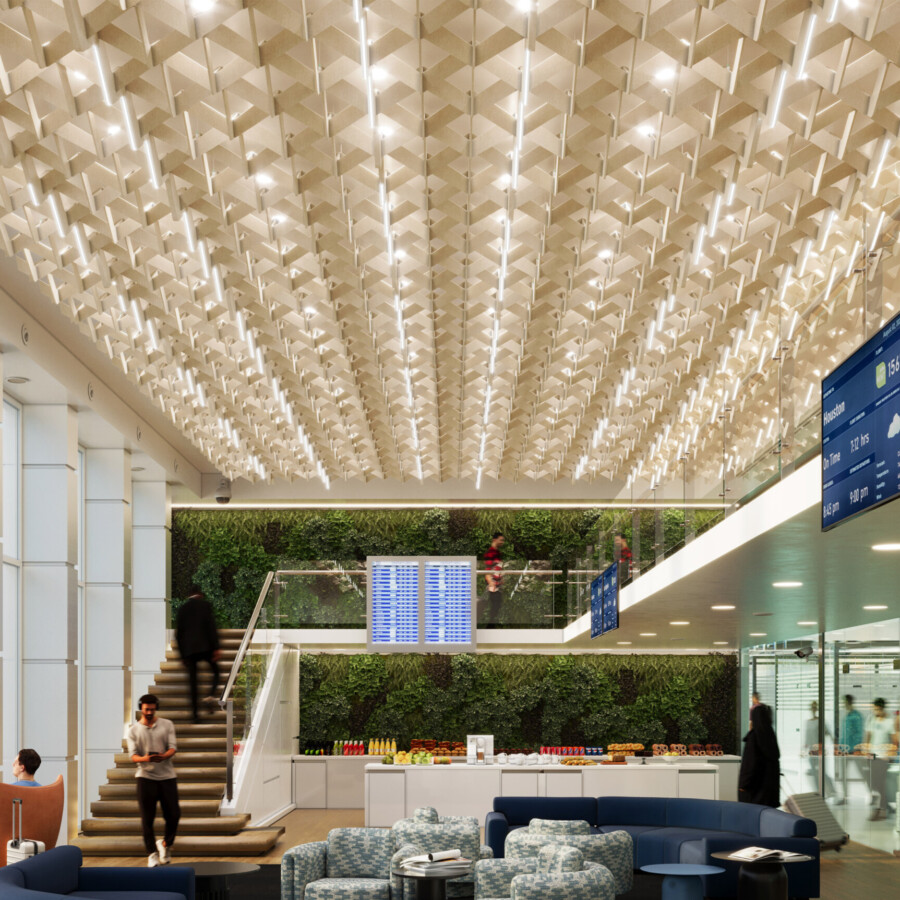

Arktura SoftGrid Wave
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand

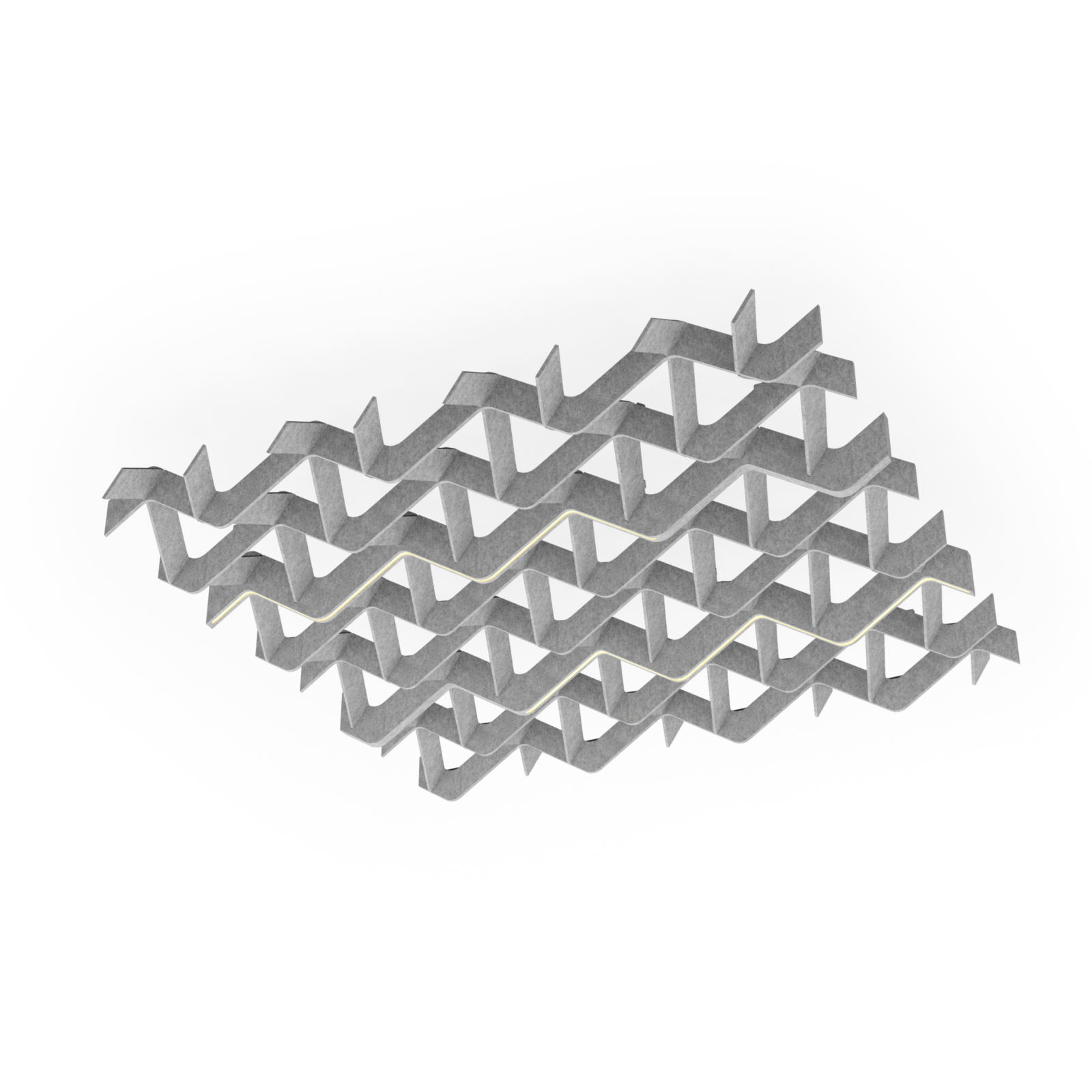

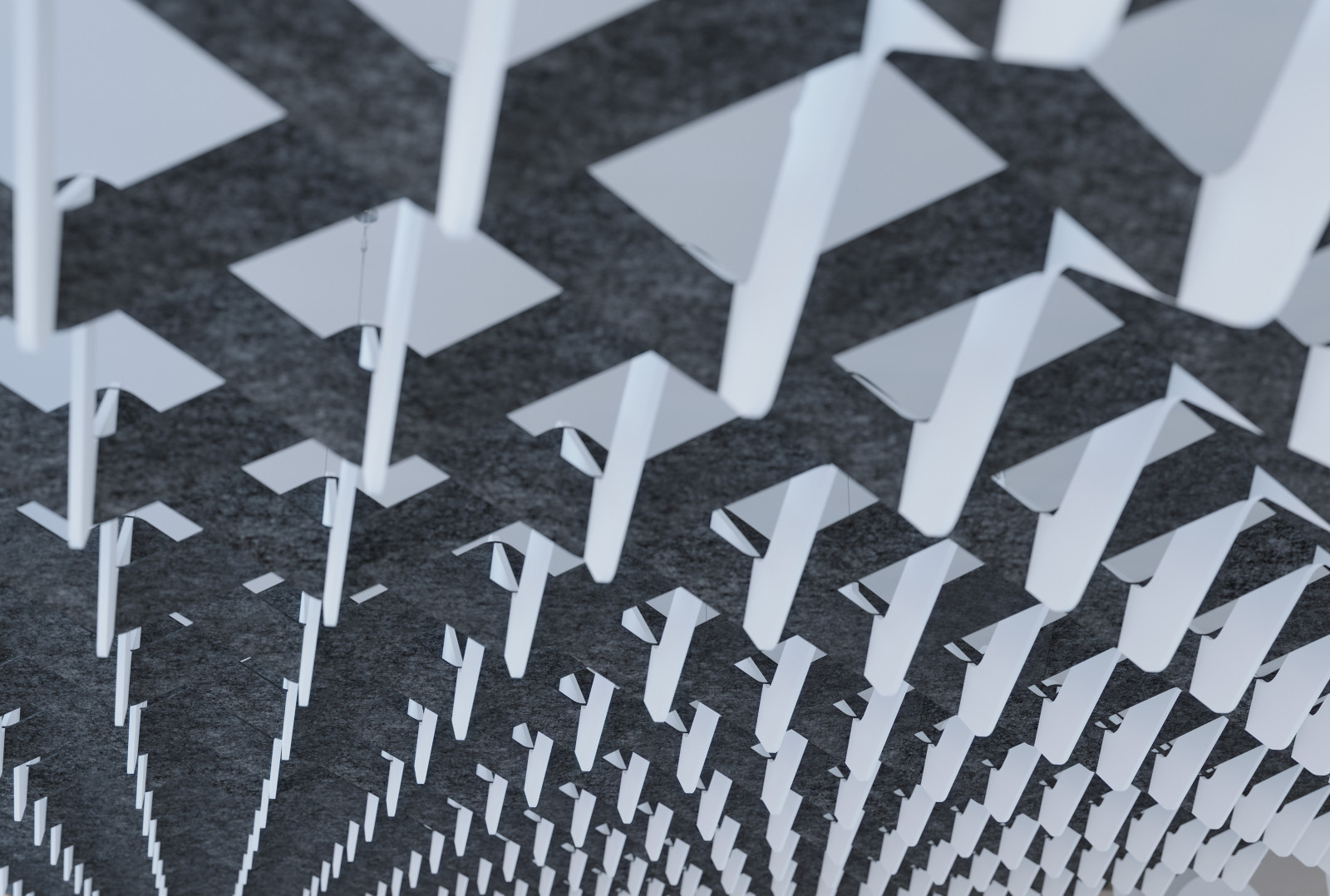

Arktura SoftGrid Wave modules
Expand

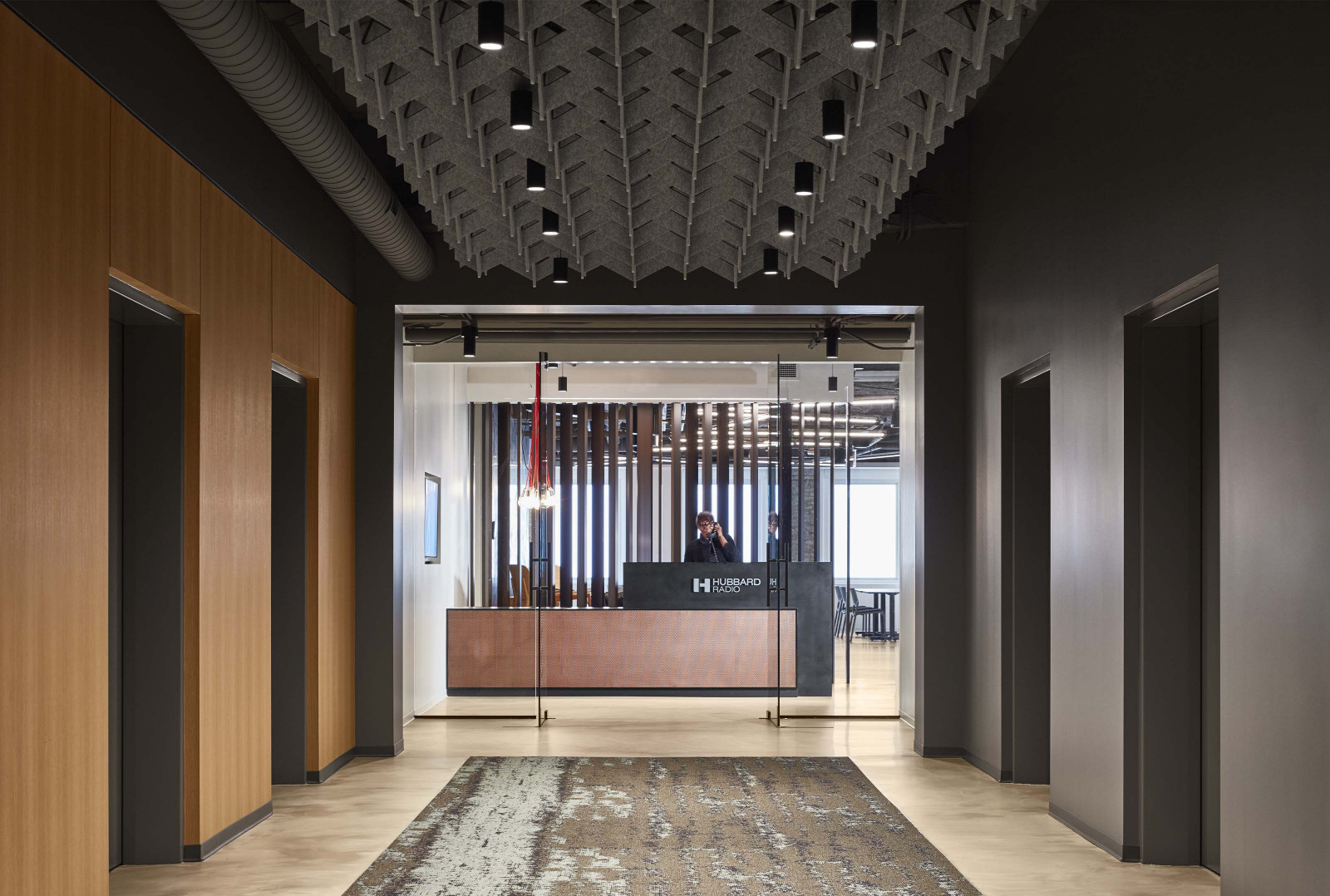

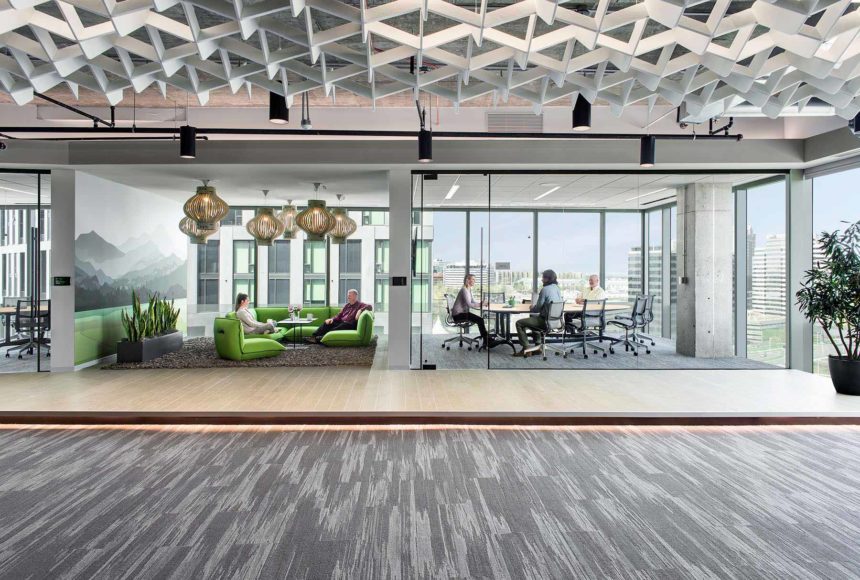

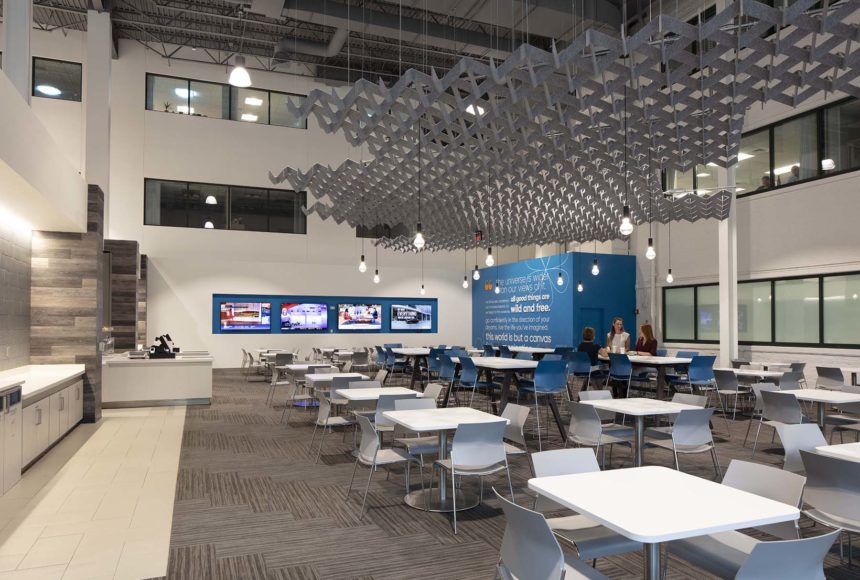

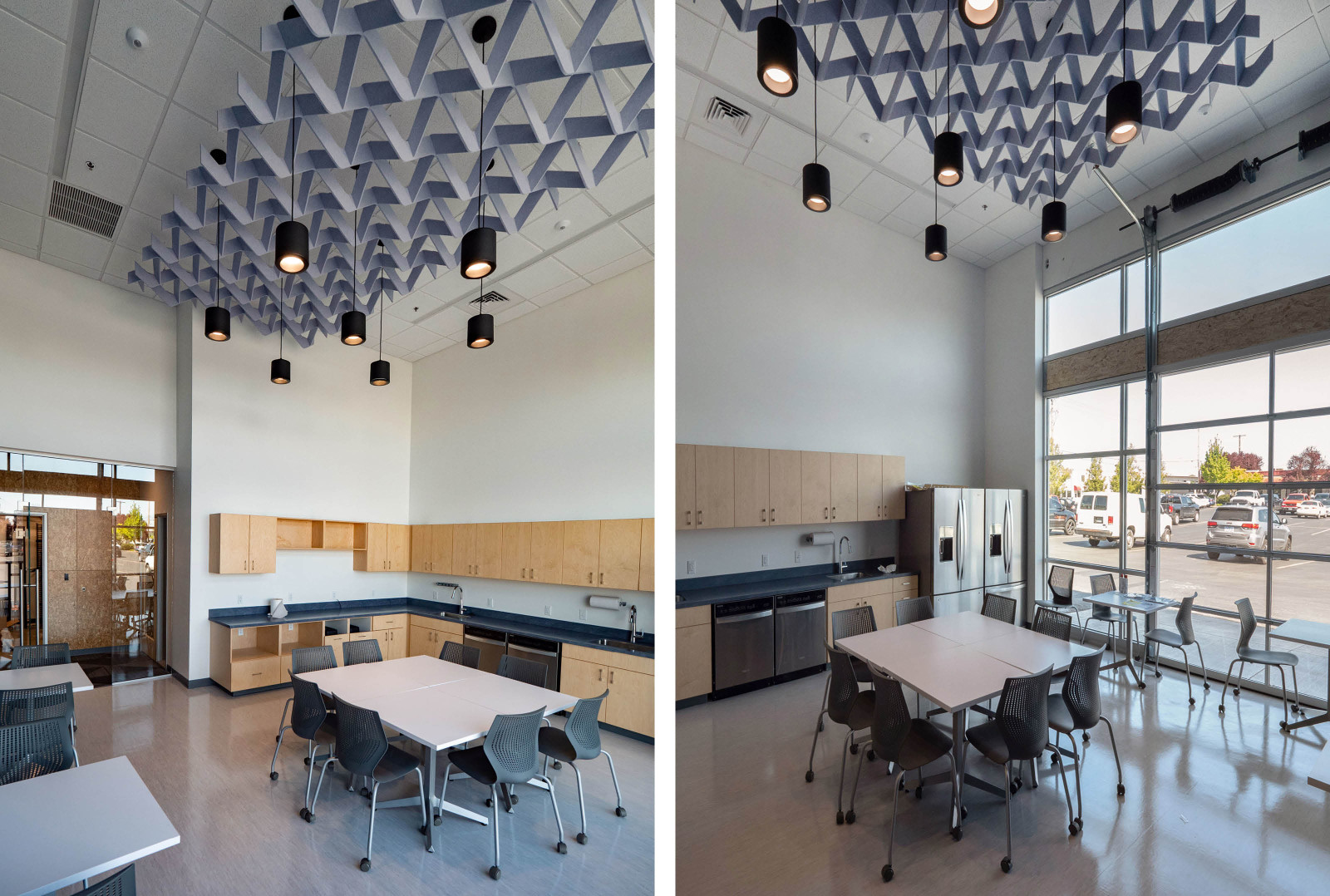

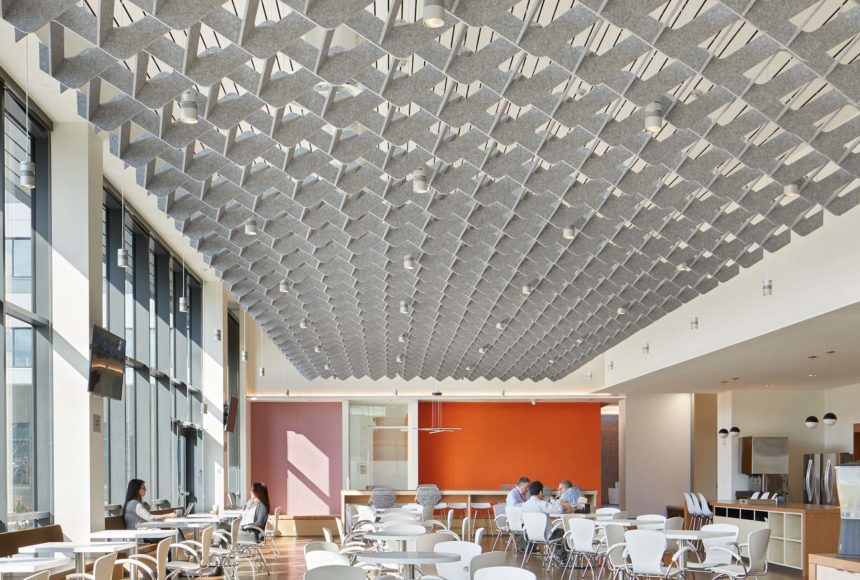

SoftGrid® Wave acoustical system installed above workspace
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand

Key Features

  • Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Preconfigured Solutions

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  • Continuous Baffles

    Utilizing a hidden fin-to-fin alignment system, SoftGrid® provides continuity in all directions across your space. In addition, our optional hanging points offer a fine-tuning capability for installers. Our custom formulated material thickness and density ensures rigidity that limits deflection.

  • Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

Diagrams Specs

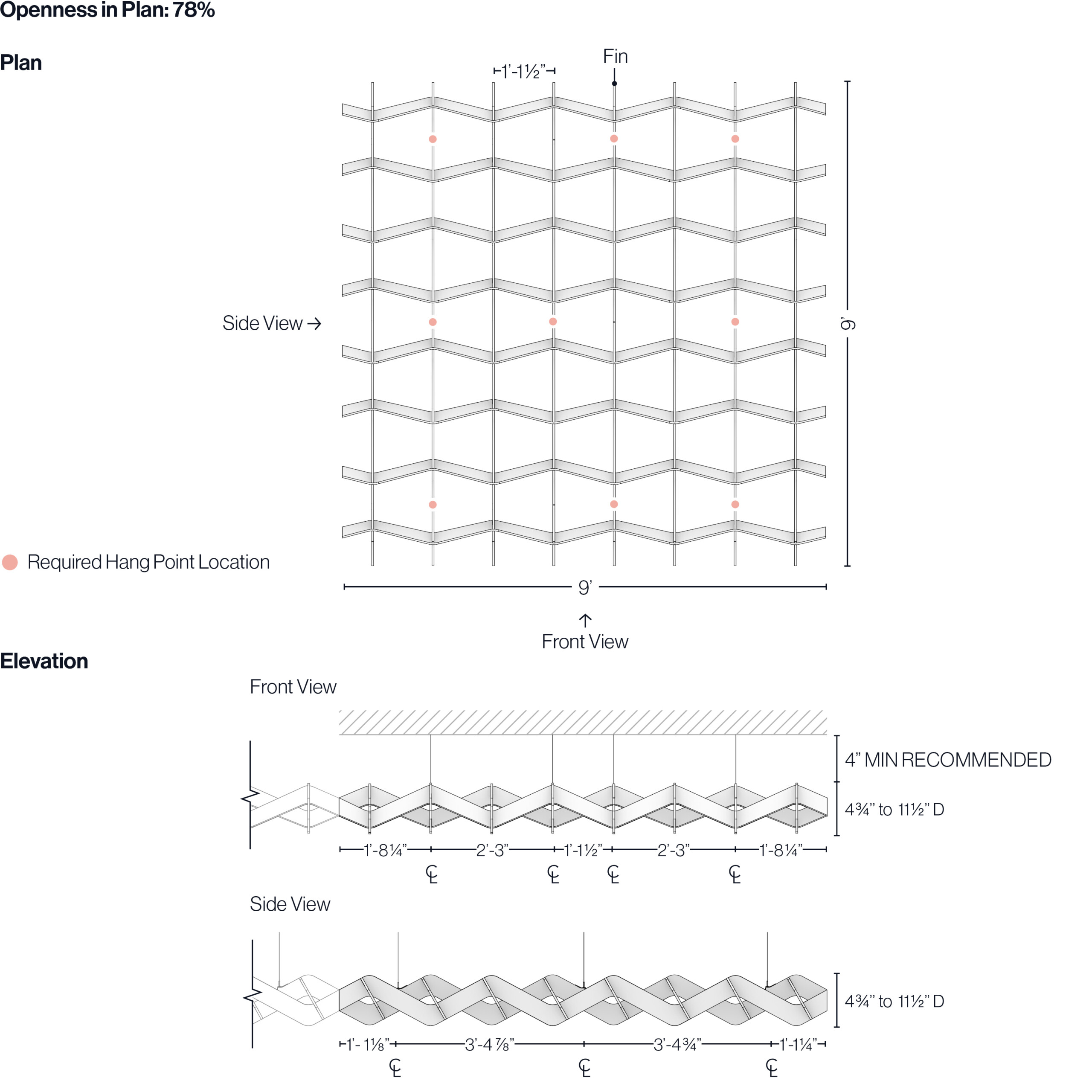

Standard Module

Multiple Modules

Understanding the Module - Wave

Understanding the Module - Wave Max

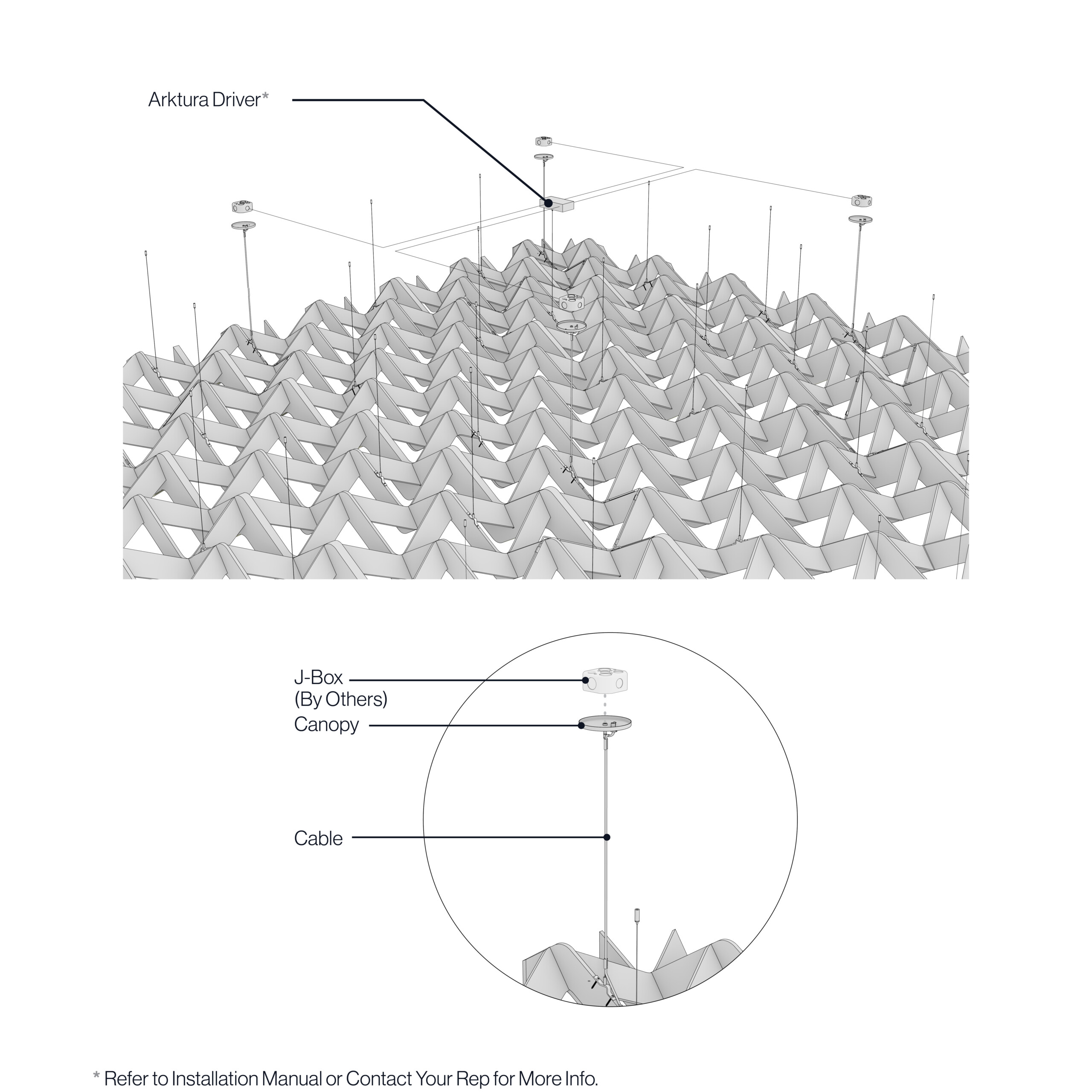

Attachment Details

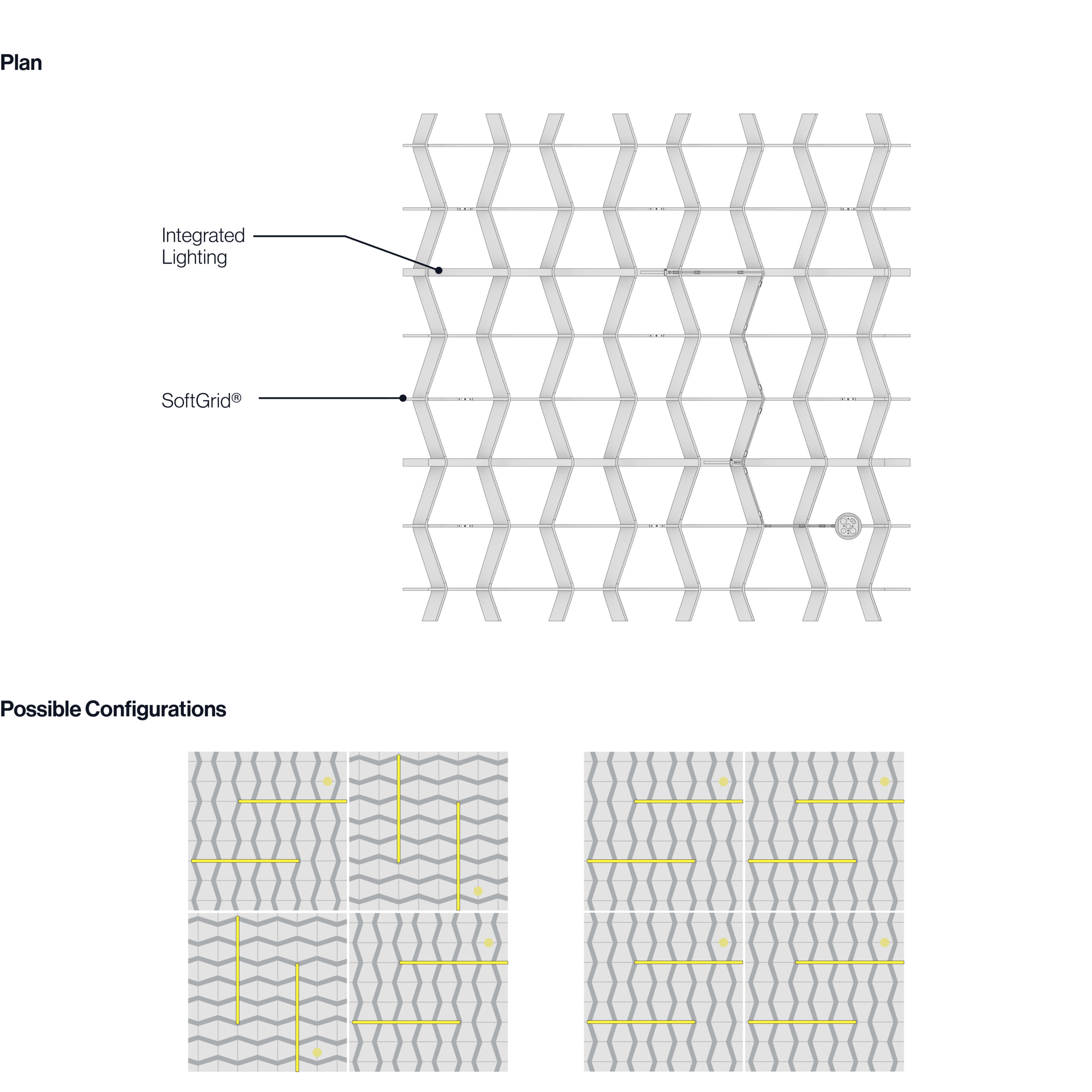

Module Configuration

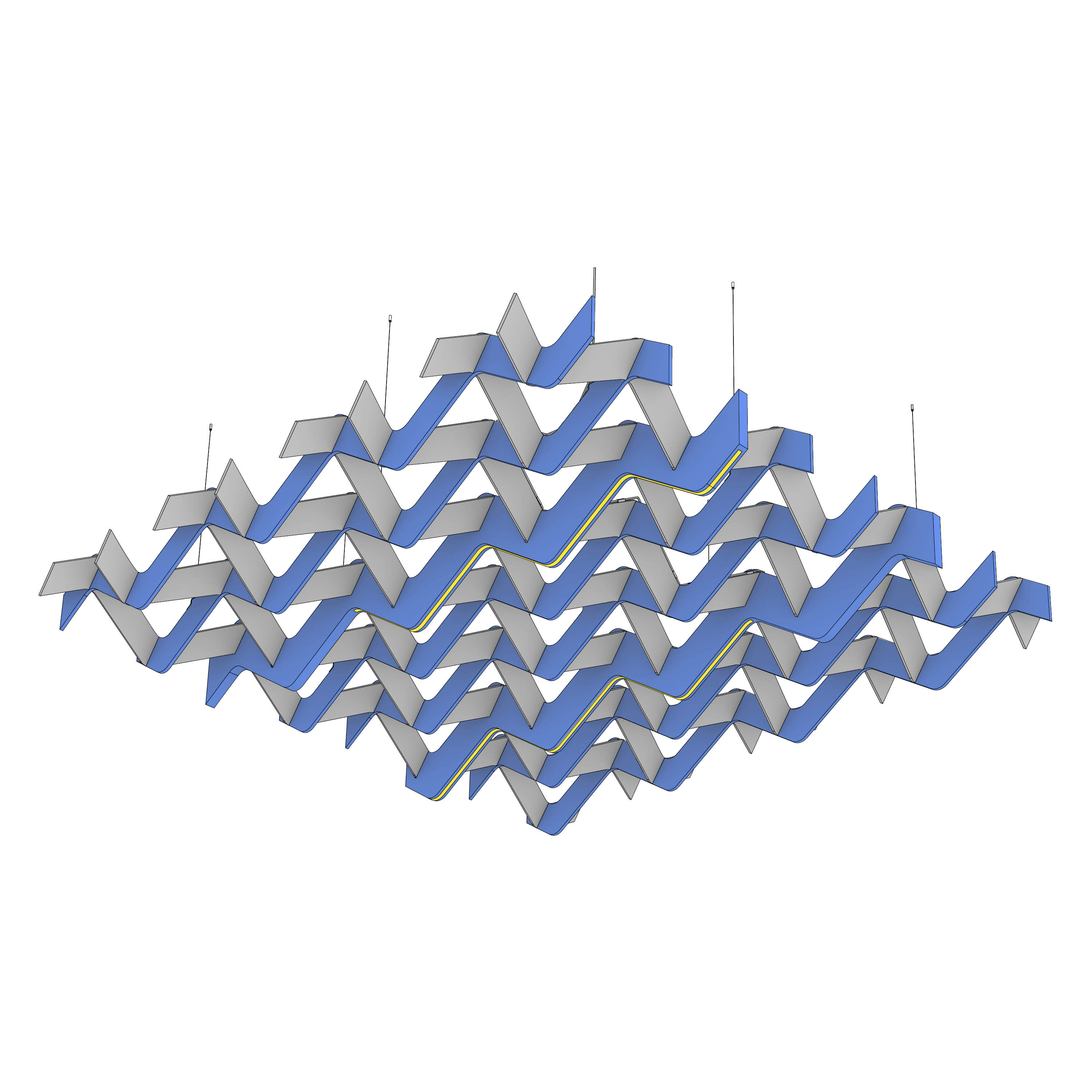

Optional SoftGrid® Wave Duo Tone

System Specs

Dimensions (WxLxD)
7'-6" x 7'-6" x 11 1/2'' Imperial | 229cm x 229cm x 29cm Metric
Fin Material
12mm Soft Sound® (PET)
Openness in Plan
73%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
Wave - True NRC® 0.50: Ceiling F-100 Method
Wave - True NRC® 0.50: Wall A Method
Wave Max - True NRC® 0.45: Ceiling F-100 Method
Attachment Method
1/32" Stainless Cable
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoftGrid® Wave – Product Brochure PDF – Imperial
    Brochure
    3.68 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • SoftGrid® Wave – 3D DWG – Imperial
    3D Model
    632.93 KB
    zip
  • SoftGrid® Wave Max – 3D DWG – Imperial
    3D Model
    1.06 MB
    zip
  • SoftGrid® Wave – 3D SKP – Imperial
    3D Model
    1.27 MB
    zip
  • SoftGrid® Wave Max – 3D SKP – Imperial
    3D Model
    539.79 KB
    zip
  • SoftGrid® Wave – 3D RFA – Imperial
    3D Model
    63.08 MB
    zip
  • SoftGrid® Wave Max – 3D RFA – Imperial
    3D Model
    62.52 MB
    zip
  • SoftGrid® Wave – 3D DWG – Metric (EMEA ONLY)
    3D Model
    460.04 KB
    zip
  • SoftGrid® Wave – PDF Tear Sheet – Metric (EMEA ONLY)
    Tear Sheet
    7.65 MB
    pdf

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.

  2. SELECT A COLOR/DUO TONE OPTION

    Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.

  3. SELECT NUMBER OF MODULES

    All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° USD777349, CA166103S.
