SoftSpan® 96

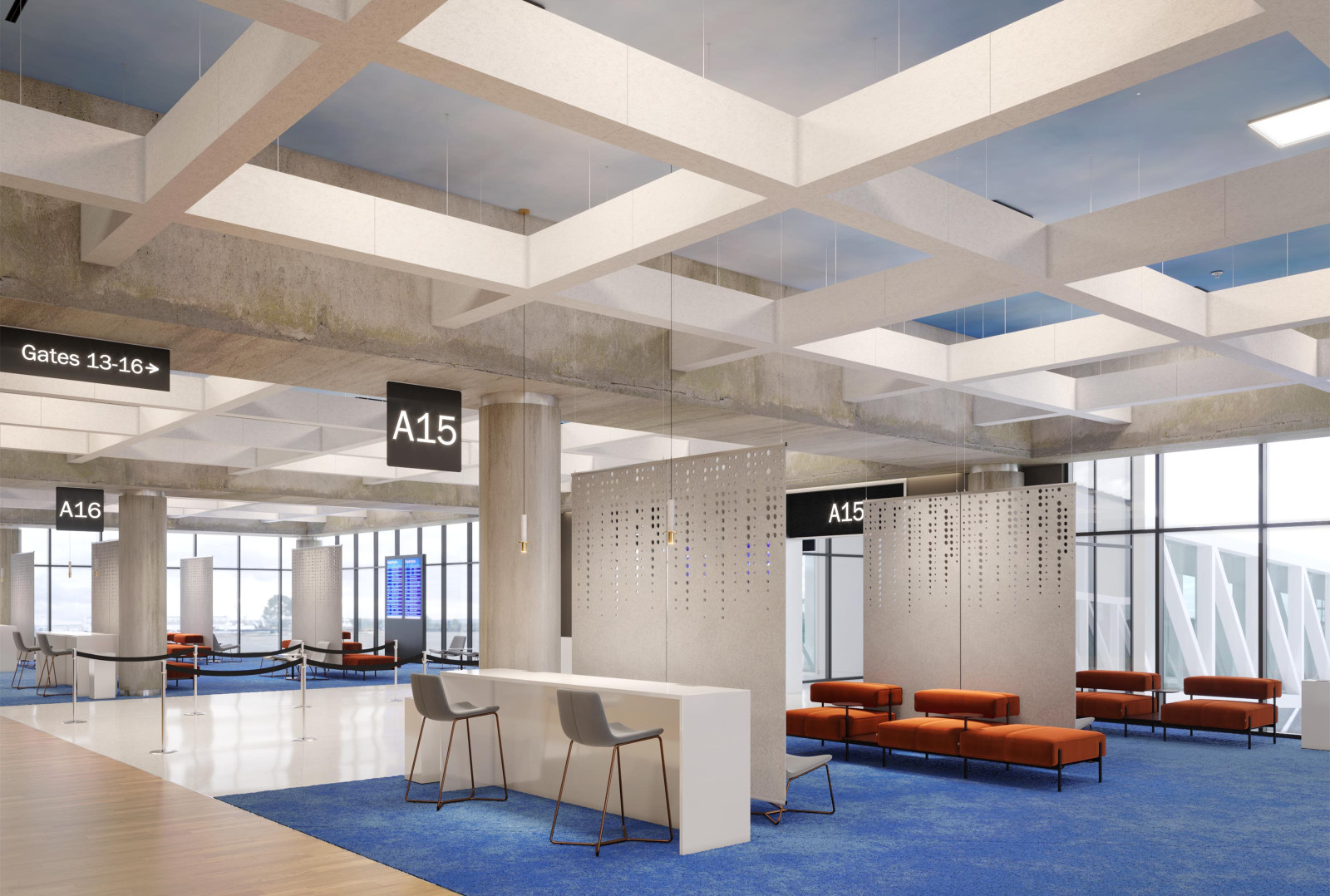

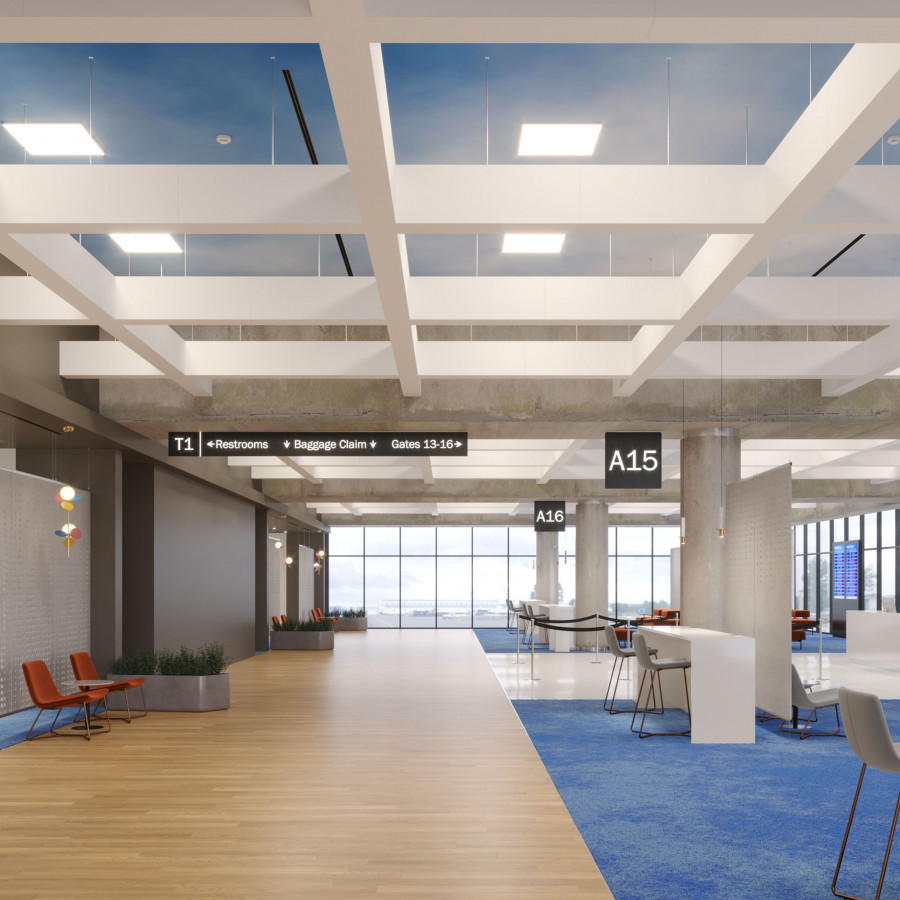

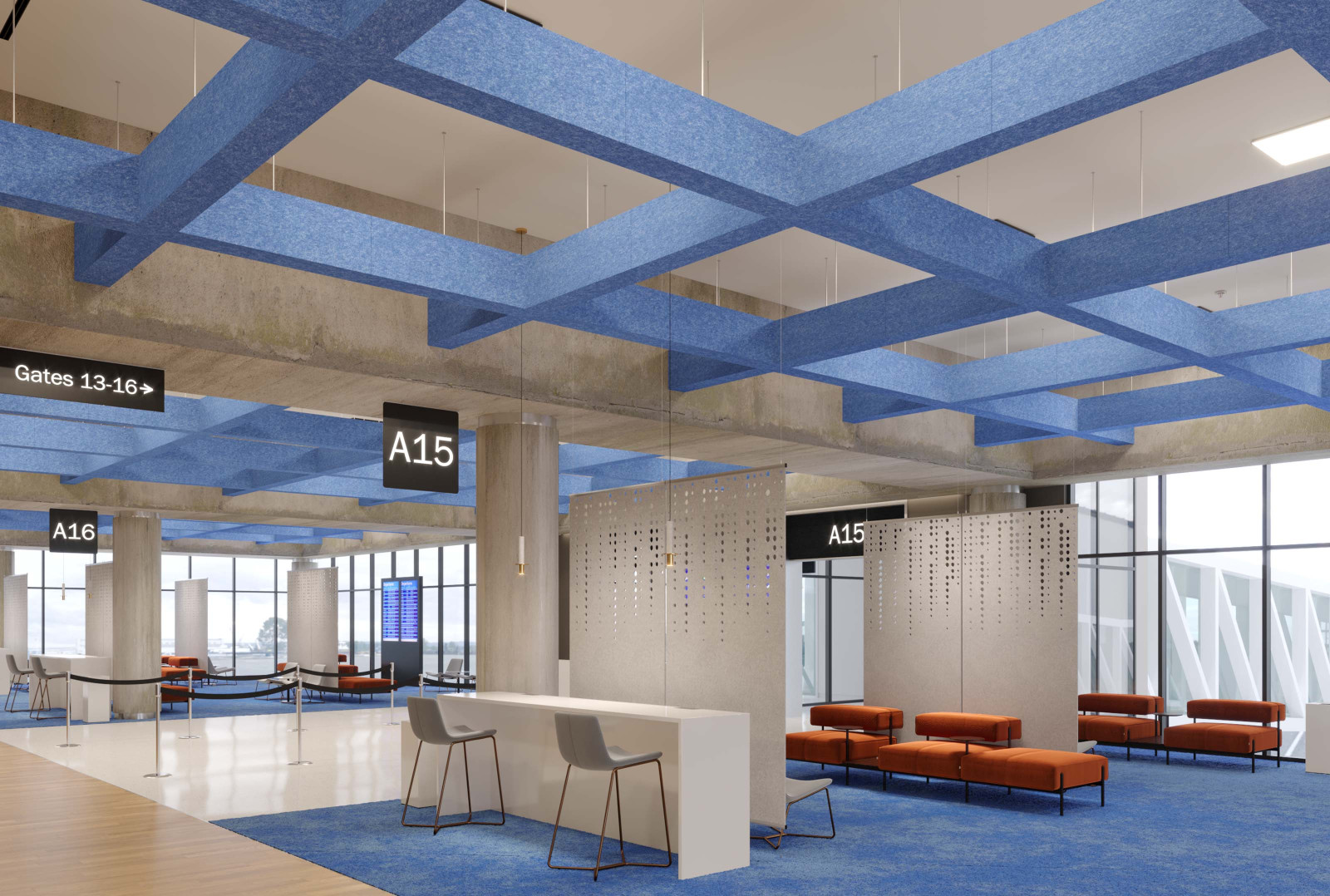

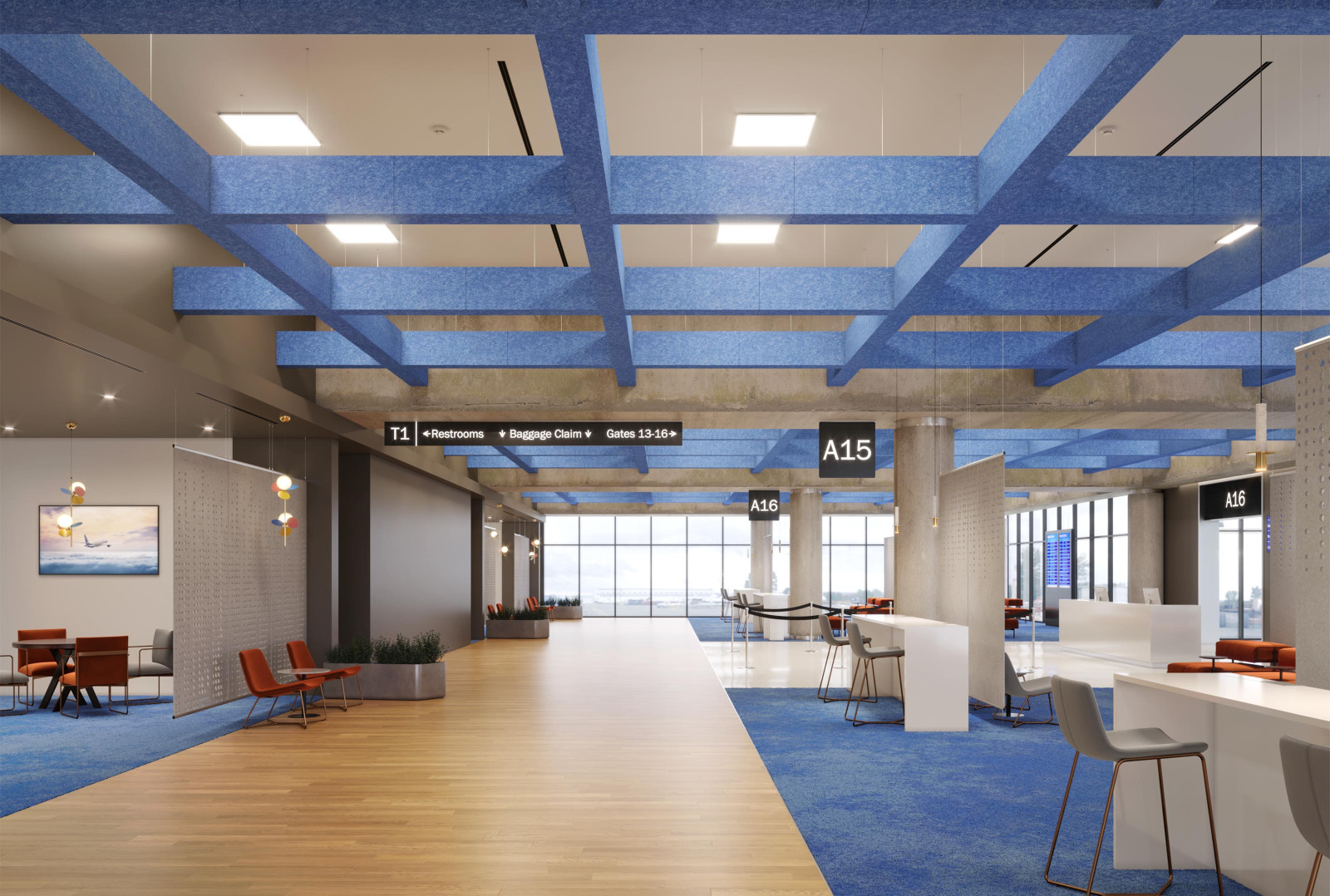

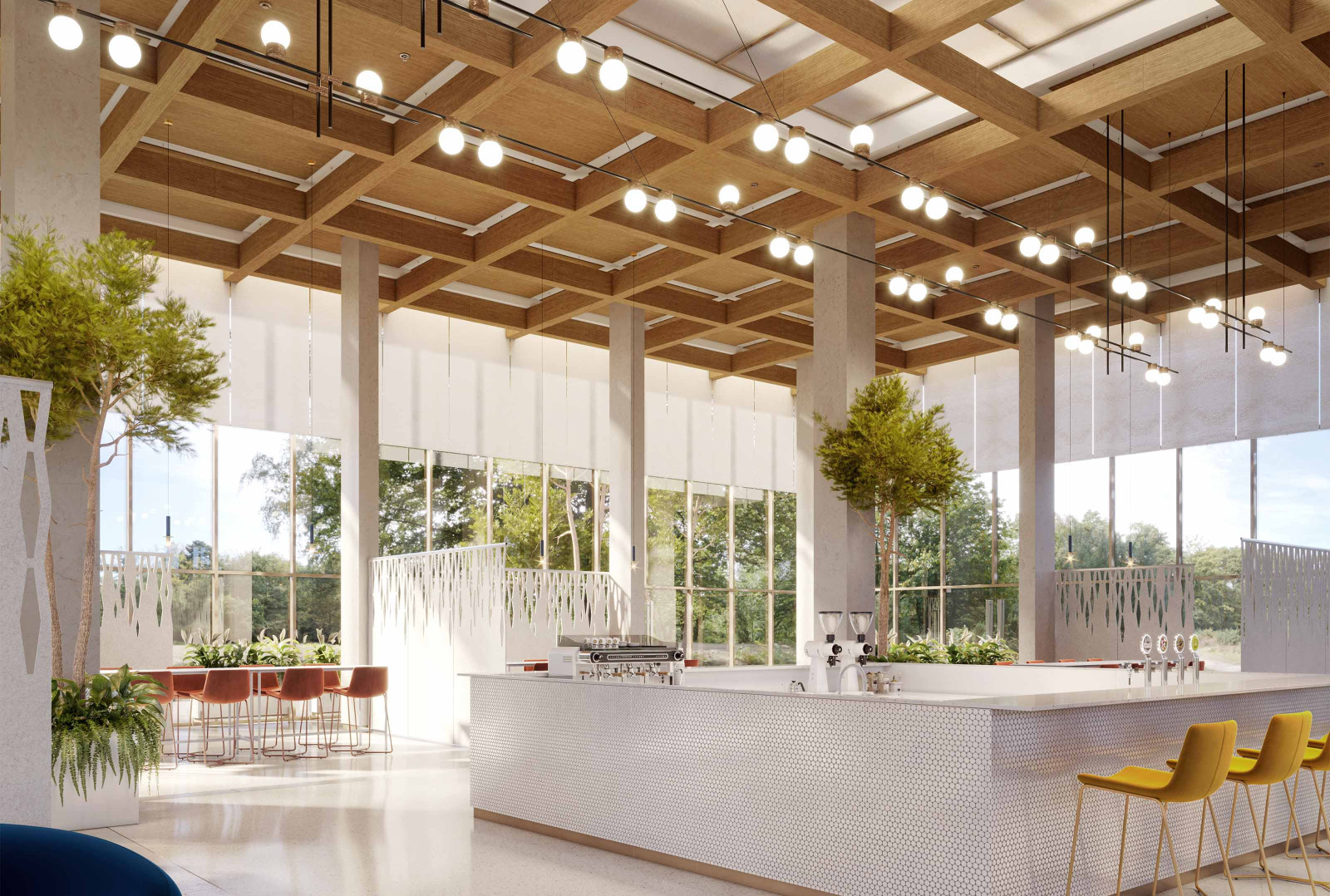

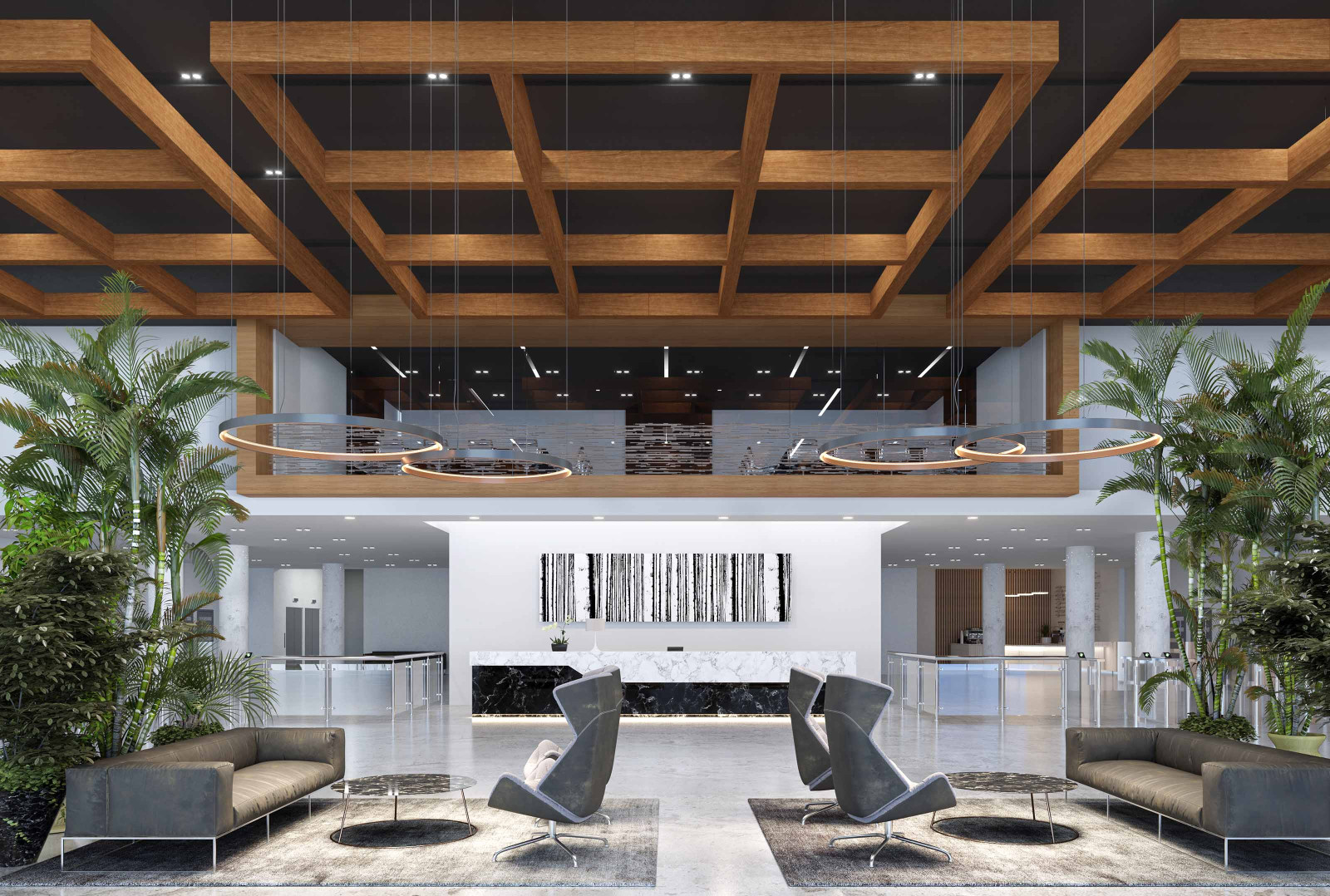

SoftSpan® 96 creates a sense of magnitude with its large trellis beams that are still scalable across spaces big and small. It is a versatile ceiling baffle system that brings the look of coffered ceilings or timber trellises to spaces without the weight, while enhancing acoustics and reducing the impact of noise.
Key Features
-
Reduce Noise & Enhance Acoustics
SoftSpan®’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftSpan®’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Timber Trellis without the Weight

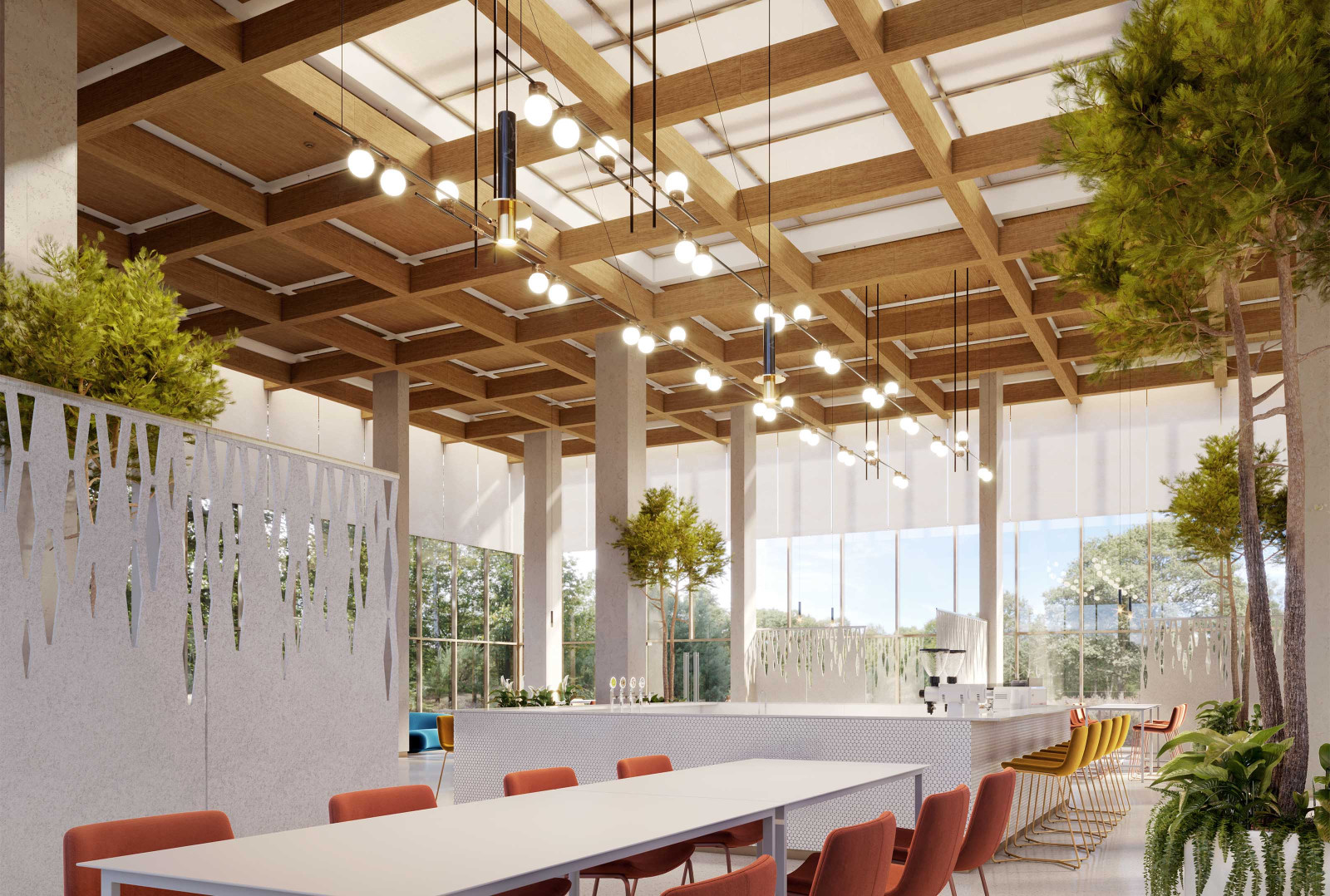

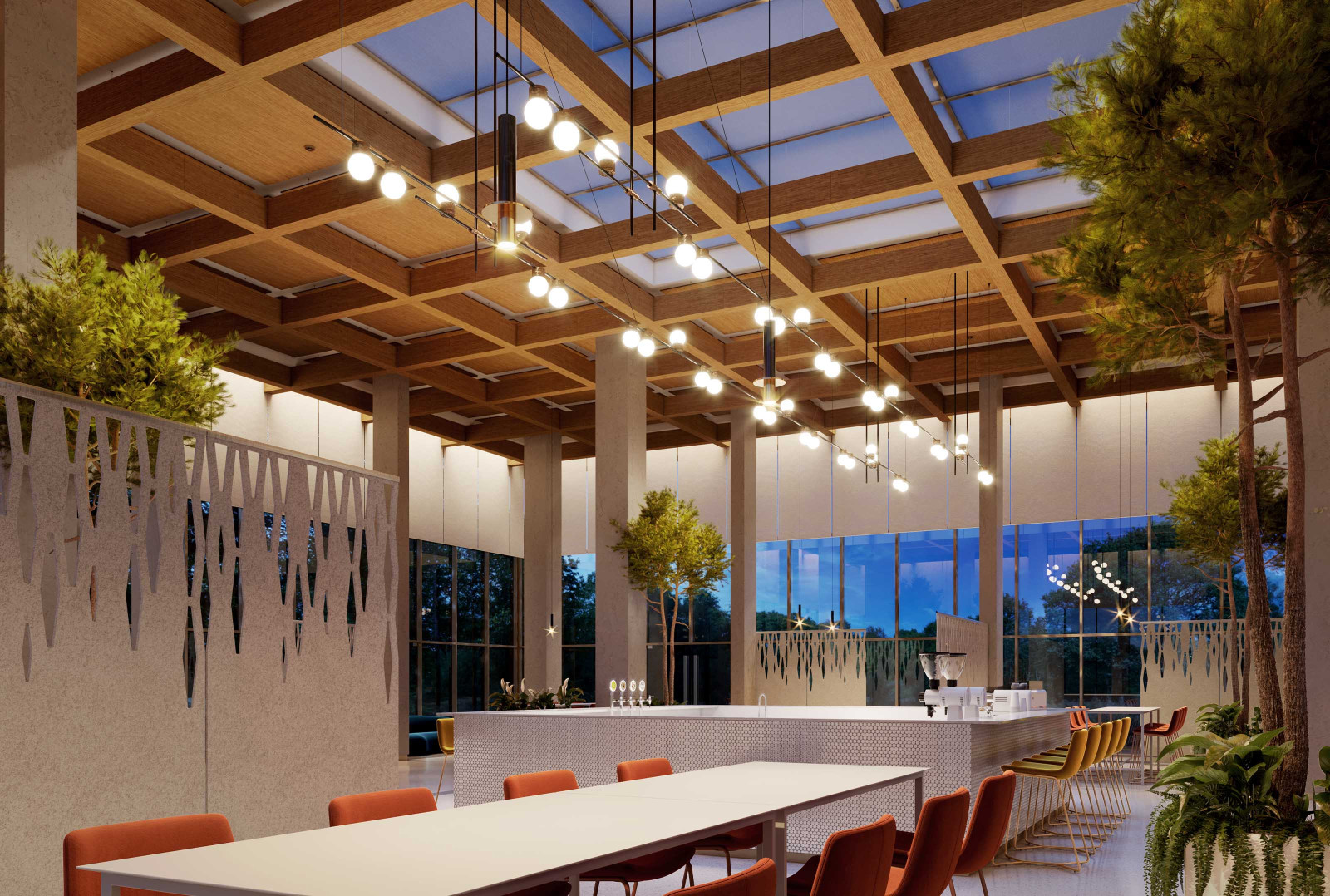

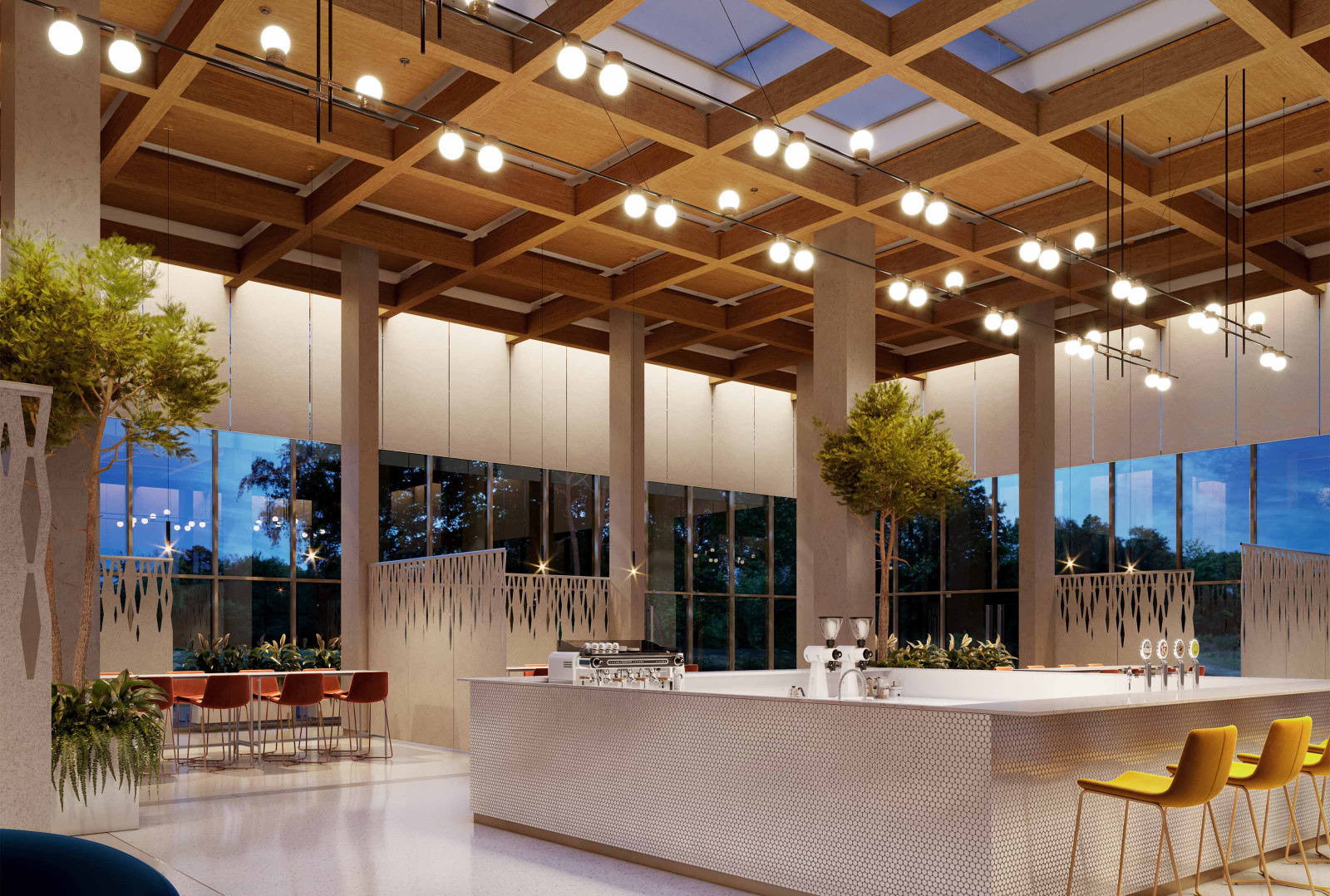

SoftSpan® in Soft Sound® Wood Texture brings the aesthetics of a timber trellis into your space without the weight while also adding acoustic performance.
-
Open Accessibility in Plan
SoftSpan®’s open grid design makes integrating systems above or below the modules simple and feasible. Easily accessible open trellis beam structure makes accessing lighting, HVAC, rig points, plumbing, and life safety systems simple.
-
Preconfigured Field Trimmable Solution
SoftSpan® modules can be trimmed in the field. By rearranging our adjustable hangers; we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.
-
Accessories
Enclose modules with optional perimeter beam and corner modules to expand design possibilities.
Baffle Materials & Colors
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETEnd Cap Materials & Colors
Powder Coated Aluminum
Aluminum
Powder Coated Aluminum - Premium Metallic Finish
AluminumProduct Details

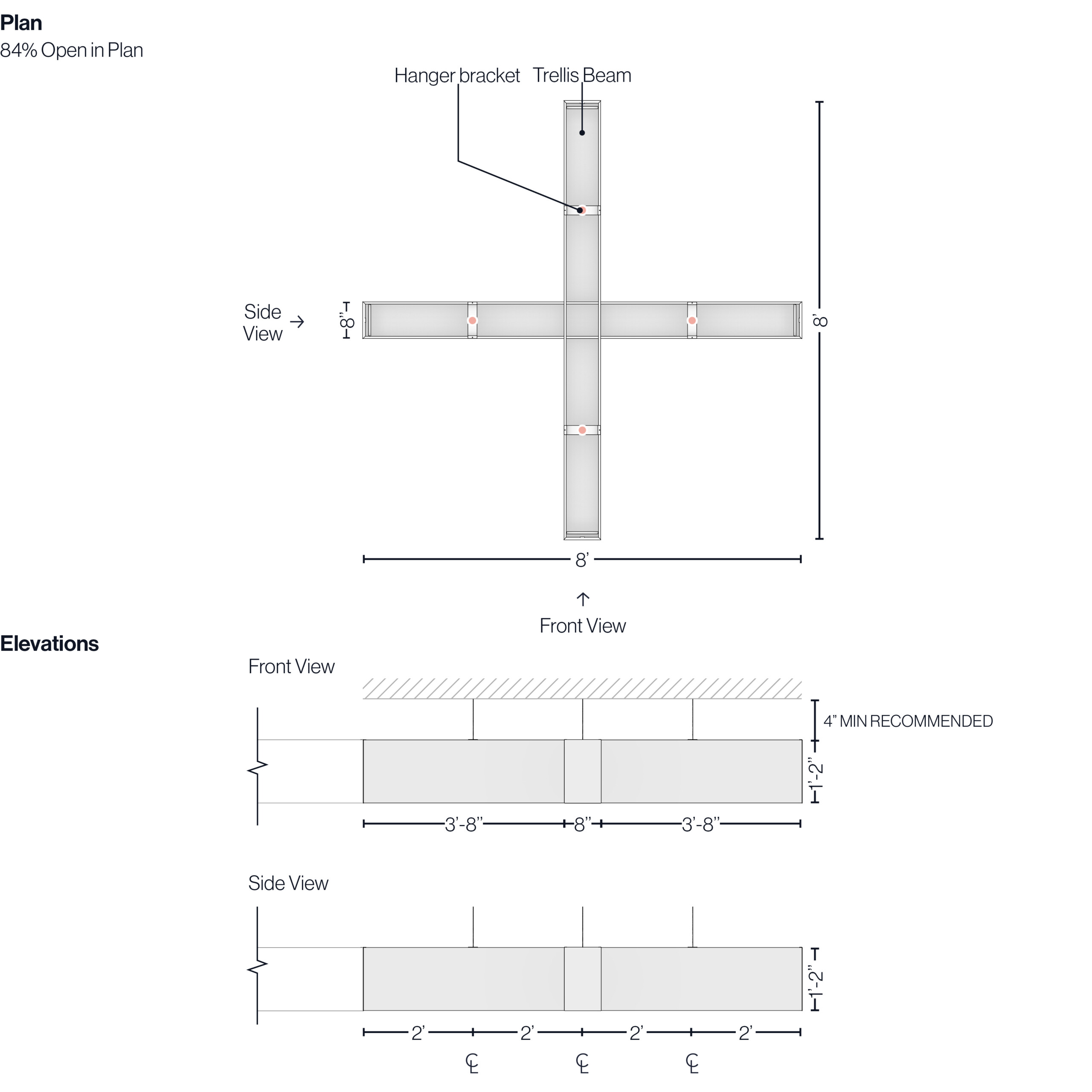

Standard Module
Multiple Modules
Understanding the Module
Attachment & Install
Edge & Attachment Details
Accessory Option - Closure Beams
Closure Beams - Plan & Elevations
Multiple Attachment Options
System Specs
- Dimensions (WxLxD)
- 8' x 8' x 1'-2" Imperial | 244cm x 244cm x 36cm Metric
- Module Material
- 12mm Soft Sound® (PET)
- End Cap Material
- Powder Coated Aluminum
- Openness in Plan
- 84% (Trellis Version)
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
- Acoustics
- True NRC™ 0.55: Trellis ; F-100 Method
- Attachment Method
- 1/16" Stainless Cable and Hardware
- Accessibility
- Yes, quick release cables
- Trimmability
- Yes, per installation manual
- Accessories
- Perimeter Beams & Corners
Downloads
-
SoftSpan® – 96 – Product Brochure PDF – ImperialBrochure3.22 MBpdf
-
Soft Sound® and Powder Coat Color Pairing Chart460.04 KBpdf
-
SoftSpan® – 96 – 3D DWG – Imperial3D Model163.65 KBzip
-
SoftSpan® – 96 – 3D SKP – Imperial3D Model438.58 KBzip
-
SoftSpan® – 96 – 3D RFA – Imperial3D Model45.91 MBzip
-
SELECT A STYLE
SoftSpan® is available in a variety designs and sizes. This stage is a good opportunity to choose between an open trellis or closed coffer look.
-
SELECT A COLOR
Modules are available in a variety of colors and wood finishes. See our Soft Sound® color brochure for more information
-
SELECT NUMBER OF MODULES
SoftSpan® is scalable by design. Select the quantity of modules needed for your project.
-
OPTION TO ADD CLOSURE BEAMS
SoftSpan® offers closure beams to give your layout a refined Soft Sound® edge.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
Product Design Consultant Gensler
