SoundAngle®

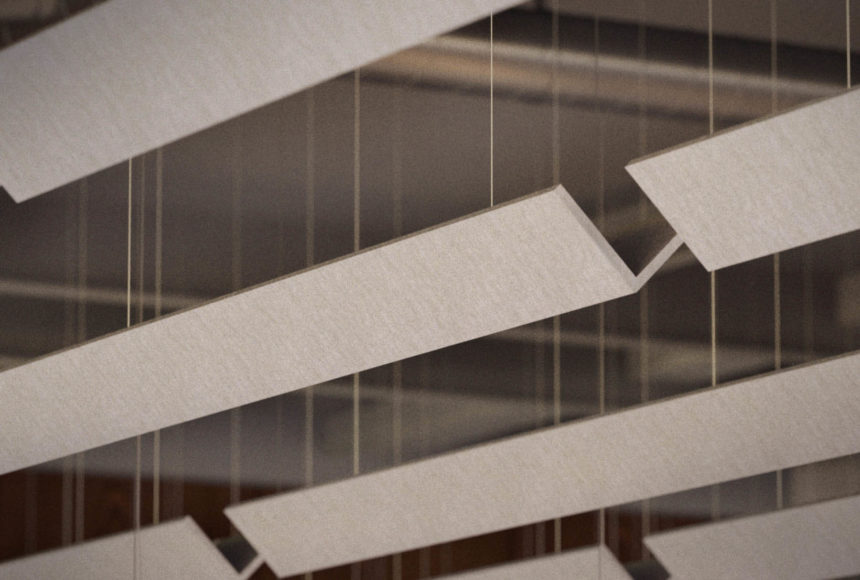

SoundAngle® ceiling system’s V-shaped baffles offer a scalable way to add dimensionality and decrease acoustical reverberations across spaces. Its angled face design and construction from our Soft Sound® acoustical material combine to dramatically reduce noise from all directions. SoundAngle® can be configured in numerous ways to adapt to existing structural elements and fit your design vision. Choose from two depths and a range of lengths, all available in a variety of colors and finishes, including wood-grain textures.

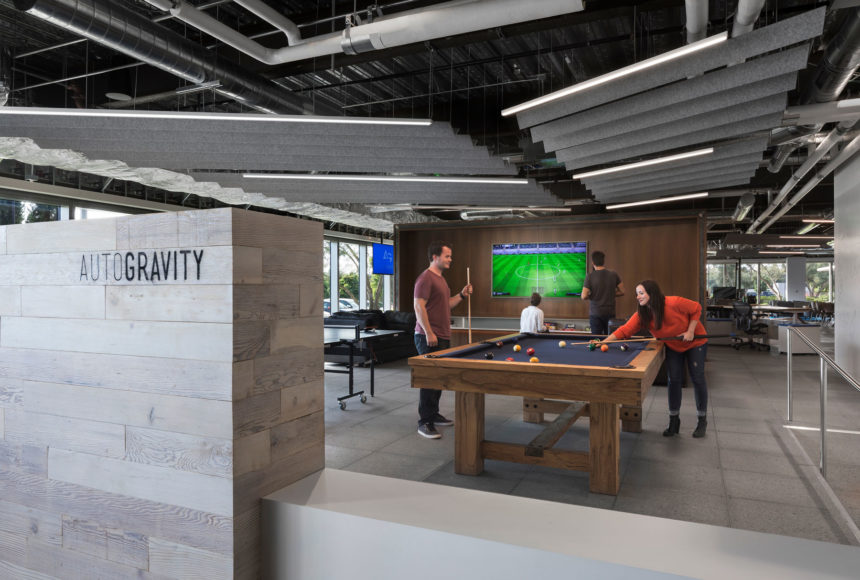

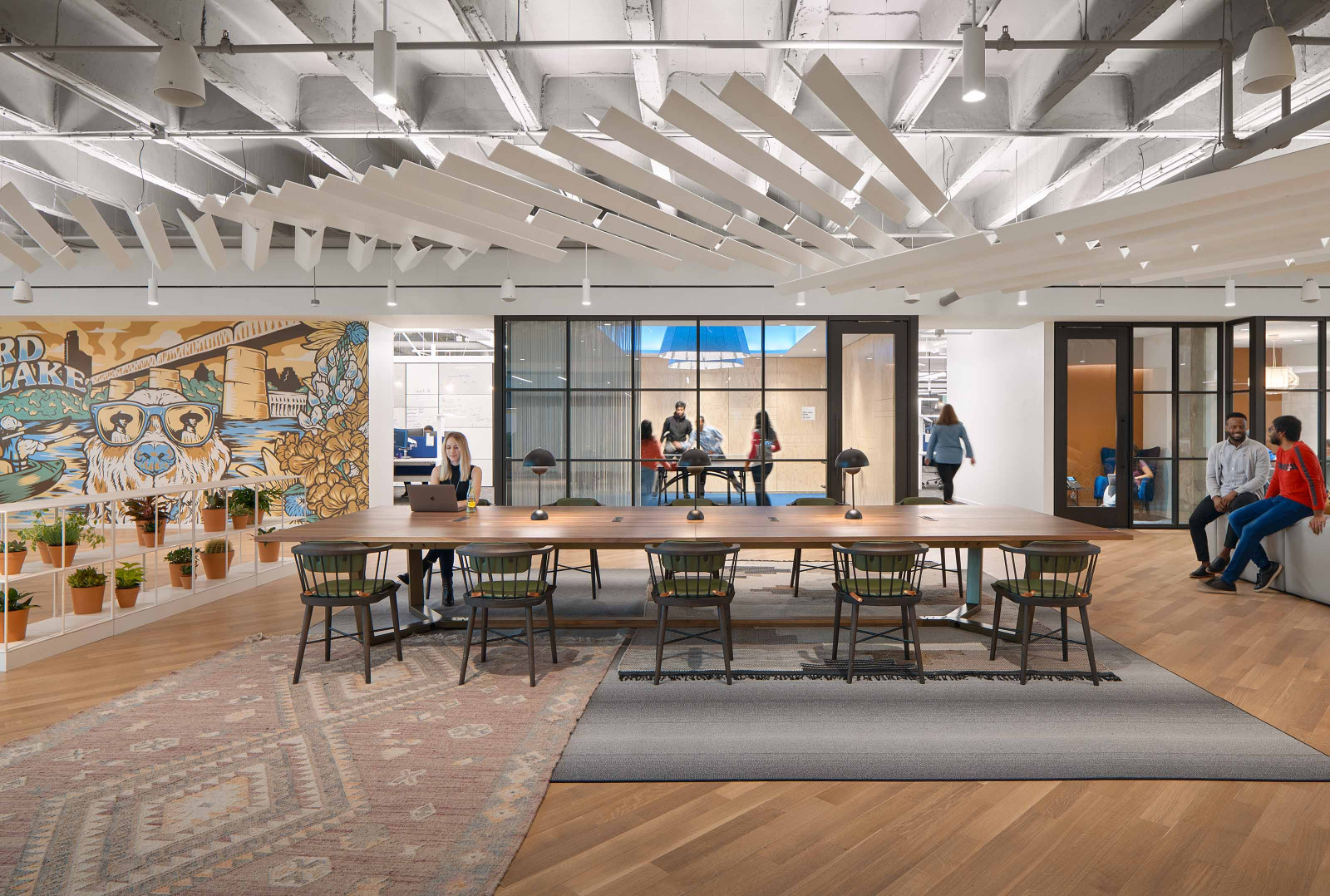

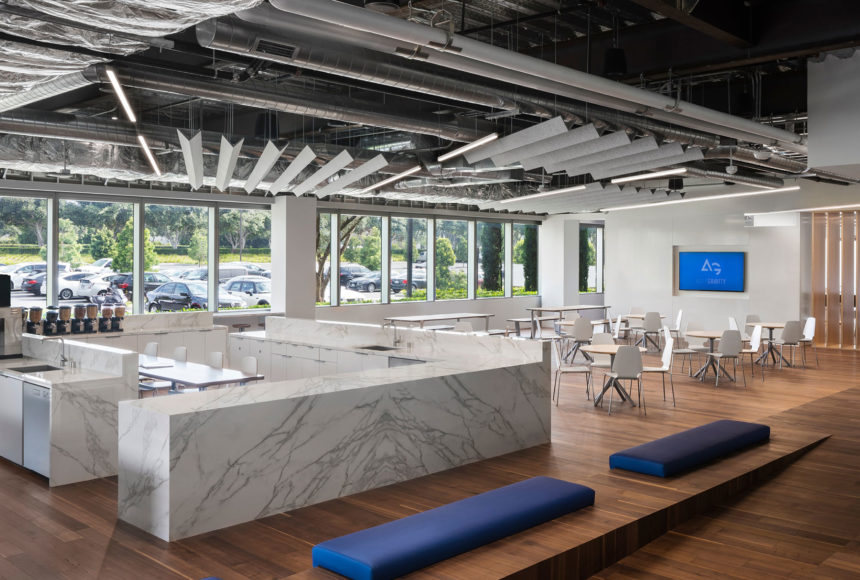

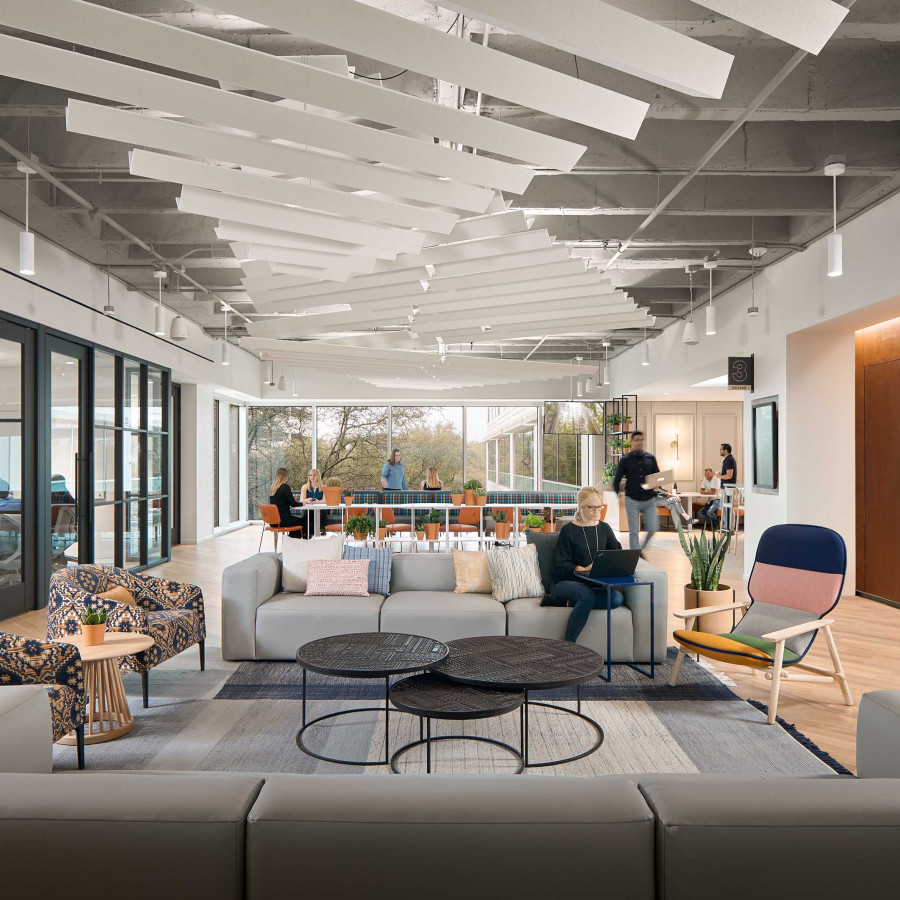

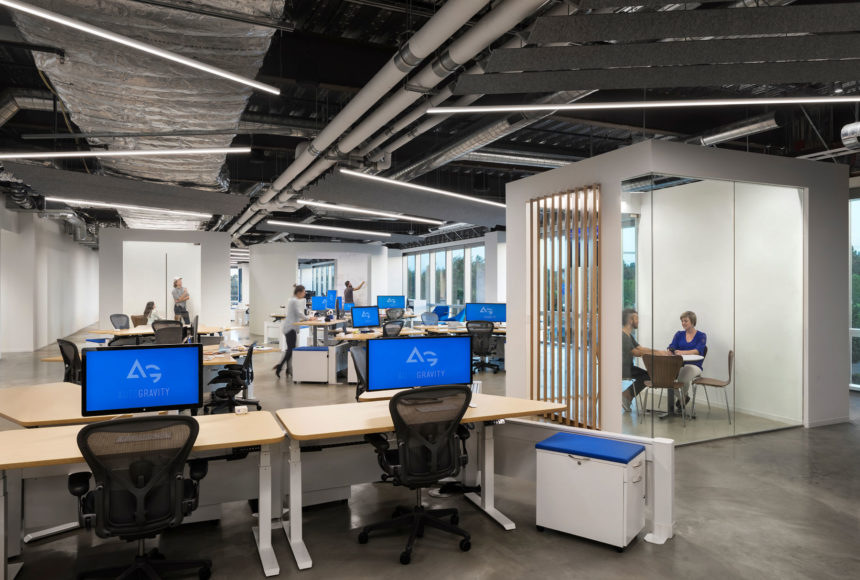

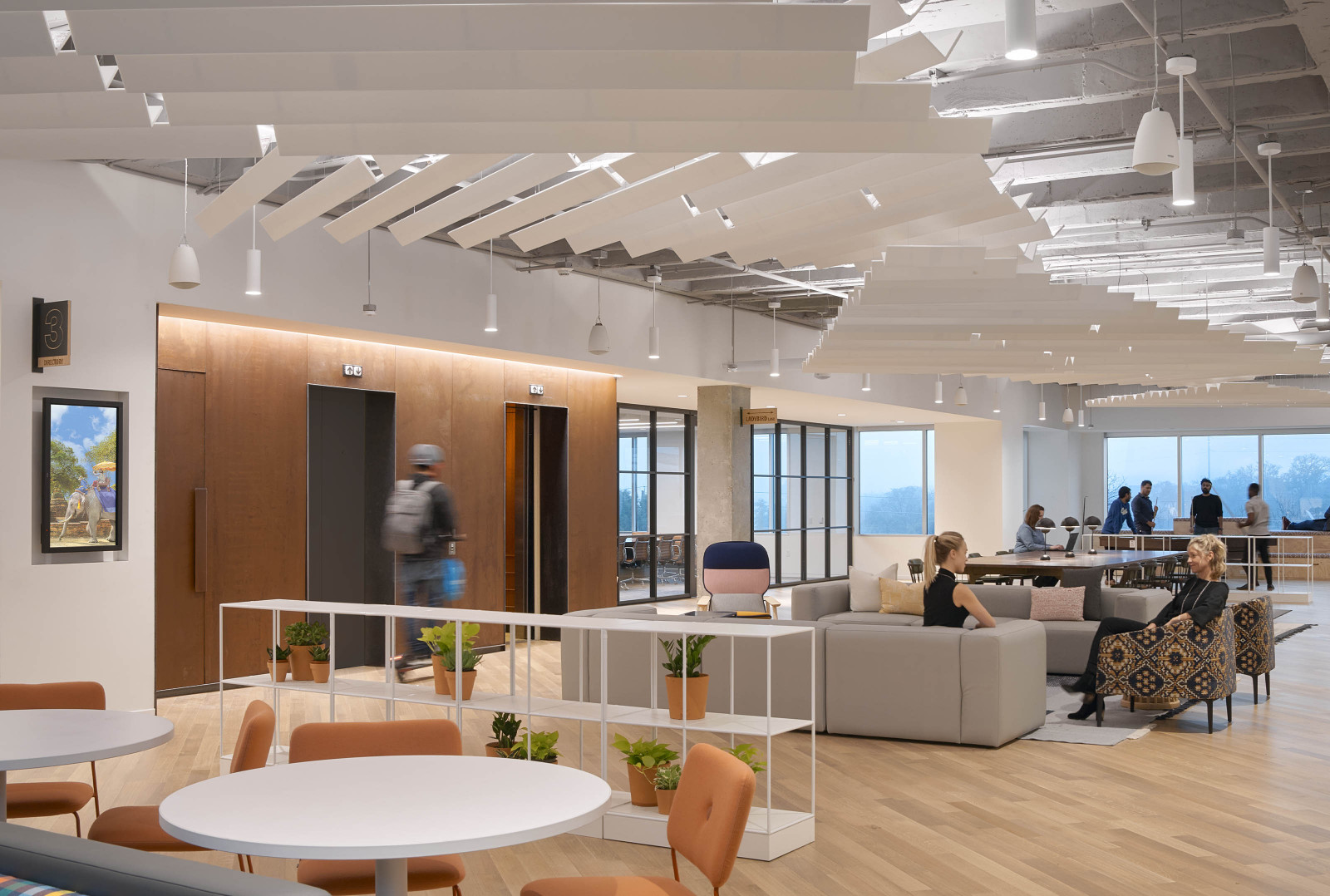

SoundAngle® in use

Baffle Materials & Colors

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

How to Specify

  1. SELECT A STYLE

    SoundAngle® is available in a variety of lengths and depths. Choose the dimensions that fit your vision and space.

  2. SELECT A COLOR

    Modules are available in a variety of colors and wood finishes. See our Soft Sound® color brochure for more information

  3. SELECT NUMBER OF MODULES

    SoundAngle® is scalable by design. Select the quantity of modules needed for your project.

Product Details

System Specs

Dimensions
Fin Depths: 6" & 12" Imperial | 15cm & 30.5cm Metric
Lengths: 2´, 3´, 4´, 5´, 6´, 7´ & 8´ Imperial | 61, 91, 122, 152, 183, 213, 244, 274 cm Metric
Material
12mm Soft Sound® (PET)
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC™ 0.95: SoundAngle® 12” by 9’ (Fins Touching); E-300 Method
True NRC™ 0.95: SoundAngle® 6” by 9’ (Fins Touching); E-300 Method
True NRC™ 0.75: SoundAngle® 12” by 9’ (6” Gap); E-300 Method
True NRC™ 0.70: SoundAngle® 6” by 9’ (6” Gap); E-300 Method
True NRC™ 0.65: SoundAngle® 12” by 9’ (12” Gap); E-300 Method
True NRC™ 0.55: SoundAngle® 6” by 9’ (12” Gap); E-300 Method
Attachment Method
1/32” Stainless Cable and Hardware
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoundAngle® – PDF Tear Sheet – Imperial
    Tear Sheet
    8.61 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    2.32 MB
    pdf
  • SoundAngle® – 3D DWG – Imperial
    3D Model
    382.09 KB
    zip
  • SoundAngle® – 3D SKP – Imperial
    3D Model
    50.57 KB
    zip
  • SoundAngle® – 3D RFA – Imperial
    3D Model
    565.49 KB
    zip
Let us help you get started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
