SoundBar®

SoundBar® acoustical baffle & lighting system delivers high performance noise reduction and sleek integrated illumination in a single cost-effective, versatile product. Choose from an assortment of lengths, widths, and depths, in Up or Down lighting configurations, with power integrated into its suspension cable, simplifying install and removing the unsightly clutter of cords. Its Arktura Soft Sound® acoustical material construction makes SoundBar® capable of achieving NRC ratings of up to 1.15. Units are available in a wide range of colors, including wood textures, and can be easily mixed and arranged as desired to achieve an endless array of dynamic layouts. SoundBar® now also offers interconnectivity with SoftSpan® 24, 48, and 48A, to create unique configurations that utilize both acoustic and illuminated solutions, bringing an impactful combination of style & function to your next project.



Key Features

  • Reduce Noise & Enhance Acoustics

    SoundBar®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Integrated Lighting Options

    SoundBar® offers 2 lighting options, Up and Down, allowing you to illuminate spaces in a variety of functional and decorative ways.

  • Versatile Endcaps & Universal Joiner Bracket

    Choose end caps that blend with your color choice or choose a color scheme that works with the branding of the space. Combine SoundBars with joiner brackets, resulting in a seamless acoustic beam.

  • Range of Profiles & Expanding Soft Sound® Library

    SoundBar® is available in a range of lengths, widths, and configurable options, giving you complete design flexibility in any space.

  • Minimal Hanging & Power Hardware

    SoundBar® reduces the visual clutter of hanging and lighting cables with one powered cable on each end.

  • Compatible with SoftSpan®

    SoundBar® offers connectivity with SoftSpan® 24, 48, and 48A modules and perimeter and corner beams to create a multitude of unique layouts with visual continuity across as space.

Baffle Materials & Colors

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Product Details

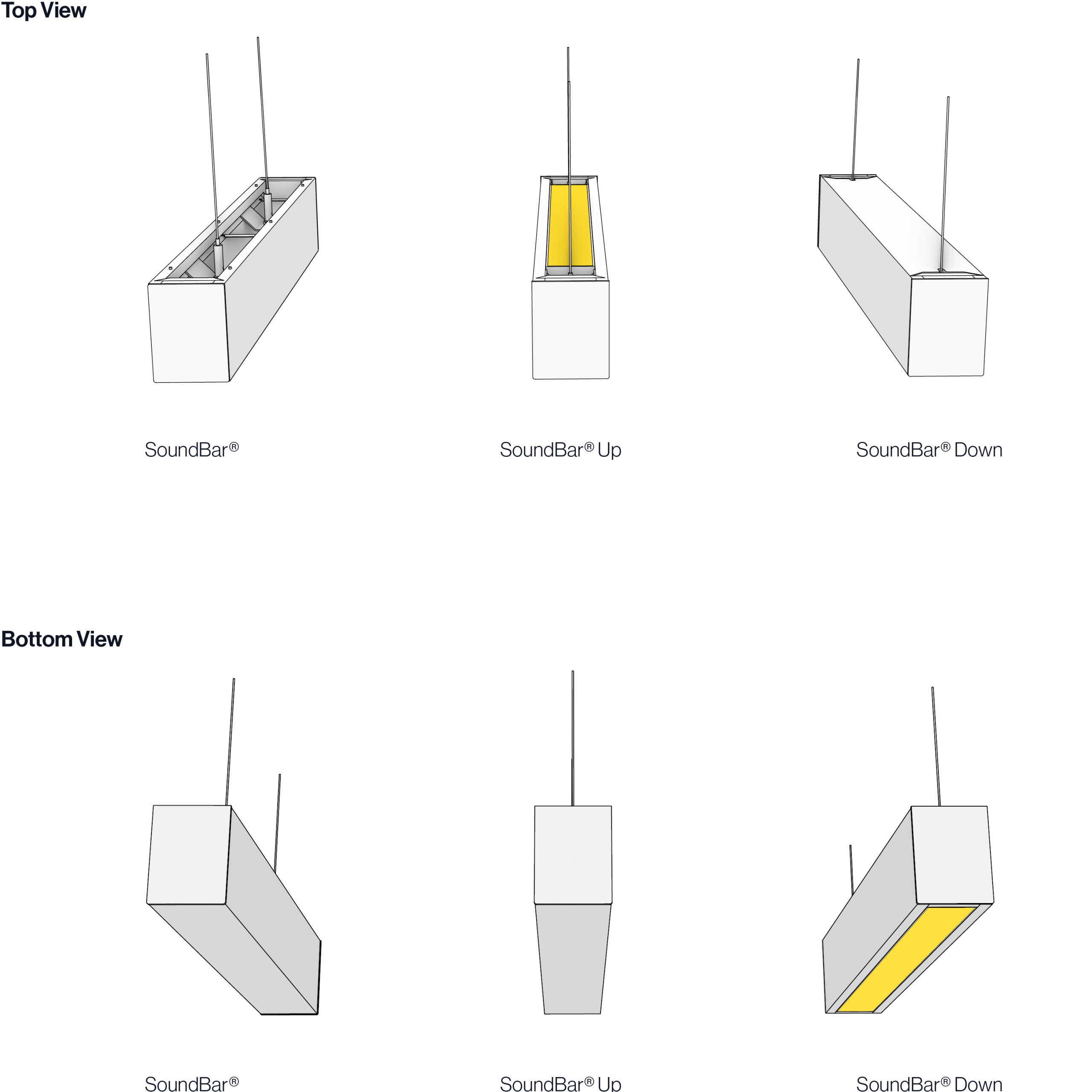

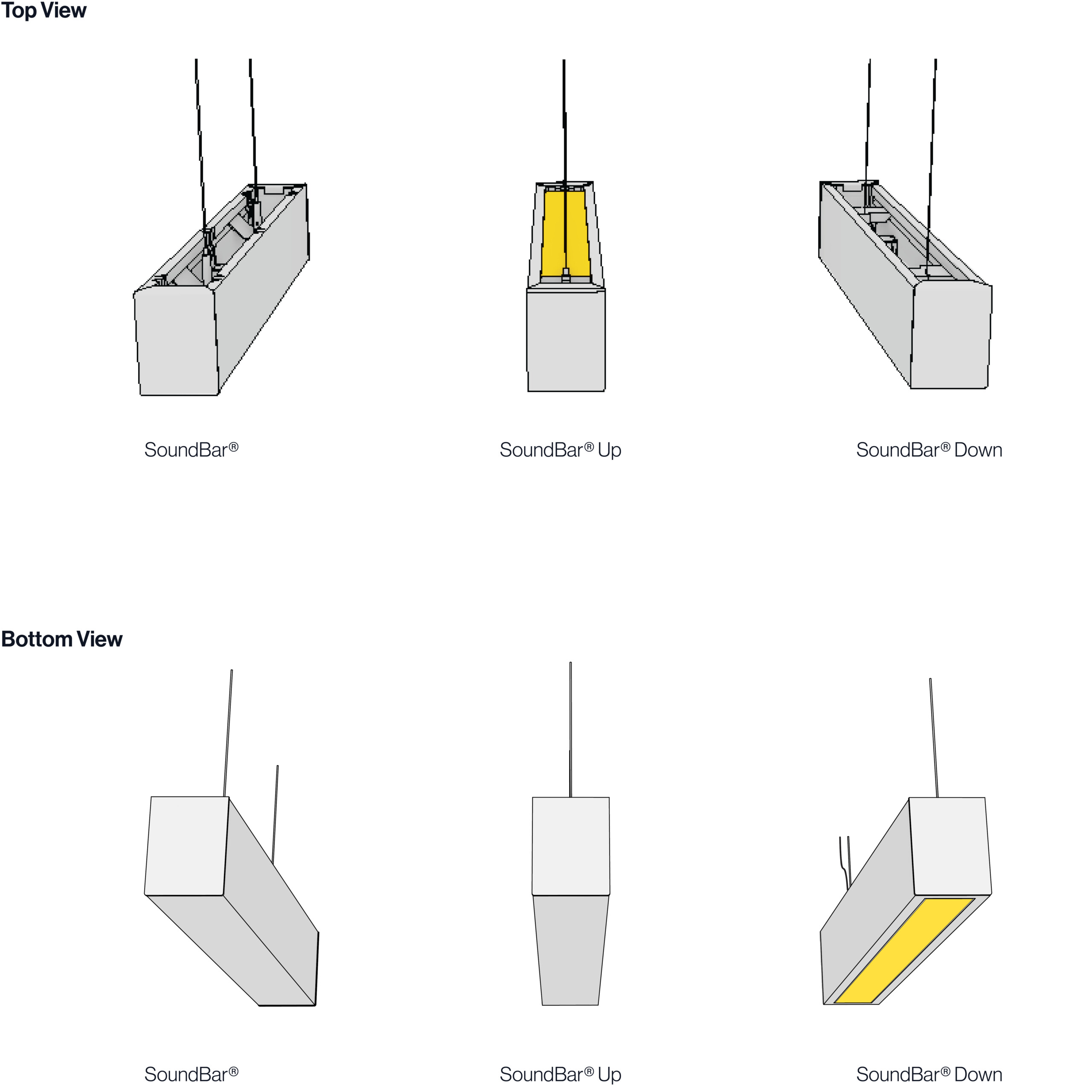

Standard Configurations

Dimensions

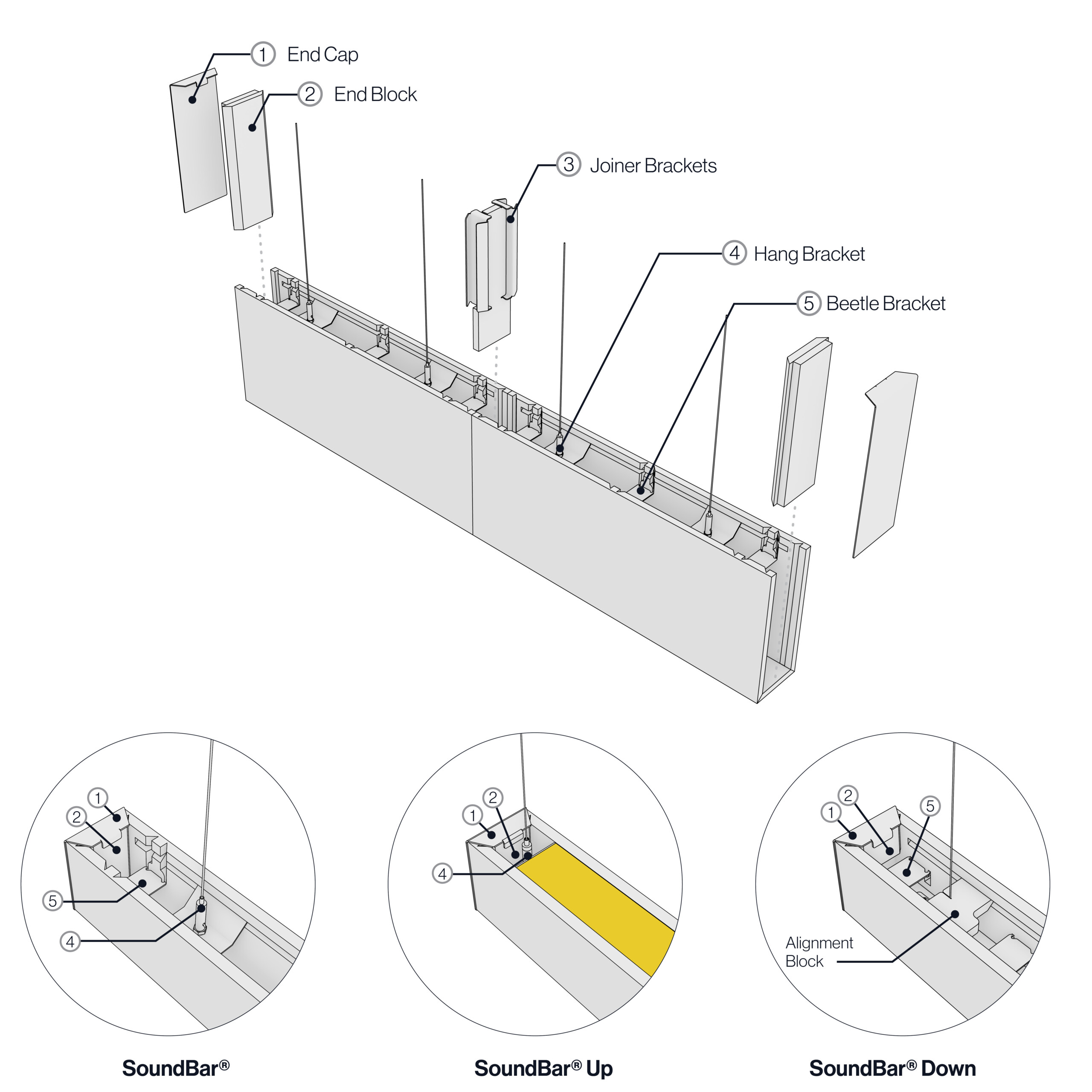

Attachment Details

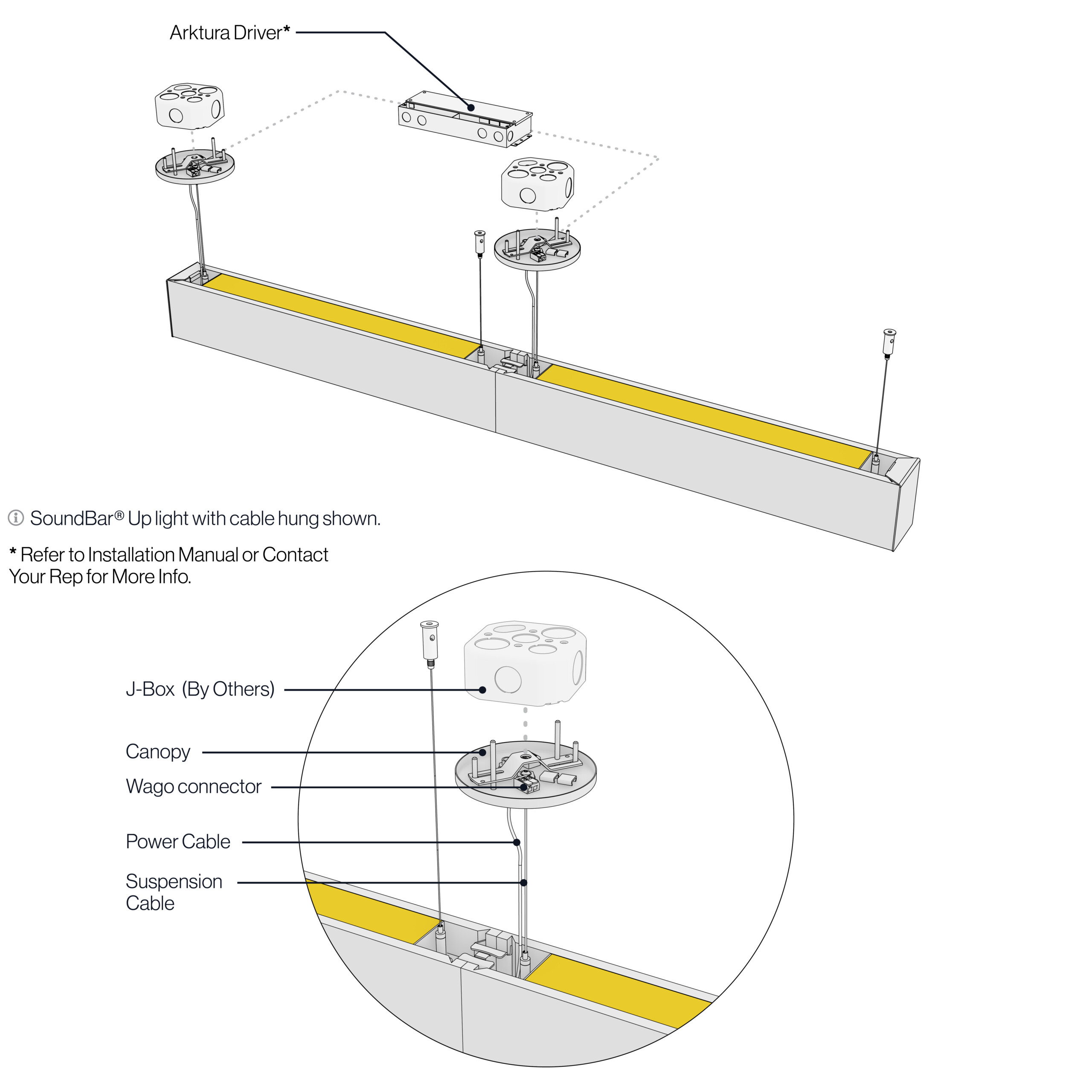

Attachment Details - With Lights

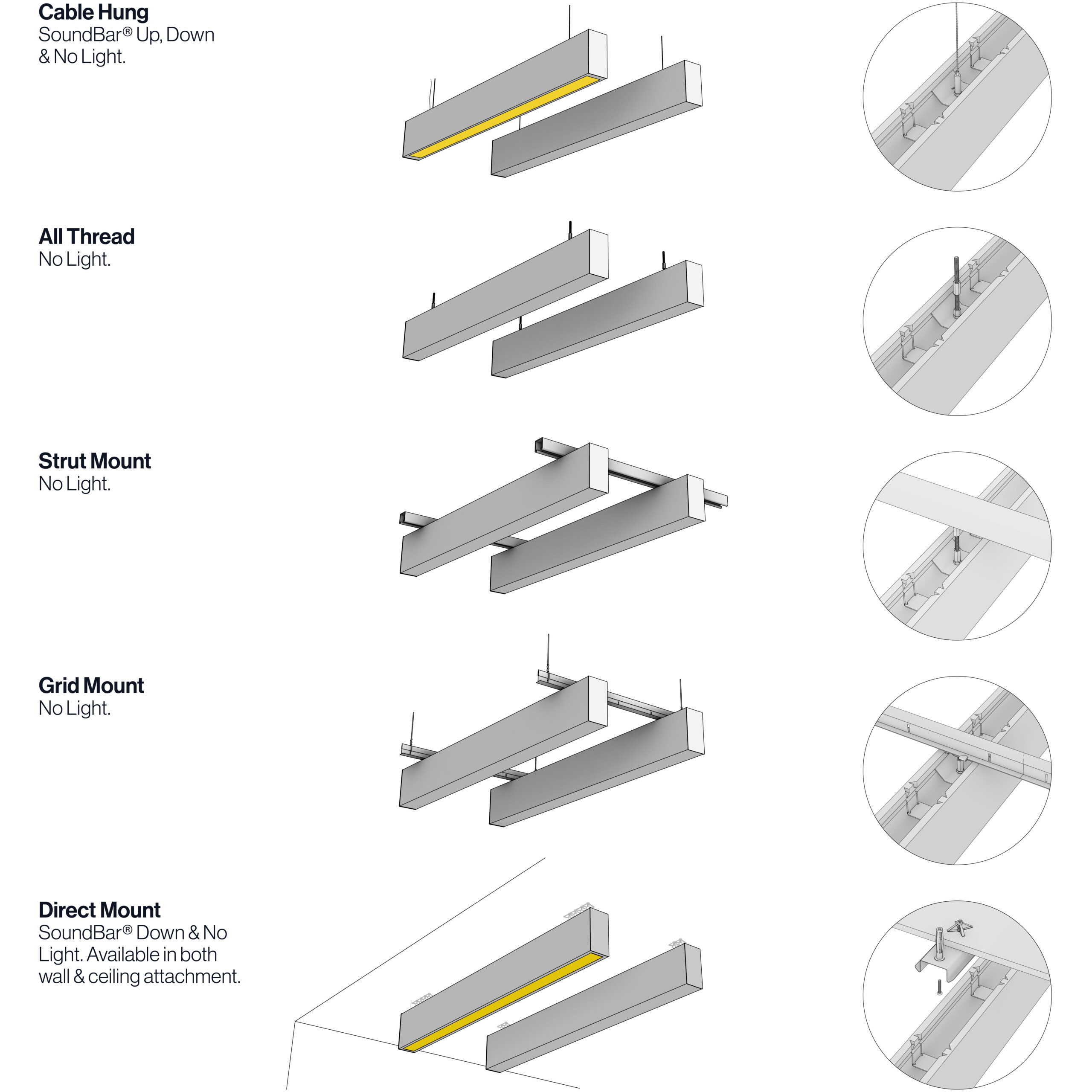

Multiple Attachment Options

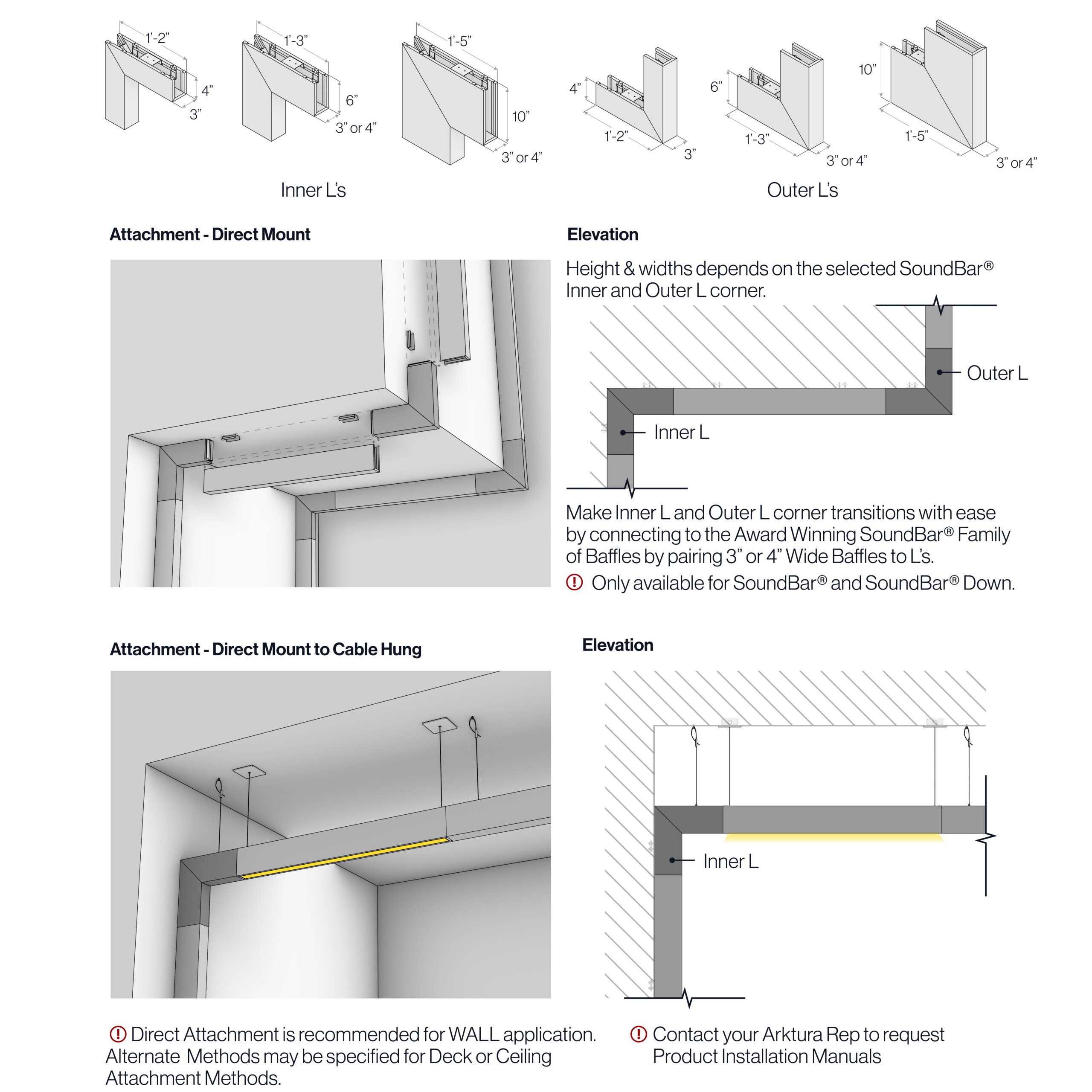

Inner L and Outer L

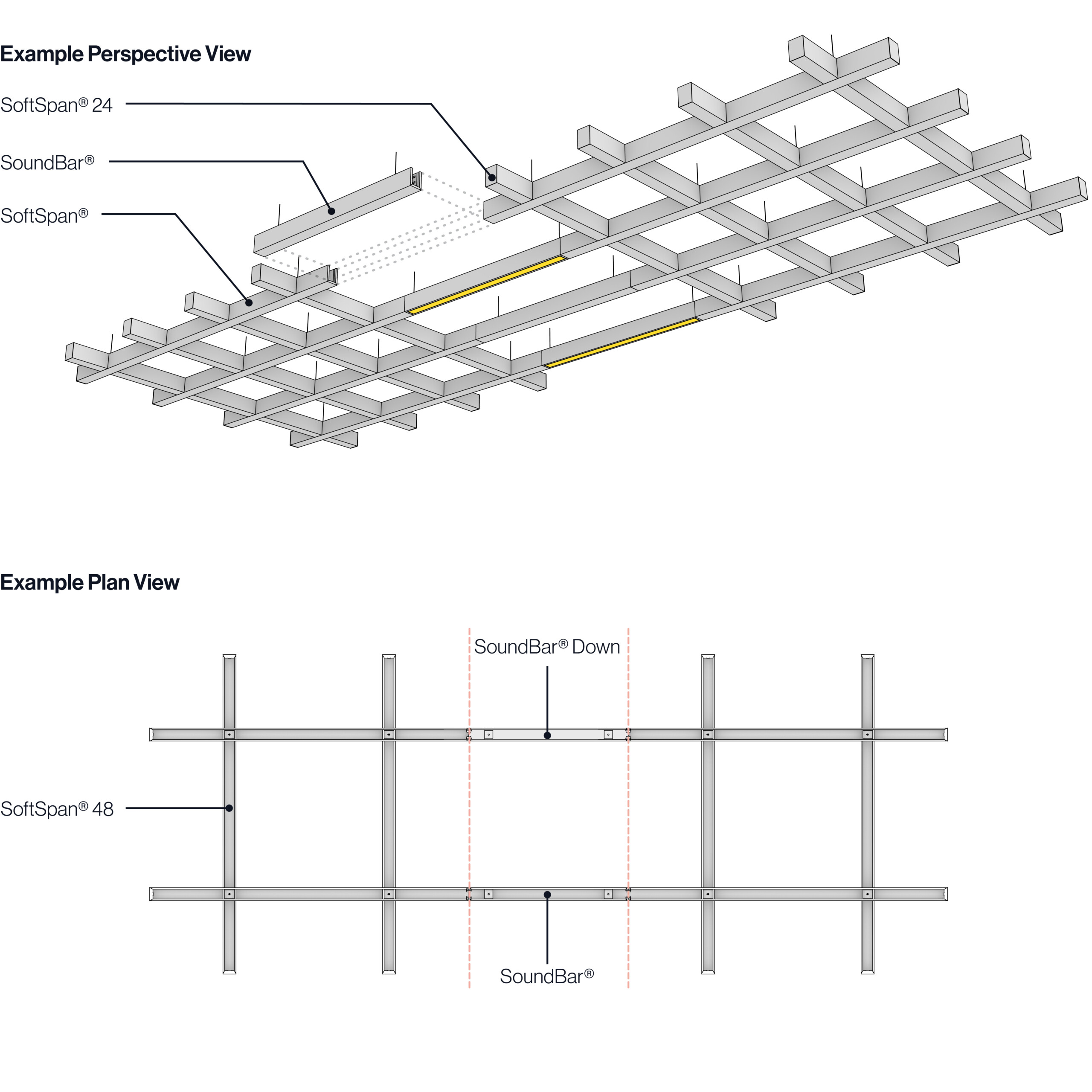

Connectivity with SoftSpan®

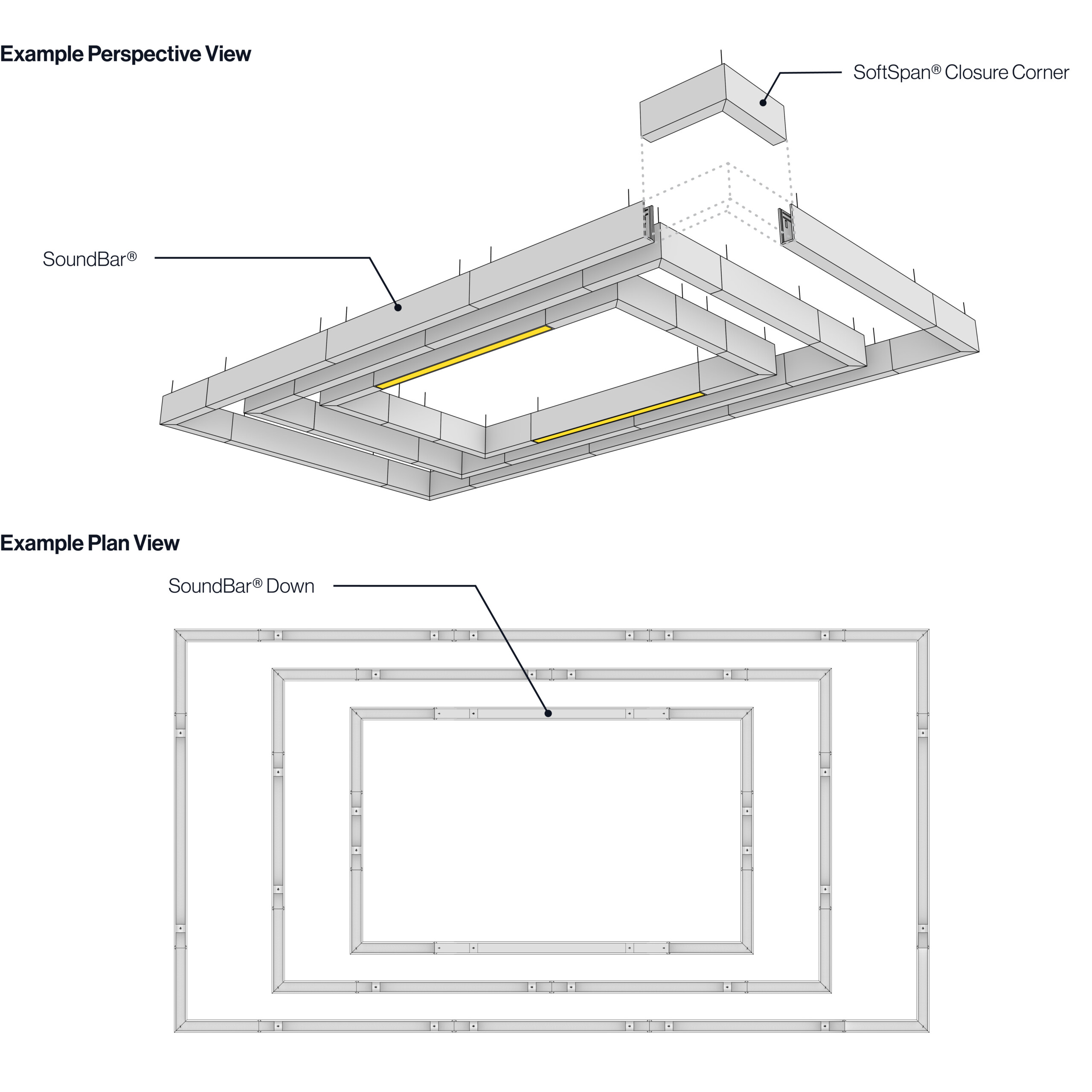

SoftSpan® Closure Corner

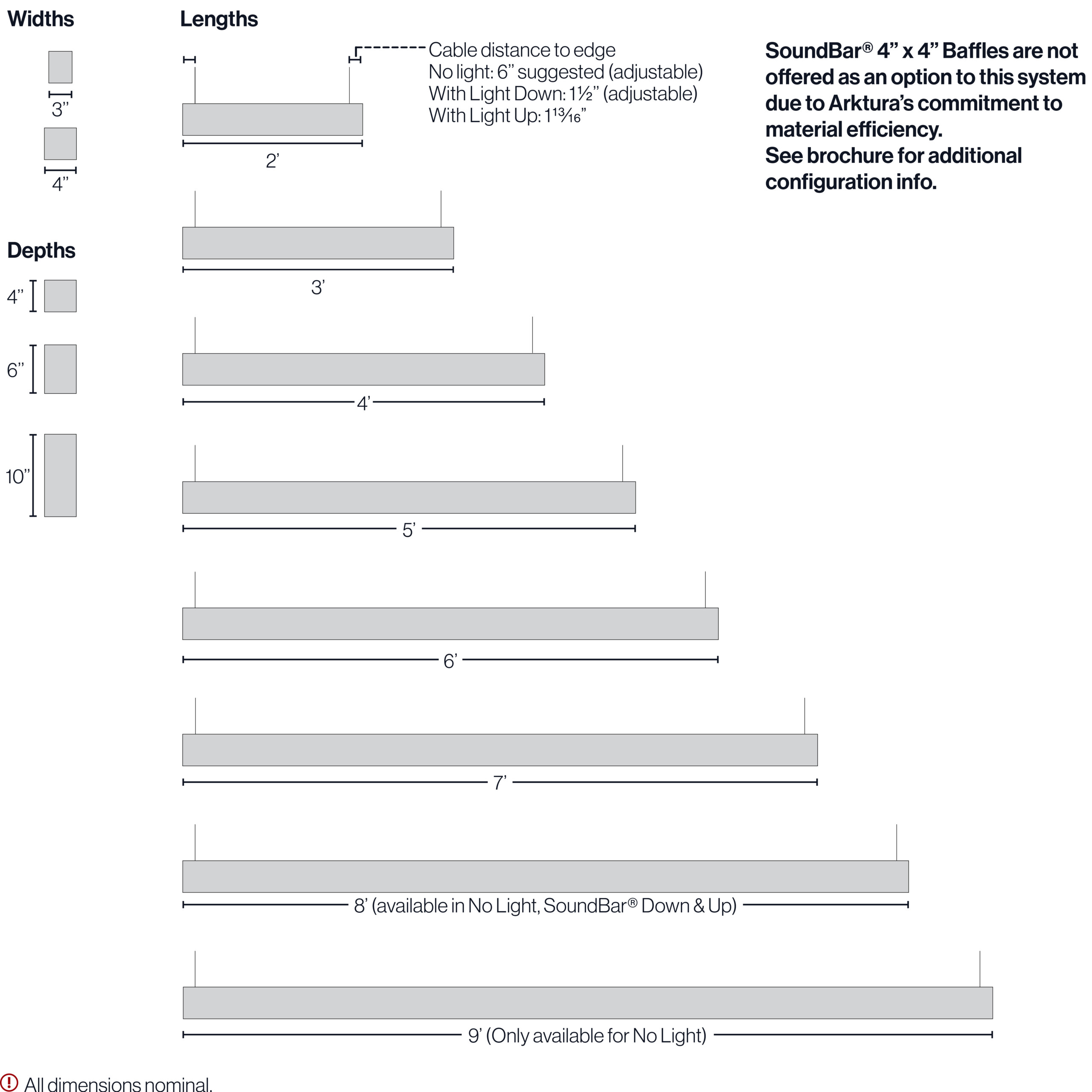

Dimensions

3" Width
Heights: 4", 6" & 10" Imperial | 10cm, 15cm, & 25.5cm Metric
Lengths: 2', 3', 4', 5', 6', 7', 8', & 9' Imperial | 60, 90, 120, 150, 180, 210, 240, 274.5cm Metric
4" Width
Heights: 6" & 10" Imperial | 15cm & 25.5cm Metric
Lengths: 2', 3', 4', 5', 6', 7', & 8' Imperial | 60, 90, 120, 150, 180, 210, 240cm Metric

System Specs

Material
12mm Soft Sound® (PET)
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC® 1.15: SoundBar® (4"x10"x96") 6" O.C ; F-100 Method
True NRC® 0.90: SoundBar® (4"x10"x96") 12" O.C ; F-100 Method
True NRC® 0.55: SoundBar® (3"x4"x96") 6" O.C ; F-100 Method
True NRC® 0.40: SoundBar® (3"x4"x96") 12" O.C ; F-100 Method
True NRC® 0.60: SoundBar® (4"x10"x108") 12" O.C ; E300 Method
True NRC® 0.50: SoundBar® (3"x6"x108") 12" O.C ; E300 Method
Attachment Method
1/16" Stainless Cable and Hardware
Accessibility
Yes, quick release cables

Downloads

  • SoundBar® – Product Brochure PDF – Imperial
    Tear Sheet
    6.31 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    545.05 KB
    pdf
  • Soft Sound® and Powder Coat Color Pairing Chart
    460.04 KB
    pdf
  • SoundBar® – 3D DWG – Imperial
    3D Model
    3.36 MB
    zip
  • SoundBar® – 3D SKP – Imperial
    3D Model
    2.44 MB
    zip
  • SoundBar® – 3D RFA – Imperial
    3D Model
    18.01 MB
    zip
  1. SELECT A STYLE

    SoundBar® is available in a variety of lengths, widths, and depths and in Up, Down, and Duo lighting configurations. Select the style that best fits your vision and space.

  2. SELECT A COLOR

    Modules are available in a variety of colors and wood finishes. See our Soft Sound® color brochure for more information

  3. SELECT NUMBER OF MODULES

    SoundBar® is scalable by design. Select the quantity of modules needed for your project.

Let us help you get started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
