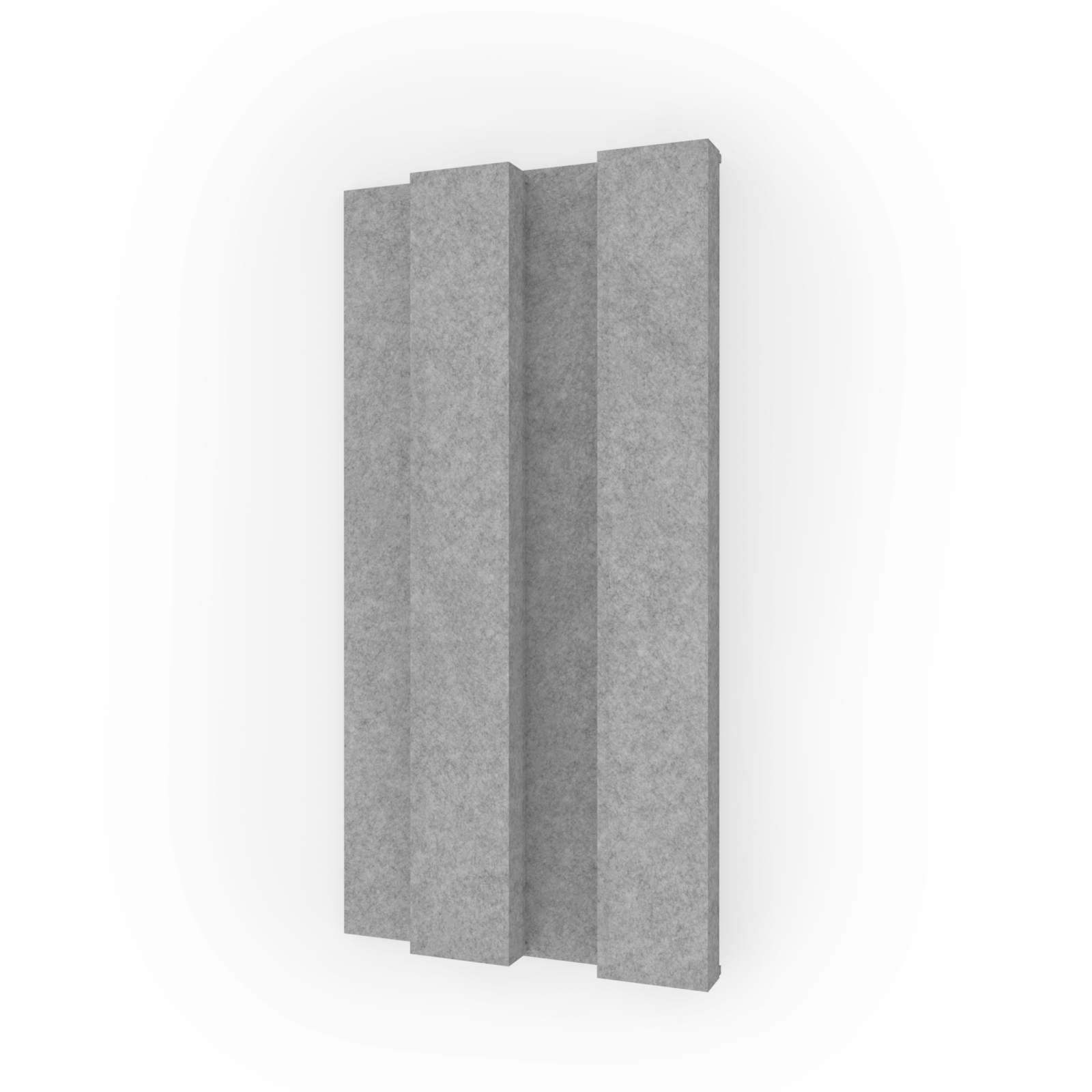

SoundForm® Plank
SoundForm® Plank is a modular acoustic wall panel system that brings sculptural dimensionality, acoustic performance, and optional integrated lighting to commercial interiors; all in a pre-engineered, ready-to-install package. Available in a range of finish options and wood textures, the system delivers bespoke-level design without custom fabrication complexity. Plank's profile's clean rectangular flutes introduce structural linearity and graphic precision to the wall, making it the ideal expression for interiors that speak the language of architectural discipline.
Key Features
-
Reduce Noise & Enhance Acoustics
SoundForm®'s Soft Sound® material reduces noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. This acoustic material works to help reduce and control reverberations and diffuse sound while enhancing wellness in spaces from busy office environments to soothing waiting rooms.
-
Expansive Soft Sound® Library
Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
-
Duo Capability
Add new dimensions of style, mix background and flute colors in an expanding range of dynamic combinations to fully achieve your design intent. Perfect for incorporating branding or creating a dynamic, two-tone composition.
-
Customizable
SoundForm® can be further customized by selecting various height/widths, staggered profiles, alternating flute shapes, as well as the spacing between flutes.
-
Integrated Lighting
SoundForm® with optional lighting arrives pre-installed with all lighting components, ensuring a quick and straightforward installation process.
Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Essentials
Acoustic PET
Soft Sound® Wood Textures
Acoustic PETProduct Details
Flute Profile

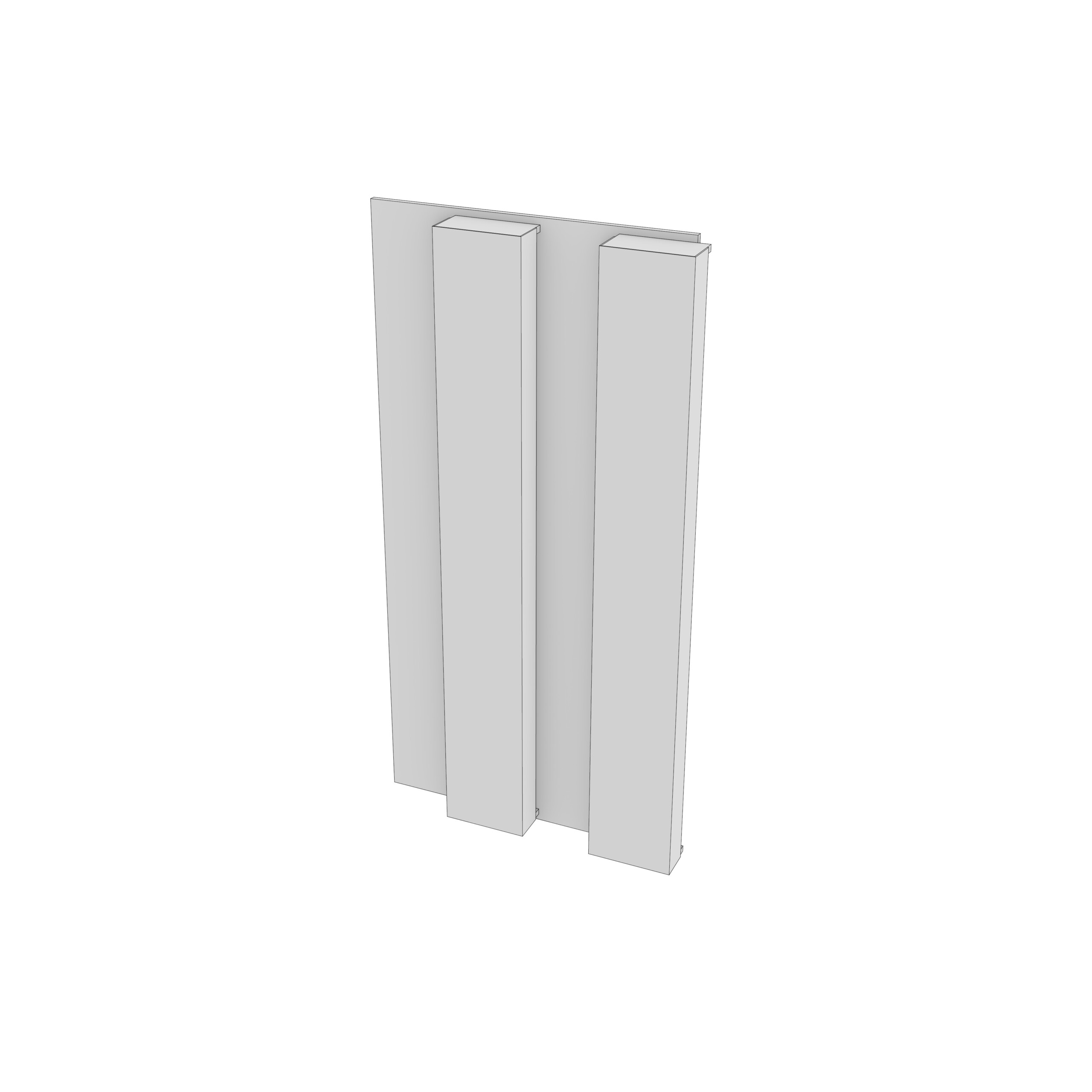

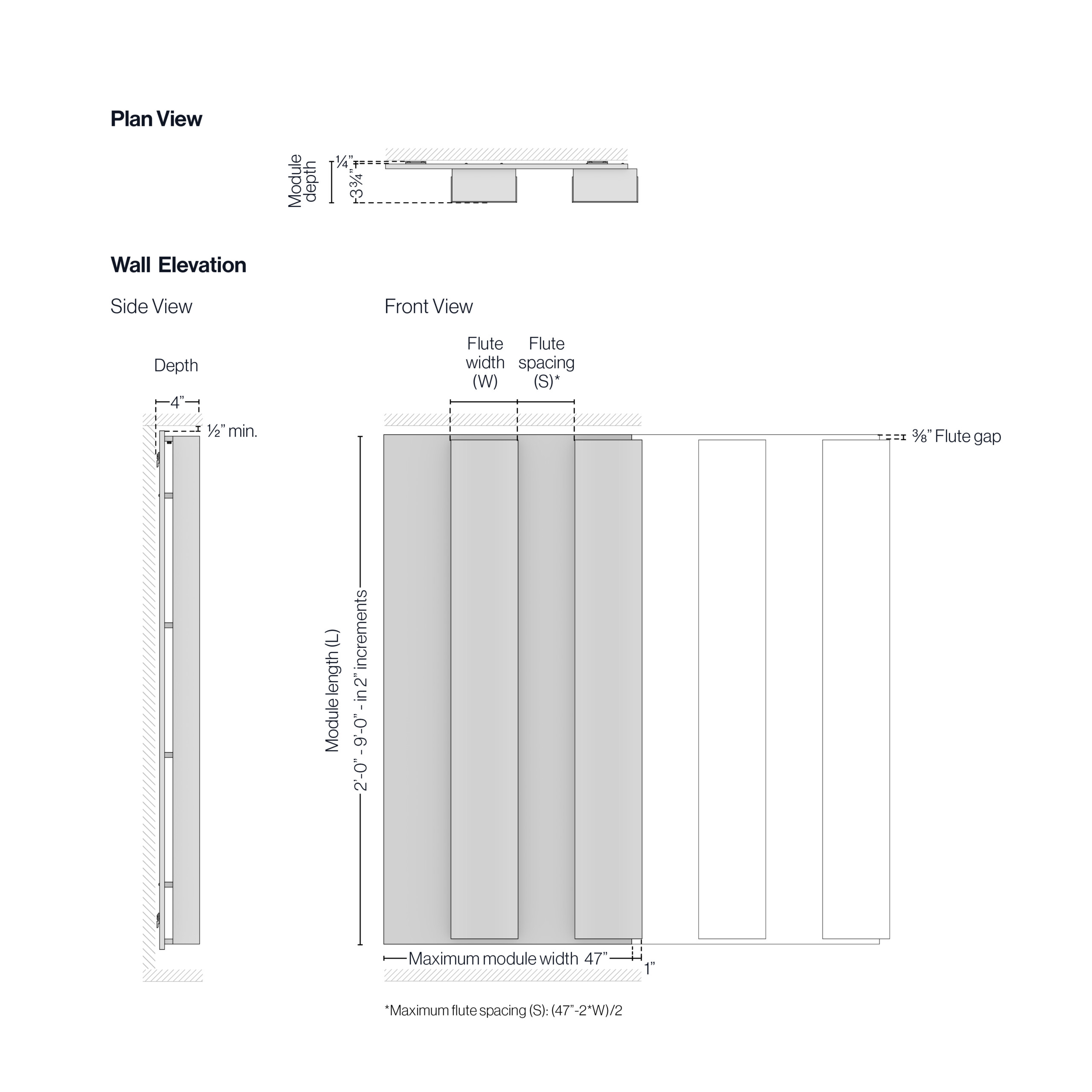

Understanding the Module
Wall Panel Installation
Other Arrangements

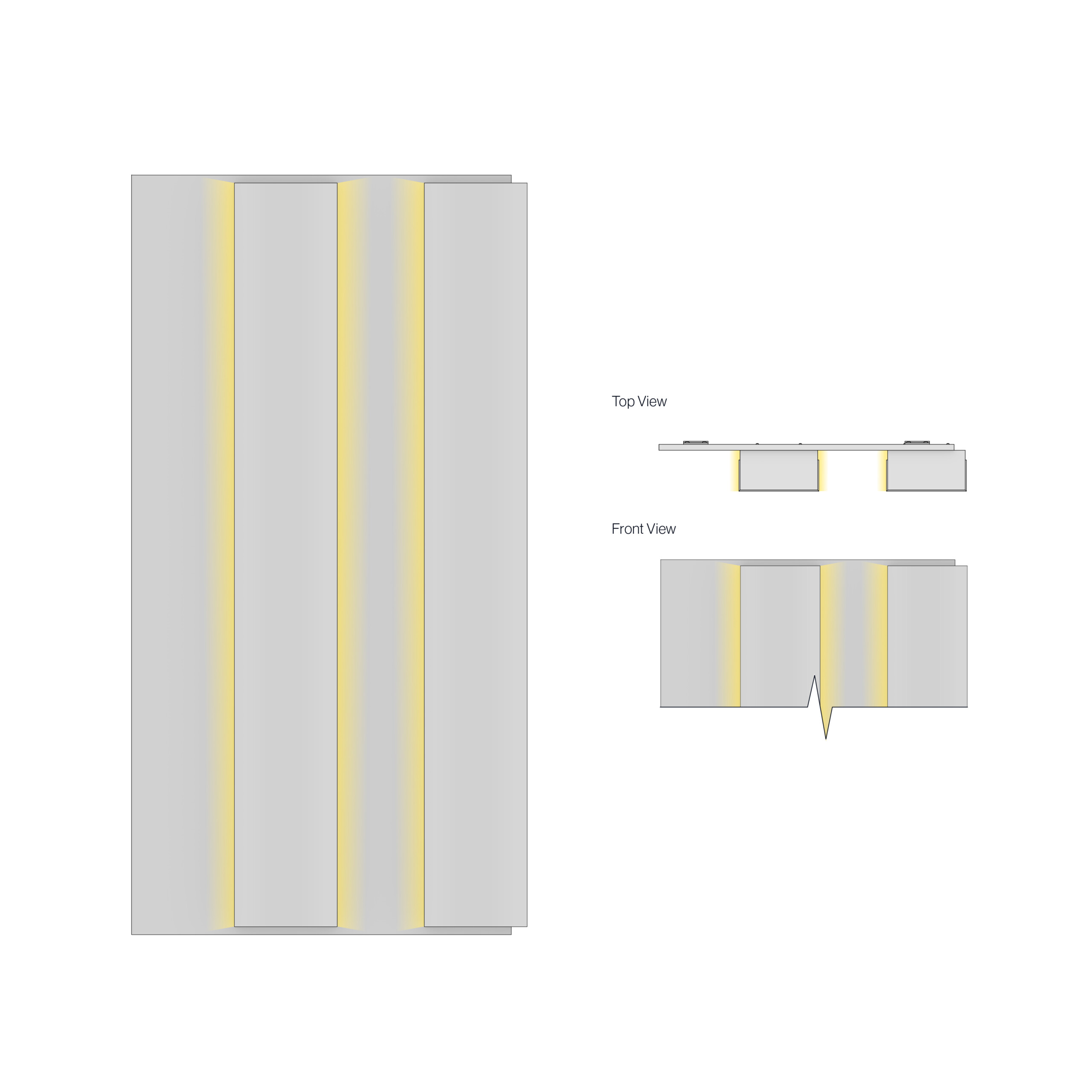

Integrated Lighting

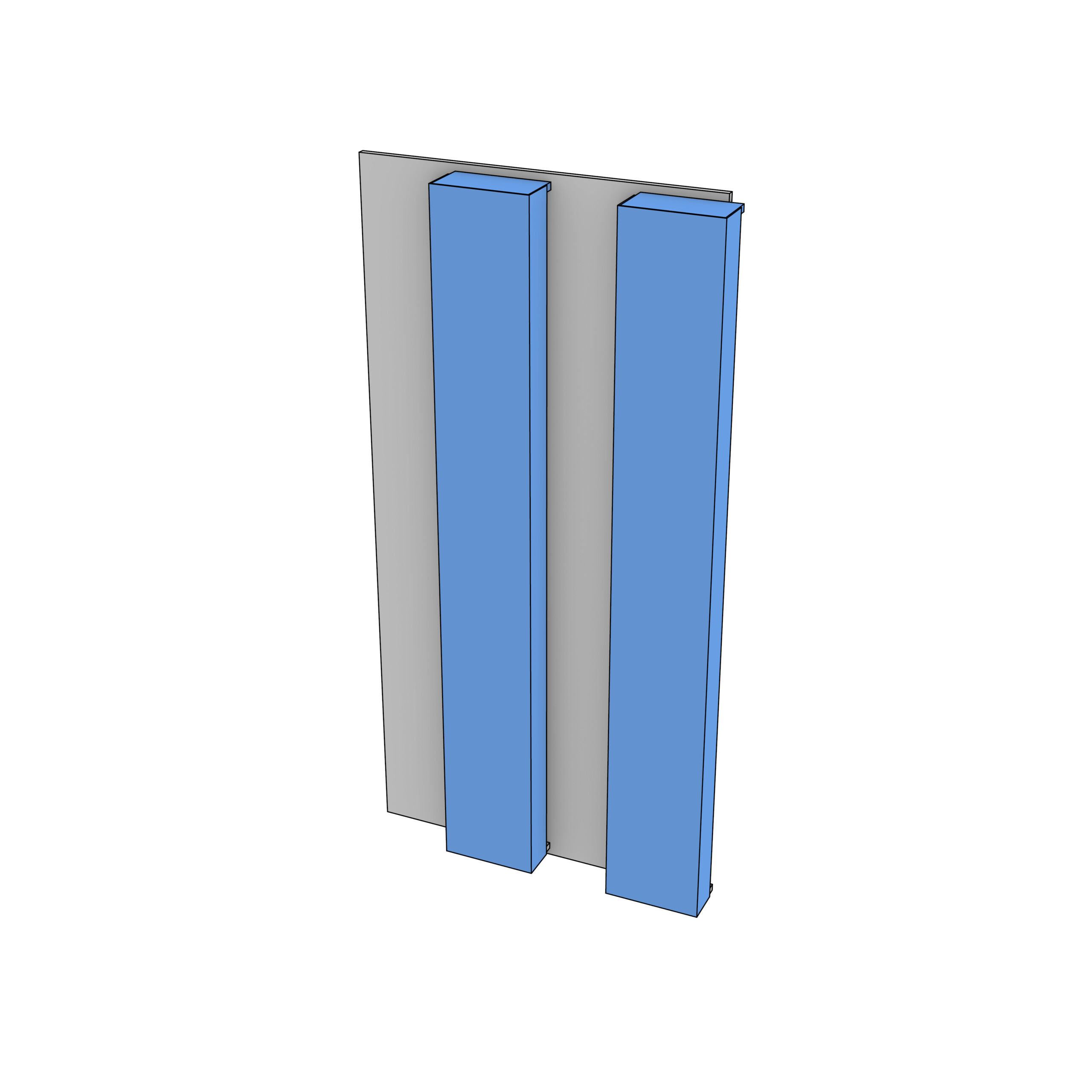

Duo Tone
System Specs
- Dimensions
- Width: Flute width: 6.5" - 11'' | Max. Module width: 47"
- Length: 24" -108"
- Depth: 3.75"
- Material
- 12mm Soft Sound® (PET)
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- True NRC 1.05: Sound Form Arc (6.5" Wide, 96" Long, 0.28" Spacing); F-5 Method
- True NRC 0.85: Sound Form Arc (6.5" Wide, 96" Long, 4" Spacing); F-5 Method
- True NRC 0.65: Sound Form Arc (6.5" Wide, 96" Long, 17.25" Spacing); F-5 Method
- True NRC 0.75: Sound Form Plank (6.5" Wide, 96" Long, 17.25" Spacing); F-5 Method
- True NRC 0.70: Sound Form Peak (6.5" Wide, 96" Long, 17.25" Spacing); F-5 Method
- Attachment Method
- Z-Clip / Z-Bar
- Accessibility
- Yes, easily removable using Z Clip/ Z Bar
- Trimmability
- Yes, in specific areas
- Optional Accesories
- Integrated Lighting
Downloads
-
SELECT FLUTE PROFILE
SoundForm® is available in three distinct profiles; select a single shape or choose to mix and match geometries.
-
SELECT A COLOR
Select a single Soft Sound® finish option from our library of color options, including wood textures, or pair two colors together for a dual finish. (Back panel and flute finish)
-
FINALIZE SIZE OPTIONS
This adaptable system is configured to your project's size needs. Module height and width are adjustable.
-
OPTIONAL LIGHTING
This system can be configured with optional integrated LED lighting; all lighting arrives pre-installed for easy installation.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
