TriSoft®

TriSoft® ceiling system makes it easy to add faceted dimensionality and quiet elegance to interiors. Its triangular faceted pyramid faces are composed of our Soft Sound® acoustical material (100% PET plastic with up to 60% recycled content) with a metal substructure. Mix and match TriSoft’s® available modules and nodes as building blocks to build faceted straight field layouts scalable to any size space. With a variety of color options, and specially engineered attachment brackets, TriSoft® is designed for maximum impact, flexibility, convenience, and acoustic performance.

Downloads Find a rep Add to project
Get a Quote



Expand
Expand
Expand

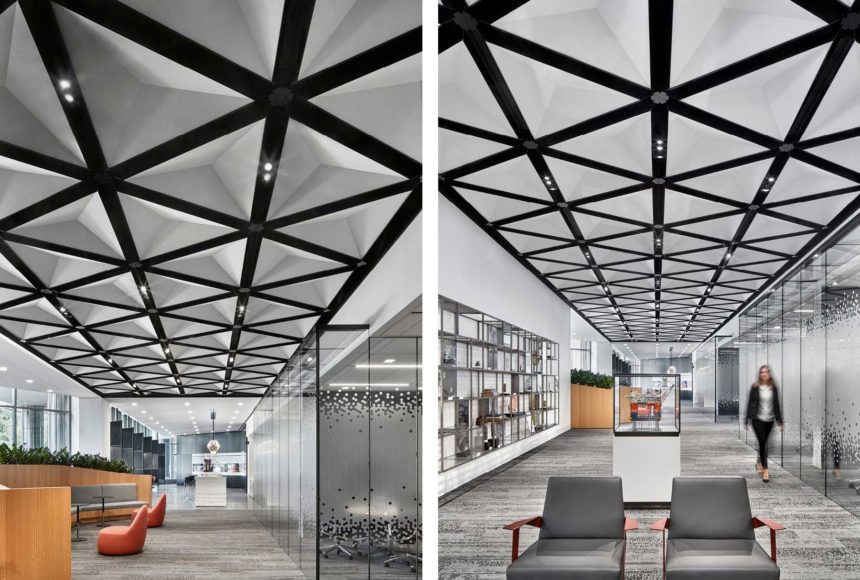

TriSoft® installed in office close up.
Expand

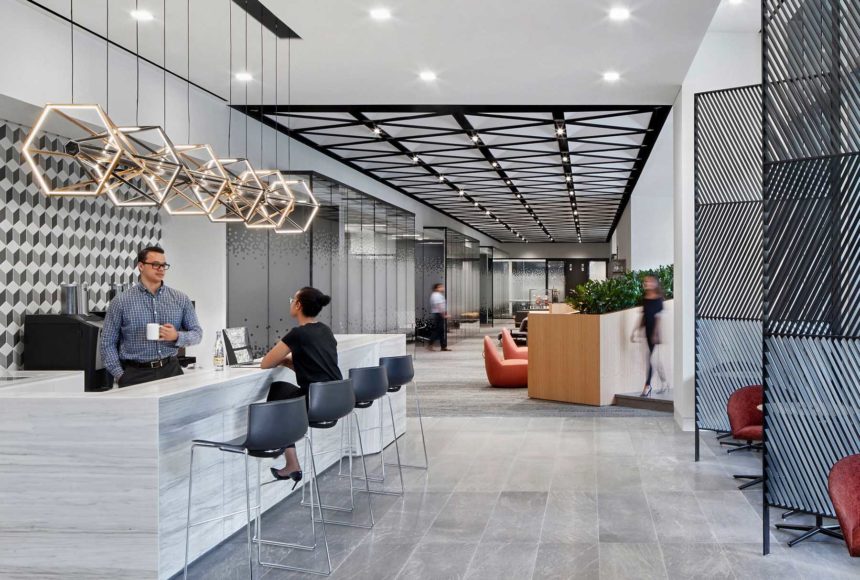

TriSoft® installed in office.
Expand

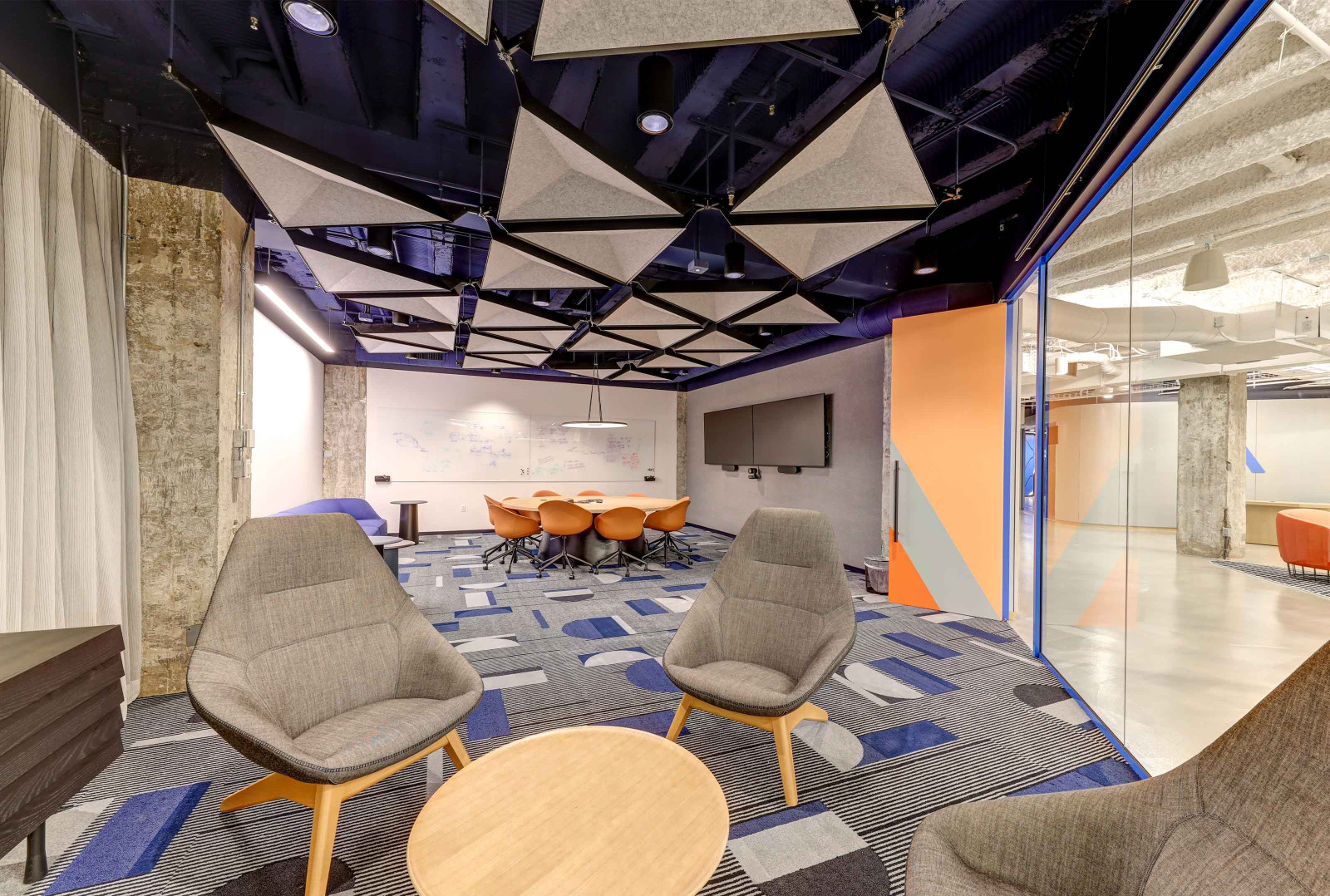

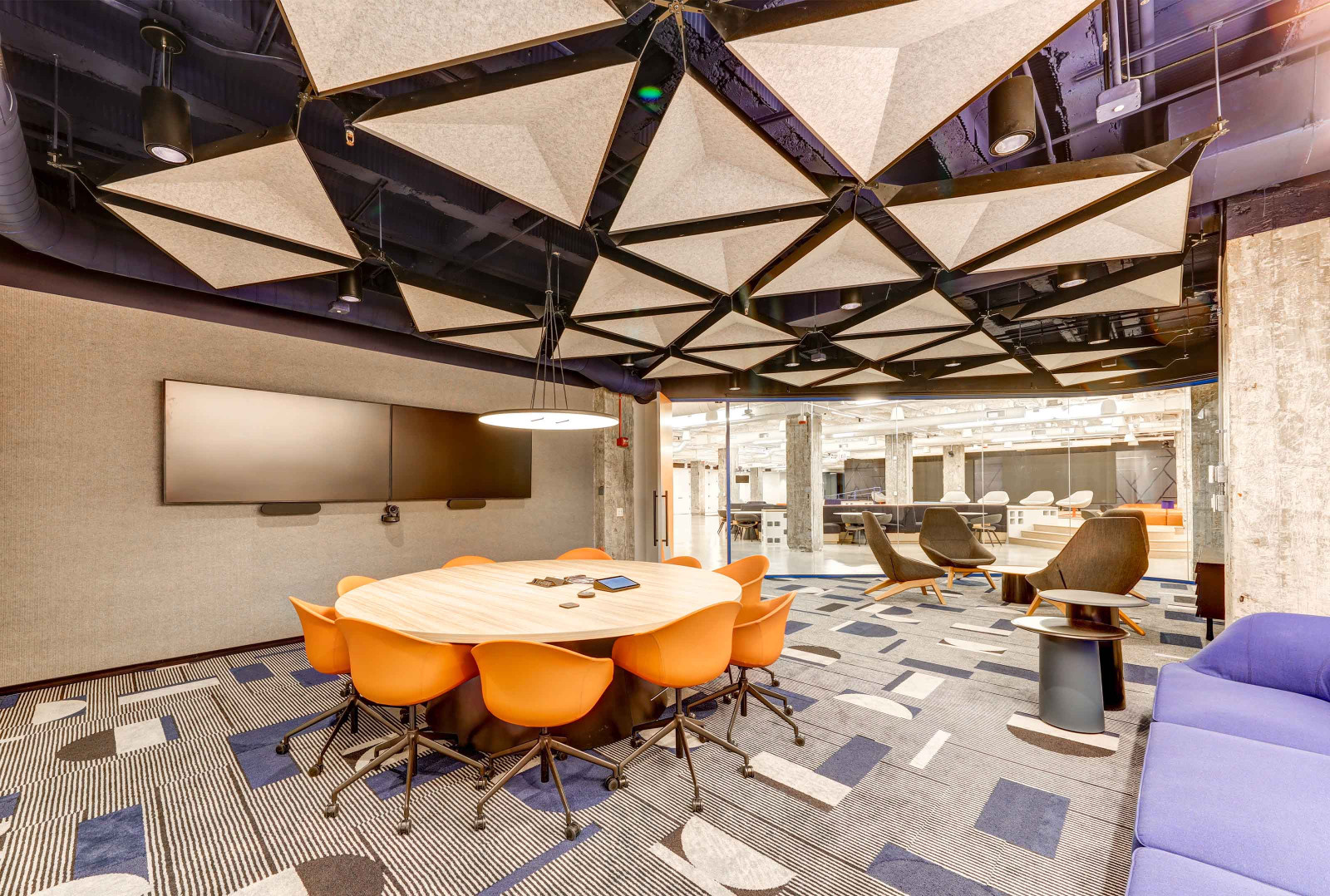

Arktura-TriSoft
Expand
TriSoft®
Expand
Arktura TriSoft®
Expand

Key Features

  • Reduce Noise & Enhance Acoustics

    TriSoft®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. TriSoft®'s material works in concert with the faceted design to help reduce and control reverberations and diffuse sound, leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Preconfigured Solutions

    TriSoft’s unique shape allows it to work in clusters that don’t confine its modules to rectilinear spaces. TriSoft® works with irregular and regular spaces allowing for flexible configuration around building elements.

  • Thoughtful Integration

    TriSoft® can accept the integration of lights and fire suppression systems in the open voids between modules.

  • Adaptive Nodes

    TriSoft’s adaptive nature allows for each attachment point to carry up to 6 attachment brackets for flexibility of using both full and half modules eliminating the need for customization.

Cloud Materials & Options

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Frame Color Options

Powder Coated Aluminum

Aluminum

Powder Coated Aluminum - Premium Metallic Finish

Aluminum

Product Details

Diagrams Specs

Standard Module

Multiple Modules

Reflected Ceiling Plan

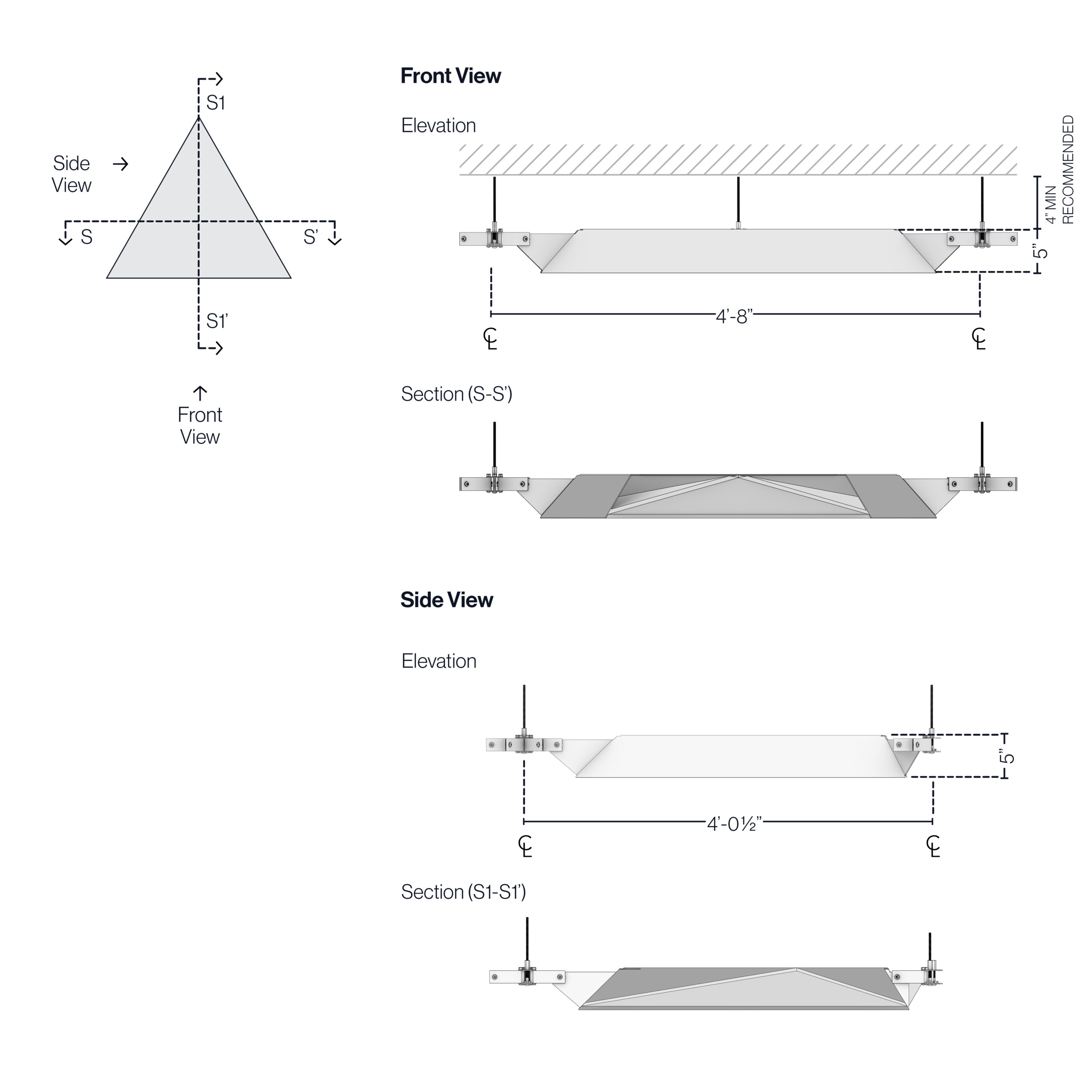

Sections & Elevations

Attachment Details

System Specs

Dimensions (WxLxD)
4´ 8" x 4´ 1/2" (node center to center) x 5" Imperial
Face Material
12mm Soft Sound® (PET)
Frame Material
Steel/Aluminum
Openness in Plan
32%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC® 0.75 (E-300 Method)
Attachment Method
3/8 Threaded Rod (By Others)
Accessibility
Yes, remove 3 corner bolts

Downloads

  • TriSoft® – Product Brochure PDF – Imperial
    Brochure
    2.72 MB
    pdf
  • Powder Coat Color Brochure
    Brochure
    137.37 KB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • Soft Sound® and Powder Coat Color Pairing Chart
    328.66 KB
    pdf
  • TriSoft® – 3D DWG – Imperial
    3D Model
    220.82 KB
    zip
  • TriSoft® – 3D SKP – Imperial
    3D Model
    611.01 KB
    zip
  • TriSoft® – 3D RFA – Imperial
    3D Model
    66.32 MB
    zip

  1. SELECT A COLOR

    Mix or match Soft Sound® colors and wood finishes with aluminum frames. See our powder coat and Soft Sound® brochures for more information.

  2. SELECT A NUMBER OF MODULES

    TriSoft® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
