Vapor® Exterior Sky
Sky powder-coated aluminum torsion spring panels offer a tileable, cloud-like pattern, helping you bring the sky indoors. With no fading of the pattern, the cloud design can continue for as long as your hallway or space allows. Get a Quote
Key Features
-
One Design, Multiple Uses
Take your design from interior to exterior with a seamless, cohesive look. Create consistent patterning and branding throughout a space, using the same panel design inside and out.
-
Multiple Panel Sizes
Vapor® Exterior offers a variety of panel sizes, allowing for larger specifications of grand scale installations, which results in fewer seams and reduced installation time.
-
Superior Flatness & Strength
Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
-
Easy Installation & Access
Vapor® panels offer easy install, using quick torsion spring attachment across standard ceiling grid systems or simple wall attachment using our Vertika™ channel system.
-
Preconfigured Solutions
Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
-
Continuous Pattern Aesthetic
Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.
Panel Materials & Colors
Powder Coated Aluminum
Aluminum
Powder Coated Aluminum - Premium Metallic Finish
AluminumBacker Options
Exterior Translucent Backer.
1/16″ PolycarbonateProduct Details
Panel Sizes & Thickness
Flexible Across Walls & Ceilings, Interior to Exterior
Attachment Method - T-Grid (Ceiling)
Attachment System - Ceiling

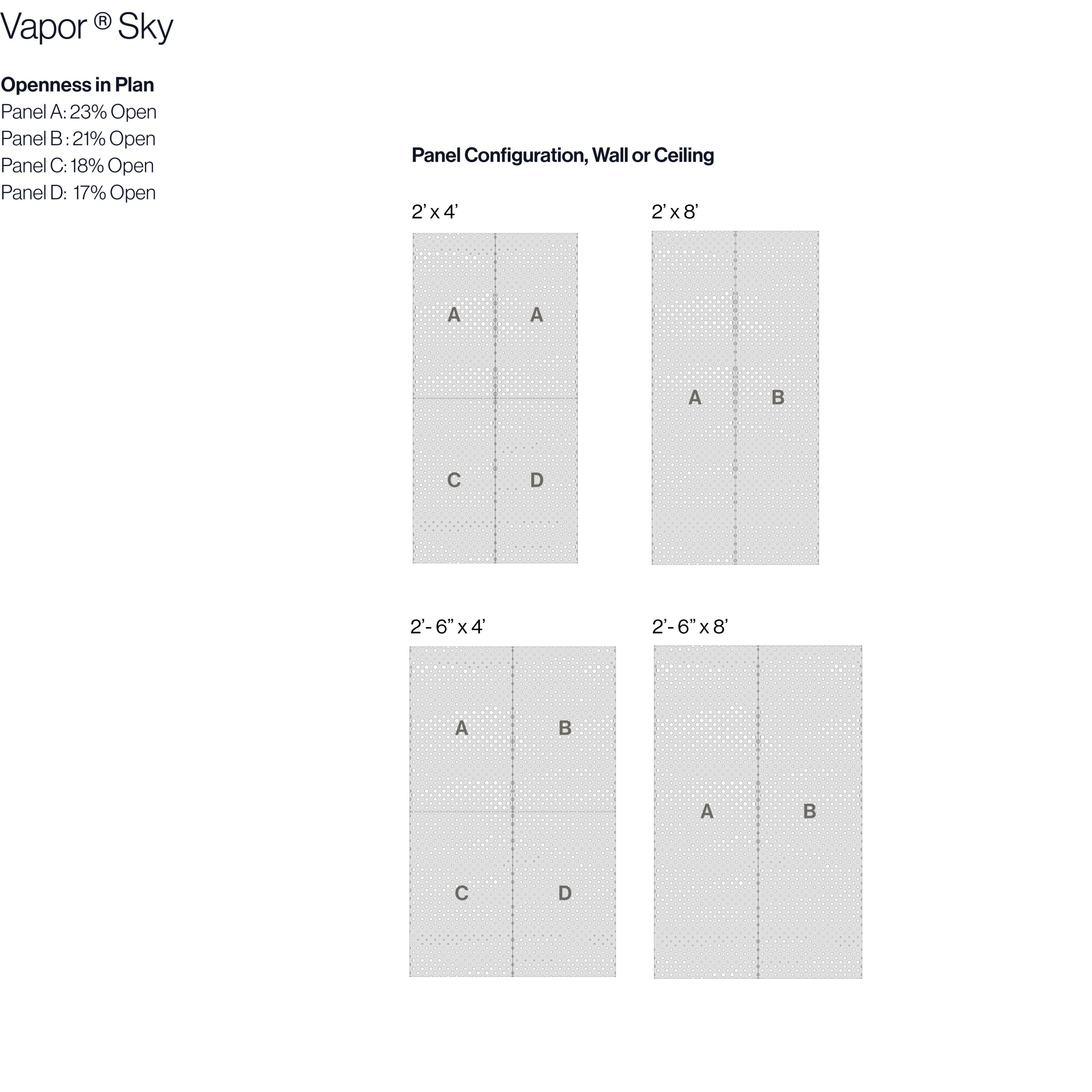

Panel Configuration
System Specs
- Panel Size (WxHxD)
- 2' x 4' x 1 1/2" | 2' x 8' x 1 1/2 | 2´-6" x 1 1/2 | 2´-8" x 1 1/2
- Panel Thickness
- .06", .09", .125"
- Material
- Aluminum
- Openness in Plan
- Varies by design
- Ceiling Attachment
- Torsion Spring to T-Grid
- Wall Attachment Exterior
- Vertika® Wall (Refer to Vertika® Brochure)
- Accessibility
- Torsion Spring Hinge (Ceiling); Lift-Off Hook (Wall)
- Accessories
- Translucent Backer, Backlight, RGBW Backlighting
Downloads
How to Specify:
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Vapor® Exterior is available in a range of styles and sizes to fit a multitude of design intents. Find the right pattern and texture for your space.
-
SELECT A COLOR
Panels are made available in a variety of colors. See our powder coat brochure for standard and premium options. Customized color matching is also available.
-
SELECT A NUMBER OF MODULES
All our Vapor® line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.
-
OPTION TO ADD LIGHTING
Incorporate brilliant backlighting to add another dimension of functionality and visual interest to your project.
-
OPTION TO ADD BACKER
Incorporate available translucent backers for diffused lighting and other visual effects.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
