VaporSoft® Cluster
Cluster has transformed perforated torsion spring panels into an elegant ceiling-scape. By staggering the location of the holes, we’ve upgraded a standard grid into an eye-catching design that will get viewers talking. Choose from two levels of perforation density: Cluster Dense and Cluster Sparse. Cluster is made from our Soft Sound® material to provide acoustic support, but if you want to really elevate your look, add our optional integrated backlighting. You’ll get both acoustic control and a beautiful glow.
Key Features
-
Acoustic Performance
VaporSoft®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Expansive Color Library
Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent certain panels and complement the color scheme of your space.
-
Achieve Acoustics & Lighting
VaporSoft® panels offer an innovative way to tackle acoustic performance and illumination with a single product, combining integrated acoustic facing with available backlighting and InLine lighting.
-
Easy Installation & Access
Vapor® panels offer easy install, using quick torsion spring attachment across standard ceiling grid systems or simple wall attachment using our Vertika® channel system.
-
Preconfigured Solutions
VaporSoft® panels are scalable, seamlessly tileable preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
-
Continuous Pattern Aesthetic
Achieve uninterrupted patterning across your space. VaporSoft® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.
Acoustic Panel Surfacing
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETBacker Options
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PET
Interior Translucent Backer
1/16" PolycarbonateProduct Details
Standard Panels
Seamlessly Join Walls & Ceilings

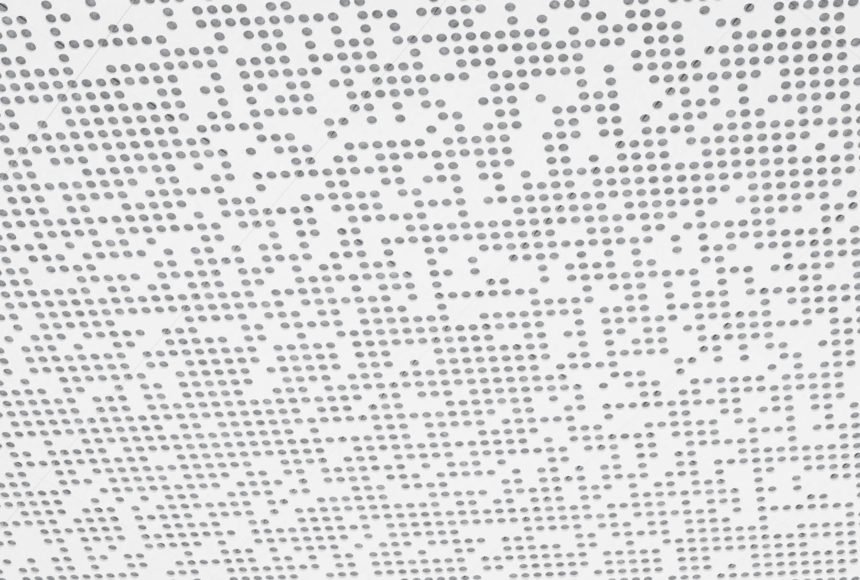

Understanding the Panel - Cluster Dense

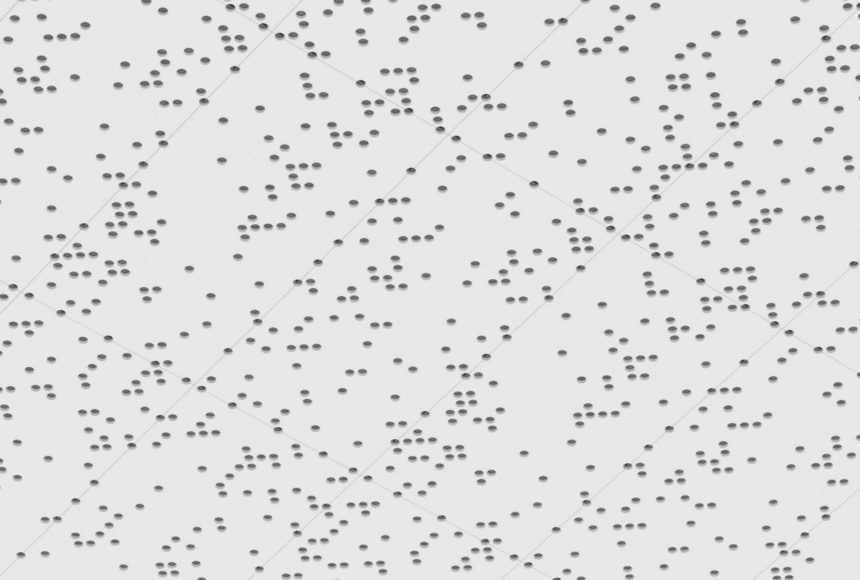

Understanding the Panel - Cluster Sparse
Accessory Options - Ceiling
Accessory Options - Wall
Accessory Options - Retrofit Adapter Clip Kit
System Specs
- Dimensions (WxHxD)
- 2' x 4' x 1 1/2" Imperial | 60cm x 120cm x 3.8cm Metric
- Panel Material
- Aluminum
- Face Material
- 12mm Soft Sound® (PET)
- Openness in Plan
- Dense: 40%
- Sparse: 10%
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
- Acoustics for Vapor® Soft Cluster Dense with Acoustic Backer
- True NRC® 0.90: Ceiling; E-300 Method
- True NRC® 0.80: Wall; F-70 Method
- Acoustics for Vapor® Soft Cluster Dense with Translucent Backer
- True NRC® 0.40: Ceiling; E-300 Method
- True NRC® 0.40: Wall; F-70 Method
- Acoustics for Vapor® Soft Cluster Sparse with Acoustic Backer
- True NRC® 0.75: Ceiling; E-300 Method
- True NRC® 0.80: Wall; F-70 Method
- Acoustics for Vapor® Soft Cluster Sparse with Translucent Backer
- True NRC® 0.50: Ceiling; E-300 Method
- True NRC® 0.50: Wall; F-70 Method
- Ceiling Attachment
- Torsion Grid (By Others)
- Wall Attachment
- Vertika® Wall (Refer to Vertika® Brochure)
- Accessibility
- Torsion Spring Hinge
- Trimmability
- Yes, per installation manual
- Accessories
- Acoustic Backer, Translucent Backer, Backlight, InLine Light
Downloads
-
VaporSoft® Cluster – Product Brochure PDF – ImperialBrochure5.71 MBpdf
-
Arktura Backlighting – DWG – Imperial3D Model204.46 KBzip
-
VaporSoft® Cluster – 3D DWG – Imperial3D Model3.24 MBzip
-
Torsion Panel Trim Details – 2D DWG – Imperial3D Model457.24 KBzip
-
VaporSoft® Cluster – 3D SKP – Imperial3D Model6.99 MBzip
-
Torsion Spring Adapter Clip – Accessory Kit – Product Brochure – PDFBrochure3.07 MBpdf
-
VaporSoft® Cluster – 3D RFA – Imperial3D Model80.57 MBzip
-
Vertika® – 3D DWG – Imperial3D Model1.27 MBzip
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
Vertika® – 3D SKP – Imperial3D Model1.91 MBzip
-
VaporSoft® Cluster – 3D DWG – Metric (EMEA ONLY)3D Model3.69 MBzip
-
VaporSoft® Cluster – PDF Tear Sheet – Metric (EMEA ONLY)Tear Sheet4.03 MBpdf
How to Specify:
-
SELECT A STYLE
Select the style that best suits your vision and project needs. VaporSoft® is available in a range of styles to fit a multitude of design intents. Find the right pattern and texture for your space.
-
SELECT A COLOR
Panels faces are available in a variety of colors and finishes. See our Soft Sound® brochure for standard colors and premium wood texture options. Note metal base panels are not customizable.
-
SELECT A NUMBER OF MODULES
All our VaporSoft® line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.
-
OPTION TO ADD LIGHTING
Incorporate dynamic inline or backlighting, to add another dimension of functionality and visual interest to your project.
-
OPTION TO ADD BACKER
Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to increase acoustical performance.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
