View Line

VaporSoft® Cora

Cora’s torsion spring panels reimagine a timeless pattern. By adding scattered solid forms to the diamond grid, you get a modern take on a classic look that is sure to turn heads. Thanks to the Soft Sound® material, you’ll always get acoustic support. And if you add our optional backlighting, you can also get an eye-catching radiance.

Downloads Find a rep Add to project
Get a Quote



Expand
Expand
Expand
Arktura VaporSoft Cora backlit with frosted acrylic backer.
Expand

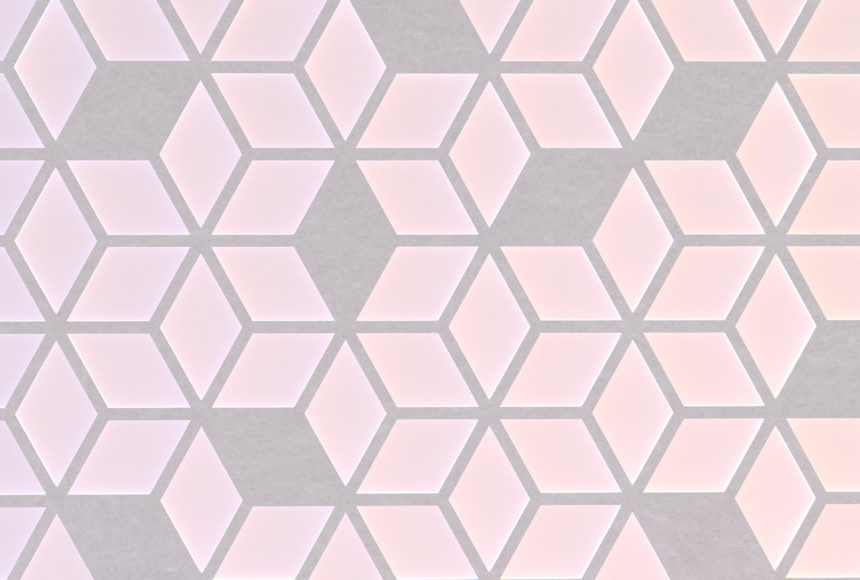

VaporSoft - Cora, Backlit with Frosted Backer
Expand
Expand

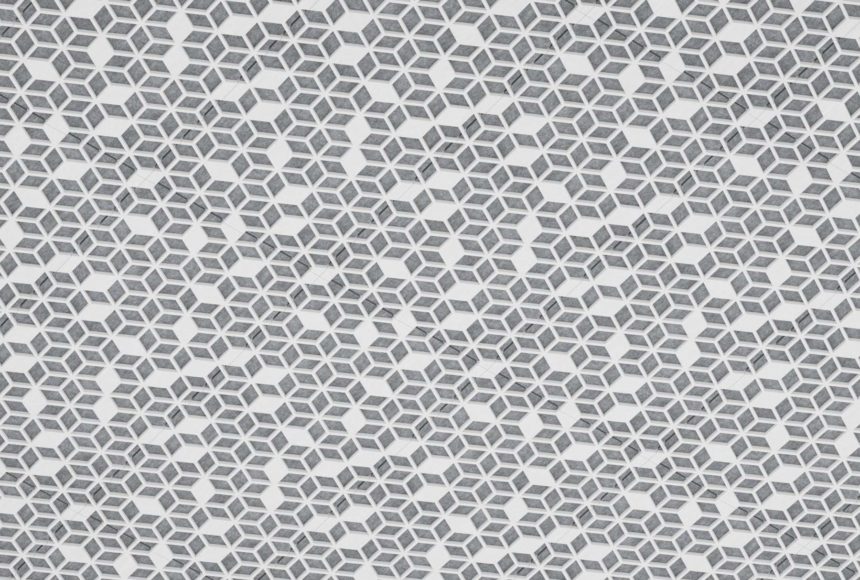

VaporSoft - Cora, White with Heather Grey Soft Sound® Backer
Expand
VaporSoft - Cora, White with Heather Grey Soft Sound® Backer Wall, Backlit Ceiling, Closeup
Expand
Expand

Key Features

  • Acoustic Performance

    VaporSoft®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent certain panels and complement the color scheme of your space.

  • Achieve Acoustics & Lighting

    VaporSoft® panels offer an innovative way to tackle acoustic performance and illumination with a single product, combining integrated acoustic facing with available backlighting and InLine lighting.

  • Easy Installation & Access

    Vapor® panels offer easy install, using quick torsion spring attachment across standard ceiling grid systems or simple wall attachment using our Vertika® channel system.

  • Preconfigured Solutions

    VaporSoft® panels are scalable, seamlessly tileable preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

  • Continuous Pattern Aesthetic

    Achieve uninterrupted patterning across your space. VaporSoft® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Acoustic Panel Surfacing

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Backer Options

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Interior Translucent Backer

1/16" Polycarbonate

Product Details

Diagrams Specs

Standard Panel

Seamlessly Join Walls & Ceilings

Understanding the Panel

Accessory Options - Ceiling

Accessory Options - Wall

Accessory Options - Retrofit Adapter Clip Kit

System Specs

Panel Size (WxHxD)
2' x 4' x 1 1/2" Imperial | 60cm x 120cm x 3.8cm Metric
Panel Material
Aluminum
Face Material
12mm Soft Sound® (PET)
Openness in Plan
68%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC® 0.90: Ceiling w/ Acoustic Backer; E-300 Method
True NRC® 0.80: Wall w/ Acoustic Backer; F-70 Method
True NRC® 0.35: Ceiling w/ Translucent Backer; E-300 Method
True NRC® 0.30: Wall w/ Translucent Backer; F-70 Method
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
Torsion Spring Hinge
Trimmability
Yes, per installation manual
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light

Downloads

  • VaporSoft® Cora – Product Brochure PDF – Imperial
    Brochure
    5.26 MB
    pdf
  • Arktura Backlighting – DWG – Imperial
    3D Model
    204.46 KB
    zip
  • VaporSoft® Cora – 3D DWG – Imperial
    3D Model
    559.77 KB
    zip
  • Torsion Panel Trim Details – 2D DWG – Imperial
    3D Model
    457.24 KB
    zip
  • VaporSoft® Cora – 3D SKP – Imperial
    3D Model
    287.2 KB
    zip
  • Torsion Spring Adapter Clip – Accessory Kit – Product Brochure – PDF
    Brochure
    3.07 MB
    pdf
  • VaporSoft® Cora – 3D RFA – Imperial
    3D Model
    60.38 MB
    zip
  • Vertika® – 3D DWG – Imperial
    3D Model
    1.27 MB
    zip
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • Vertika® – 3D SKP – Imperial
    3D Model
    1.91 MB
    zip
  • VaporSoft® Cora – 3D DWG – Metric (EMEA ONLY)
    3D Model
    565.67 KB
    zip

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. VaporSoft® is available in a range of styles to fit a multitude of design intents. Find the right pattern and texture for your space.

  2. SELECT A COLOR

    Panels faces are available in a variety of colors and finishes. See our Soft Sound® brochure for standard colors and premium wood texture options. Note metal base panels are not customizable.

  3. SELECT A NUMBER OF MODULES

    All our VaporSoft® line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.

  4. OPTION TO ADD LIGHTING

    Incorporate dynamic inline or backlighting, to add another dimension of functionality and visual interest to your project.

  5. OPTION TO ADD BACKER

    Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to increase acoustical performance.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
