VaporHue™ Link

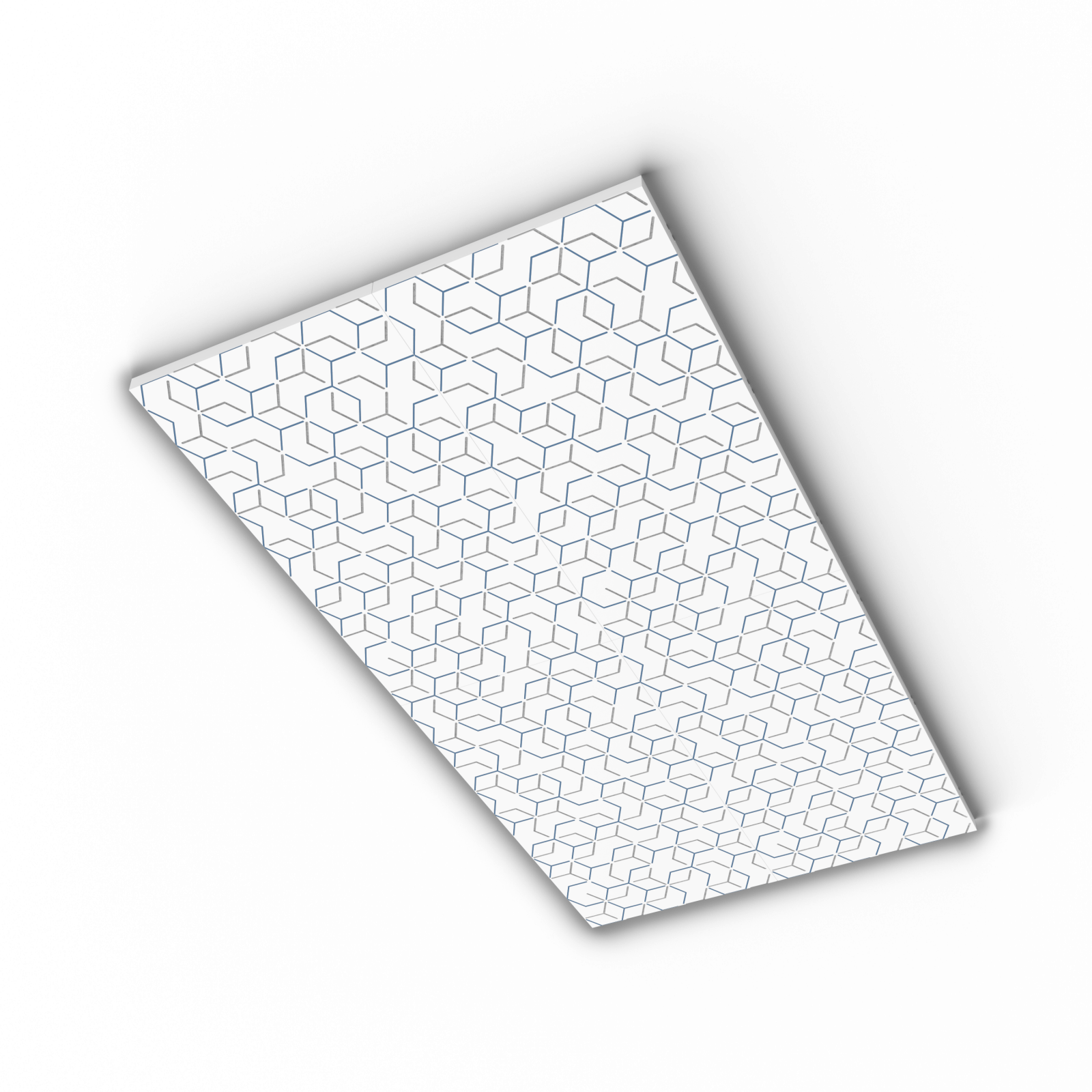

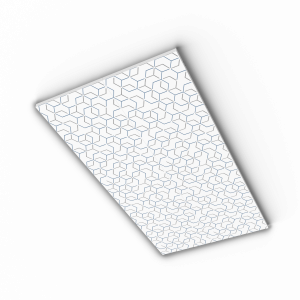

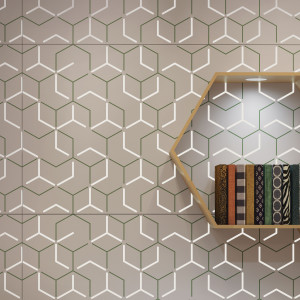

VaporHue™ Link printed and perforated aluminum torsion spring panels utilize fragmented hexagons in printing and perforation to create a layered geometric three-dimensional cube effect, unifying surfaces across walls and ceiling. Use it to bring cohesion and modern and elegant depth to spaces. Use our optional integrated lighting or Soft Sound® backer options to take your design to the next level, adding illumination and noise reduction.

Downloads Find a rep Add to project
Get a Quote Watch Video



Play
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand

Key Features

  • Printed & Perforated Pattern

    VaporHue™ elevates a standard perforated panel with the addition of color printing to enhance the pattern. Choose from our library of patterns to uniquely impact your project, and select the perfect color to emphasize your brand or design intent.

  • Integrated Lighting Options

    Integrate illumination and lighting effects to your projects with Arktura’s offering of lighting solutions such as InLine or Backlight.

  • Superior Flatness & Strength

    VaporHue™ panels are manufactured from aluminum that is, on average, 50% thicker than others, which, in combination with our precision processes, results in unrivaled flatness.

  • Reduce Noise & Enhance Acoustics

    VaporHue™’s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Uninterrupted Pattern Across Panels

    Achieve uninterrupted patterning across your space. VaporHue™ patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

  • Easy Installation & Access

    VaporHue™ panels offer easy install and access across walls and ceilings through quick torsion spring attachment to standard grid systems and a simple hook-on attachment to our Vertika® channel system

Same Great Ease & Versatility of Install as Our Vapor® Line



https://vimeo.com/454915915

Printed Pattern Hues

Printed Pattern

Backer Options

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Interior Translucent Backer

1/16" Polycarbonate

Panel Color

Powder Coated Aluminum - Arktura White

Aluminum

Product Details

Diagrams Specs

Standard Panel

Seamlessly Join Walls & Ceilings

Understanding the Panel

Accessory Options - Ceiling

Accessory Options - Wall

Accessory Options - Retrofit Adapter Clip Kit

System Specs

Panel Size (WxHxD)
2' x 4' x 1 1/2" Imperial | 60cm x 120cm x 3.8cm Metric
Material
Aluminum
Openness in Plan
7%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics (with optional Soft Sound® backer)
True NRC® 0.60: Ceiling - E-300 Method
True NRC® 0.65: Wall - F - 70 Method
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
Torsion Spring Hinge
Trimmability
Yes, per installation manual
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light

Downloads

  • VaporHue® Link – Product Brochure PDF – Imperial
    Brochure
    3.72 MB
    pdf
  • Arktura Backlighting – DWG – Imperial
    3D Model
    134.88 KB
    zip
  • VaporHue® Link – 3D DWG – Imperial
    3D Model
    2.73 MB
    zip
  • Torsion Panel Trim Details – 2D DWG – Imperial
    3D Model
    124.34 KB
    zip
  • VaporHue® Link – 3D SKP – Imperial
    3D Model
    590.69 KB
    zip
  • Torsion Spring Adapter Clip – Accessory Kit – Product Brochure – PDF
    Brochure
    3.07 MB
    pdf
  • VaporHue® Link – 3D RFA – Imperial
    3D Model
    3.42 MB
    zip
  • Vertika® – 3D SKP – Imperial
    3D Model
    1.91 MB
    zip
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Vertika® – 3D DWG – Imperial
    3D Model
    1.27 MB
    zip

    • How to Specify:

    1. SELECT A STYLE

      Select the style that best suits your vision and project needs. VaporHue™ is available in a range of styles to fit a multitude of design intents. Find the right pattern and texture for your space.

    2. SELECT A COLOR

      Prints are available in a variety of colors. See our product brochure for standard options. Customized color matching is also available.

    3. SELECT A NUMBER OF MODULES

      All our VaporHue™ line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.

    4. OPTION TO ADD LIGHTING

      Incorporate dynamic InLine or Backlighting illumination, to add another dimension of functionality and visual interest to your project.

    5. OPTION TO ADD BACKER

      Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to reduce the impact of noise across spaces.

    Let us help you get started.
    Find your RepGet a Quote

    Discounts available based on project quantity. Contact your local sales representative for pricing.
    Additional options available.
    Patent Pending
