VaporHue™ Pop printed and perforated aluminum torsion spring panels add a layers of depth with perforated circles and finely dithered printed dots, reminiscent of classical printing methods, with a modern twist. Both our Soft Sound® acoustic backer and integrated InLine and Backlighting options can be used with this design, to dramatic effect.
Printed & Perforated Pattern
VaporHue™ elevates a standard perforated panel with the addition of color printing to enhance the pattern. Choose from our library of patterns to uniquely impact your project, and select the perfect color to emphasize your brand or design intent.
Integrated Lighting Options
Integrate illumination and lighting effects to your projects with Arktura’s offering of lighting solutions such as InLine or Backlight.
Superior Flatness & Strength
VaporHue™ panels are manufactured from aluminum that is, on average, 50% thicker than others, which, in combination with our precision processes, results in unrivaled flatness.
Reduce Noise & Enhance Acoustics
VaporHue™’s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Uninterrupted Pattern Across Panels
Achieve uninterrupted patterning across your space. VaporHue™ patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.
Easy Installation & Access

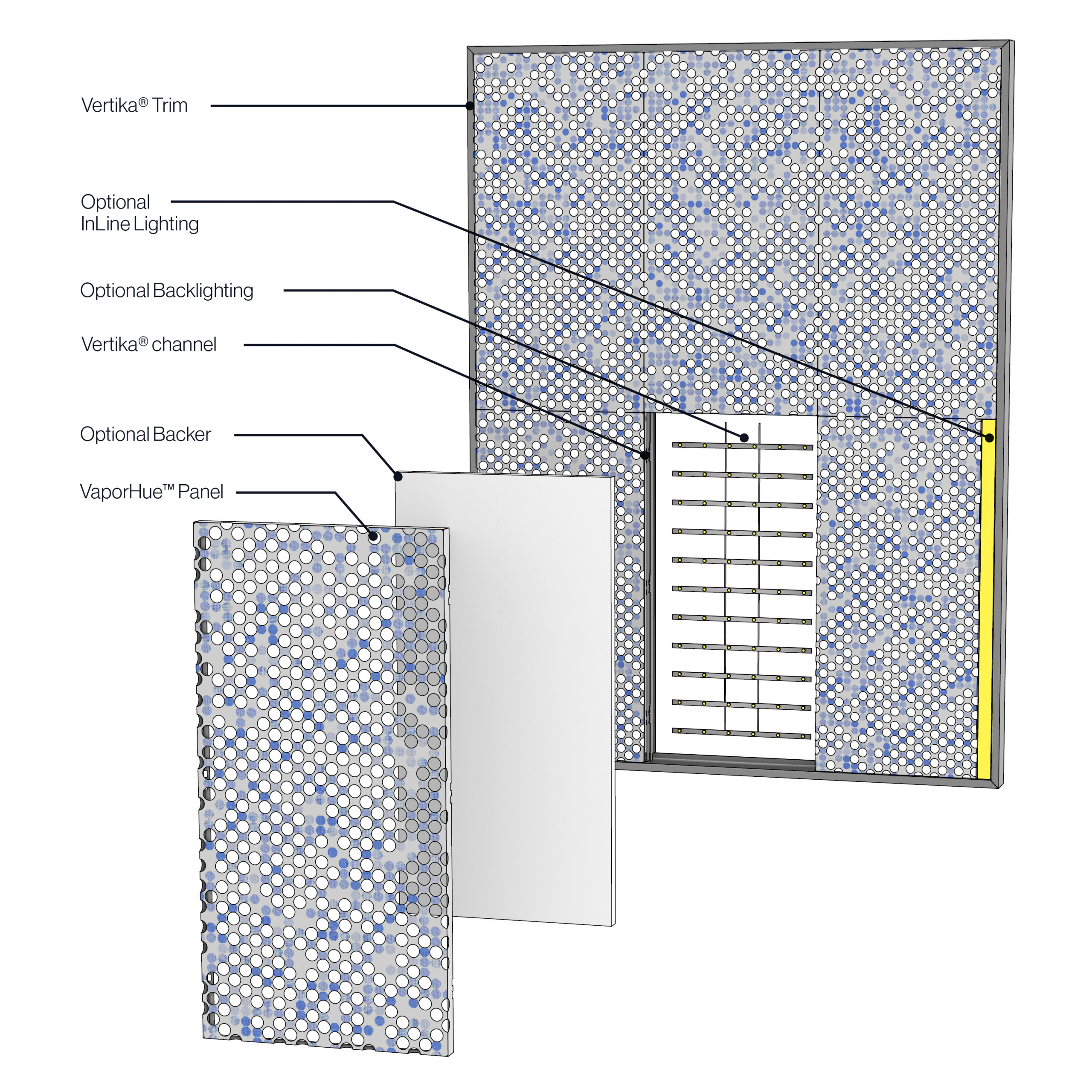

VaporHue™ panels offer easy install and access across walls and ceilings through quick torsion spring attachment to standard grid systems and a simple hook-on attachment to our Vertika® channel system.
Same Great Ease & Versatility of Install as Our Vapor® Line
Printed Pattern Hues
Soft Sound® Group AAcoustic PET
Soft Sound® Wood TexturesAcoustic PET
Interior Translucent Backer1/16" Polycarbonate
Powder Coated Aluminum - Arktura WhiteAluminum
- Panel Size (WxHxD)
- 2' x 4' x 1 1/2" Imperial | 60cm x 120cm x 3.8cm Metric
- Openness in Plan
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
- Acoustics (with optional Soft Sound® backer)
- True NRC® 0.80: Ceiling - E-300 Method
- True NRC® 0.75: Wall - F - 70 Method
- Ceiling Attachment
- Torsion Grid (By Others)
- Wall Attachment
- Vertika® Wall (Refer to Vertika® Brochure)
- Torsion Spring Hinge
- Yes, per installation manual
- Acoustic Backer, Translucent Backer, Backlight, InLine Light
VaporHue® Pop – Product Brochure PDF – ImperialBrochure5.01 MB
Arktura Backlighting – DWG – Imperial3D Model240.59 KBzip
VaporHue® Pop – 3D DWG – Imperial3D Model26.7 MBzip
Torsion Panel Trim Details – 2D DWG – Imperial3D Model124.34 KBzip
VaporHue® Pop – 3D SKP – Imperial3D Model14.61 MBzip
Torsion Spring Adapter Clip – Accessory Kit – Product Brochure – PDFBrochure3.07 MB
VaporHue® Pop – 3D RFA – Imperial3D Model29.78 MBzip
Vertika® – 3D SKP – Imperial3D Model1.91 MBzip
Powder Coat Color BrochureBrochure70.53 KB
Vertika® – 3D DWG – Imperial3D Model1.27 MBzip
SELECT A STYLE
Select the style that best suits your vision and project needs. VaporHue™ is available in a range of styles to fit a multitude of design intents. Find the right pattern and texture for your space.
SELECT A COLOR
Prints are available in a variety of colors. See our product brochure for standard options. Customized color matching is also available.
SELECT A NUMBER OF MODULES
All our VaporHue™ line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.
OPTION TO ADD LIGHTING
Incorporate dynamic InLine or Backlighting illumination, to add another dimension of functionality and visual interest to your project.
OPTION TO ADD BACKER
Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to reduce the impact of noise across spaces.
How to Specify:
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
