View Line

Atmosphera® Flow

Flow’s ceiling baffles form a smooth rhythm of curved fins creating organic geometries that are pleasing to the eye and reminiscent of the flowing undulation of rolling hills or ocean waves. Built with our patented Soft Sound® fins, with Flow you not only get a great design but a unique acoustic solution as well.

Downloads Find a rep Add to project
Get a Quote



Expand

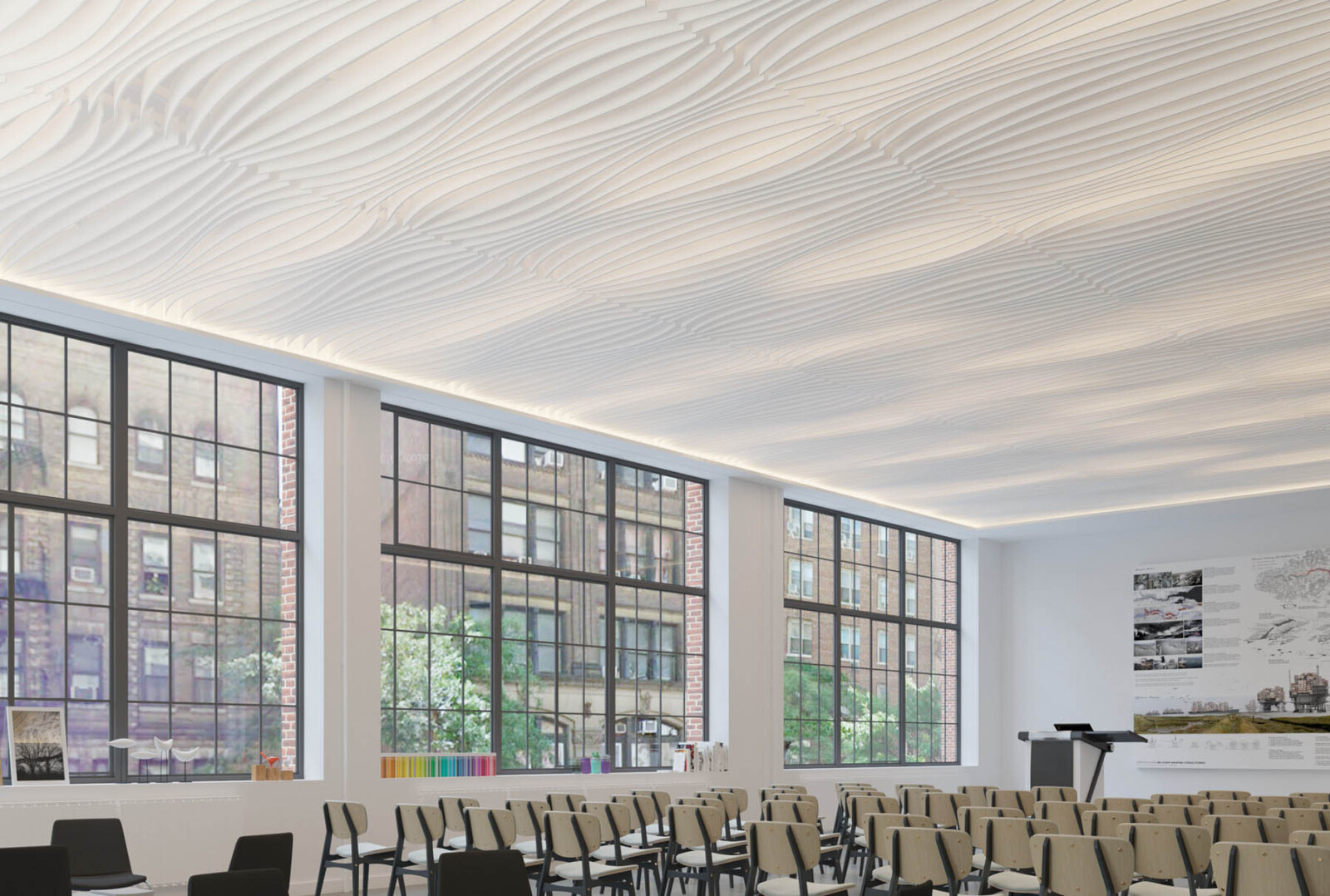

Atmosphera® Standard Flow above lecture space.
Expand

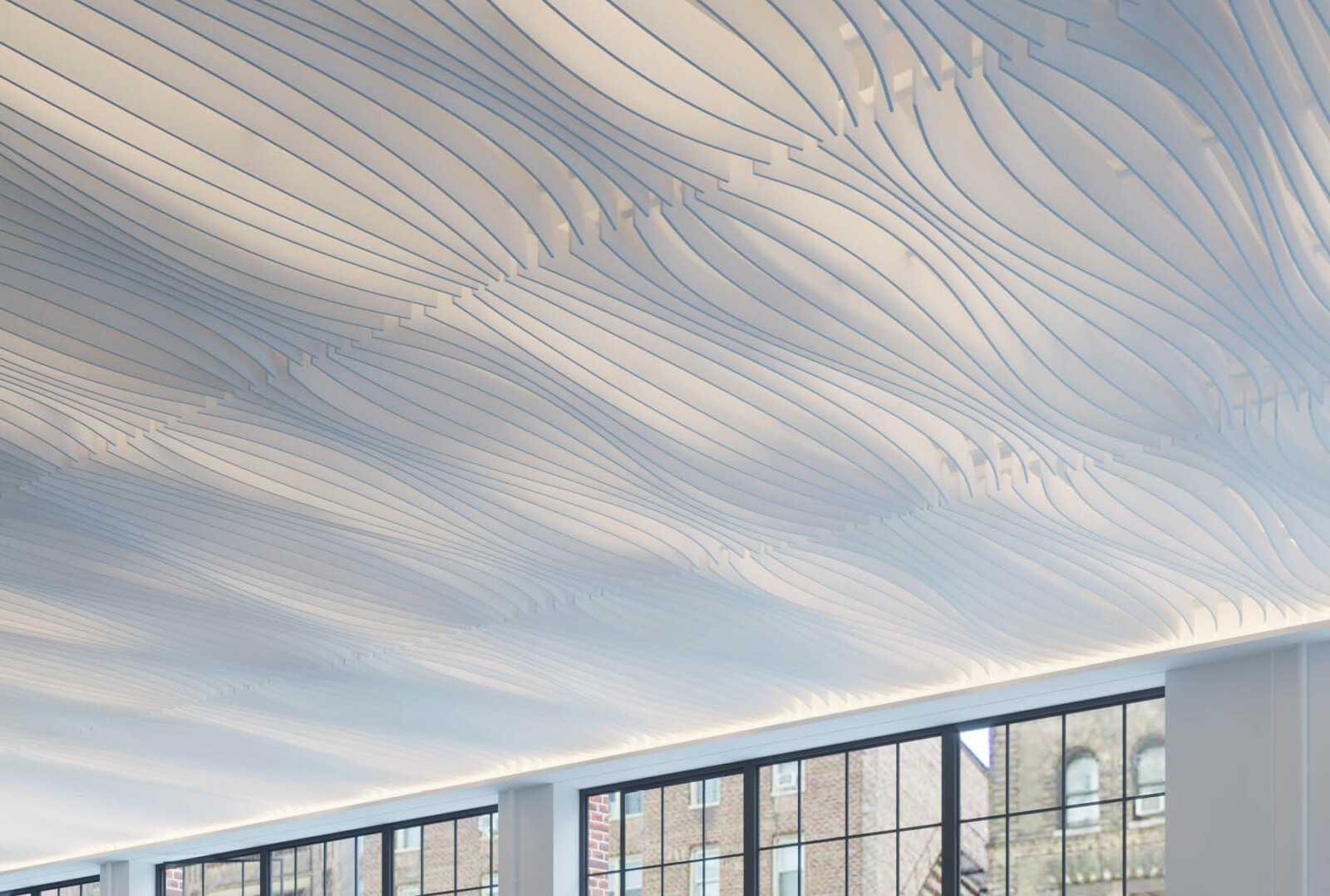

Atmosphera Standard-flow-web04
Expand
Atmosphera® Standard Flow installed above kitchen space
Expand

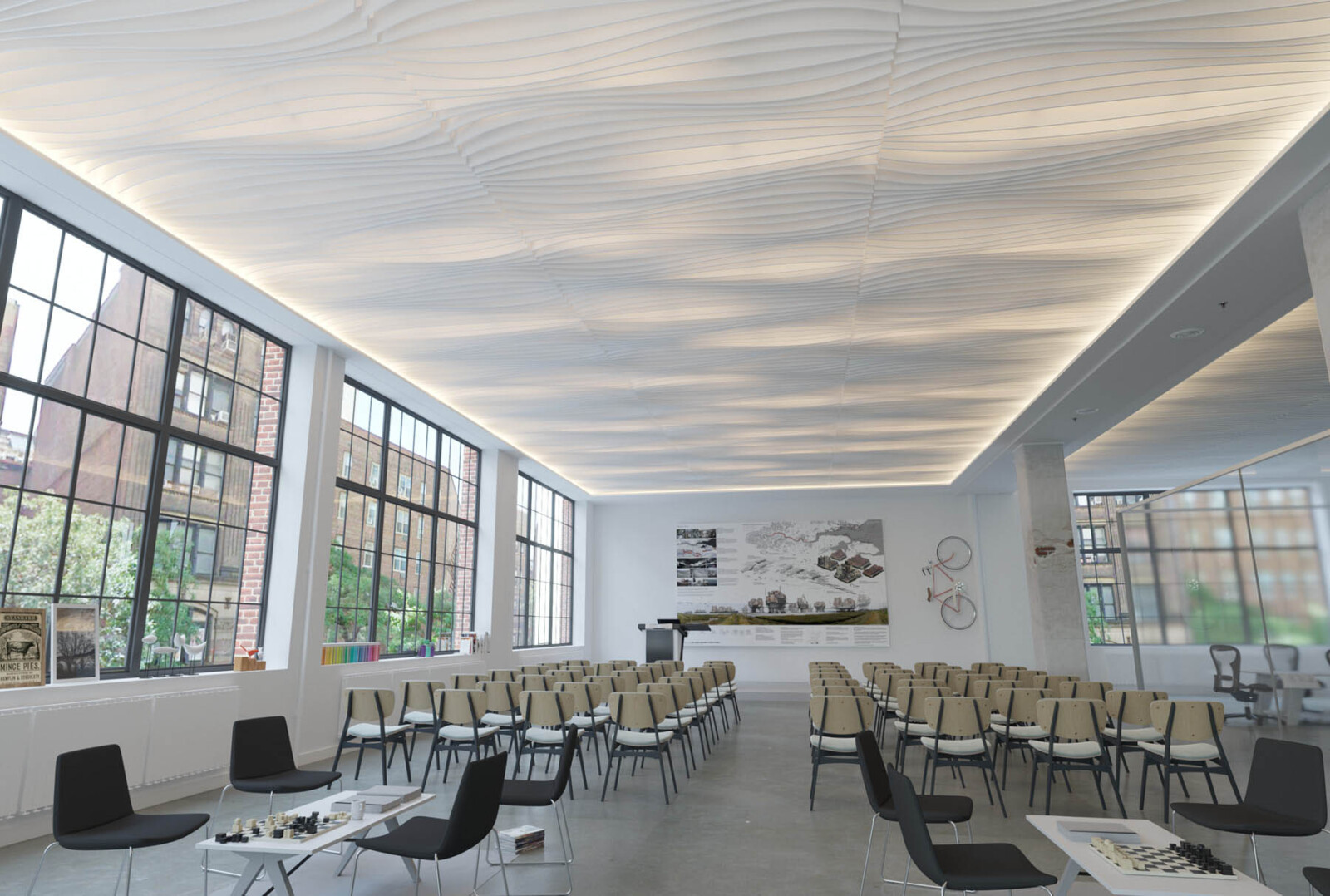

Atmosphera Standard-flow-web02
Expand

Key Features

  • Acoustic Performance

    Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Preconfigured Designs & Sizes

    For a custom look without the custom price tag, preconfigured Atmosphera® modules offer innovative design impact with a quick and easy installation process. Achieve a cleaner design in a fraction of the time versus independently hung baffles.

  • Faster Shipping & Installation

    Because they're preconfigured, production starts as soon as you order. Once complete, Atmosphera®'s easy-to-assemble modules are promptly shipped, helping you cut down installation times and meet your project deadlines.

  • Easily Field Modifiable

    This system allows for some simple modifications that can allow it to adapt to your space without having to design a custom system.

  • Open Accessibility in Plan

    Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

  • Curving Acoustic Baffles

    Arktura offers a proprietary curved baffle system with no visible hardware.

Fin Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Ribs Color Options

Powder Coated Steel - Ribs

Steel

Product Details

Diagrams Specs

Standard Module

Multiple Modules

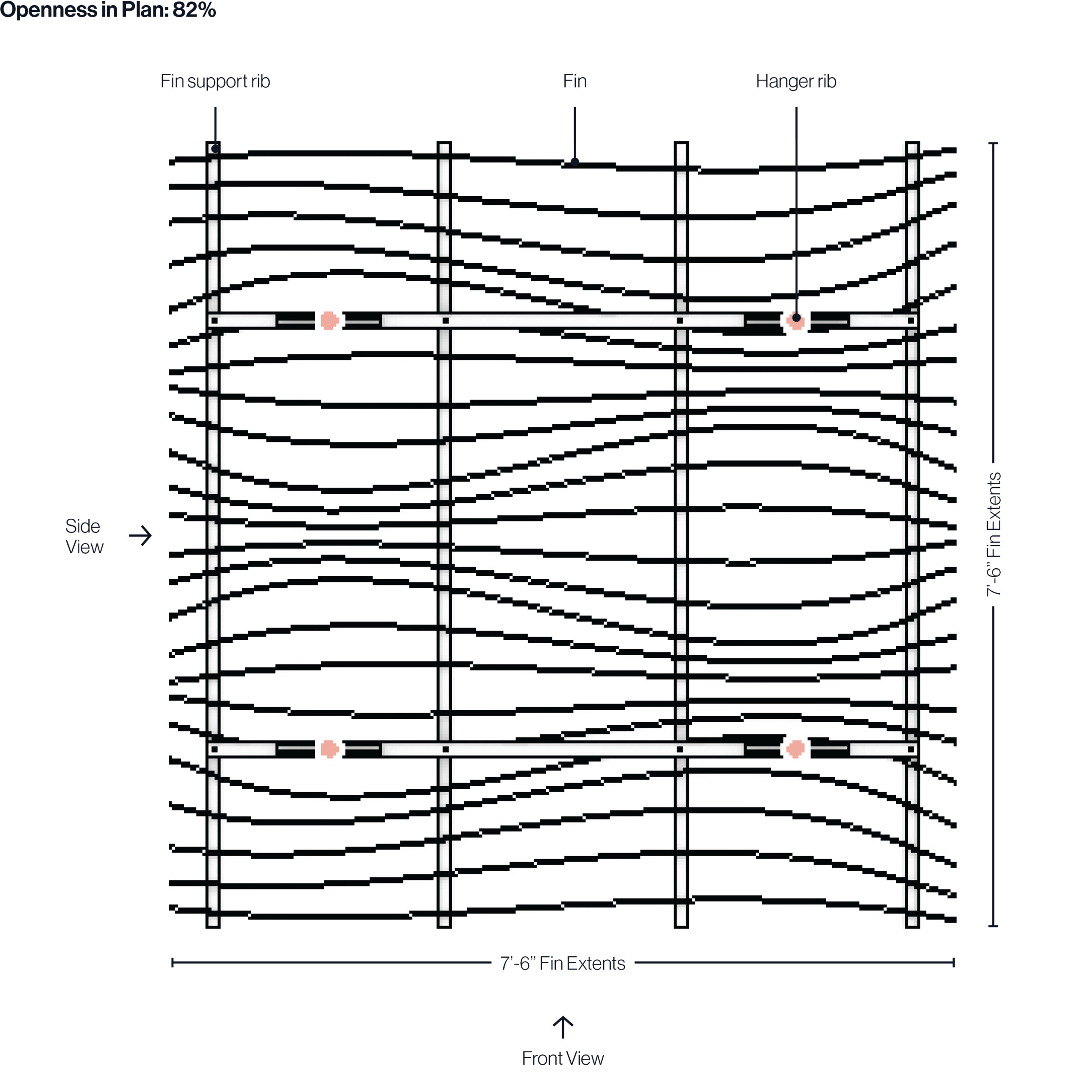

Plan

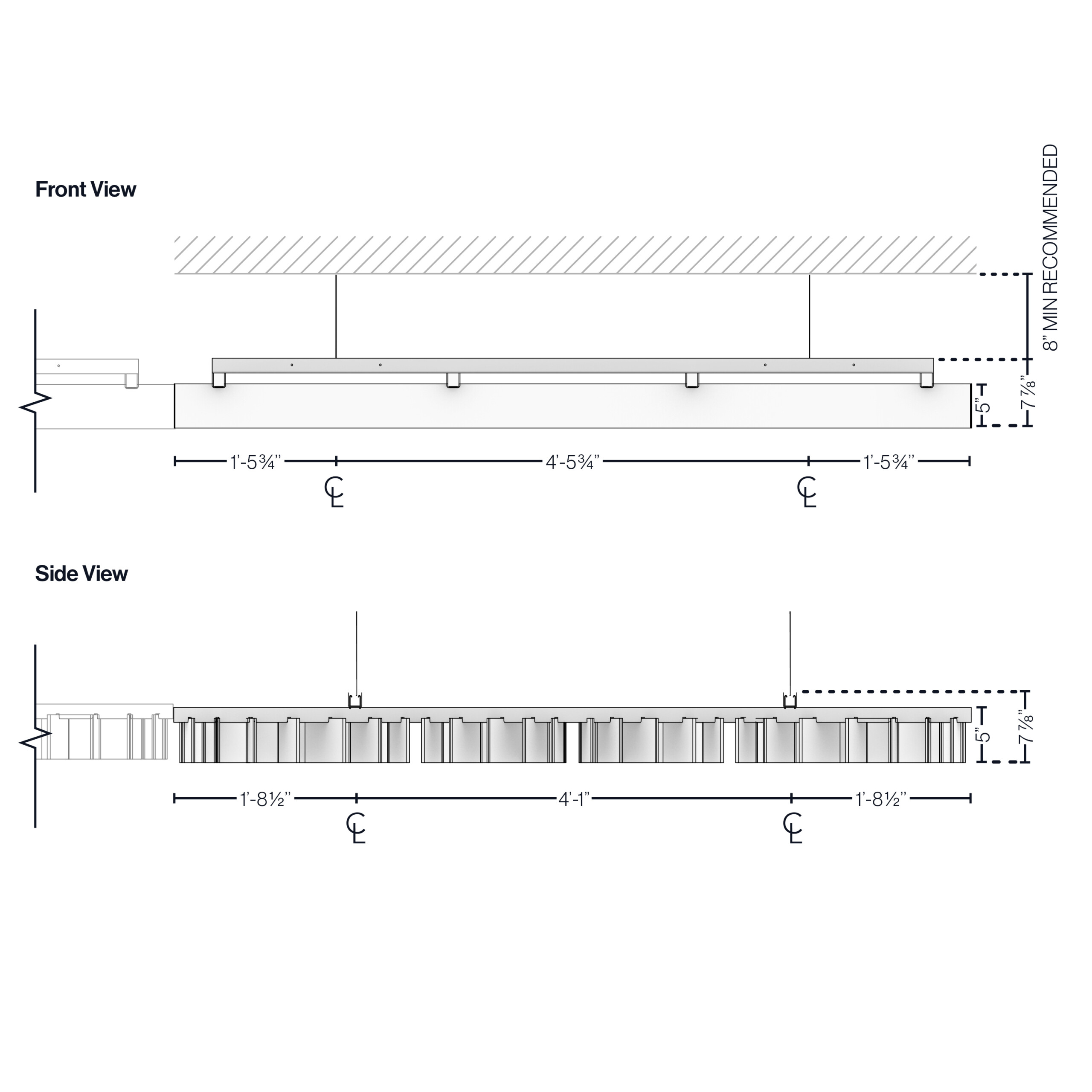

Elevations

Attachment & Install

Attachment Details

System Specs

Dimensions (WxLxD)
7'-6" x 7'-6" x 5'' Imperial | 230cm x 230cm x 13cm Metric
Frame Material
Steel
Fin Material
12mm Soft Sound®
Openness in Plan
82%
Fire Rating
ASTM E84 - Class A
Attachment Method
3/8" Threaded Rod (By Others)
Accessibility
Yes, removable clips at each fin
Trimmability
Yes, per installation manual

Downloads

  • Atmosphera® Flow – Product Brochure PDF – Imperial
    Brochure
    2.27 MB
    pdf
  • Atmosphera® Standard Flow Soft Sound® – 3D RFA – Imperial
    3D Model
    61.13 MB
    zip
  • Atmosphera® Standard Flow Soft Sound® – 3D DWG – Imperial
    3D Model
    2.43 MB
    zip
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Atmosphera® Standard Flow Soft Sound® – 3D SKP – Imperial
    3D Model
    265.94 KB
    zip
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • Atmosphera® Standard Flow Soft Sound® – 3D DWG – Metric (EMEA ONLY)
    3D Model
    3.66 MB
    zip
  • Atmosphera® Standard Flow Soft Sound® – Tear Sheet PDF – Metric (EMEA ONLY)
    Tear Sheet
    7.36 MB
    pdf

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from a variety of linear, undulating, or faceted designs.

  2. SELECT A MATERIAL

    Select modules are available in both steel and Arktura's performance acoustic Soft Sound® material variants.

  3. SELECT A COLOR

    Modules are available in a variety of colors. See our powder coat and Soft Sound® color brochures for more information.

  4. SELECT NUMBER OF MODULES

    All Atmosphera® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° US8733053, AU2012203424B2 / AU2014203325A1.
