Atmosphera® Adaptive Versa
Key Features
-
Acoustic Performance
Atmosphera® Versa's Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera® Versa's material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Simple to Install Soft Sound® Wrapped T-Grid
Atmosphera® Versa utilizes a standard t-grid as its frame and support structure leveraging installers’ and contractors’ expertise with the system, ultimately reducing installation time and cost.
-
Tailored Yet Field Trimmable
Modules are built to your unique project specifications, removing the need for any field trimming and assuring easy installation. However, all Versa fins and ribs are also field trimmable to effortlessly accommodate unexpected obstacles and integrations.
-
Customizable Topography
Atmosphera® Versa offers a range of configurable options, allowing you to customize fin topography to fit your space and design vision, with the help of our project team.
-
Open Plan Accessibility

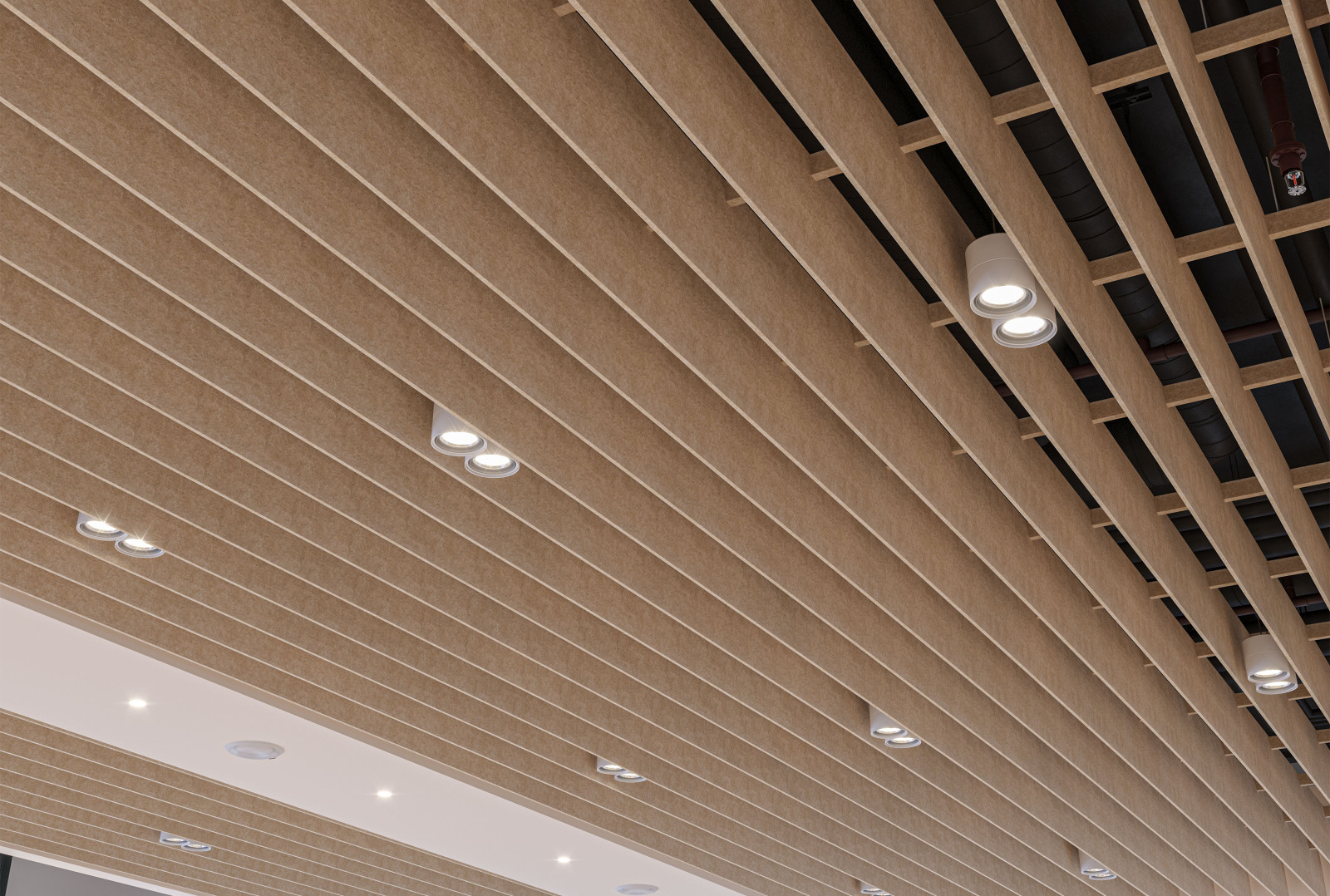

Atmosphera® Versa's open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
-
Continuous Frames & Fins
Utilizing a hidden fin and frame alignment system Atmosphera® Versa provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.
Fin Color Options
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETRib Color Options
Soft Sound® Group A Ribs
Acoustic PET
Soft Sound® Wood Texture Ribs
Acoustic PETProduct Details
Single Module
Multiple Modules
Understanding the Module - Plan
Understanding the Module - Elevations
Attachment & Install
Attachment Details
Acoustic Fin System Specs
- Fin Material
- 12mm Soft Sound® (PET)
- Module Dimension
- 8'-11" Fin x 8'-11" Fin Frame Max Imperial | *272cm x 363cm* Frame Max Metric
- Fin Depth
- 5"-16" Imperial | *13cm - 40.5cm* Metric
- Openness in Plan
- *86-90%*
System Specs
- Frame Material
- *Steel*
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- 5"Fins at 6”OC - True NRC® 0.45: Ceiling F-200 Method
- 12" Fins at 6”OC - True NRC® 0.80: Ceiling F-200 Method
- 24" Fins at 6”OC - True NRC® 1.50: Ceiling F-200 Method
- 5" Fins at 12”OC - True NRC® 0.35: Ceiling F-200 Method
- 12" Fins at 12”OC - True NRC® 0.65: Ceiling F-200 Method
- 24" Fins at 12”OC - True NRC® 1.25: Ceiling F-200 Method
- Attachment Method
- 1/16’’ Stainless Cable & Hardware
- Accessibility
- Yes, Quick Release Cables and Removable Fins
Downloads
-
Atmosphera® Versa – Product Brochure PDF – ImperialBrochure2.88 MBpdf
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
Atmosphera® Versa – 3D DWG – Imperial3D Model143.28 KBzip
-
Atmosphera® Versa – 3D SKP – Imperial3D Model222.42 KBzip
-
Atmosphera® Versa – 3D RFA – Imperial3D Model59.86 MBzip
-
Atmosphera® Versa – Product Brochure PDF – Metric (EMEA ONLY)Brochure6.81 MBpdf
Our Process:
-
PROJECT QUOTING
In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.
-
DESIGN STAGE
The Atmosphera® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input and final approval.
-
MANUFACTURING DETAILING
From the moment we receive your design approval, we work diligently to capture all final details in our easy-to-understand and highly specific shop drawings.
-
ENGINEERING REVIEW
Whether coordinating with your own engineering resources or leveraging our engineering team, every Atmosphera® project is carefully evaluated prior to final production.
-
ADVANCED MANUFACTURING
Our facilities, equipment and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client and your finished installation.
-
SHIPPING & DELIVERY
Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.
-
INSTALLATION
Let us connect you with our network of trusted installers. Our team of project managers is here to help you along the way.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
