Atmosphera® Adaptive Versa 3D

Atmosphera® Versa 3D unlocks new possibilities for designers looking to bring acoustic performance and storytelling to their spaces. Use undulating linear baffles to create ceiling scapes that influence people's movement, impression, and memory of the space in a fun creative way. Provide your own surface design or work with the Arktura team to craft the ceiling’s flow with fins made from our Soft Sound® acoustic material. Versa 3D’s new framing system uses inverted t-grid encased in Soft Sound®, making the system extremely flexible and easy to install, to reduce required time and costs while further enhancing acoustic comfort.

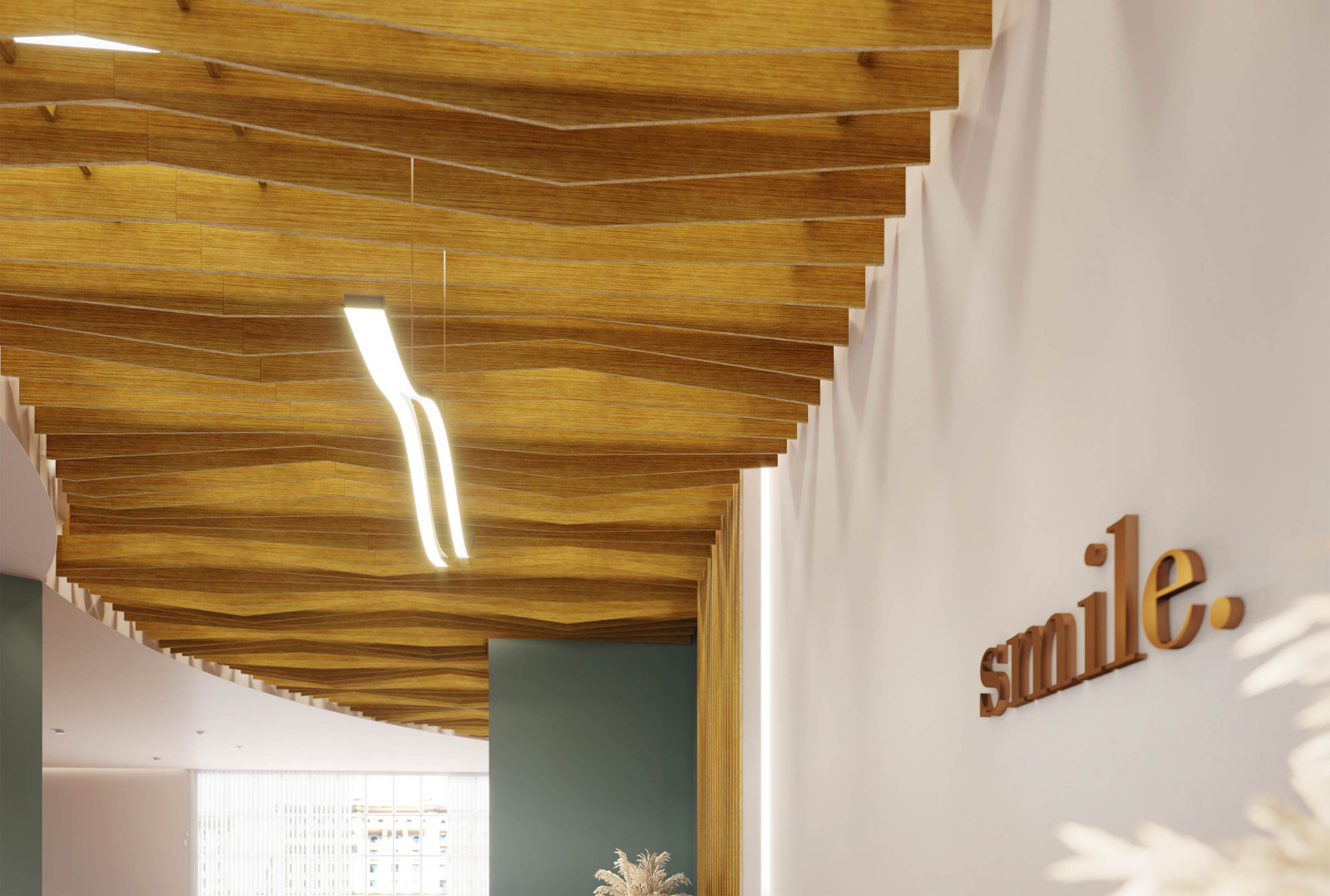

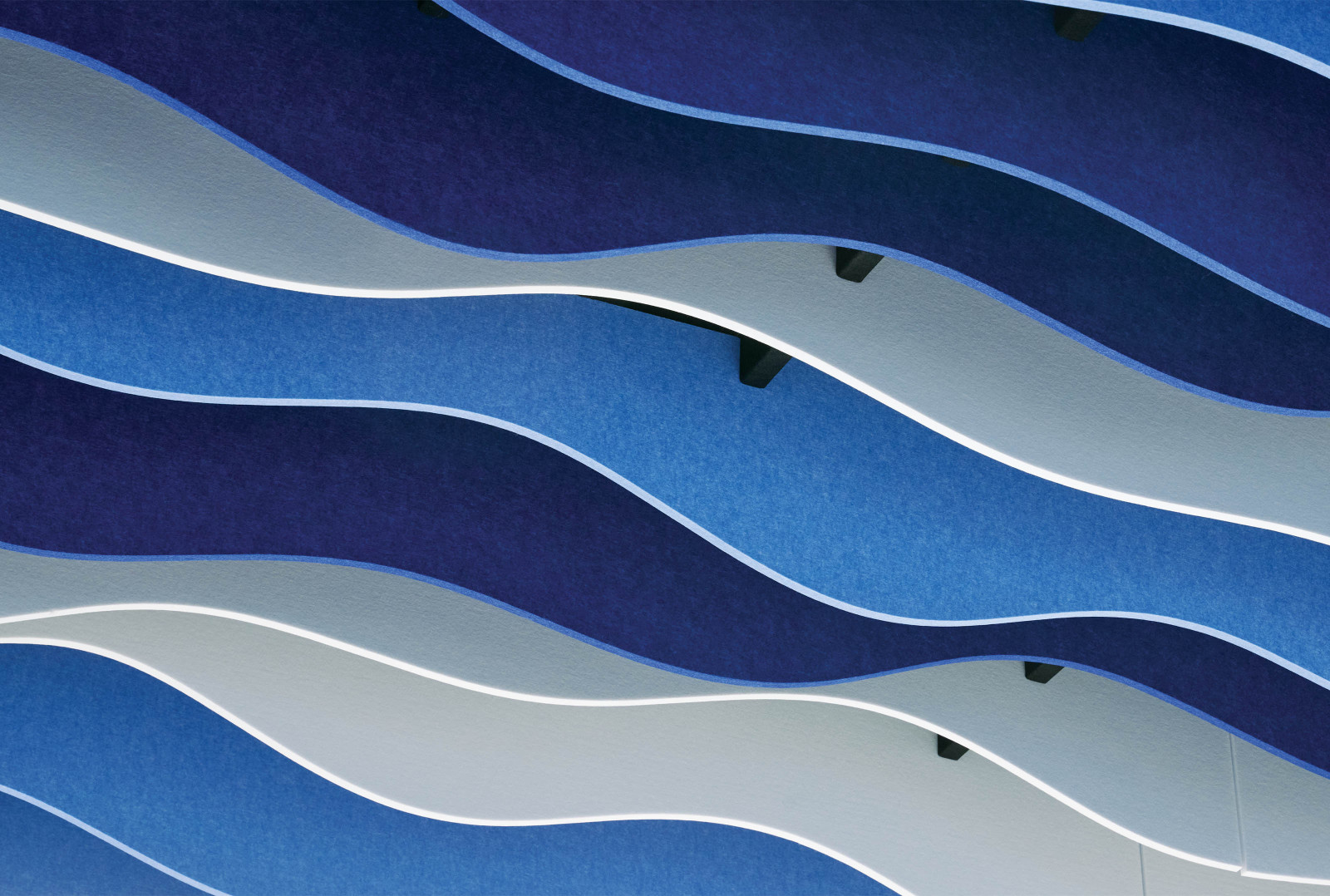

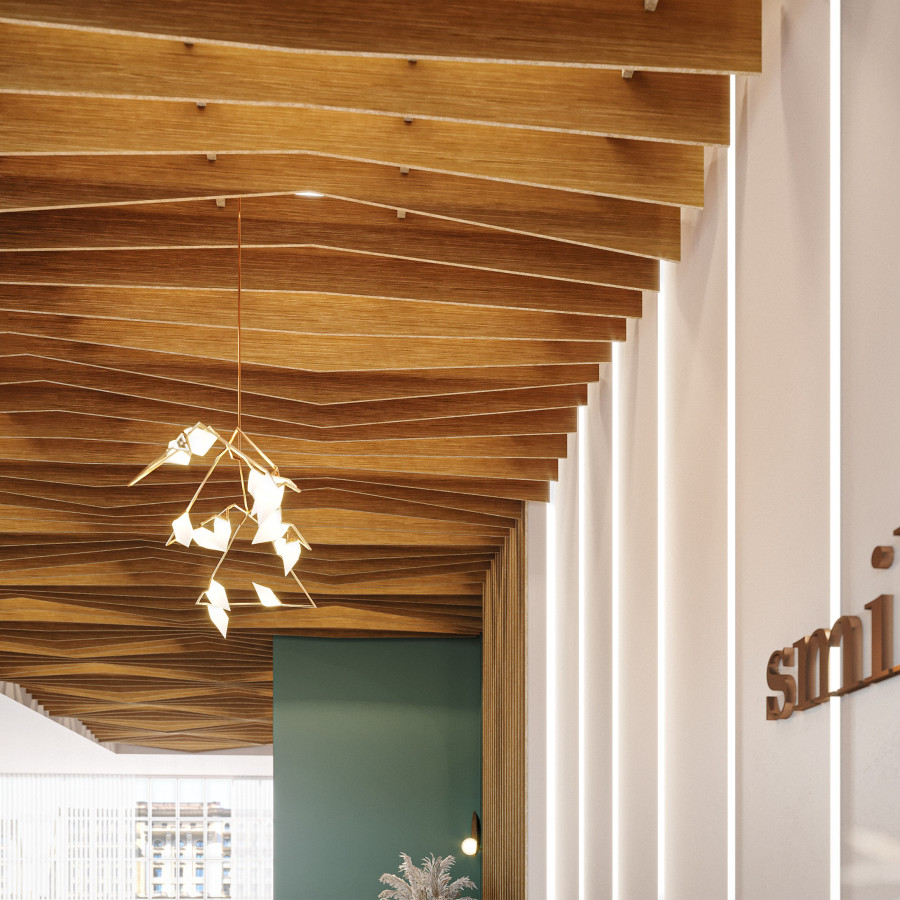

Versa 3D in use

Key Features

  • Acoustic Performance

    Atmosphera® Versa 3D's Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera® Versa 3D's material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Tailored Yet Field Trimmable

    Modules are built to your unique project specifications, removing the need for any field trimming and assuring easy installation. However, all Versa 3D fins and ribs are also field trimmable to effortlessly accommodate unexpected obstacles and integrations.

  • Customizable Topography

    Atmosphera® Versa 3D offers a range of configurable options, allowing you to customize fin topography to fit your space and design vision, with the help of our project team.

  • Simple to Install Industry Standard

    Atmosphera® Versa 3D utilizes a standard T-Grid as its frame and support structure leveraging installers' and contractors' expertise with the system, ultimately reducing installation time and cost.

  • Open Plan Accessibility

    Atmosphera® Versa 3D's open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

  • Continuous Frames & Fins

    Utilizing a hidden fin and frame alignment system Atmosphera® Versa 3D provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Fin Materials & Colors

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Rib Color Options

Soft Sound® Group A Ribs

Acoustic PET

Soft Sound® Wood Texture Ribs

Acoustic PET

Product Details

Single Module

Multiple Modules

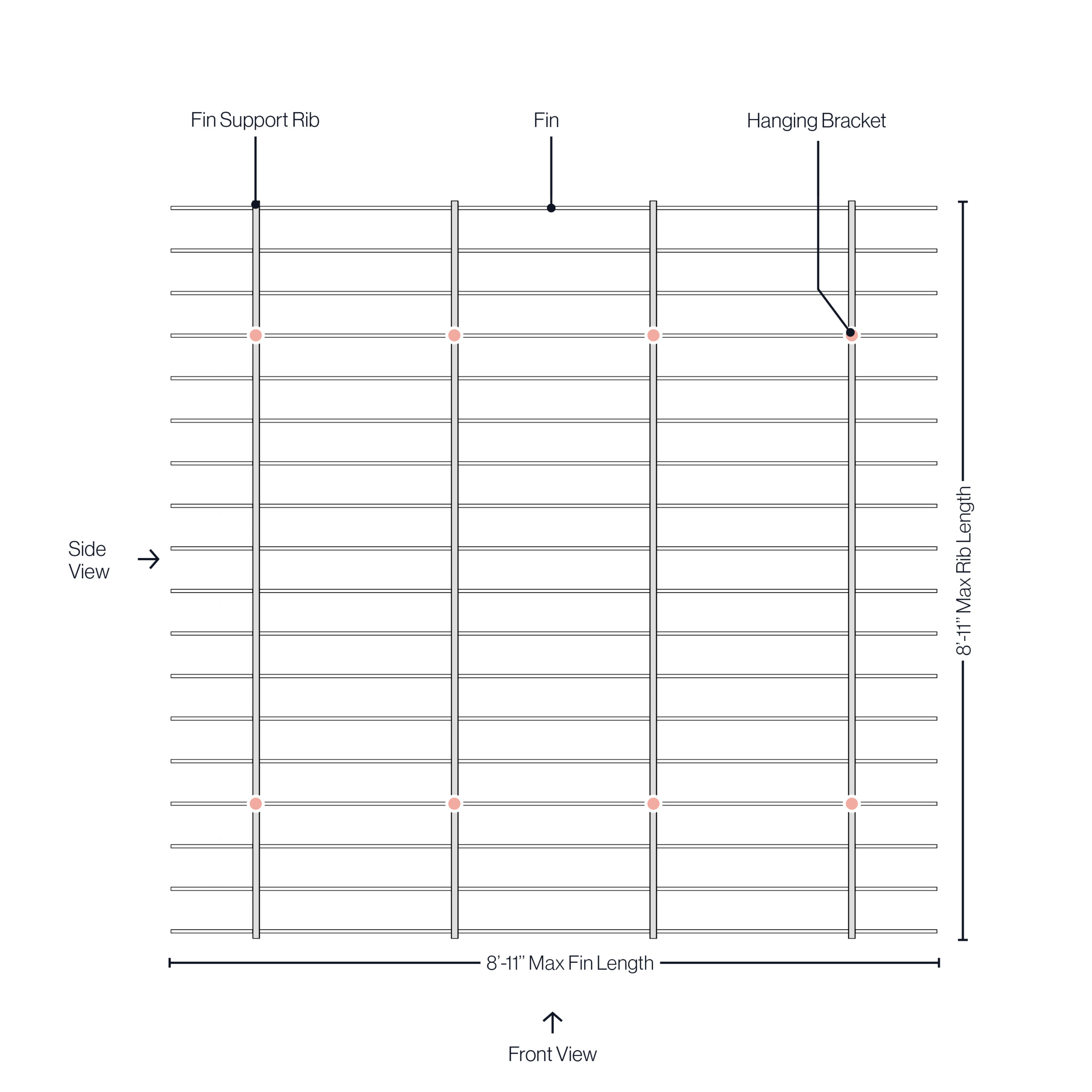

Understanding the Module - Plan

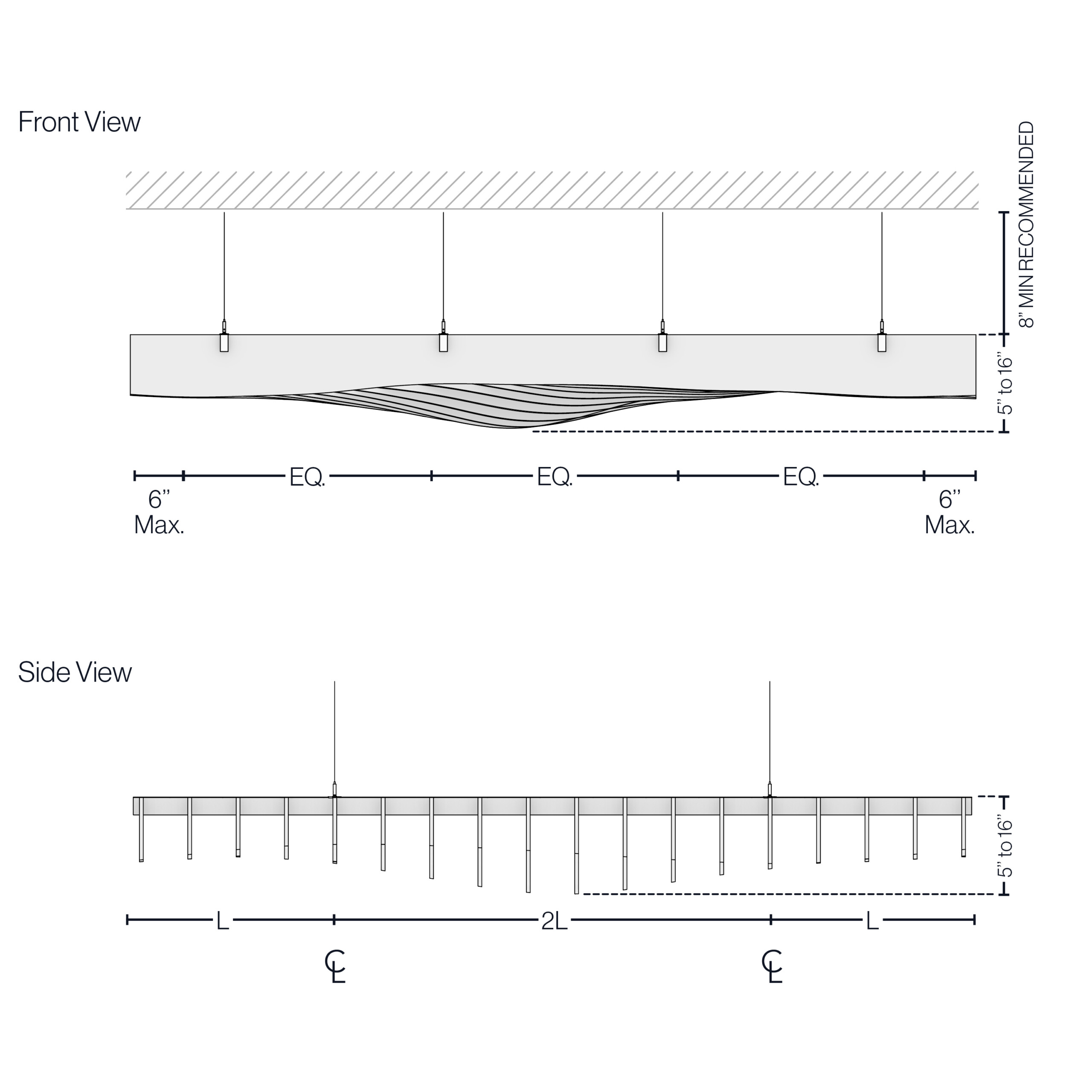

Understanding the Module - Elevations

Attachment & Install

Attachment Details

Acoustic Fin System Specs

Fin Material
12mm Soft Sound® (PET)
Module Dimension
8'-11" Fin x 8'-11"' Frame Max Imperial | *271cm Fin x 363cm* Frame Max Metric
Fin Depth
5"-16" Imperial | *12cm - 40cm* Metric
Openness in Plan
*86-90%*

System Specs

Frame Material
*Steel*
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC™: Results Vary
Attachment Method
1/16’’ Stainless Cable & Hardware
Accessibility
Yes, Quick Release Cables and Removable Fins

Downloads

  • Atmosphera® Versa 3D – Product Brochure PDF – Imperial
    Brochure
    2.86 MB
    pdf
  • Soft Sound® Color Brochure with Specifications
    Brochure
    2.08 MB
    pdf

Our Process:

  1. PROJECT QUOTING

    In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.

  2. DESIGN STAGE

    The Atmosphera® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input and final approval.

  3. MANUFACTURING DETAILING

    From the moment we receive your design approval, we work diligently to capture all final details in our easy-to-understand and highly specific shop drawings.

  4. ENGINEERING REVIEW

    Whether coordinating with your own engineering resources or leveraging our engineering team, every Atmosphera® project is carefully evaluated prior to final production.

  5. ADVANCED MANUFACTURING

    Our facilities, equipment and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client and your finished installation.

  6. SHIPPING & DELIVERY

    Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.

  7. INSTALLATION

    Let us connect you with our network of trusted installers. Our team of project managers is here to help you along the way.

Let us help you get started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
