Delta Drop® 4×4

Delta Drop® 4x4 brings faceted, dimensional geometry to your design, in a square panel that’s great for adding depth to your design. Plus, it offers easy installation, using quick torsion spring attachment across standard ceiling grid systems, or simple wall attachment using our Vertika channel system. Integrated backlighting is available if you want to add some light to your design, or try our Soft Sound® backer if you are looking for an acoustic solution.

Downloads Find a rep Add to project
Get a Quote



Expand
Expand
Expand
Expand
Expand
Expand
Expand

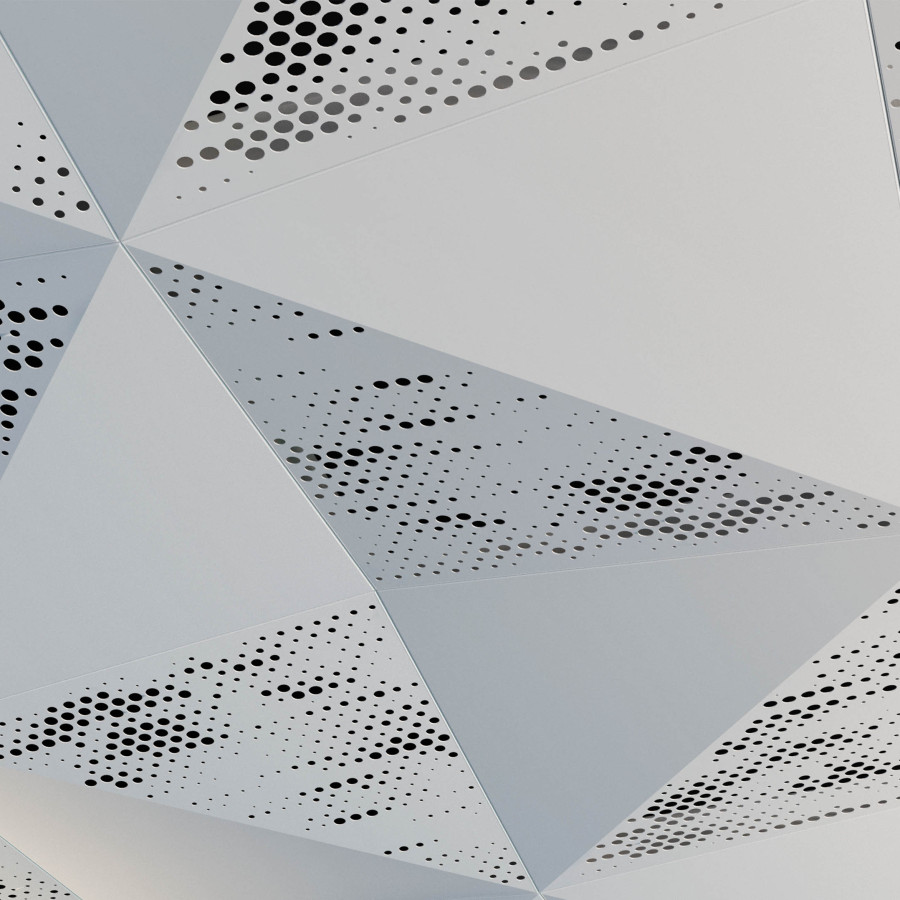

Delta Drop® 4x4 half pattern circle install closeup
Expand
Delta Drop® 4x4 half pattern circle install above hallway
Expand

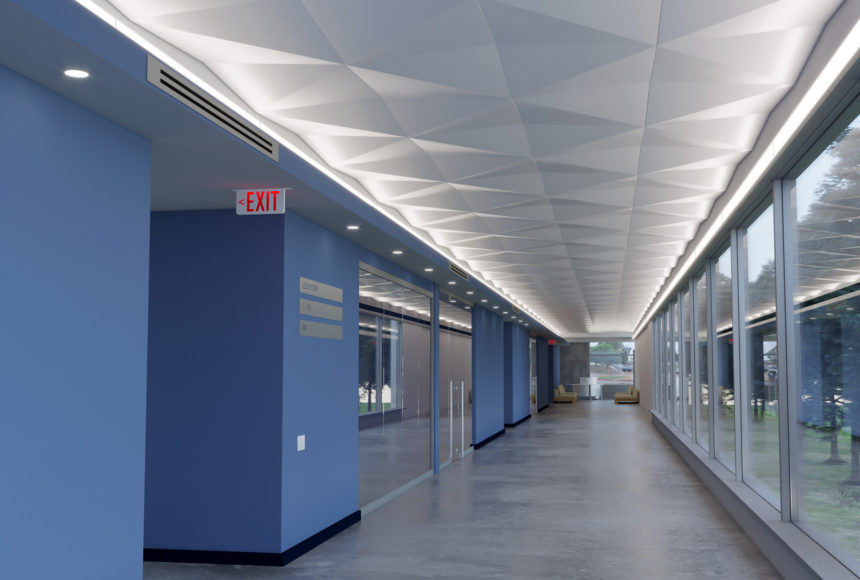

Delta Drop® 4x4 Full Solid installed above hallway
Expand

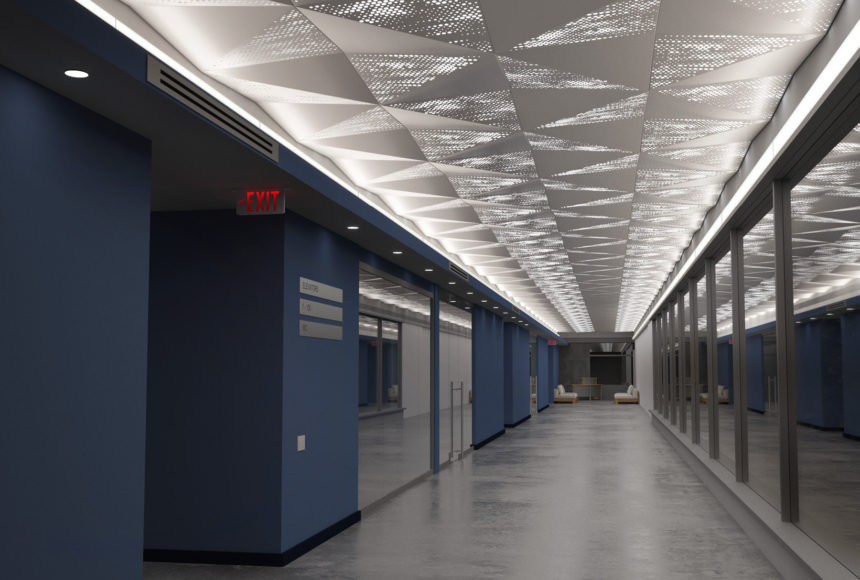

Delta Drop® 4x4 half pattern circle with backlight install above hallway
Expand
Arktura Delta Drop
Expand
Expand
Expand

Key Features

  • Acoustic Performance

    Delta Drop®’s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Multiple Pattern Options

    Delta Drop® panels are preconfigured faceted solutions designed with a dynamic array of criteria and effects in mind. Choose from our library of patterns to uniquely impact your project.

  • Multiple Panel Types

    In addition to multiple patterns, select from various panel types including Standard, Transition, and Flat Panels. Use them together to create gradations and increase the aesthetic and functional versatility of the system.

  • Easy Installation & Access

    Delta Drop® panels offer easy install and access across walls and ceilings through quick torsion spring attachment to standard grid systems and a simple hook-on attachment to our Vertika® channel system.

  • Design with Standard Panels

    We make it easy to create stunning faceted designs on a standard torsion grid. Mix and match our available panel sizes in stepped or continuous configurations. Choose from our library of patterns and panel types to fit the unique needs of your project.

  • Integrated Lighting Options

    We have designed an integrated backlight allowing you to create a variety of functional and decorative lighting solutions.

Panel Materials & Colors

Powder Coated Aluminum

Aluminum

Powder Coated Aluminum - Premium Metallic Finish

Aluminum

Backer Materials & Color Options

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Interior Translucent Backer

1/16" Polycarbonate

Product Details

Diagrams Specs

Standard Panels

Seamlessly Join Walls & Ceilings

Understanding the Panel - Full Solid

Understanding the Panel - Half Pattern Circle

Understanding the Panel - Full Pattern Circle

Accessory Options - Ceiling

Accessory Options - Wall

Transition and Flat Panels

System Specs

Dimensions (WxHxD)
4' x 4' x 5" Imperial | 120cm x 120cm x 13cm Metric
Material
Aluminum
Openness in Plan
Full Circle: 14%
Half Circle: 7%
Full Solid: 1%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure
Accessibility
Torsion Spring Hinge
Trimmability
Yes, per installation manual
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light

Downloads

  • Delta Drop® 4×4 – Product Brochure PDF – Imperial
    Brochure
    8 MB
    pdf
  • Arktura Backlighting – DWG – Imperial
    3D Model
    204.46 KB
    zip
  • Delta Drop® 4×4 – 3D DWG – Imperial
    3D Model
    6.35 MB
    zip
  • Torsion Panel Trim Details – 2D DWG – Imperial
    3D Model
    457.24 KB
    zip
  • Delta Drop® 4×4 – 3D SKP – Imperial
    3D Model
    9.73 MB
    zip
  • Vertika® – 3D DWG – Imperial
    3D Model
    1.27 MB
    zip
  • Delta Drop® 4×4 Full Circle – 3D RFA – Imperial
    3D Model
    90.5 MB
    zip
  • Vertika® – 3D SKP – Imperial
    3D Model
    1.91 MB
    zip
  • Delta Drop® 4×4 Half Circle – 3D RFA – Imperial
    3D Model
    63.24 MB
    zip
  • Vertika® – 3D RFA – Imperial
    3D Model
    8.82 MB
    zip
  • Delta Drop® 4×4 Full Solid – 3D RFA – Imperial
    3D Model
    8.21 MB
    zip
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • Delta Drop® 4×4 – 3D DWG – Metric (EMEA ONLY)
    3D Model
    3.15 MB
    zip
  • Delta Drop® 4×4 – PDF Tear Sheet – Metric (EMEA ONLY)
    Tear Sheet
    7.31 MB
    pdf

How to Specify:

  1. SELECT A STYLE

    Find the right panel size and style – including full solid, half perforated, and fully patterned options - for your project.

  2. SELECT A COLOR

    Panels are made available in a variety of colors. See our powder coat brochure for standard and premium options. Customized color matching is also available.

  3. OPTION TO ADD LIGHTING

    Optional - Add integrated lighting. Our Delta Drop® Family makes it easy to incorporate dynamic backlighting, to add another dimension of functionality and visual interest to your project.

  4. OPTION TO ADD BACKER

    Optional - Add backer panels. Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to reduce the impact of noise across spaces.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
