Particle Ion

Particle™ Ion imagines a hazy day perception by utilizing the most diffused micro-perforations of this disruptive collection. These environmentally patterned panels are entirely harmonious with Arktura's Vertika® wall channel and conventional torsion spring grid systems, to make installation across walls and ceilings effortless. Add available custom colors, non-woven acoustic fabric backers, to reduce noise, and Arktura's integrated lighting, and the possibilities are truly endless.

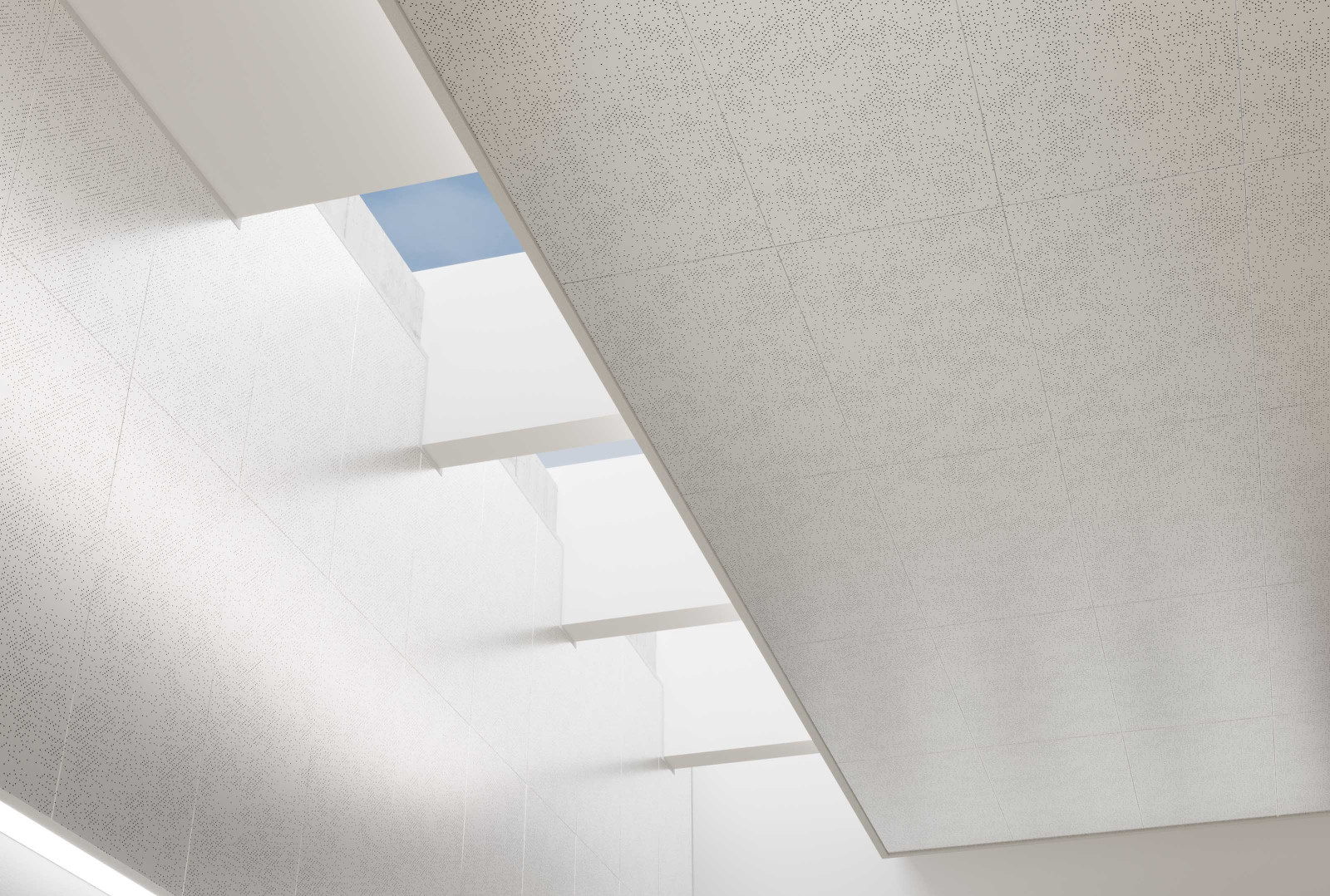

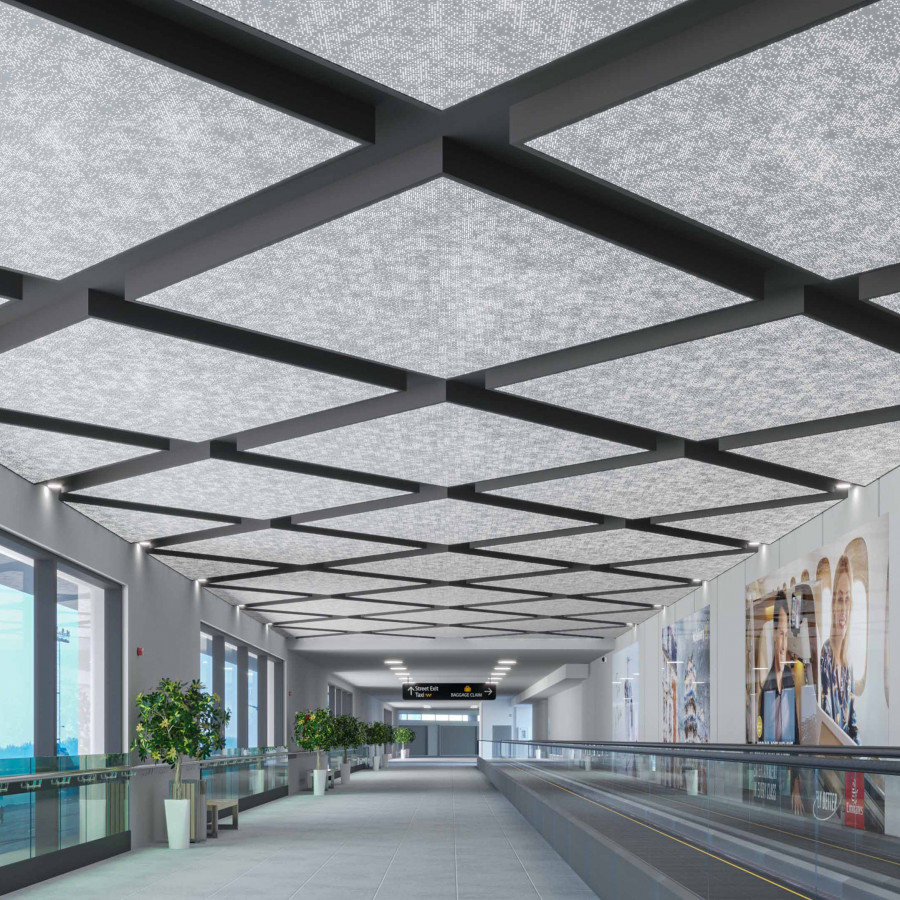

Ion in use

Key Features

  • Continuous Pattern Aesthetic

    Achieve uninterrupted patterning across your space. Particle™ patterns have micro-perforations that wrap around the edges of each panel, concealing where patterns start and end.

  • Easy Installation & Access

    Particle™ panels offer easy install, using quick torsion spring attachment across standard ceiling grid systems or simple wall attachment using our Vertika™ channel system.

  • Acoustic Performance

    Particle™'s optional non-woven acoustic fabric backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The acoustic backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Superior Flatness & Strength

    Particle™ panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.

  • Integrated Lighting Options

    Integrate illumination and lighting effects to your projects with Arktura's offering of lighting solutions such as InLine or Backlight.

  • Preconfigured Solutions

    Particle™ panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

Panel Materials & Colors

Powder Coated Aluminum

Aluminum

Powder Coated Aluminum - Premium

Aluminum

Backer Options

Interior Translucent Backer

1/16" Polycarbonate

Non-woven Acoustic Fabric Backer

Product Details

System Specs

Panel Size (WxHxD)
2' x 4' x 1 1/2" Imperial | 60cm x 120cm x 3.8cm Metric
Material
Aluminum
Openness in Plan
24%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics (with optional Soft Sound® backer)
True NRC™ 0.80: Ceiling - E-300 Method
True NRC™ 0.75: Wall - F - 70 Method
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
Torsion Spring Hinge
Trimmability
Yes, per installation manual
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light

Downloads

  • Particle™ Ion – PDF Tear Sheet – Imperial
    Tear Sheet
    9.65 MB
    pdf
  • Powder Coat Color Brochure
    164.38 KB
    pdf
  • Soft Sound® Color Brochure with Specifications
    Brochure
    2.32 MB
    pdf
  • Particle™ Ion – 3D DWG – Imperial
    3D Model
    2.97 MB
    zip
  • Particle™ Ion – 3D RFA Ceiling – Imperial
    3D Model
    48.02 MB
    zip
  • Particle™ Ion – 3D RFA Wall – Imperial
    3D Model
    36.1 MB
    zip
  • Particle™ Ion – 3D SKP – Imperial
    3D Model
    6.24 MB
    zip

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Particle™ is available in a range of micro-perforated styles to fit a multitude of design intents. Find the right pattern and texture for your space.

  2. SELECT A COLOR

    Panels are made available in a variety of colors. See our powder coat brochure for standard and premium options. Customized color matching is also available.

  3. SELECT A NUMBER OF MODULES

    All our Particle™ line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.

  4. OPTION TO ADD LIGHTING

    Incorporate dynamic inline or backlighting, to add another dimension of functionality and visual interest to your project.

  5. OPTION TO ADD BACKER

    Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or our new cost effect non-woven acoustic fabric, to reduce the impact of noise across spaces.

Let us help you get started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
