Secare®

Assembled from precision-cut tubes, Secare® panels add a textural and dimensional impact to any project. The choice of round or square tubing, the luxurious aesthetic of the brushed stainless steel, and the variety of the powder coated options combine to create a versatile product range. Each preassembled module is designed to respond dynamically to the needs of your space. *Prices vary based on quantity & options. Contact your local sales representative for pricing.

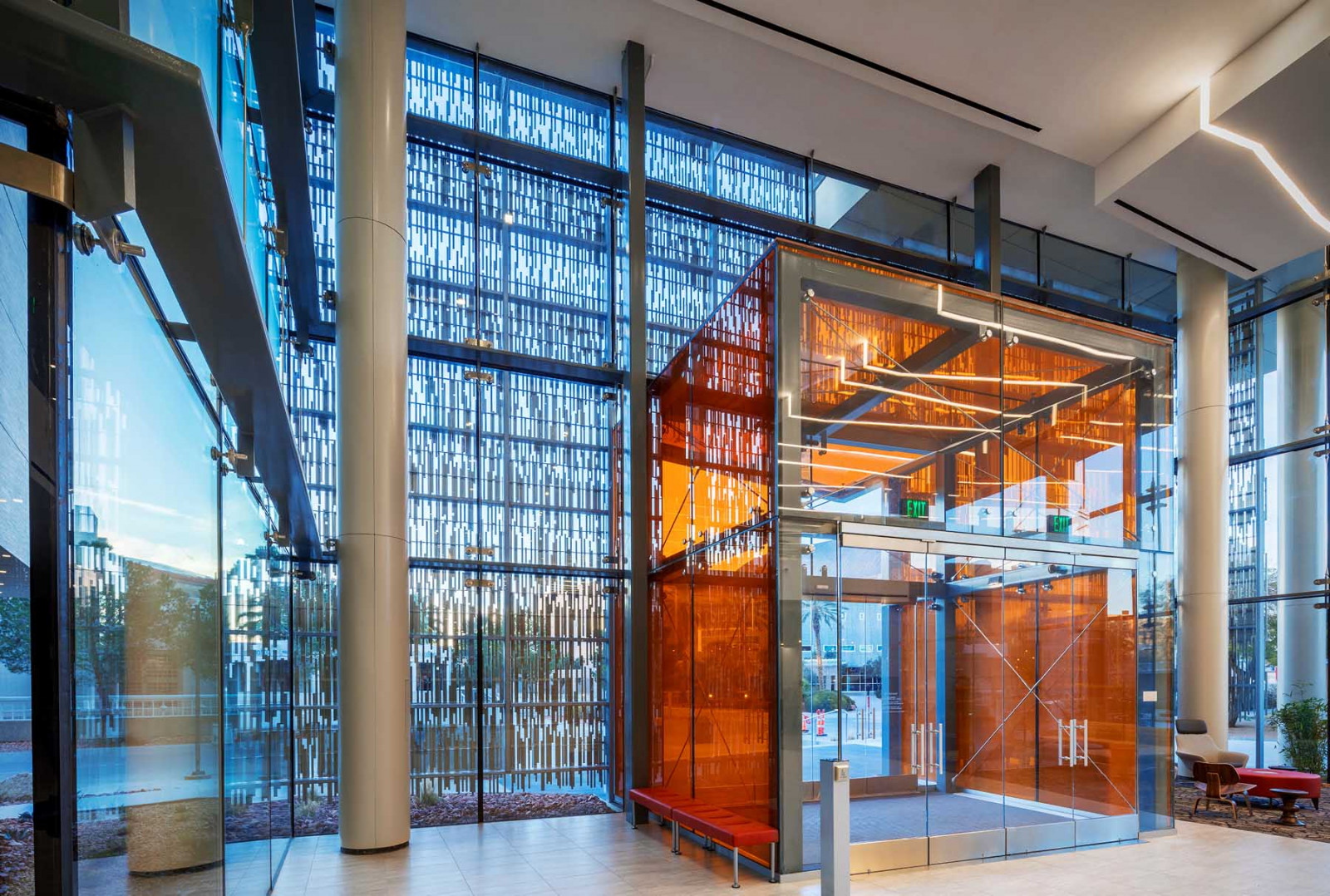

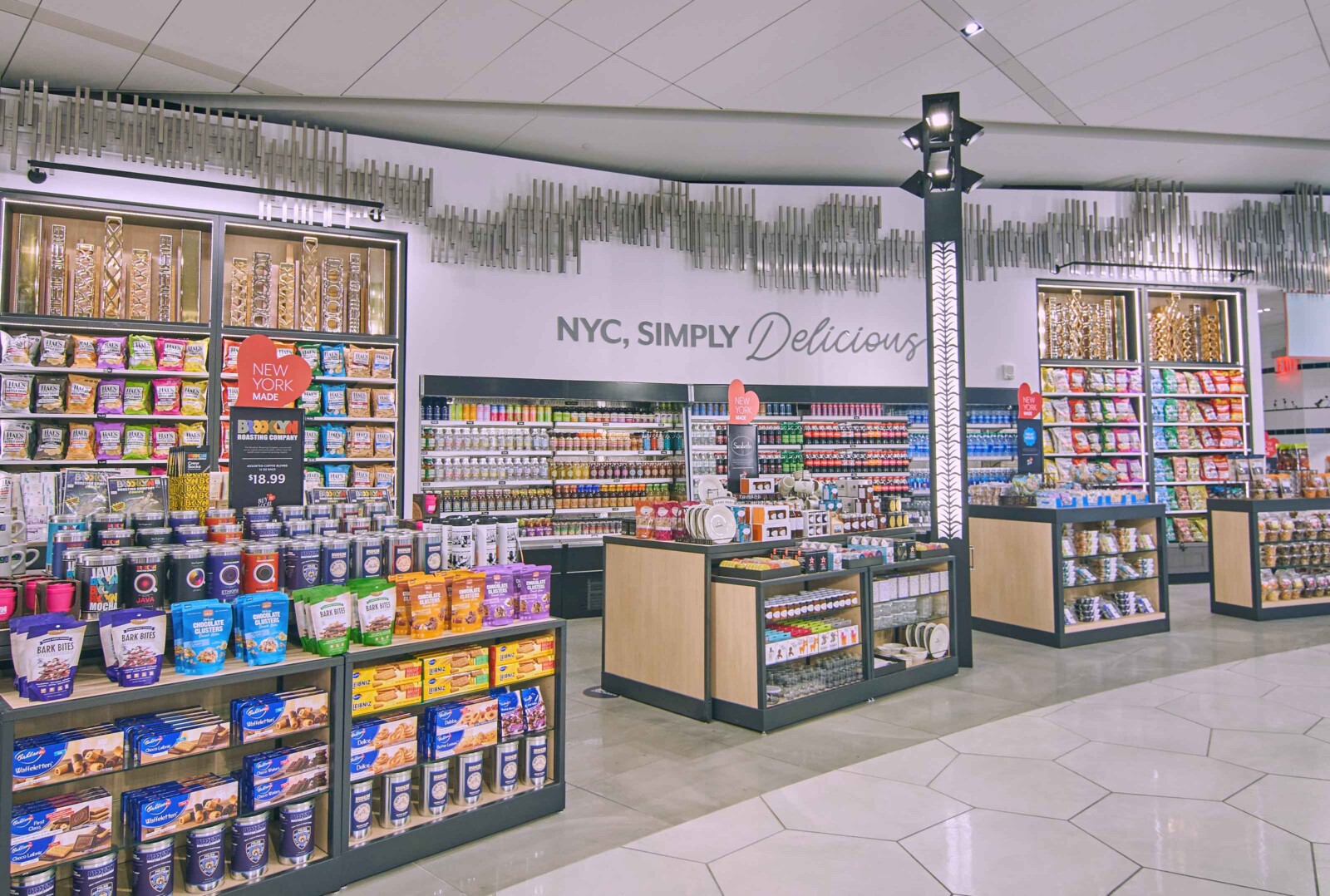

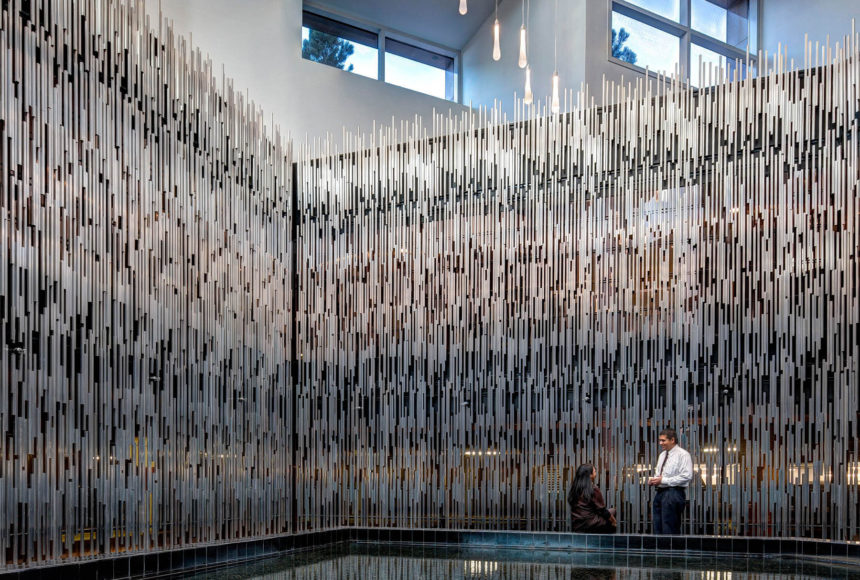

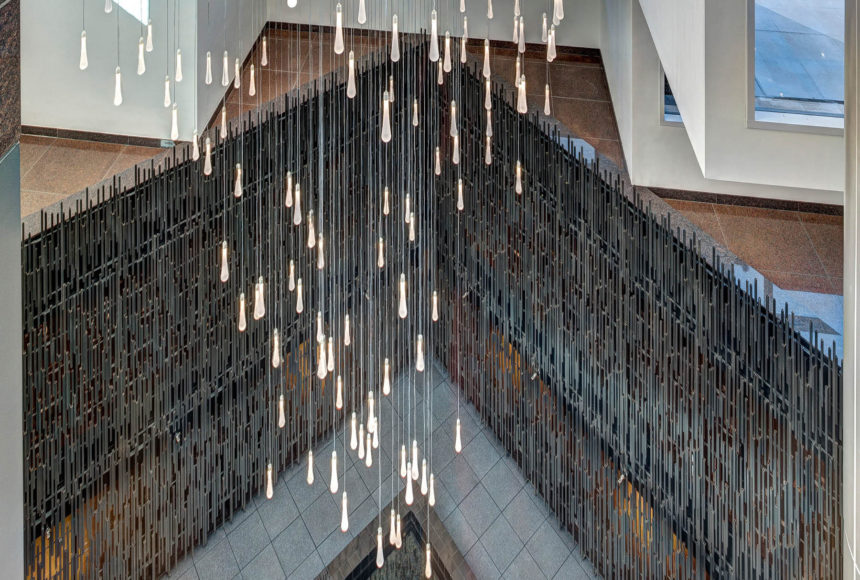

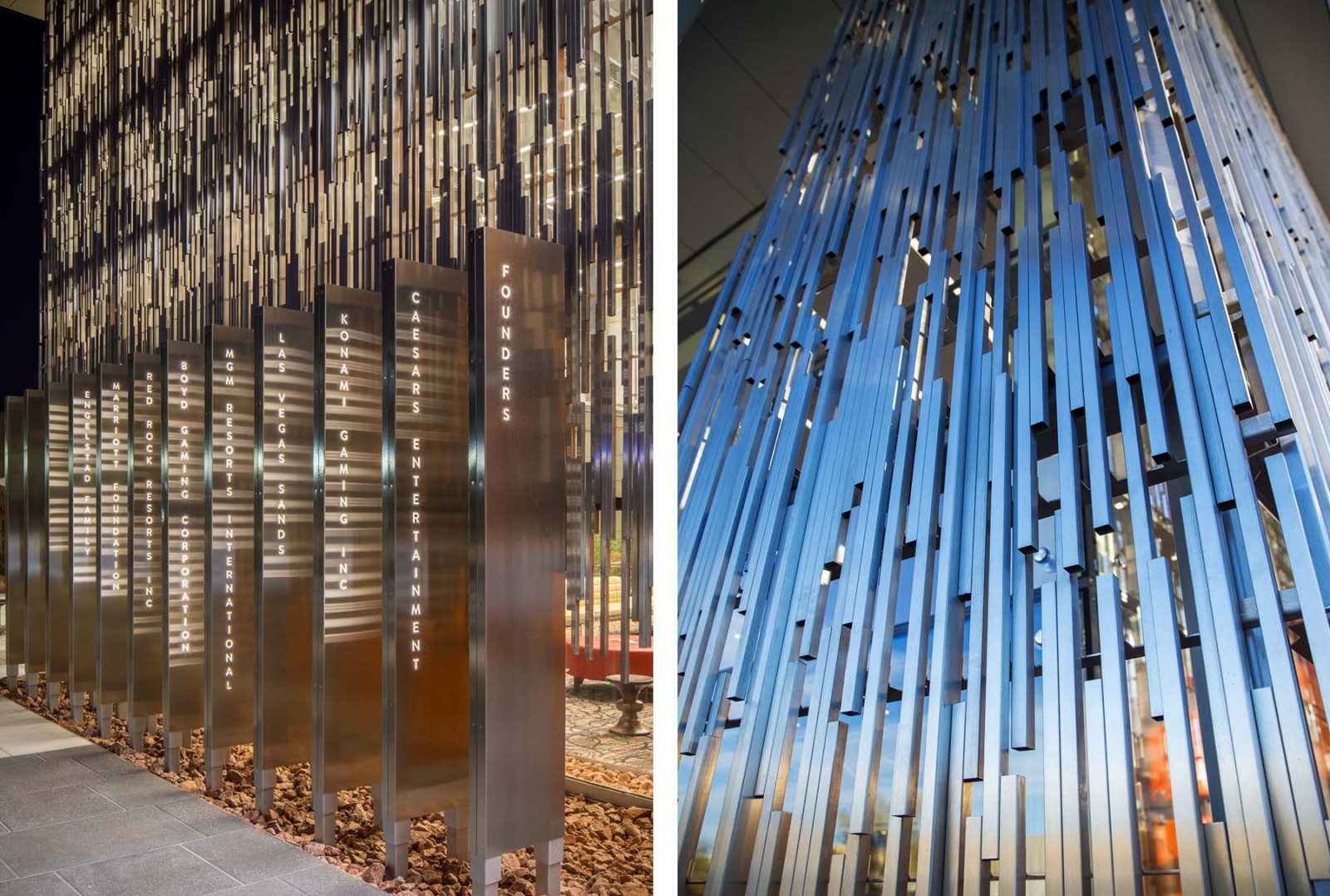

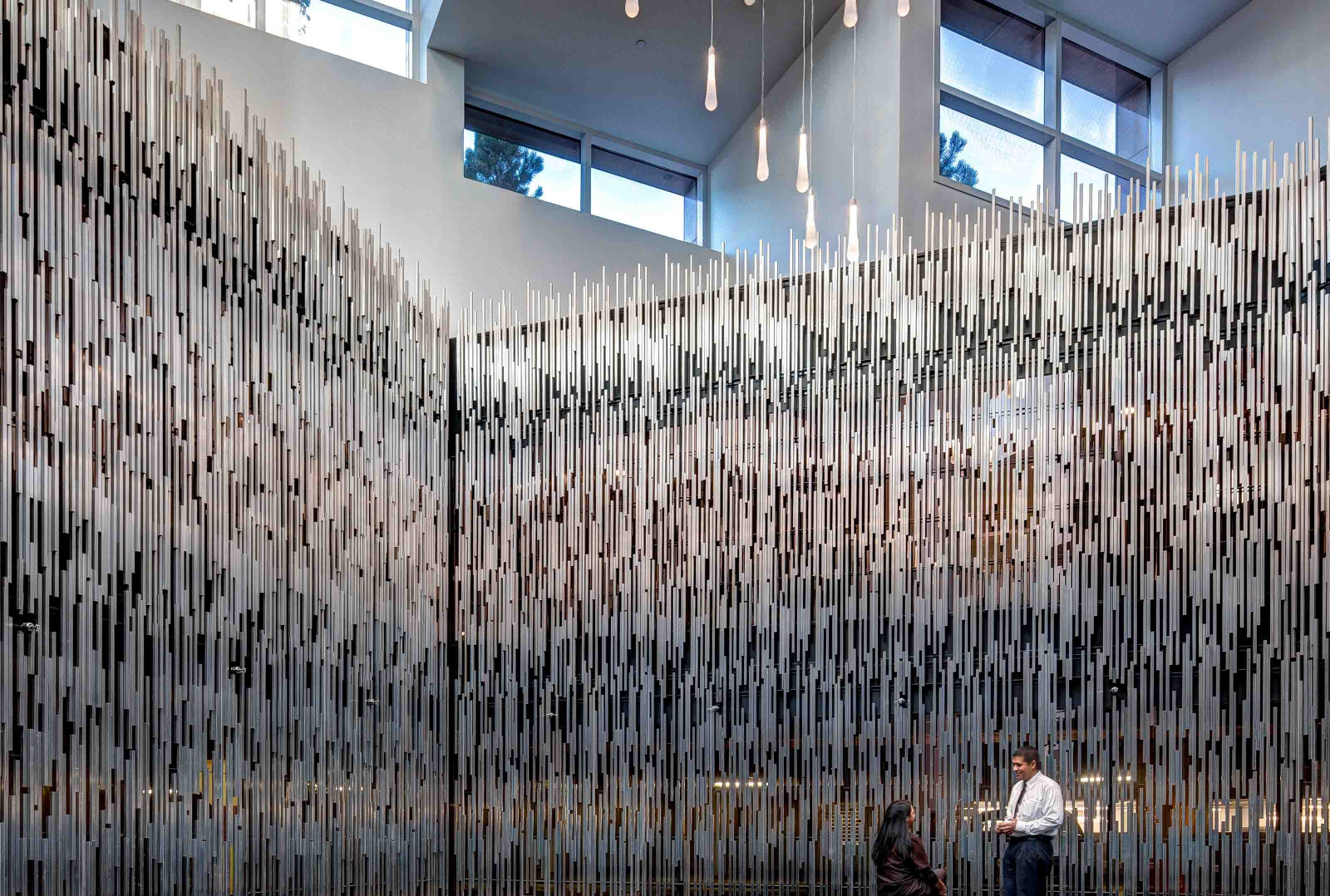

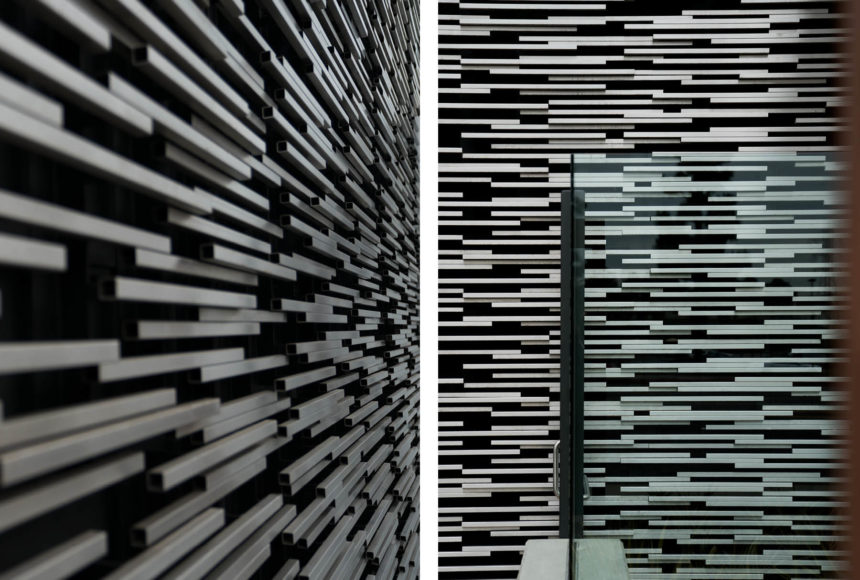

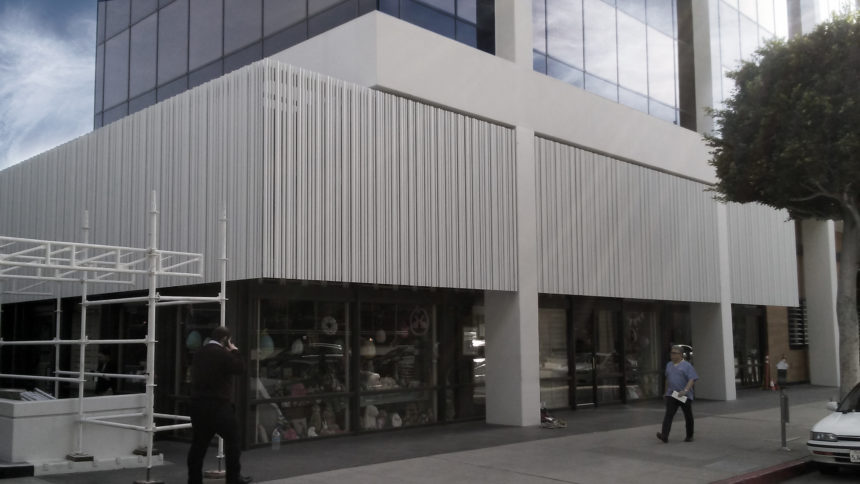

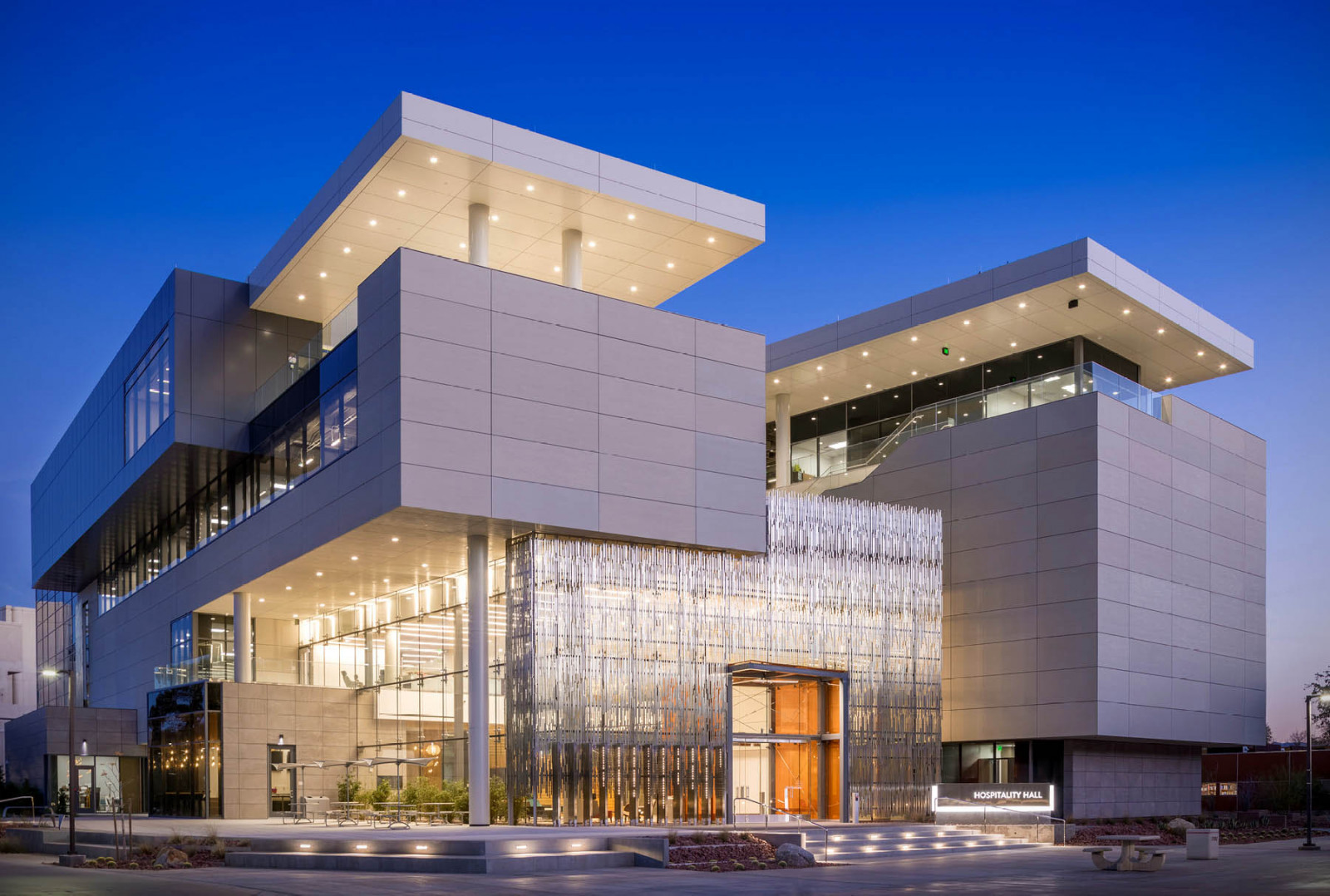

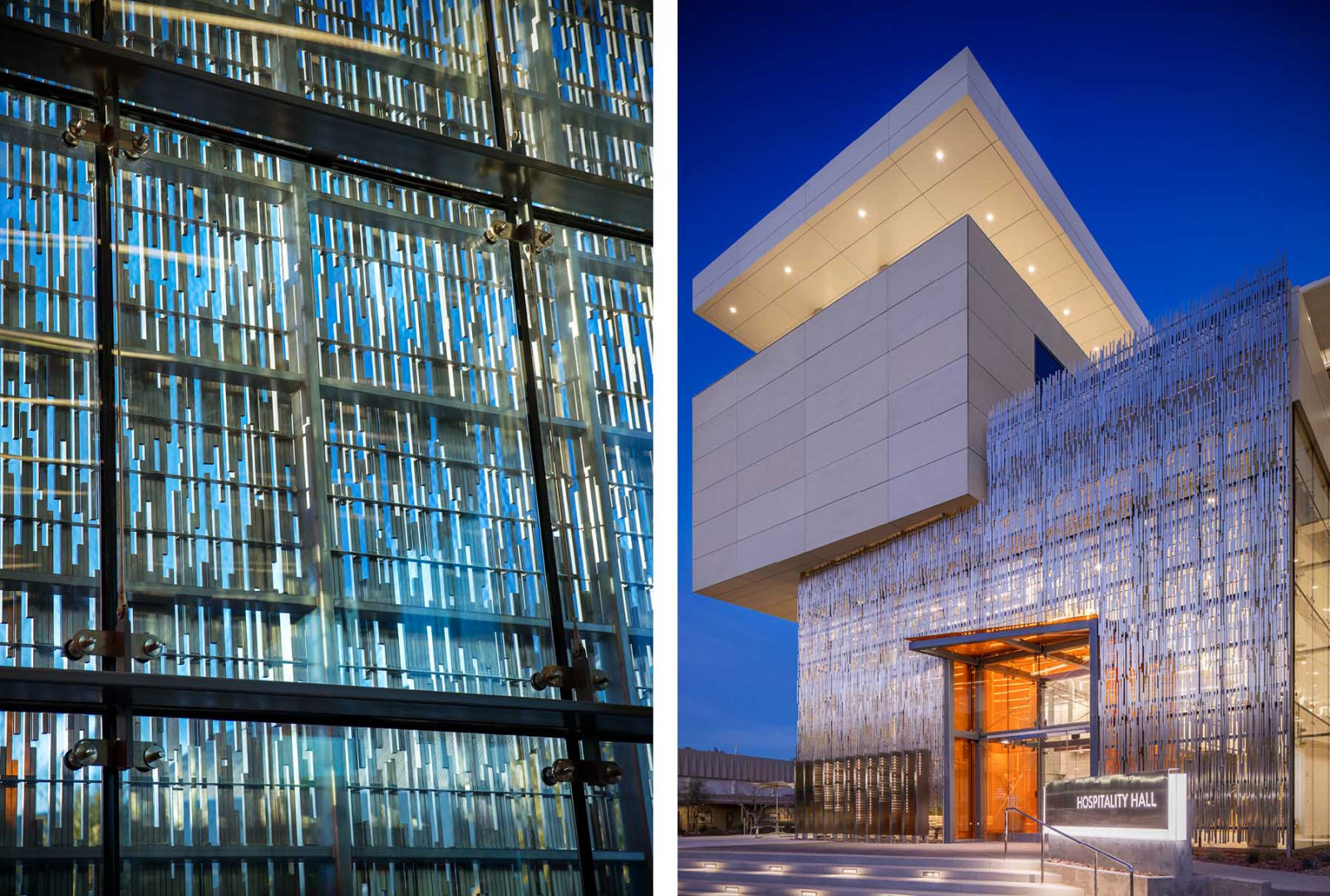

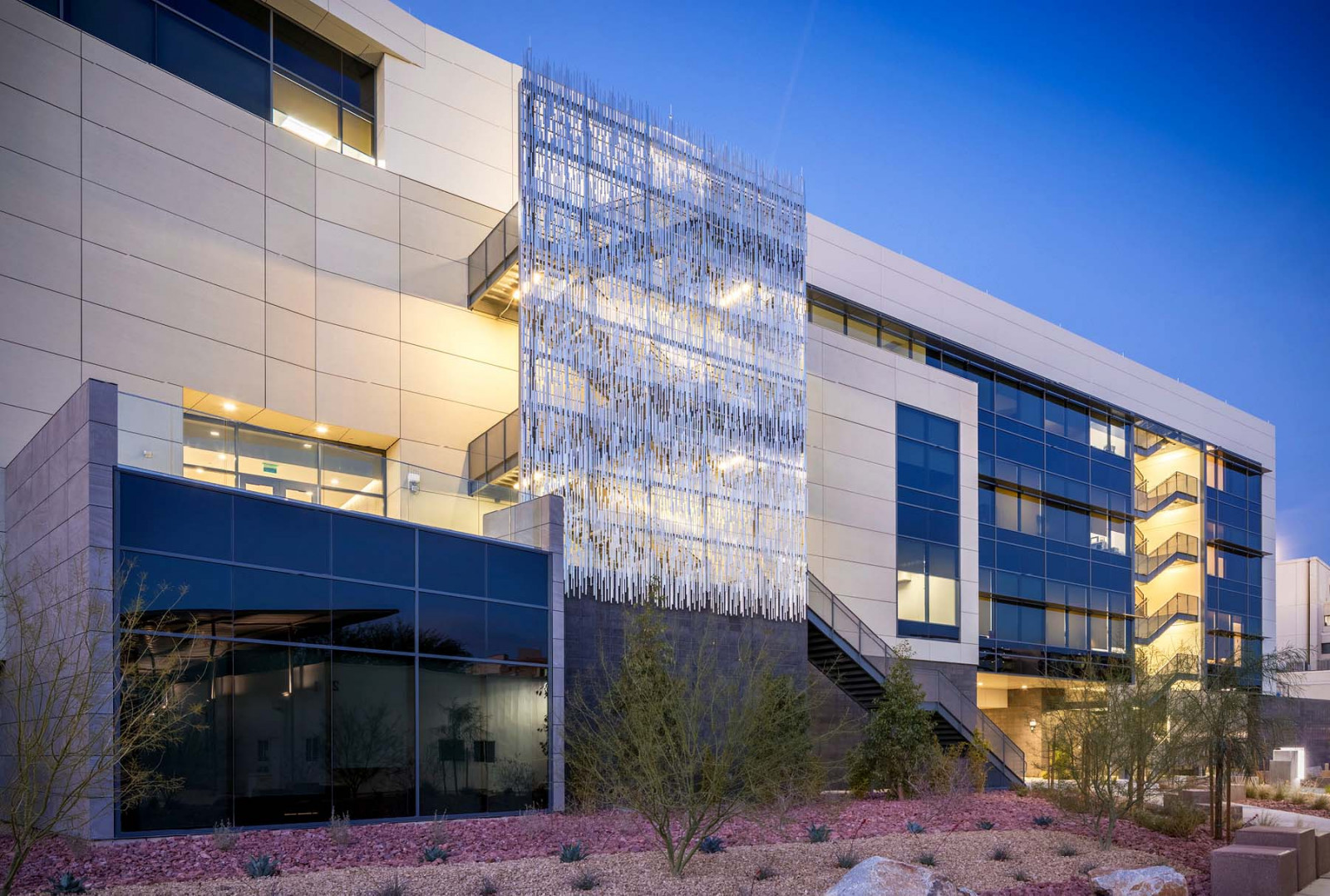

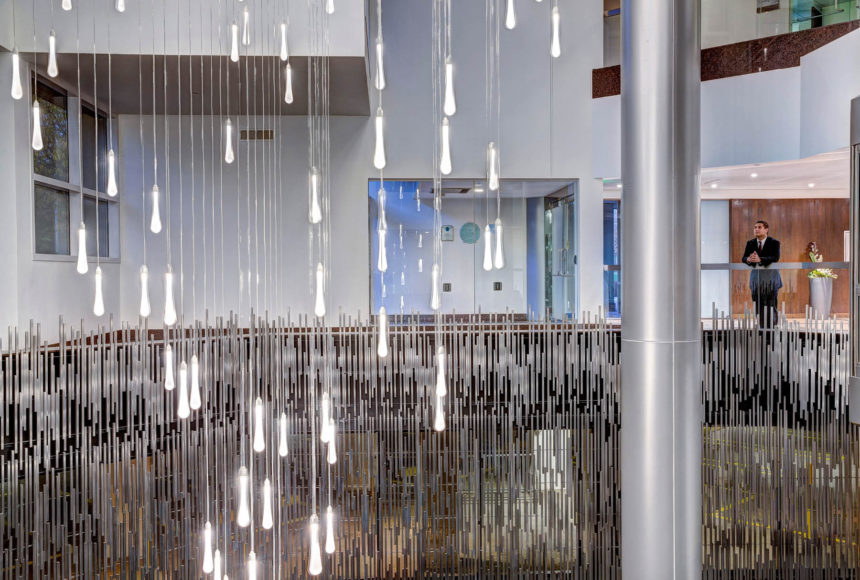

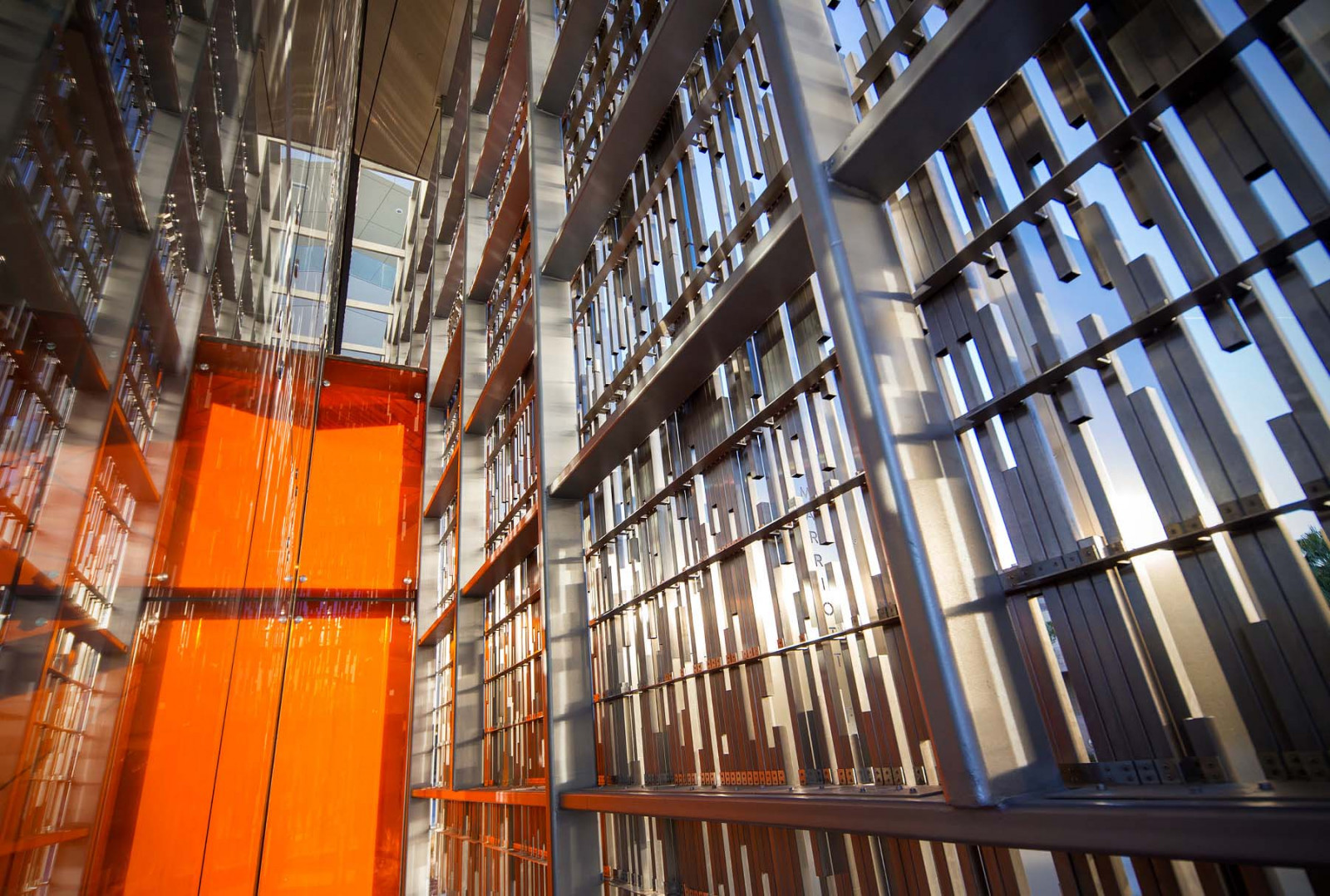

Secare® in use

Key Features

  • Customizable Modular Solutions

    With slight modifications of a typical module, Secare® may be adapted to optimize any configuration.

  • Collaborative Process

    Our project managers translate your goals and design opportunities into a precise workflow. We factor in all base building criteria, then produce detailed software-generated shop drawings to guide our precision manufacturing.

  • Mix and Match Colors

    Select from our expansive powder-coat finishes to set your design apart from the rest. Select from Black, White or Silver colors, or customize with our growing collection of powder-coated finishes. Choose to switch it up and contrast two finishes together to create a more dynamic module.

  • Square & Tube Design Options

    Choose between square and tube design options to achieve your optimal design intent. Square options are available in brushed stainless steel and tube options are available in our library of powder-coat colors as well as brushed stainless steel.

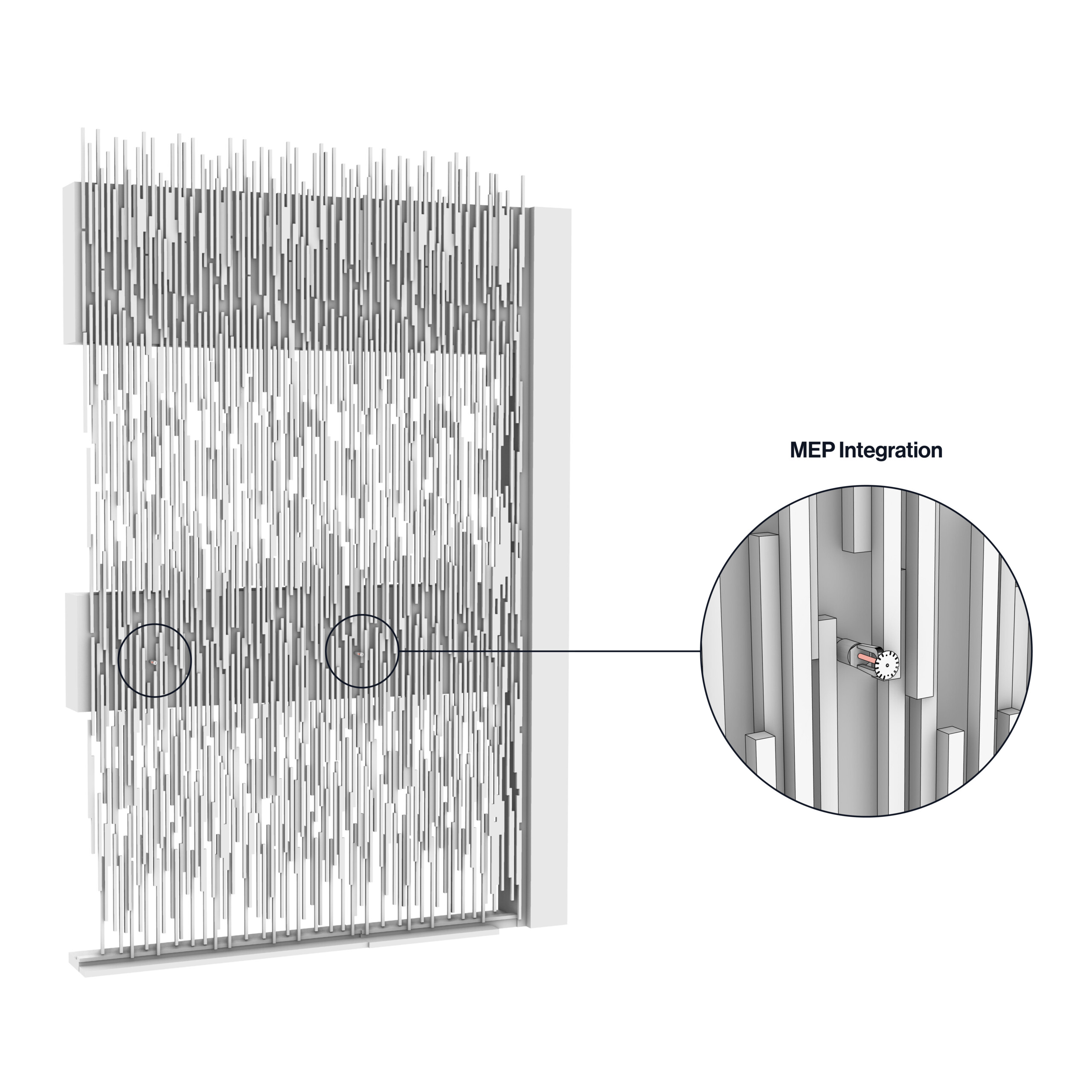

  • Openness for Integrations

    Secare®'s adaptive design solutions make integrating systems through modules simple and feasible. Work with an Arktura project manager to accommodate HVAC, plumbing, AV equipment, and life safety systems.

Materials & Colors

Powder Coated Steel

Steel

Product Details

System Specs

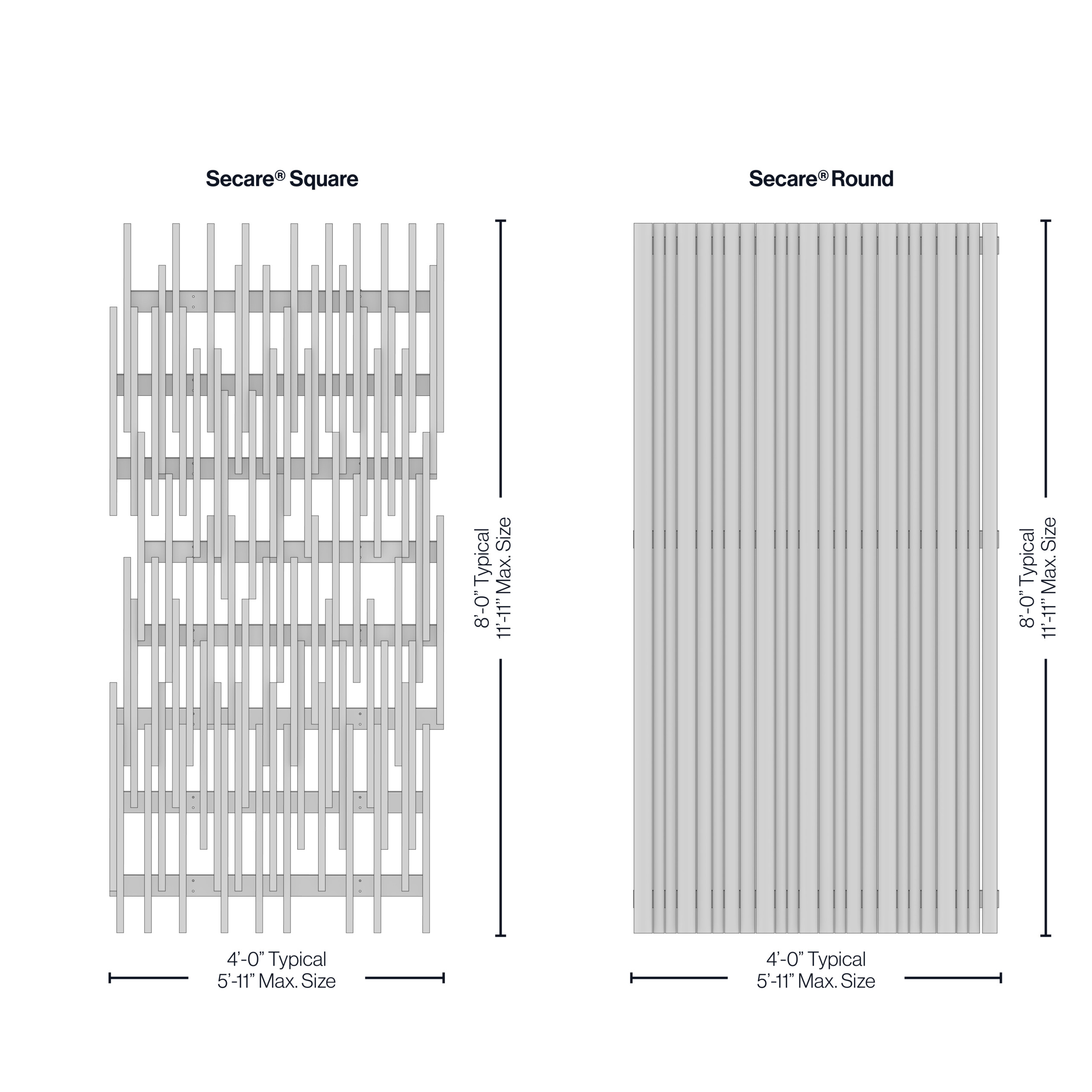

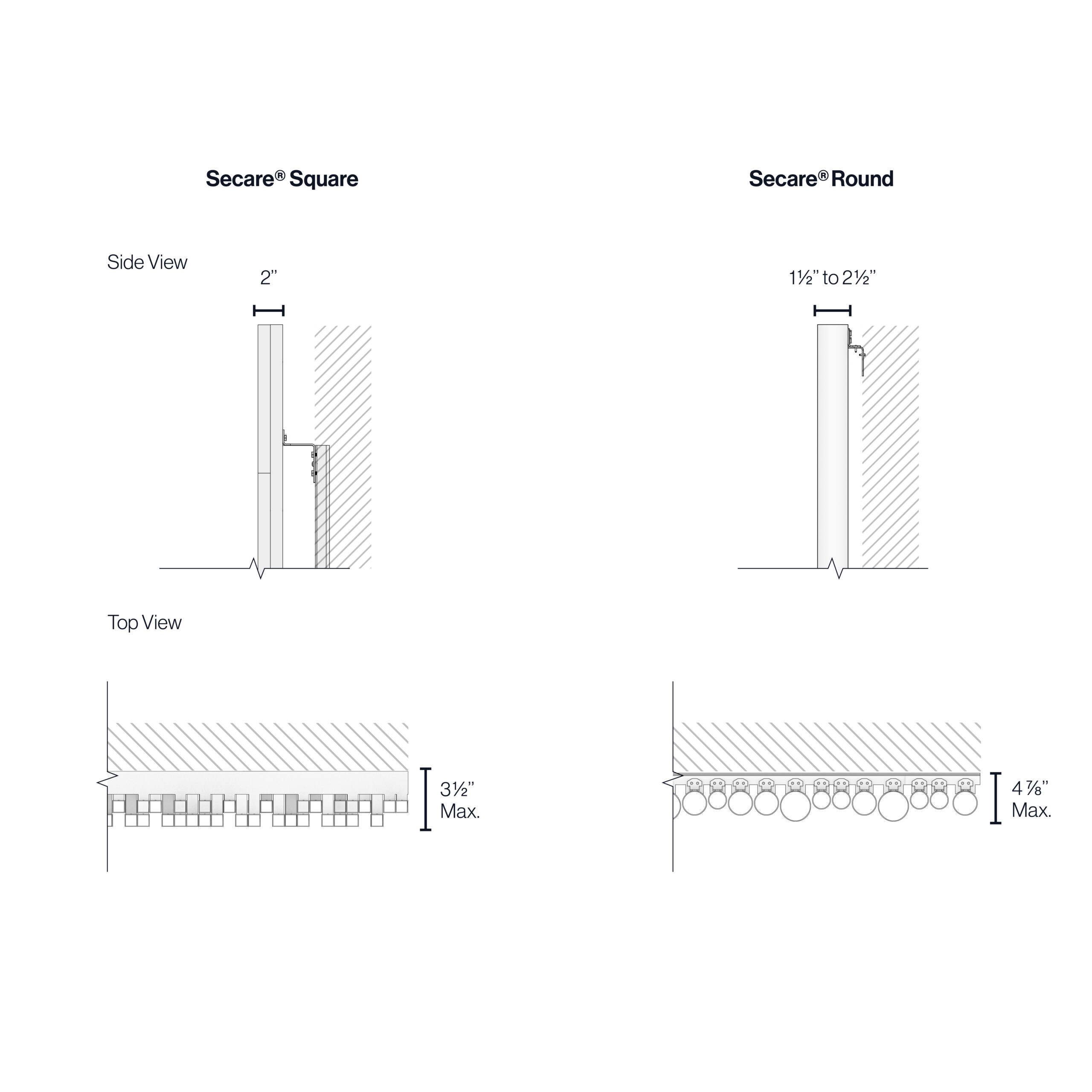

Dimensions (WxHxD)
48" x 96" (Max) x 3 15/16" Imperial | 122cm x 243cm x 10cm Metric
Material
Brushed Stainless Steel - 304 or 316 Grade and Steel Brackets
Openness
Varies by design
Fire Rating
Non-Combustible

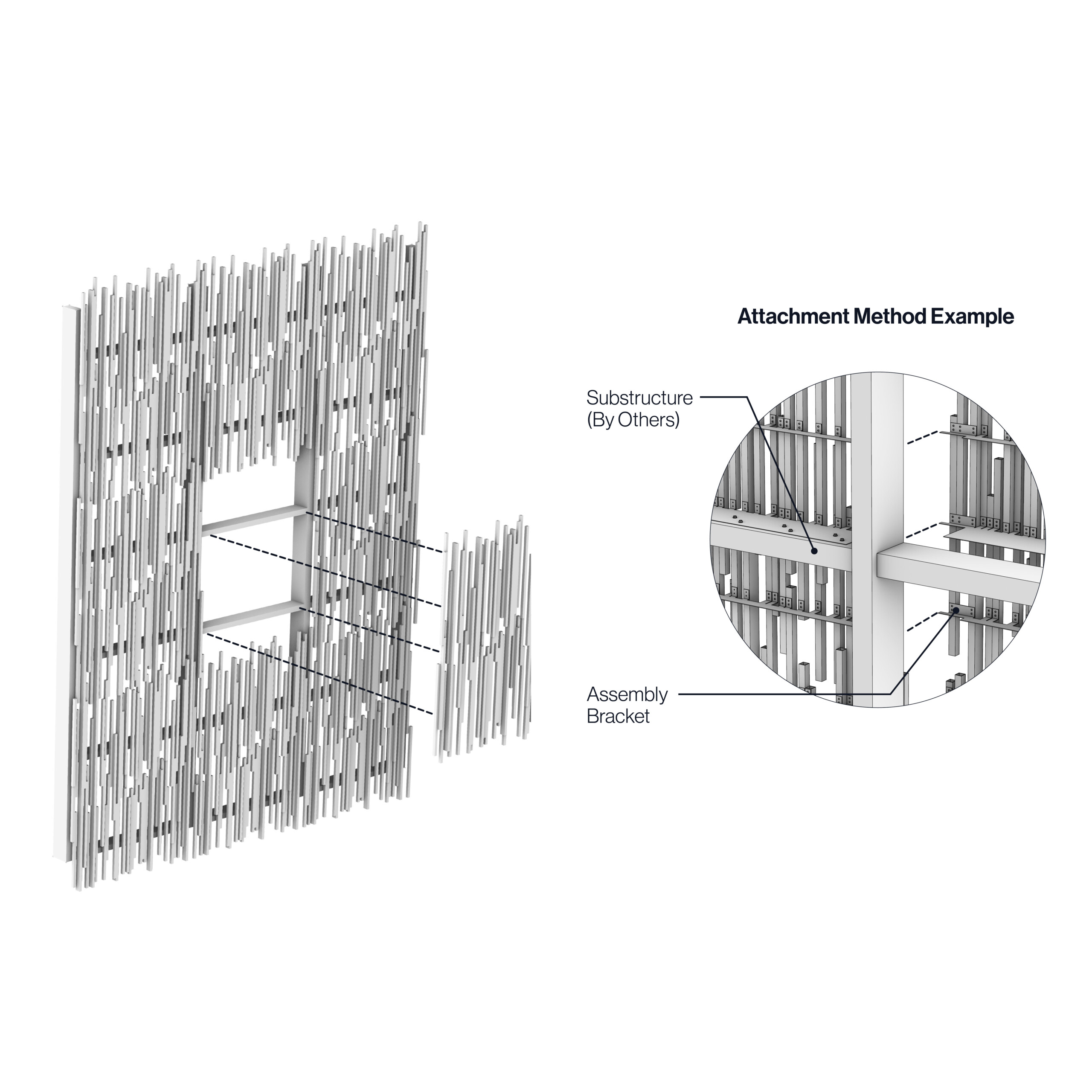

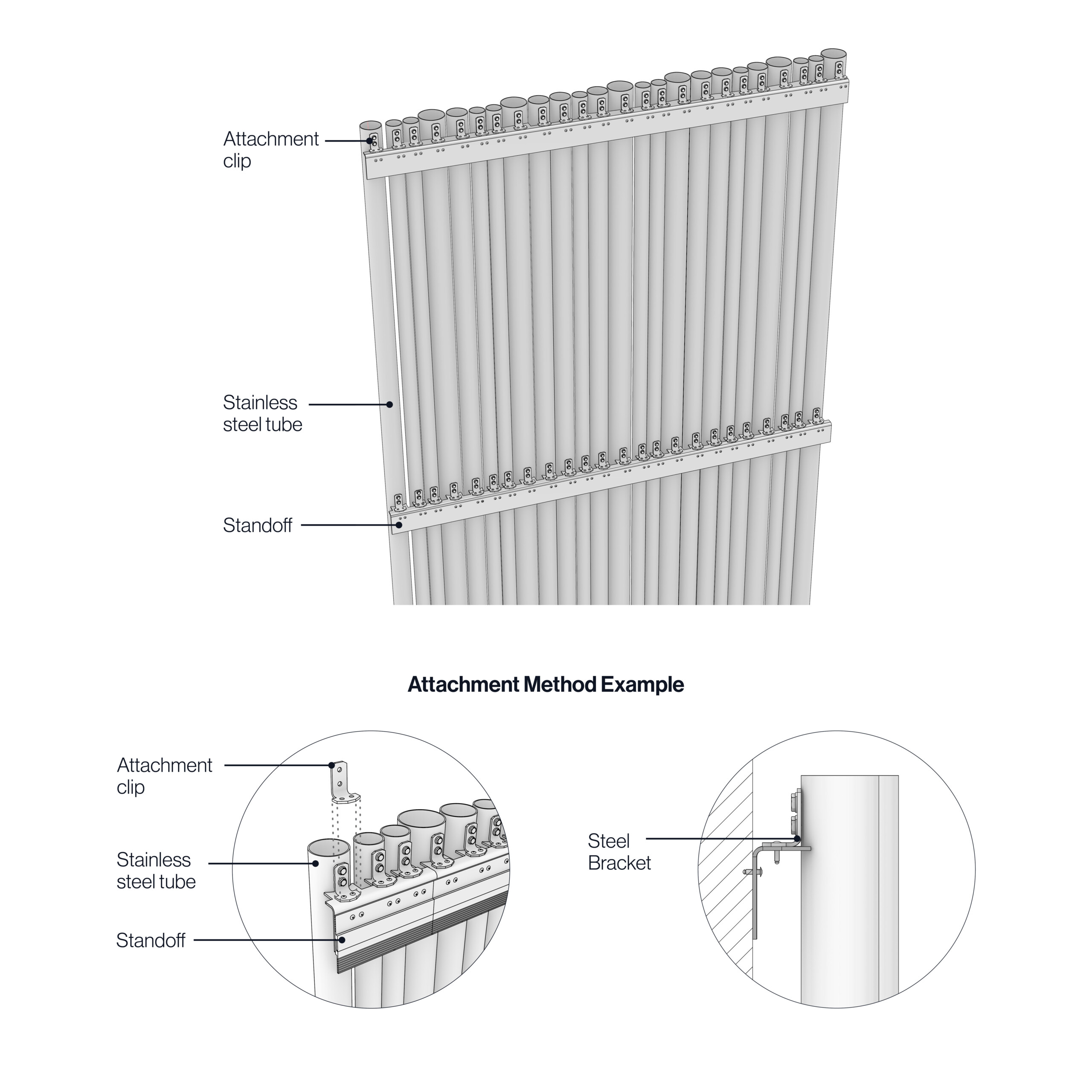

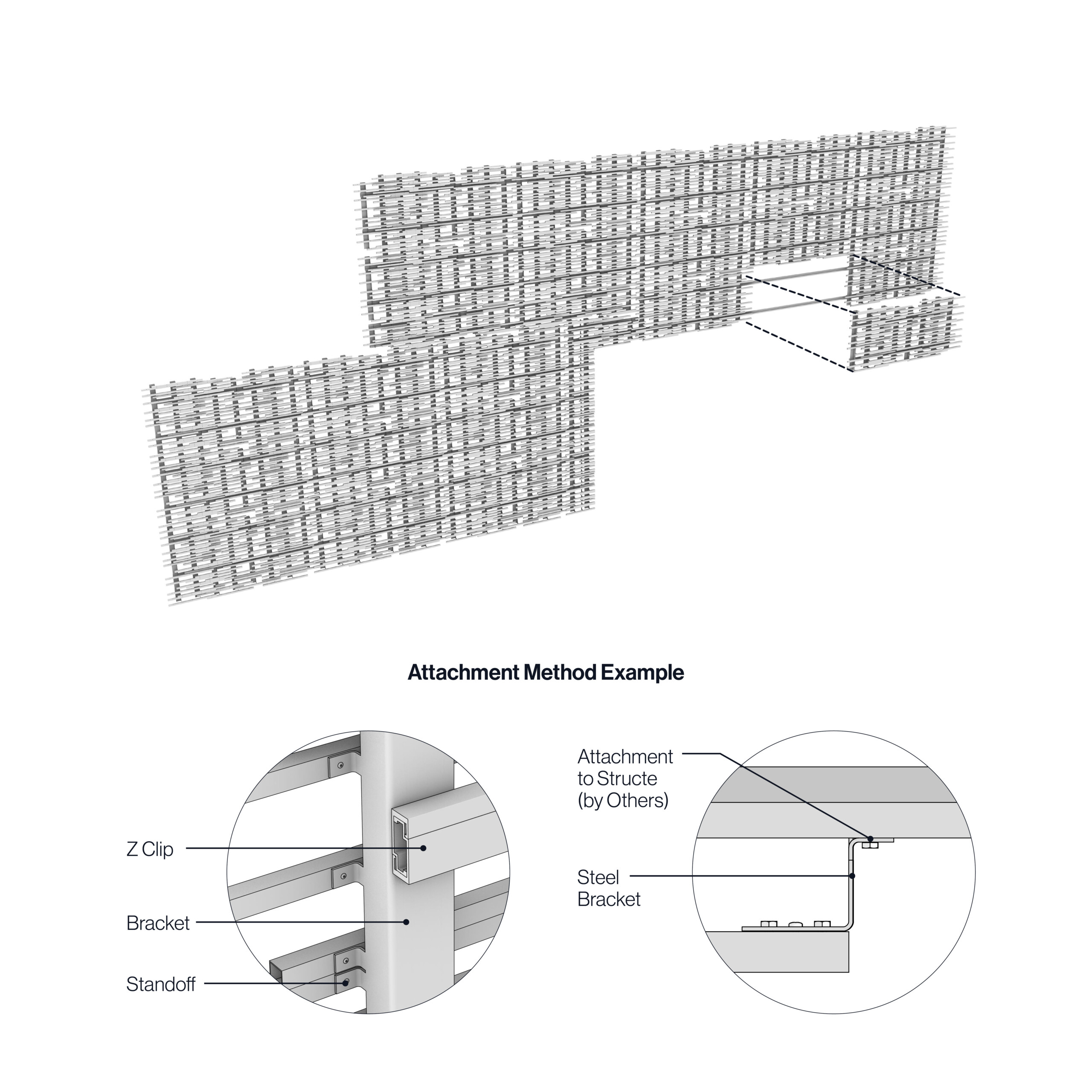

Attachment Method
Brackets with Z-Clips
Accessibility
Yes, Z-Clips

Downloads

  • Secare® – PDF Tear Sheet – Imperial
    Tear Sheet
    4.25 MB
    pdf
  • Powder Coat Color Brochure
    Brochure
    175.95 KB
    pdf

Our Process

  1. PROJECT QUOTING

    In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.

  2. DESIGN STAGE

    The Secare® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input, and final approval.

  3. MANUFACTURING DETAILING

    From the moment we receive your design approval, we work diligently to capture all final details in our easy to understand and highly specific shop drawings.

  4. ENGINEERING REVIEW

    Whether coordinating with your own engineering resources or leveraging our engineering team, every Secare® project is carefully evaluated prior to final production.

  5. ADVANCED MANUFACTURING

    Our facilities, equipment, and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client, and your finished installation.

  6. SHIPPING & DELIVERY

    Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.

Let us help you get started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° USD821613, USD849274.
