SoftGrid® Square

Square’s acoustic ceiling modules create a linear design on your ceiling with perfectly spaced perpendicular panels. You can follow a long hallway by connecting the modules together for a seamless design, or you can use them in a targeted way by placing them in a specific location. No matter how you use them, you’ll get acoustic support thanks to the Soft Sound® material. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

Downloads Find a rep Add to project
Get a Quote Watch Video

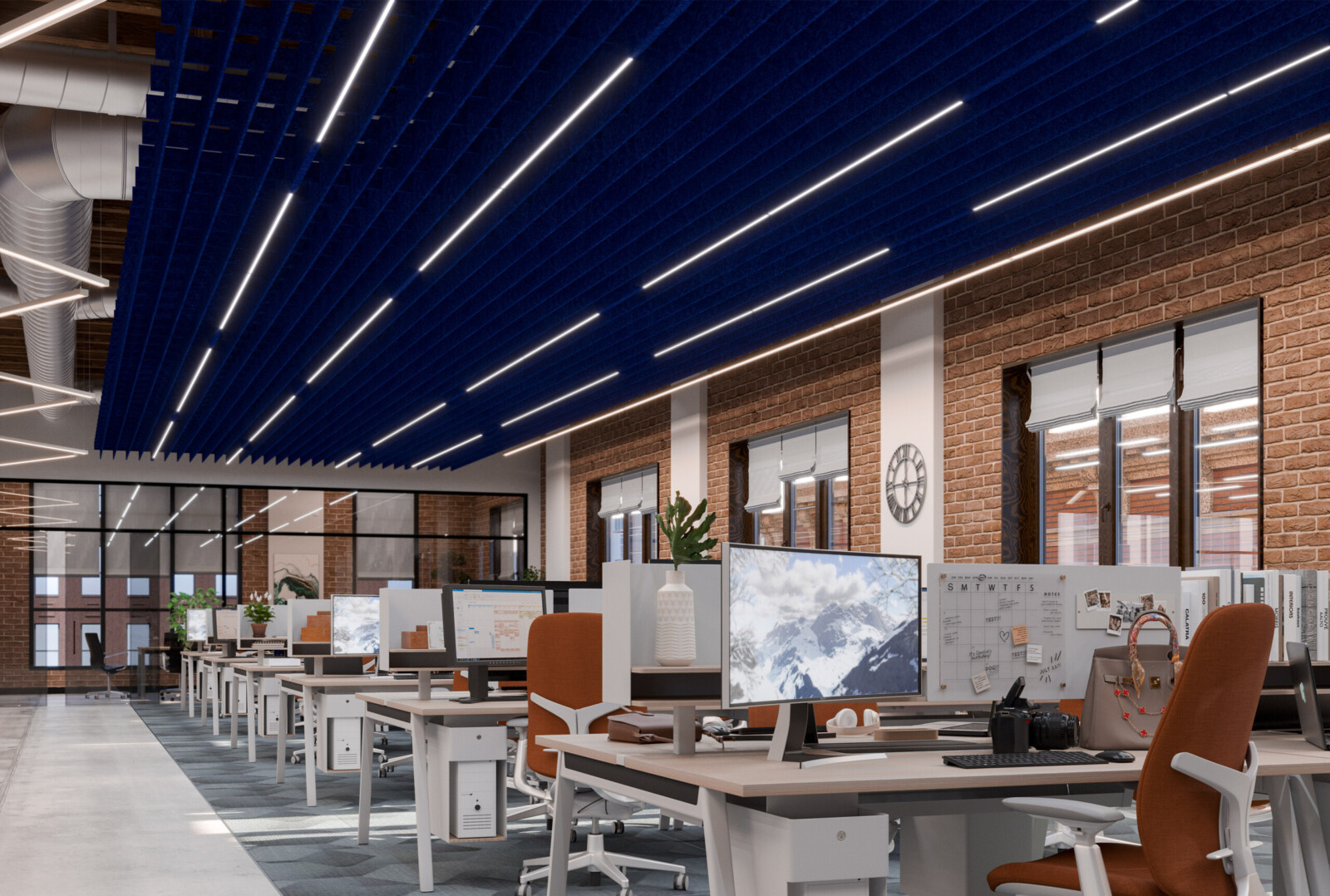

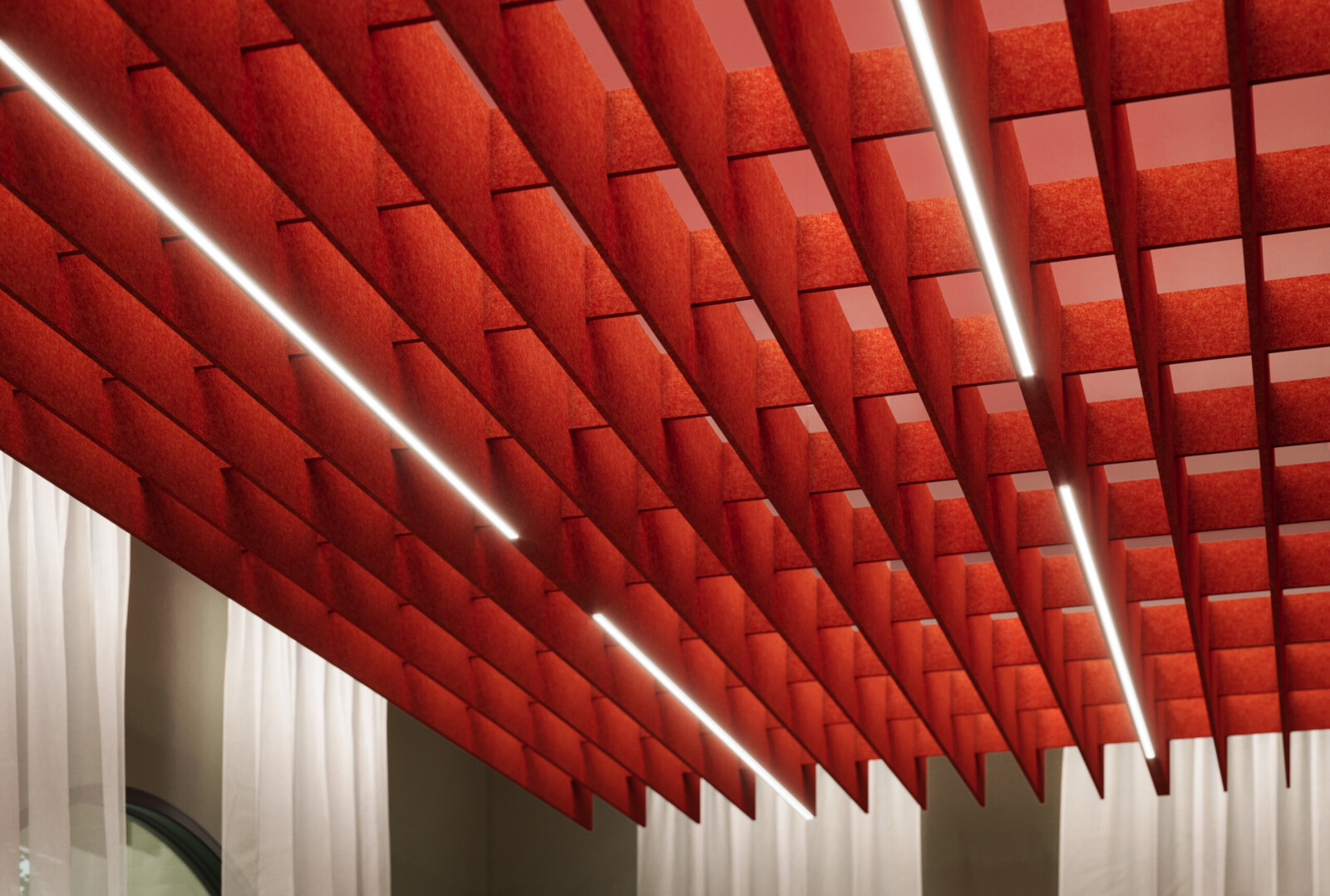

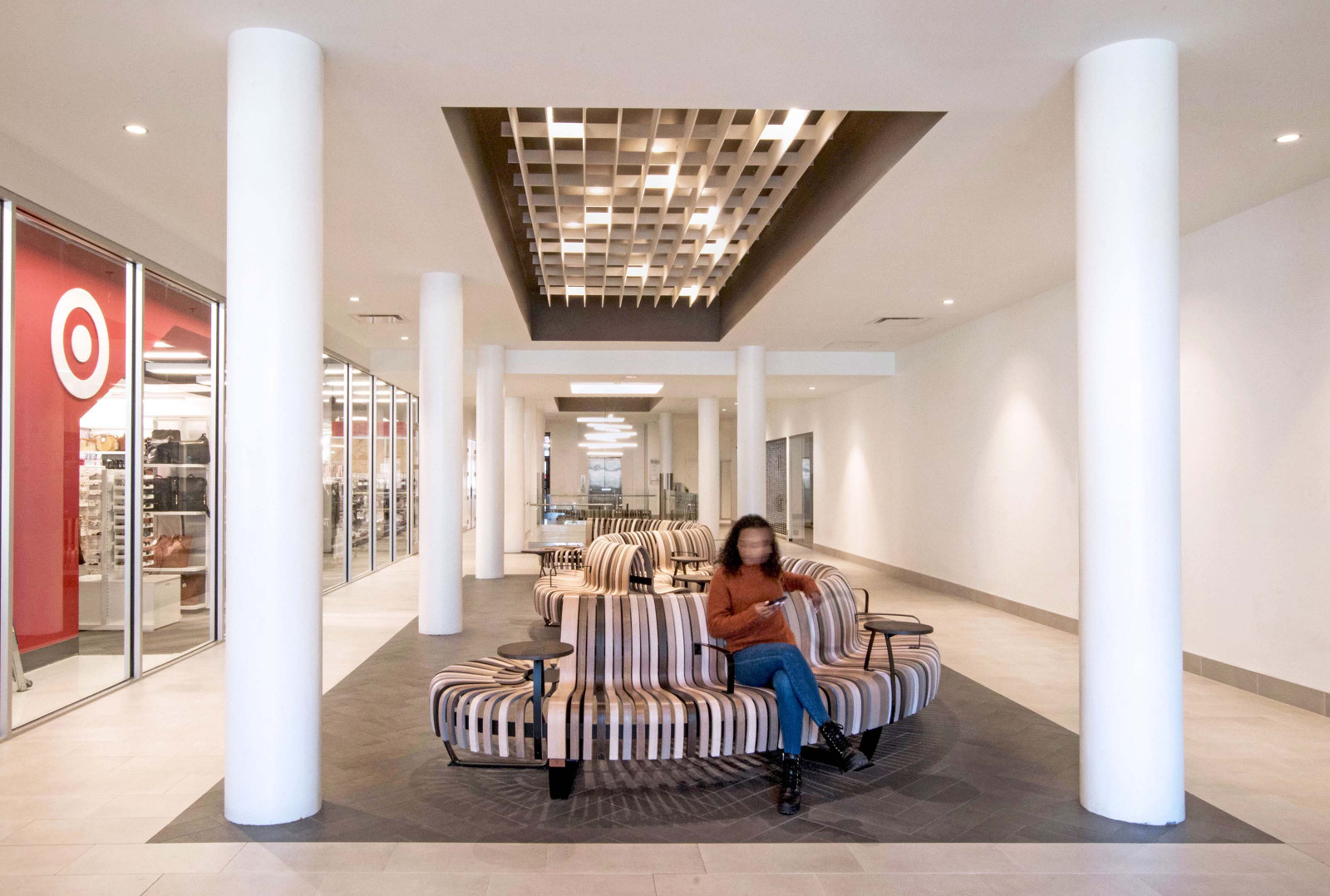

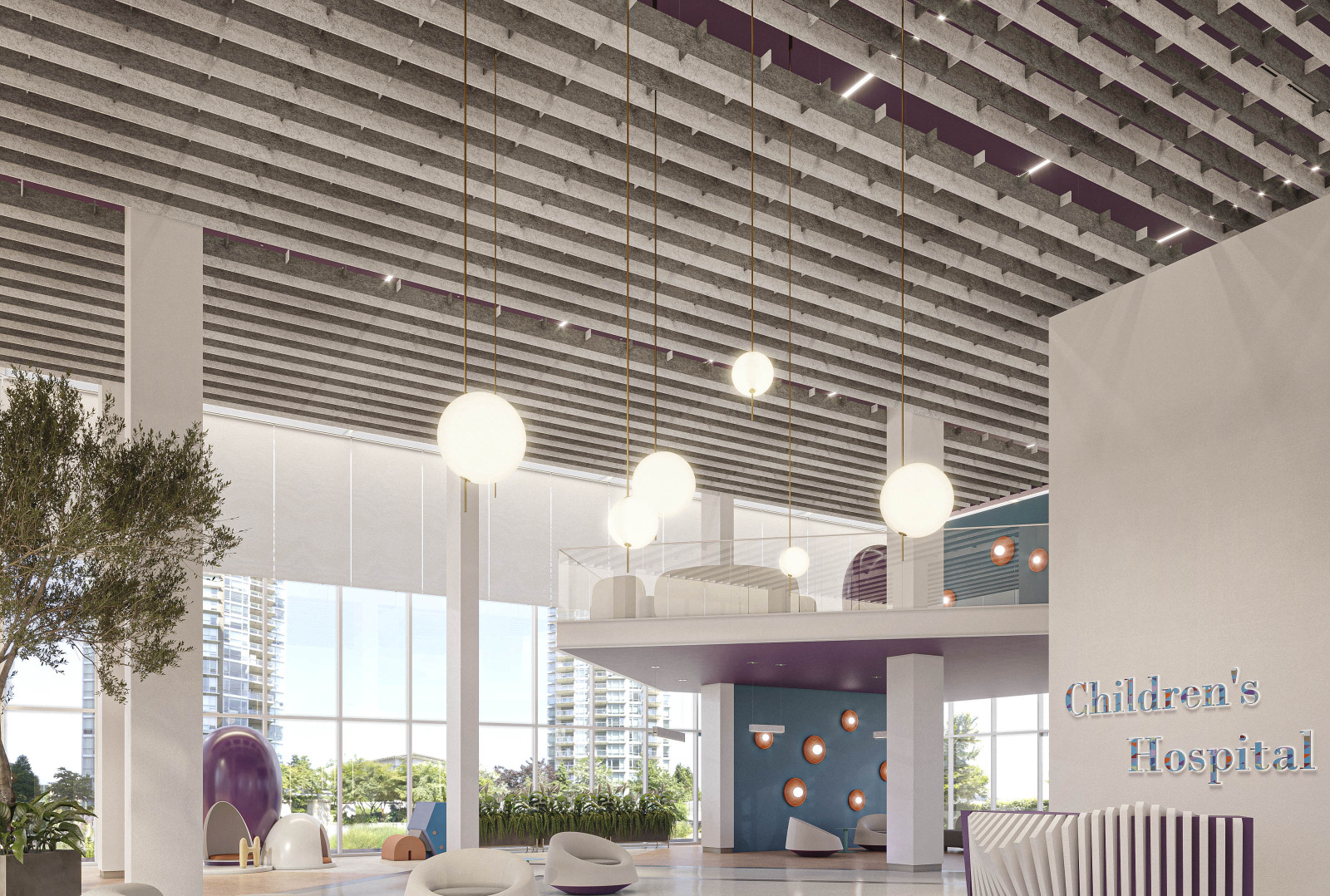

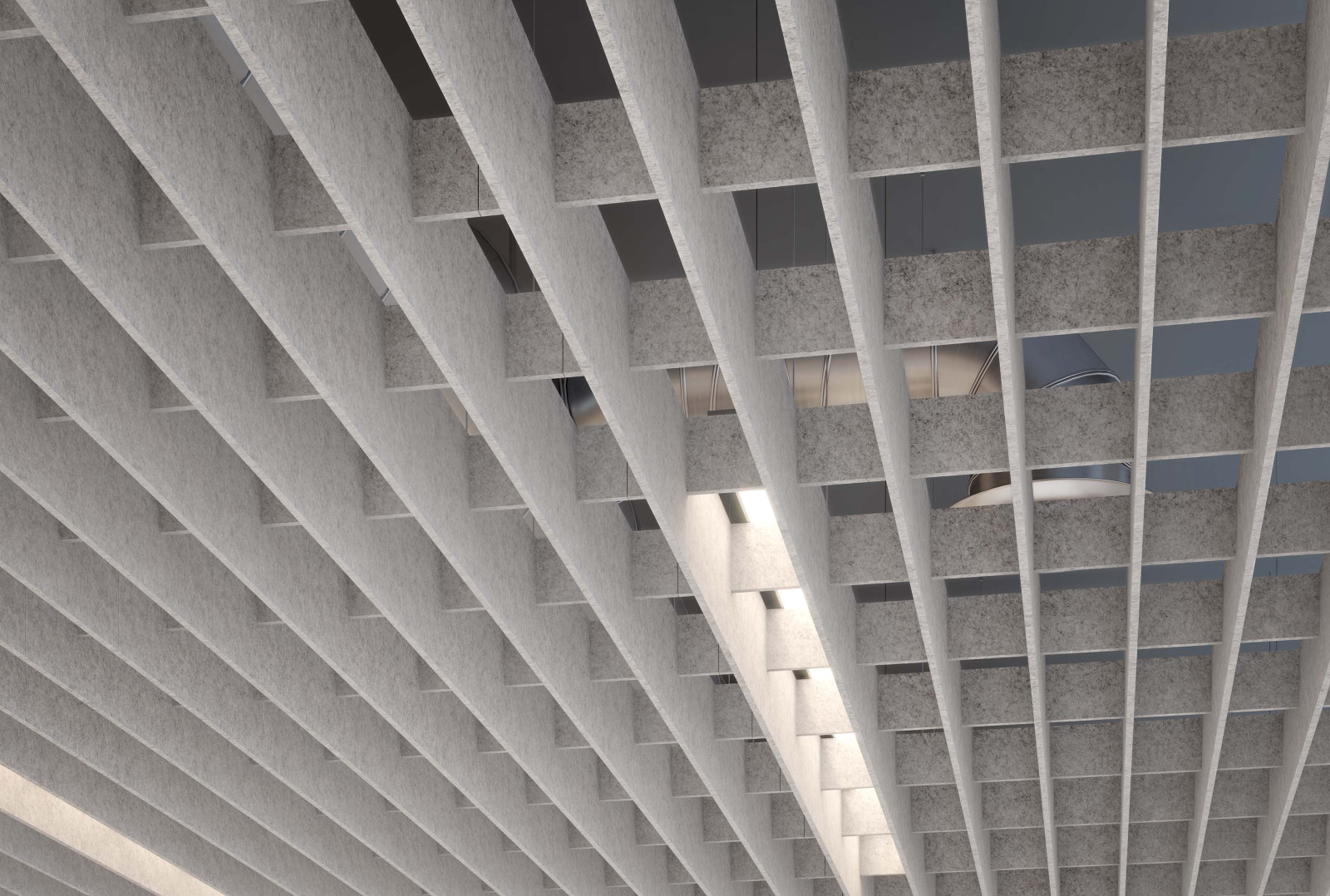

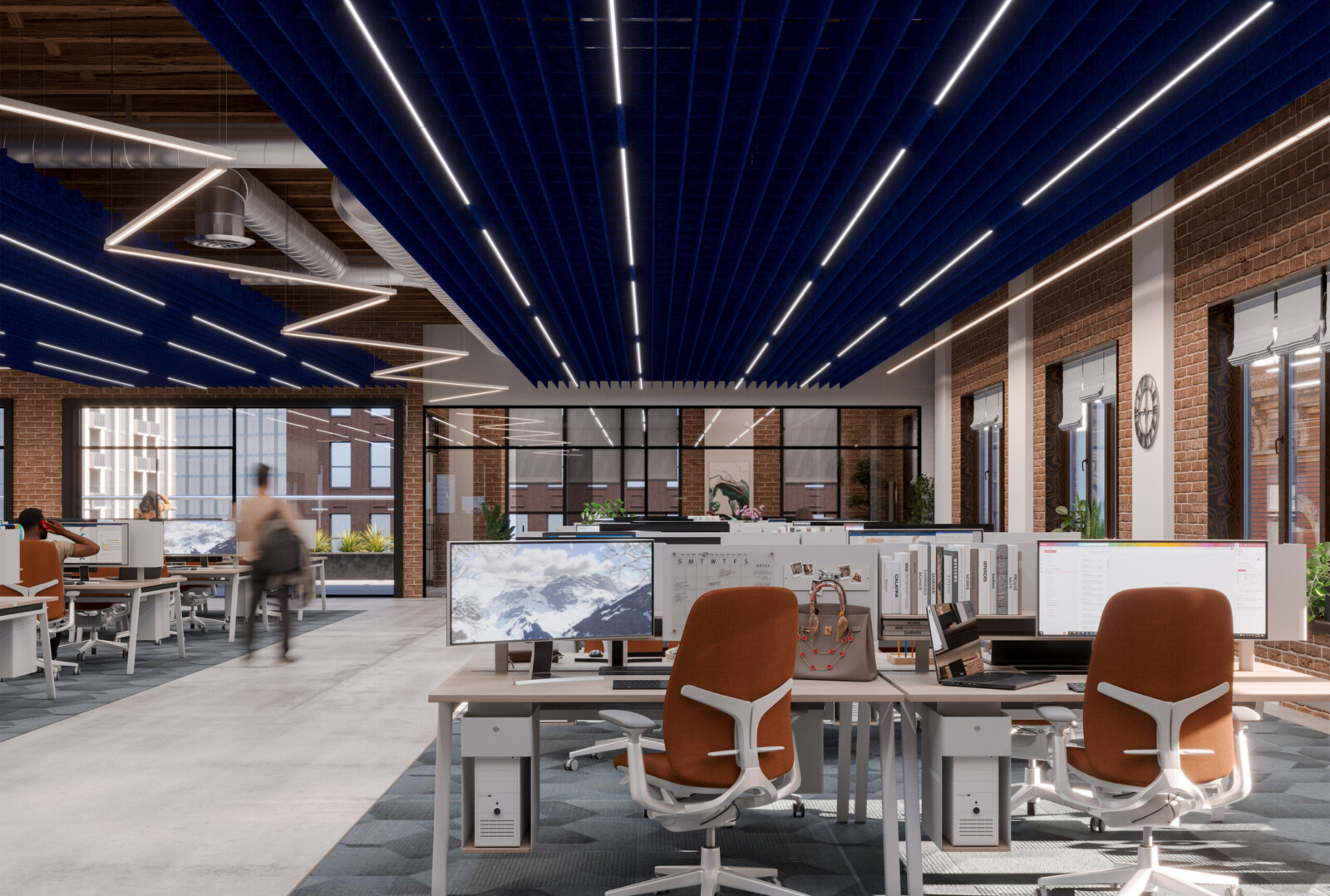

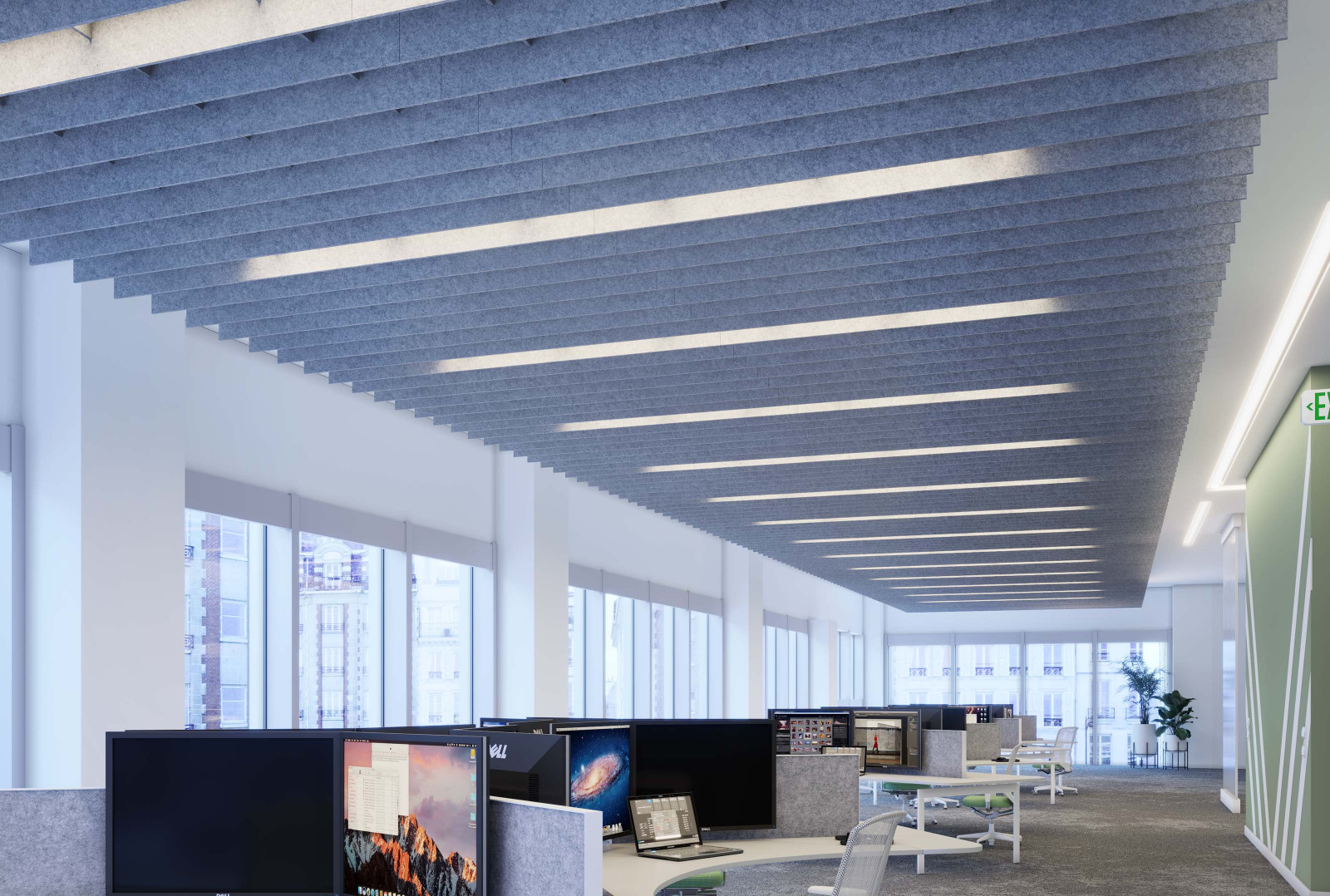

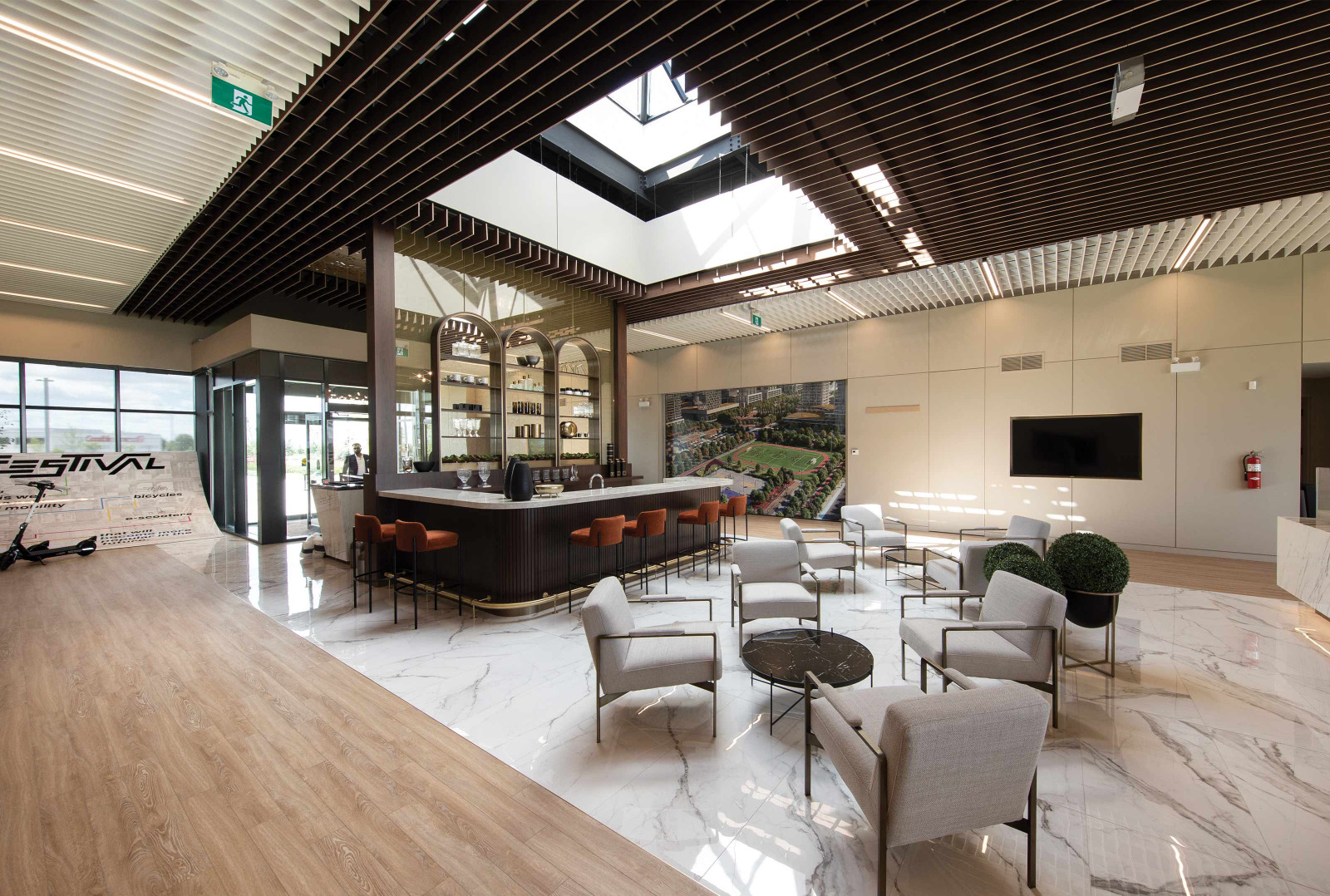

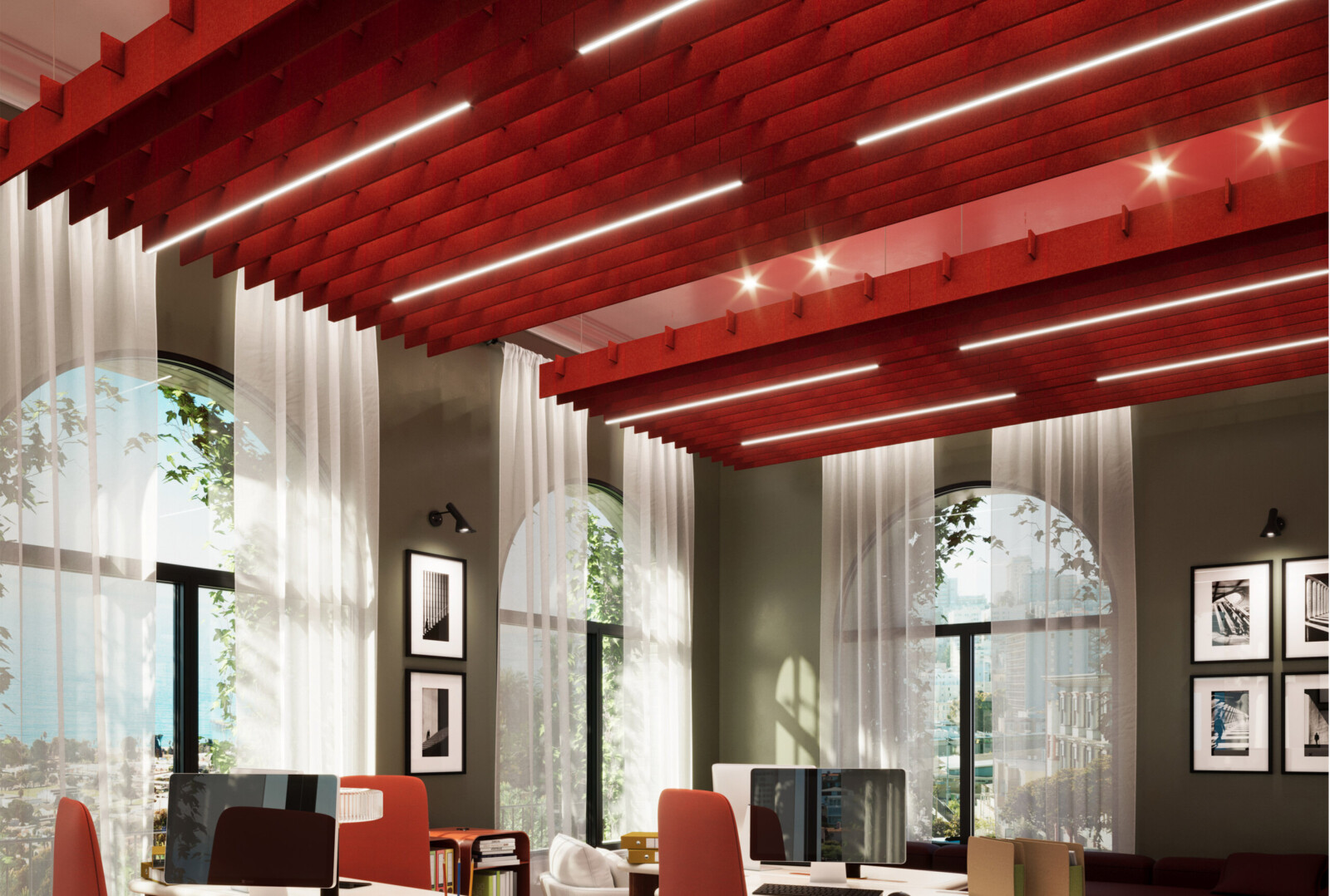

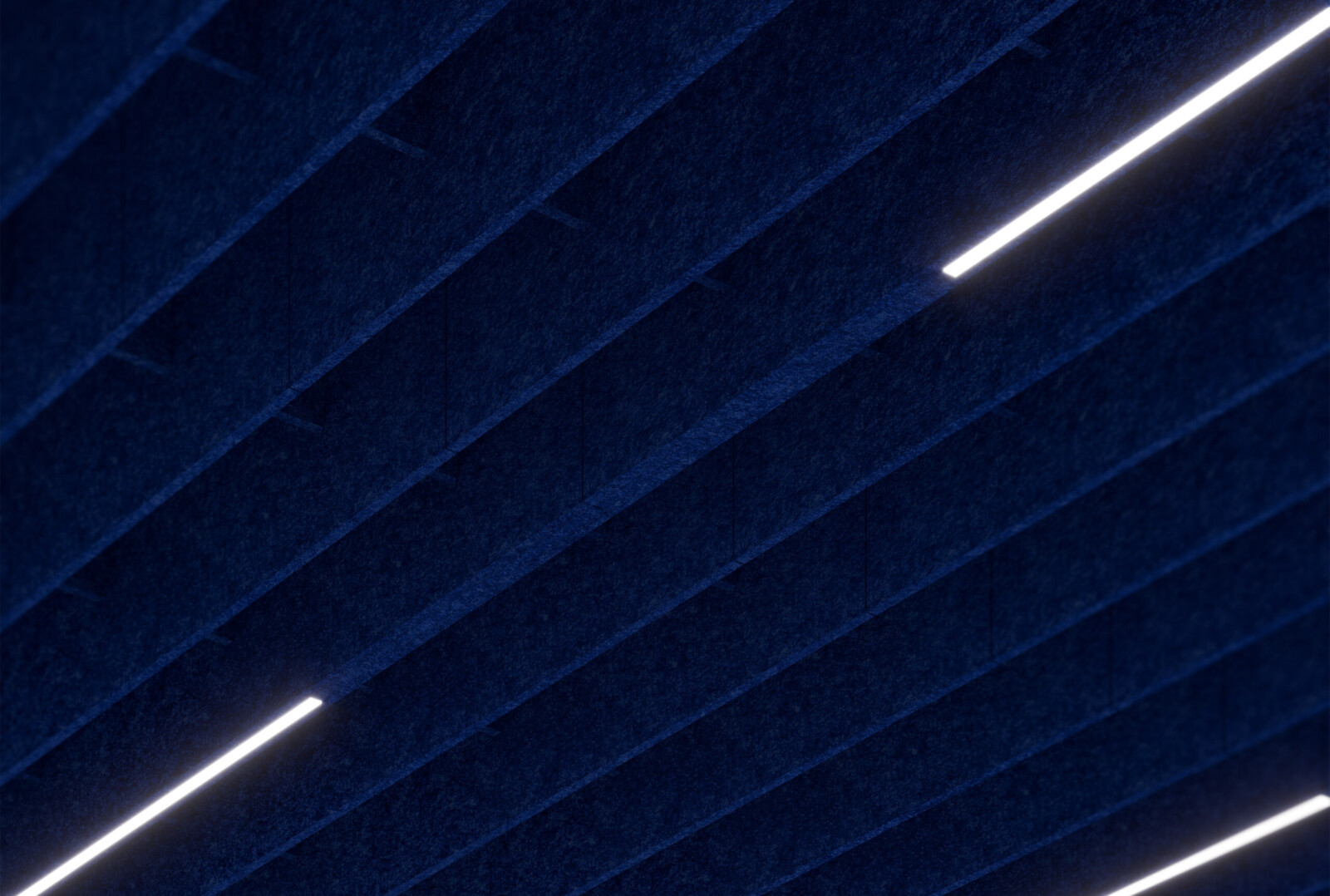

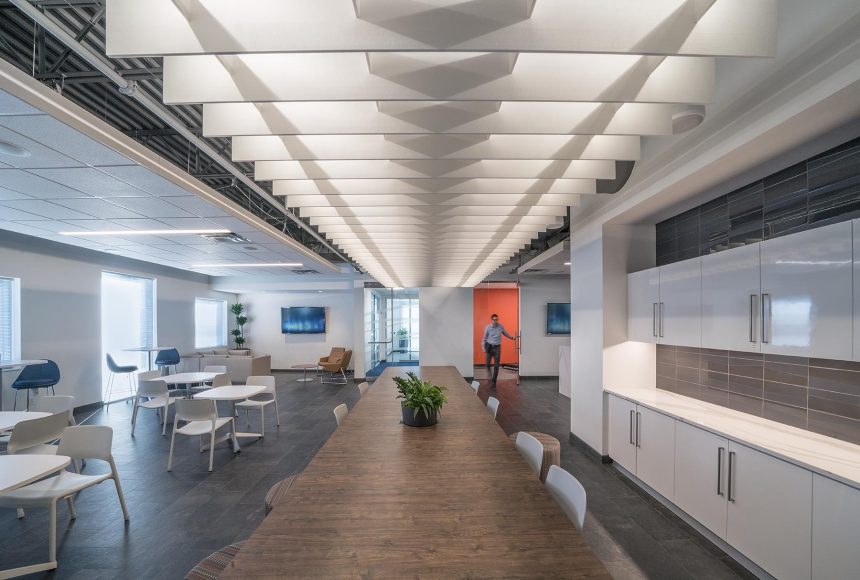

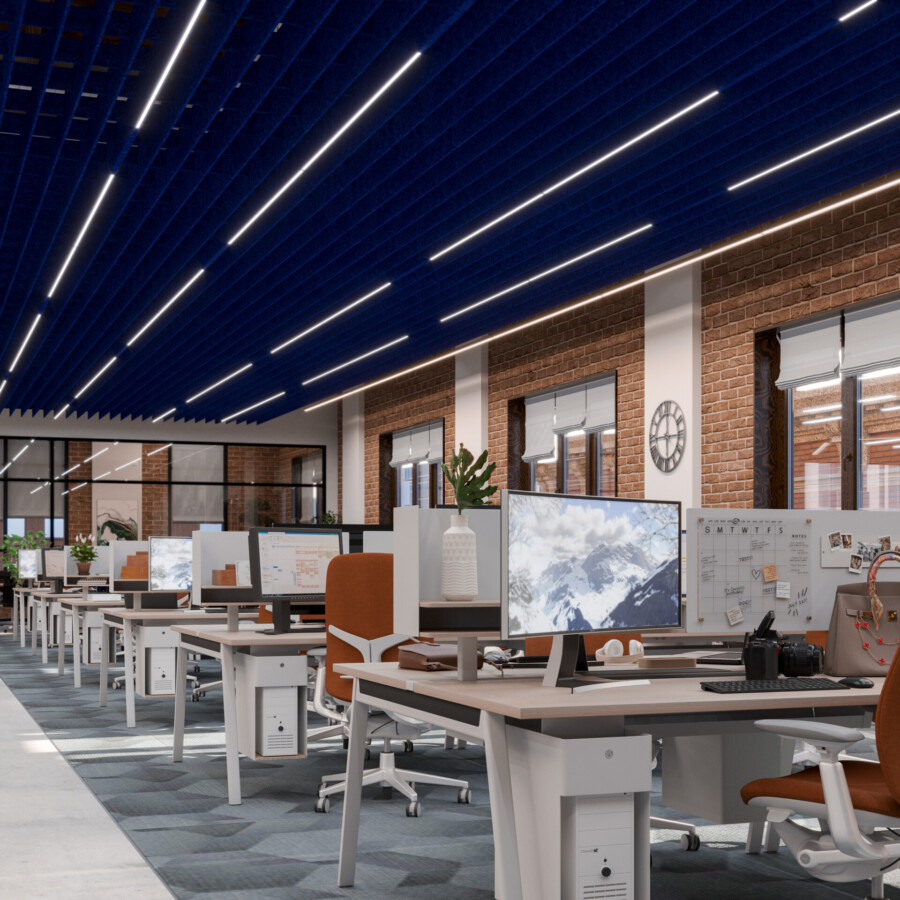

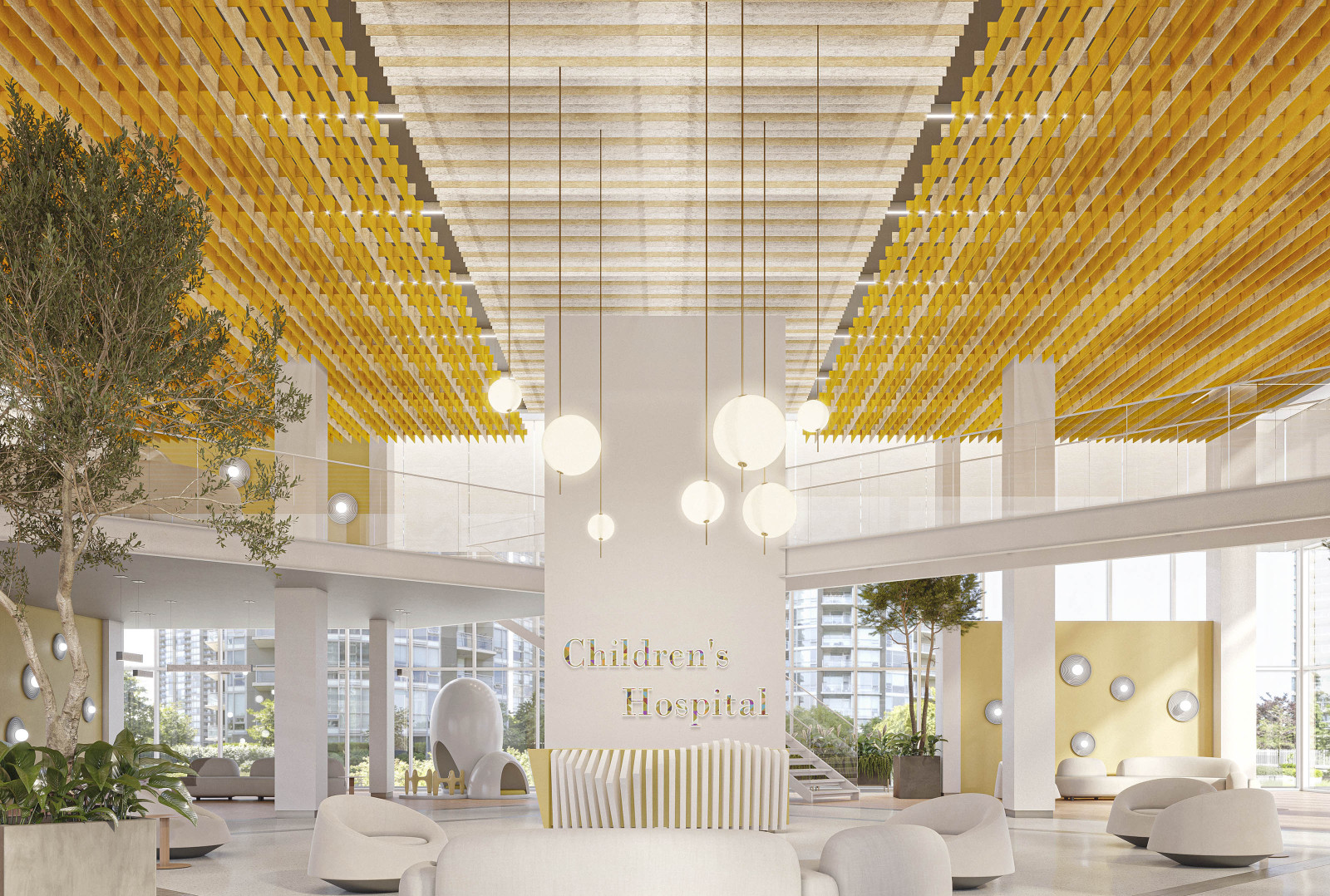

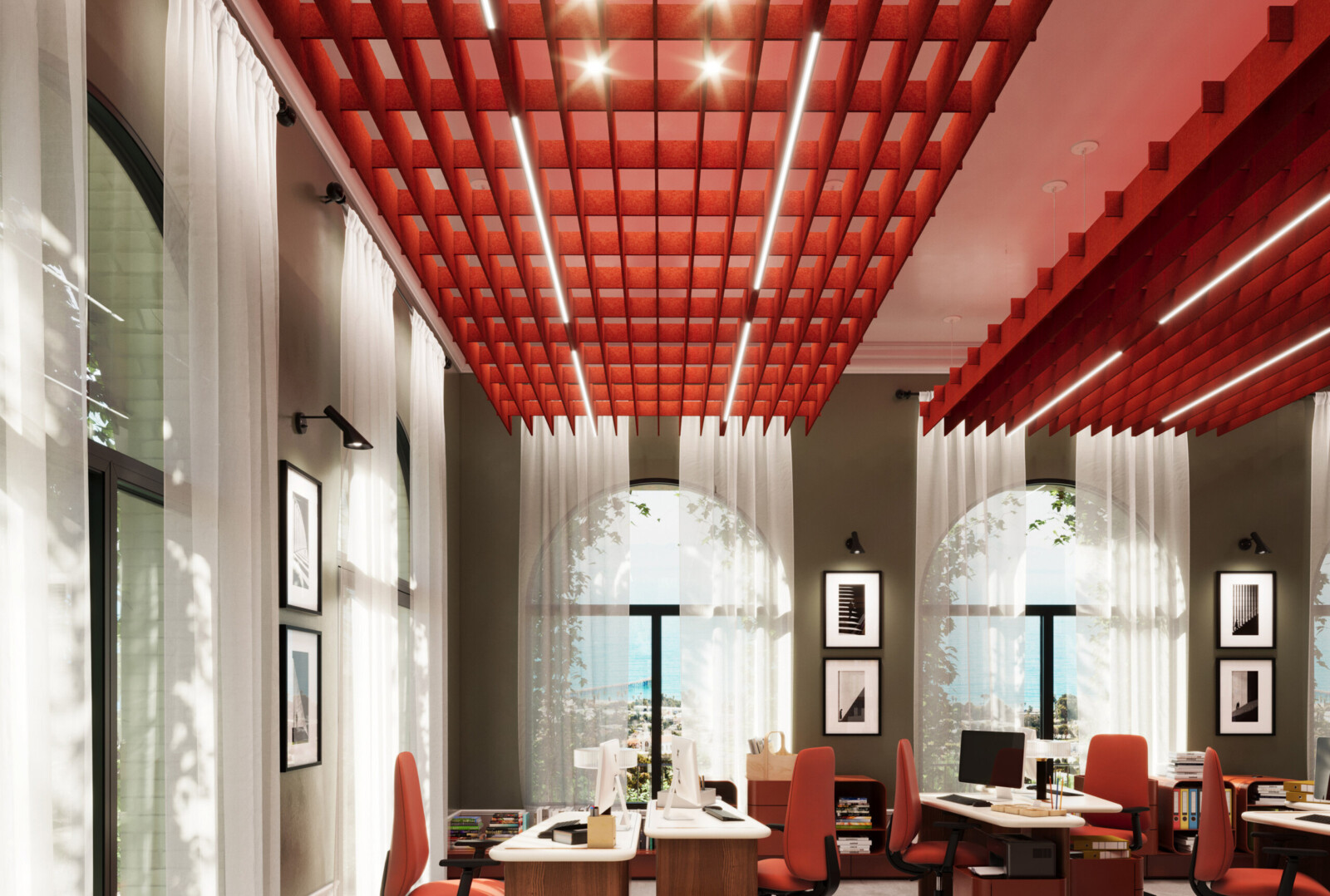

SoftGrid® Square in use

Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand

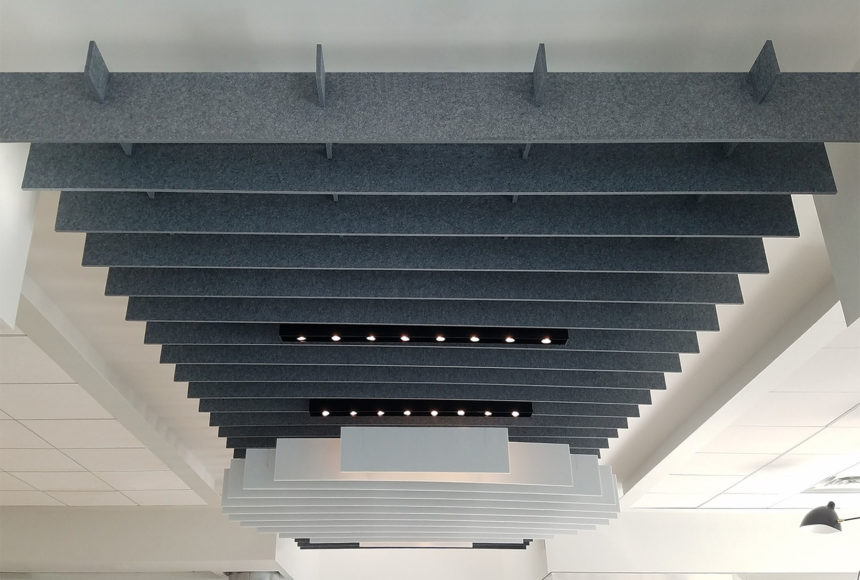

SoftGrid-Square-Index-Investments-Office-Jupiter-FL_Web
Expand
Expand
Expand
Expand

Key Features

  • Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Preconfigured Solutions

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  • Continuous Baffles

    Utilizing a hidden fin-to-fin alignment system, SoftGrid® provides continuity in all directions across your space. In addition, our optional hanging points offer a fine-tuning capability for installers. Our custom formulated material thickness and density ensures rigidity that limits deflection.

  • Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

Diagrams Specs

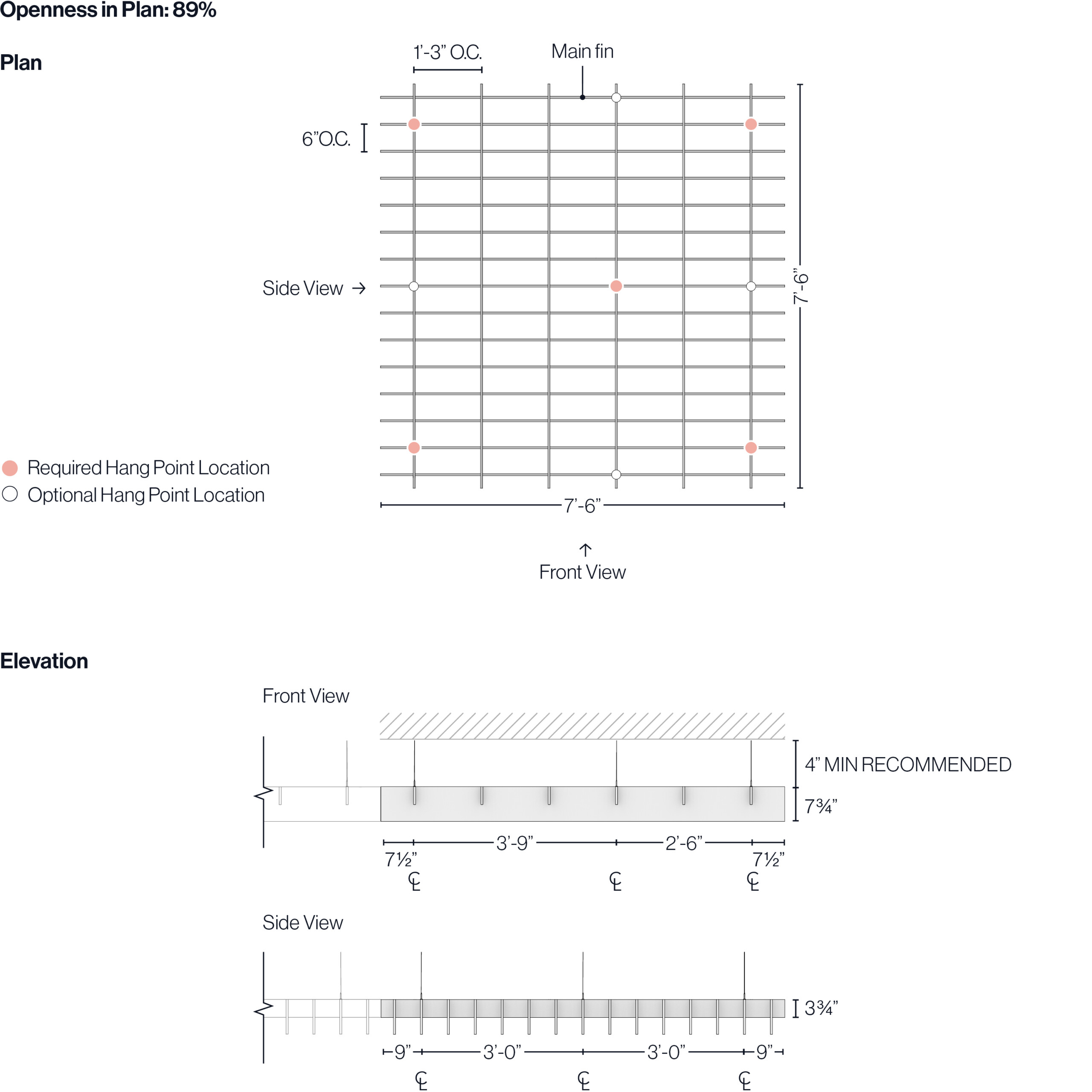

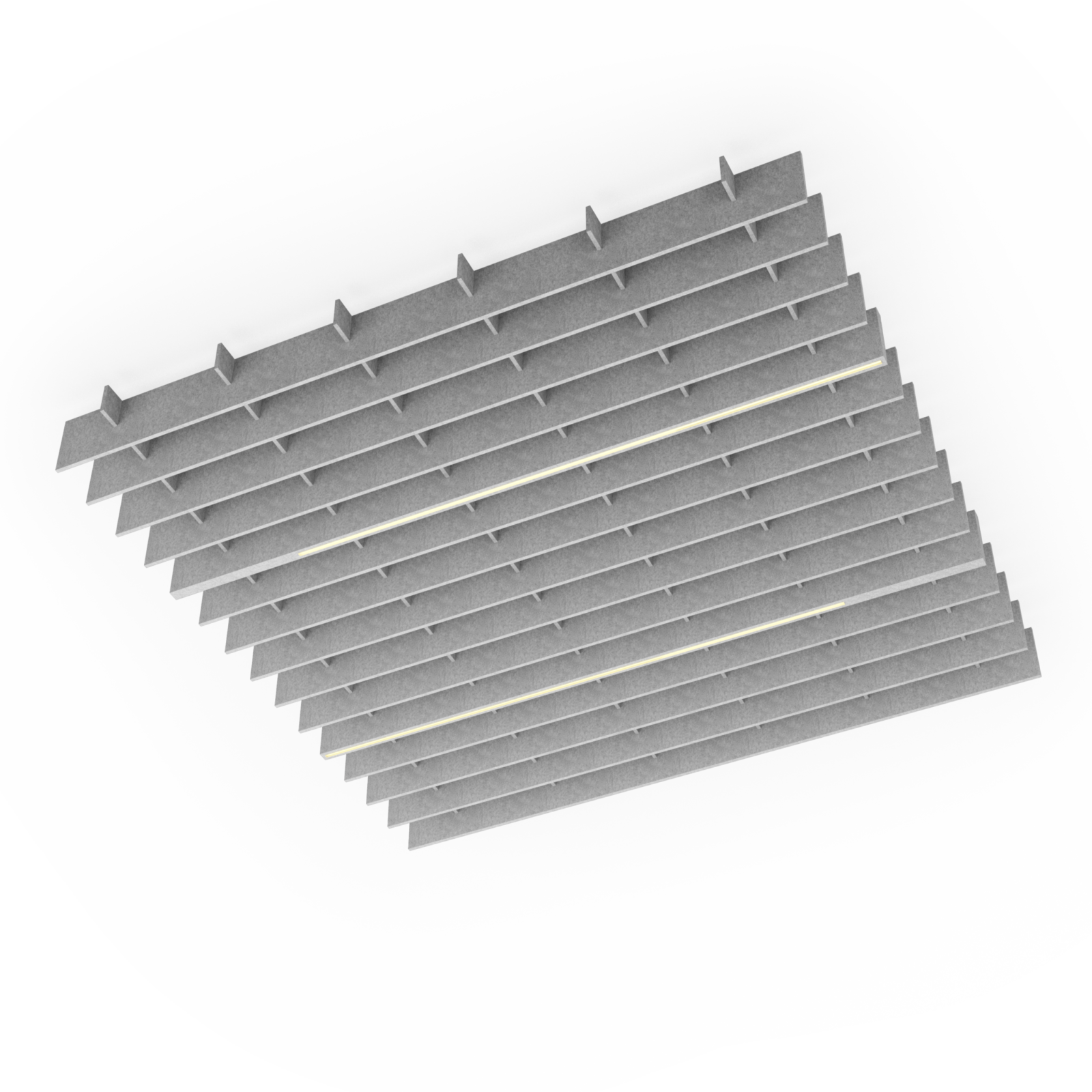

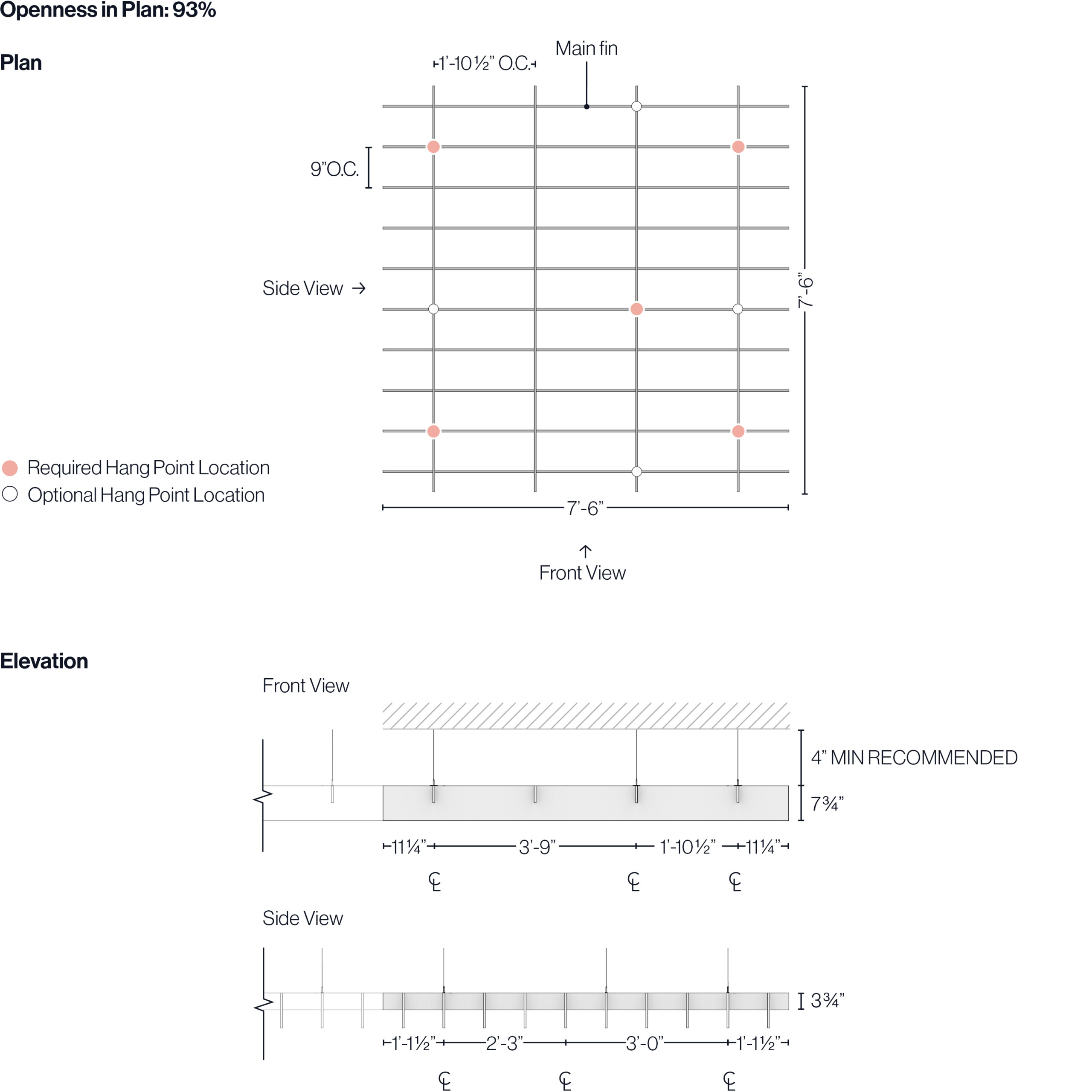

Standard Module - Square 6

Standard Module - Square 9

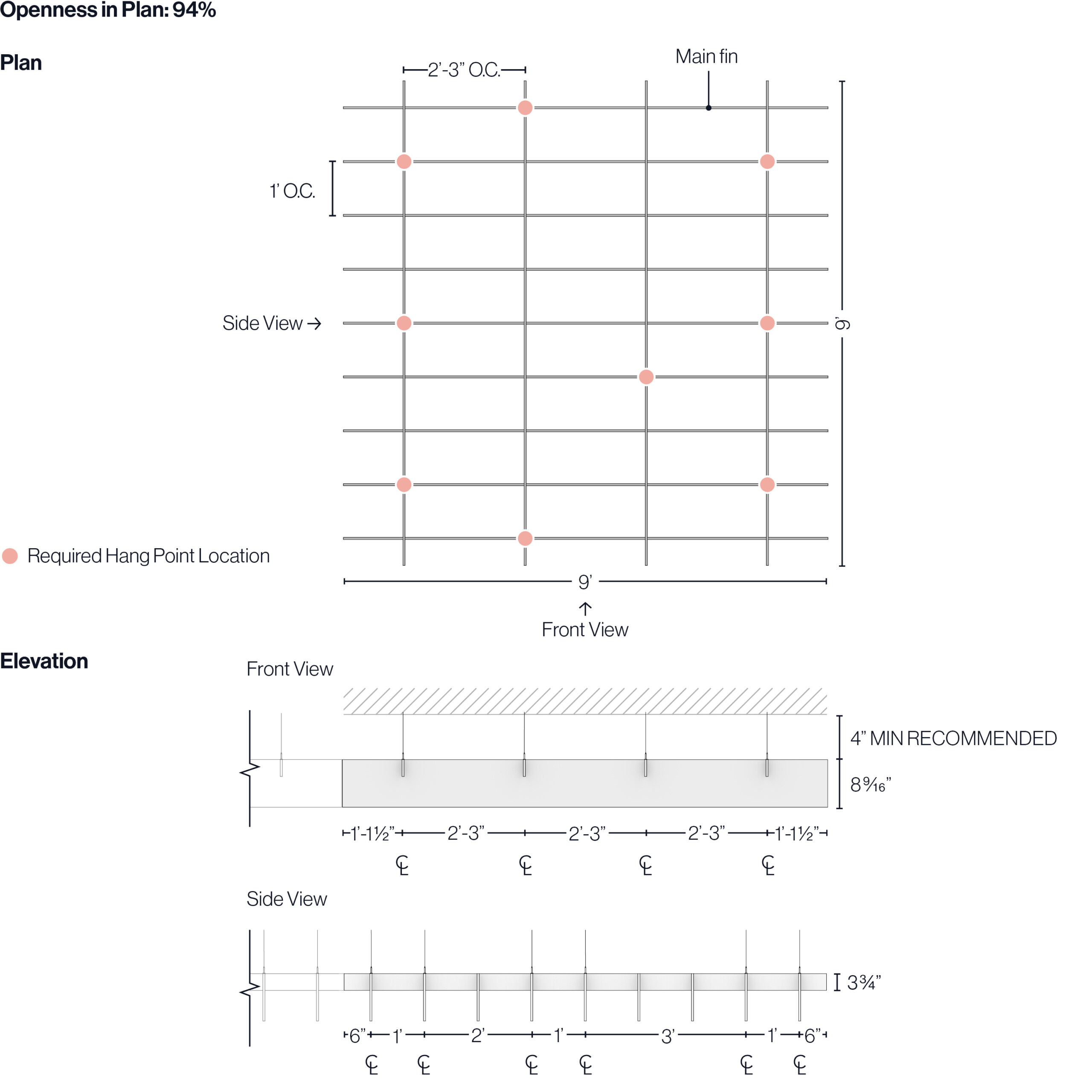

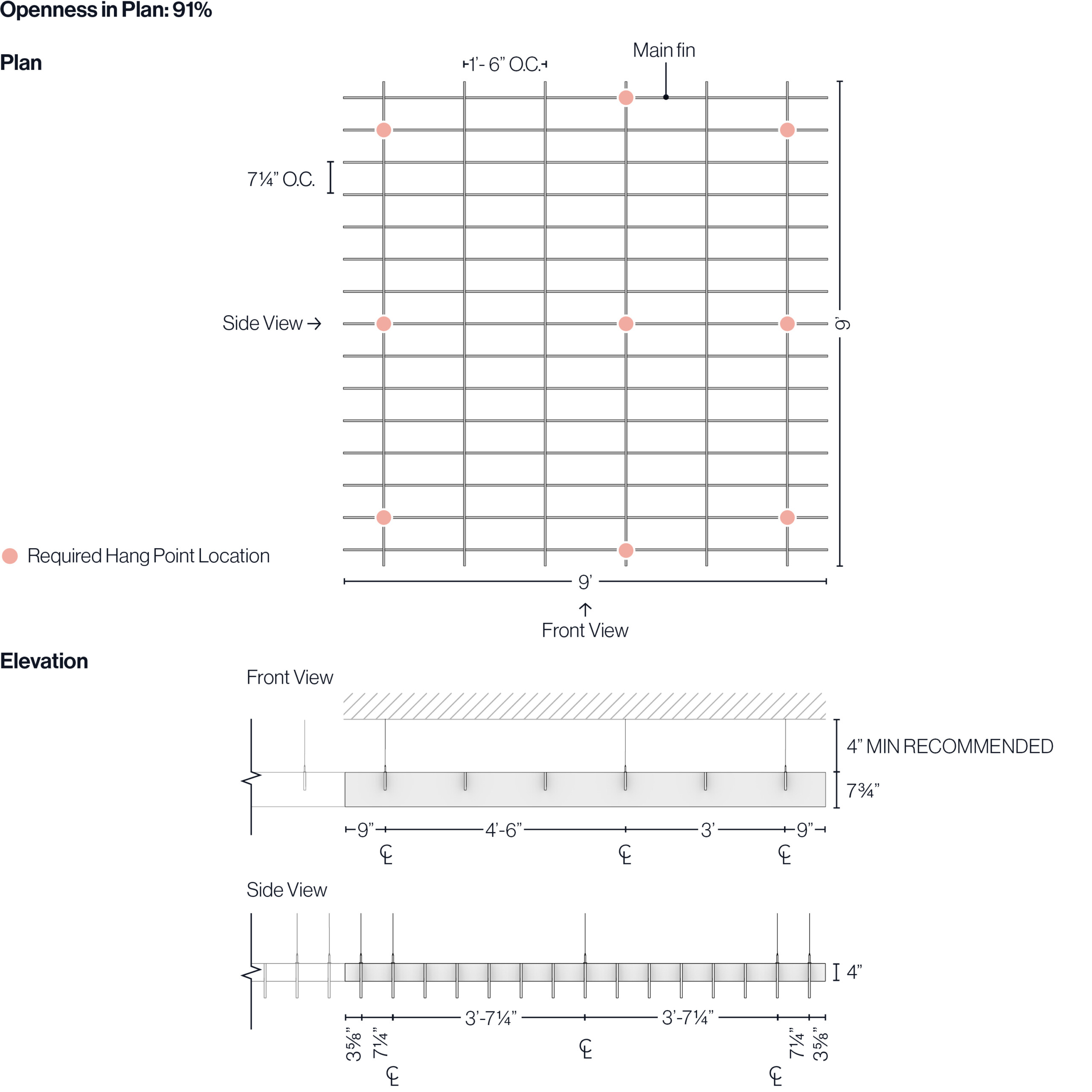

Standard Module - Square 7 Max

Standard Module - Square 12 Max

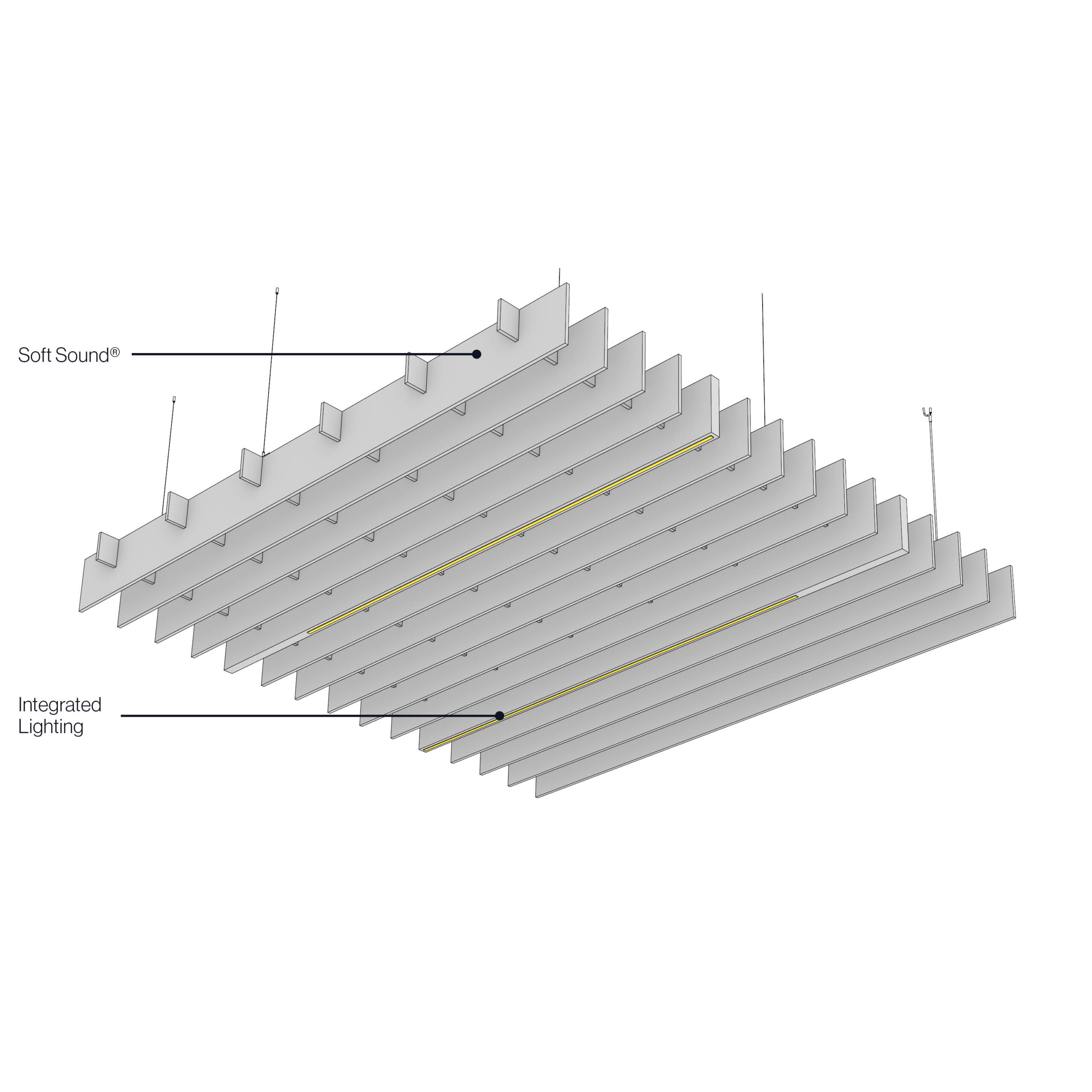

Understanding the Module - Square 6

Understanding the Module - Square 9

Understanding the Module - Square 7 Max

Understanding the Module - Square 12 Max

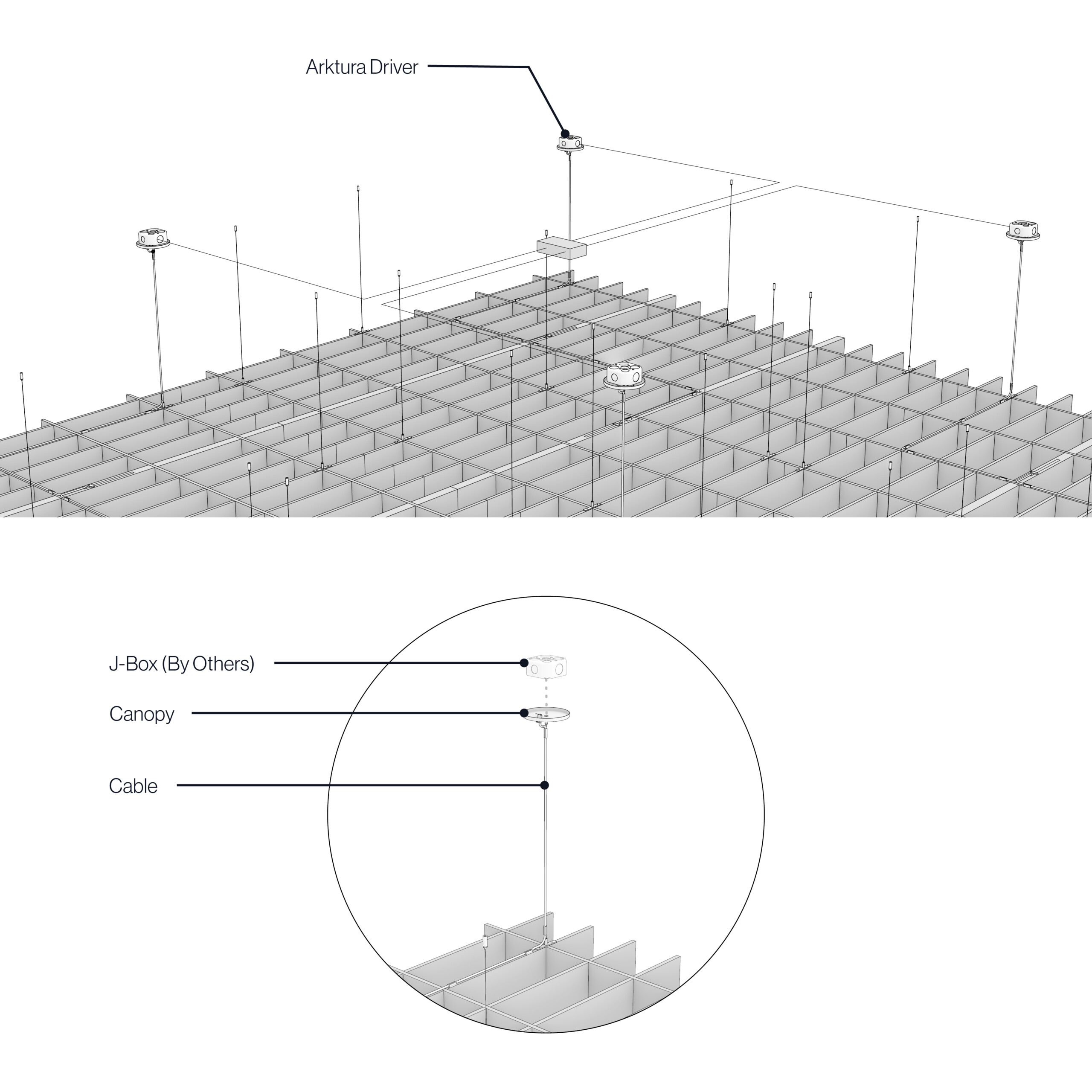

Attachment Details

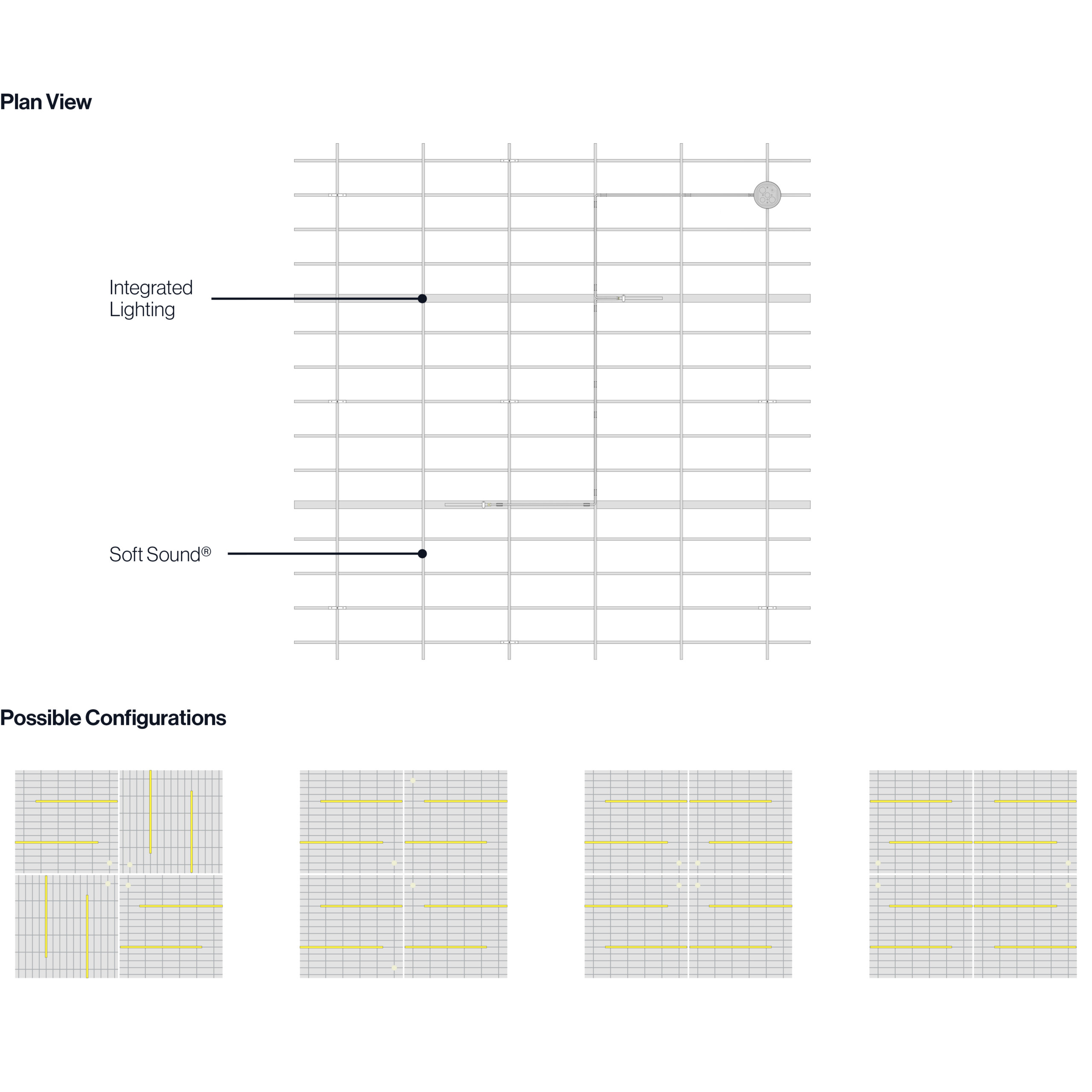

Module Configuration

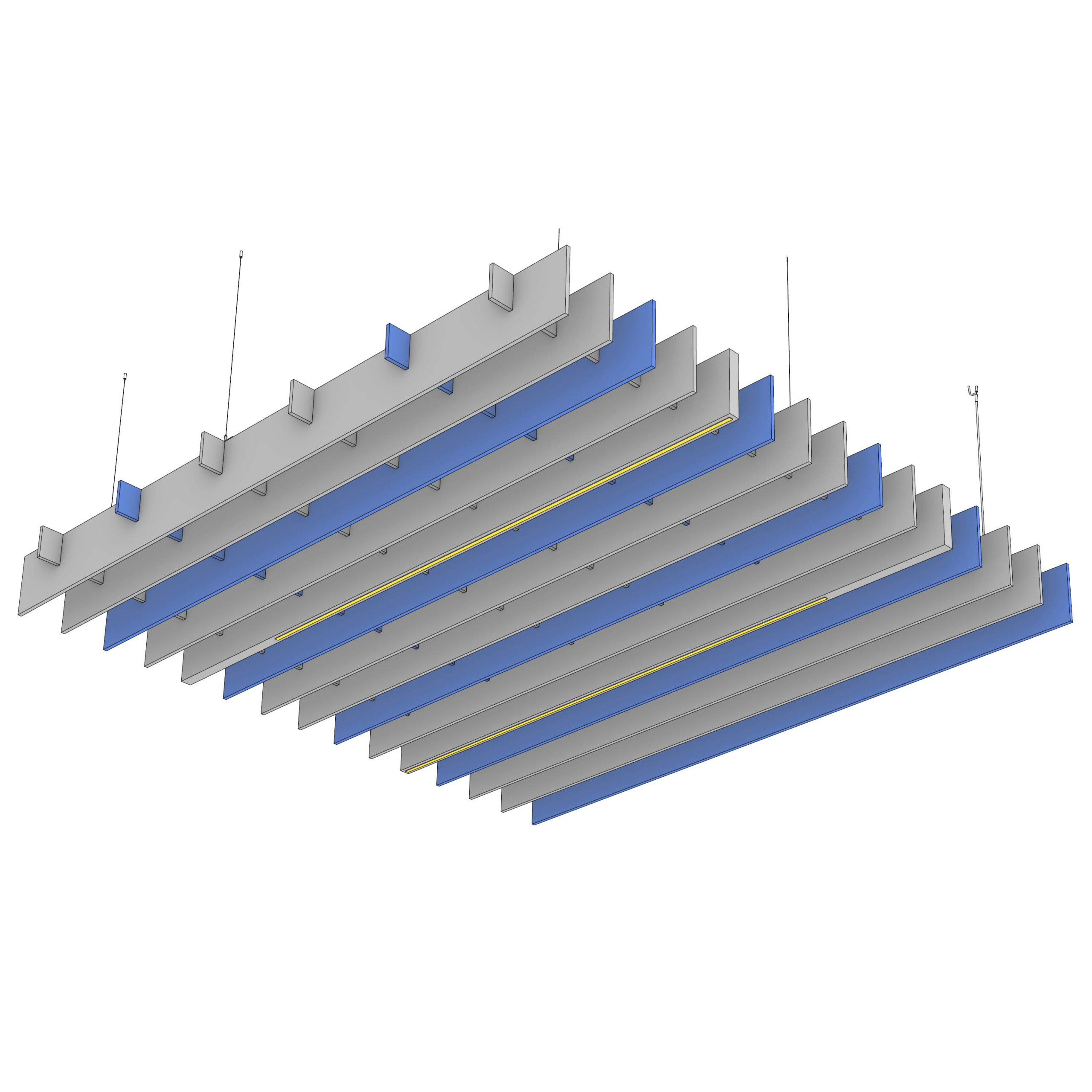

Optional SoftGrid® Square Duo Tone

System Specs

Dimensions (WxLxD)
Square 6 & 9: 7’-6” x 7’-6” x (Min. 3 3/4” Max. 7 3/4”)
Square 7 Max: 9’x9’ x (Min. 4” Max. 7 3/4”)
Square 12 Max: 9’x9’ x (Min. 3 3/4” Max. 8 9/16”)
Fin Material
12mm Soft Sound® (PET)
Openness in Plan
Square 6": 89%
Square 9": 93%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
Square 6" - True NRC® 0.60: Ceiling F-100 Method
Square 6" - True NRC® 0.65: Wall A Method
Square 9" - True NRC® 0.65: Ceiling F-100 Method
Square 9" - True NRC® 0.75: Wall A Method
Square 7" Max - True NRC® 0.50: Ceiling F-100 Method
Square 12" Max - True NRC® 0.40: Ceiling F-100 Method
Attachment Method
1/32" Stainless Cable
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoftGrid® Square – Product Brochure PDF – Imperial
    Brochure
    3 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • SoftGrid® Square – 3D DWG – Imperial
    3D Model
    330.08 KB
    zip
  • SoftGrid® Square Max – 3D DWG – Imperial
    3D Model
    319.94 KB
    zip
  • SoftGrid® Square – 3D SKP – Imperial
    3D Model
    772.29 KB
    zip
  • SoftGrid® Square Max – 3D SKP – Imperial
    3D Model
    528.5 KB
    zip
  • SoftGrid® Square – 3D RFA – Imperial
    3D Model
    60.24 MB
    zip
  • SoftGrid® Square Max – 3D RFA – Imperial
    3D Model
    59.33 MB
    zip
  • SoftGrid® Square – 3D DWG – Metric (EMEA ONLY)
    3D Model
    108.86 KB
    zip
  • SoftGrid® Square – PDF Tear Sheet – Metric (EMEA ONLY)
    Tear Sheet
    7.01 MB
    pdf

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.

  2. SELECT A COLOR/DUO TONE OPTION

    Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.

  3. SELECT NUMBER OF MODULES

    All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
