SoftShapes® Hex

SoftShapes® Hex brings the best of Arktura’s versatility and Soft Sound® acoustics to match the extent of your creative imagination. Complete one-of-a-kind designs not previously attainable with these acoustic clouds available in multi-sided form factors. Install in tandem with other geometric Arktura modules such as SoundStar® and SoftGrid® for truly unique configurations.

Downloads Find a rep Add to project
Watch Video



Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand

Key Features

  • Reduce Noise & Enhance Acoustics

    SoftShapes™ Soft Sound® material reduces the impact of noise from everyday sonic discomforts such as outside noise, typing, and chatter, resulting in a more pleasant and productive environment. In addition, its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Profiles to Suit Your Needs

    SoftShapes™ offers a wide range of available sizes that can be configured to best suit your needs. For example, align multiple shapes adjacent to each other or stack modules of varying sizes.

  • Expansive Soft Sound Library

    Choose from an extensive library of Soft Sound® colors and premium wood textures. Soft Sound® material provides impressive looks and top-quality sound attenuation.

  • Adjustable & Flexible Attachments

    SoftShapes™ is available in various shapes, widths, and depth options, giving you complete design flexibility in any space. In addition, it can be mixed with other SoftShapes™ modules to create new and exciting geometric systems for wall and ceiling installations.

  • Configure SoftShapes in Creative Ways

    SoftShapes™ is available in various shapes, widths, and depth options, giving you complete design flexibility in any space. In addition, it can be mixed with other SoftShapes™ modules to create new and exciting geometric systems for wall and ceiling installations.

  • Compatible with SoundStar® & SoftGrid®

    Select SoftShapes™ Hex modules are compatible with Arktura‘s modular hexagonal acoustic cloud systems. Use together to bring transformative design variation to any space.

Baffle Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

Diagrams Specs

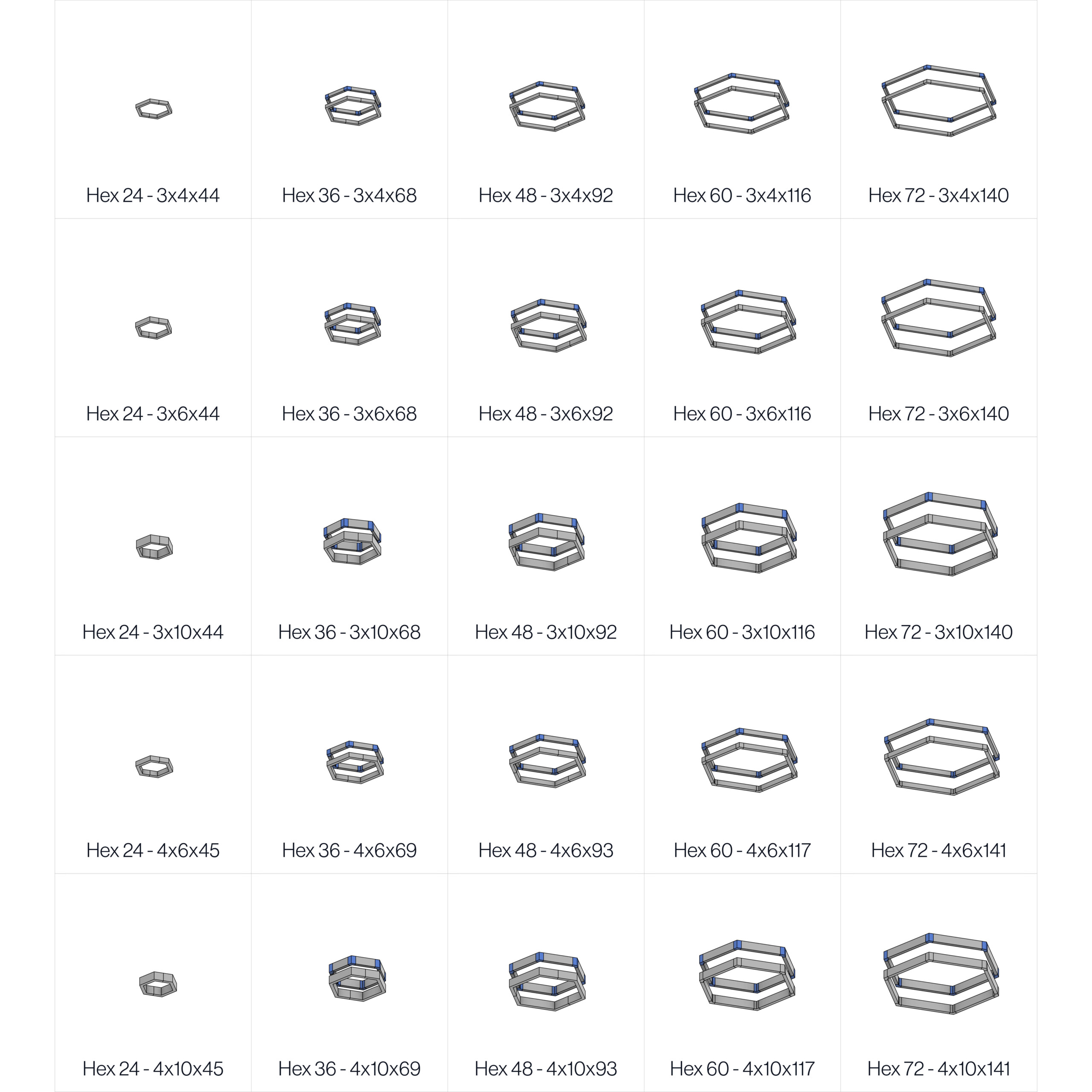

Standard Configurations

Multiple Modules

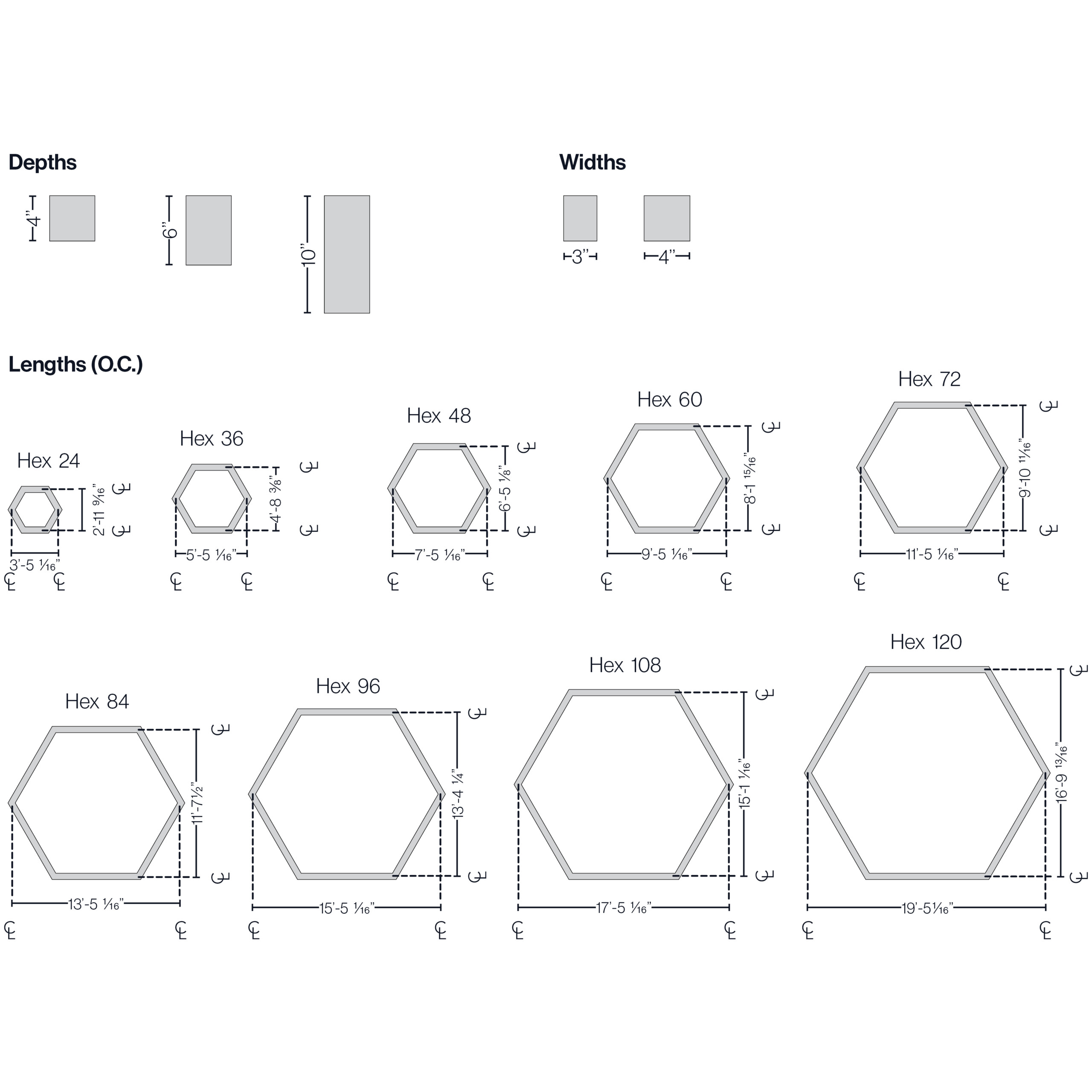

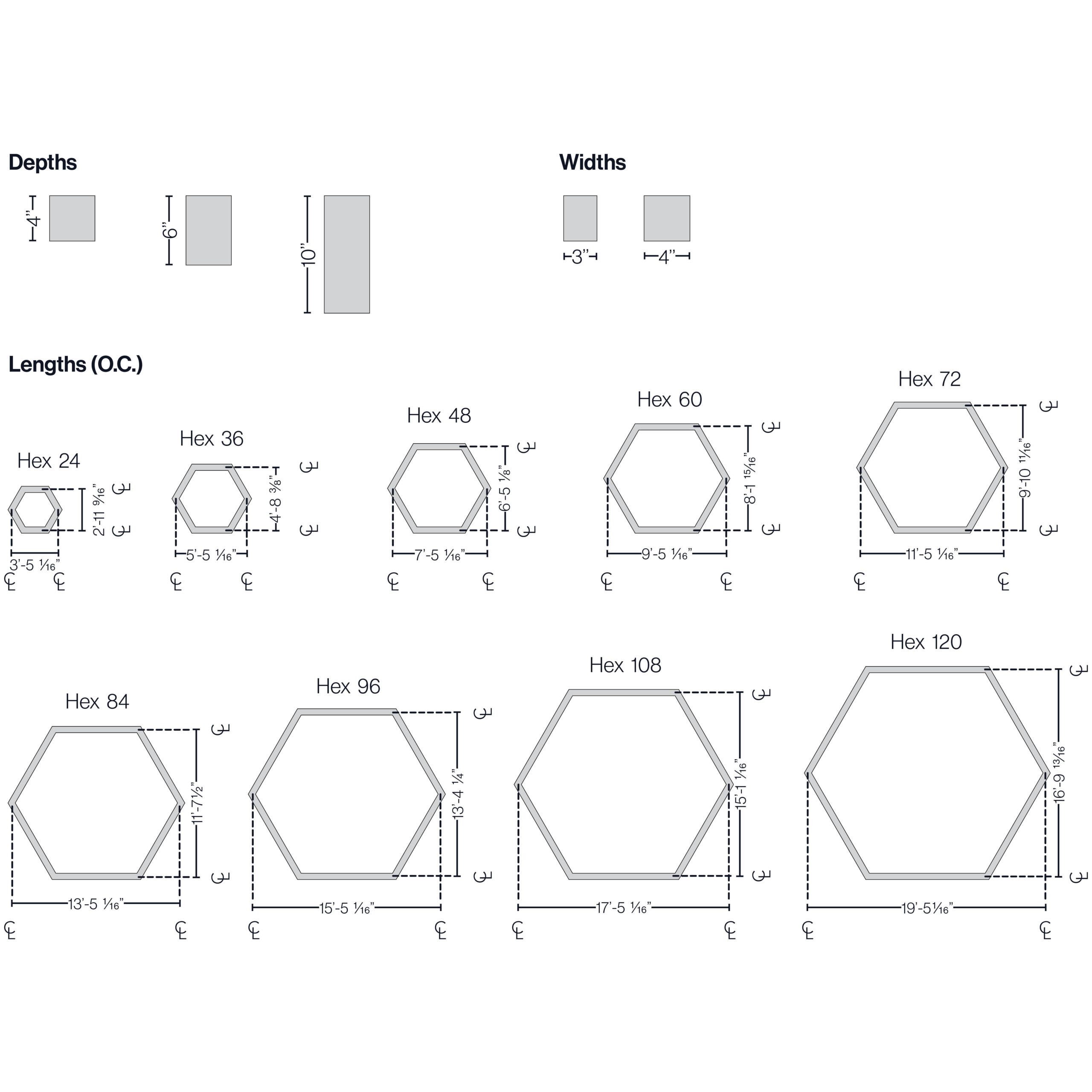

Dimensions (O.C)

Boundary Dimensions (1of2)

Boundary Dimensions (2of2)

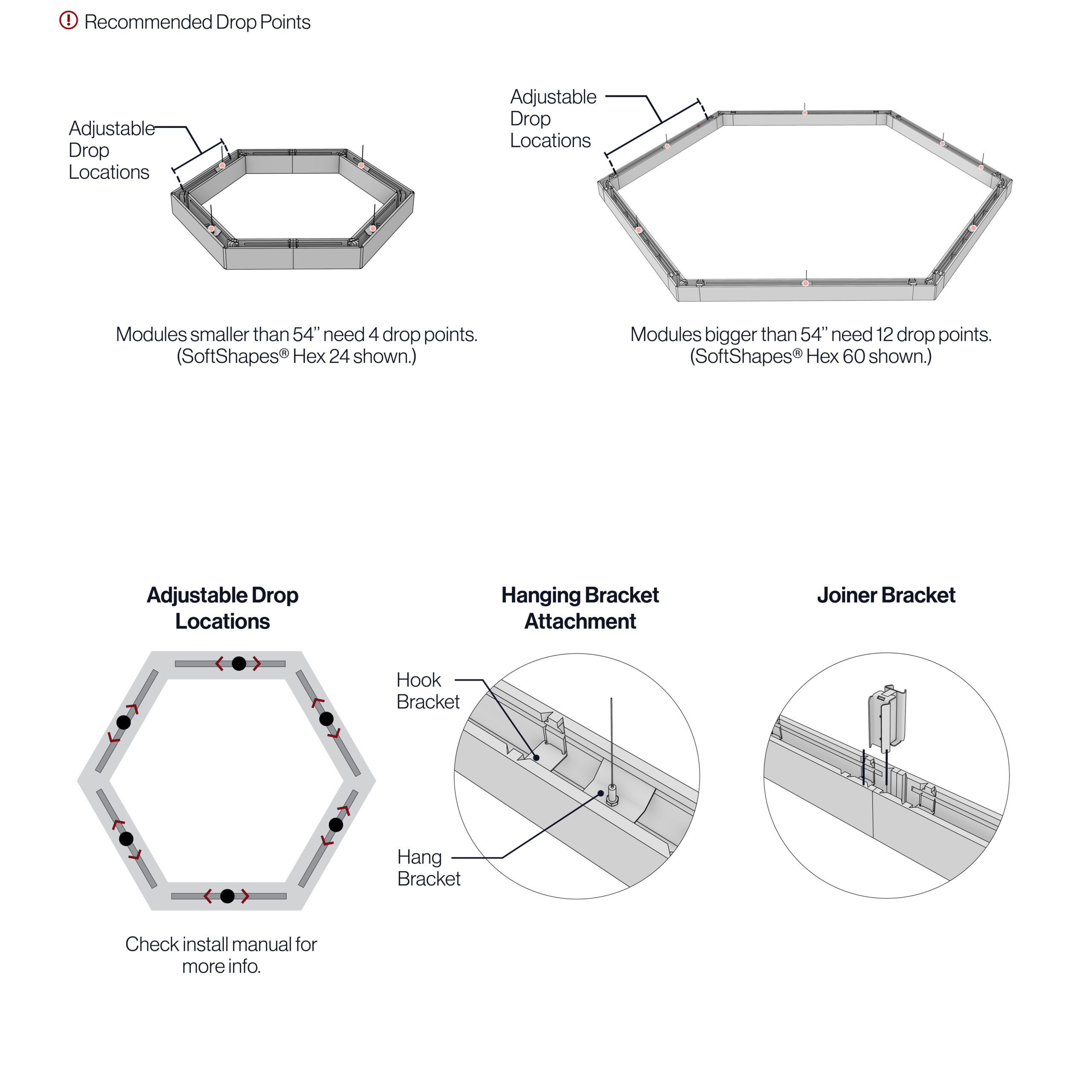

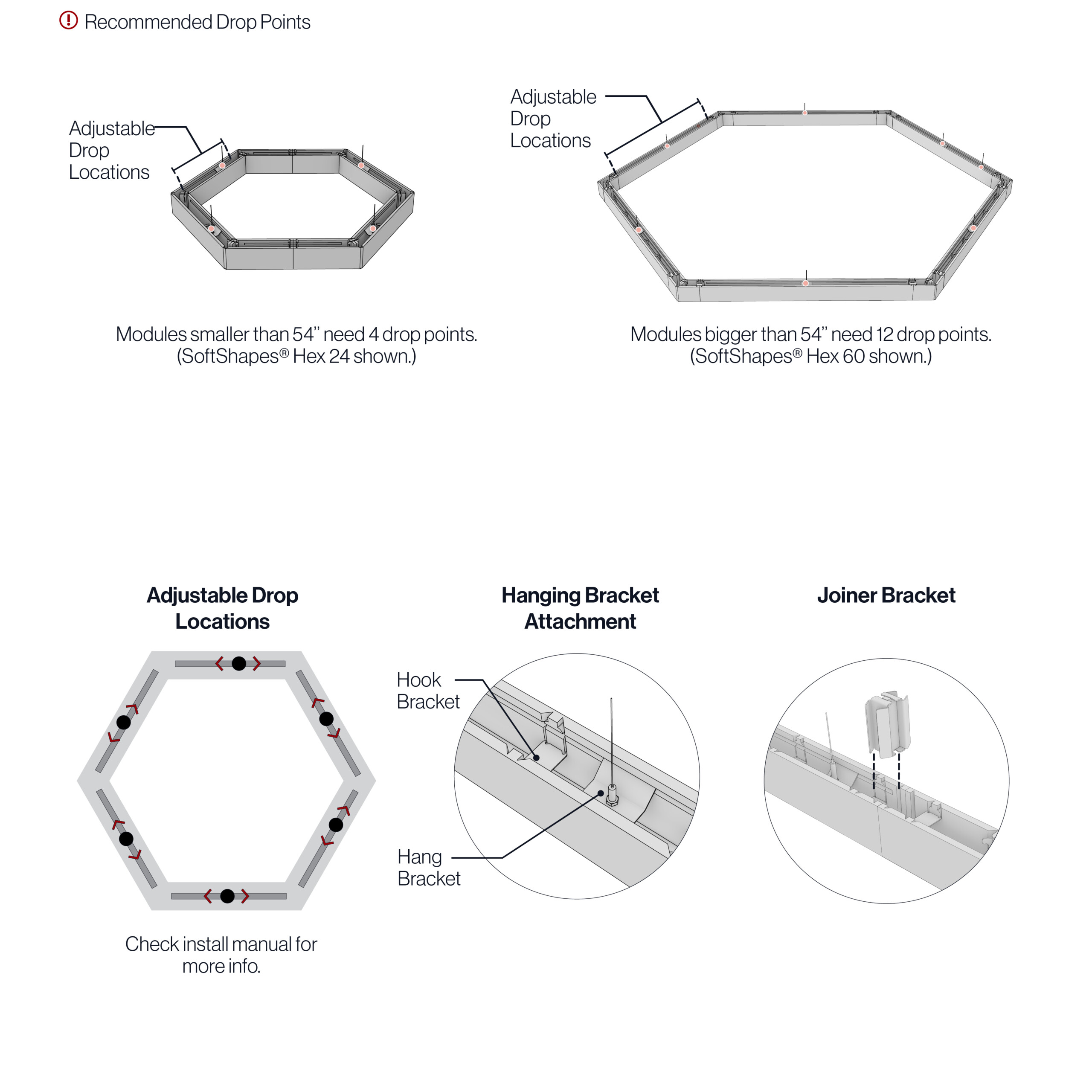

Adjustable Attachment Details

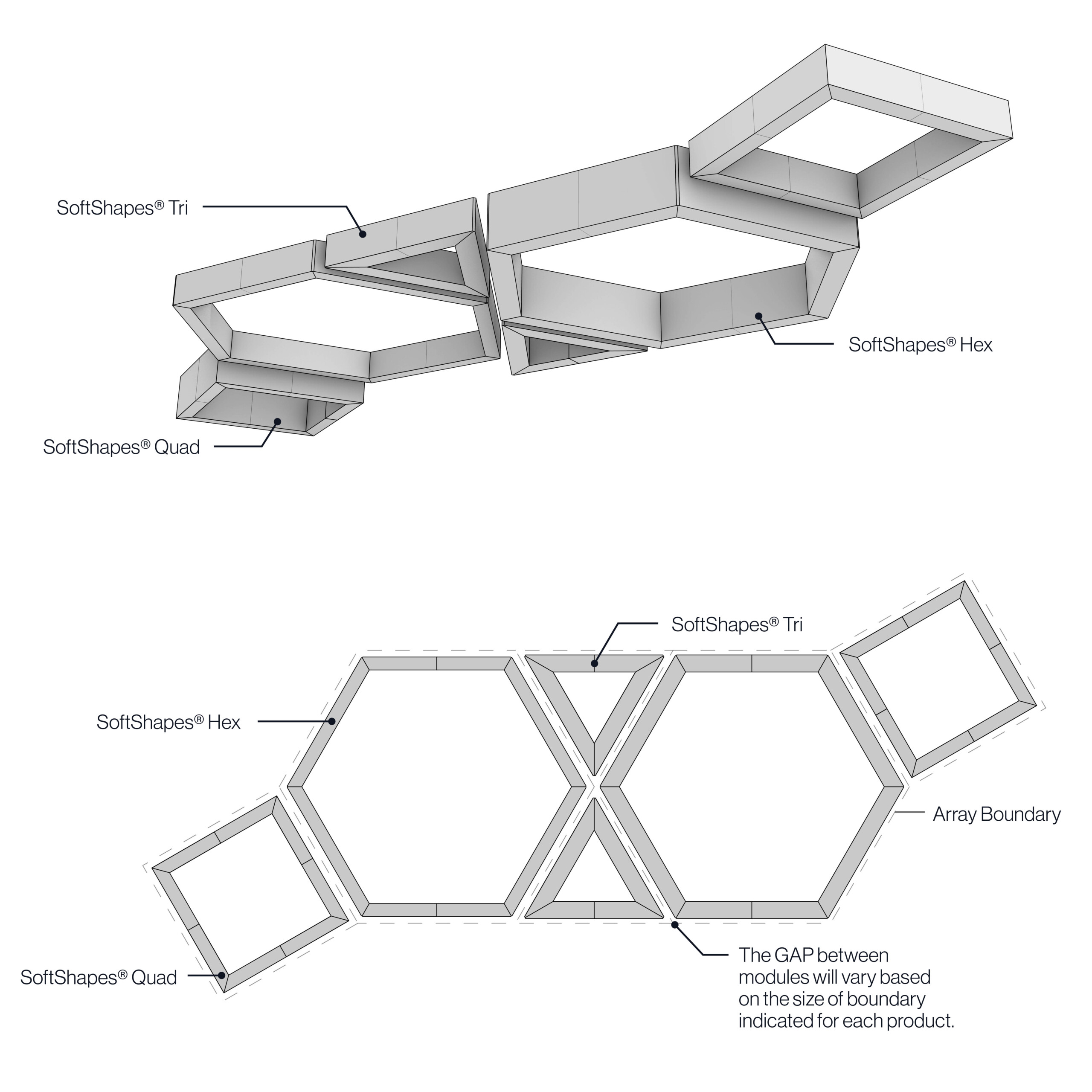

Combine with Other SoftShapes™

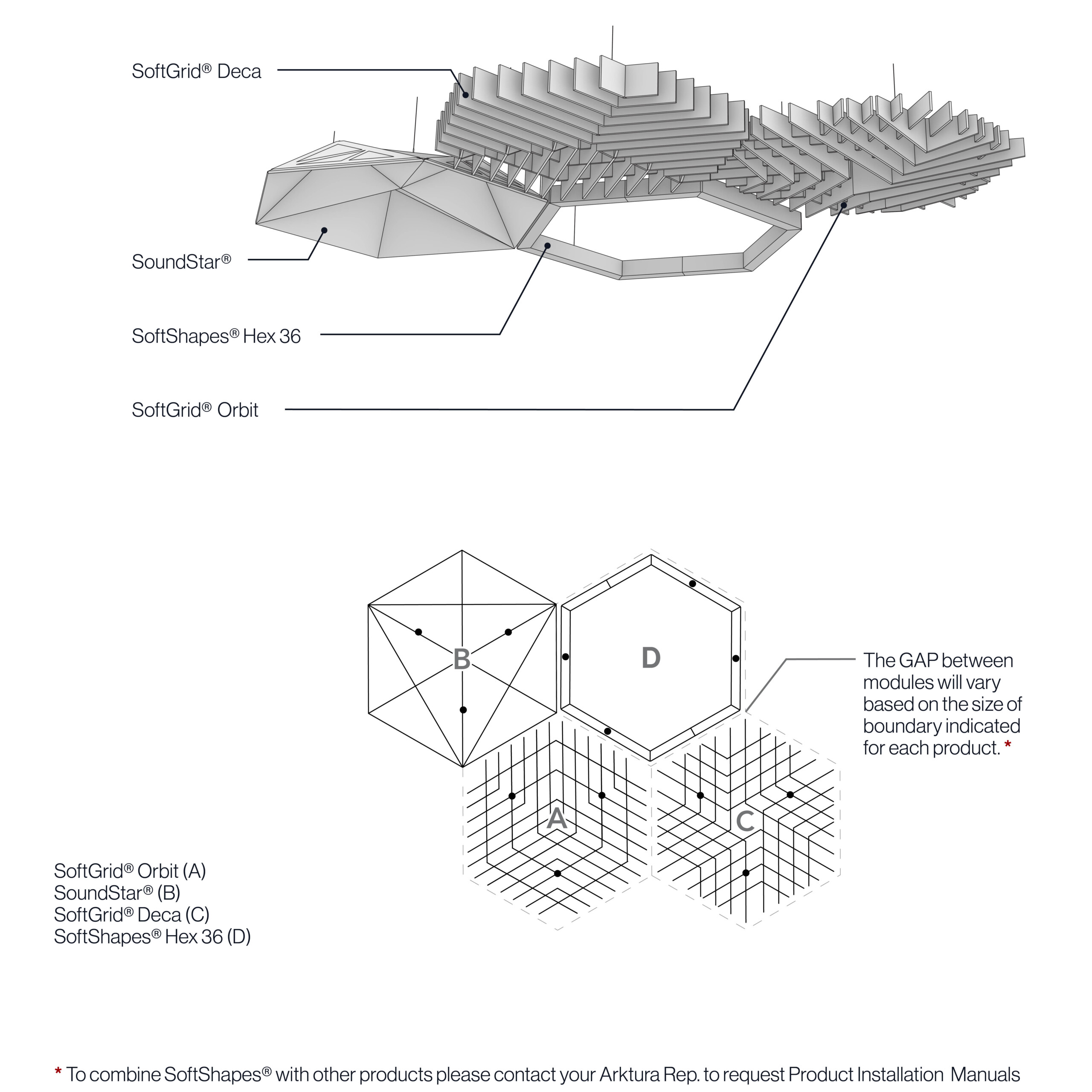

Combine with Other Systems

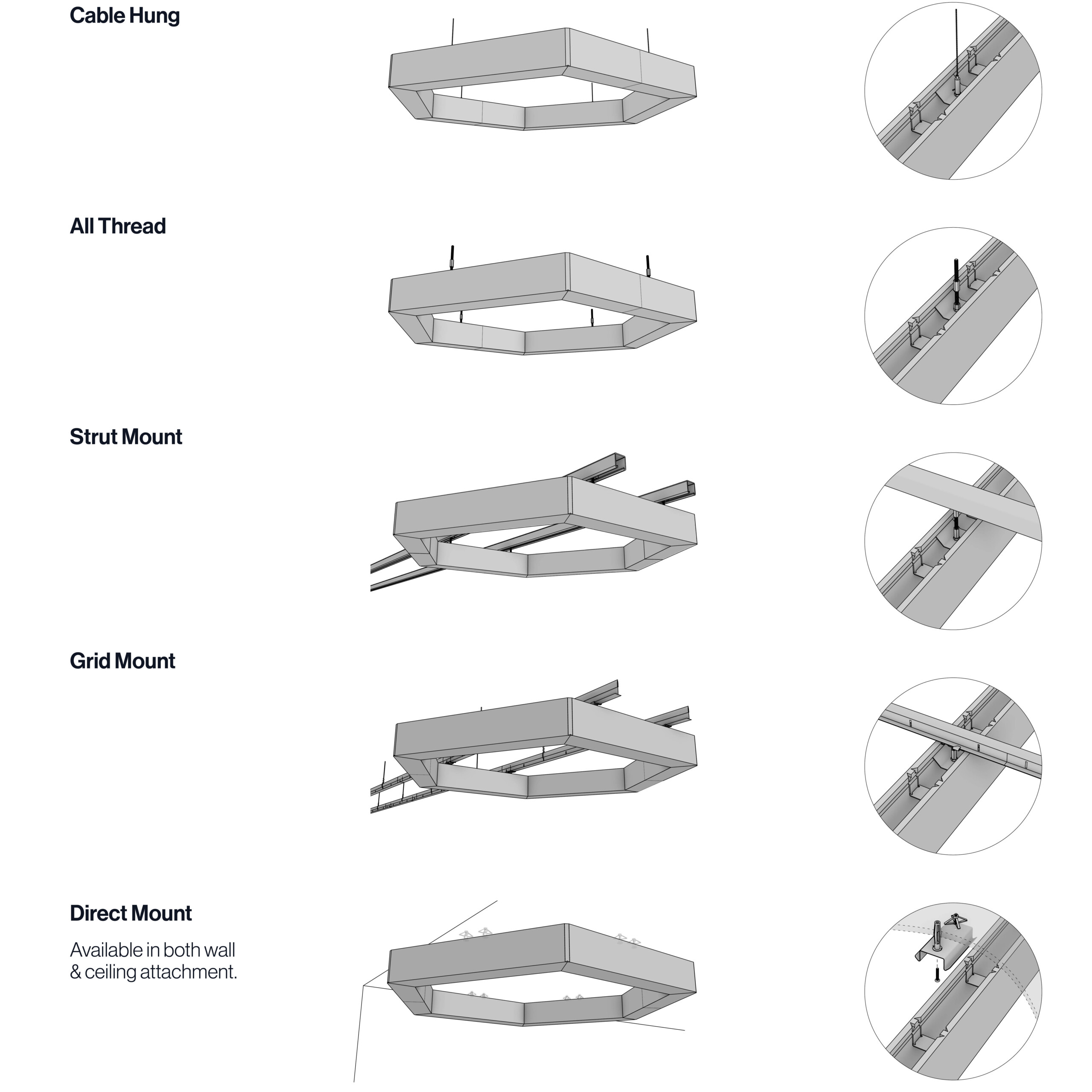

Multiple Attachment Options

Dimensions

3" Width 4’’, 6’’ & 10’’ Heights
18’’,30’’, 42’’, 54’’, 66’’, 78’’, 90’’, 102’’, 114’’
4" Width 6’’ & 10’’ Heights
18’’,30’’, 42’’, 54’’, 66’’, 78’’, 90’’, 102’’, 114’’

System Specs

Material
12mm Soft Sound® (PET)
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Attachment Method
1/16" Stainless Cable Hung, All Thread, Strut Mount, Grid Mount, Direct Mount
Accessibility
Various accessibility options available by Attachment Method. Please refer to installation manual for specifics and contact a Rep.

Downloads

  • SoftShapes® Hex – Product Brochure PDF – Imperial
    Brochure
    3.4 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • SoftShapes® Hex – 3D DWG – Imperial
    3D Model
    999.16 KB
    zip
  • SoftShapes® Hex – 3D SKP – Imperial
    3D Model
    1.01 MB
    zip
  • SoftShapes® Hex – 3D RFA – Imperial
    3D Model
    64.75 MB
    zip

  1. SELECT SHAPES

    SoftShapes™ offers three shape – Tri, Quad, and Hex – that can be combined in layouts in an endless array of creative ways.

  2. SELECT SIZES & PROFILES

    SoftShapes™ Tri, Quad, and Hex each offers a wide range of sizes and profiles to choose from. Pick the combination that works best for your design.

  3. SELECT FINISHES

    Modules are available in a variety of colors and wood finishes. See our Soft Sound® color brochure for more information

  4. SELECT NUMBER OF MODULES

    SoftShapes™ is scalable by design. Select the quantity of modules needed for your project.

  5. SELECT ATTACHMENT METHOD

    SoftShapes™ features adjustable drop locations and five methods of attachment for ease of installation.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
