View Line

SoftShapes™ Quad

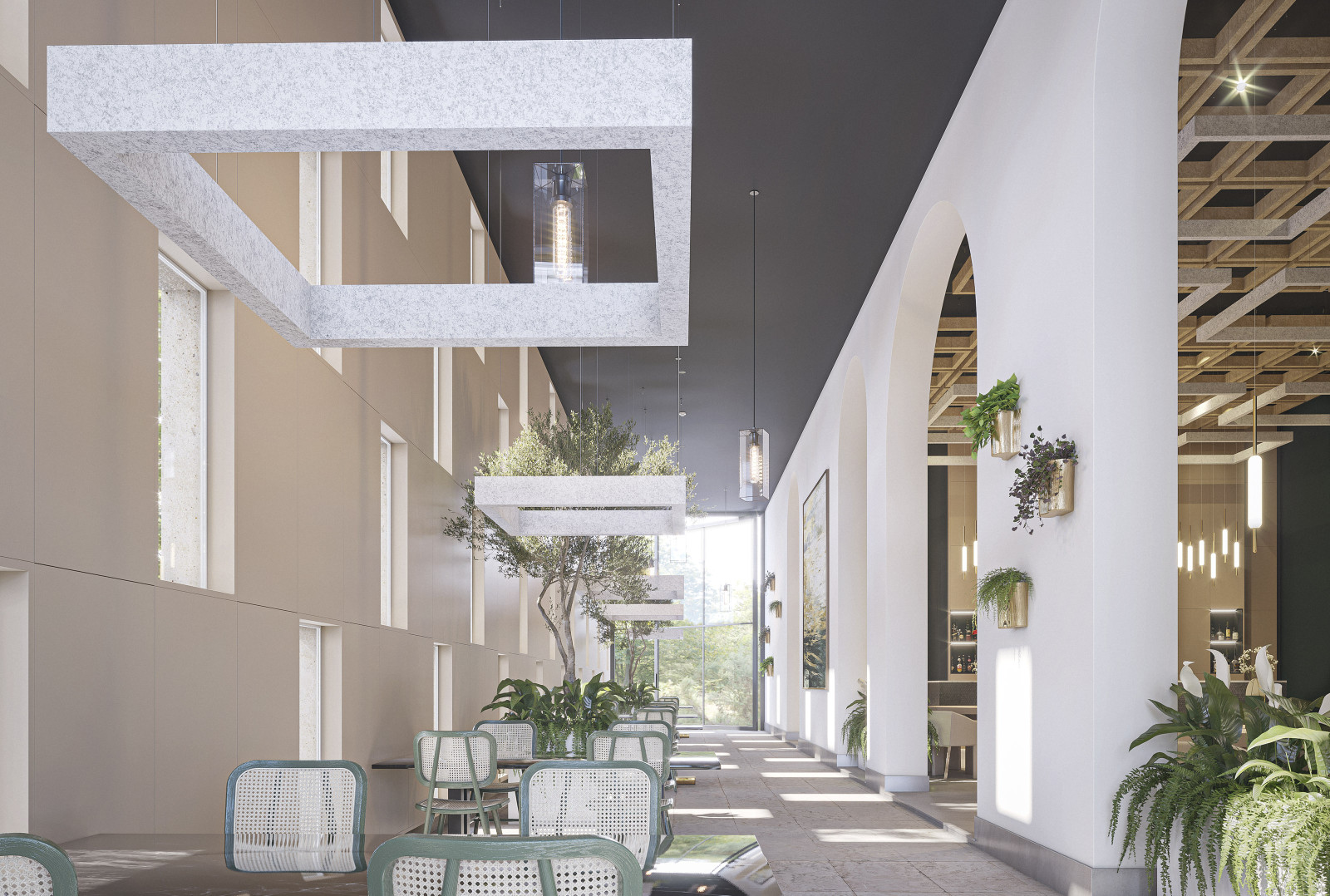

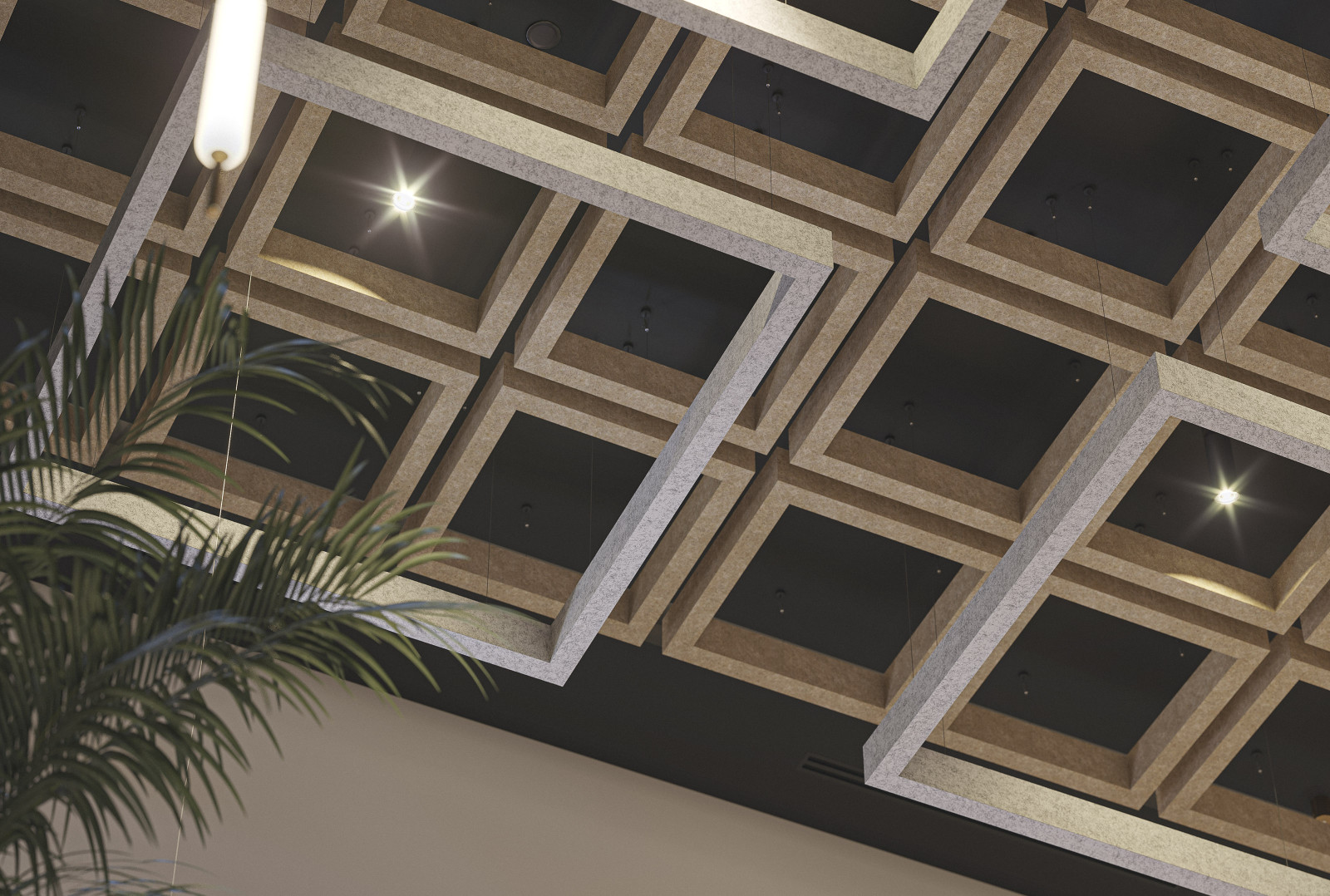

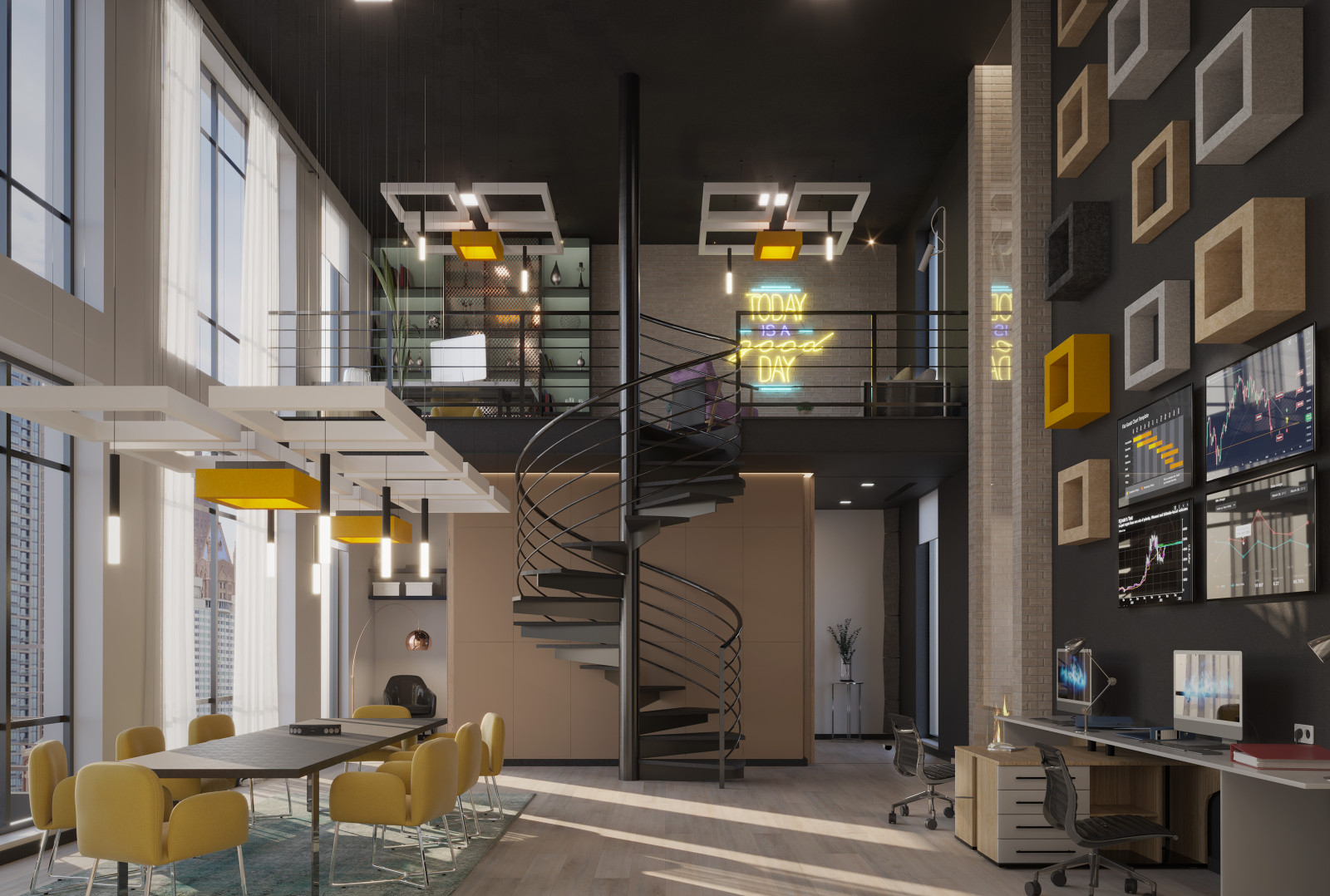

SoftShapes Quad brings acoustic comfort to your space, whether suspended from the ceiling or mounted directly to your walls. The configurations of these Soft Sound® modular systems can be tailored to your specific project needs with adjustable drop location points on select models. Install in tandem with similar size SoftShapes modules to create unique layouts as creative as your imagination.



Key Features

  • Reduce Noise & Enhance Acoustics

    SoftShapes™ Soft Sound® material reduces the impact of noise from everyday sonic discomforts such as outside noise, typing, and chatter, resulting in a more pleasant and productive environment. In addition, its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Profiles to Suit Your Needs

    SoftShapes™ offers a wide range of available sizes that can be configured to best suit your needs. For example, align multiple shapes adjacent to each other or stack modules of varying sizes.

  • Expansive Soft Sound Library

    Choose from an extensive library of Soft Sound® colors and premium wood textures. Soft Sound® material provides impressive looks and top-quality sound attenuation.

  • Adjustable & Flexible Attachments

    SoftShapes™ is available in various shapes, widths, and depth options, giving you complete design flexibility in any space. In addition, it can be mixed with other SoftShapes™ modules to create new and exciting geometric systems for wall and ceiling installations.

  • Configure SoftShapes in Creative Ways

    SoftShapes™ is available in various shapes, widths, and depth options, giving you complete design flexibility in any space. In addition, it can be mixed with other SoftShapes™ modules to create new and exciting geometric systems for wall and ceiling installations.

Baffle Materials & Colors

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

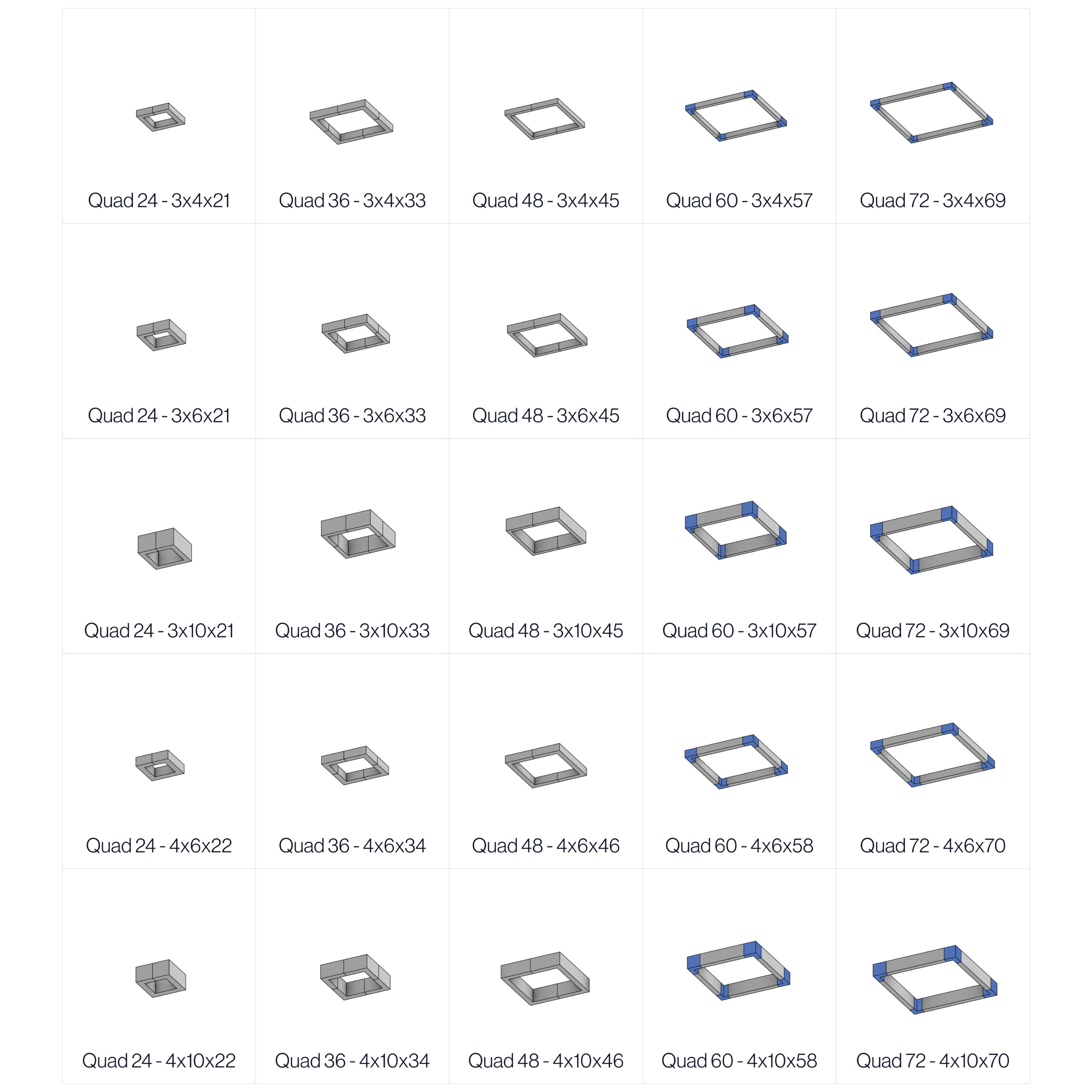

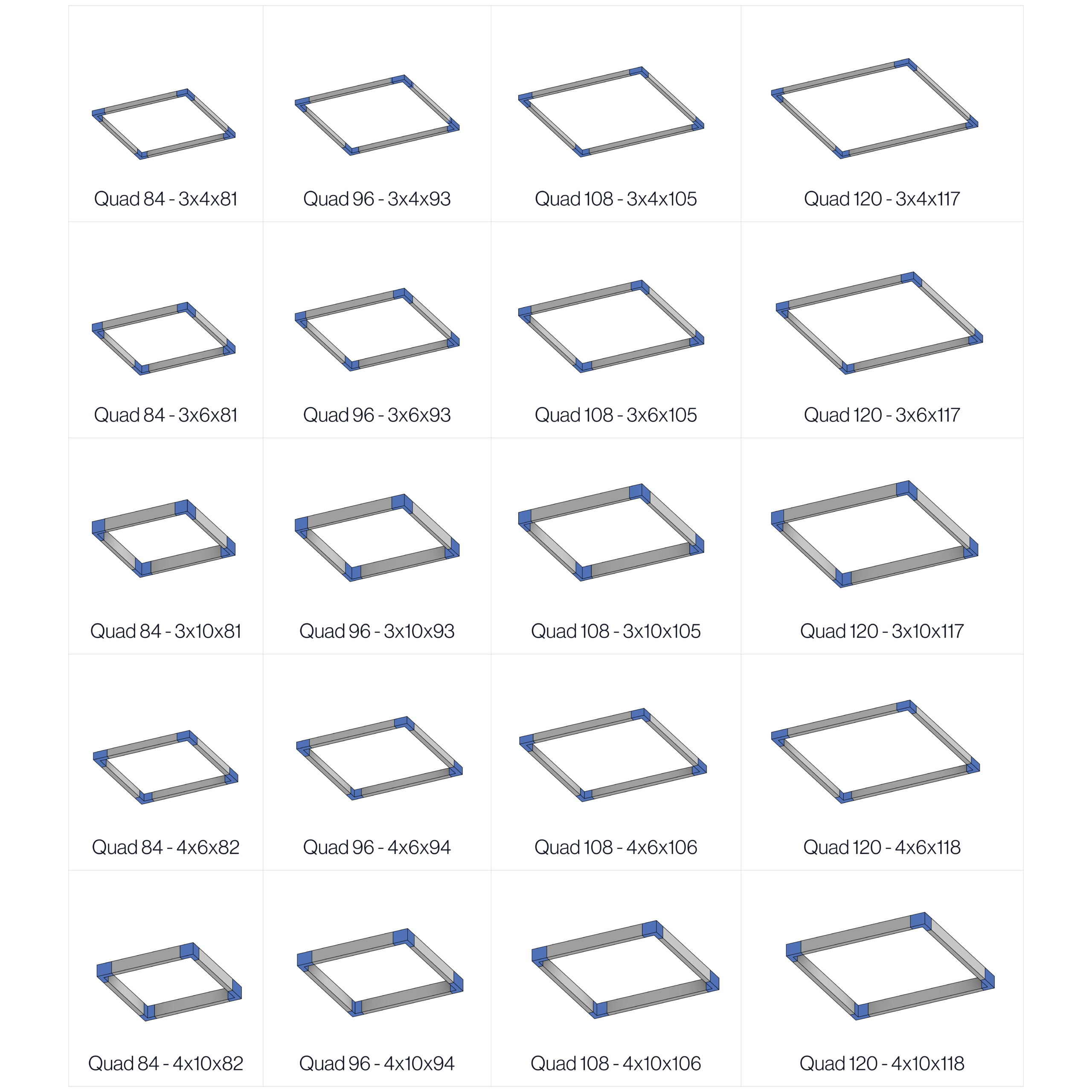

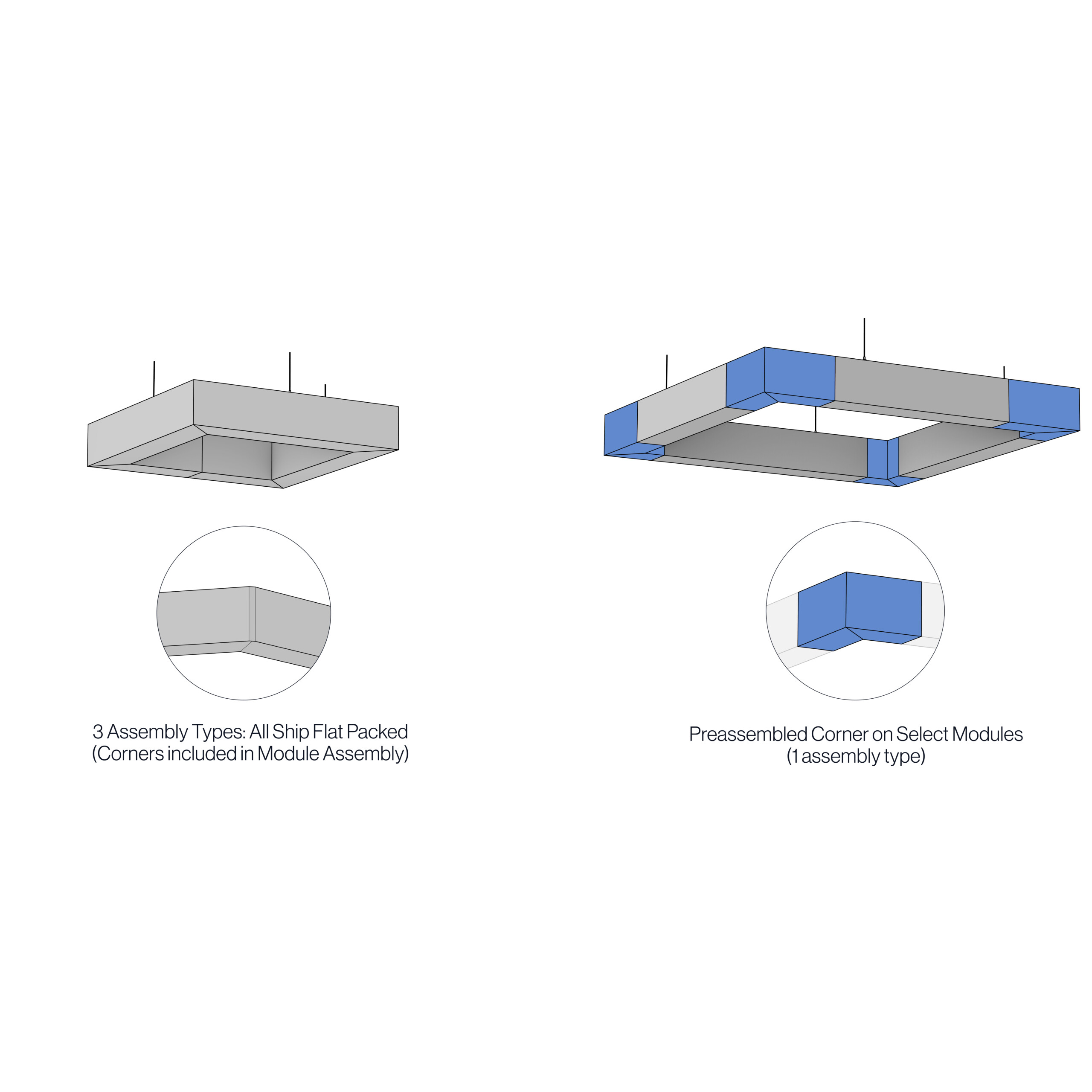

Standard Configurations

Multiple Modules

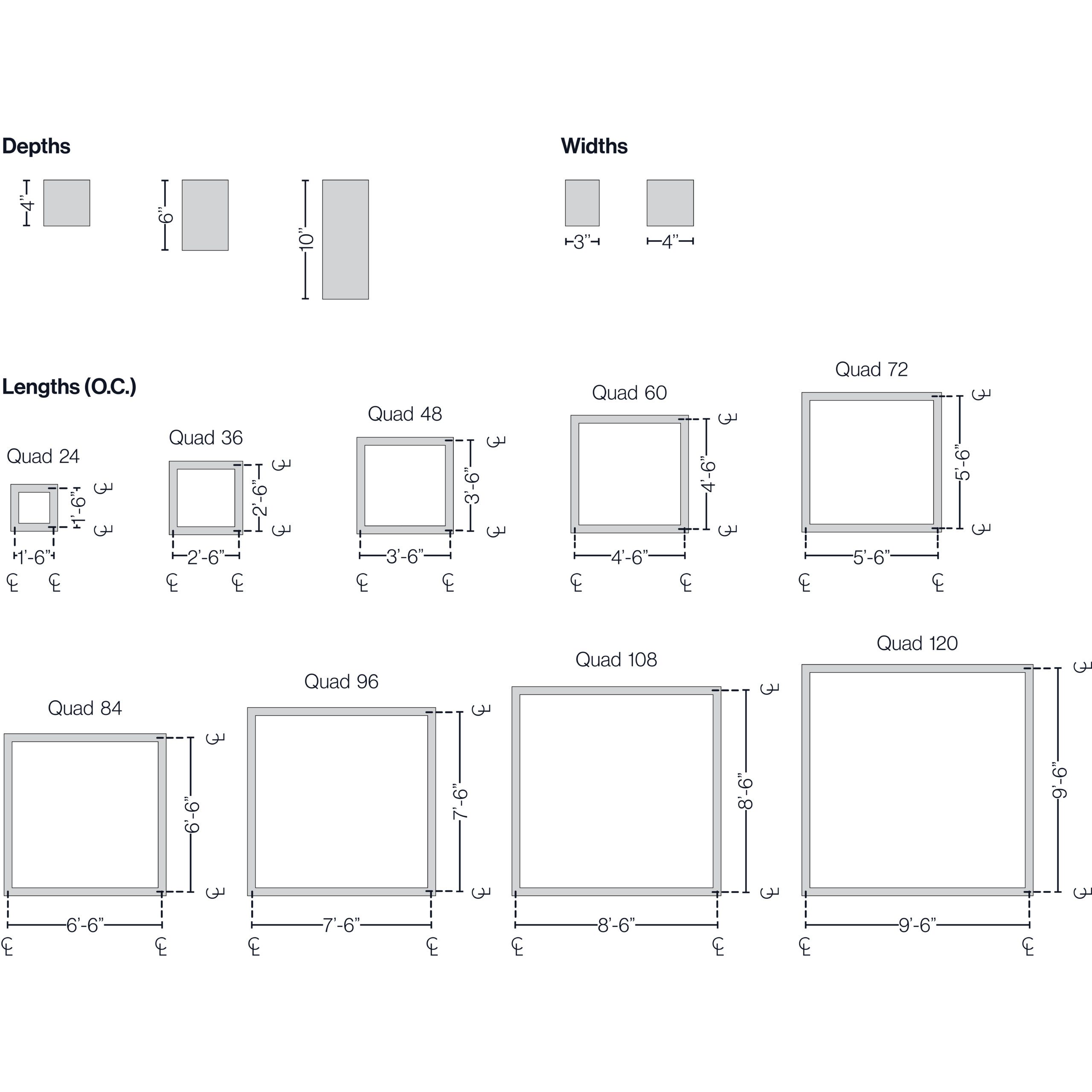

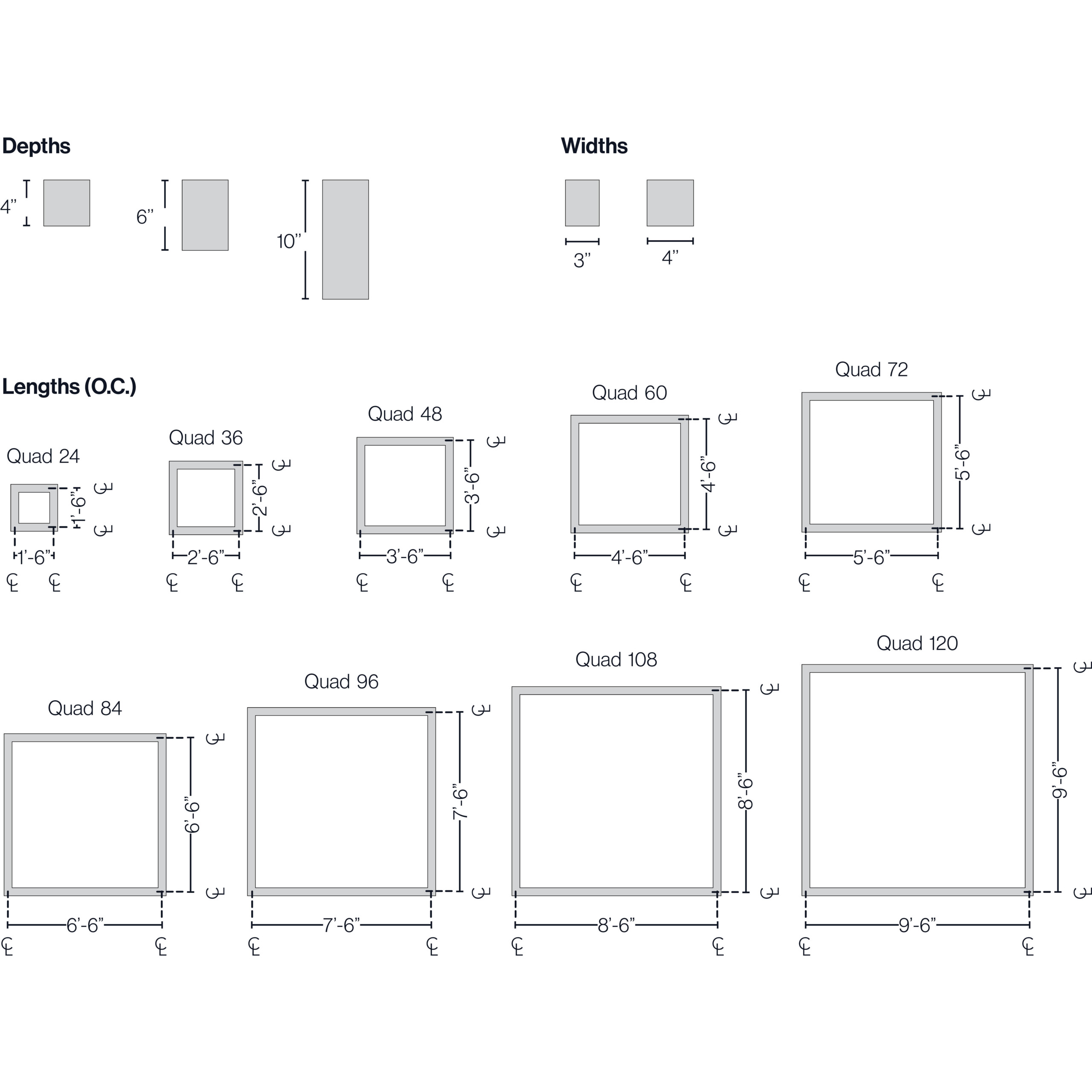

Dimensions (O.C)

Boundary Dimensions (1of2)

Boundary Dimensions (2of2)

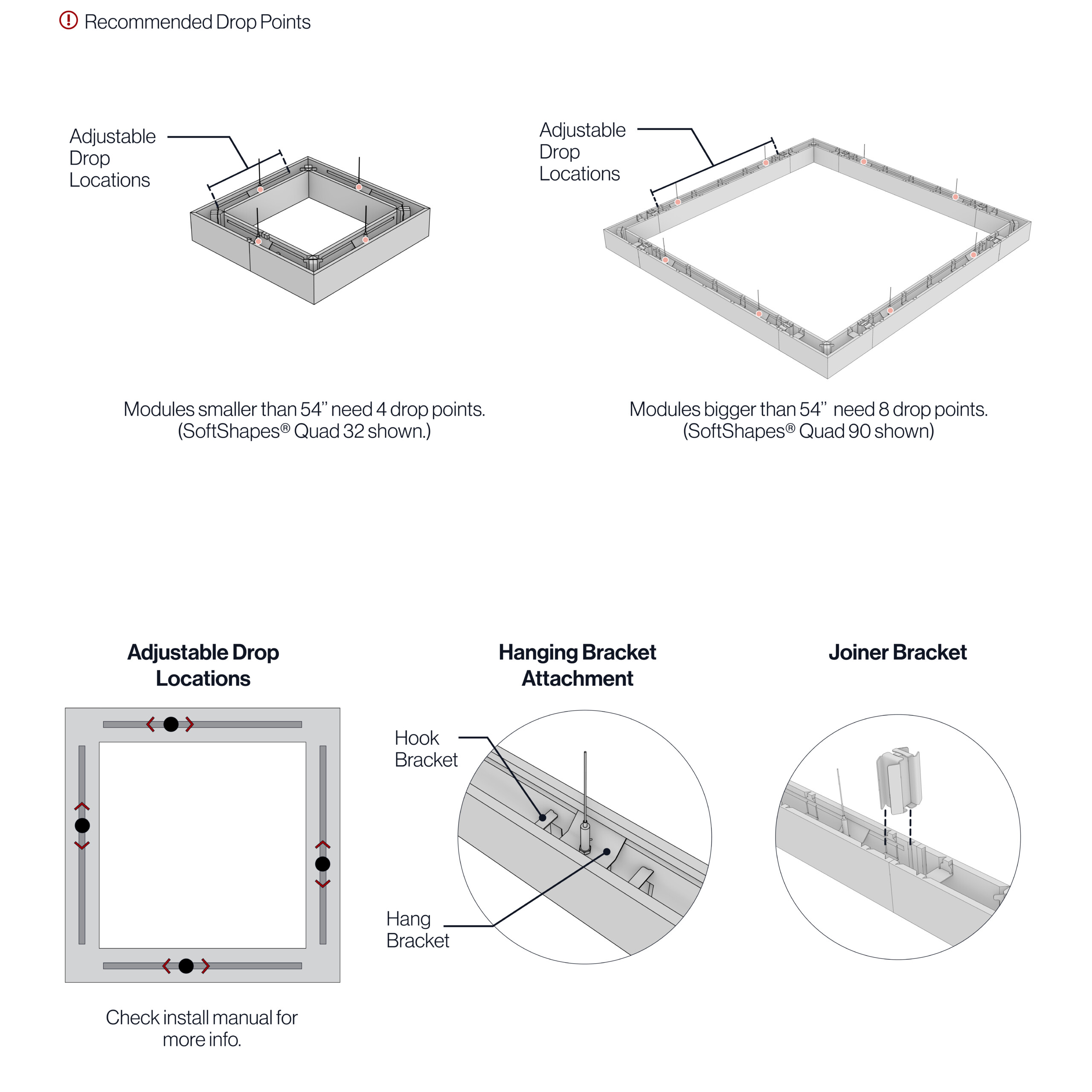

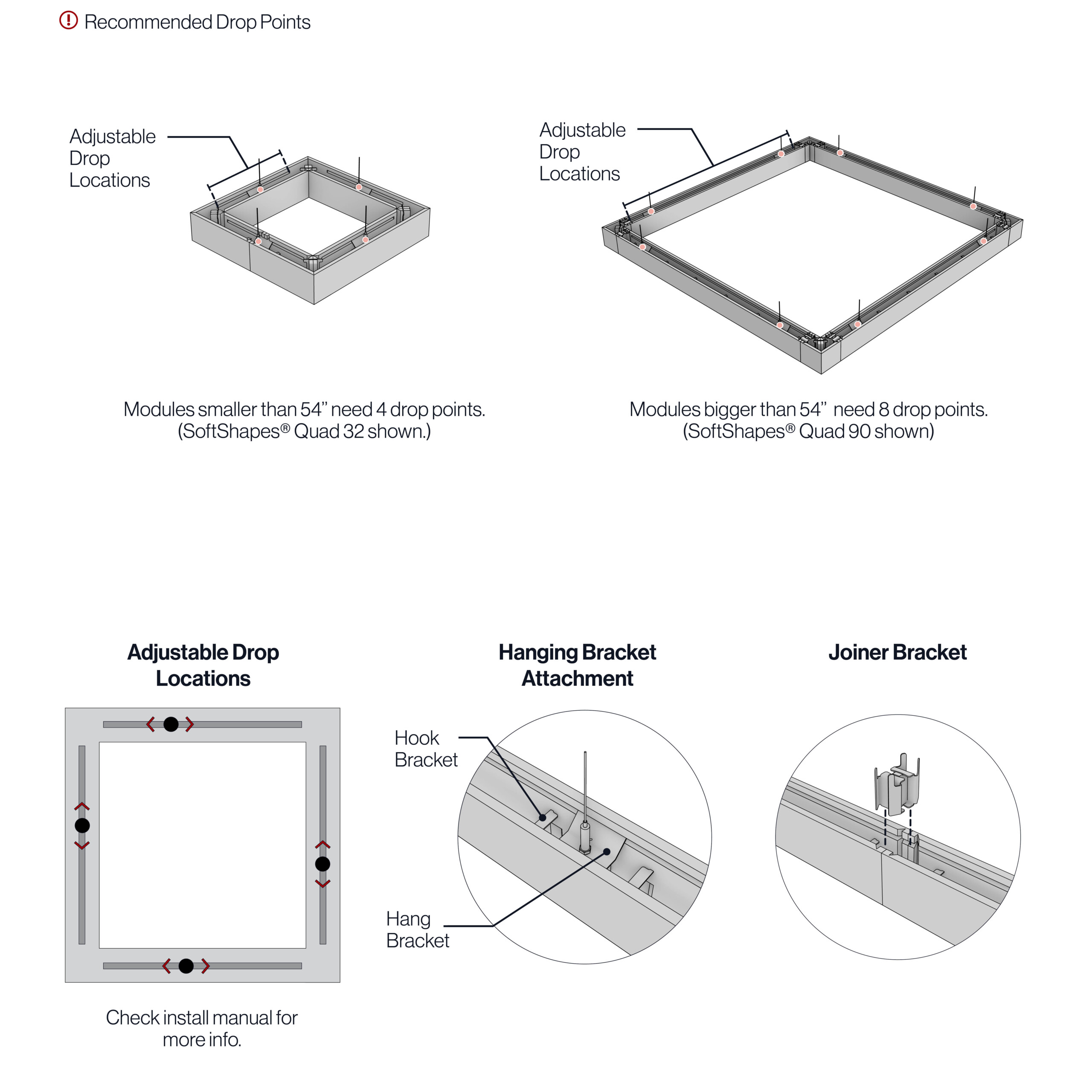

Adjustable Attachment Details

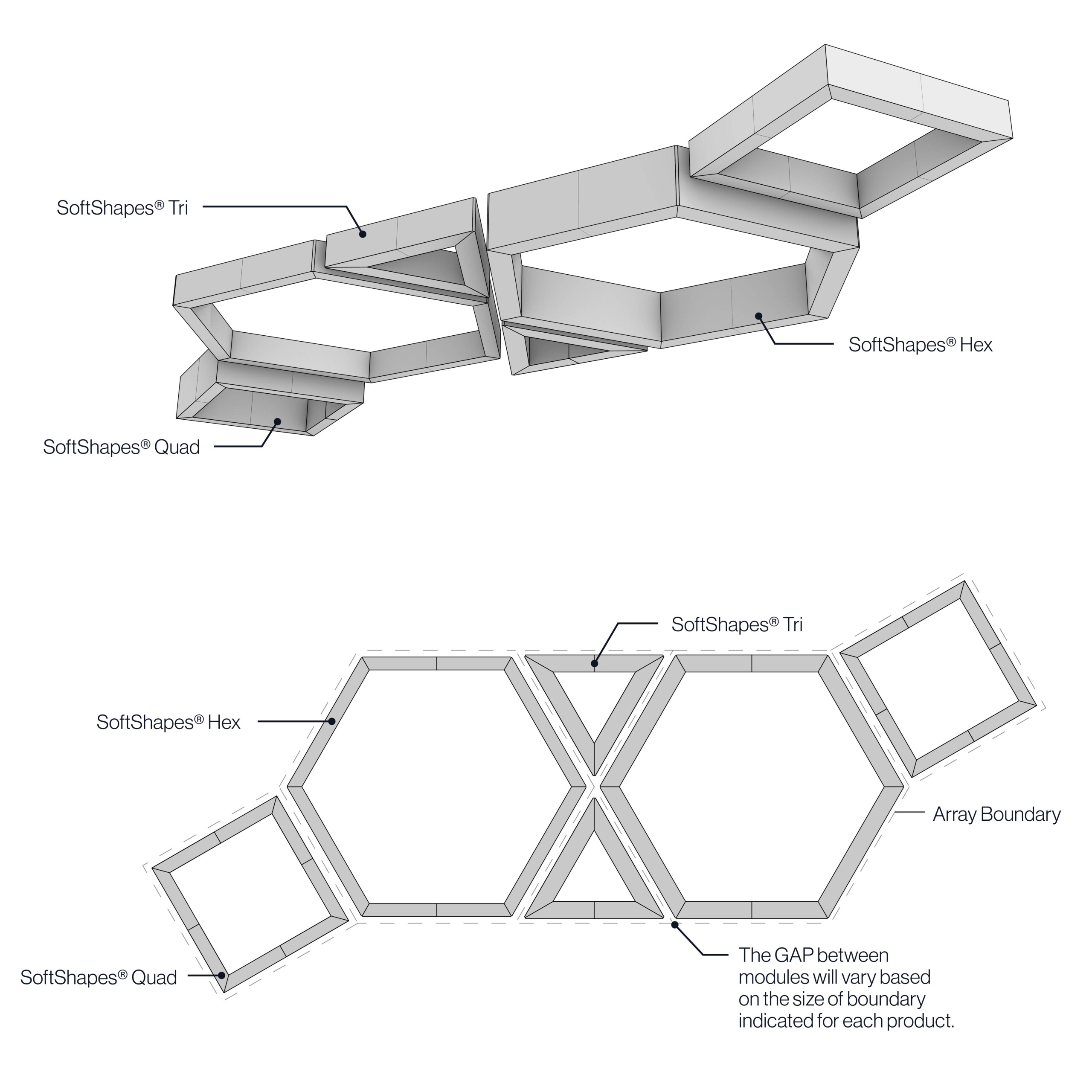

Combine with Other SoftShapes™

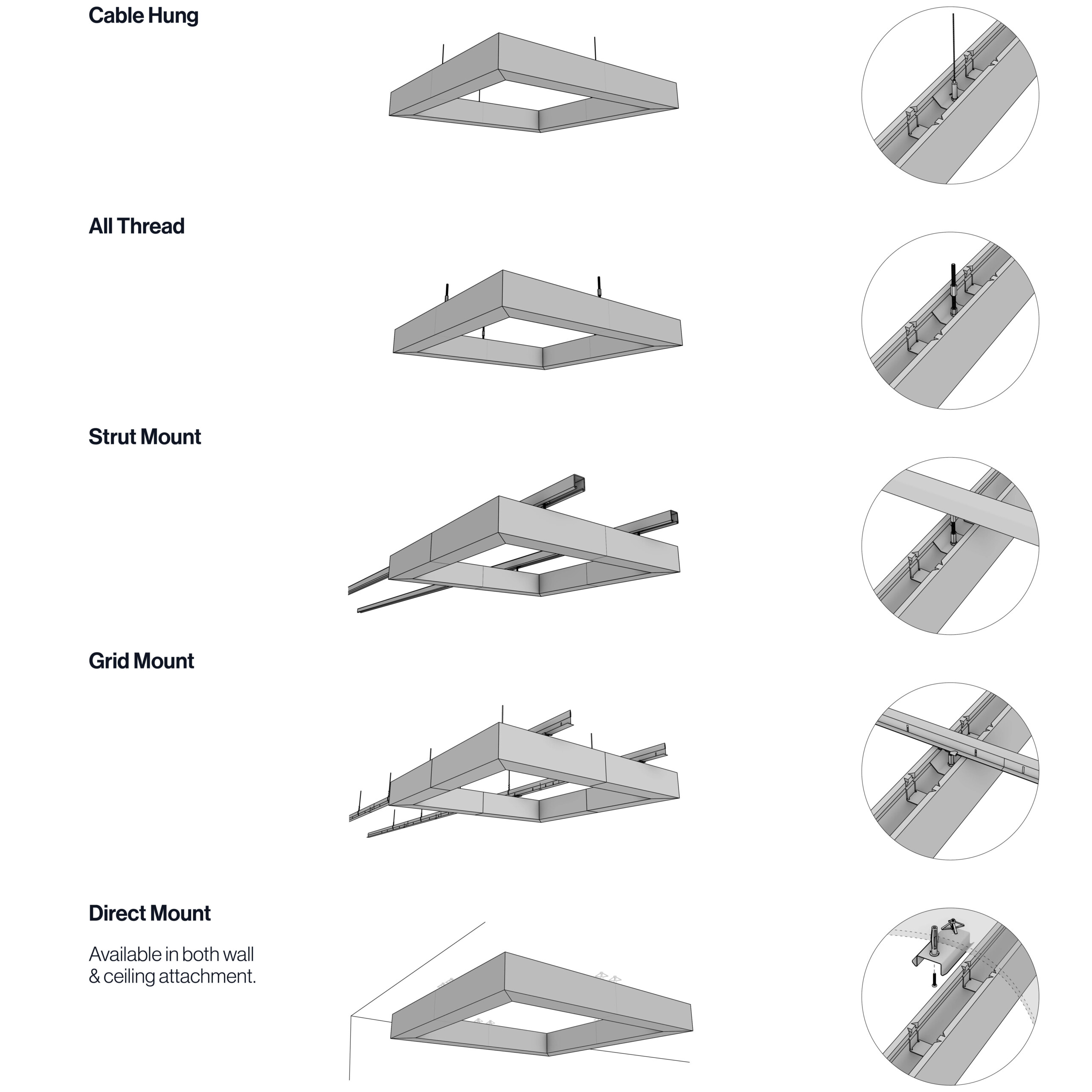

Multiple Attachment Options

Dimensions

3" Width 4’’, 6’’ & 10’’ Heights
18’’,30’’, 42’’, 54’’, 66’’, 78’’, 90’’, 102’’, 114’’
4" Width 6’’ & 10’’ Heights
18’’,30’’, 42’’, 54’’, 66’’, 78’’, 90’’, 102’’, 114’’

System Specs

Material
12mm Soft Sound® (PET)
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Attachment Method
1/16" Stainless Cable Hung, All Thread, Strut Mount, Grid Mount, Direct Mount
Accessibility
Various accessibility options available by Attachment Method. Please refer to installation manual for specifics and contact a Rep.

Downloads

  • SoftShapes™ Quad – Product Brochure PDF – Imperial
    Brochure
    2.64 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    344.47 KB
    pdf
  • SoftShapes™ Quad – 3D DWG – Imperial
    3D Model
    885.05 KB
    zip
  • SoftShapes™ Quad – 3D SKP – Imperial
    3D Model
    1.21 MB
    zip
  • SoftShapes™ Quad – 3D RFA – Imperial
    3D Model
    42.57 MB
    zip
  1. SELECT SHAPES

    SoftShapes™ offers three shape – Tri, Quad, and Hex – that can be combined in layouts in an endless array of creative ways.

  2. SELECT SIZES & PROFILES

    SoftShapes™ Tri, Quad, and Hex each offers a wide range of sizes and profiles to choose from. Pick the combination that works best for your design.

  3. SELECT FINISHES

    Modules are available in a variety of colors and wood finishes. See our Soft Sound® color brochure for more information

  4. SELECT NUMBER OF MODULES

    SoftShapes™ is scalable by design. Select the quantity of modules needed for your project.

  5. SELECT ATTACHMENT METHOD

    SoftShapes™ features adjustable drop locations and five methods of attachment for ease of installation.

Have questions? Reach out to a Rep to get your project started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
