SoftShapes® Tri

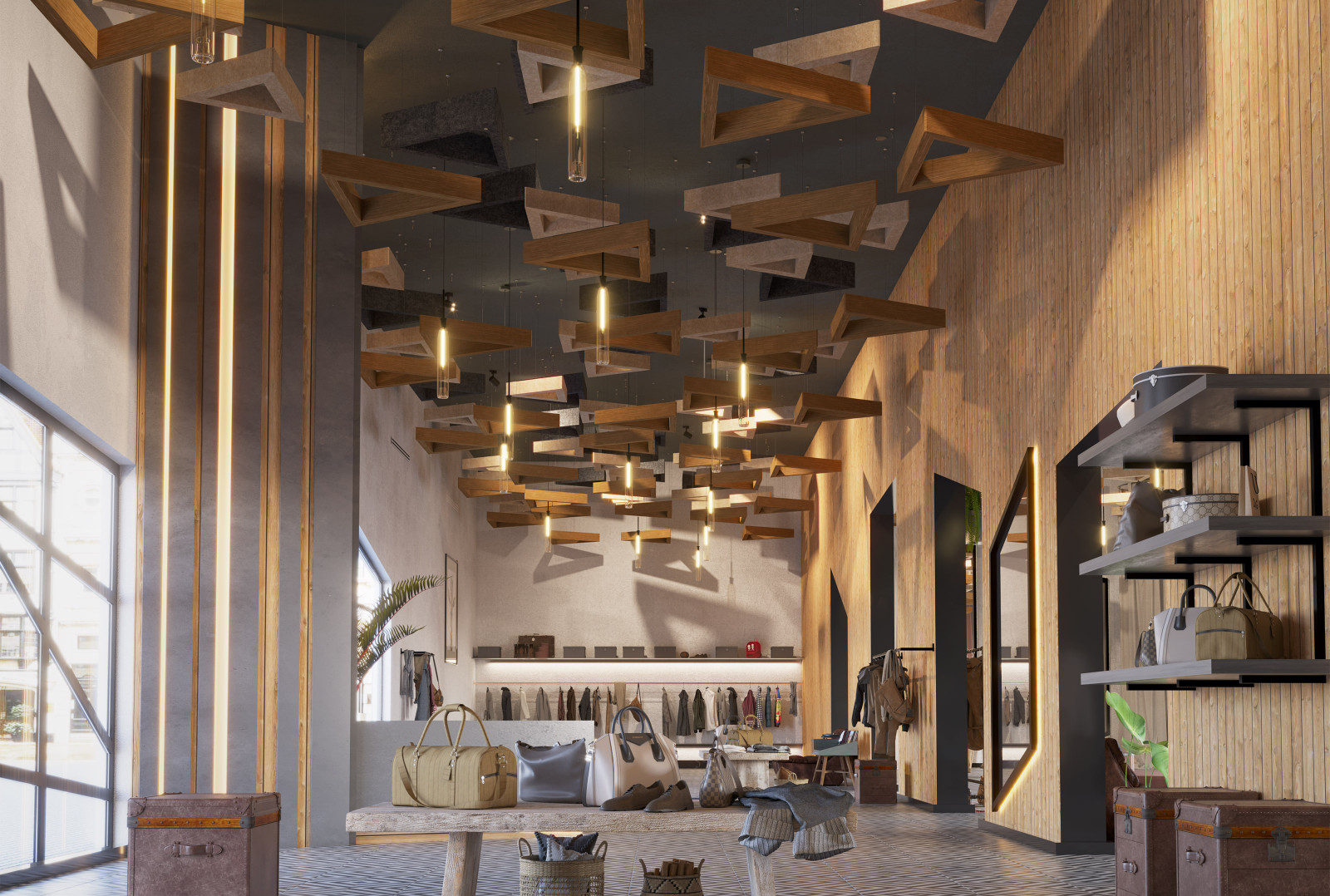

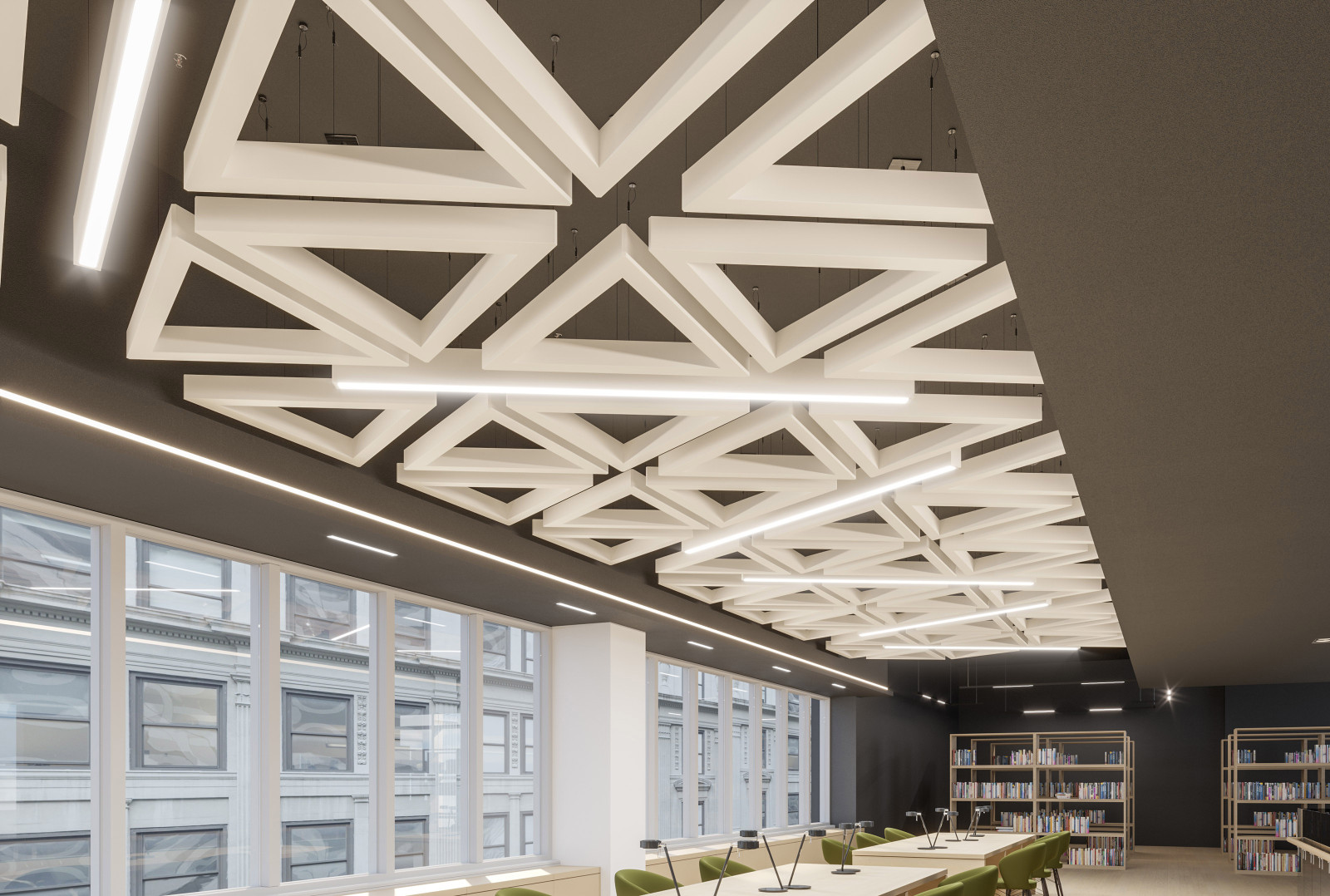

SoftShapes® Tri brings a geometric form factor to acoustic control and design. These acoustic clouds, made of Soft Sound® material, are offered in a plethora of size options with the ability to specify different widths, lengths, and depth options, giving you complete design flexibility in any space. Install in tandem with other triangular Arktura modules such as TriSoft® for a multi-faceted acoustic cloud.
Key Features
-
Reduce Noise & Enhance Acoustics
SoftShapes™ Soft Sound® material reduces the impact of noise from everyday sonic discomforts such as outside noise, typing, and chatter, resulting in a more pleasant and productive environment. In addition, its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Profiles to Suit Your Needs
SoftShapes™ offers a wide range of available sizes that can be configured to best suit your needs. For example, align multiple shapes adjacent to each other or stack modules of varying sizes.
-
Expansive Soft Sound® Library
Choose from an extensive library of Soft Sound® colors and premium wood textures. Soft Sound® material provides impressive looks and top-quality sound attenuation.
-
Adjustable & Flexible Attachments
SoftShapes™ is available in various shapes, widths, and depth options, giving you complete design flexibility in any space. In addition, it can be mixed with other SoftShapes™ modules to create new and exciting geometric systems for wall and ceiling installations.
-

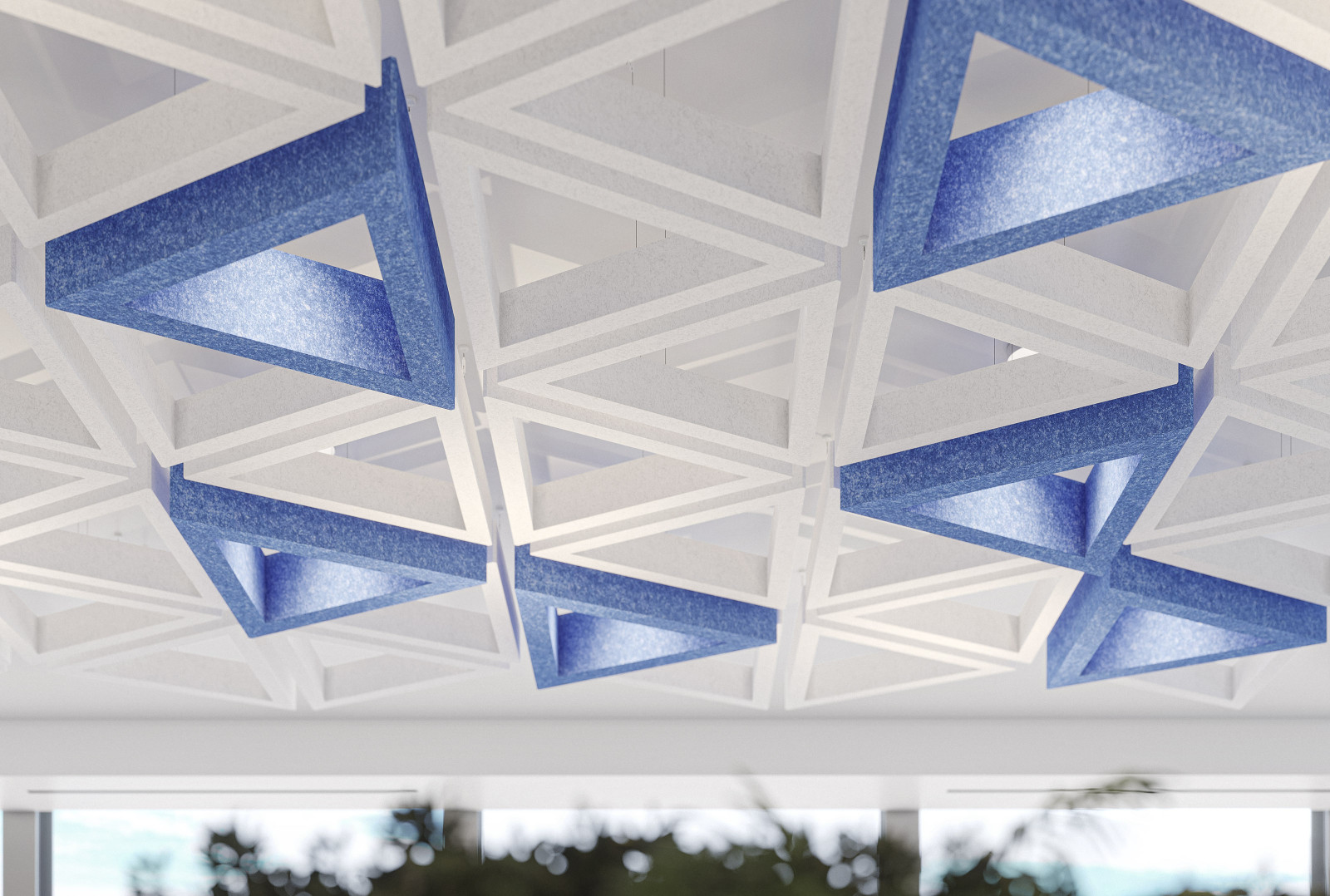

Configure SoftShapes in Creative Ways
SoftShapes™ is available in various shapes, widths, and depth options, giving you complete design flexibility in any space. In addition, it can be mixed with other SoftShapes™ modules to create new and exciting geometric systems for wall and ceiling installations.
-

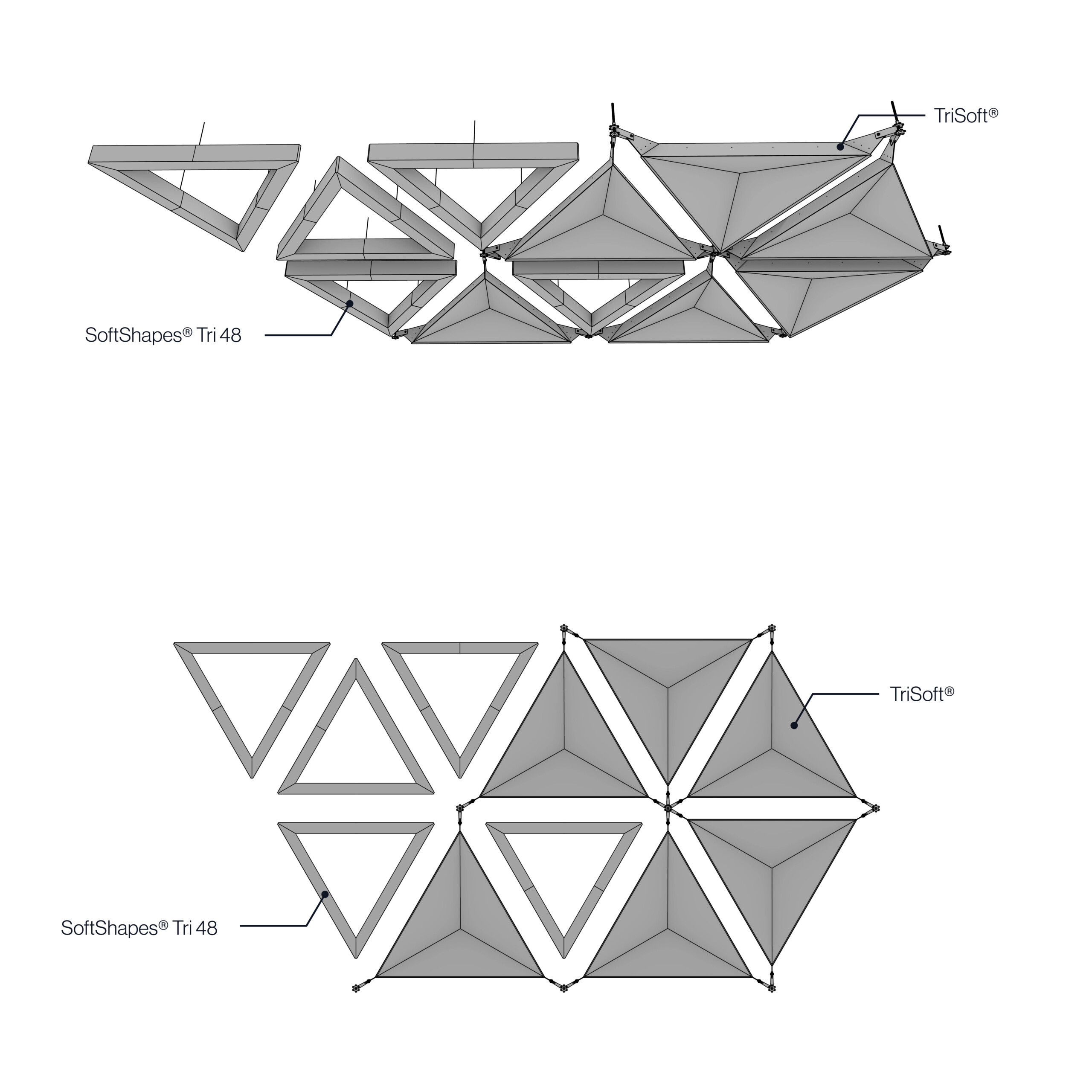

Compatible with TriSoft®
Select SoftShapes™ Tri modules are compatible with Arktura’s TriSoft® modular acoustic cloud system. Use together to bring transformative design variation to any space.
Baffle Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETProduct Details

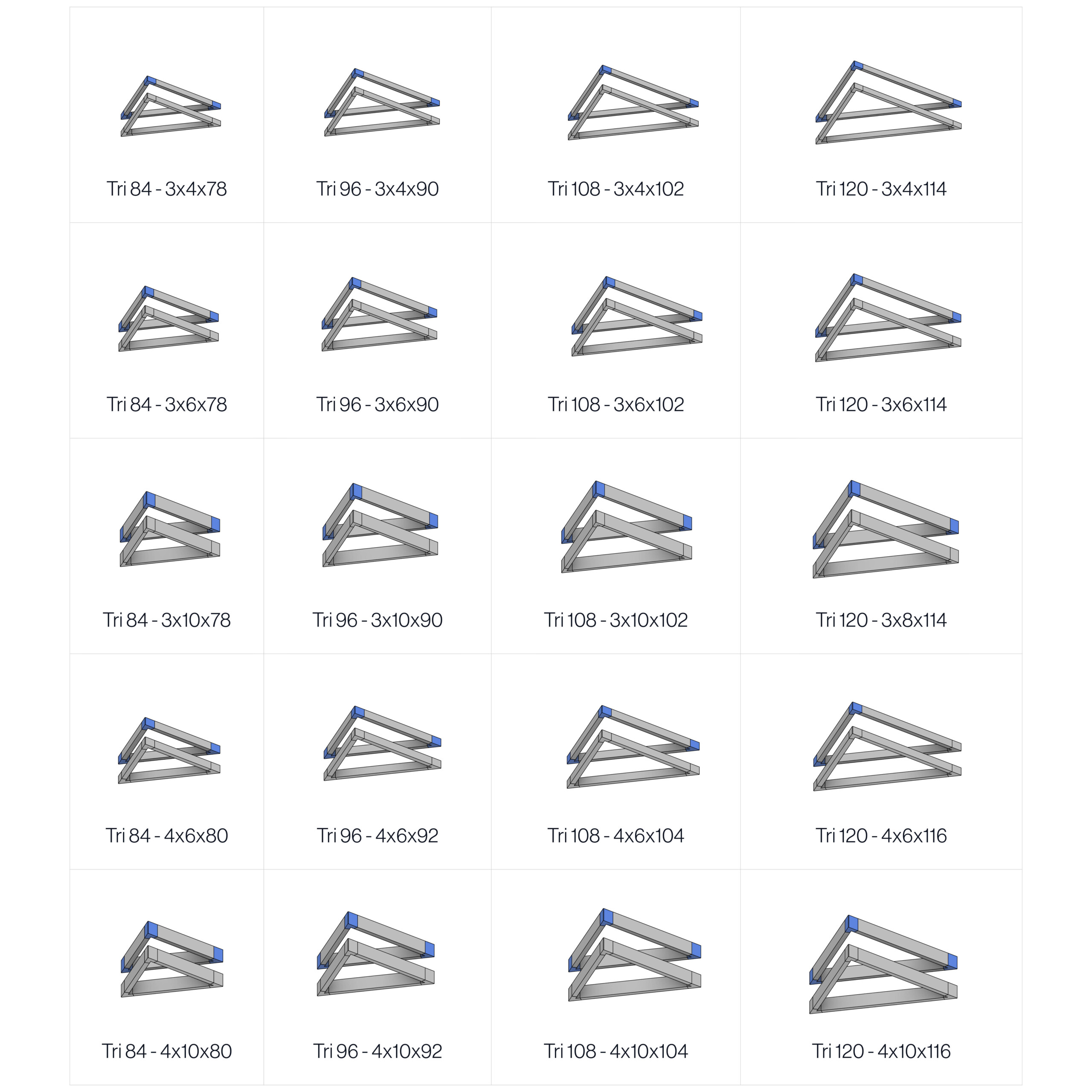

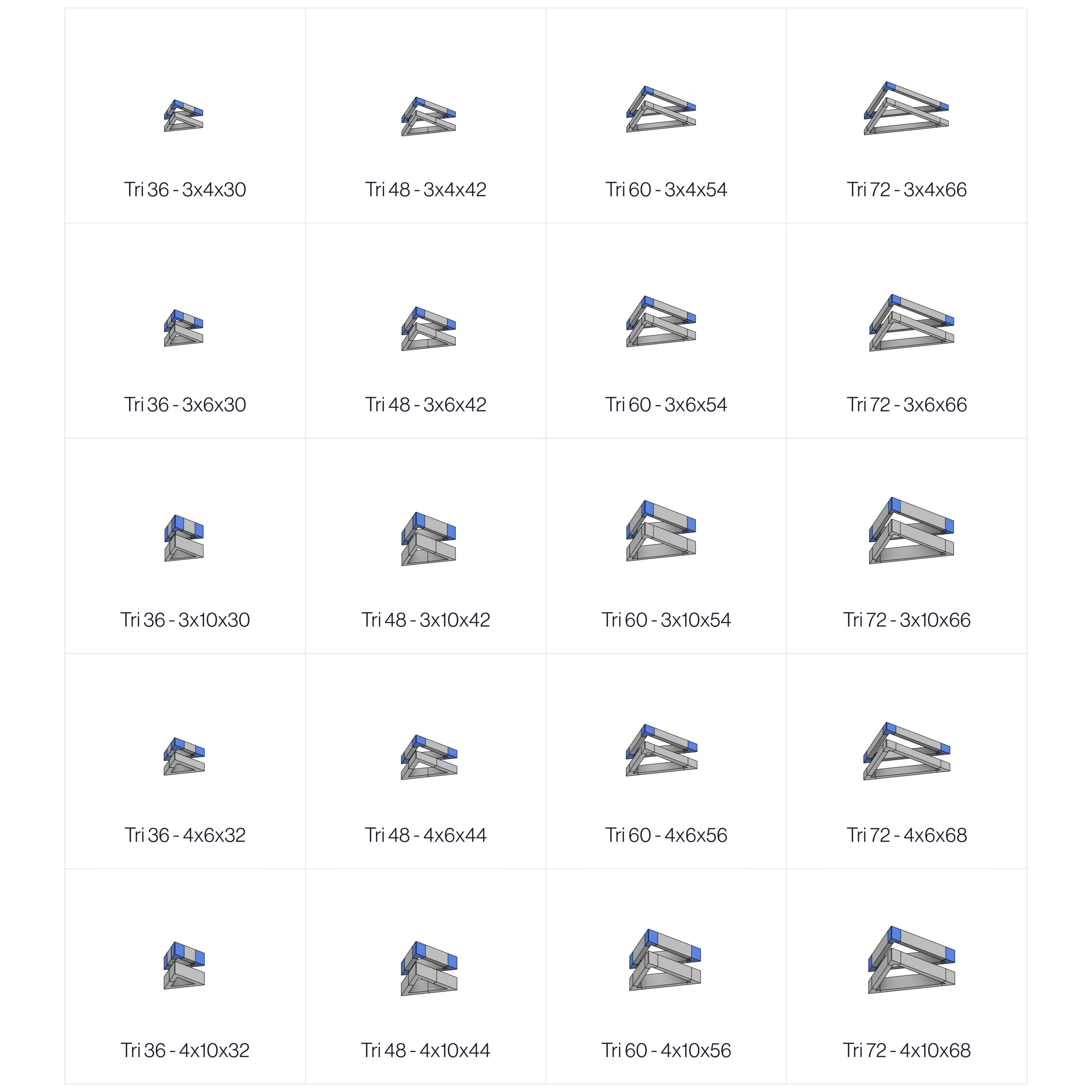

Standard Configurations
Multiple Modules

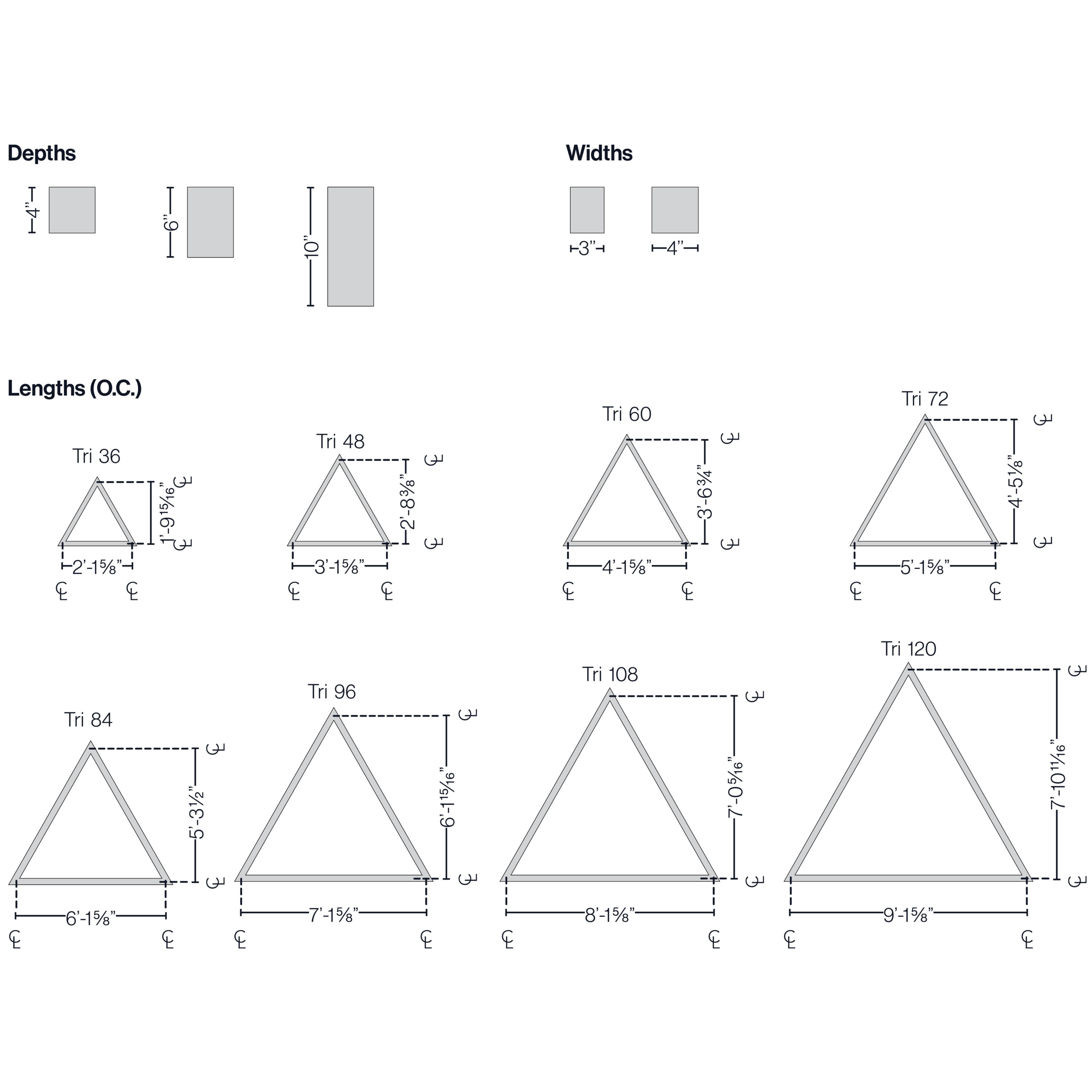

Dimensions (O.C)
Boundary Dimensions (1of2)
Boundary Dimensions (2of2)

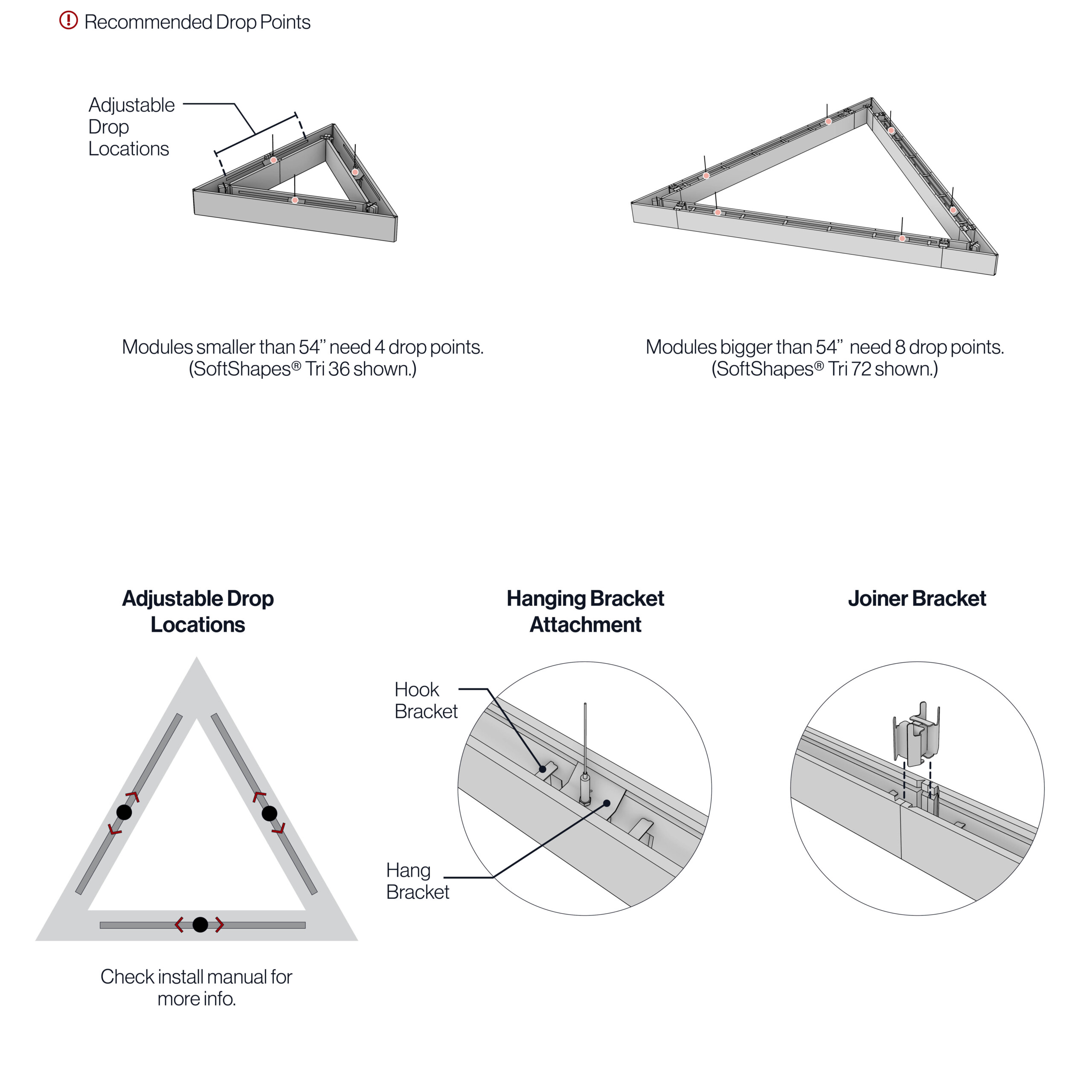

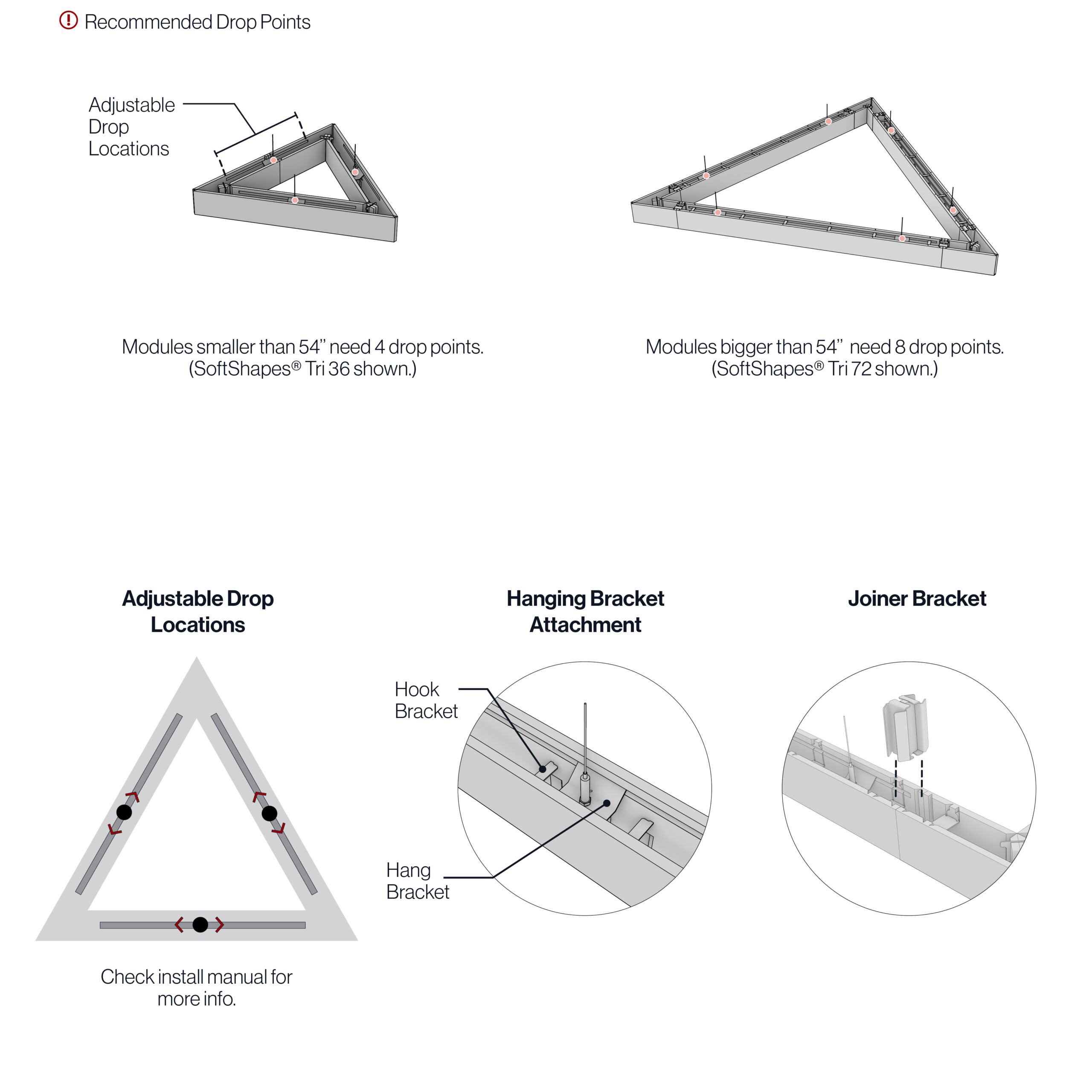

Adjustable Attachment Details

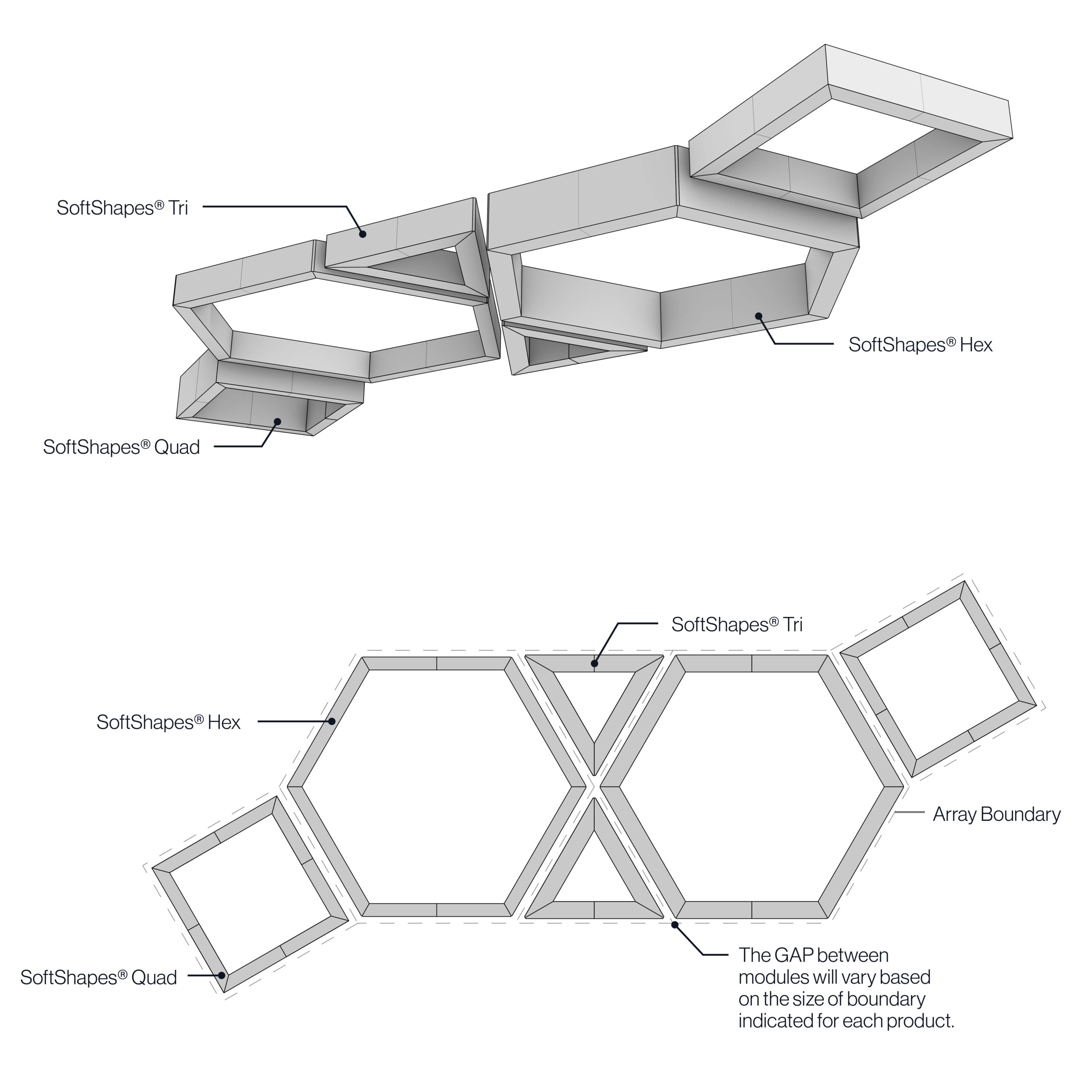

Combine with Other SoftShapes™
Combine with Other Systems
Multiple Attachment Options
Dimensions
- 3" Width 4’’, 6’’ & 10’’ Heights
- 18’’,30’’, 42’’, 54’’, 66’’, 78’’, 90’’, 102’’, 114’’
- 4" Width 6’’ & 10’’ Heights
- 18’’,30’’, 42’’, 54’’, 66’’, 78’’, 90’’, 102’’, 114’’
System Specs
- Material
- 12mm Soft Sound® (PET)
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

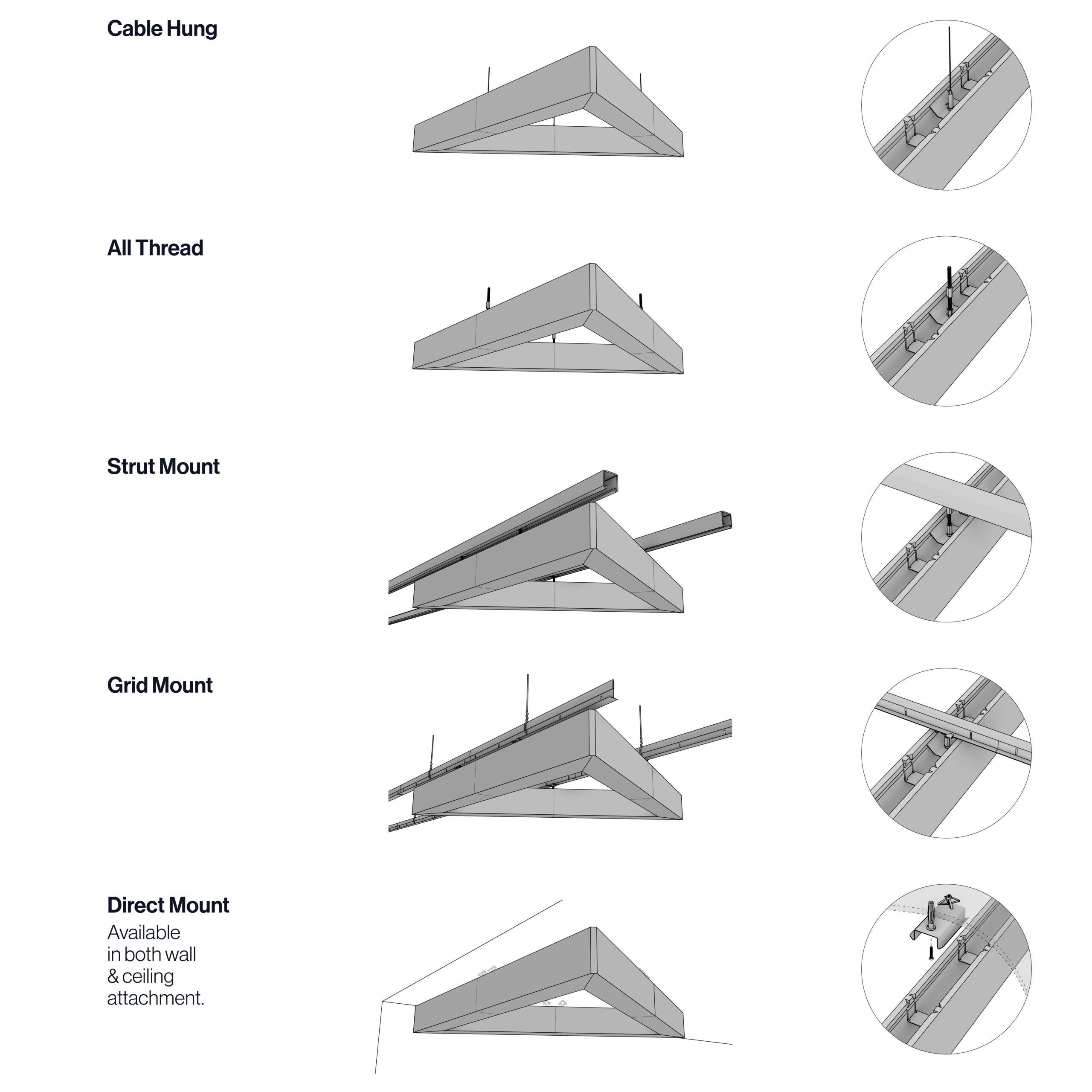

- Attachment Method
- 1/16" Stainless Cable Hung, All Thread, Strout Mount, Grid Mount, Direct Mount
- Accessibility
- Various accessibility options available by Attachment Method. Please refer to installation manual for specifics and contact a Rep.
Downloads
-
SoftShapes® Tri – Product Brochure PDF – ImperialBrochure3.08 MBpdf
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
SoftShapes® Tri – 3D DWG – Imperial3D Model702.49 KBzip
-
SoftShapes® Tri – 3D SKP – Imperial3D Model962.52 KBzip
-
SoftShapes® Tri – 3D RFA – Imperial3D Model62.94 MBzip
How To Specify
-
SELECT SHAPES
SoftShapes™ offers three shape – Tri, Quad, and Hex – that can be combined in layouts in an endless array of creative ways.
-
SELECT SIZES & PROFILES
SoftShapes™ Tri, Quad, and Hex each offers a wide range of sizes and profiles to choose from. Pick the combination that works best for your design.
-
SELECT FINISHES
Modules are available in a variety of colors and wood finishes. See our Soft Sound® color brochure for more information
-
SELECT NUMBER OF MODULES
SoftShapes™ is scalable by design. Select the quantity of modules needed for your project.
-
SELECT ATTACHMENT METHOD
SoftShapes™ features adjustable drop locations and five methods of attachment for ease of installation.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
