SoundStar®

SoundStar® ceiling system’s hexagonally shaped cellular coffers offer a scalable way to add geometric dimensionality and disrupt sound’s ability to travel across a space. Each module is comprised of angled surfaces made from our Soft Sound® acoustical material (100% PET plastic with up to 60% recycled content) with a metal substructure. Choose from 12” or 24” deep modules, to mix and match as desired. Thanks to its flexible, modular configuration, SoundStar® can adapt to a range of spaces and design visions, to create a spectacular visual effect. The design and sound capturing capabilities of this system offer a fresh effective approach to high performance sound attenuation.

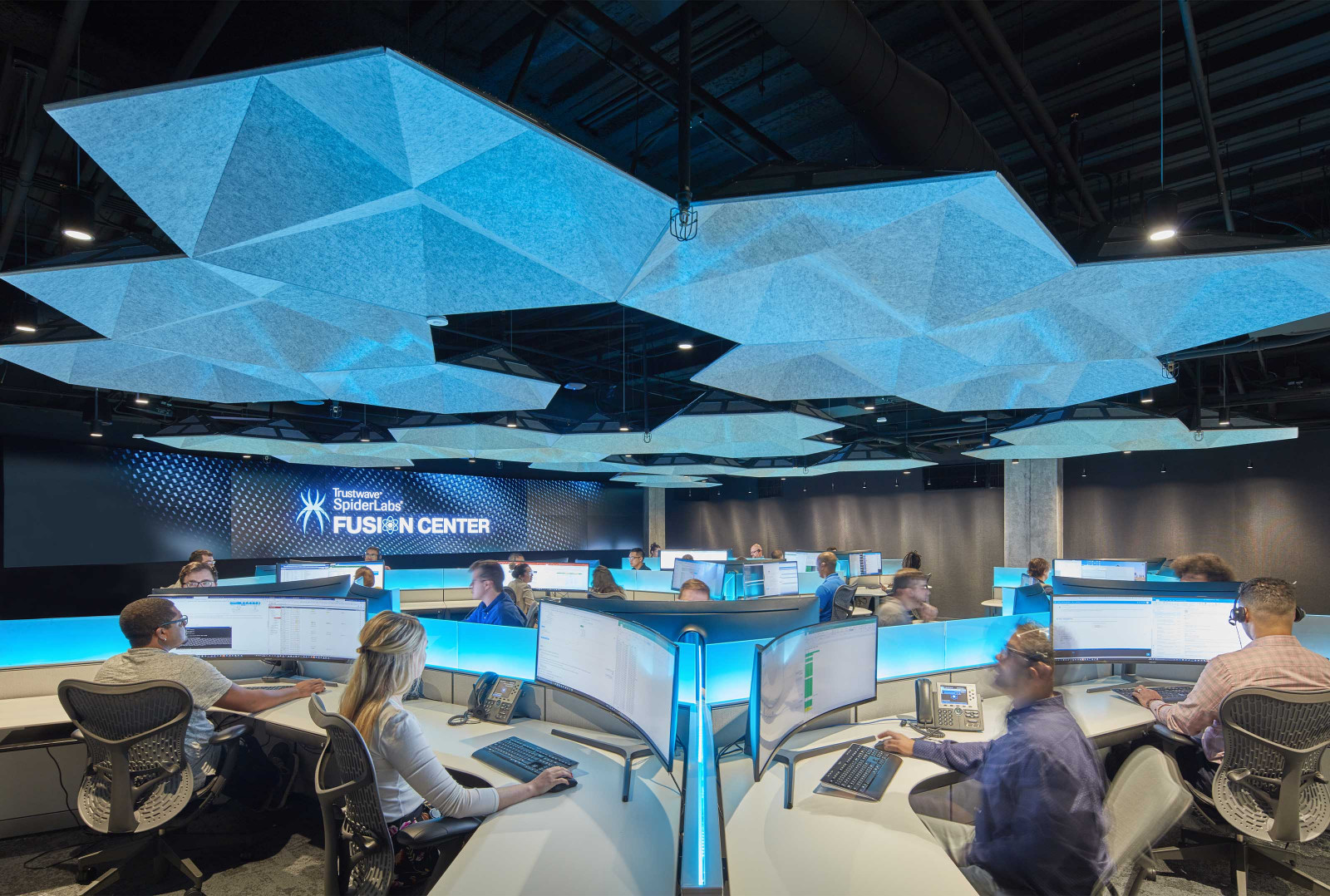

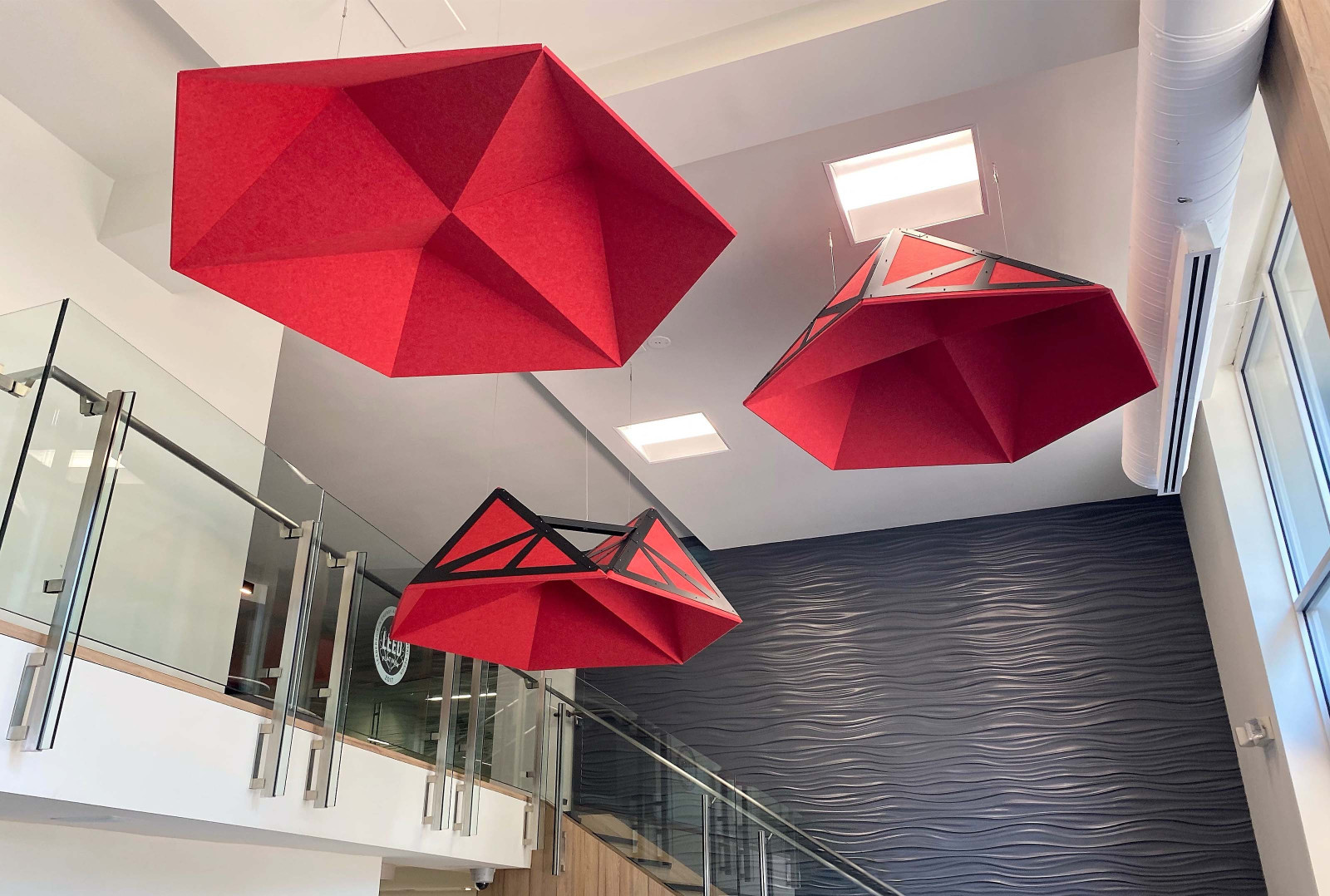

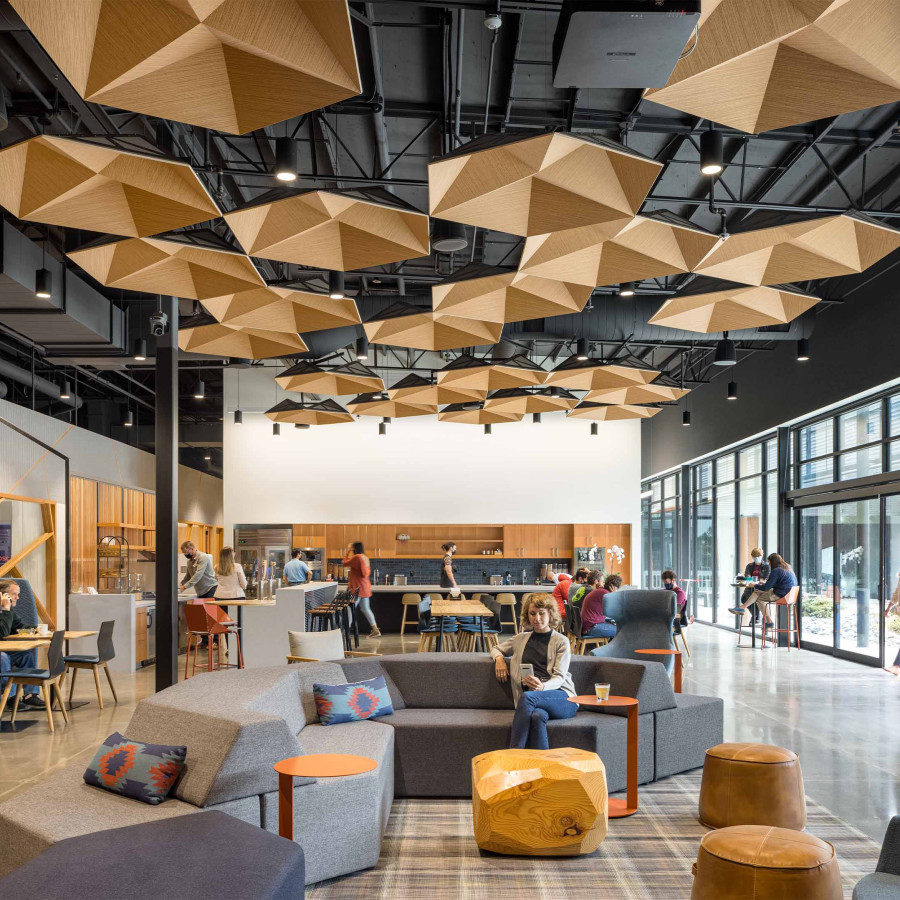

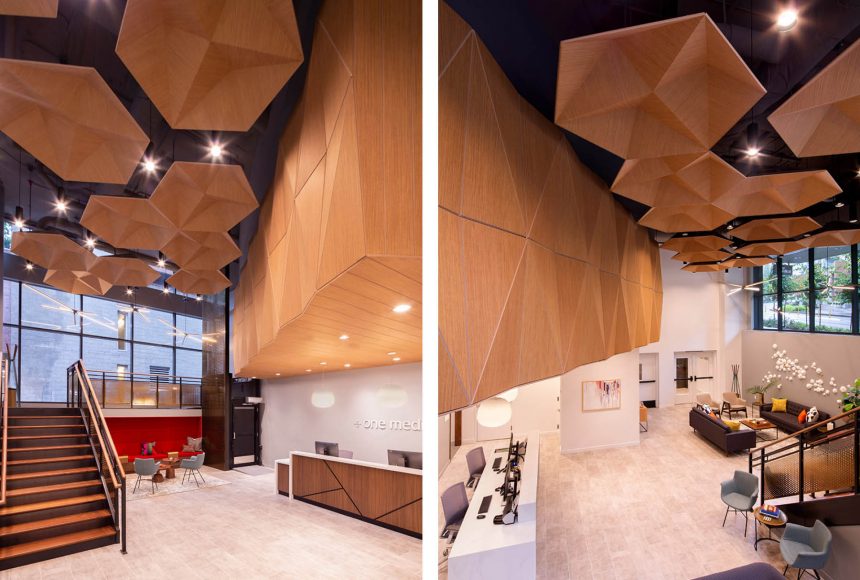

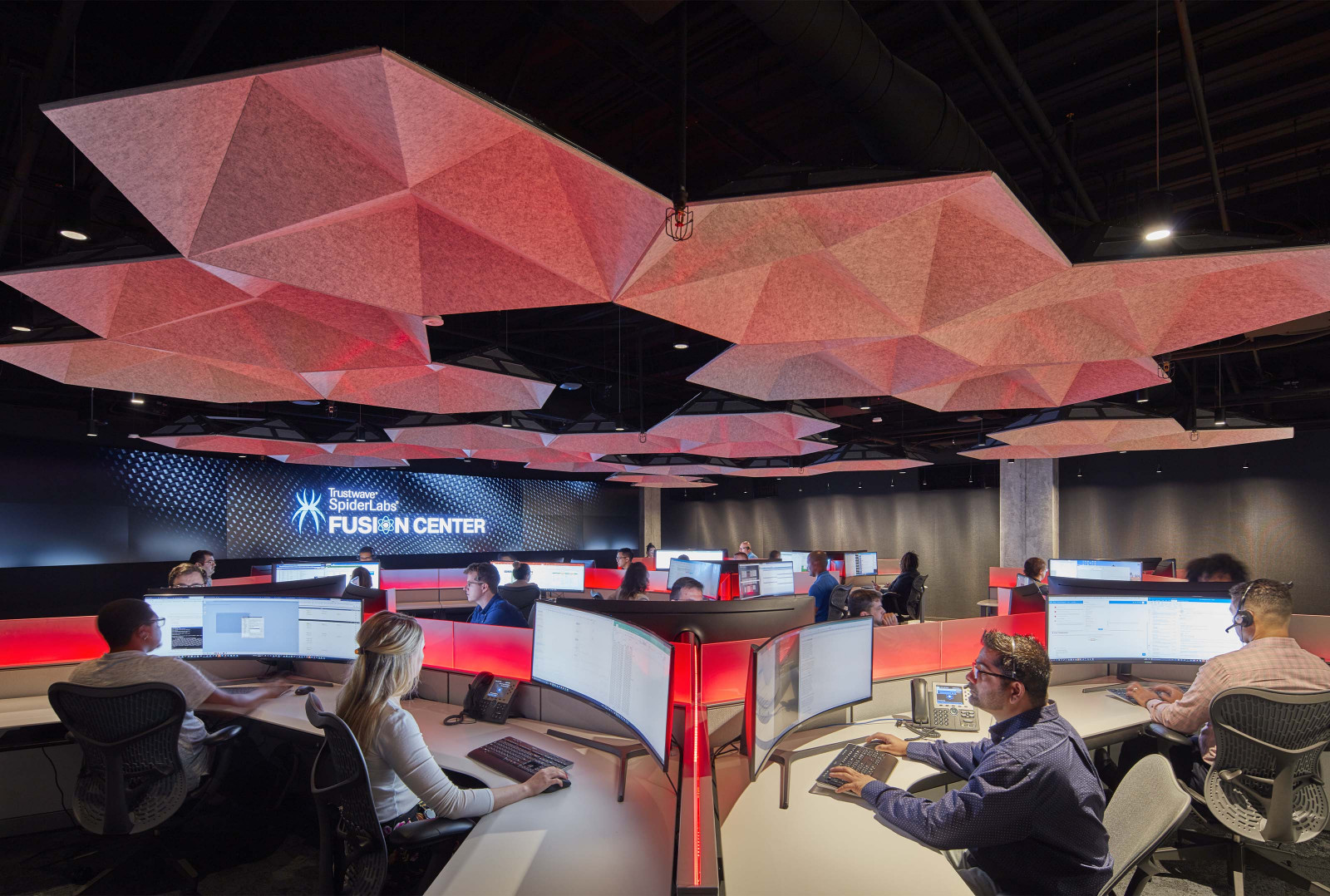

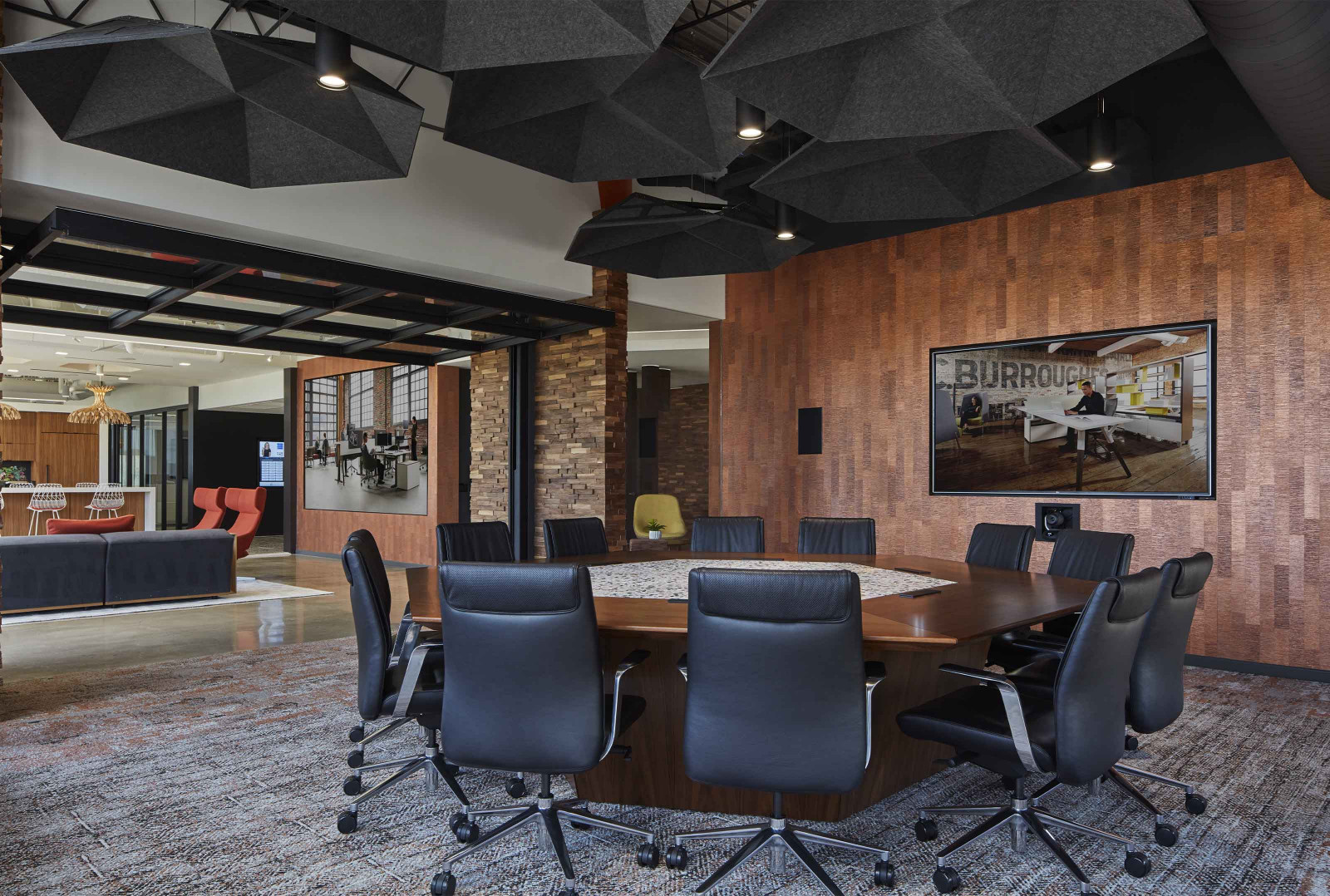

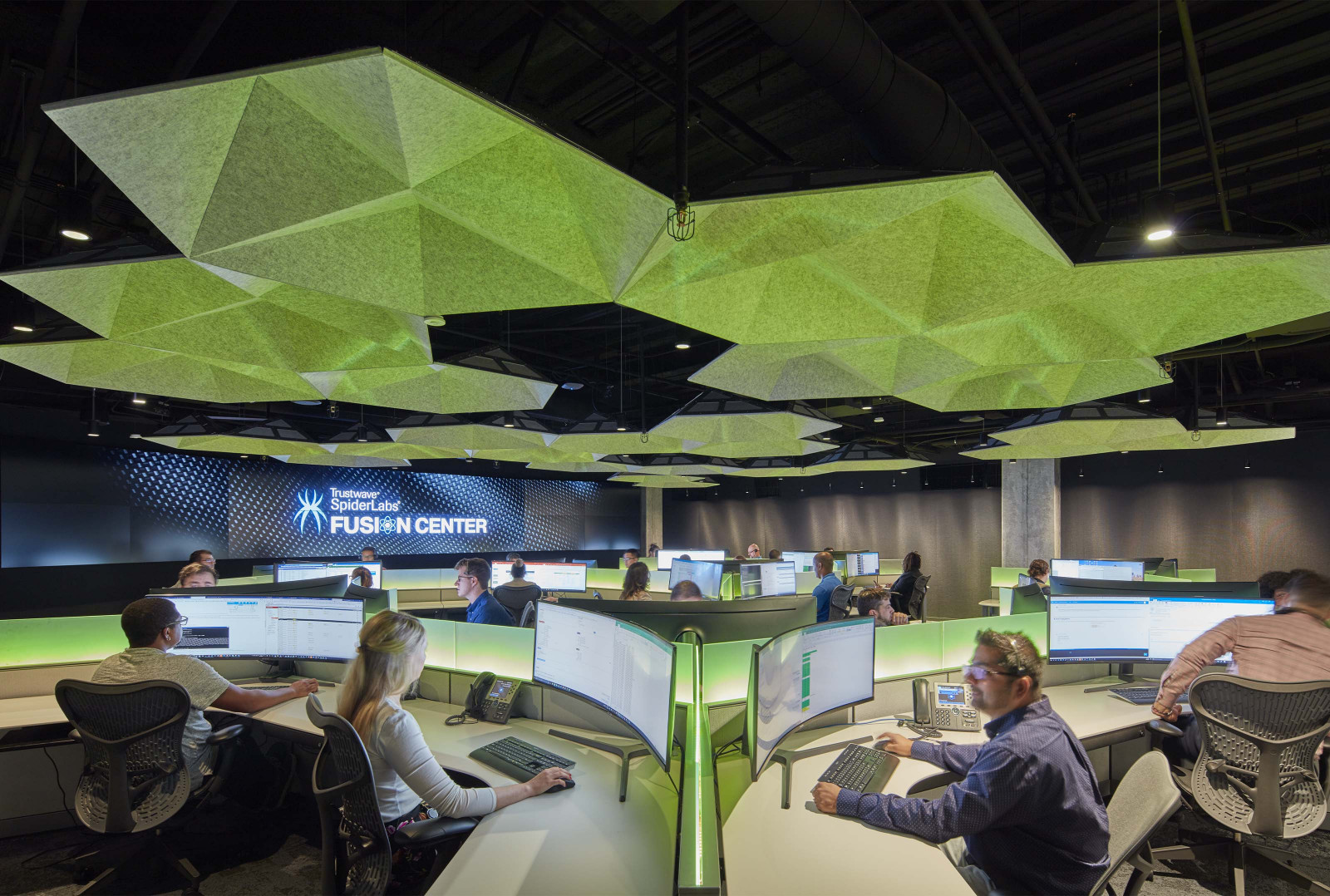

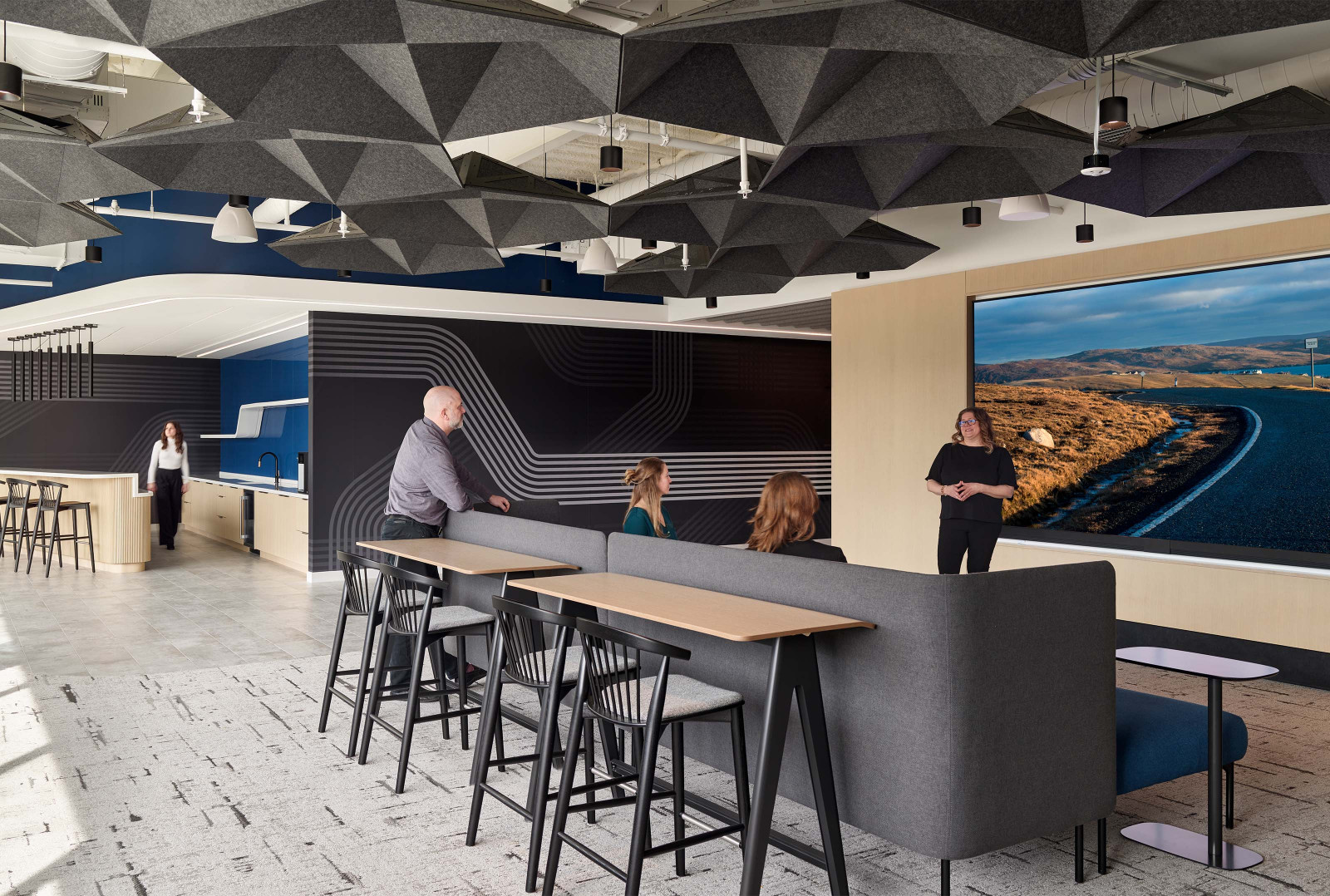

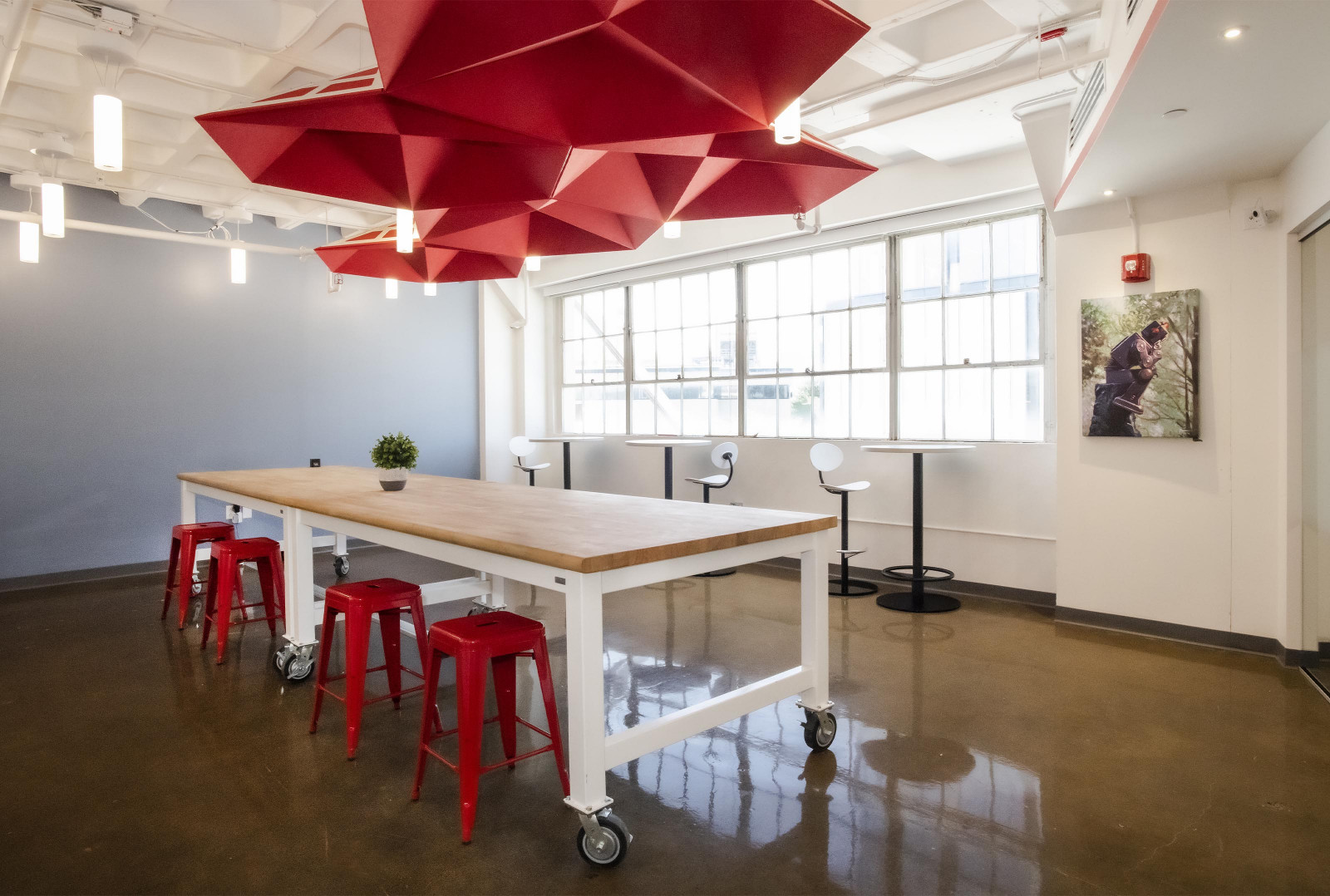

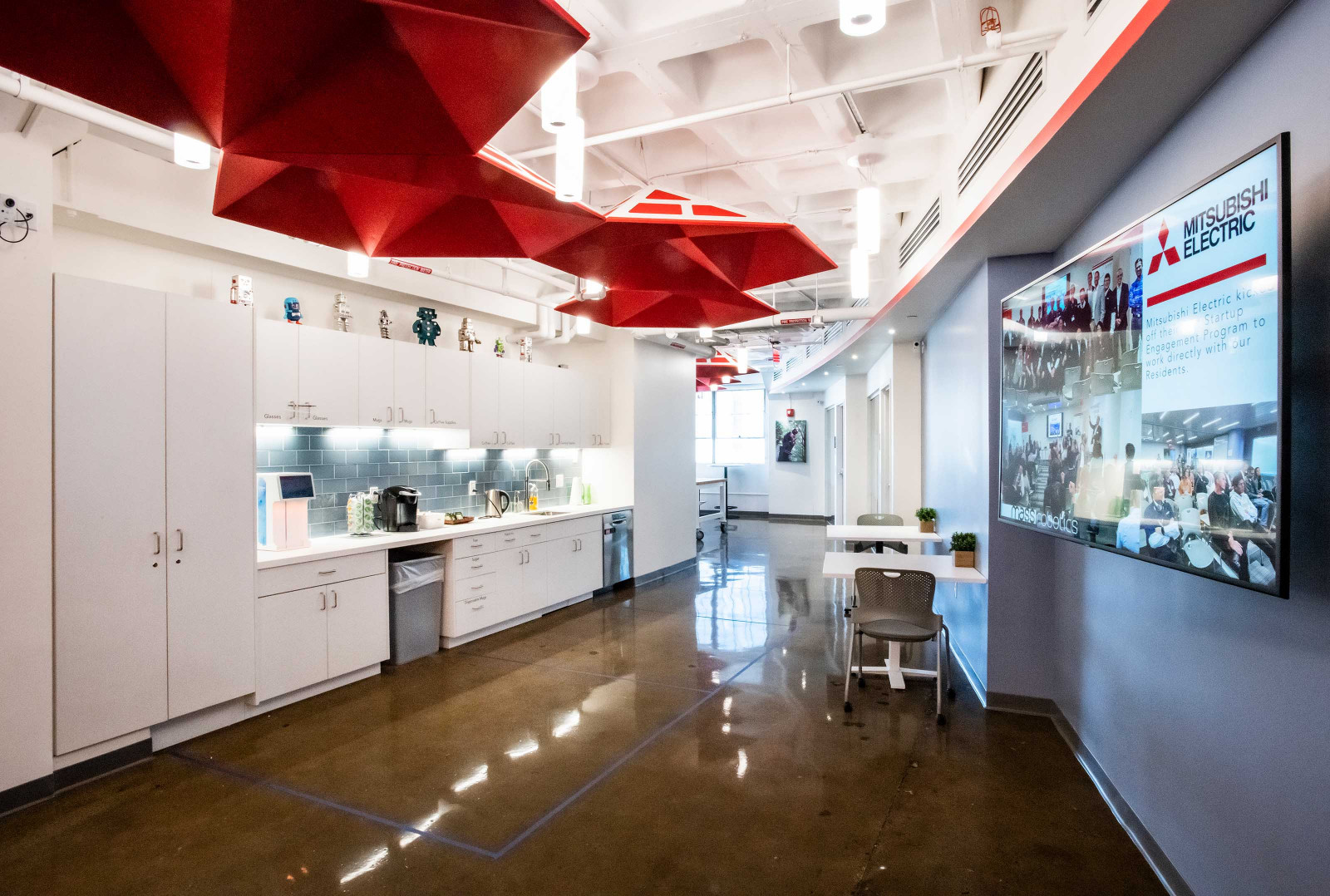

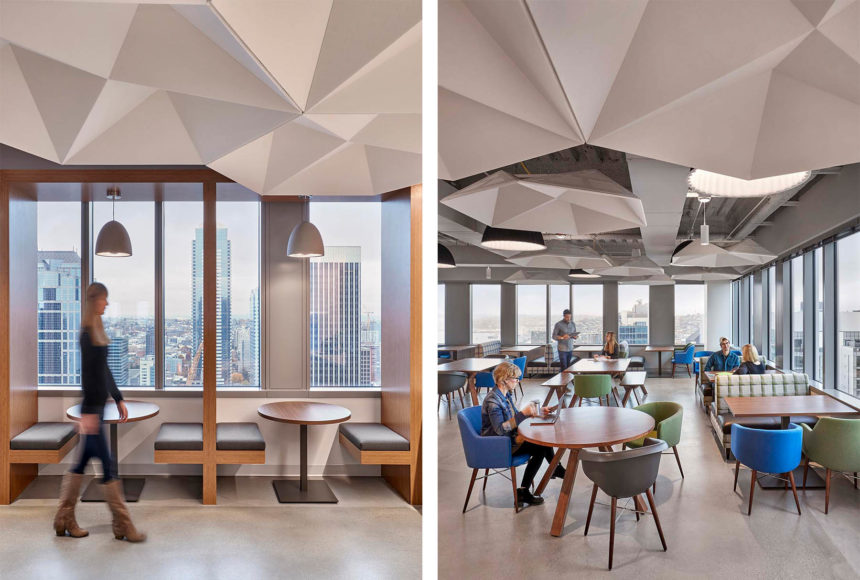

SoundStar® in use

Key Features

  • Dynamic Modules

    SoundStar®'s unique hexagonal shape allows it to work in dynamic clusters that don't confine its modules to rectilinear spaces. SoundStar® works with irregular and regular spaces, clusters well in open areas, and can be suspended individually as an acoustic cloud.

  • Thoughtful Integration

    SoundStar® can accept integration of lights and fire suppression systems through its vertices and voids. Simply select an open void in the SoundStar® module and field cut to integrate a fixture and add even more flexibility for integration.

  • Compatible with Hexagonal SoftGrid®

    SoundStar® is compatible with hexagonal SoftGrid® patterns Deca, Orbit, and Flux. Integrate SoftGrid® modules with SoundStar® to add balance and design variation to any space.

  • Reduce Noise & Enhance Acoustics

    SoundStar®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoundStar®'s material works in concert with the faceted design to help reduce and control reverberations and diffuse sound leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Seamless Connections

    Connect SoundStar® modules seamlessly into clusters, at all adjacent points, with our module joining brackets.

Cloud Materials & Colors

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Frame Color Options

Powder Coated Aluminum

Aluminum

Powder Coated Aluminum - Premium

Aluminum
Acoustic Clouds | Arktura-SoundStar-Red-
Award Win

SoundStar Wins Architectural Record's 2017 Record Products Awards, Architectural Finishes

Learn More

Product Details

Standard Modules

Multiple Modules

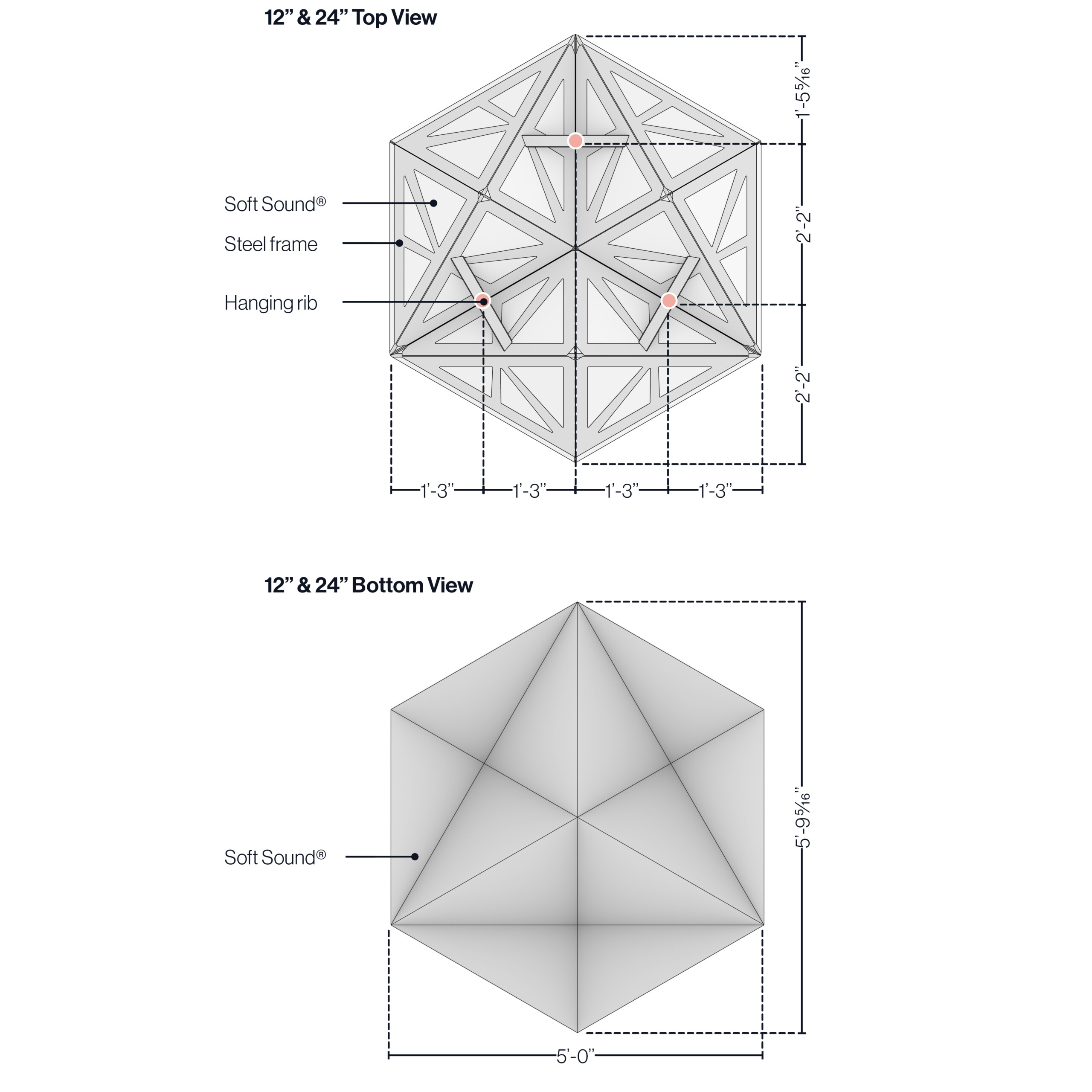

Understanding the Module - Plan

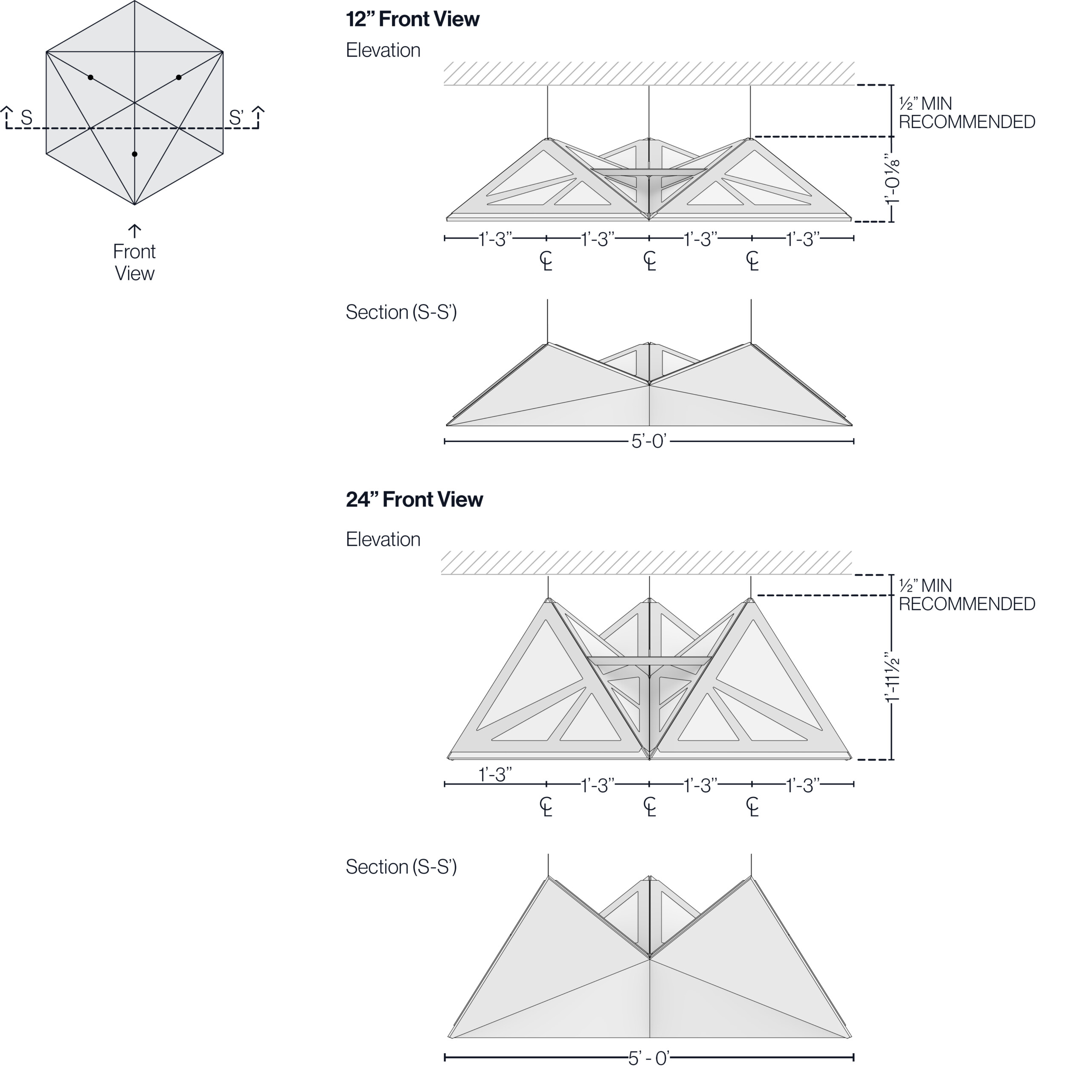

Understanding the Module - Sections & Elevations

Attachment Details

Combining With Other Products

System Specs

Module Dimension (WxL)
5´ x 5´-9 5/16" Imperial | 150cm x 175cm Metric
Depth
12" or 24" Imperial | 30cm or 60 cm Metric
Frame Material
Aluminum
Face Material
12mm Soft Sound® (PET)
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
SoundStar 24": True NRC™ 0.95: Ceiling E-600 Method
SoundStar 24": True NRC™ 0.95: Ceiling E-700 Method
SoundStar 12": True NRC™ 0.85: Ceiling E-300 Method
SoundStar 12": True NRC™ 0.85: Ceiling E-400 Method
Attachment Method
1/16" Cable
Accessibility
Yes, quick release cables
Trimmability
Yes, in specific areas that avoid the frame

Downloads

  • SoundStar® – Product Brochure PDF – Imperial
    Tear Sheet
    5.39 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    2.08 MB
    pdf
  • Powder Coat Color Brochure
    Brochure
    175.95 KB
    pdf
  • Soft Sound® and Powder Coat Color Pairing Chart
    454.75 KB
    pdf
  • SoundStar® – 3D DWG – Imperial
    3D Model
    317.62 KB
    zip
  • SoundStar® – 3D RFA – Imperial
    3D Model
    20.76 MB
    zip
  • SoundStar® – 3D SKP – Imperial
    3D Model
    62.94 KB
    zip
  • SoundStar® – 3D DWG – Metric
    3D Model
    306.8 KB
    zip
  1. SELECT A DEPTH

    SoundStar® is available in 12" and 24" depths. Select the style that best suits your vision and project needs.

  2. SELECT A COLOR

    Mix or match Soft Sound® colors and wood finishes with aluminum frames. See our powder coat and Soft Sound® color brochures for more information.

  3. SELECT A NUMBER OF MODULES

    SoundStar® modules are scalable by design. Select the quantity of modules needed for your project.

Let us help you get started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
