View Line

Trace® Slide

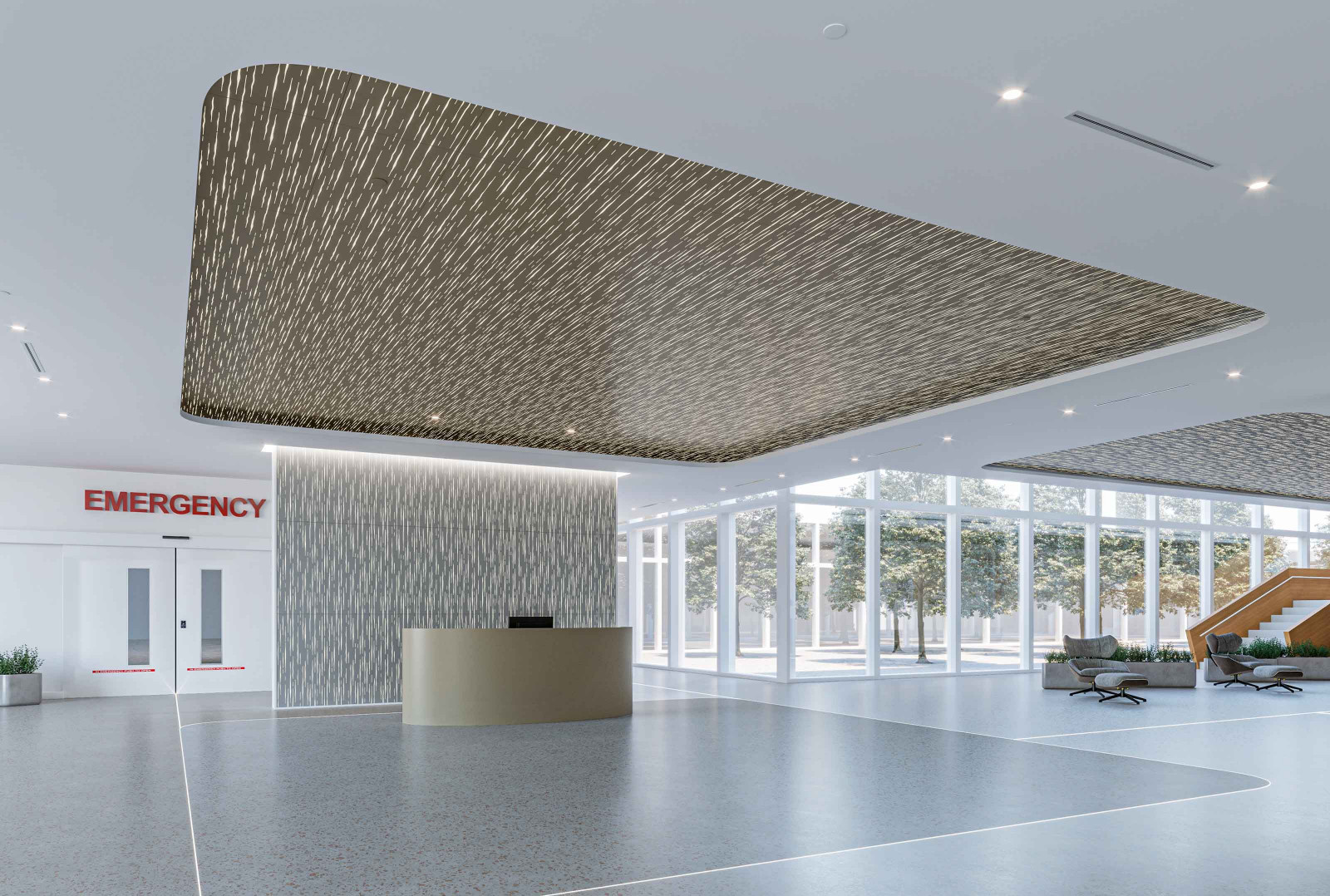

Trace® Slide's 2'x4' powder-coated aluminum torsion spring panels evoke the outdoors through their biomorphic pattern that echoes the imagery of babbling brooks or ancient tree bark. Add visual depth and illumination to your space by incorporating our integrated InLine Lighting or Backlighting options. Or optimize wellness by enhancing acoustic comfort and reducing the impact of noise with our high-performance Soft Sound® backers.

Downloads Find a rep Add to project
Get a Quote



Expand
Expand
Expand
Expand
Expand
Arktrua Trace Slide
Expand
Expand
Expand
Expand
Expand
Expand

Key Features

  • Acoustic Performance

    Trace®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Superior Flatness & Strength

    Trace® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.

  • Integrated Lighting Options

    Arktura's Trace® line makes it easy to seamlessly add illumination and lighting effects to your projects, through available integrated InLine and Backlighting options.

  • Easy Installation & Access

    Trace® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika® channel system.

  • Preconfigured Solutions

    Trace® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

  • Continuous Pattern Aesthetic

    Achieve uninterrupted patterning across your space. Trace® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Panel Materials & Colors

Powder Coated Aluminum

Aluminum

Powder Coated Aluminum - Premium Metallic Finish

Aluminum

Pure + FreeForm - Premium Metallic Patinas

Aluminum

Pure + FreeForm - Premium Wood Textures

Aluminum

Backer Options

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Interior Translucent Backer

1/16" Polycarbonate

Product Details

Diagrams Specs

Standard Panel

Seamlessly Join Walls & Ceilings

Understanding the Panel

Accessory Options - Ceiling

Accessory Options - Wall

Accessory Options - Retrofit Adapter Clip Kit

System Specs

Panel Size (WxHxD)
2' x 4' x 1 1/2" Imperial | 60cm x 120cm x 3.8cm Metric
Material
Aluminum
Openness in Plan
8%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics (with optional Soft Sound® backer)
True NRC® 0.75: Ceiling E-300 Method
True NRC® 0.70: Wall F-70 Method
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
Torsion Springe Hinge
Trimmability
Yes, per installation manual
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light

Downloads

  • Trace® Slide – Product Brochure PDF – Imperial
    Brochure
    5.64 MB
    pdf
  • Arktura Backlighting – DWG – Imperial
    3D Model
    204.46 KB
    zip
  • Trace® Slide – 3D DWG – Imperial
    3D Model
    775.12 KB
    zip
  • Torsion Panel Trim Details – 2D DWG – Imperial
    3D Model
    457.24 KB
    zip
  • Trace® Slide – 3D RFA – Imperial
    3D Model
    19.19 MB
    zip
  • Torsion Spring Adapter Clip – Accessory Kit – Product Brochure – PDF
    Brochure
    3.07 MB
    pdf
  • Trace® Slide – 3D SKP – Imperial
    3D Model
    924.5 KB
    zip
  • Vertika® – 3D DWG – Imperial
    3D Model
    1.27 MB
    zip
  • Powder Coat Color Brochure
    Brochure
    70.53 KB
    pdf
  • Vertika® – 3D SKP – Imperial
    3D Model
    1.91 MB
    zip
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf

How to Specify:

  1. SELECT A STYLE

    Trace® is available in Straight, Curved, Skew, and Slant pattern variations to allow you to select the right aesthetic for space.

  2. SELECT A COLOR

    Panels are made available in a variety of colors. See our powder coat brochure for standard and premium options. Customized color matching is also available.

  3. SELECT A NUMBER OF MODULES

    All our Trace® line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.

  4. OPTION TO ADD LIGHTING

    Incorporate dynamic inline or backlighting, to add another dimension of functionality and visual interest to your project.

  5. OPTION TO ADD BACKER

    Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to reduce the impact of noise across spaces.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
