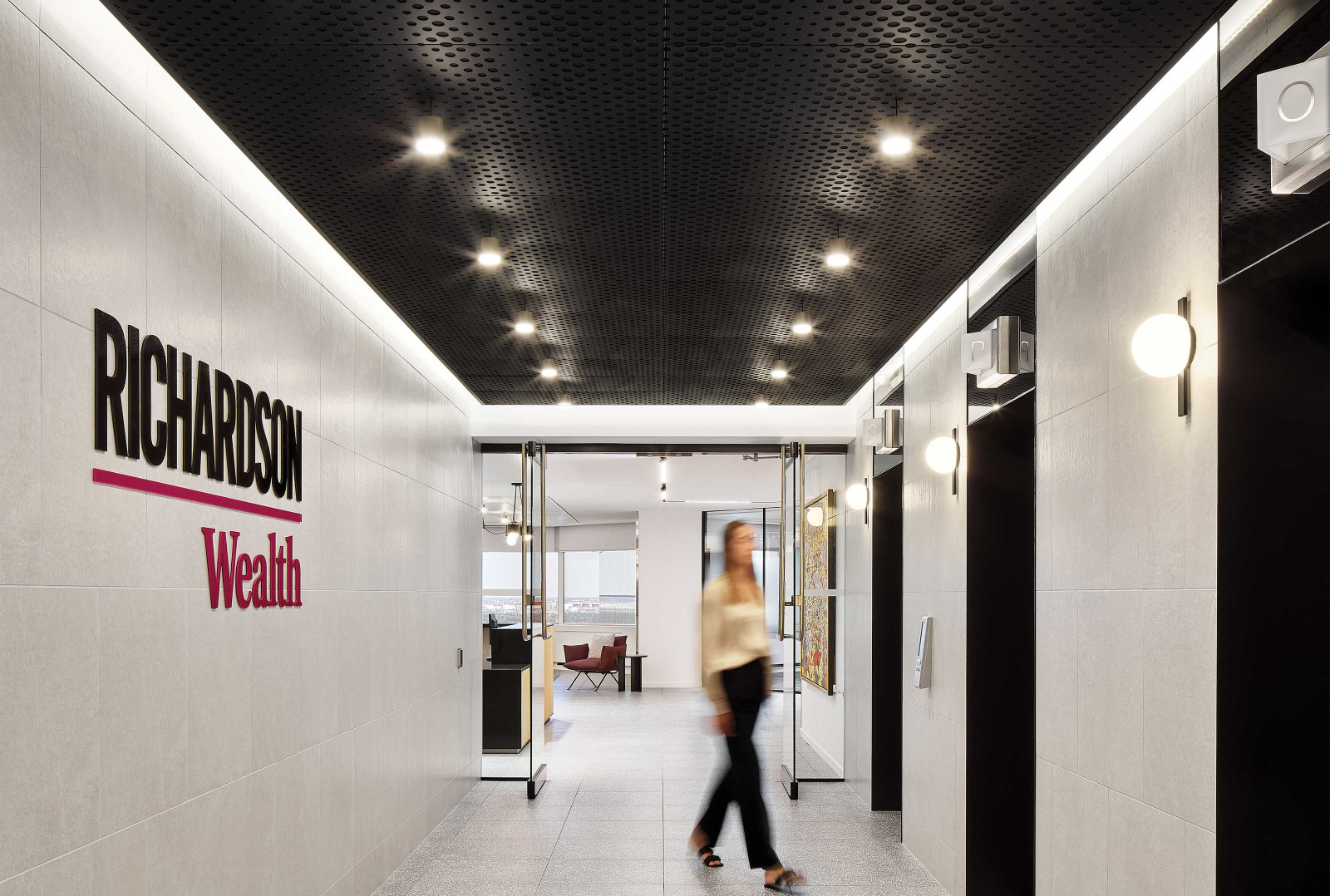

Sky powder-coated aluminum torsion spring panels offer a tileable, cloud-like pattern, helping you bring the sky indoors. With no fading of the pattern, the cloud design can continue for as long as your hallway or space allows, without sacrificing acoustical comfort if you add our Soft Sound® backer. Or you can add our integrated lighting backer for a sky that glows.
Vapor®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Superior Flatness & Strength
Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
Integrated Lighting Options
Arktura's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projeccts, through available integrated InLine and Backlighting options.
Easy Installation & Access
Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika™ channel system.
Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
Continuous Pattern Aesthetic
Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.
Panel Materials & Colors
Powder Coated AluminumAluminum
Powder Coated Aluminum - Premium Metallic FinishAluminum
Soft Sound® Group AAcoustic PET
Soft Sound® Wood TexturesAcoustic PET
Interior Translucent Backer1/16" Polycarbonate
- Panel Size (WxHxD)
- 2' x 4' x 1 1/2" Imperial | 60cm x 120cm x 3.8cm Metric
- Openness in Plan
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
- Acoustics (with optional Soft Sound® backer)
- True NRC® 0.75: Ceiling E-300 Method
- True NRC® 0.60: Wall F-70 Method
- Ceiling Attachment
- Torsion Grid (By Others)
- Wall Attachment
- Vertika® Wall (Refer to Vertika® Brochure)
- Torsion Spring Hinge
- Yes, per installation manual
- Acoustic Backer, Translucent Backer, Backlight, InLine Light
Vapor® Sky – Product Brochure PDF – ImperialBrochure6.12 MB
Arktura Backlighting – DWG – Imperial3D Model240.59 KBzip
Vapor® Sky – 3D DWG – Imperial3D Model4.94 MBzip
Torsion Panel Trim Details – 2D DWG – Imperial3D Model124.34 KBzip
Vapor® Sky – 3D SKP – Imperial3D Model4.94 MBzip
Torsion Spring Adapter Clip – Accessory Kit – Product Brochure – PDFBrochure3.07 MB
Vapor® Sky – 3D RFA – Imperial3D Model24.81 MBzip
Vertika® – 3D DWG – Imperial3D Model1.27 MBzip
Powder Coat Color BrochureBrochure70.53 KB
Vertika® – 3D SKP – Imperial3D Model1.91 MBzip
Soft Sound® Color Brochure & SpecificationsBrochure828.83 KB
How to Specify:
SELECT A STYLE
Select the style that best suits your vision and project needs. Vapor® is available in a range of styles to fit a multitude of design intents. Find the right pattern and texture for your space.
SELECT A COLOR
Panels are made available in a variety of colors. See our powder coat brochure for standard and premium options. Customized color matching is also available.
SELECT A NUMBER OF MODULES
All our Vapor® line offers seamless patterns that are fully scalable. Select the amount of modules needed for your project.
OPTION TO ADD LIGHTING
Incorporate dynamic inline or backlighting, to add another dimension of functionality and visual interest to your project.
OPTION TO ADD BACKER
Incorporate available backers of frosted acrylic, for diffused lighting and other visual effects, or Arktura’s Soft Sound® acoustical material, to reduce the impact of noise across spaces.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
