SoftScreen® Groove Angled

SoftScreen®️ Groove Angled panels and partitions bring a lively texture to spaces while creating a barrier from noise and air current. Use its linear pattern in a single direction or to zig-zag across a space. Choose from 3 spacing options for its angled lines, all providing acoustic comfort thanks to their Soft Sound®️ construction. Choose from Hanging Bracket, Cable Hung, and Sliding Track mounting methods to fit the needs of your space. Ask about Groove Wall Coverings for Direct mounting applications or refer to the final page of the product brochure for more info.

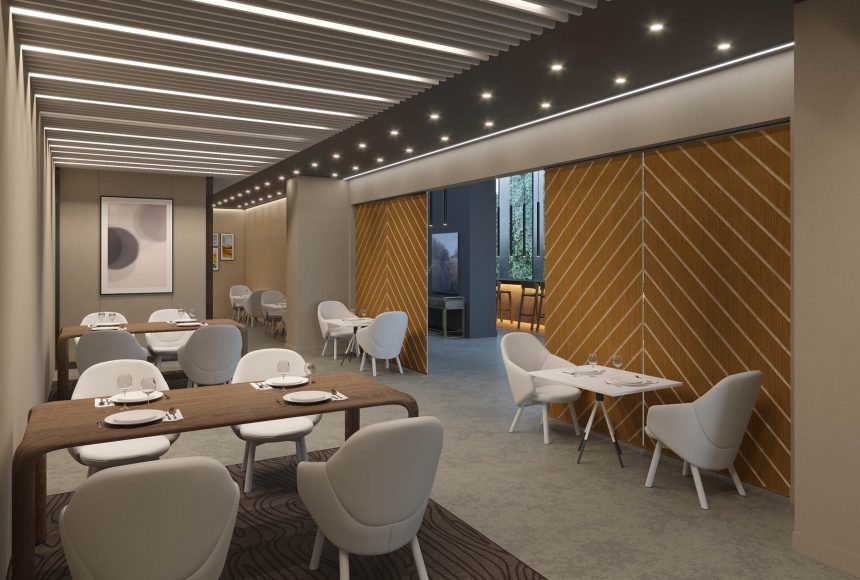

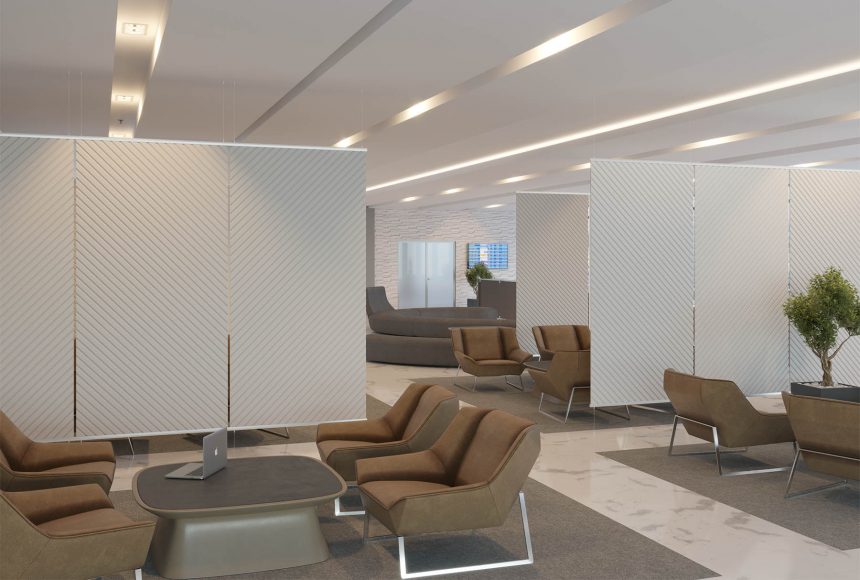

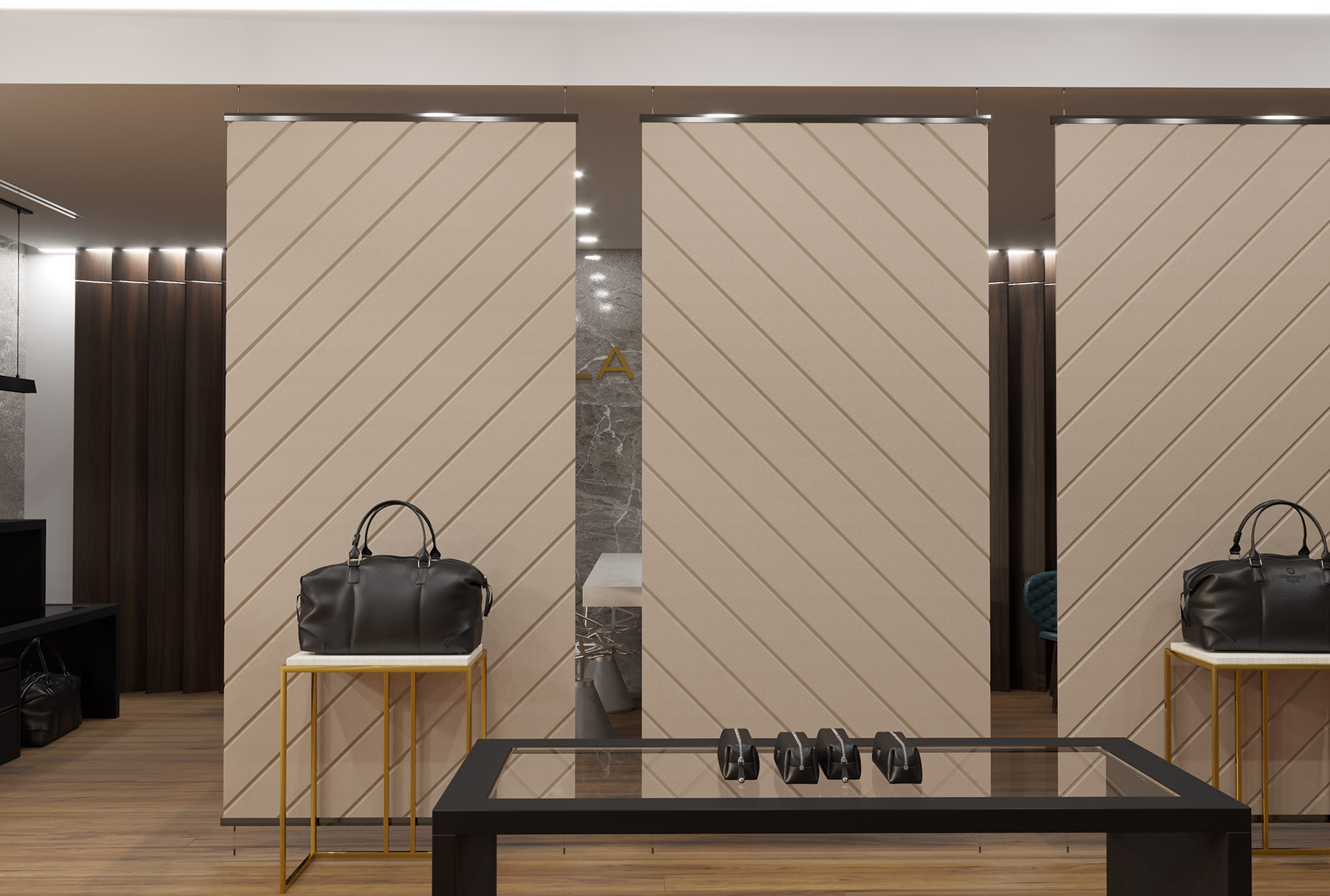

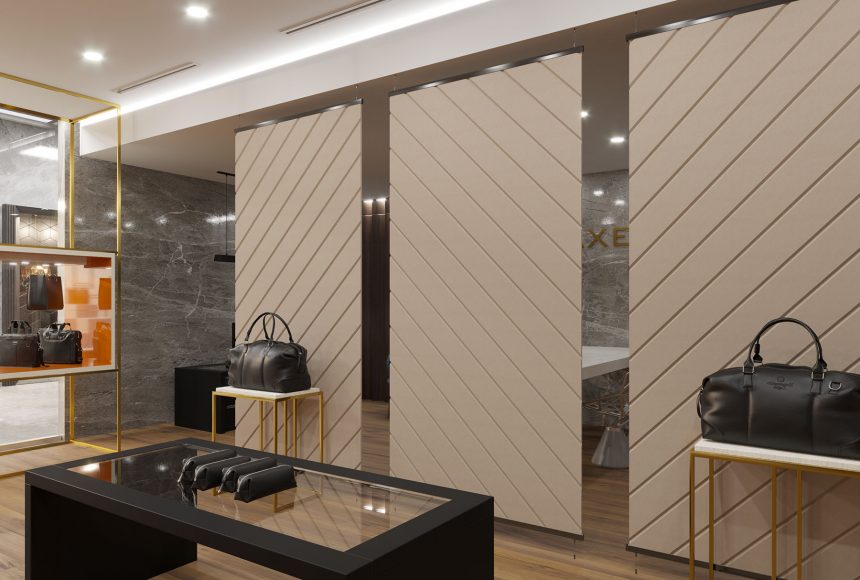

Groove Angled in use

Key Features

  • Reduce Noise & Enhance Acoustics

    SoftScreen®'s Soft Sound® material reduces noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftScreen®'s material works in concert with wall coverage or partition capabilities and diffuses sound while enhancing wellness in spaces from busy office environments to soothing waiting rooms.

  • Expansive Soft Sound® Library

    Choose from a expanding library of Soft Sound® colors and wood textures. Mix and match colors to accent panels and complement the color scheme of your space.

  • Varying Degrees of Separation

    SoftScreen®'s growing collection of solid, half, and full pattern designs create a diverse range of physical separation and visual obstruction to fit the privacy, collaboration, and partition needs of any space.

  • Continuous Aesthetic

    SoftScreen's thoughtful design allows for a continuous pattern aesthetic across an array of panels.

  • Height Options

    SoftScreen® offers two variable heights to accommodate use in a diverse range of spaces.

  • Diverse Mounting Methods

    SoftScreen® attachments are available to create both static and operable panels. Choose from Hanging Bracket, Cable Hung, Sliding Track, or Direct mounting methods to make SoftScreen's various functions a suitable fit for any interior space.

Panel Materials & Colors

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Hardware Options

Anodized Aluminum

Aluminum

Product Details

Pattern Options

Pattern Options

Section: Plan

Install Option: Direct

Install Option: Cable Hung

Install Option: Hanging Bracket

Install Option: Sliding

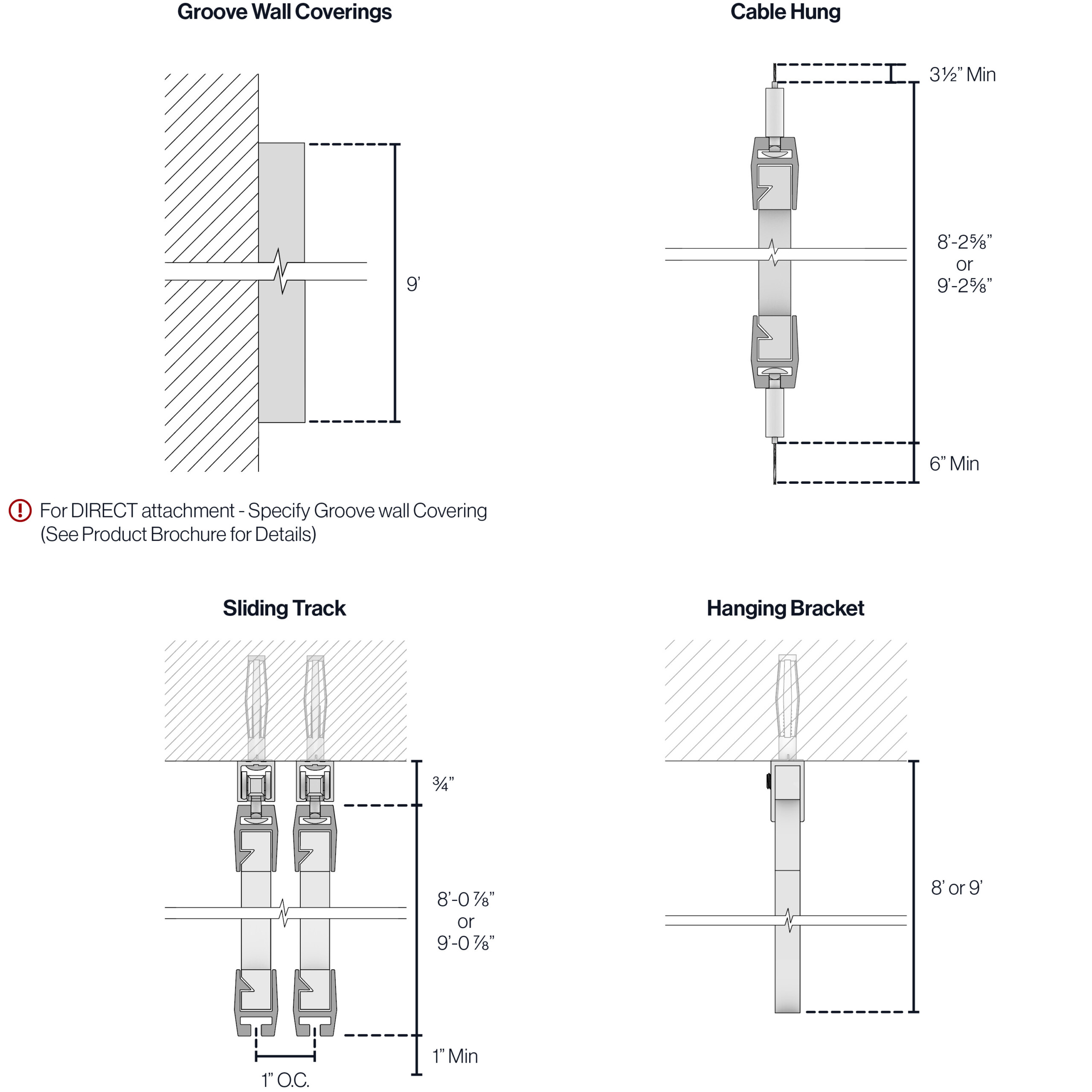

Sectional Elevations

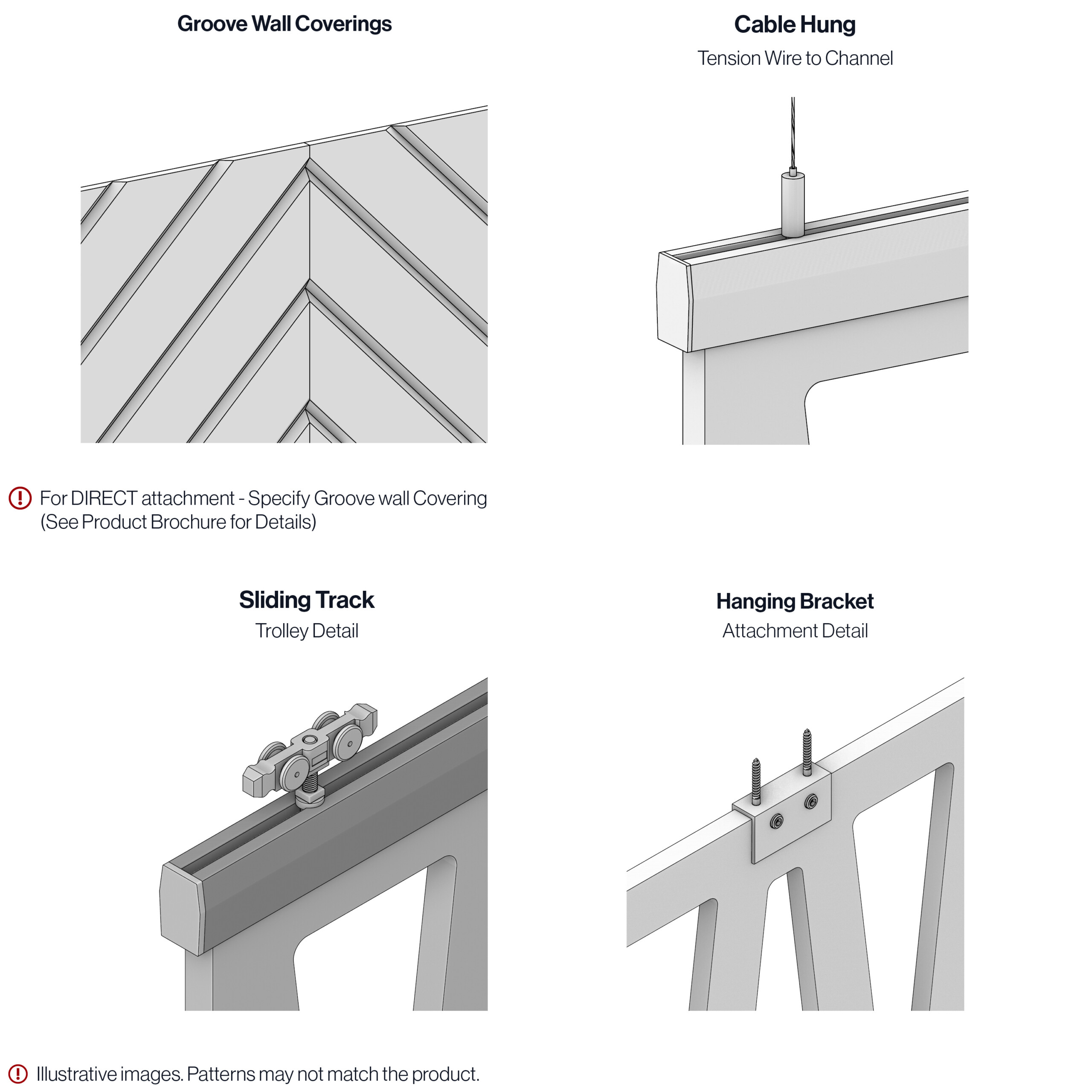

Attachment Details

Accessories: Bridge

Accessories: Edge



Dimensions (WxLxD)
4´x 8´-0 7/8" x 1/2" (3/4" w/ Channel) Imperial | 122cm x 246.2cm x 1.3cm (2cm w/ Channel) Metric
4´x 9´-0 7/8" x 1/2" (3/4" w/ Channel) Imperial | 122cm x 276.2cm x 1.3cm (2cm w/ Channel) Metric
Material
12mm Soft Sound® (PET) and Aluminum Track
Openness
0%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Ceiling/Floor Attachment
Track or Wire
Wall Attachment
Adhesive
Trimmability
Yes, per installation manual

Downloads

  • SoftScreen® Groove Angled – Line Brochure PDF – Imperial
    Brochure
    6.11 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    2.08 MB
    pdf
  • SoftScreen® Groove Angled – 3D DWG – Imperial
    3D Model
    7.23 MB
    zip
  • SoftScreen® Groove Angled – 3D SKP – Imperial
    3D Model
    5.75 MB
    zip
  • SoftScreen® Groove Angled – 3D RFA – Imperial
    3D Model
    55.48 MB
    zip
  1. SELECT A STYLE

    Select the pattern that best suits your vision and project needs. SoftScreen® is available in a range of styles to fit a multitude of design intents. If a pattern does not meet your intent, custom options are available.

  2. SELECT A COLOR

    SoftScreen® panels are available in a variety of Soft Sound® colors, including naturalistic Soft Sound® Wood Texture finishes. See our Soft Sound® color brochure or contact your local rep for more information.

  3. SELECT AN INSTALLATION TYPE

    SoftScreen® panels come ready for Direct mount and also offer optional hardware accessory packages. Choose from Hanging Bracket, Cable Hung, and Sliding Track mounting methods.

  4. SELECT OPTIONAL ACCESSORIES

    Choose from available Edge Guards, Base Guards, and Bridge Brackets, as well as extra Sliding Track.

  5. SELECT A NUMBER OF PANELS

    All SoftScreen® modules are scalable by design. Select the quantity of modules needed for your project.
