SoftGrid® Flux

Flux’s acoustic ceiling modules create a geometric abstract shape, thanks to its interweaving network of panels made of Soft Sound® material that provides acoustic support where you need it. These intricate modules can connect together to provide acoustic comfort to an entire room or be used separately for a more focused design.

Downloads Find a rep Add to project
Get a Quote Watch Video

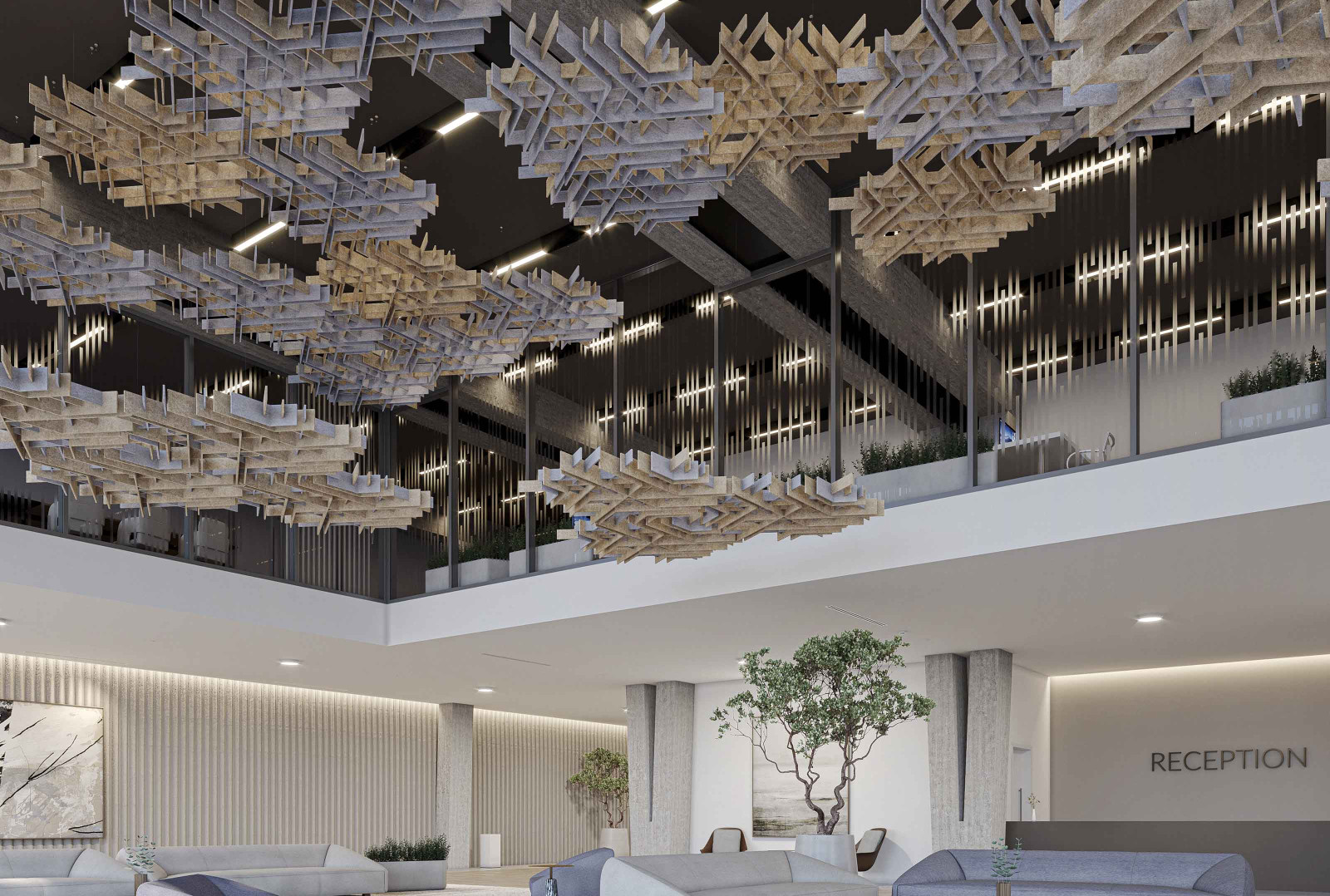

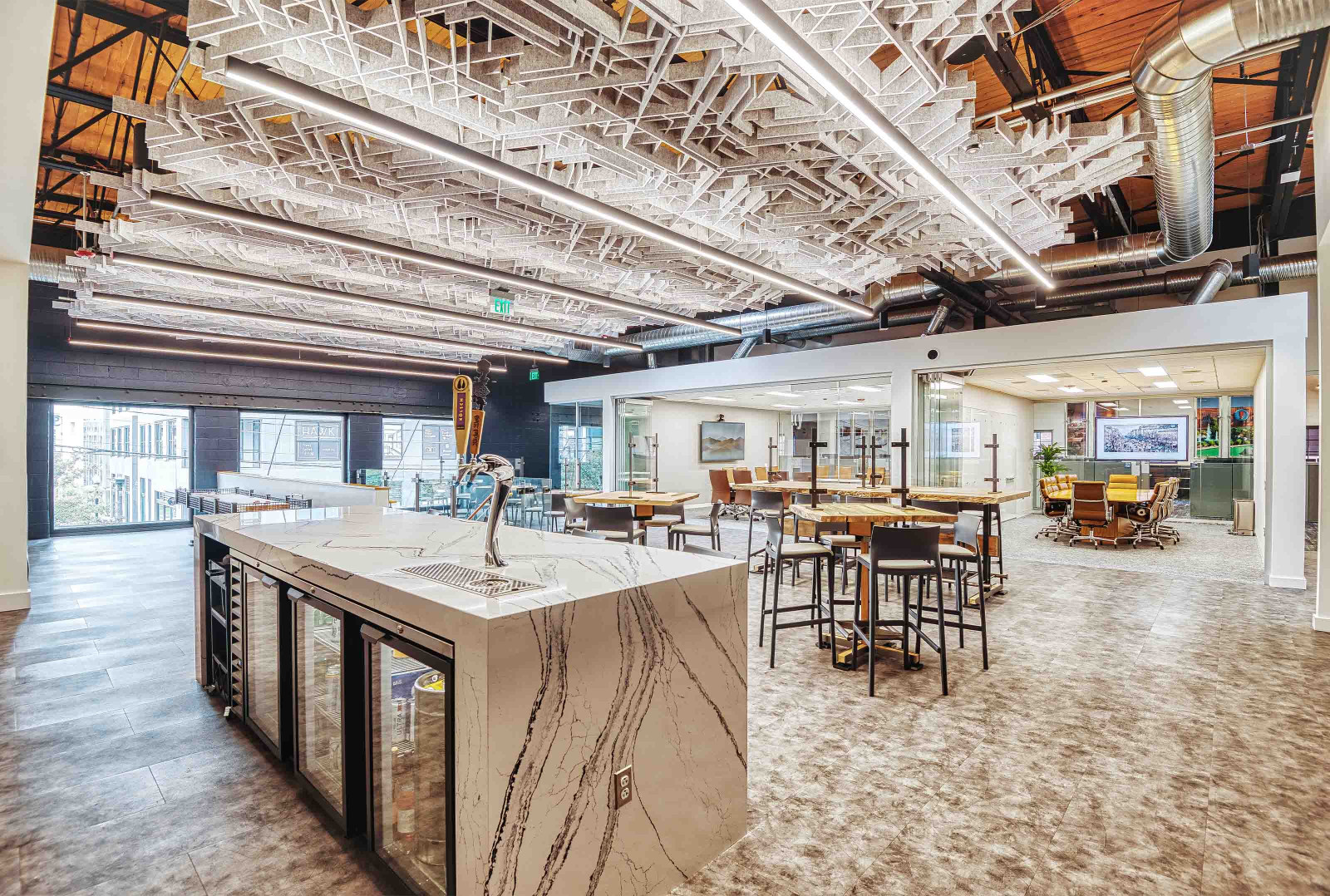

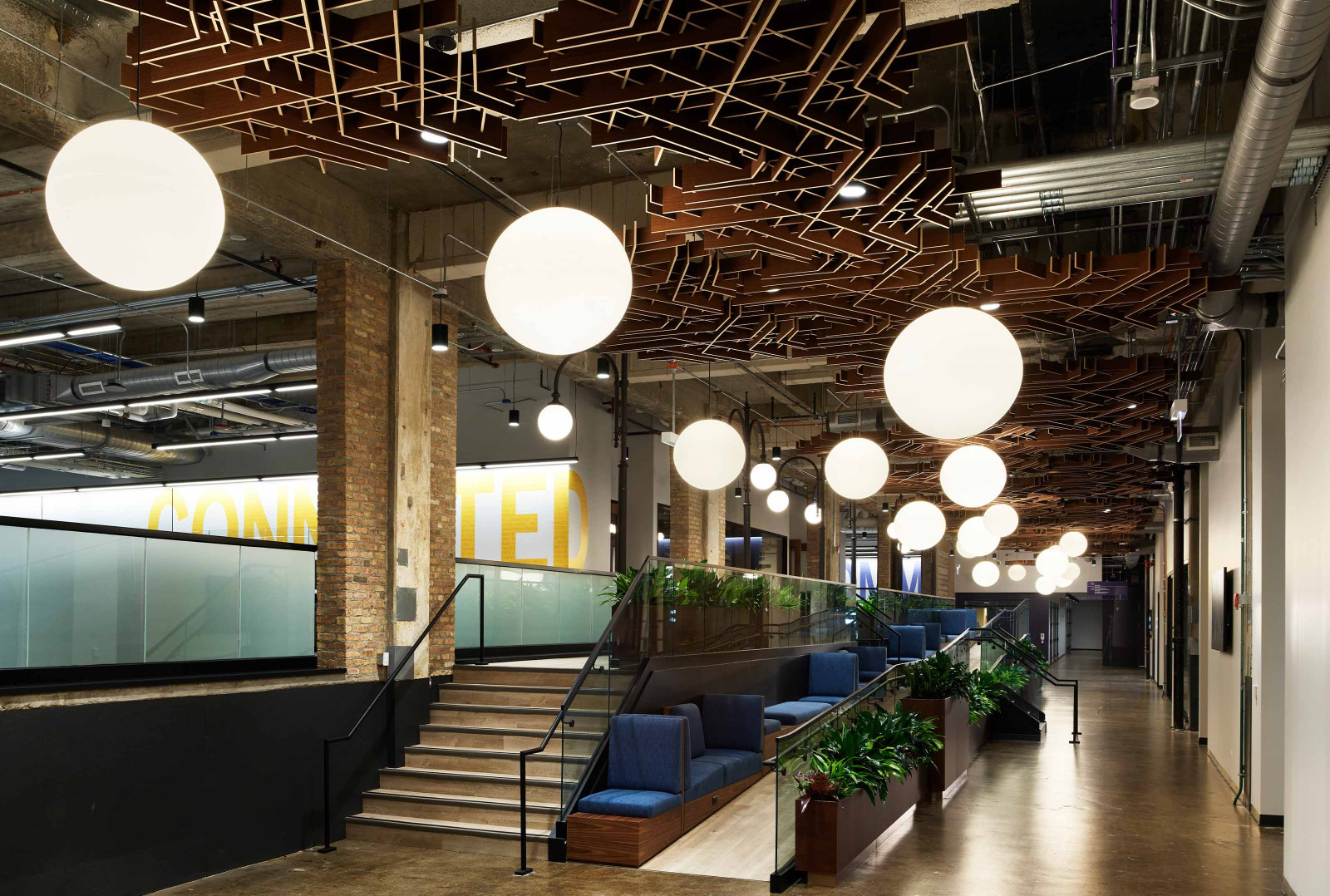

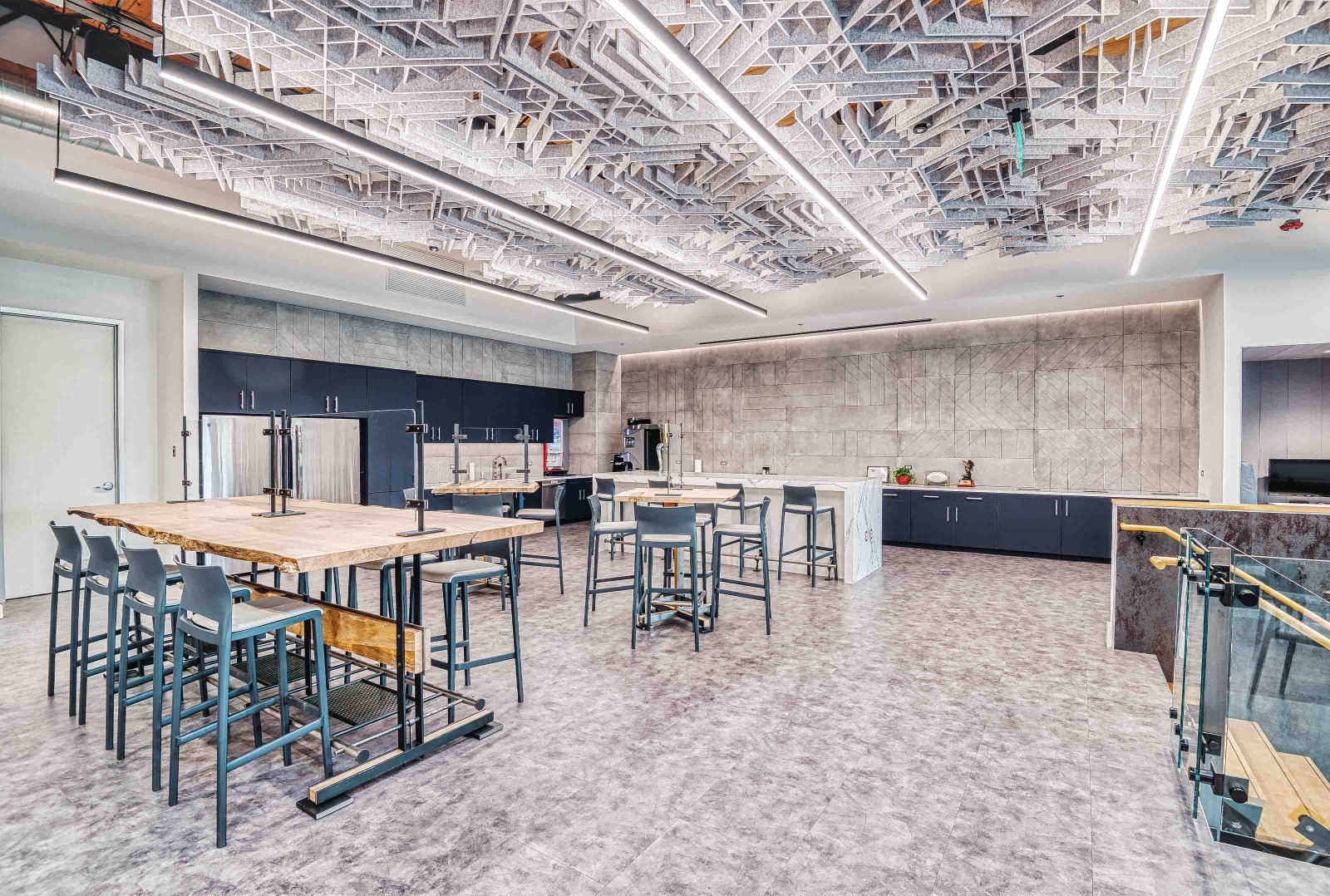

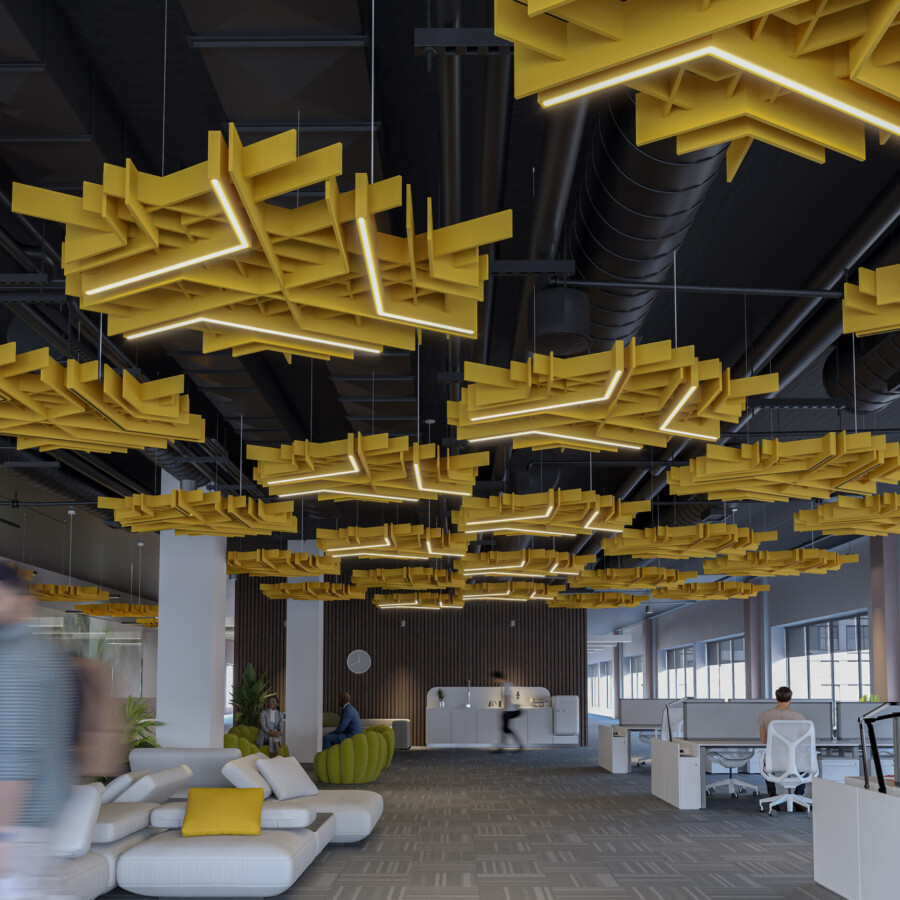

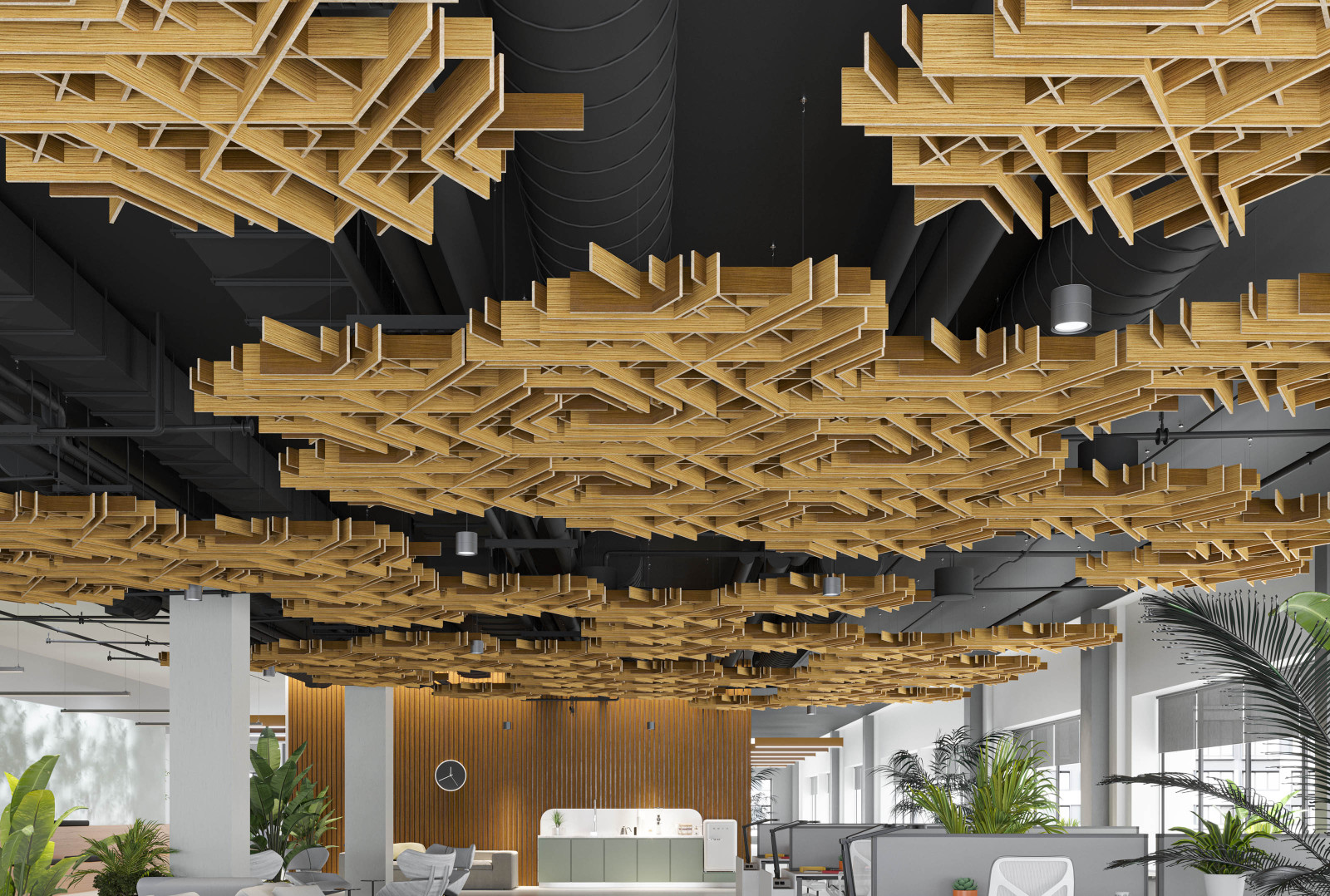

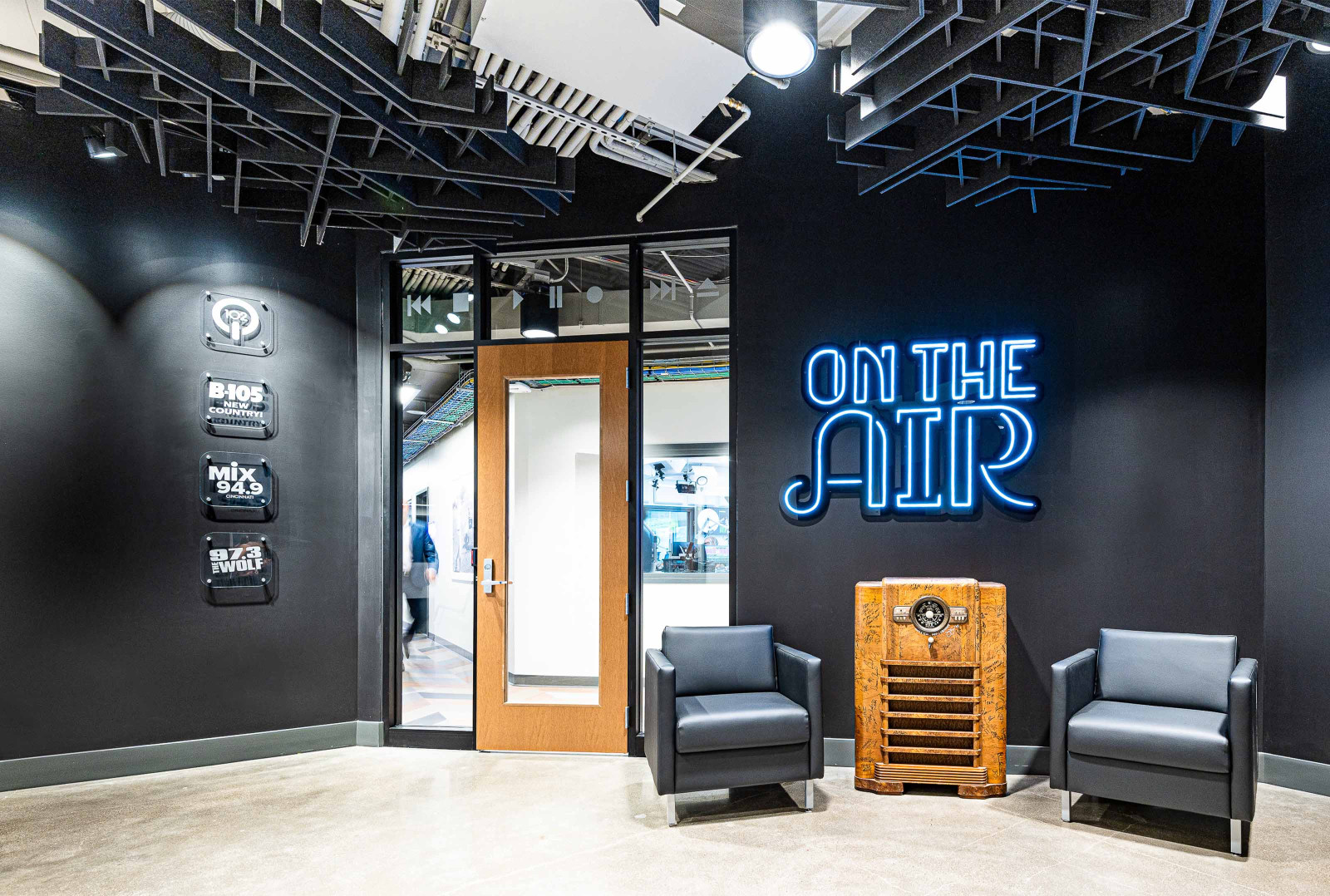

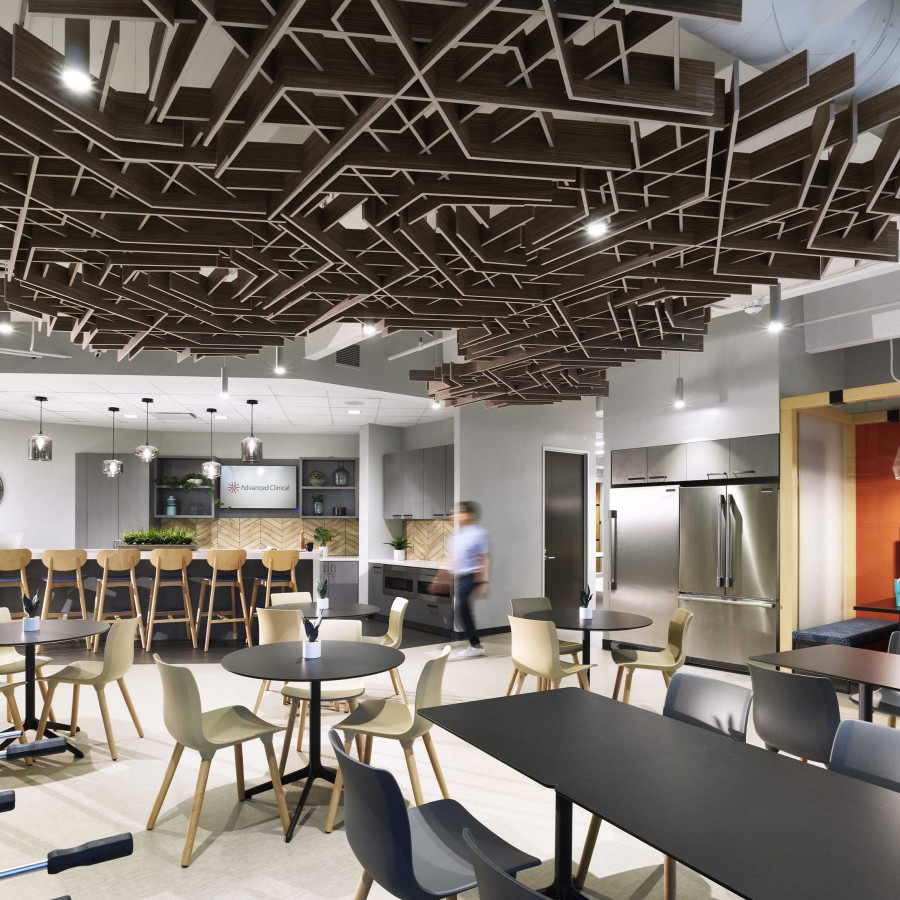

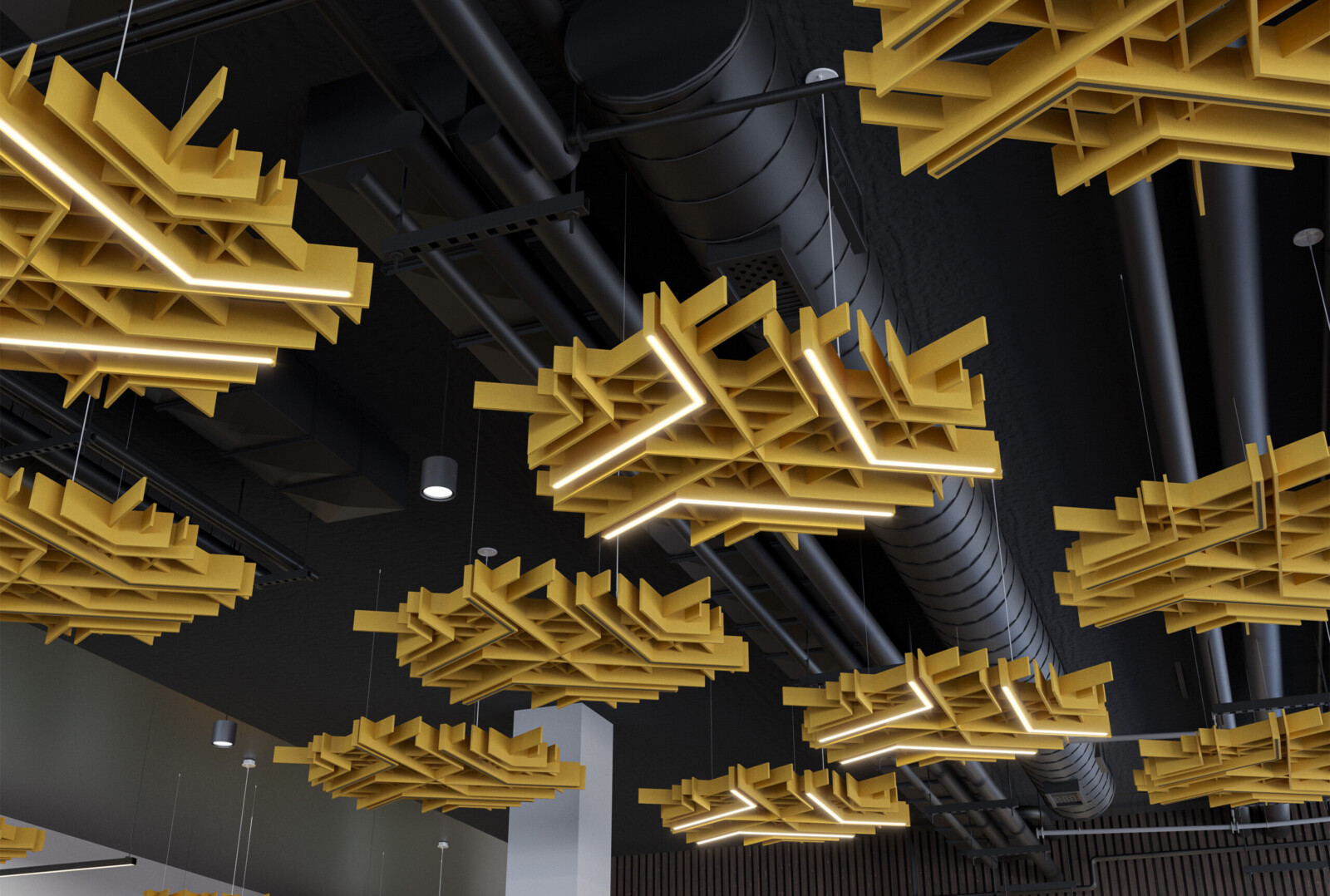

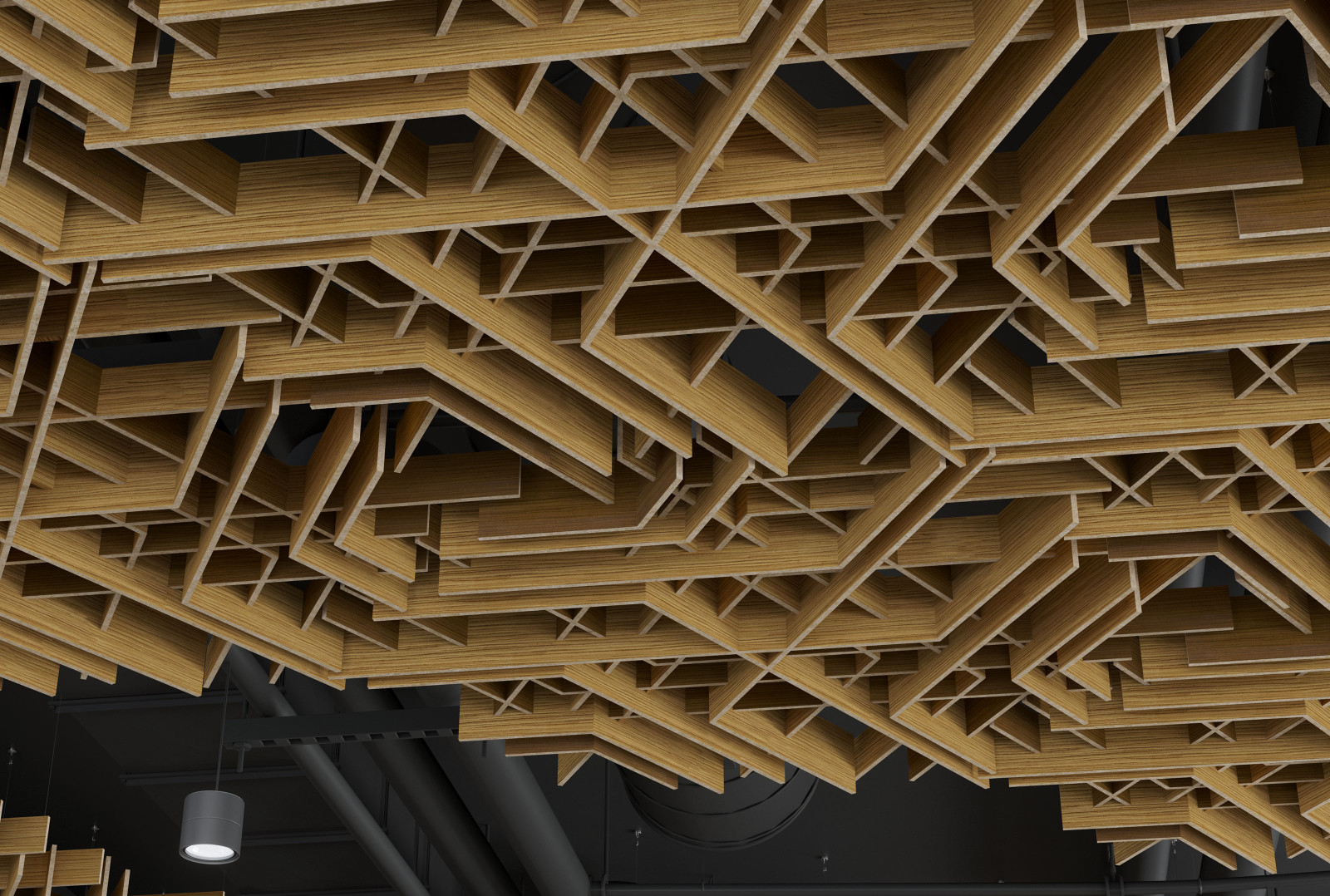

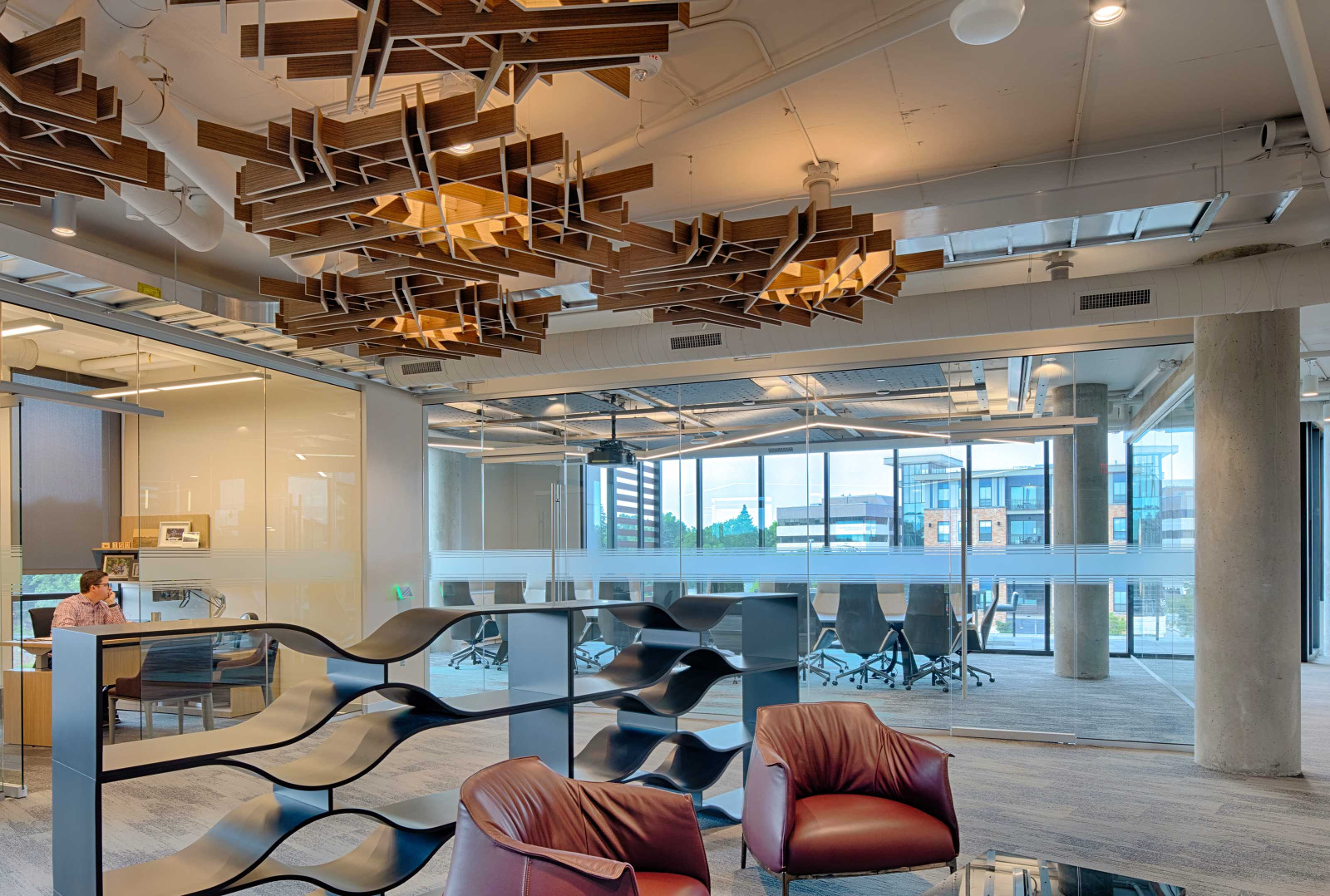

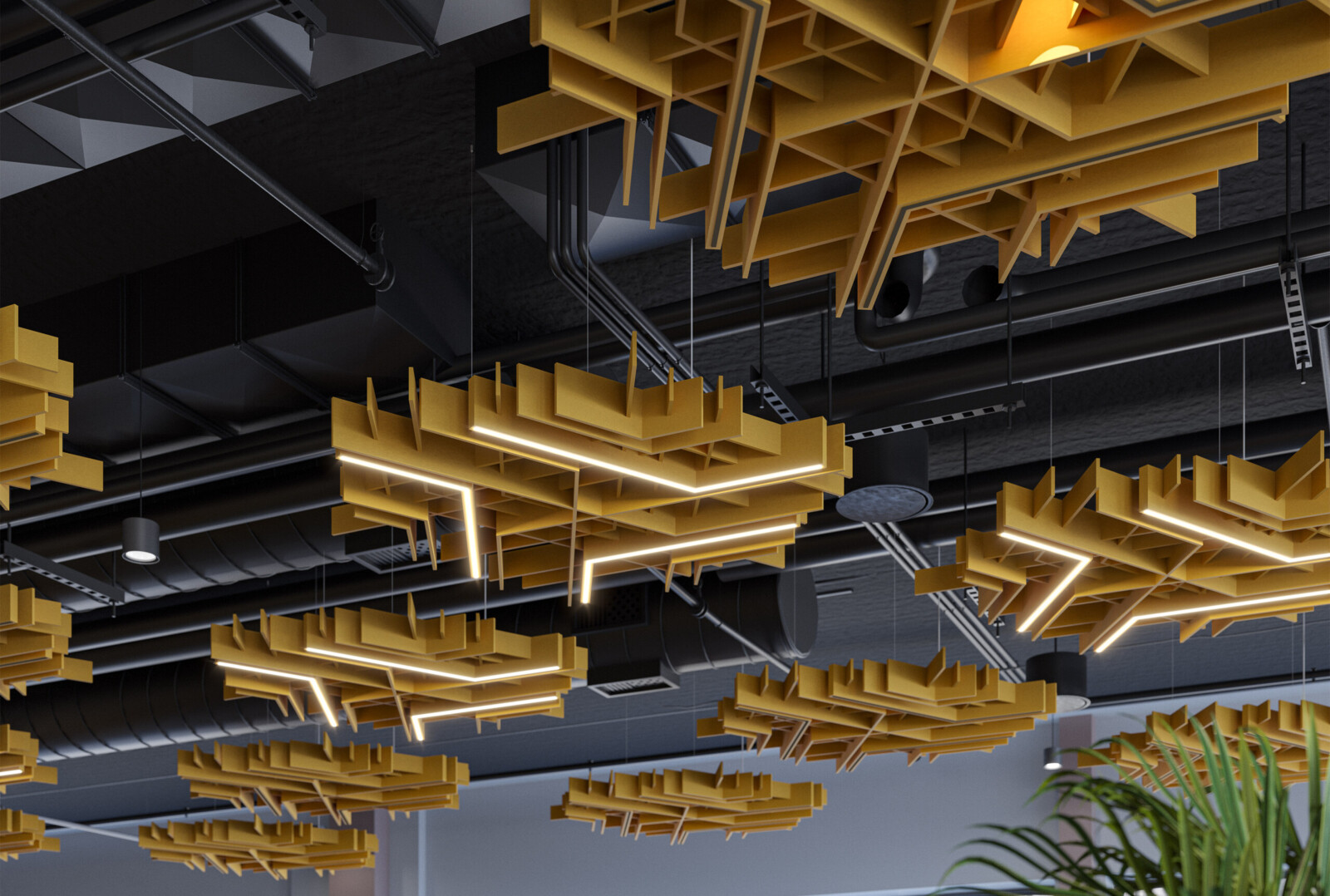

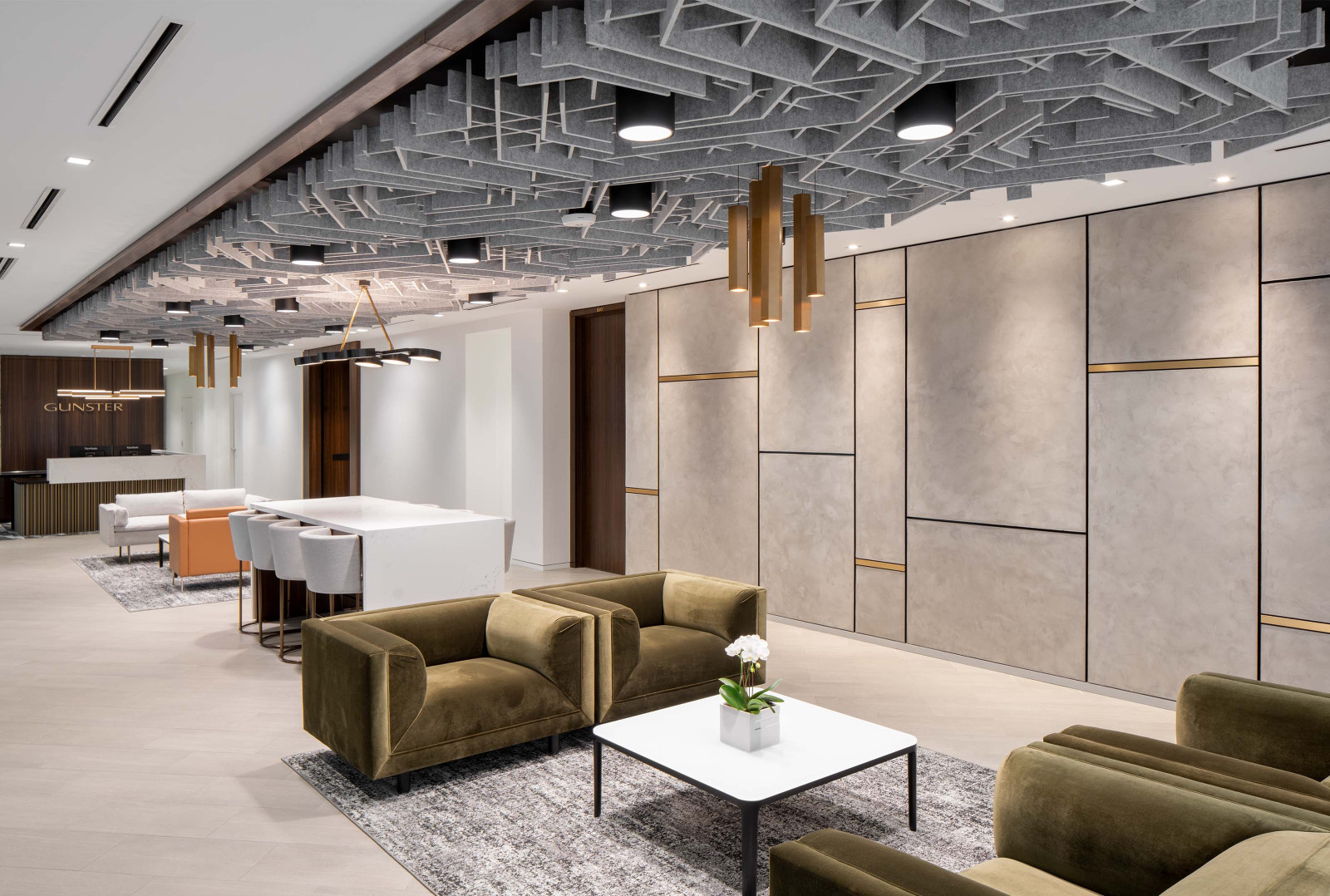

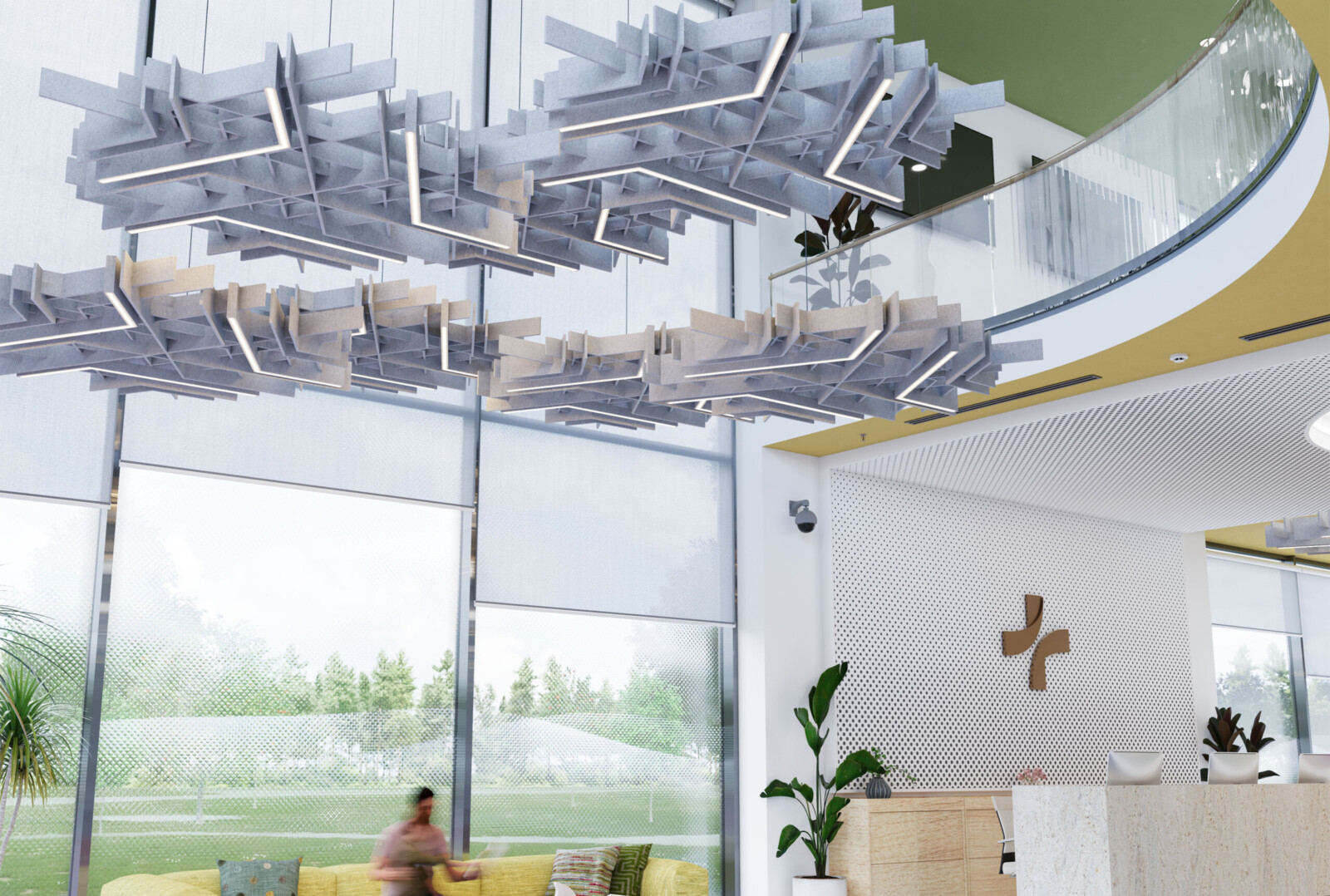

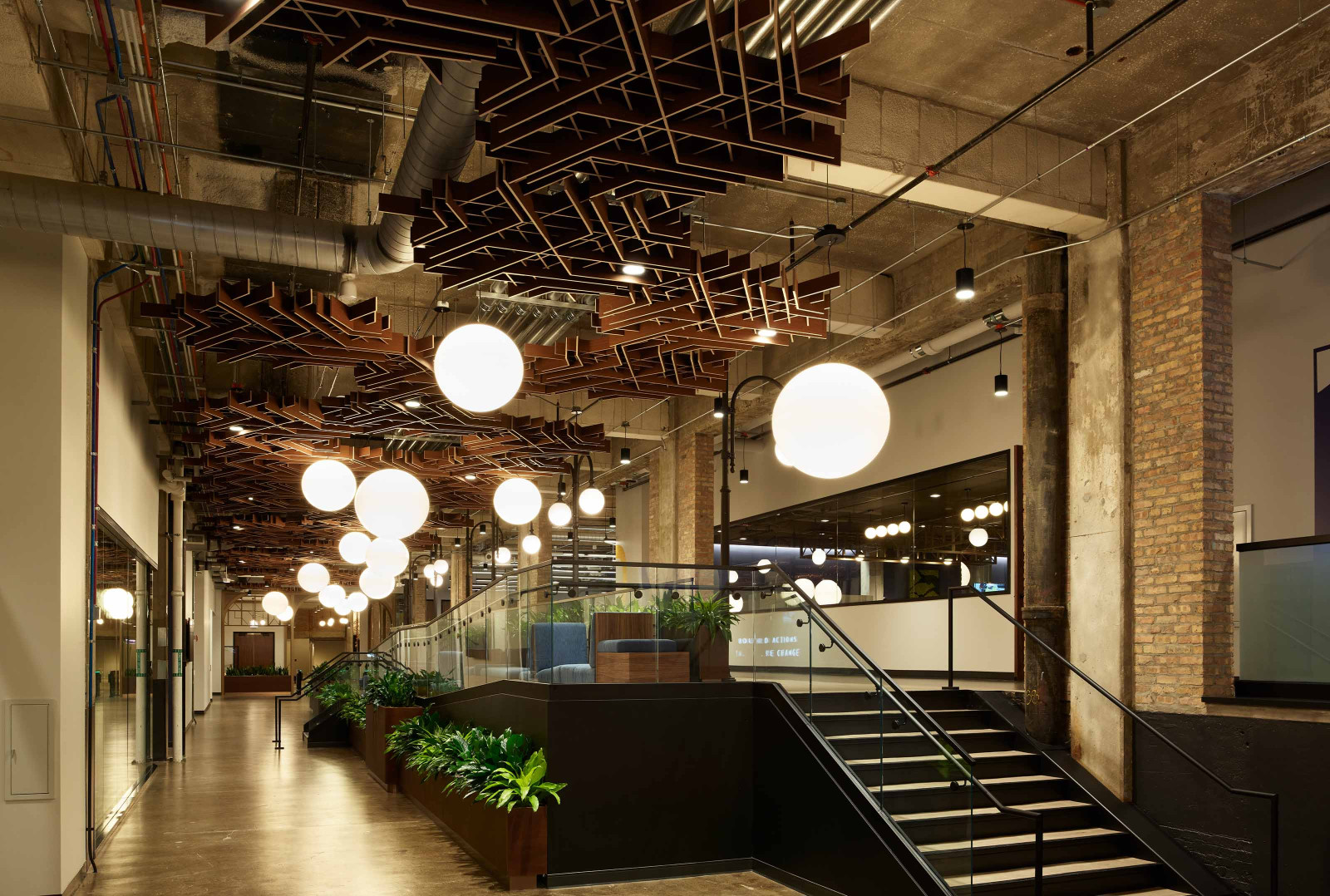

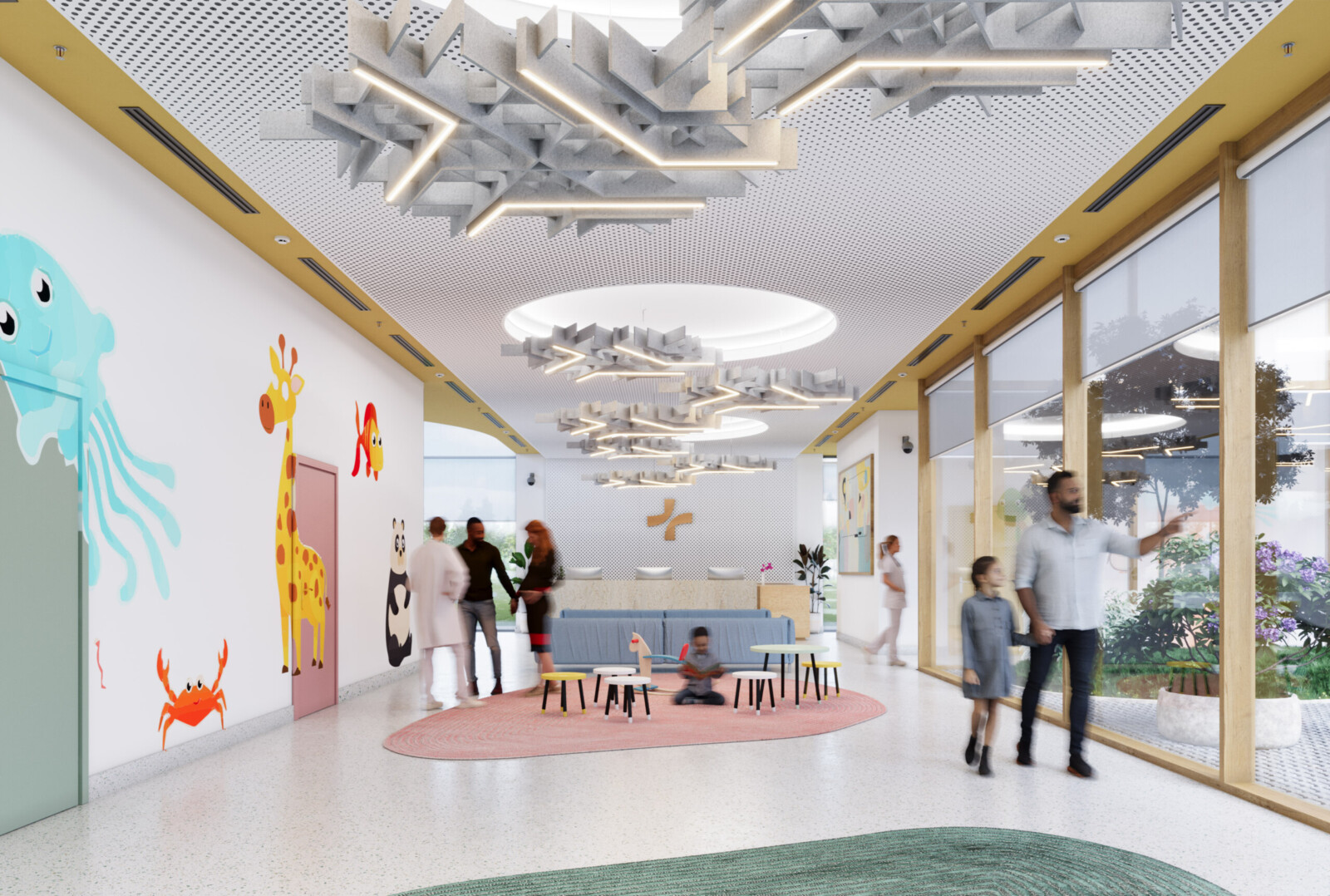

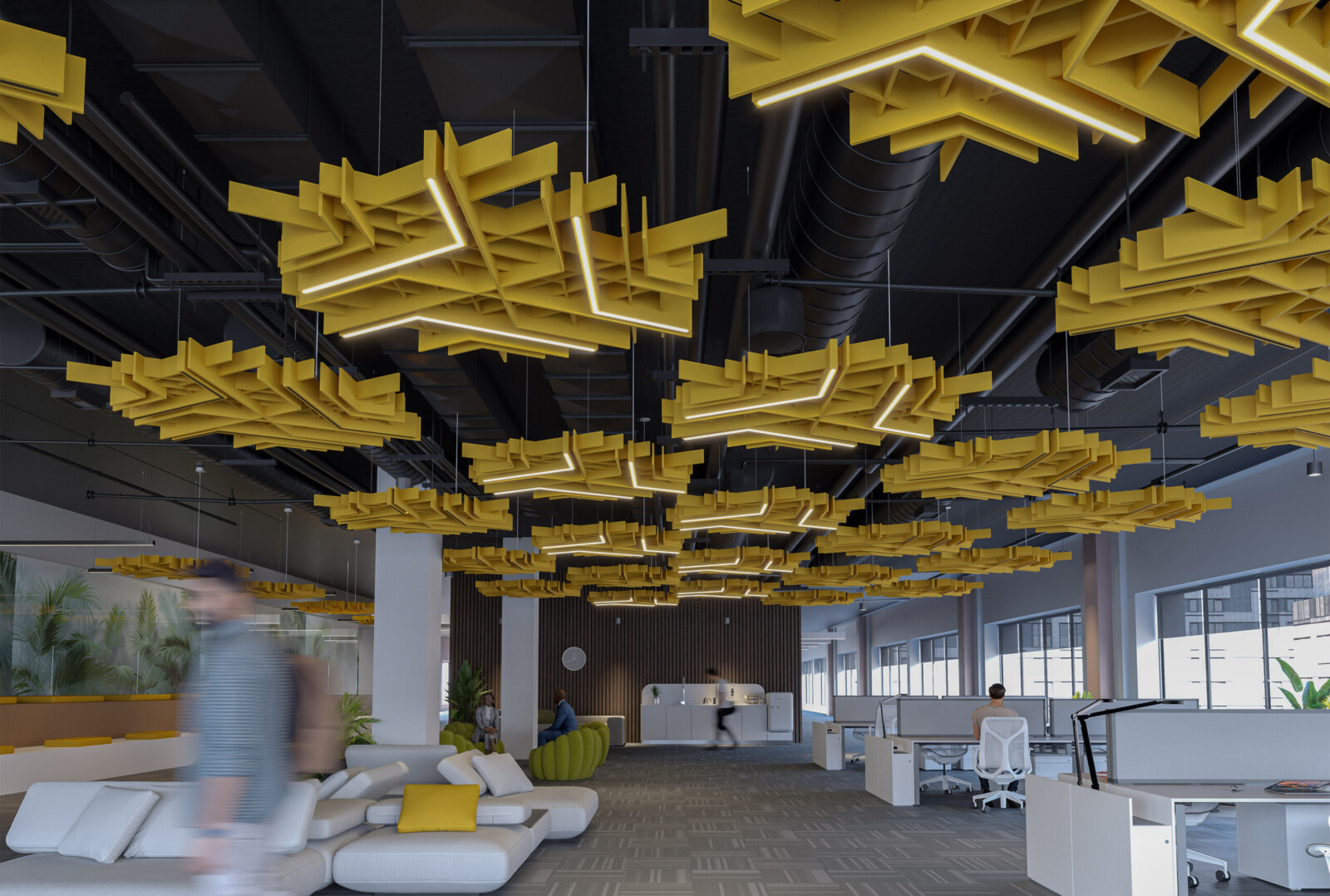

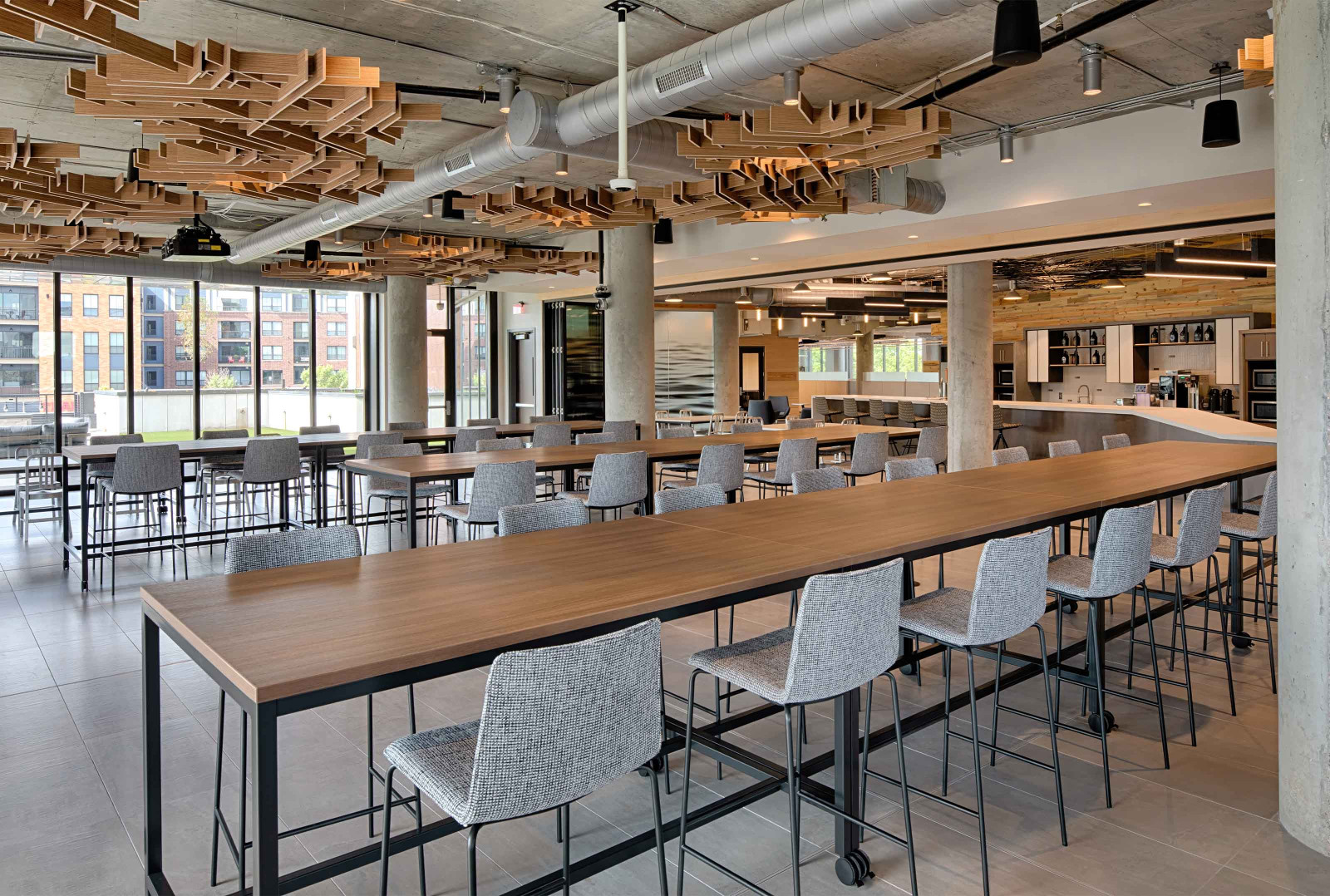

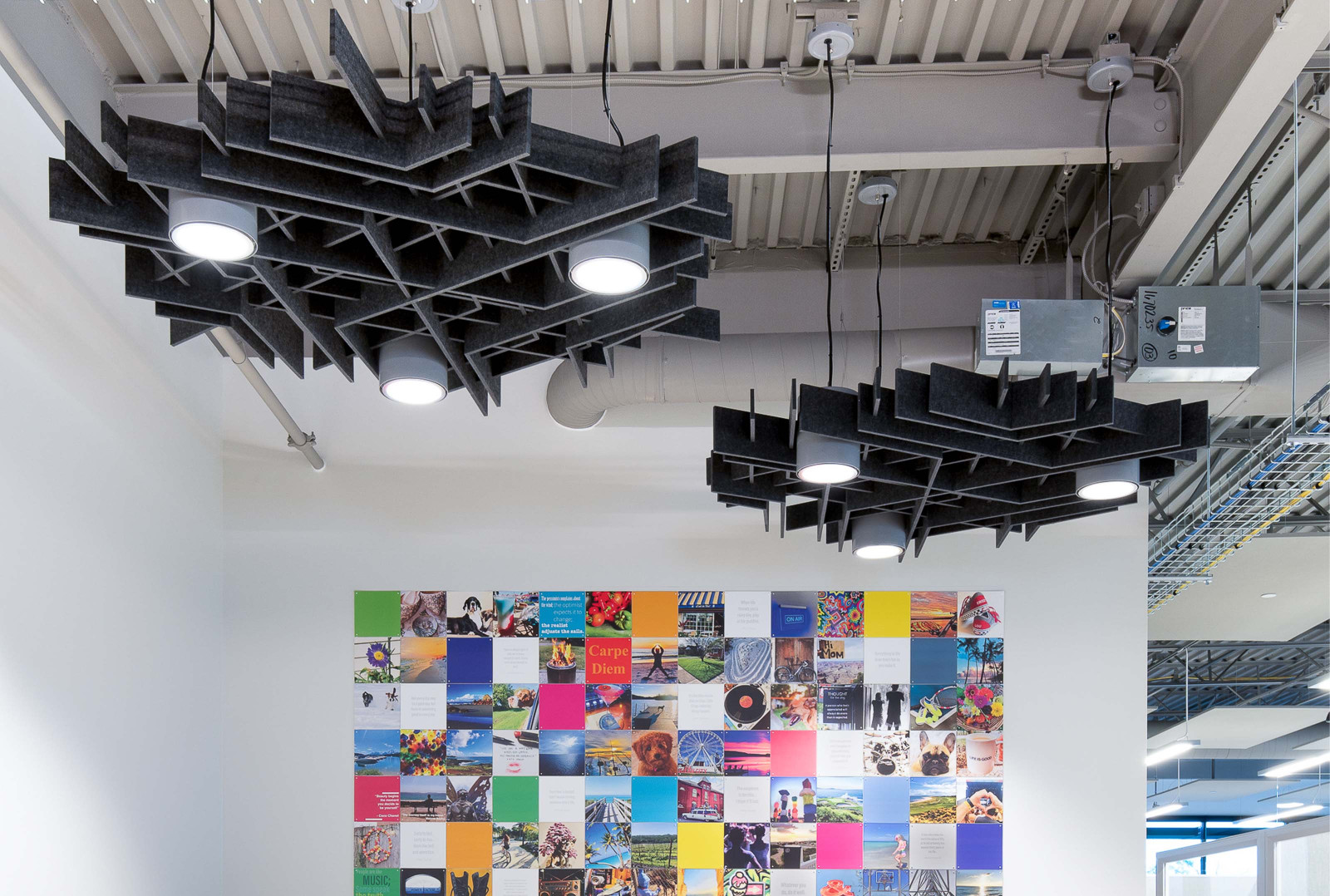

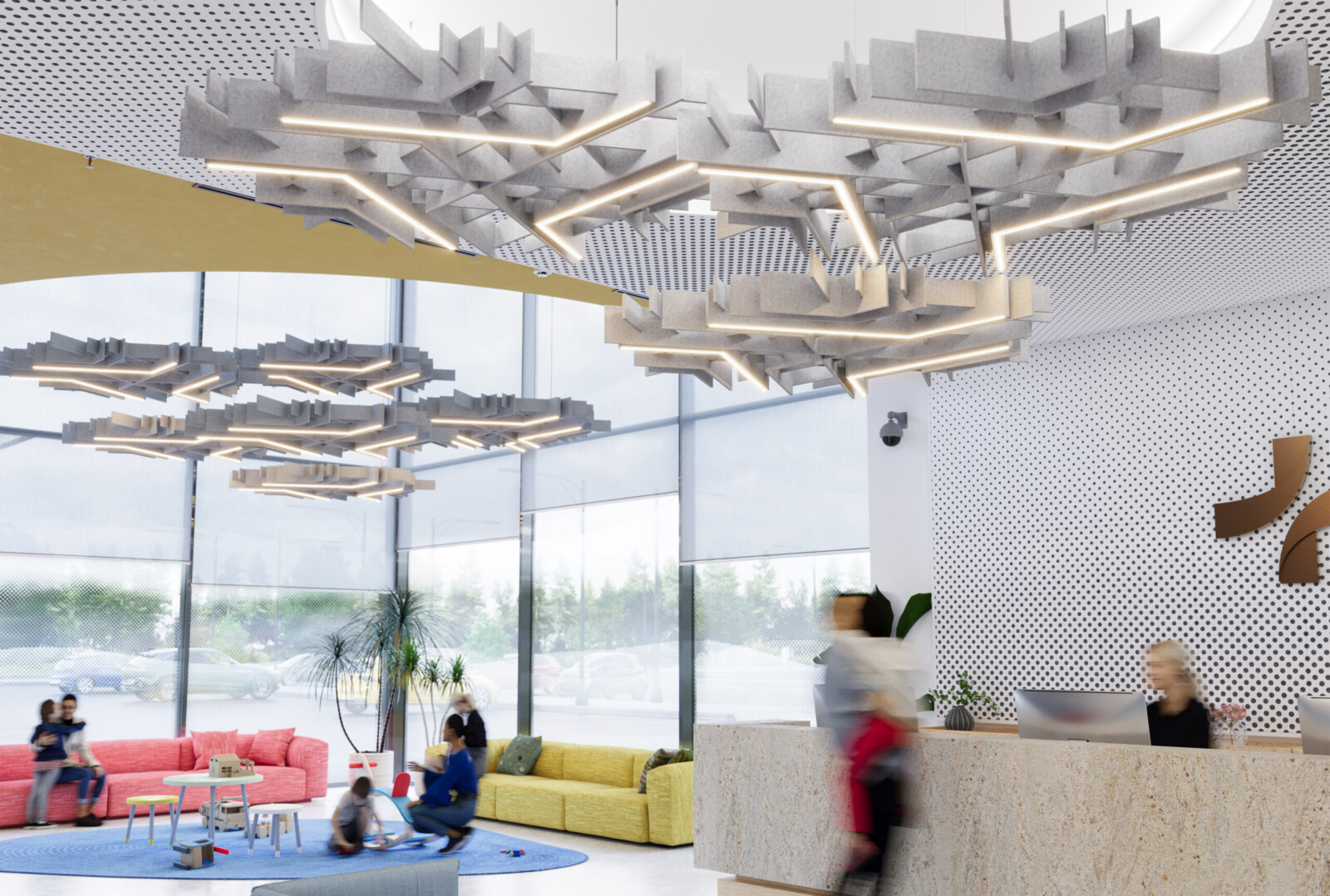

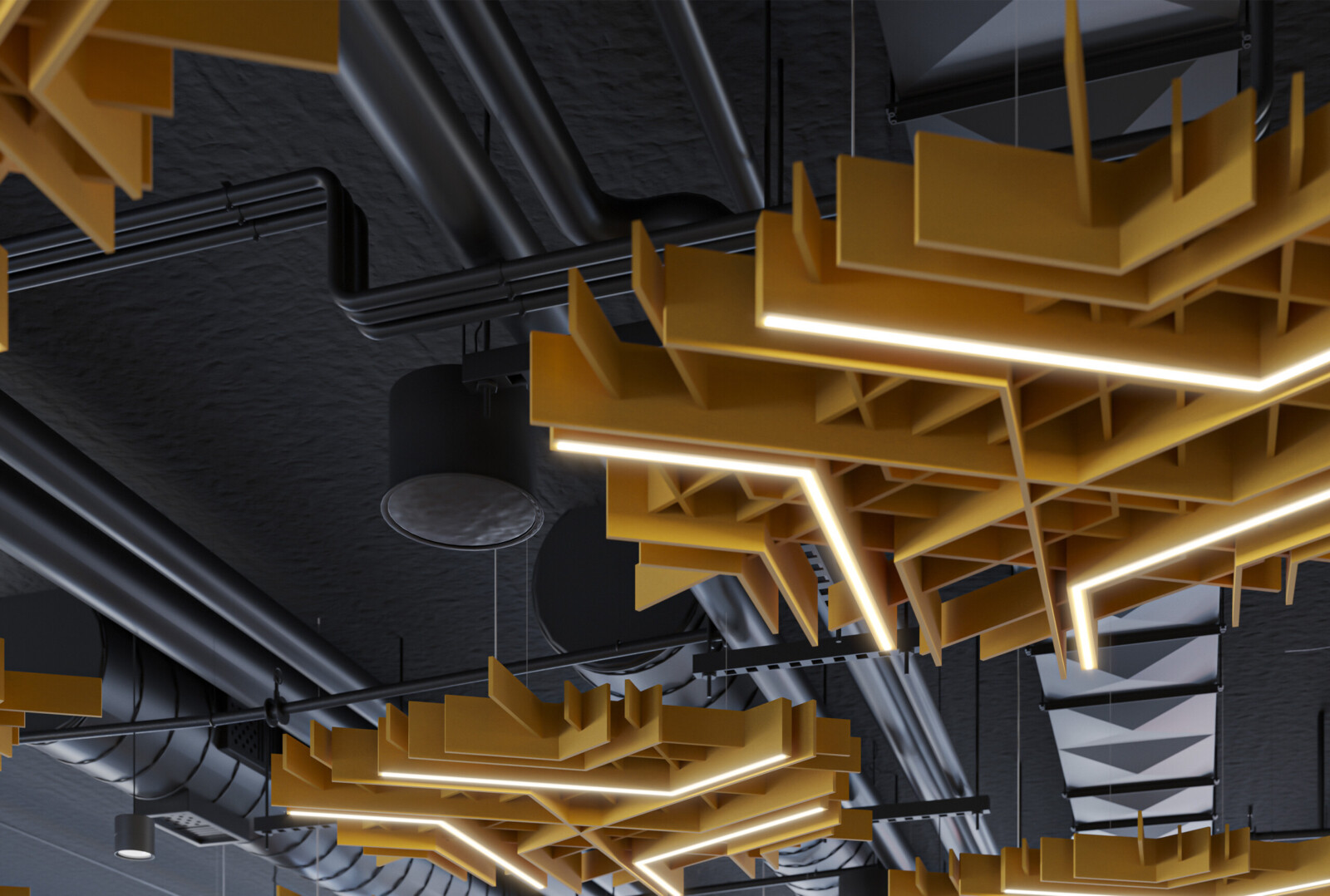

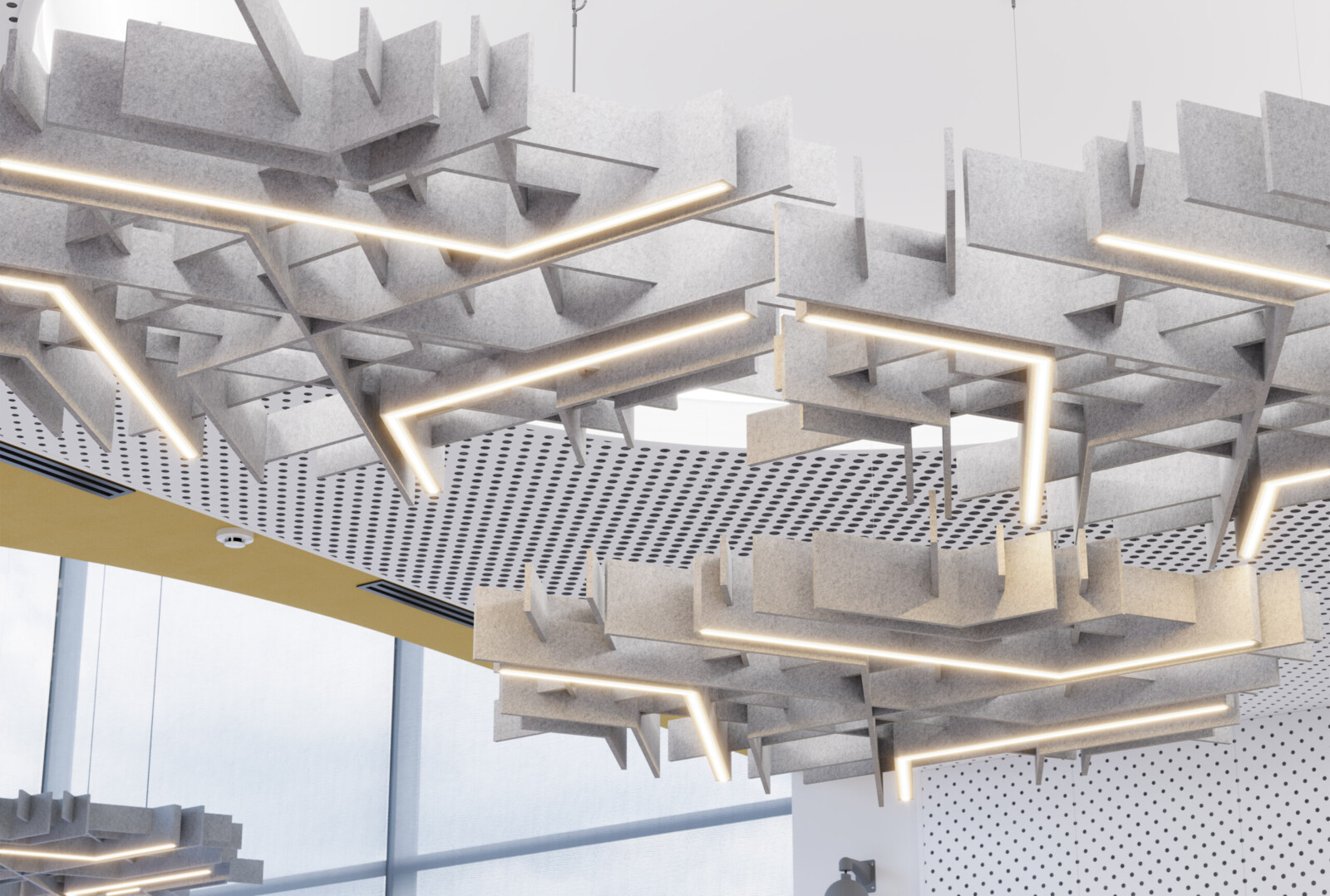

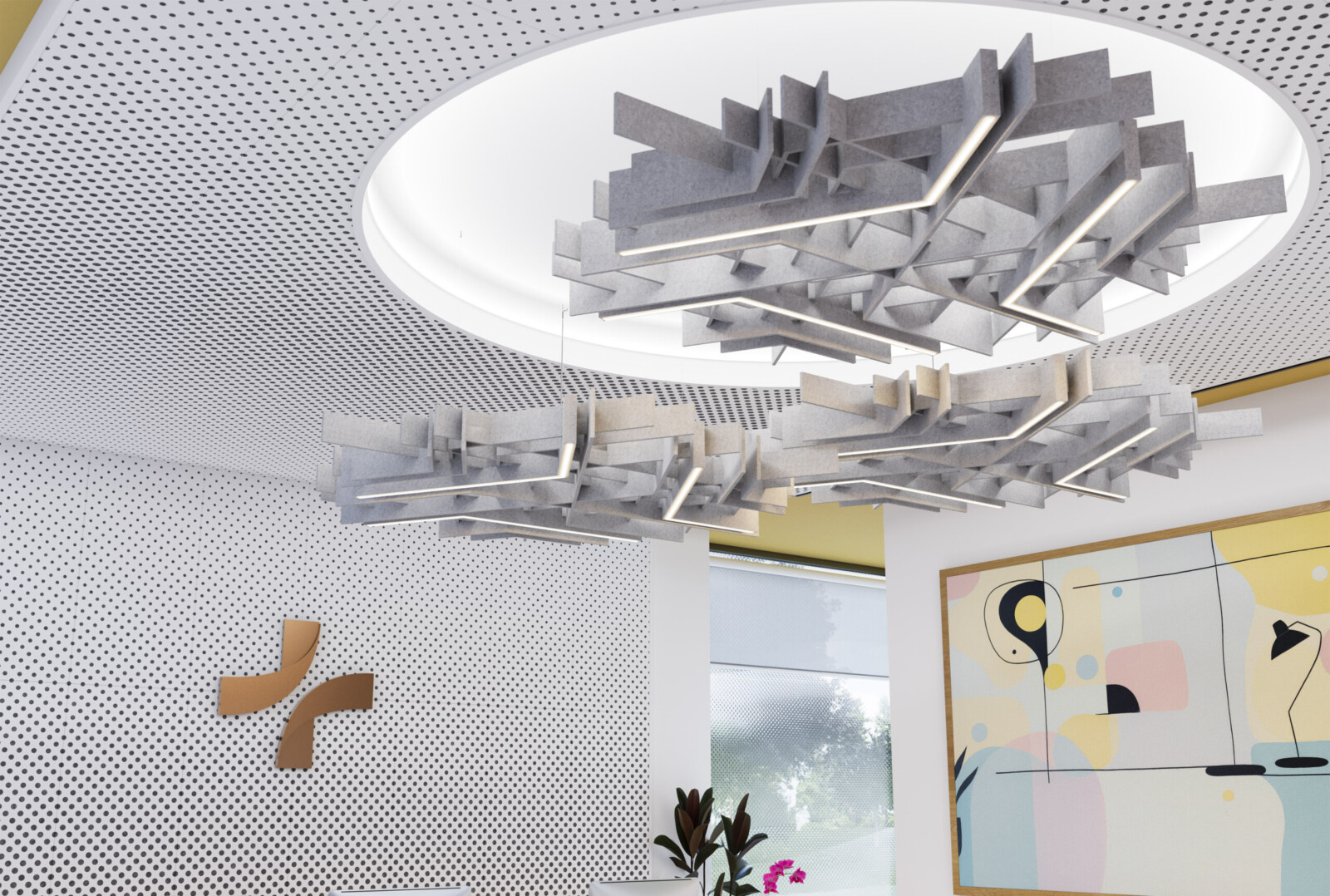

SoftGrid® Flux in use

Expand
Expand
Expand
Expand
Expand
NRC vs STC Noise Reduction Coefficient Acoustic Ratings
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand
Expand

Key Features

  • Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Field Modifiable

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  • Compatible with SoundStar®

    SoftGrid®'s hexagonal modules - Deca, Orbit, and Flux - are compatible with SoundStar®. Create dynamic and transformative design variation in any space.

  • Open Accessibility in Plan

    SoftGrid®'s open grid design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Baffle Materials & Colors

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

Diagrams Specs

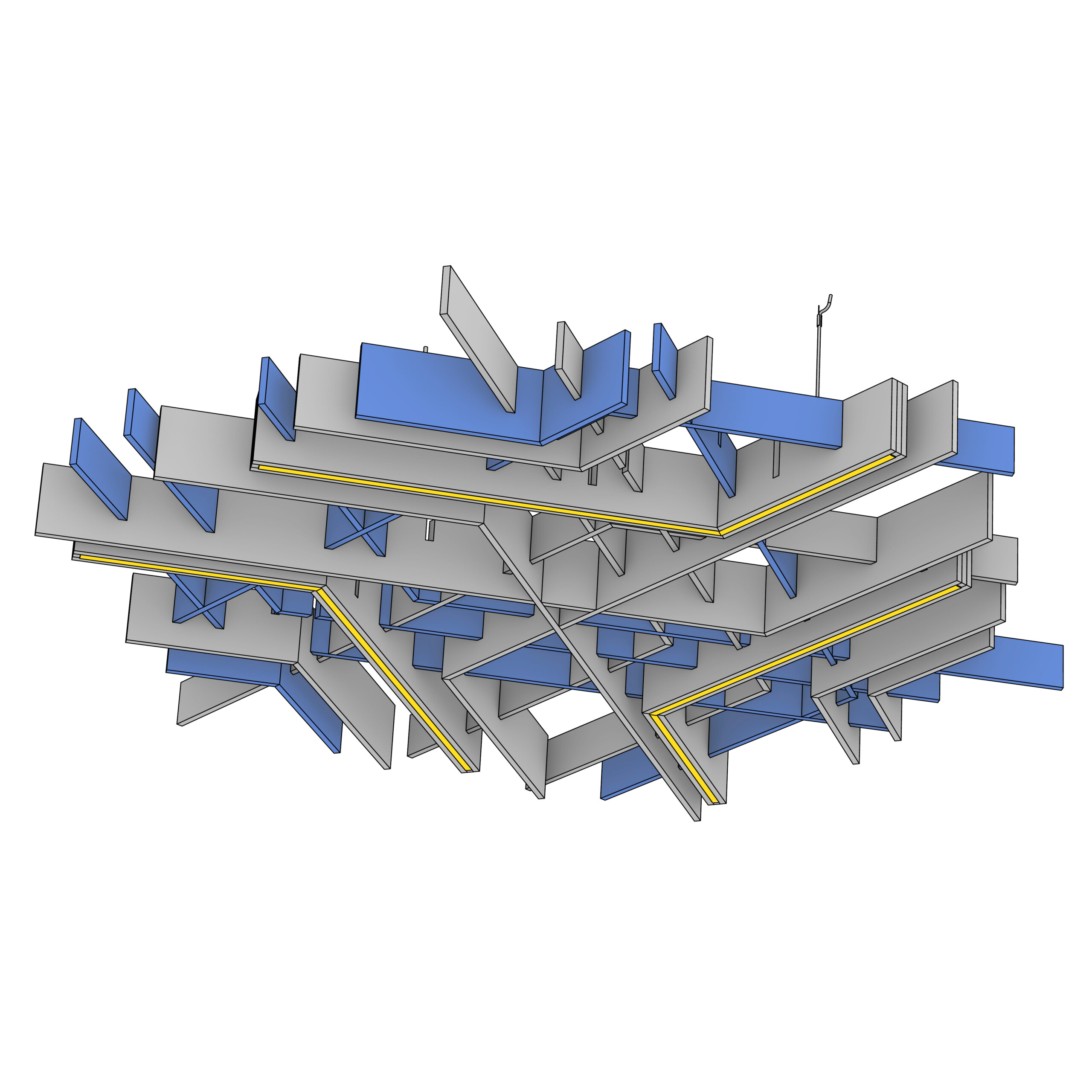

Standard Module

Designing with Modules

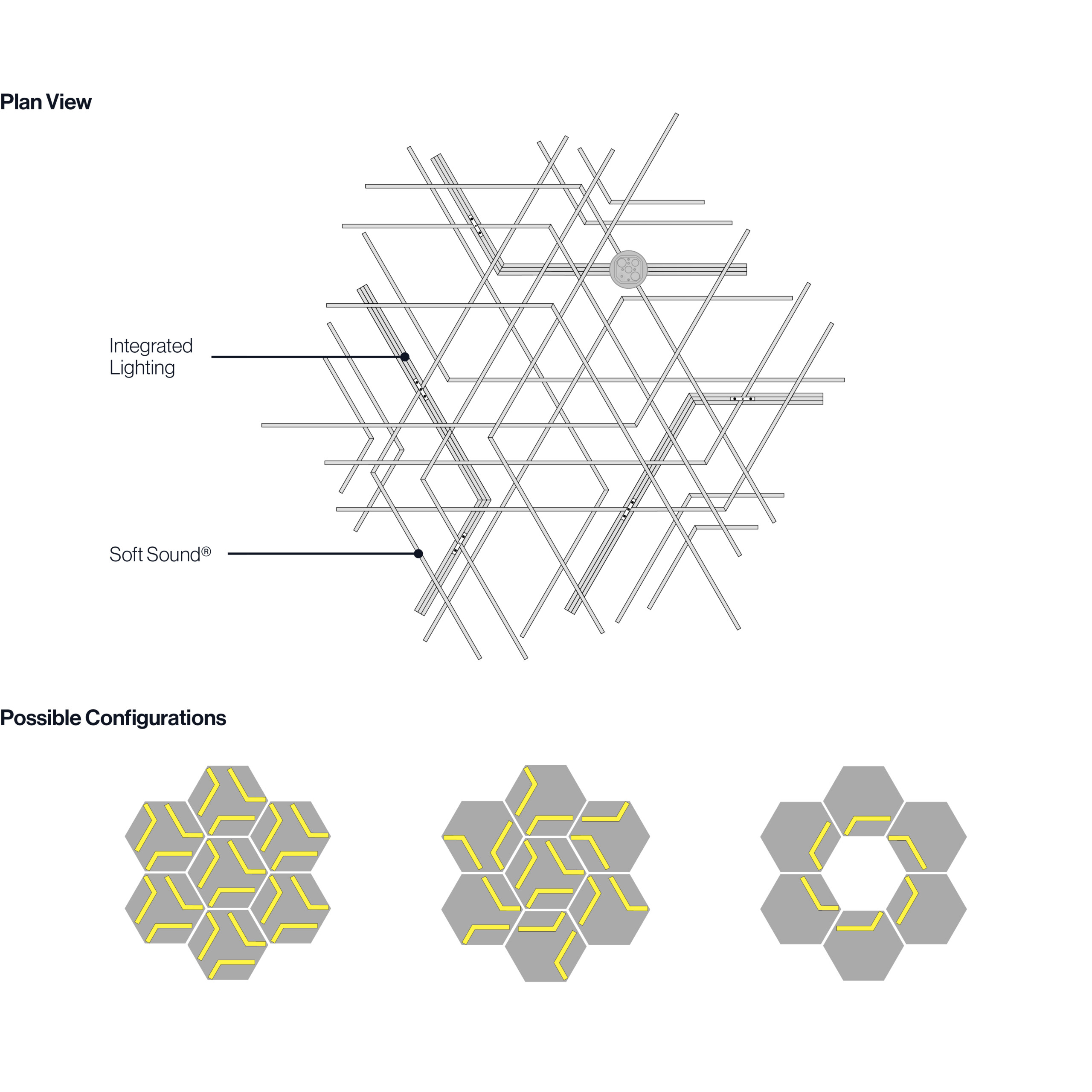

Understanding the Module - Plan

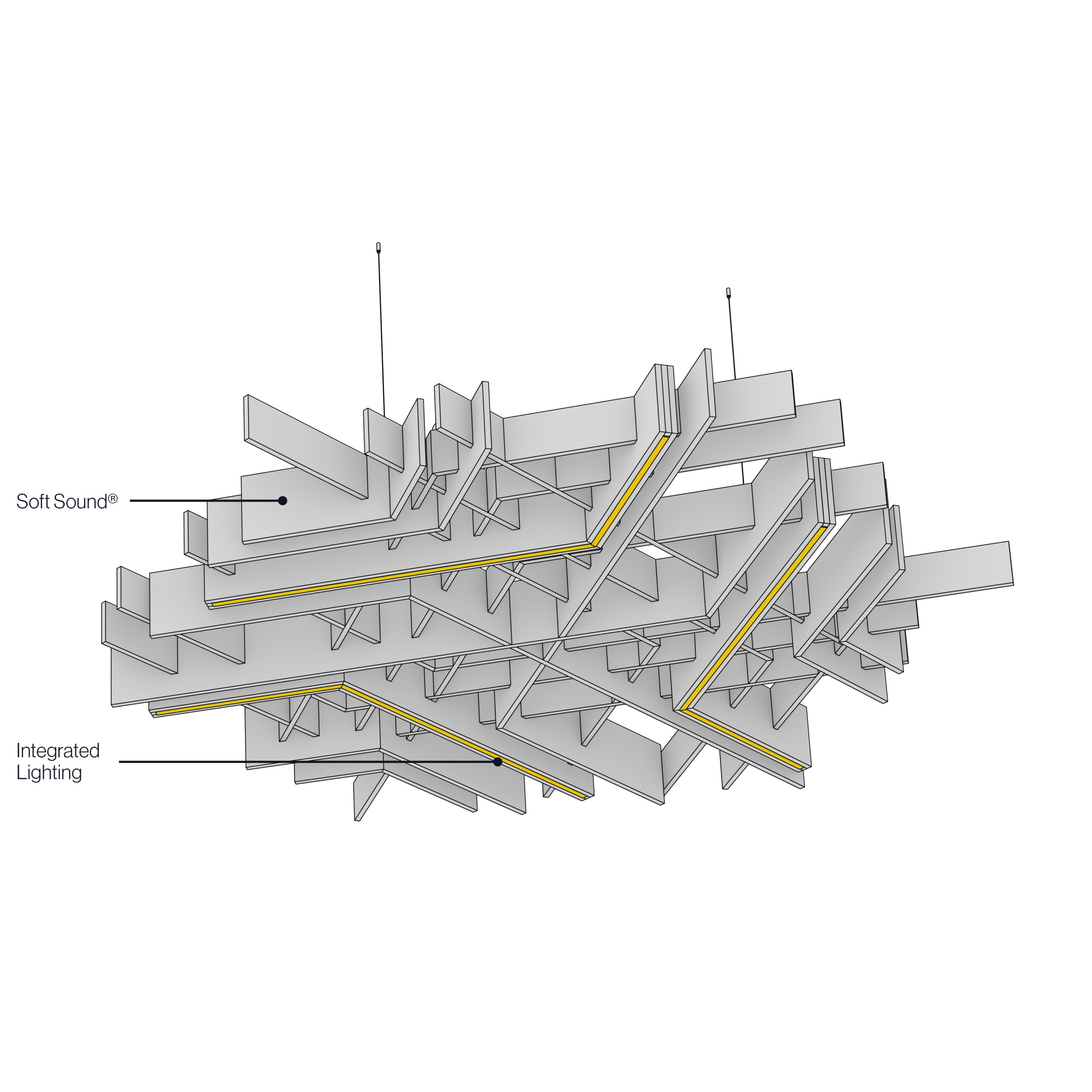

Understanding the Module - Elevations

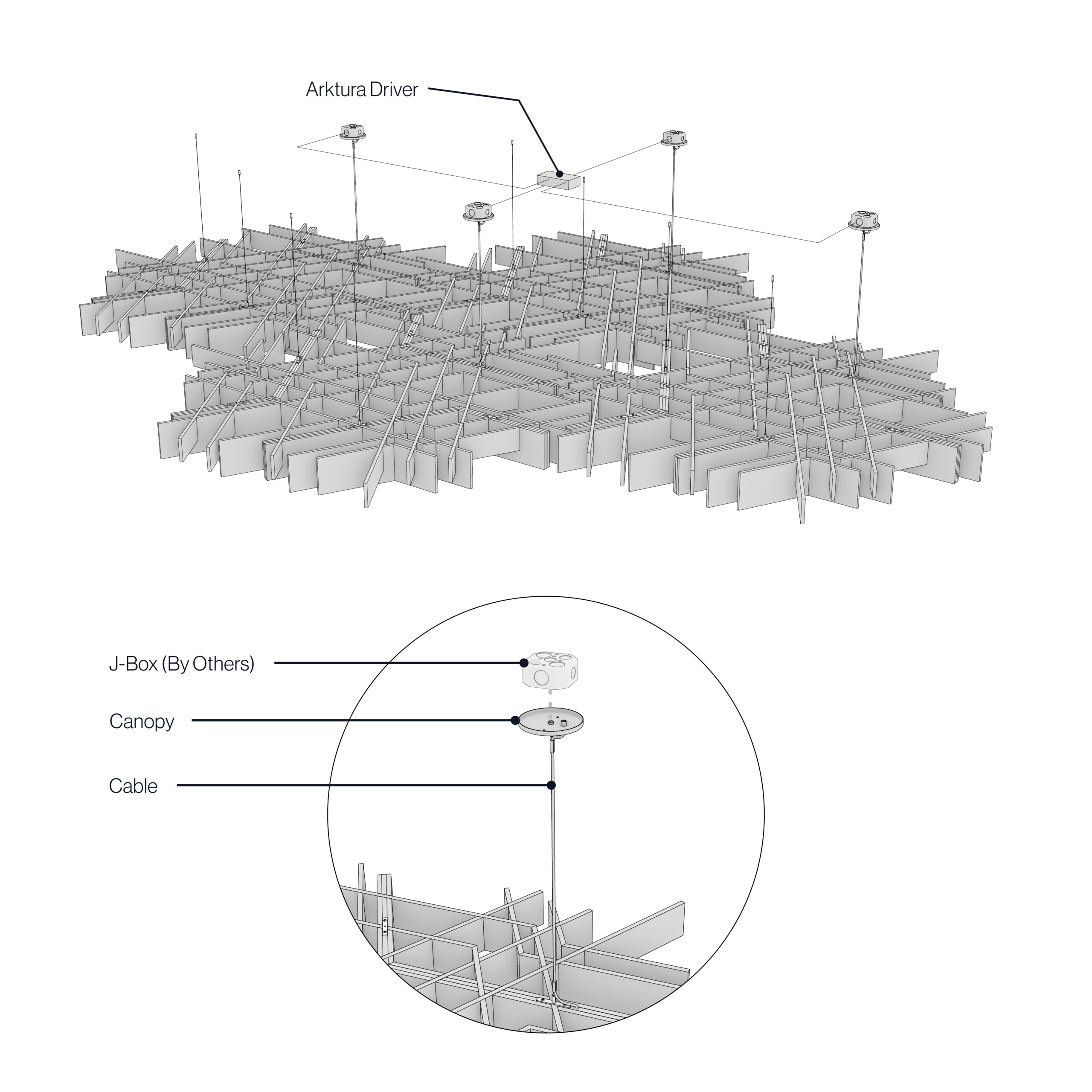

Attachment Details

Combining With Other Products

Optional SoftGrid® Flux Duo Tone

System Specs

Dimensions (WxLxD)
5'-9 5/16" x 5' x 5 5/8" Imperial | 176cm x 152cm x 15cm Metric
Fin Material
12mm Soft Sound® (PET)
Openness in Plan
87%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC® 0.60: Ceiling F-100 Method
True NRC® 0.65: Wall A Method
Attachment Method
1/32" Stainless Cable
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoftGrid® Flux – Product Brochure PDF – Imperial
    Brochure
    3.21 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    344.47 KB
    pdf
  • SoftGrid® Flux – 3D DWG – Imperial
    3D Model
    96.66 KB
    zip
  • SoftGrid® Flux – 3D SKP – Imperial
    3D Model
    14.82 KB
    zip
  • SoftGrid® Flux – 3D RFA – Imperial
    3D Model
    42.23 MB
    zip
  • SoftGrid® Flux – 3D DWG – Metric (EMEA ONLY)
    3D Model
    135.36 KB
    zip
  • SoftGrid® Flux – Product Brochure PDF – Metric (EMEA ONLY)
    Brochure
    2.84 MB
    pdf

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.

  2. SELECT A COLOR/DUO TONE OPTION

    Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.

  3. SELECT NUMBER OF MODULES

    All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.
Get a Quote

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
