SoftGrid® Tilt

Tilt provides a series of perpendicular acoustic fins that make up this motion-filled acoustic cloud system. Multi-directional slats resembling parquet flooring, made of our Soft Sound® acoustic material, enhance overall aesthetics and functionality. Array multiple modules together, creating a vast array of alluring coverage. Specify SoftGrid® Tilt in a variety of Soft Sound® finishes, including premium wood textures and Duo Tone finishes.

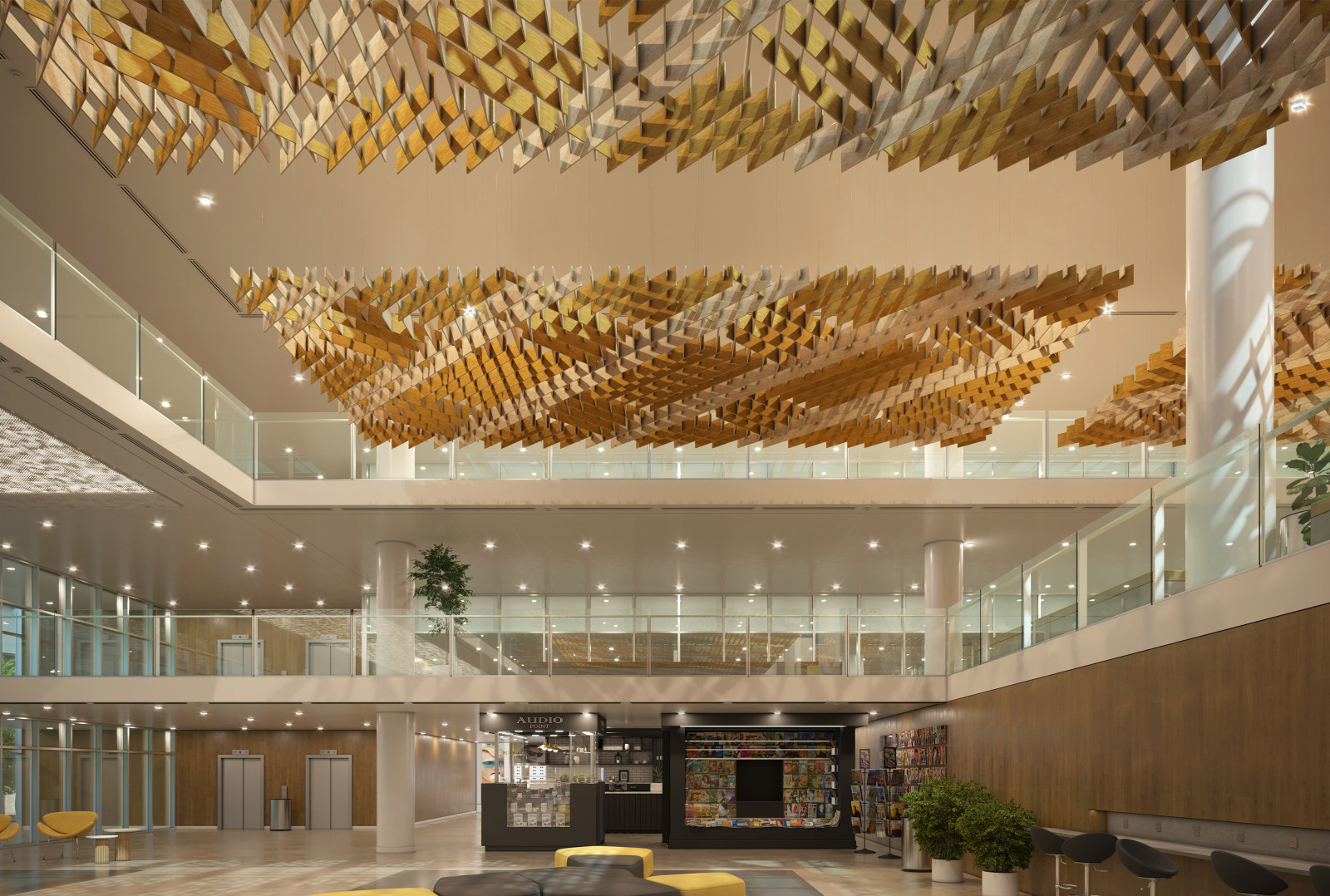

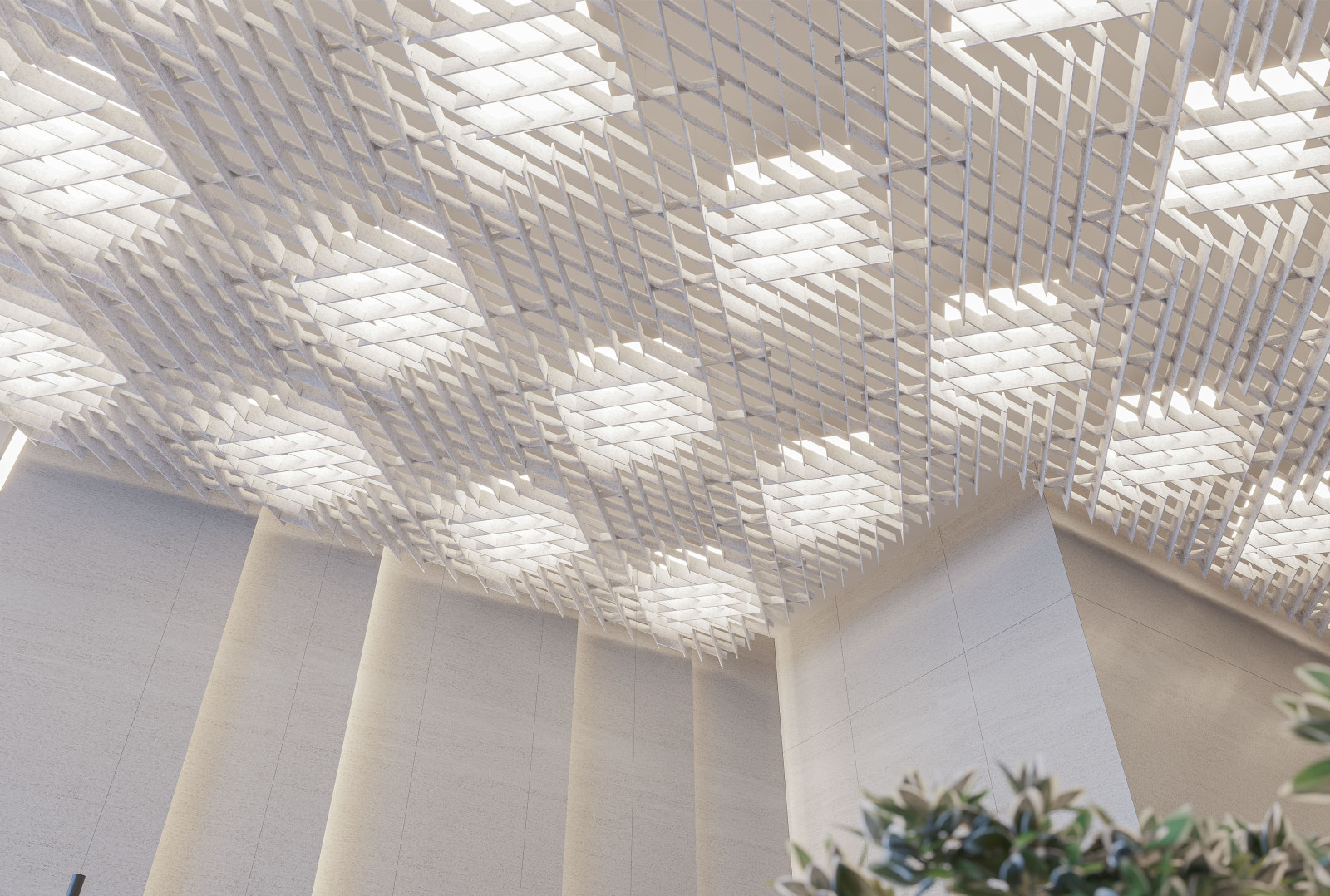

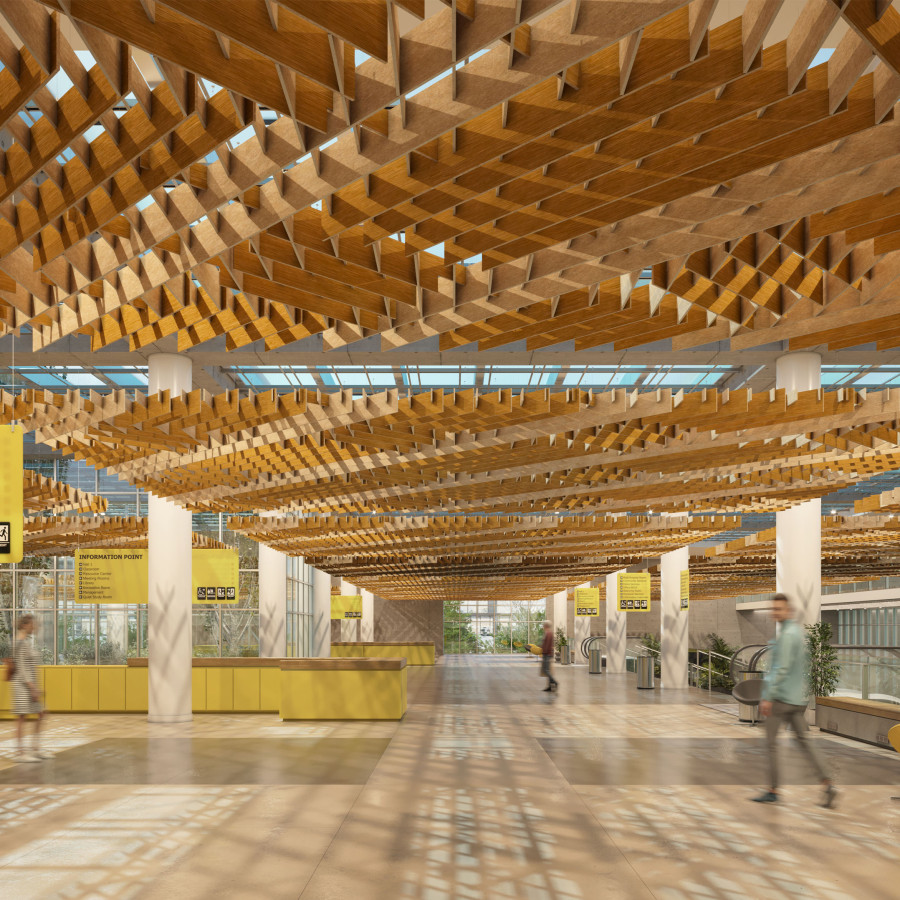

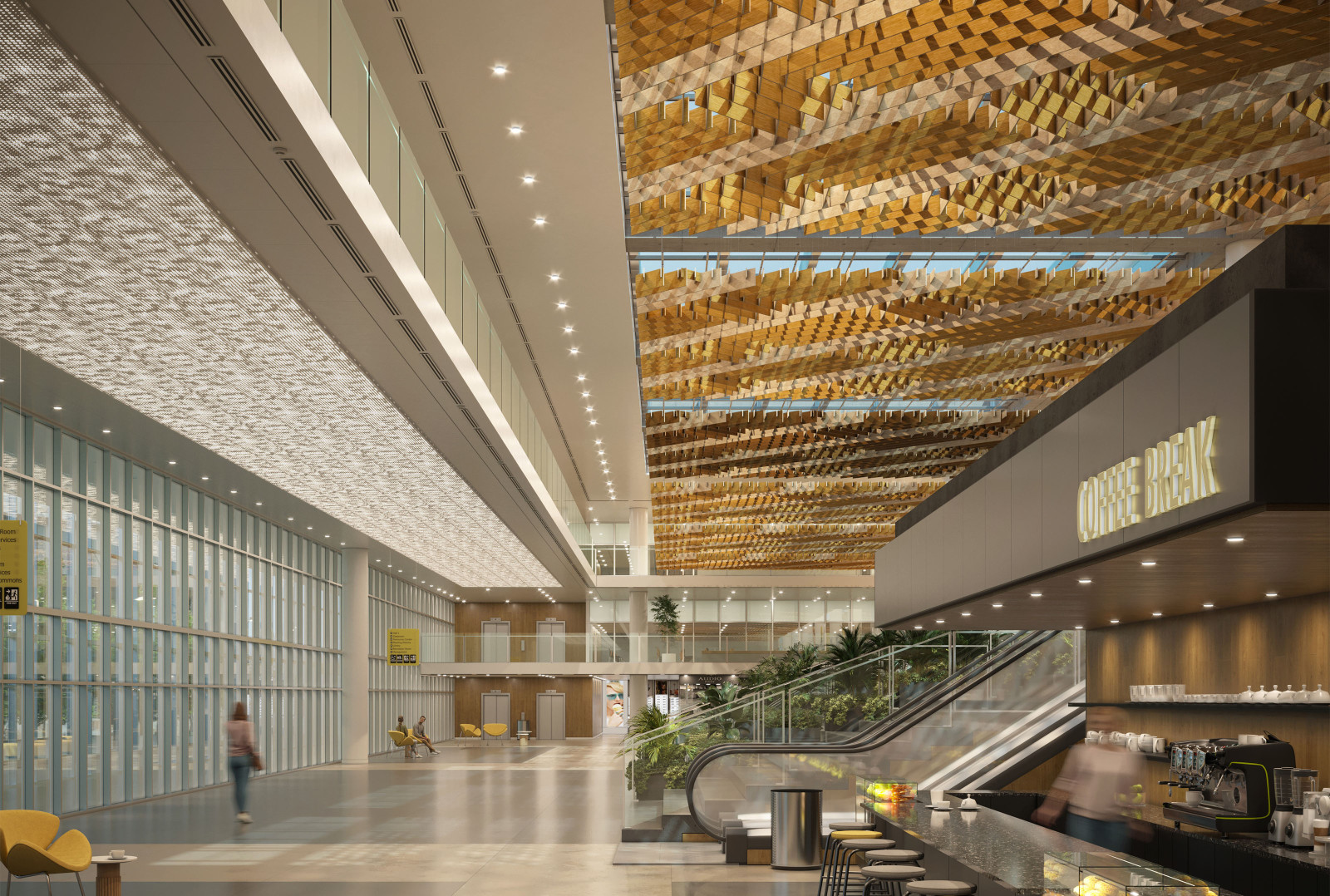

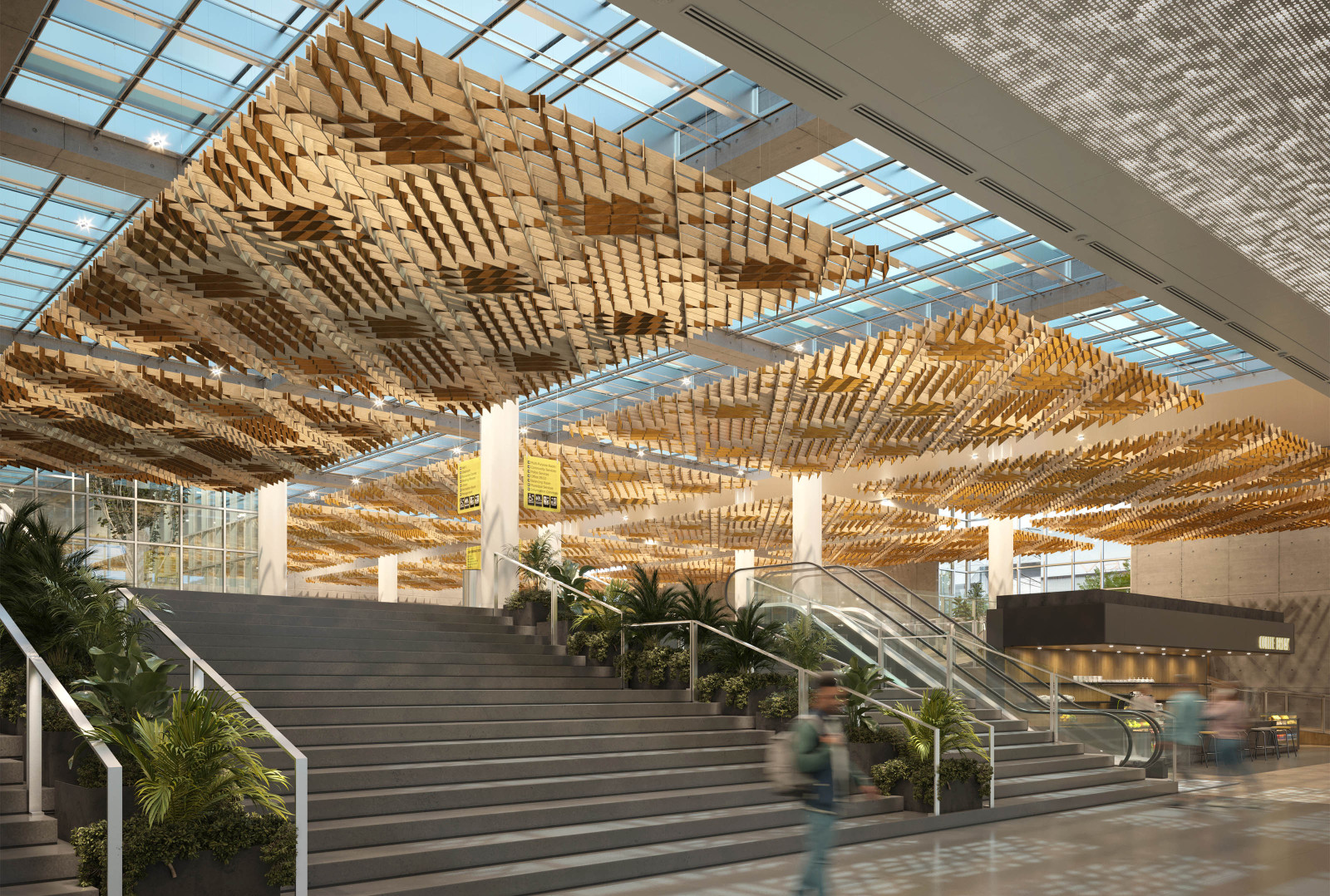

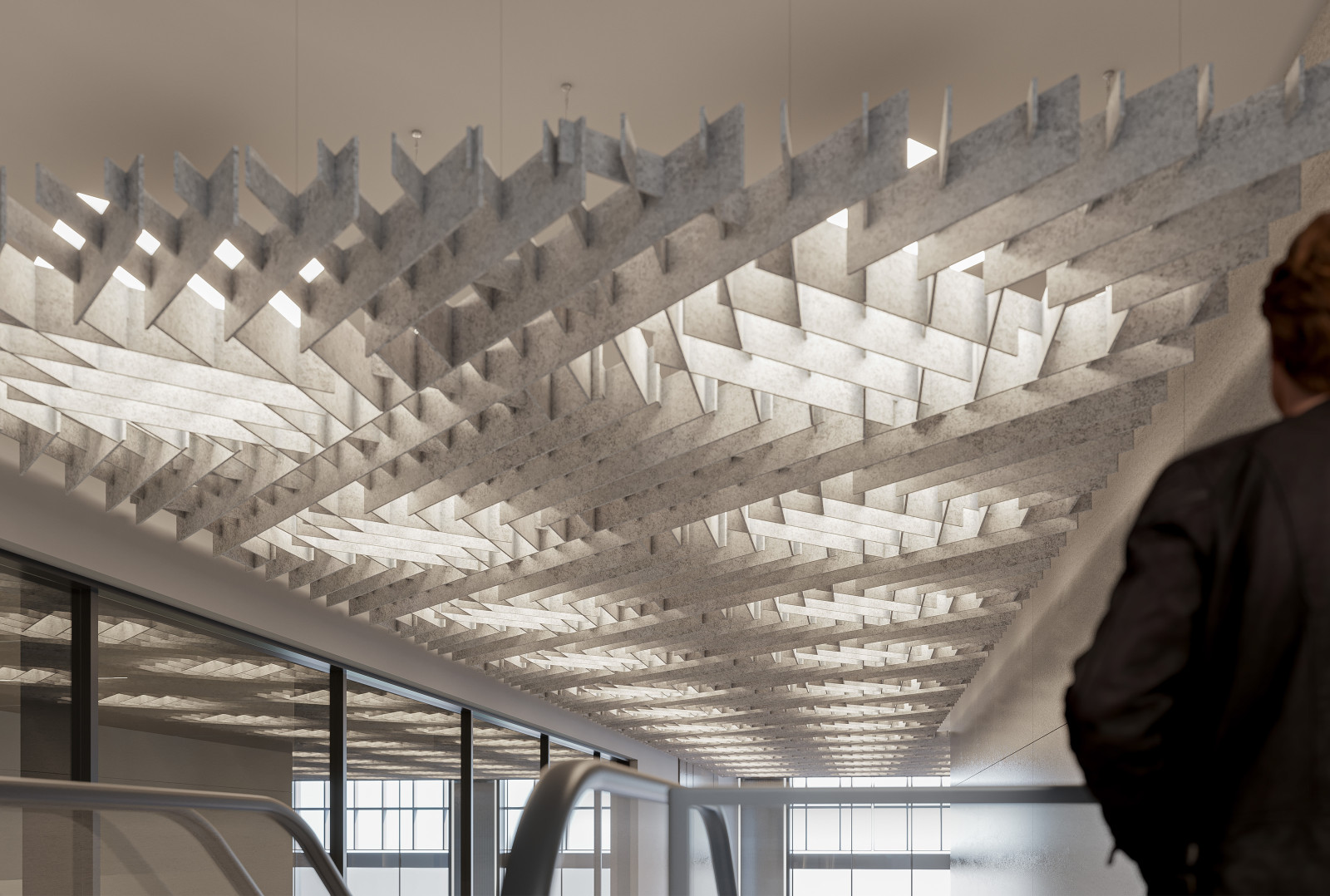

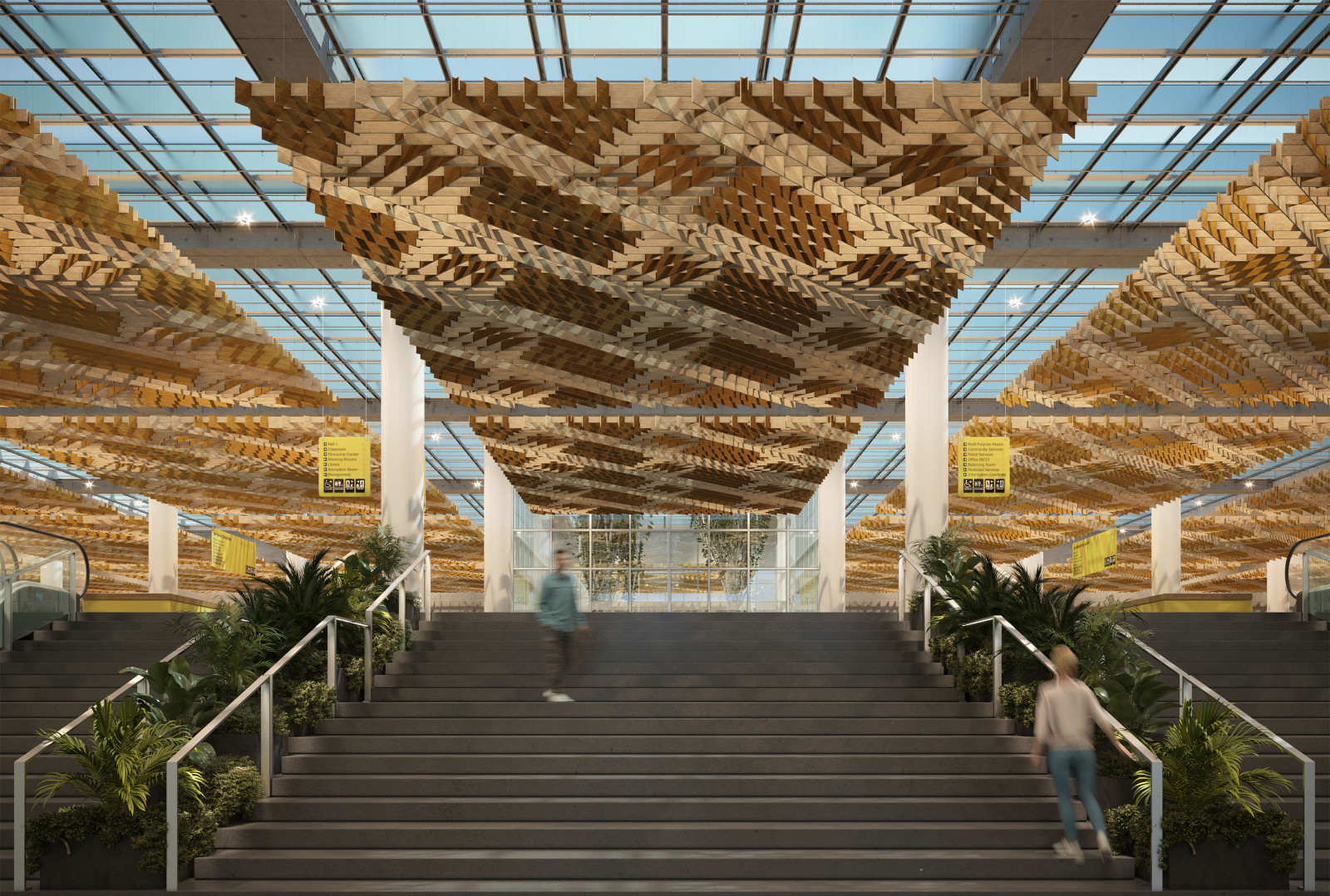

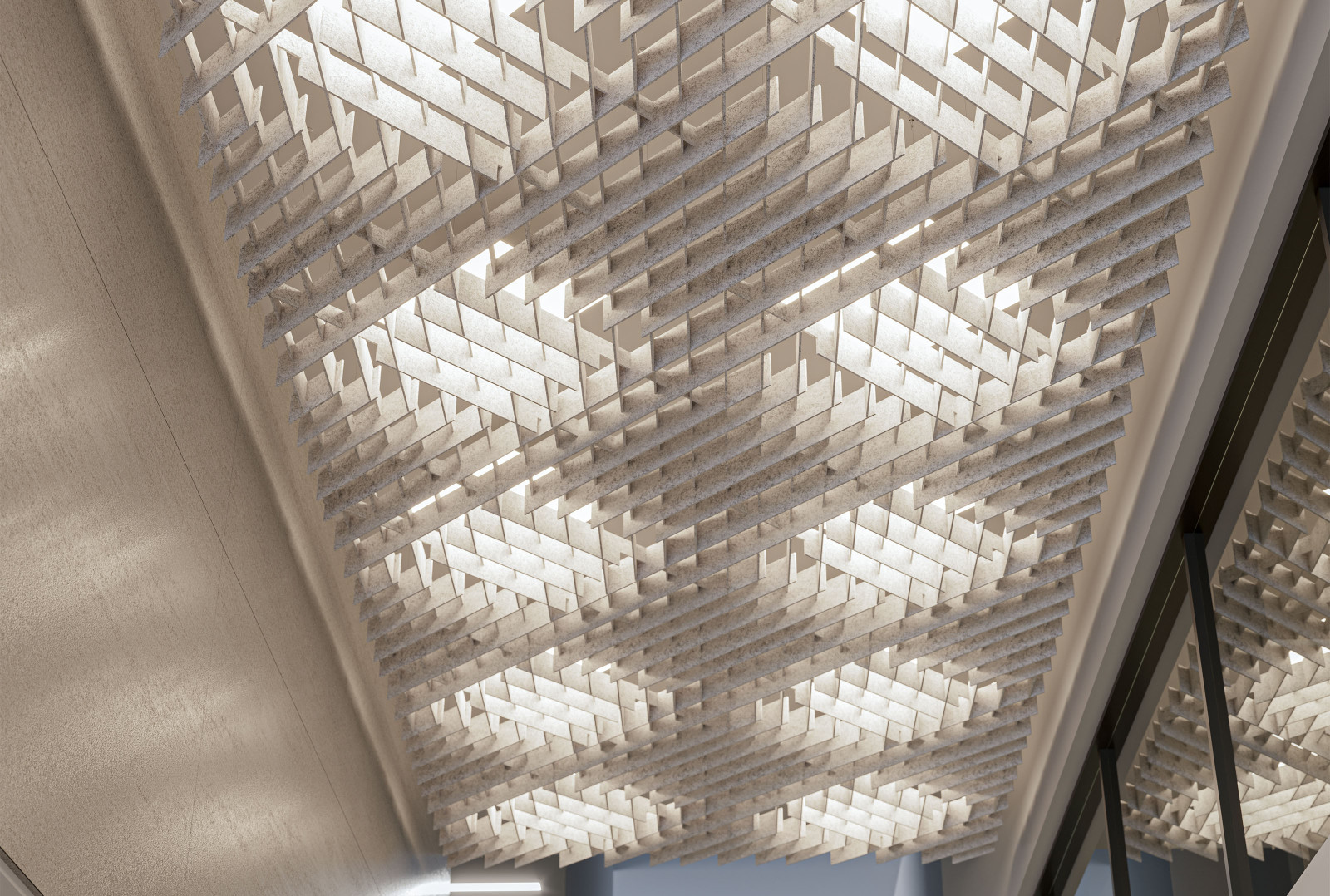

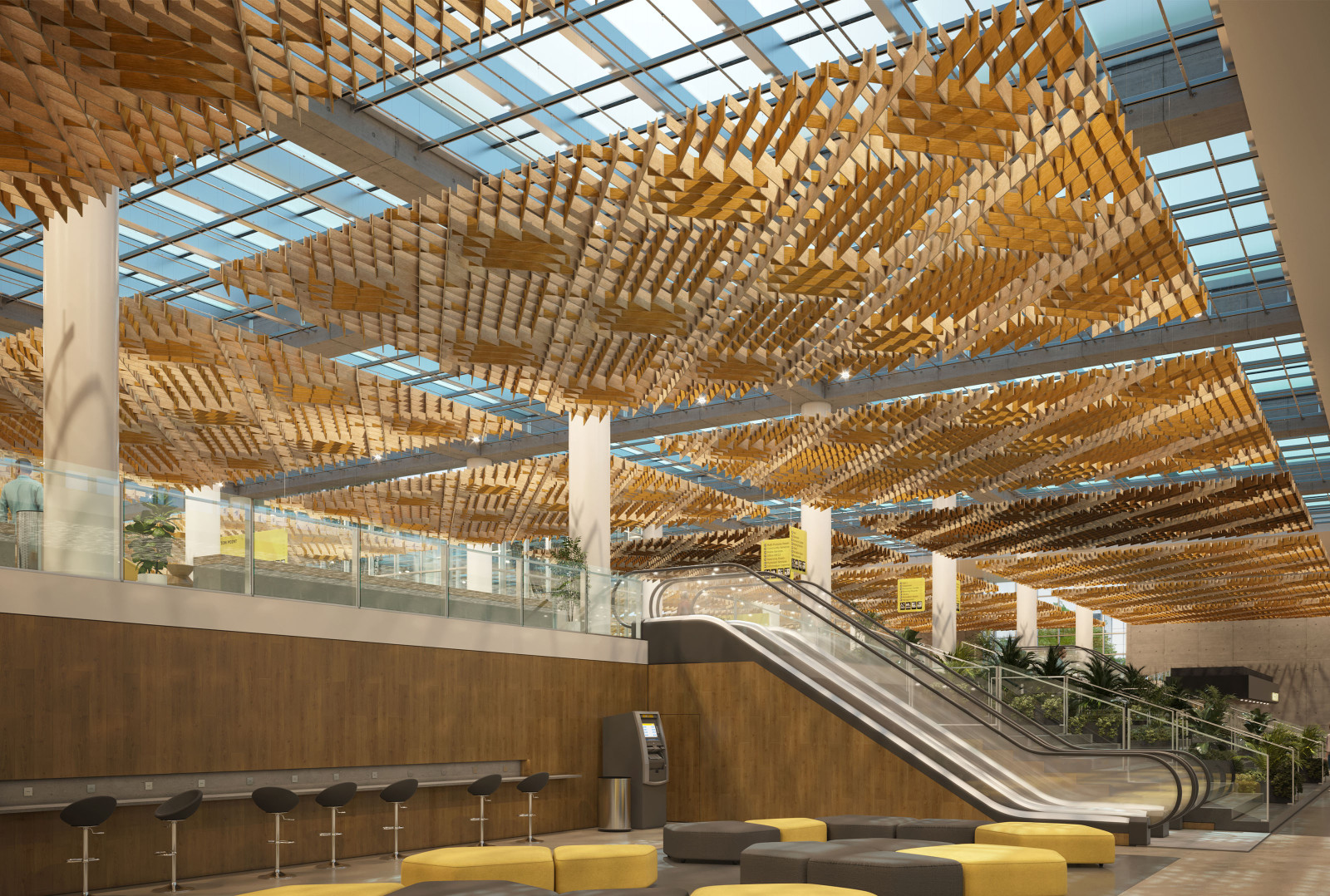

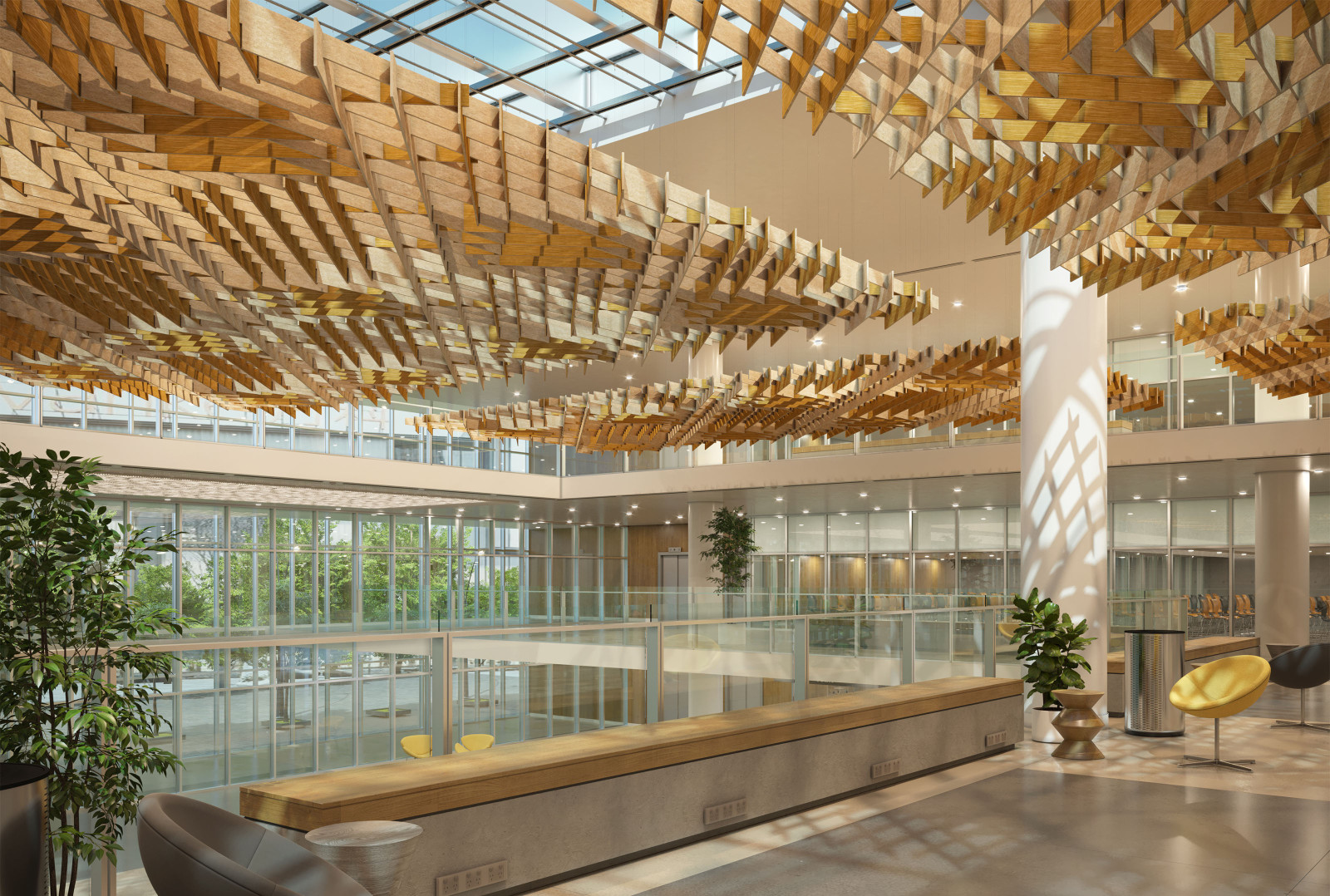

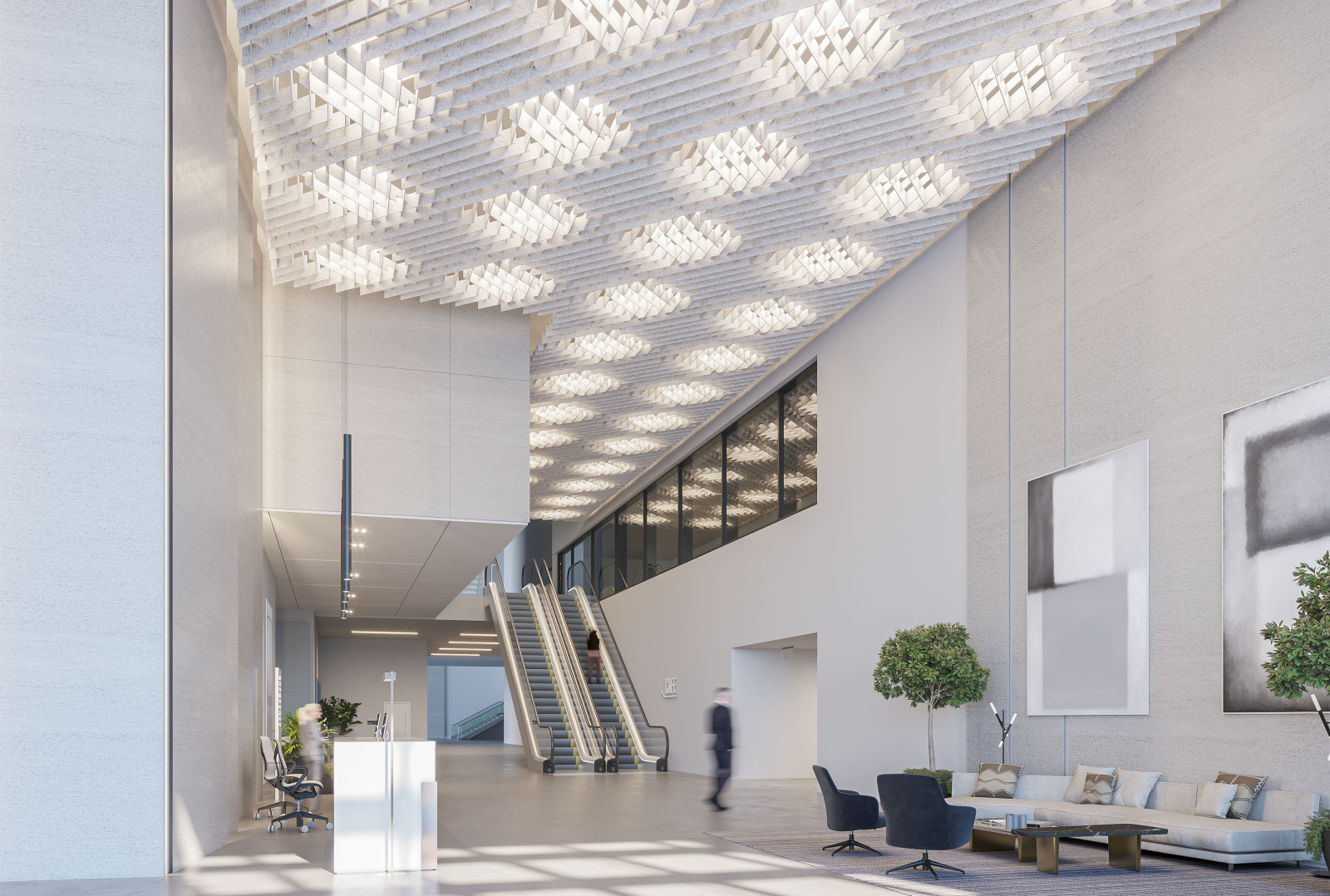

SoftGrid® Tilt in use

Key Features

  • Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Preconfigured Solutions

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  • Continuous Baffles

    Utilizing a hidden fin-to-fin alignment system, SoftGrid® provides continuity in all directions across your space. In addition, our optional hanging points offer a fine-tuning capability for installers. Our custom formulated material thickness and density ensures rigidity that limits deflection.

  • Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

  • Duo Capability

    Add new dimensions of style, mix colors and textures in a expanding range of dynamic combinations to fully achieve your design intent. Perfect for incorporating branding or composing a dynamic two-tone transformative field

Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

Standard Module

Multiple Modules

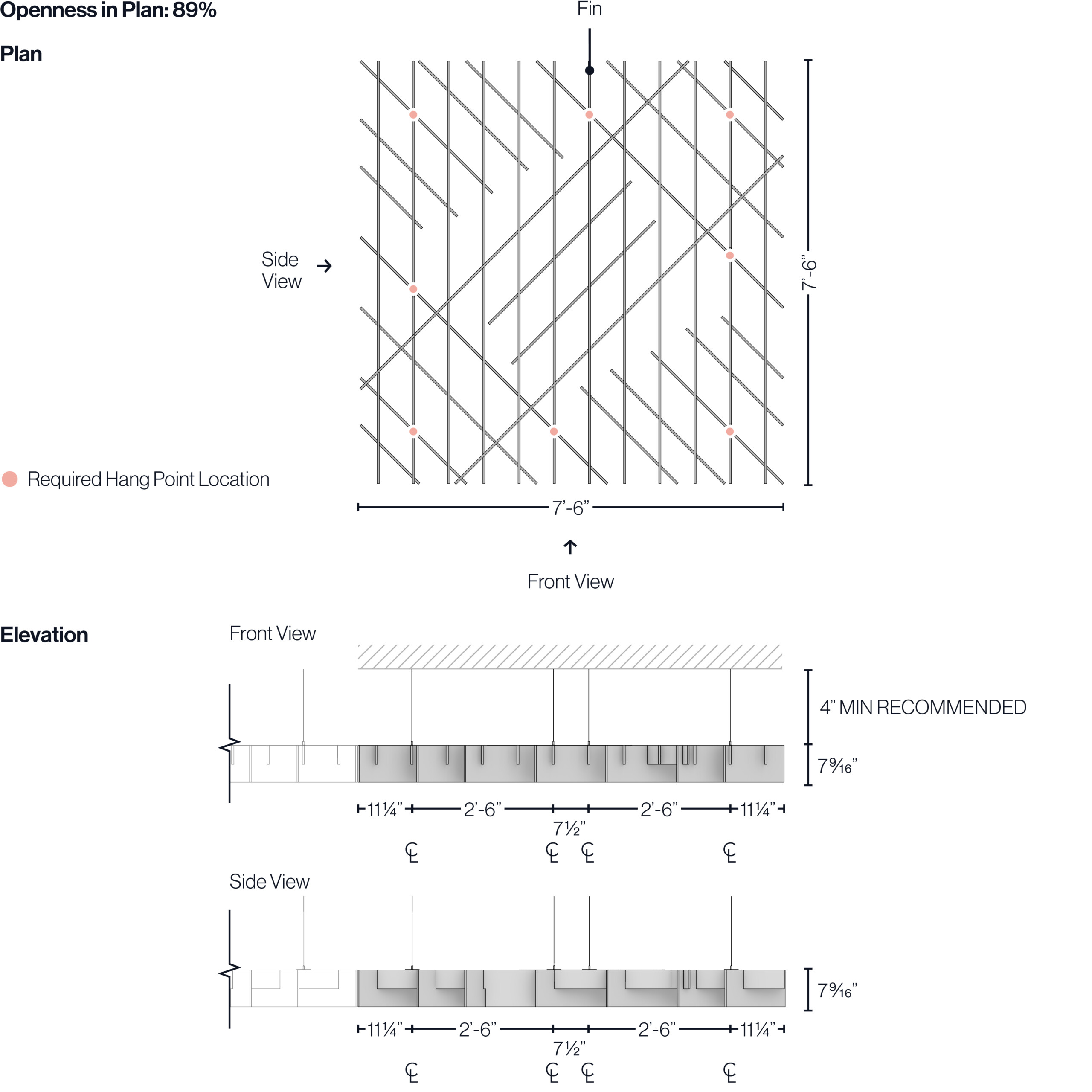

Understanding the Module

Attachment Details

Module Configuration

Optional SoftGrid® Tilt Duo Tone

System Specs

Dimensions (WxLxD)
7’-6” x 7’-6” x 7 13/16”
Fin Material
12mm Soft Sound® (PET), Stainless Steel
Openness in Plan
89%
Fire Rating
ASTM E84 - Class A
Acoustics
True NRC® 0.75 (F-100 Method)
Attachment Method
1/32’’ Stainless Cable and Hardware
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoftGrid® Tilt – Product Brochure PDF – Imperial
    Brochure
    3.83 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • SoftGrid® Tilt – 3D DWG – Imperial
    3D Model
    256.6 KB
    zip
  • SoftGrid® Tilt – 3D SKP – Imperial
    3D Model
    224.65 KB
    zip
  • SoftGrid® Tilt – 3D RFA – Imperial
    3D Model
    61.8 MB
    zip

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.

  2. SELECT A COLOR/DUO TONE OPTION

    Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.

  3. SELECT NUMBER OF MODULES

    All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
