SoftGrid Orbit

Orbit’s acoustic ceiling modules create a swath of honeycomb across your ceiling that provides targeted acoustic support thanks to its Soft Sound® material. Each honeycomb module can easily connect with another, to create either an intricate pattern or a full ceiling of hexagonal design.

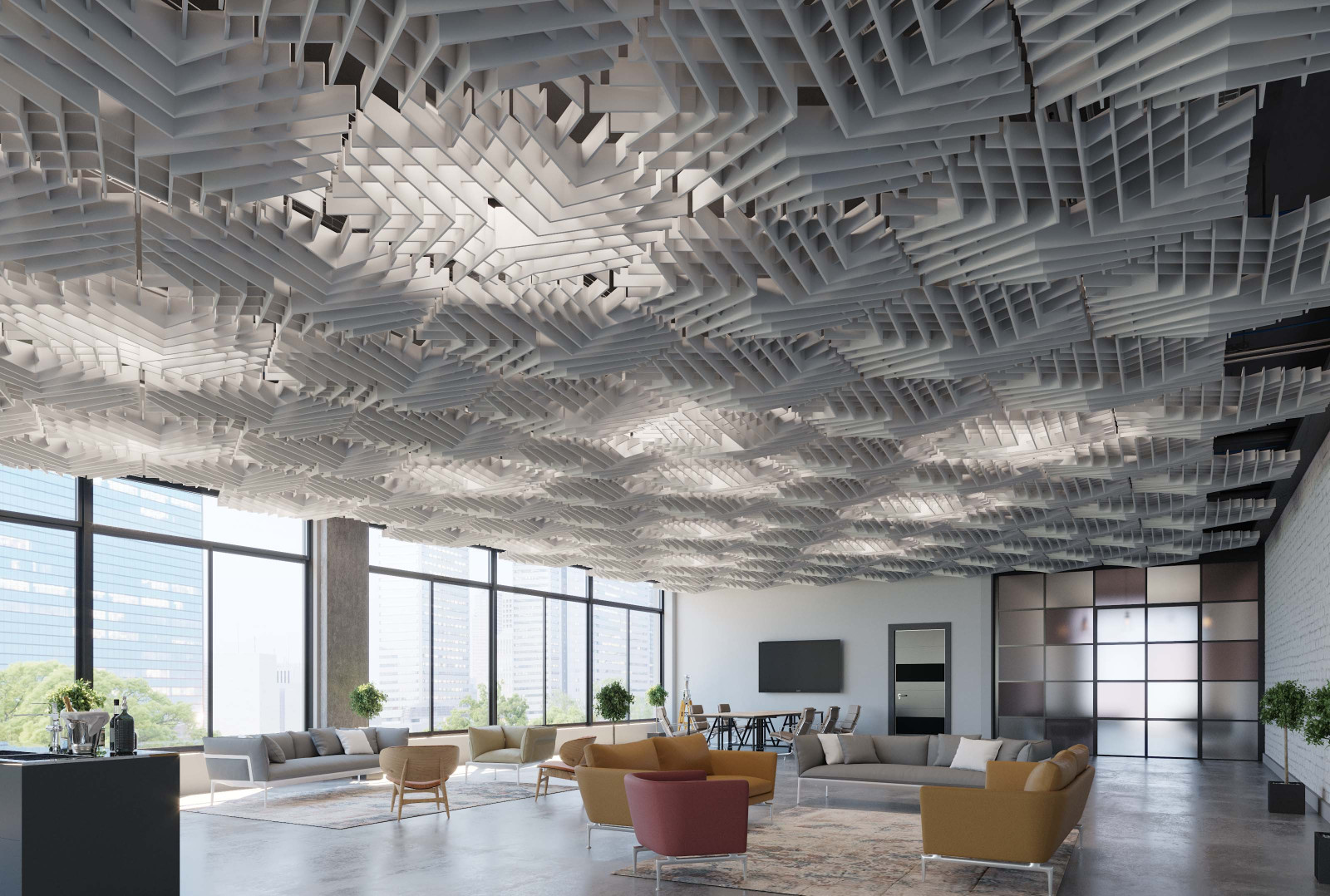

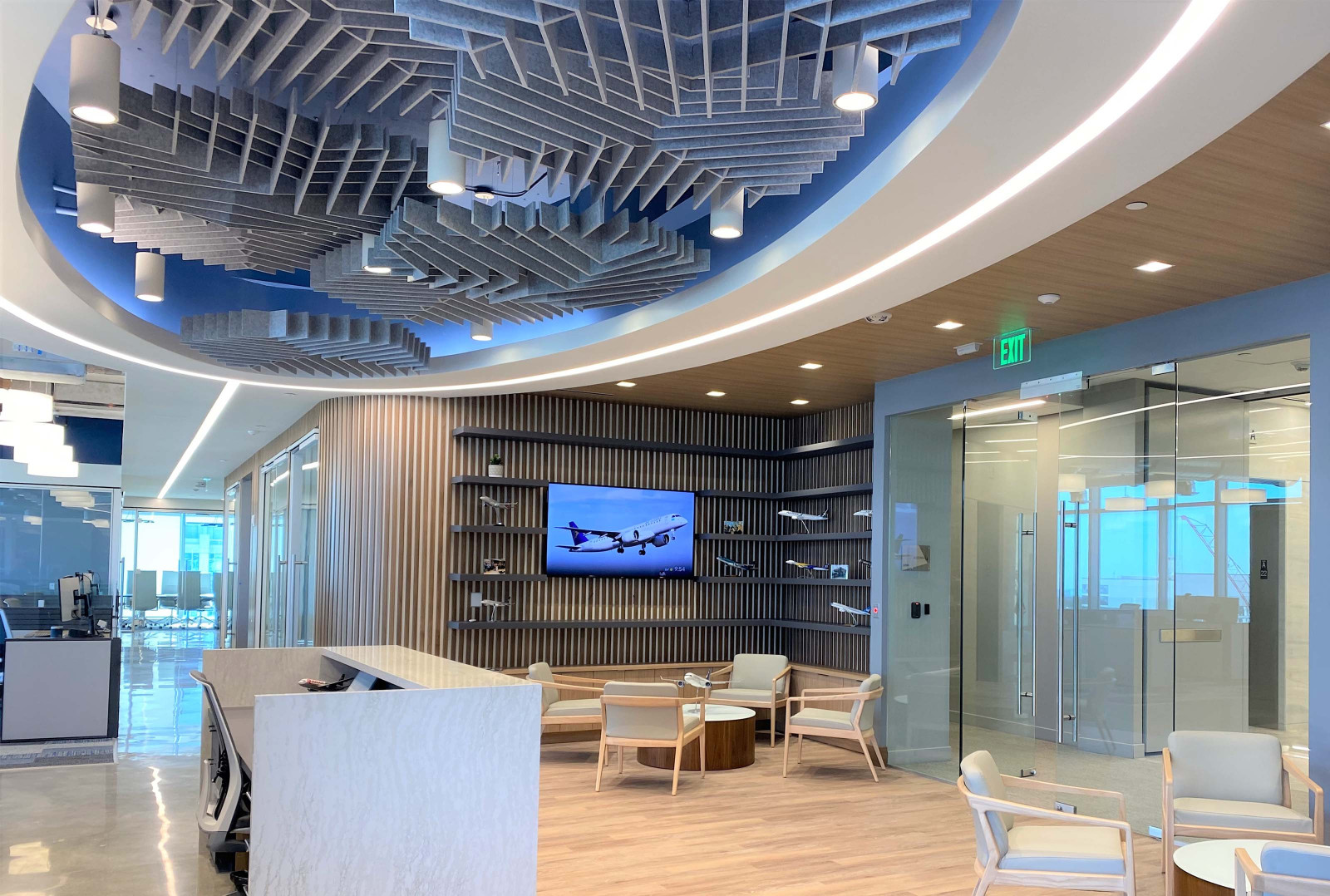

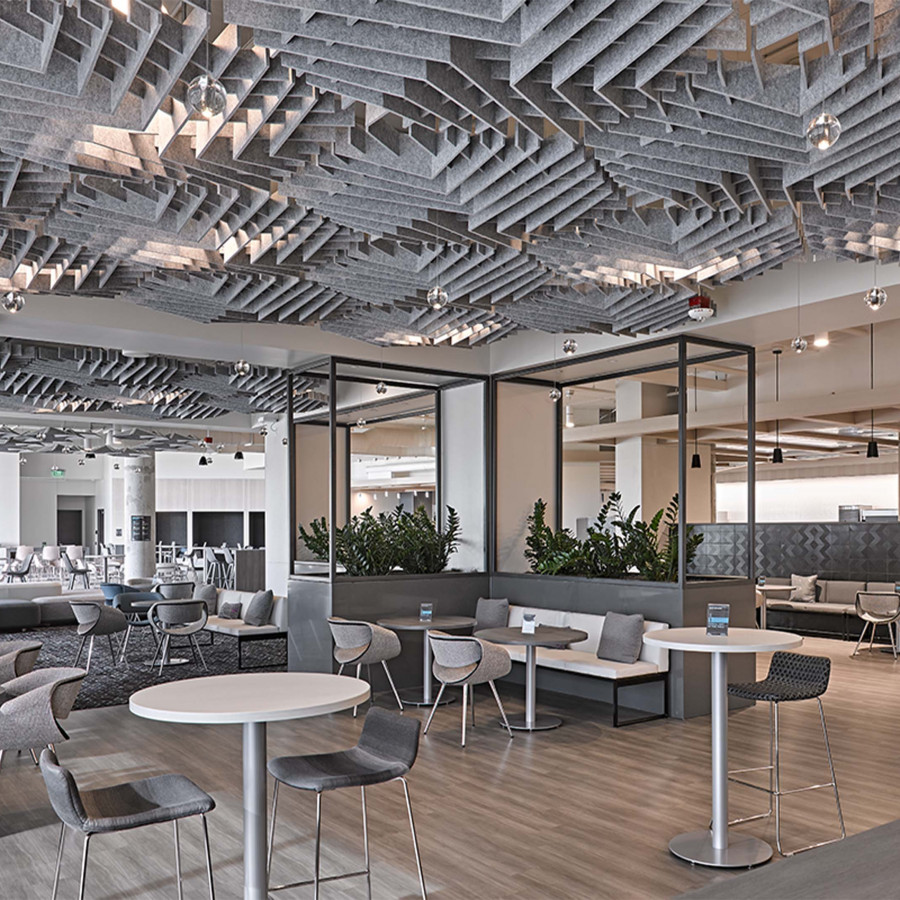

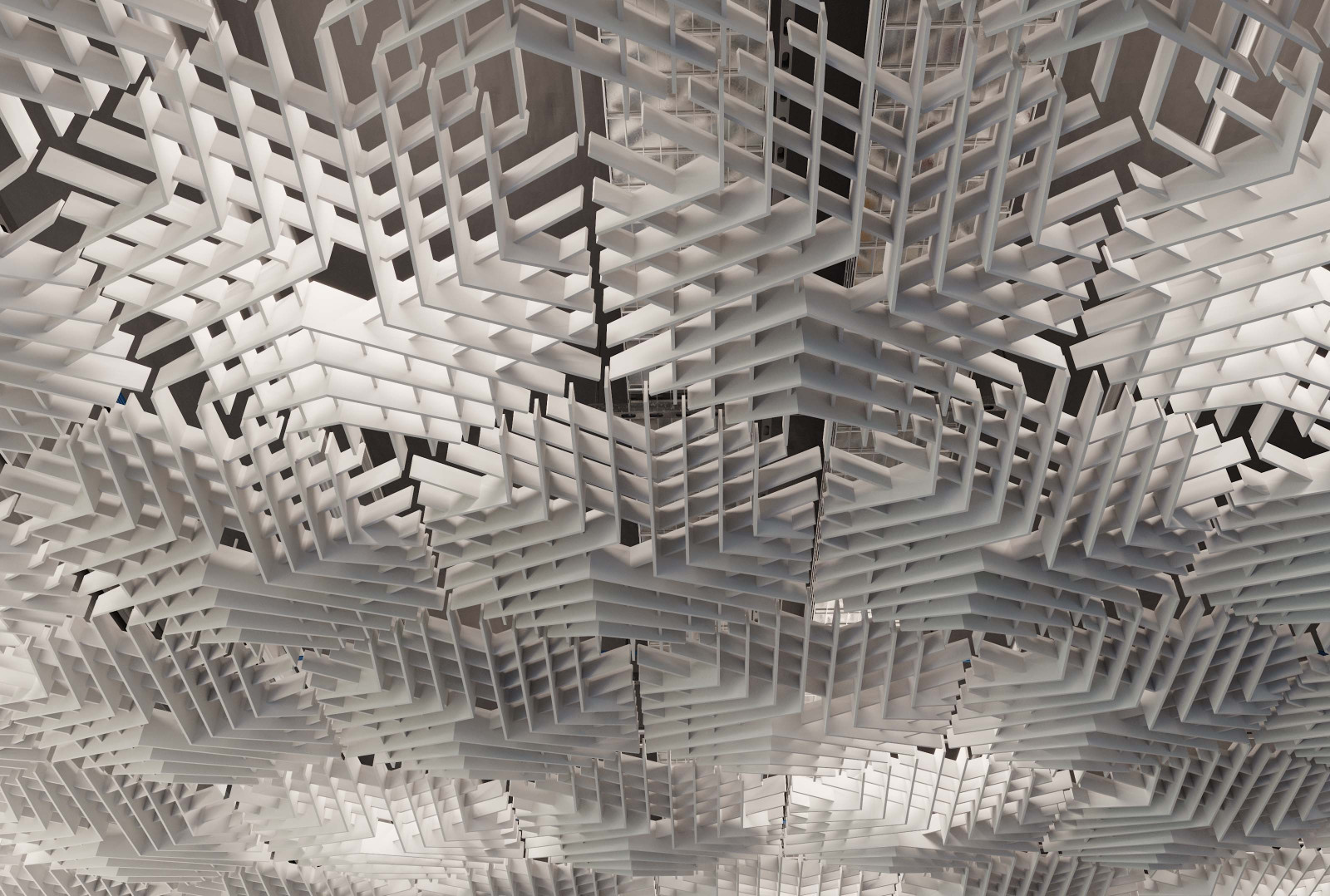

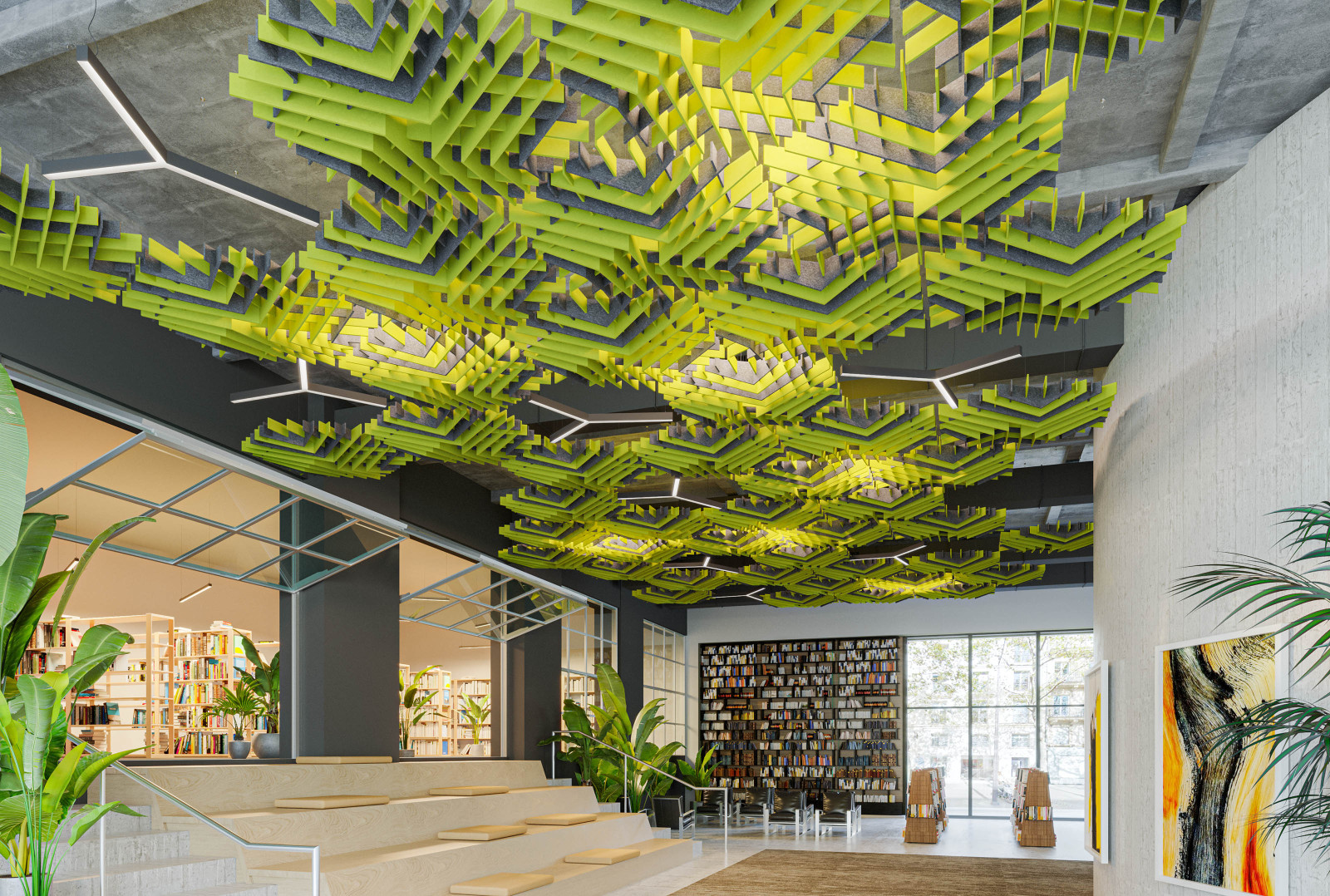

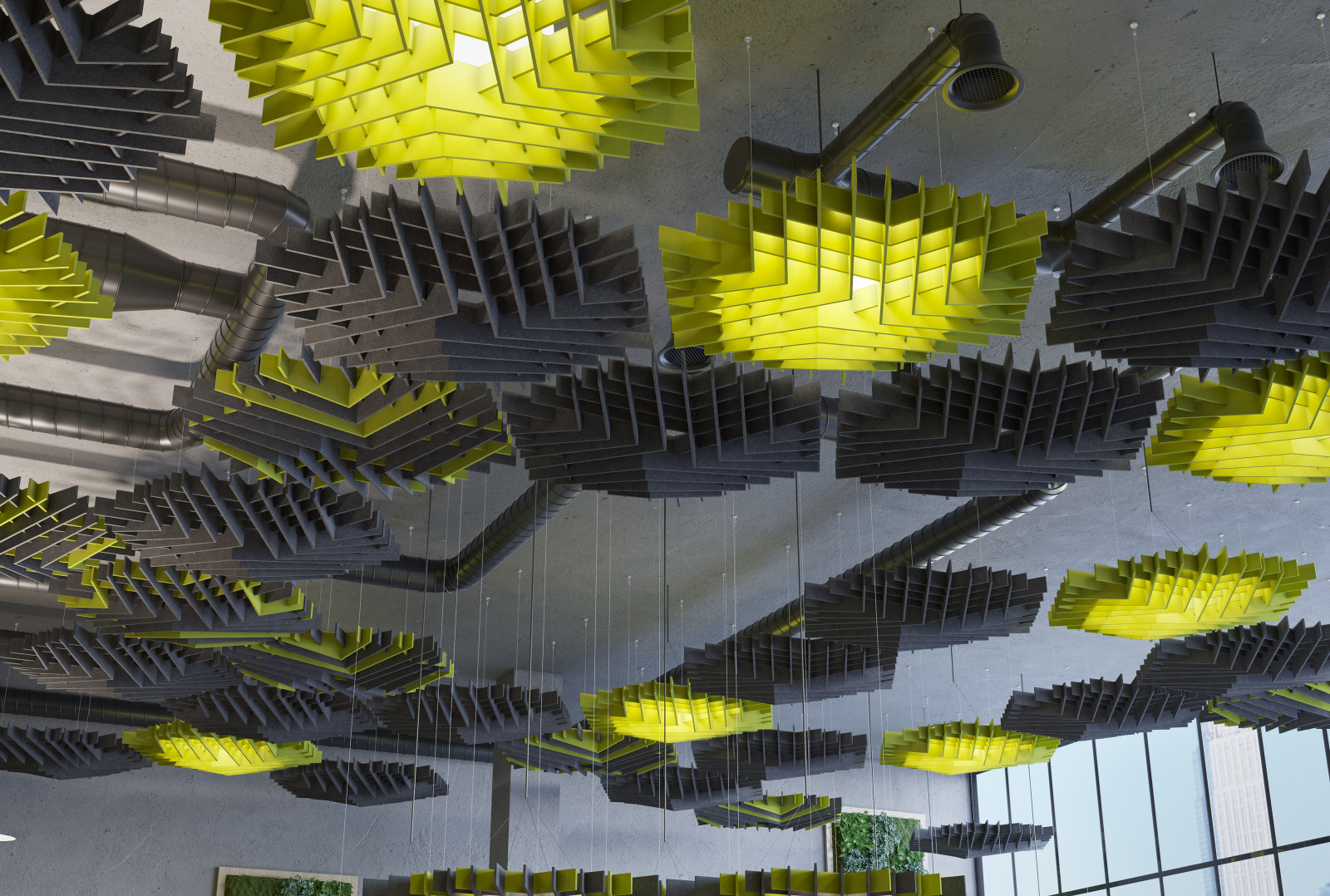

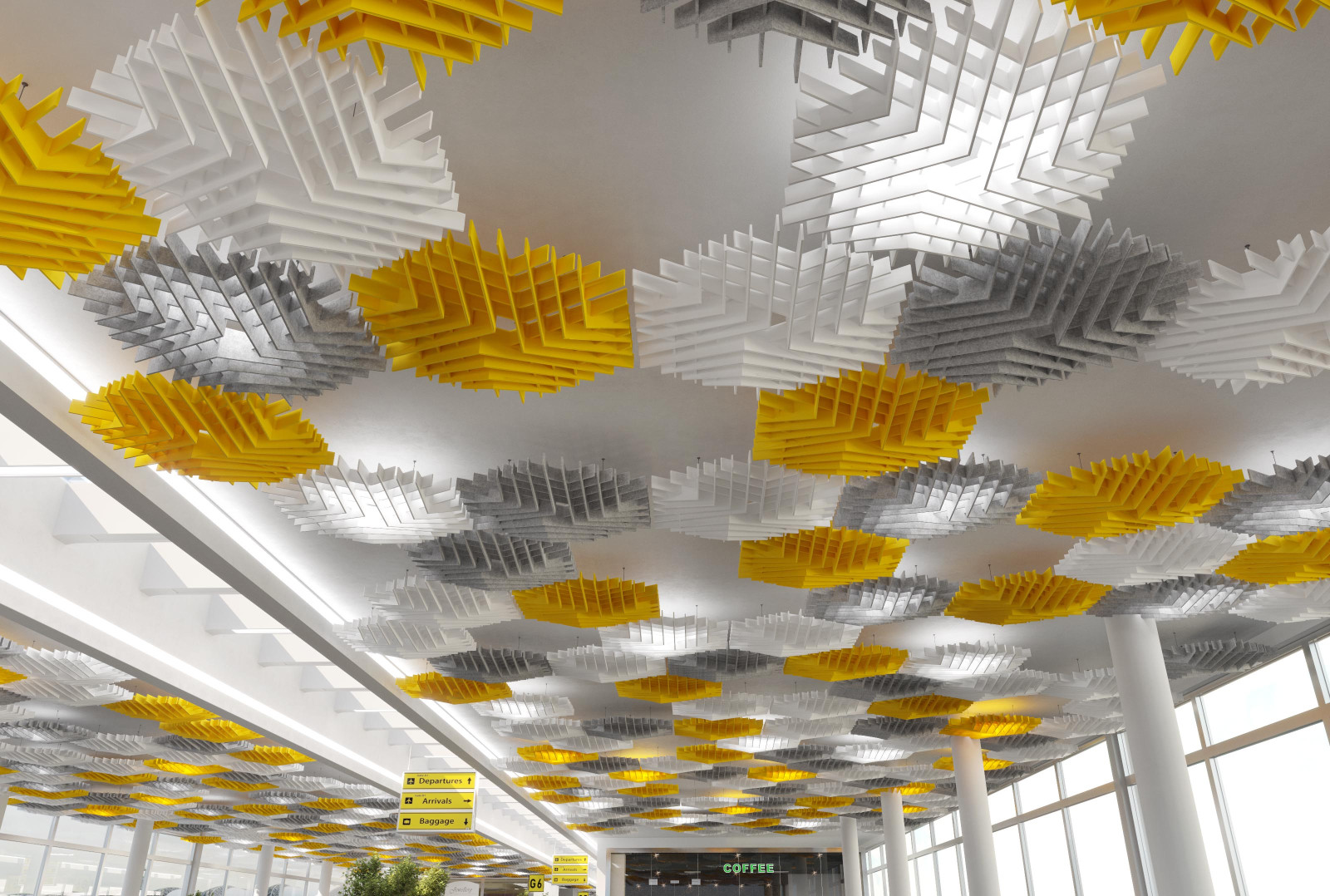

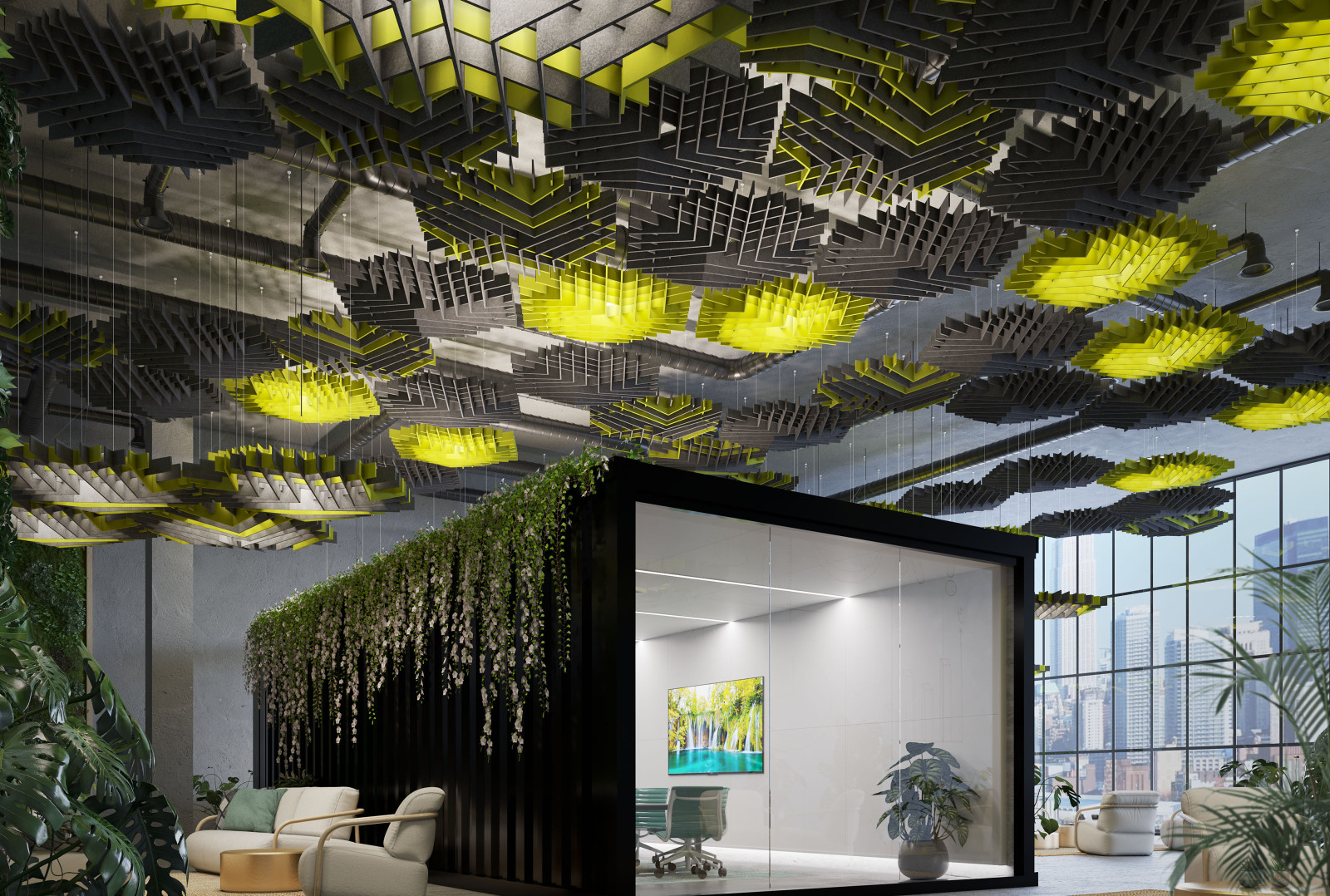

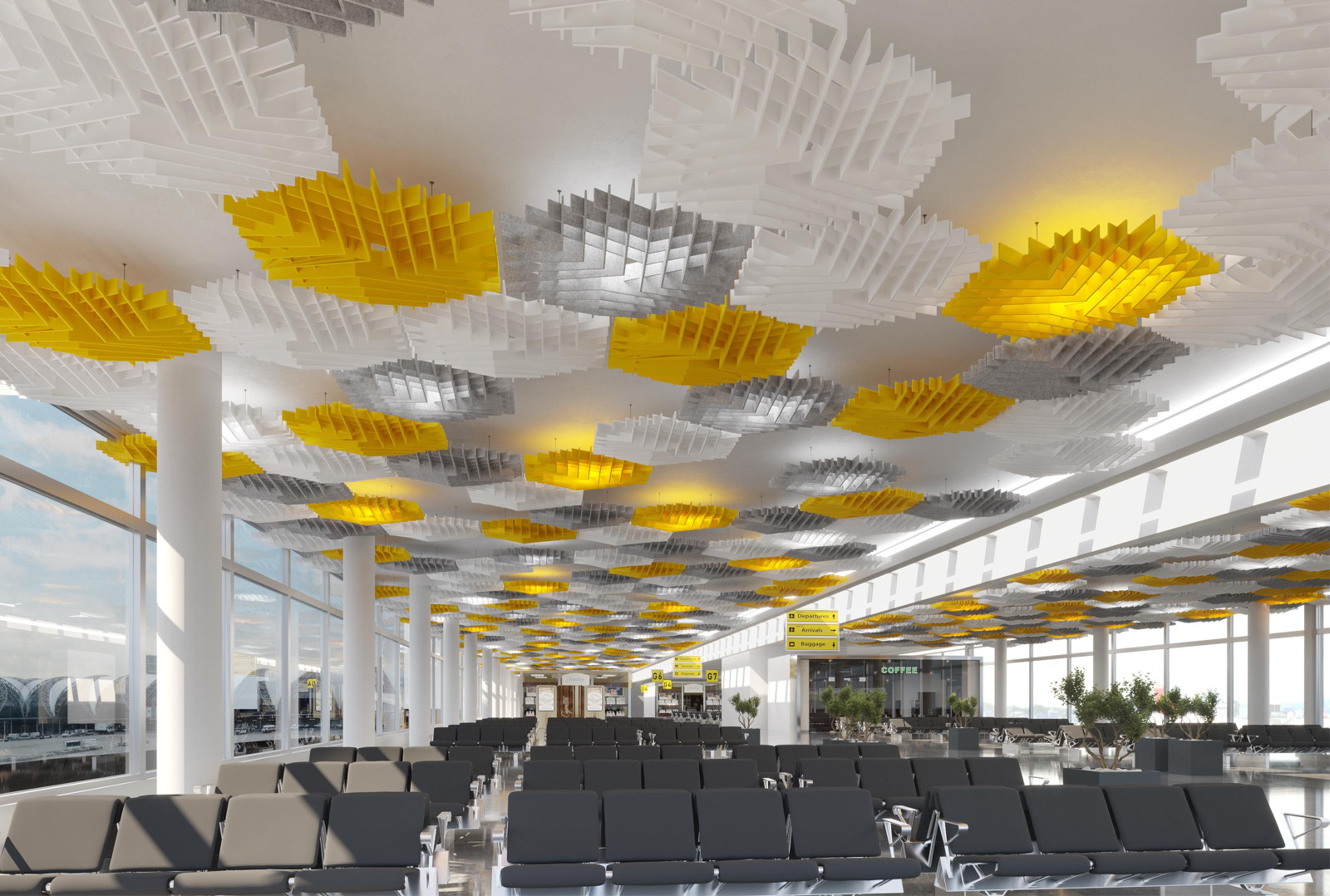

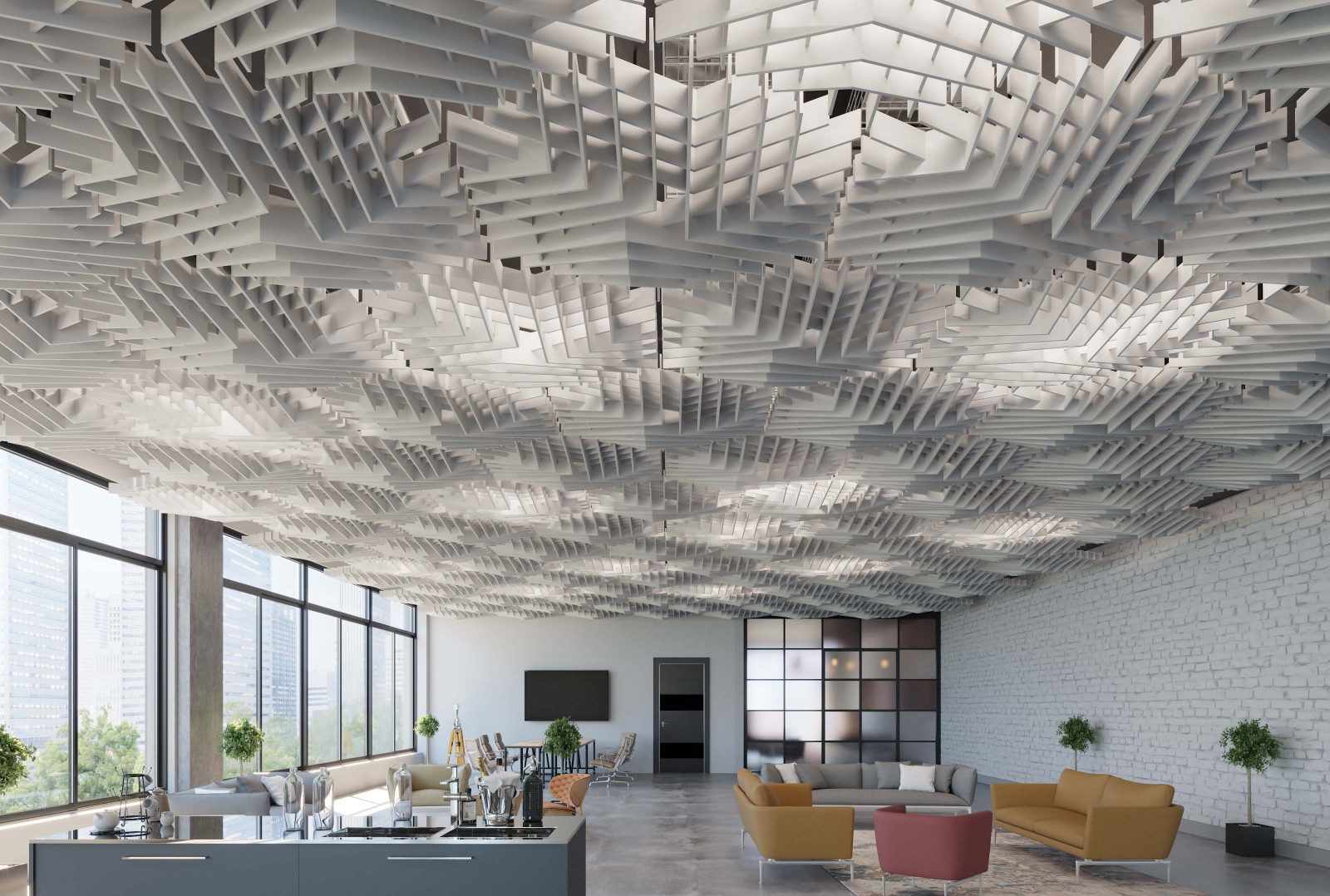

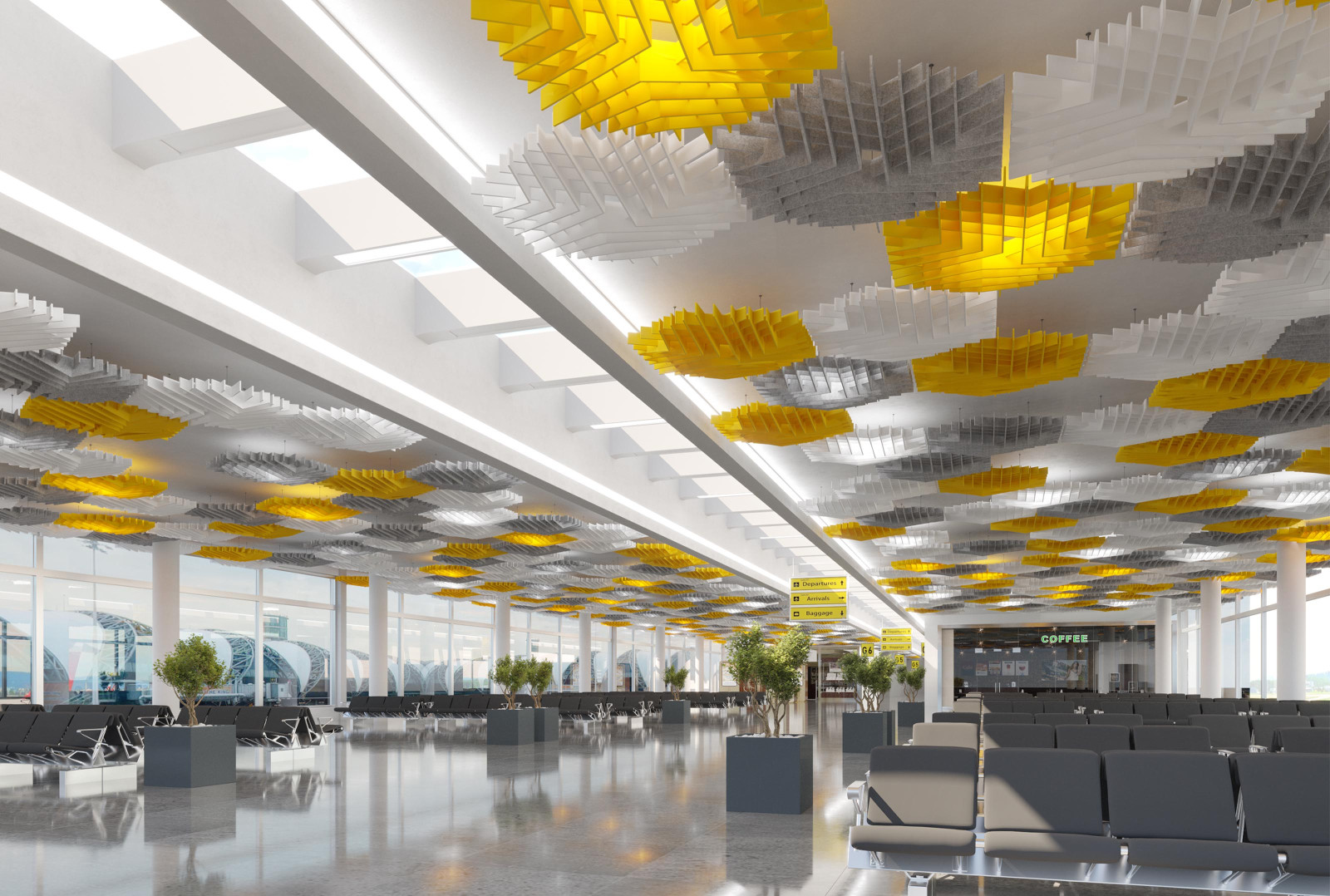

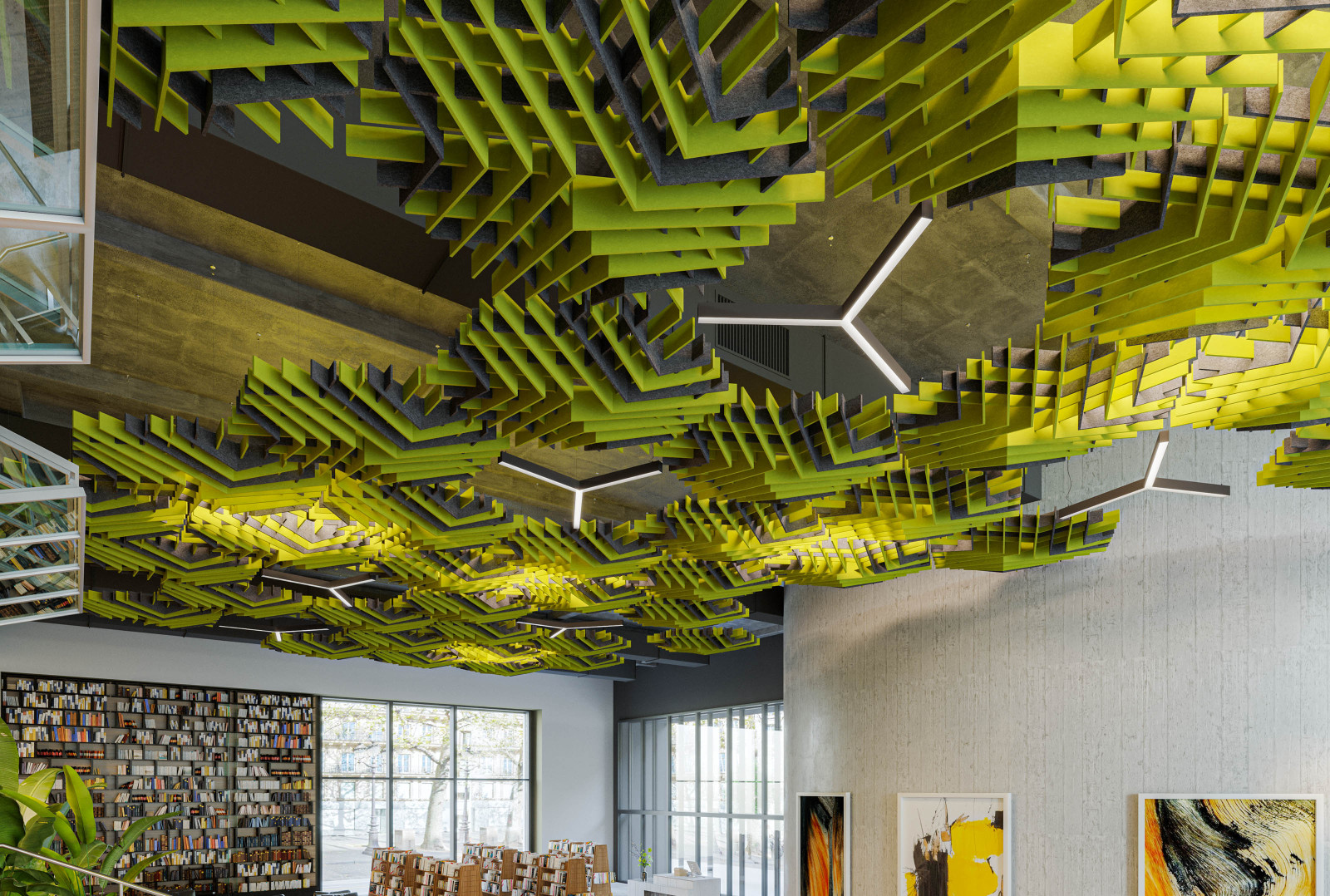

Orbit in use

Key Features

  • Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Preconfigured Solutions

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  • Continuous Baffles

    Utilizing a hidden fin-to-fin alignment system, SoftGrid® provides continuity in all directions across your space. In addition, our optional hanging points offer a fine-tuning capability for installers. Our custom formulated material thickness and density ensures rigidity that limits deflection.

  • Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Baffle Materials & Colors

Soft Sound® Group A

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Product Details

Standard Module

Multiple Modules

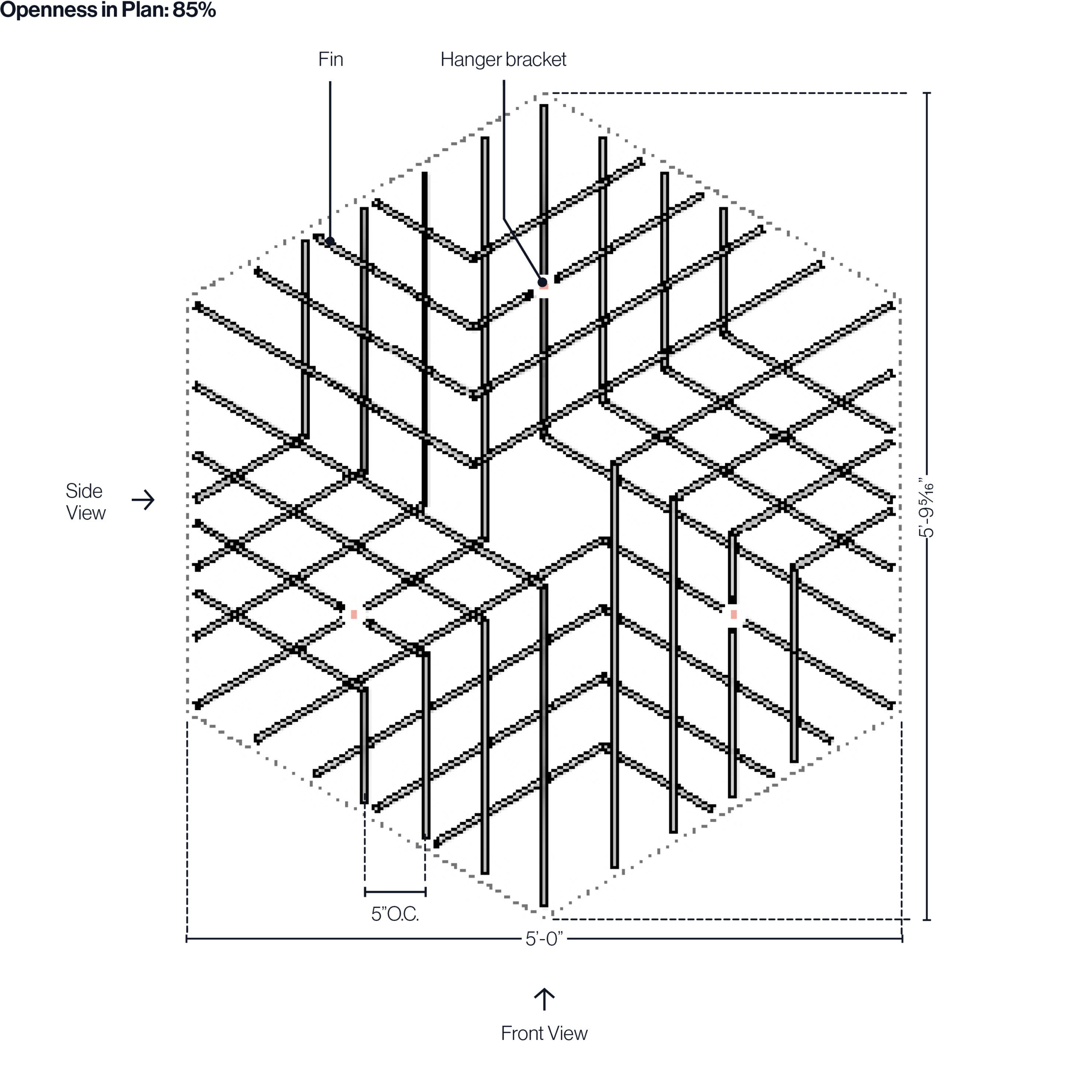

Understanding the Module - Plan

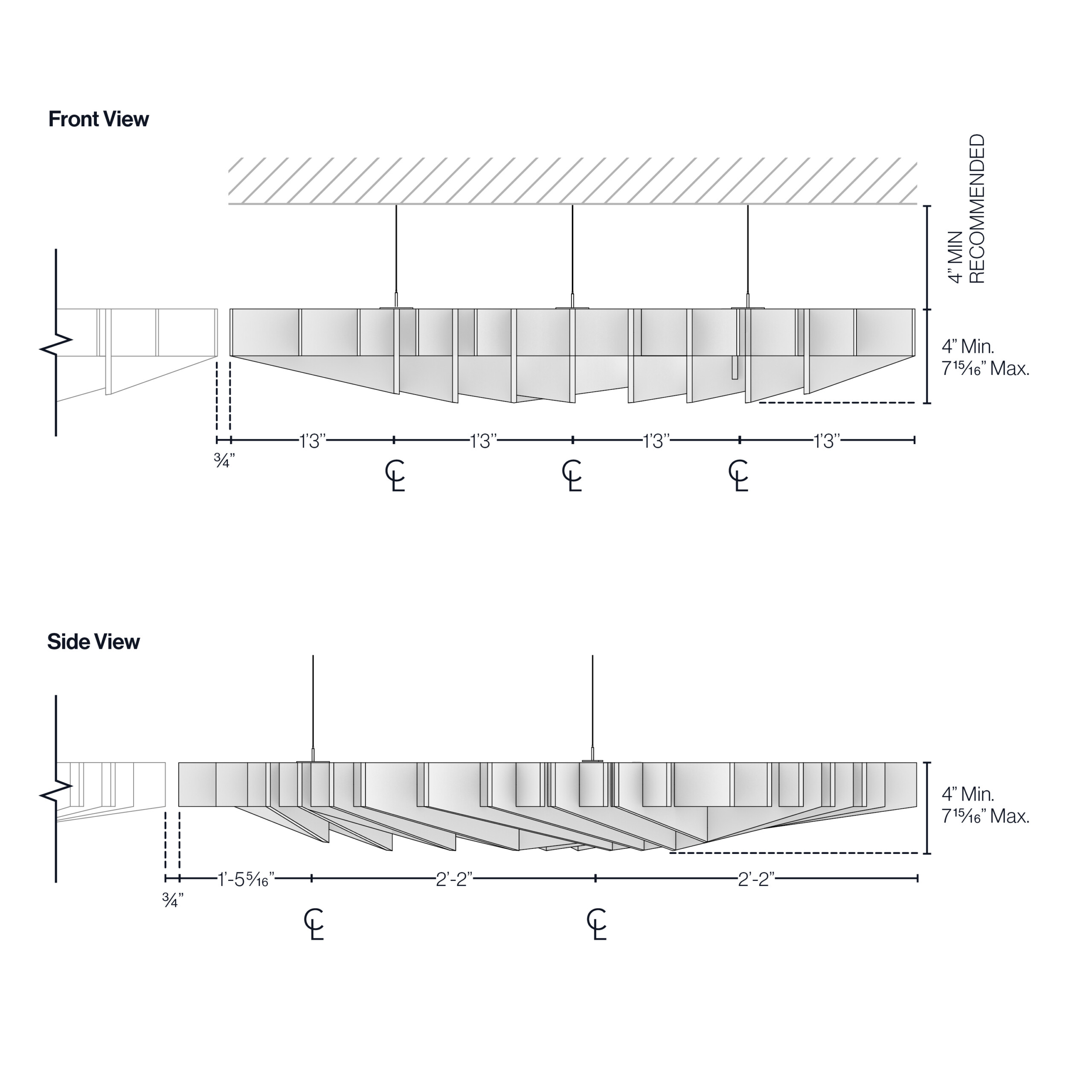

Understanding the Module - Elevations

Attachment Details

Combining With Other Products

System Specs

Dimensions (WxLxD)
5'-9 5/16" x 5' x 8" Imperial | 176cm x 152cm x 20cm Metric
Fin Material
12mm Soft Sound® (PET)
Openness in Plan
85%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
True NRC™ 0.70: Ceiling F-100 Method
True NRC™ 0.70: Wall A Method
Attachment Method
1/32" Stainless Cable
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoftGrid® Orbit – Product Brochure PDF – Imperial
    Tear Sheet
    5.33 MB
    pdf
  • Soft Sound® Color Brochure with Specifications
    Brochure
    2.32 MB
    pdf
  • SoftGrid® Orbit – 3D DWG – Imperial
    3D Model
    169.04 KB
    zip
  • SoftGrid® Orbit – 3D SKP – Imperial
    3D Model
    21.95 KB
    zip
  • SoftGrid® Orbit – 3D RFA – Imperial
    3D Model
    4.38 MB
    zip
  • SoftGrid® Orbit – PDF Tearsheet – Metric
    Tear Sheet
    7.2 MB
    pdf
  • SoftGrid® Orbit – 3D DWG – Metric
    3D Model
    181.65 KB
    zip

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from a variety of designs, all made from our Soft Sound® acoustical material, to provide high performance sound attenuation while enhancing aesthetics.

  2. SELECT A COLOR

    Modules are available in a variety of colors, including naturalistic wood finishes. See our Soft Sound® color brochures for more information.

  3. SELECT A NUMBER OF MODULES

    All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.

Let us help you get started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° USD890368, CA185460S.
