View Line

SoftGrid® Rosette

Soft angles come together in precise harmony, bringing a delicate floral configuration to acoustic control. Multiple angled baffles combine to create SoftGrid® Rosette’s unique form, reminiscent of its flora namesake, adding a touch of elegance to any interior. Made from high-quality Soft Sound® material, this suspended cloud system is durable and mesmerizing, making it the right aesthetic choice for any renovation or new build.

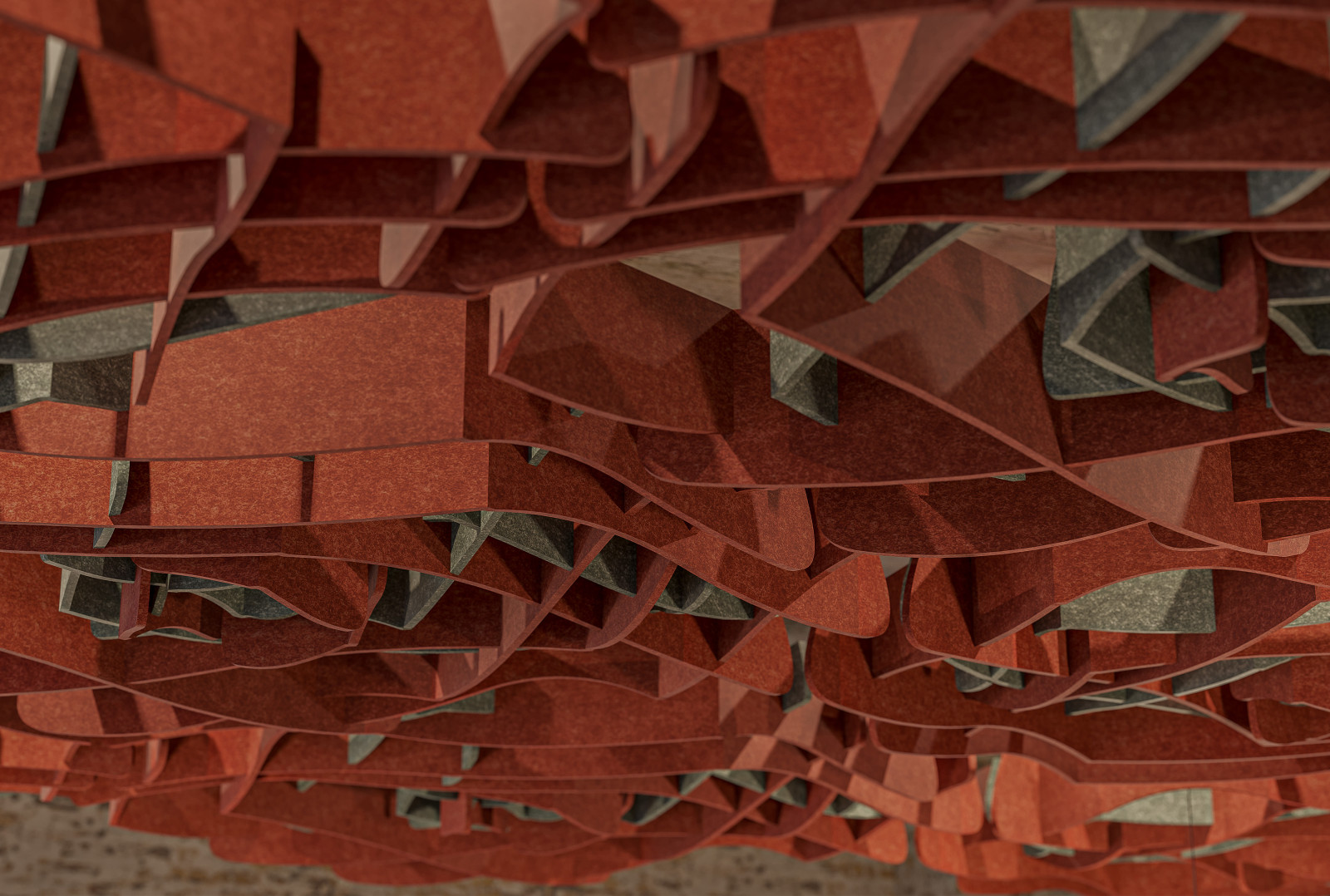

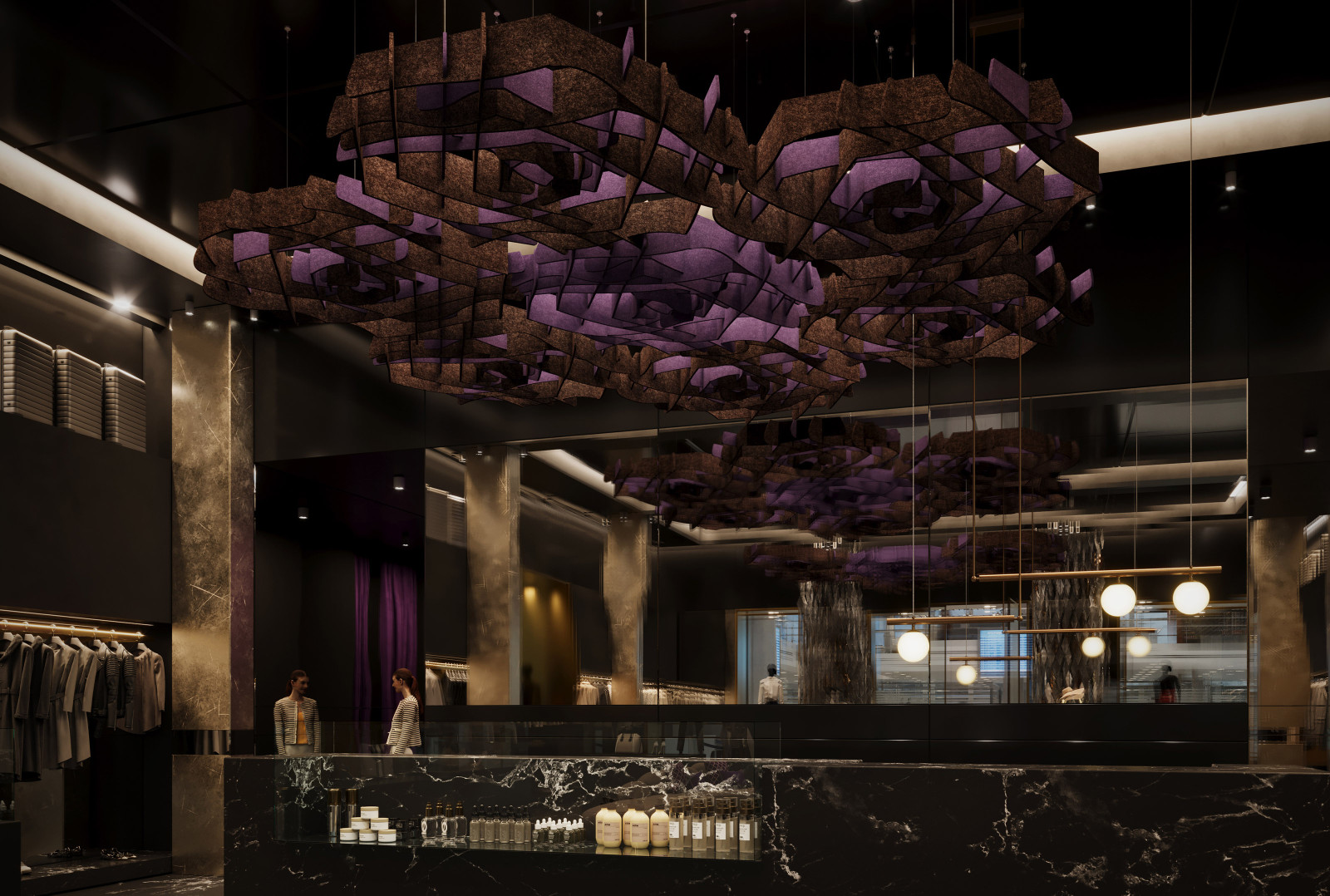

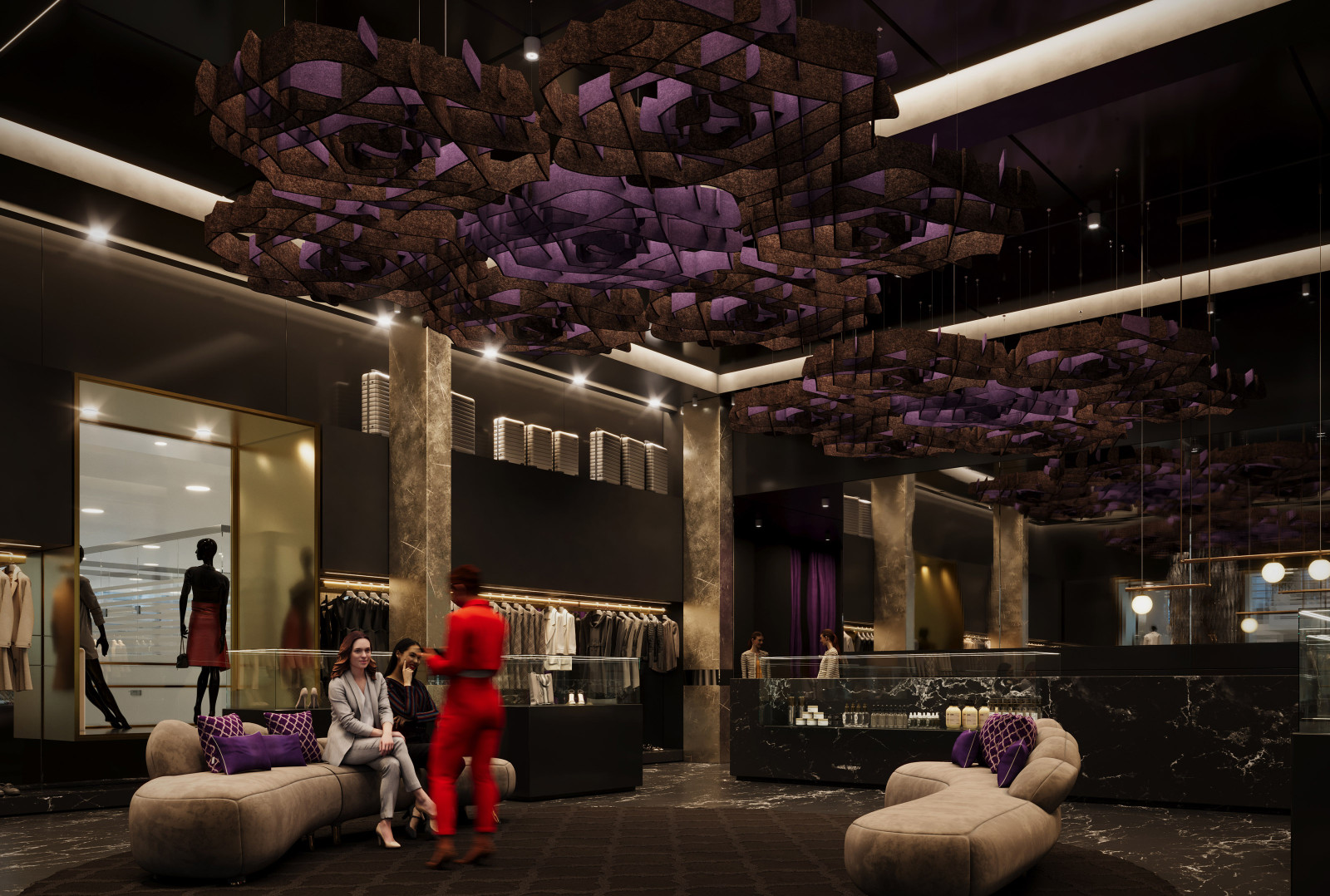

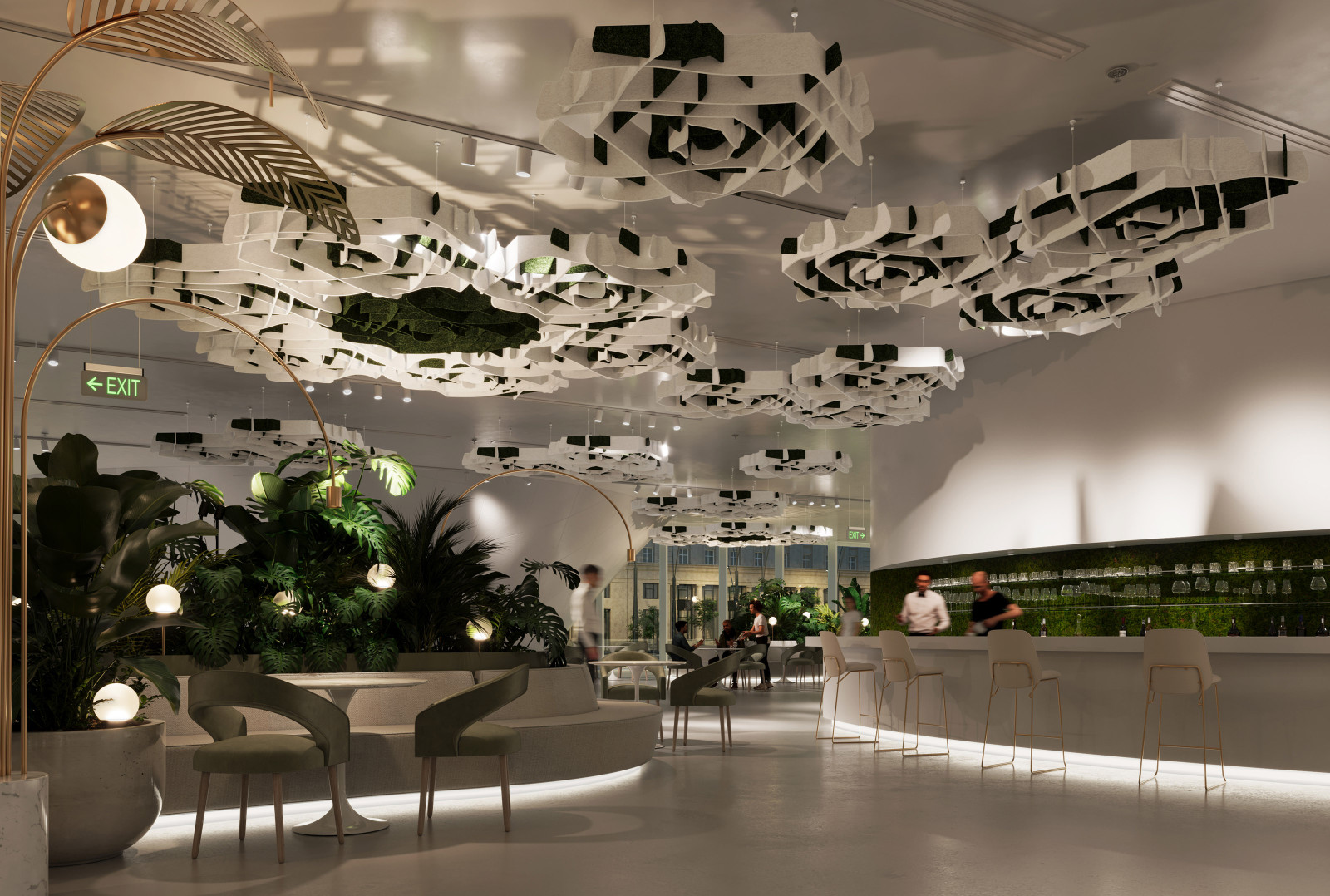

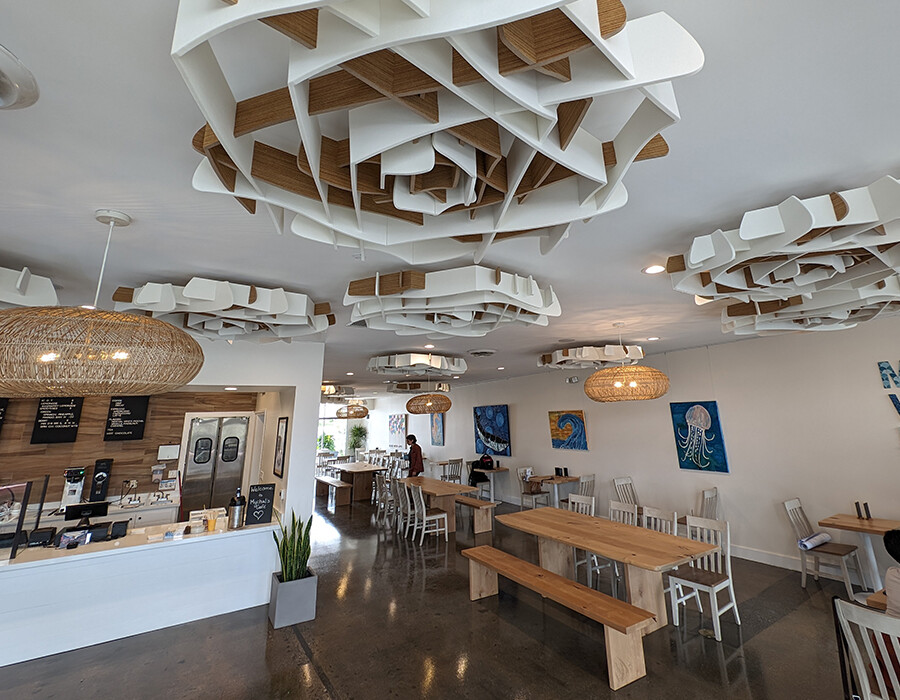

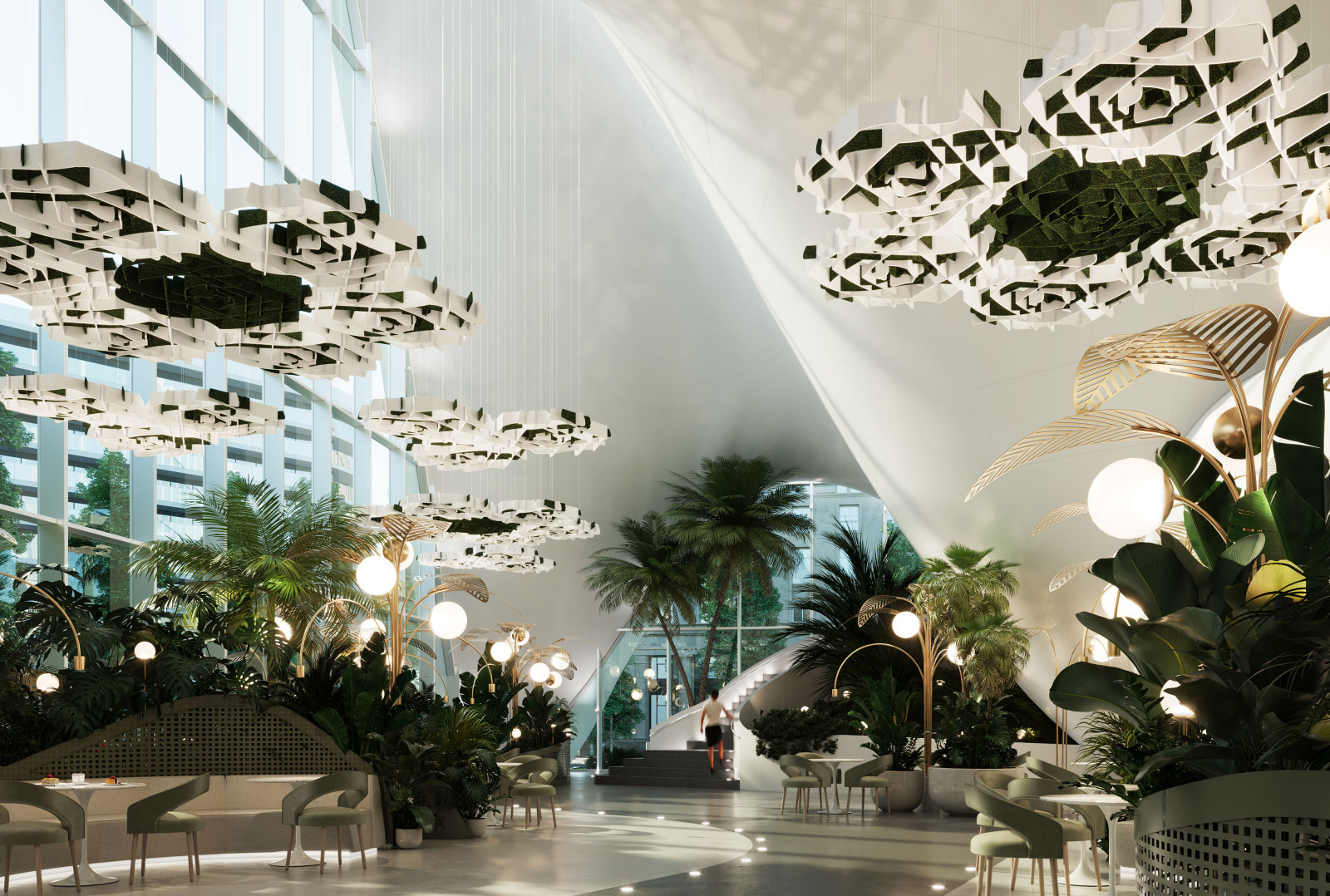

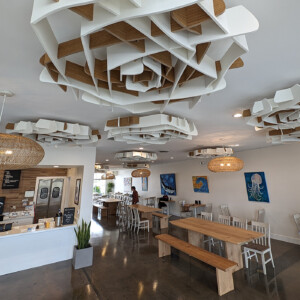

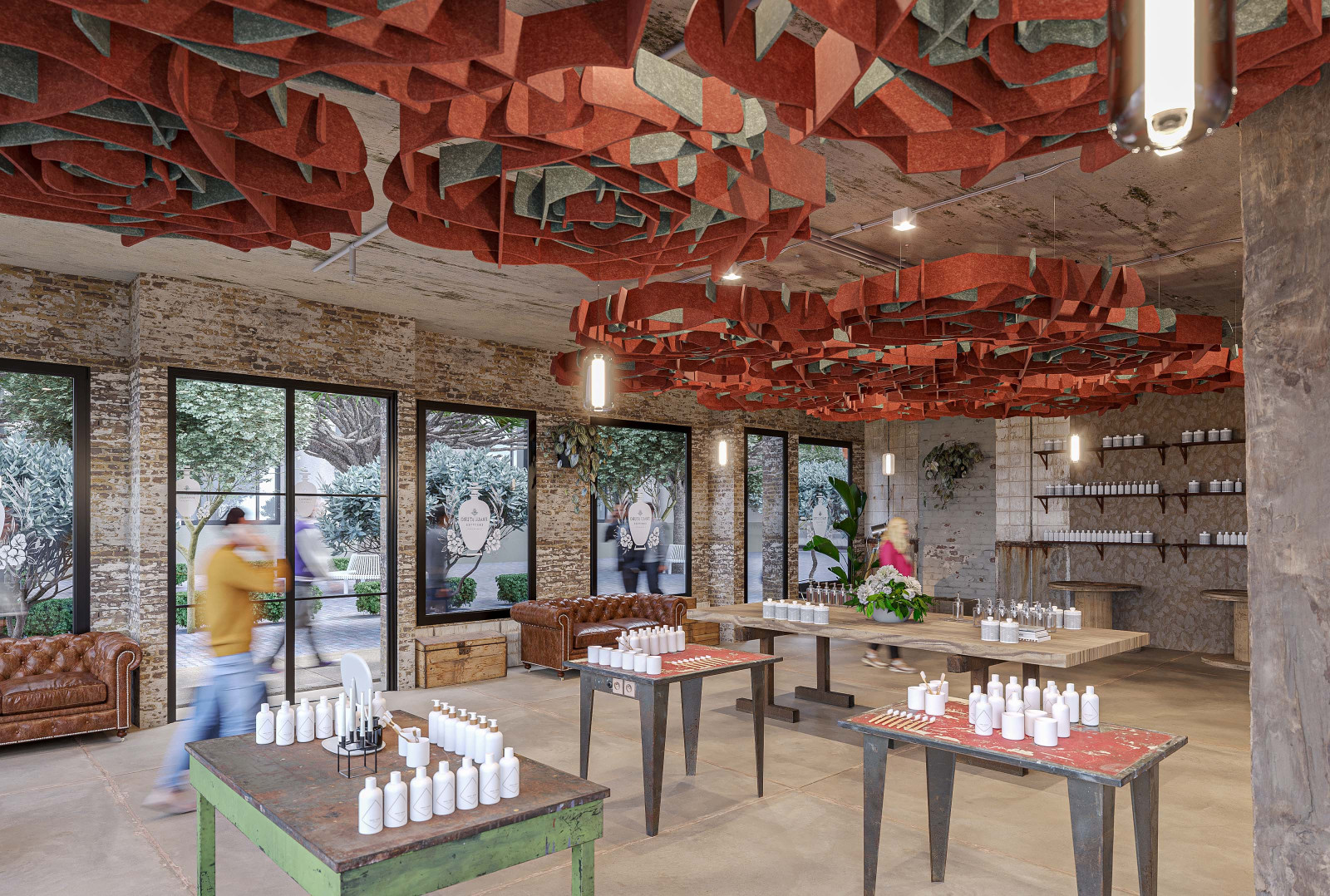

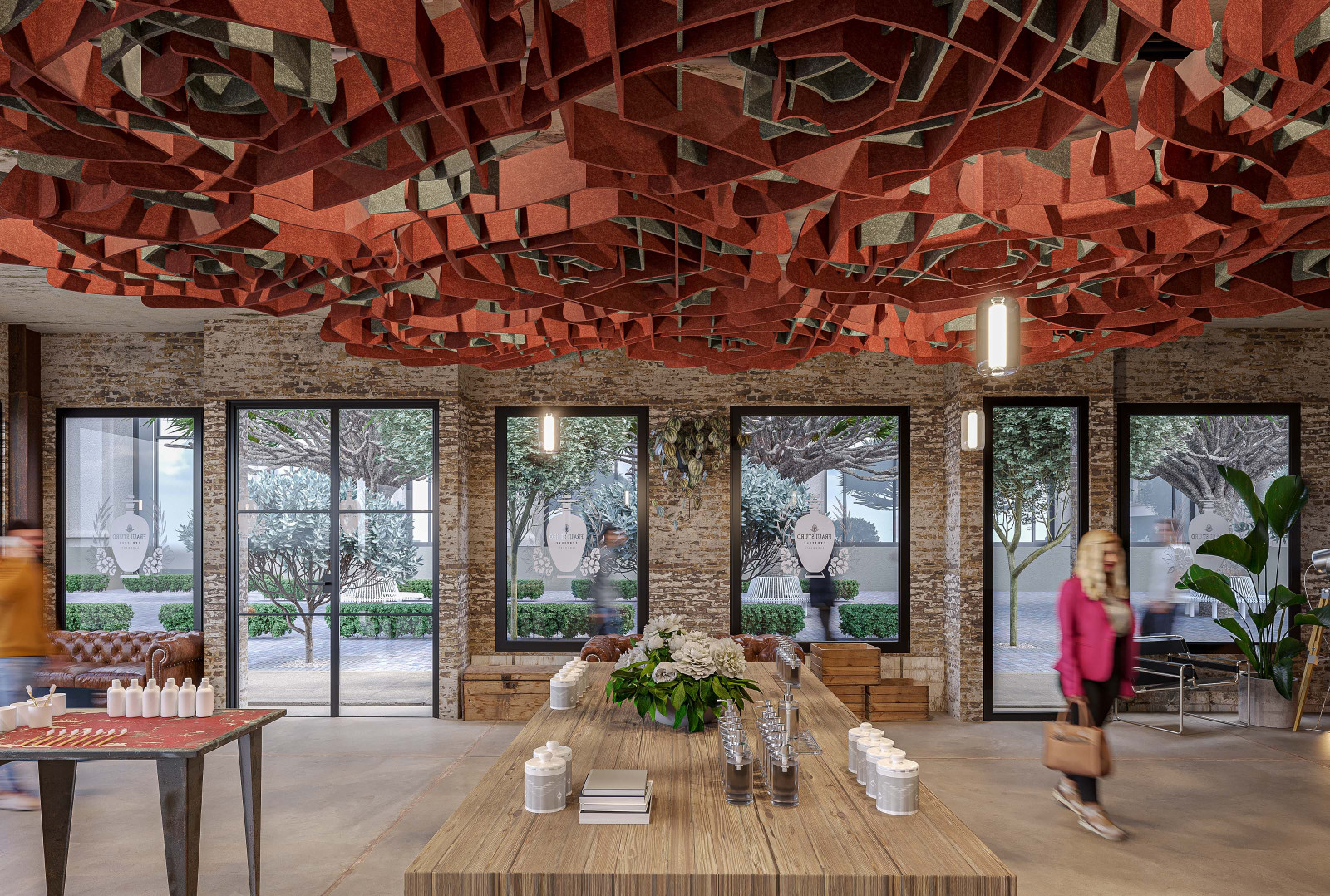

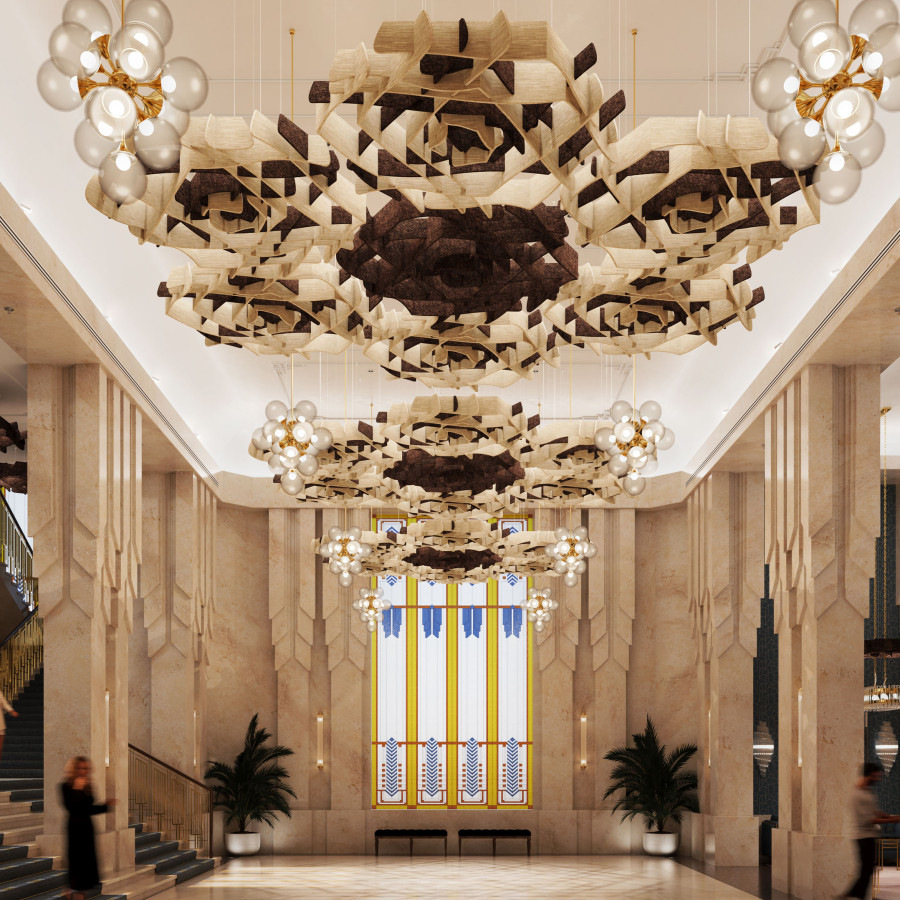

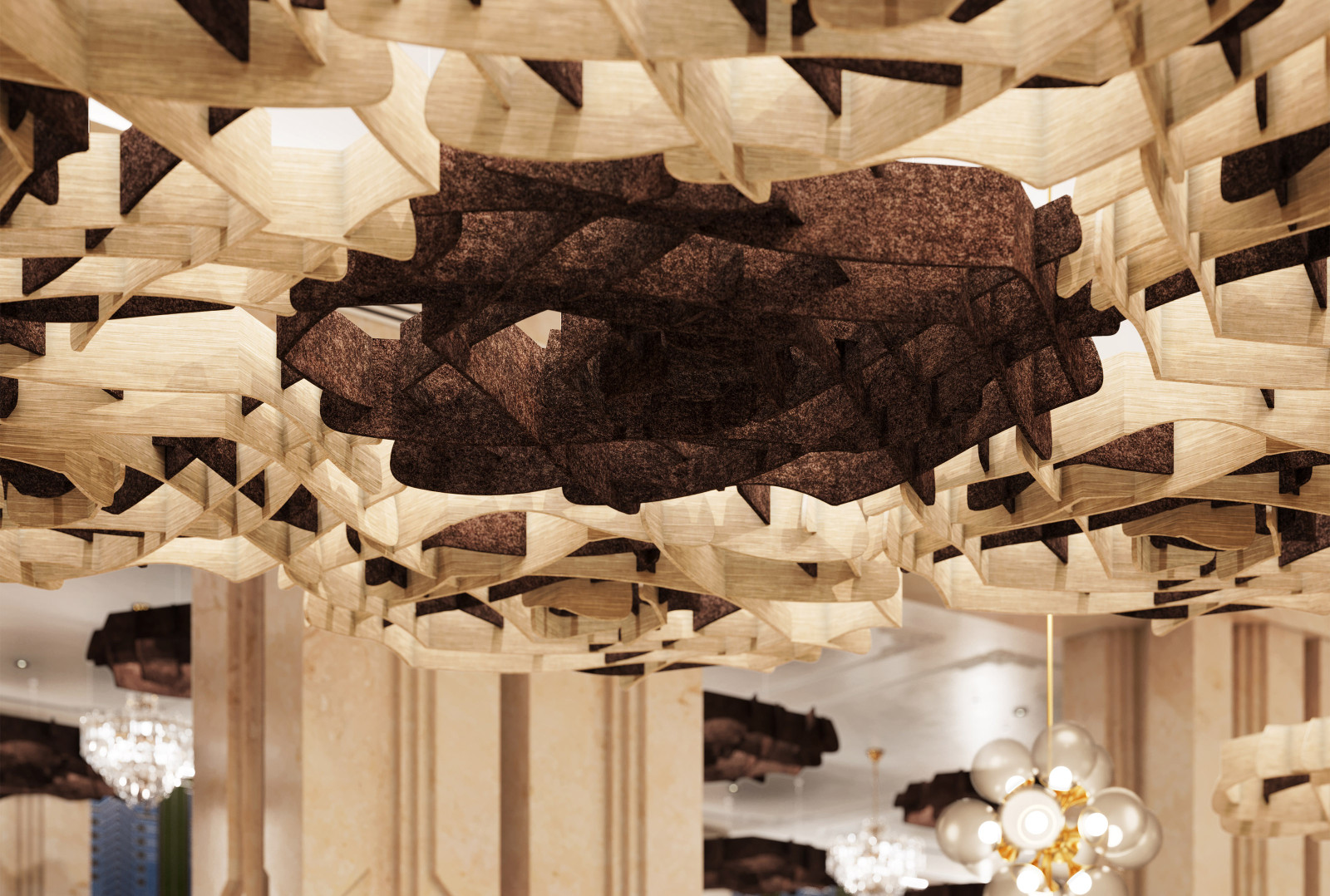

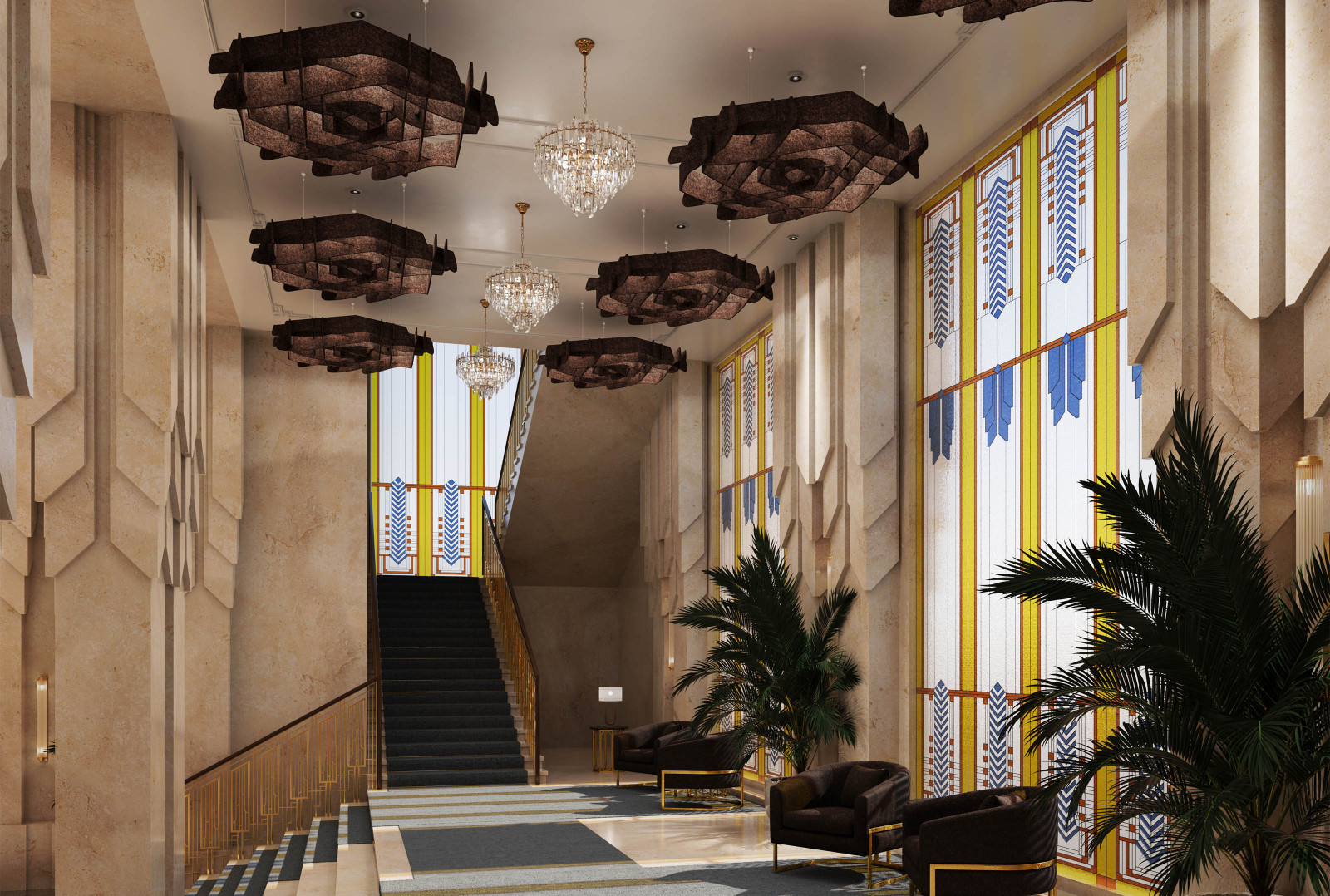

SoftGrid® Rosette in use

Key Features

  • Reduce Noise & Enhance Acoustics

    SoftGrid®’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Open Plan Accessibility

    SoftGrid®’s open grid design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

  • Compatible with Hexagonal Systems

    SofftGrid® Rosette's modules are compatible with other Hexagonal systems from Arktura including SoftGrid® Deca, SoftShapes™ Hex, and SoundStar® to fully immerse spaces in acoustic attentuation.

  • Field Modifiable

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers; we make it easy for you to specify standard modules that can be easily field-modified around anticipated or unforeseen site conditions during install.

  • Duo Capability

    Add new dimensions of style, mix colors and textures in a expanding range of dynamic combinations to fully achieve your design intent. Perfect for incorporating branding or a dynamic two-tone impression.

Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

Standard Module

Multiple Modules

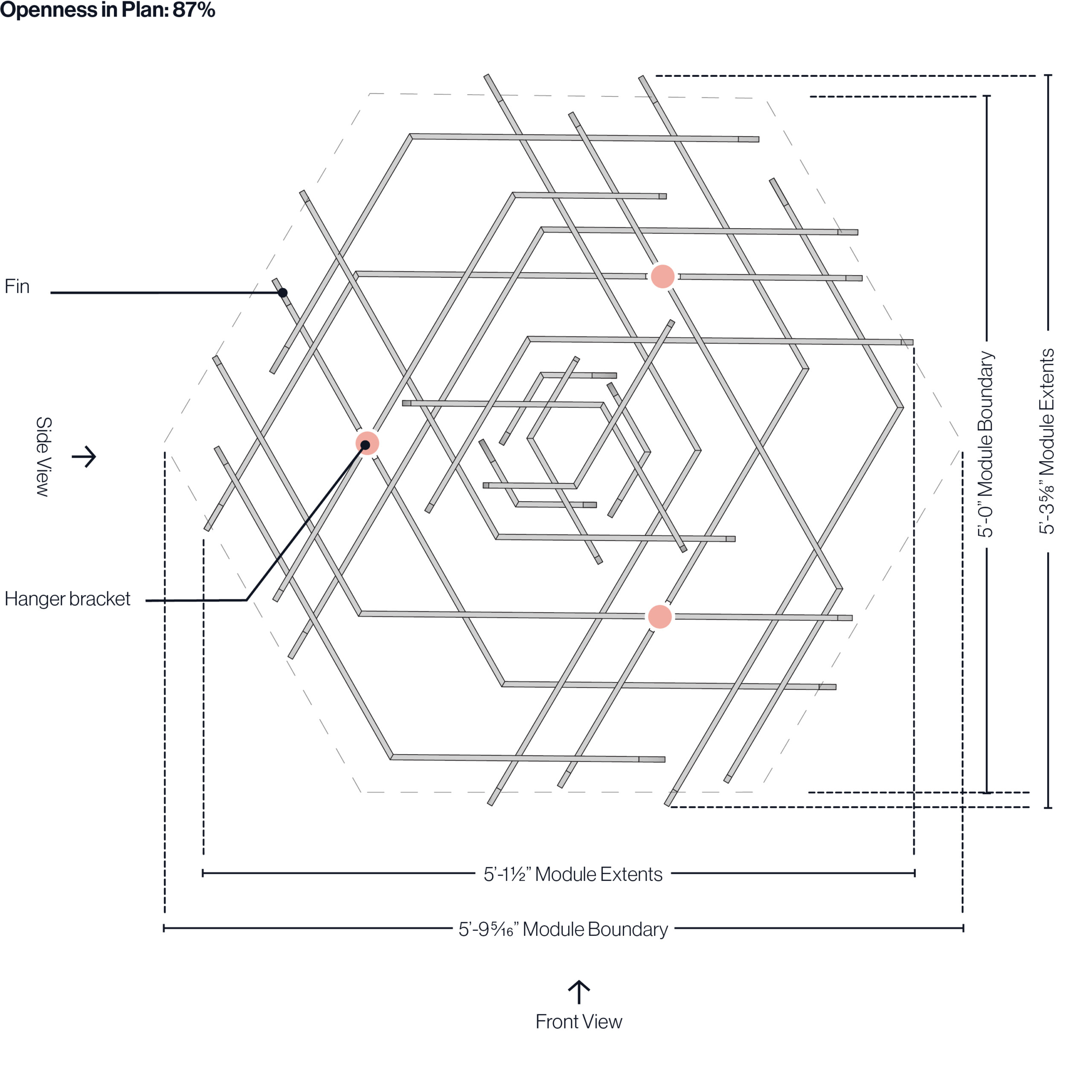

Understanding the Module - Plan

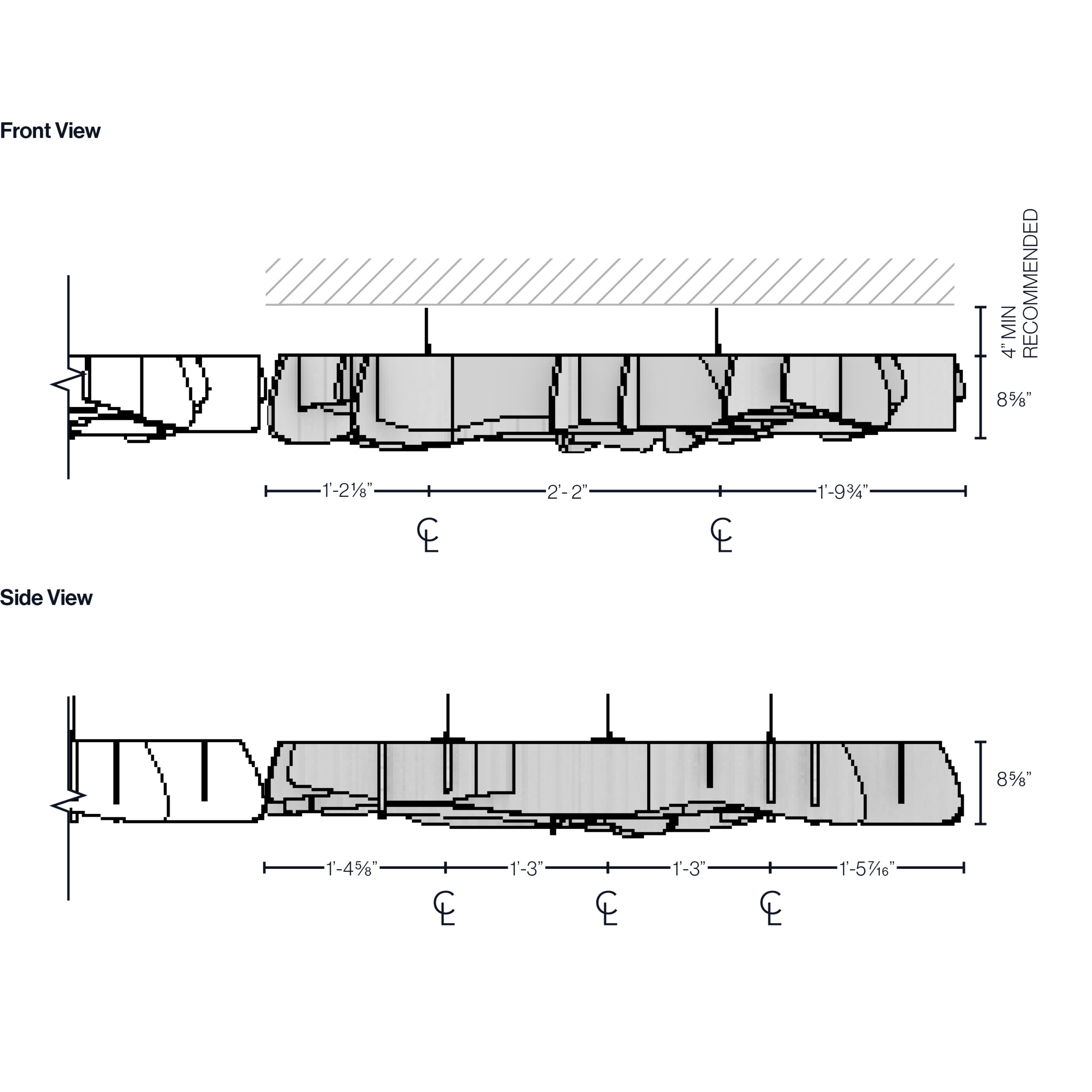

Understanding the Module - Elevations

Attachment Details

Module Configuration

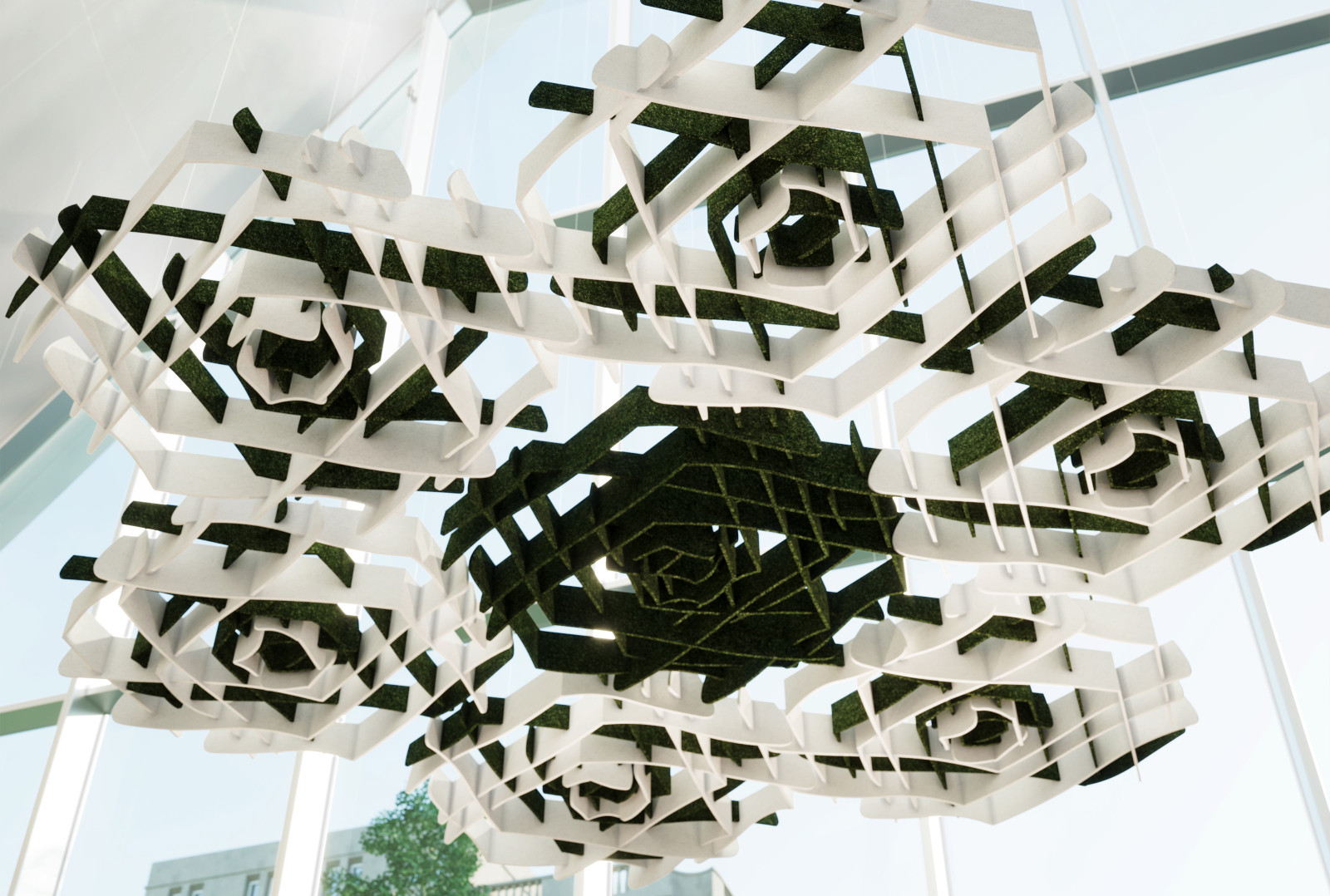

Optional SoftGrid® Rosette Duo Tone

System Specs

Dimensions (WxLxD)
5’-9 5/16" x 5’ x 8 5/8”
Fin Material
12mm Soft Sound® (PET), Stainless Steel
Openness in Plan
87%
Fire Rating
ASTM E84 - Class A
Acoustics
True NRC® 0.80 (F-100 Method)
Attachment Method
1/32’’ Stainless Cable and Hardware
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoftGrid® Rosette – Product Brochure PDF – Imperial
    Brochure
    4.13 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • SoftGrid® Rosette – 3D DWG – Imperial
    3D Model
    398.67 KB
    zip
  • SoftGrid® Rosette – 3D SKP- Imperial
    3D Model
    817.87 KB
    zip
  • SoftGrid® Rosette – 3D RFA – Imperial
    3D Model
    60 MB
    zip

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.

  2. SELECT A COLOR/DUO TONE OPTION

    Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.

  3. SELECT NUMBER OF MODULES

    All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
