SoftGrid® Round

Round’s acoustic ceiling modules create a circular shape using consistently spaced panels at different lengths, for a structural design that’s sure to impress while also providing acoustic support due to the Soft Sound® material. Round’s baffles create a continuous series of rings that can connect together for an intricate design that emcompasses the whole ceiling or can be focused over a singular area for focused acoustic support. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

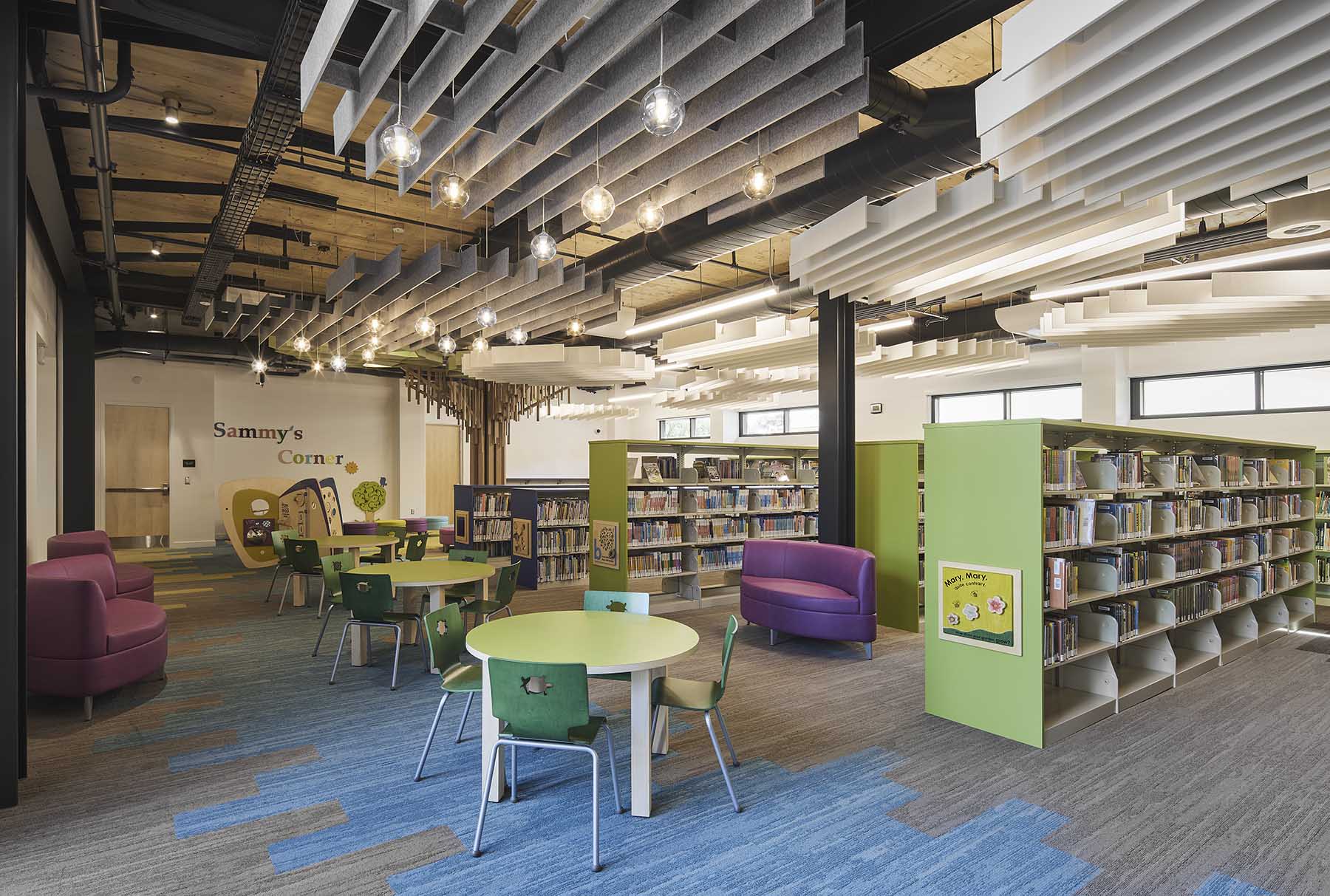

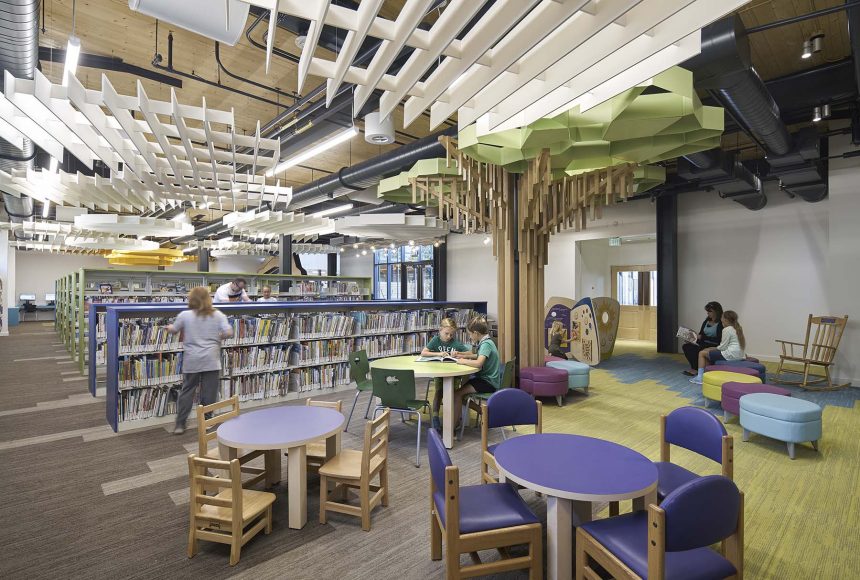

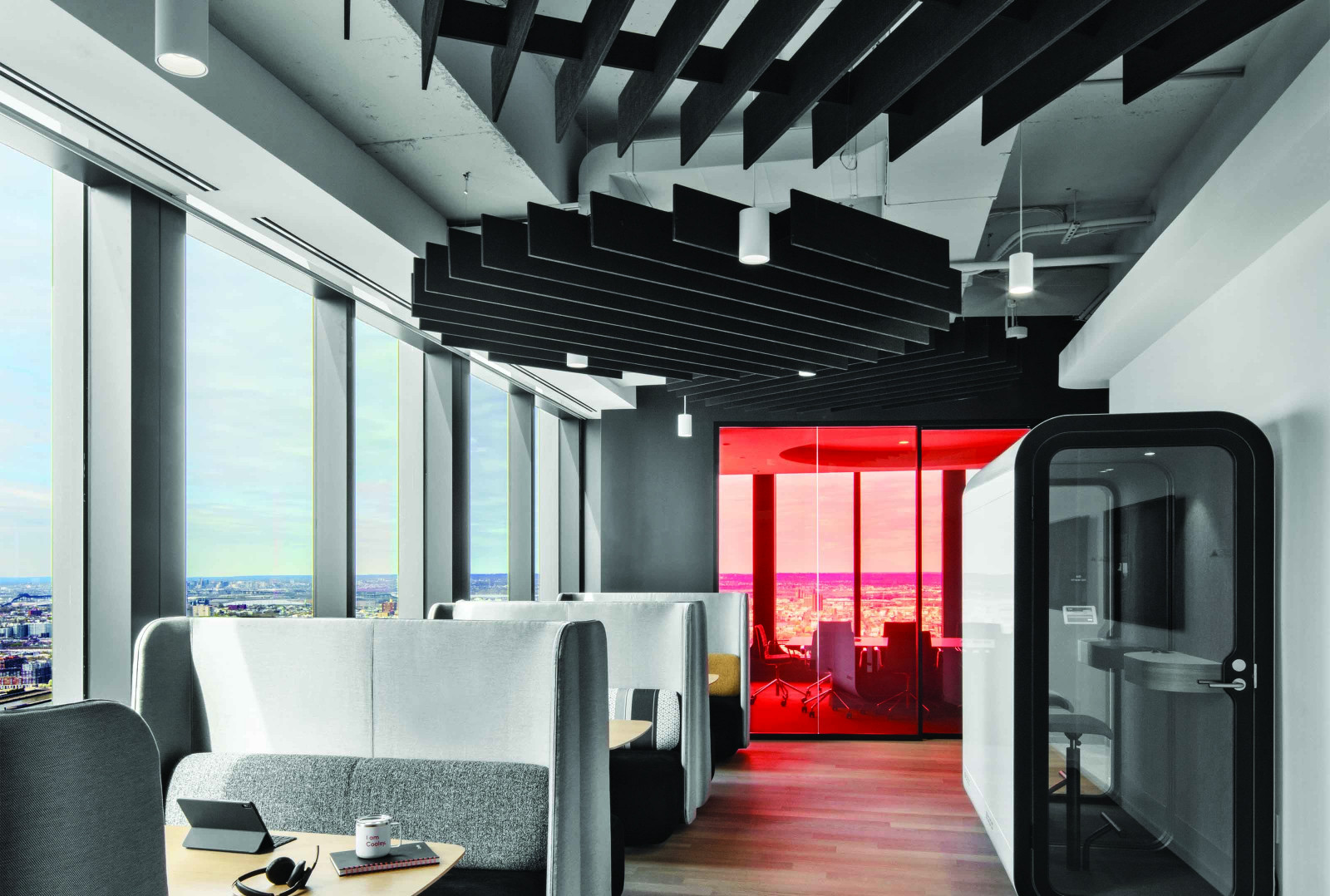

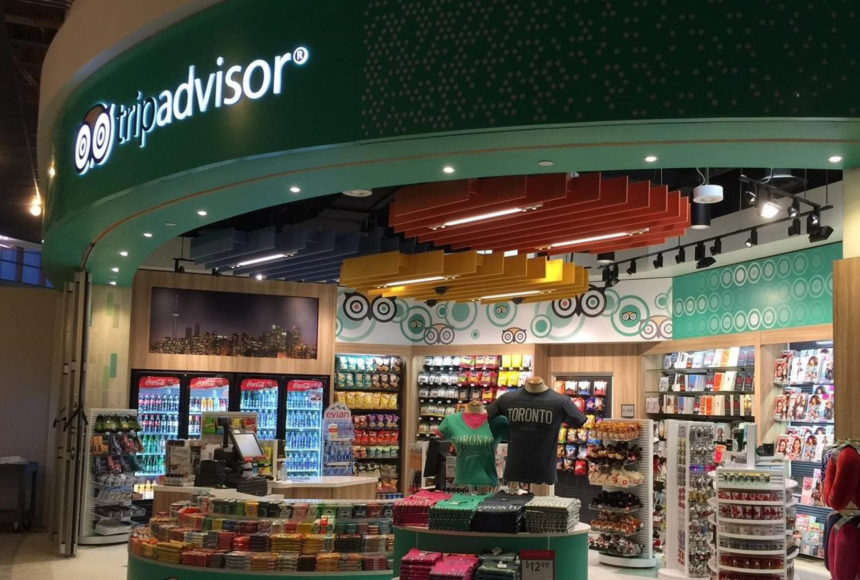

SoftGrid® Round in use

Key Features

  • Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  • Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  • Preconfigured Solutions

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  • Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Materials & Colors

Soft Sound® Vivids

Acoustic PET

Soft Sound® Elementals

Acoustic PET

Soft Sound® Wood Textures

Acoustic PET

Soft Sound® Essentials

Acoustic PET

Product Details

Standard Module

Multiple Modules

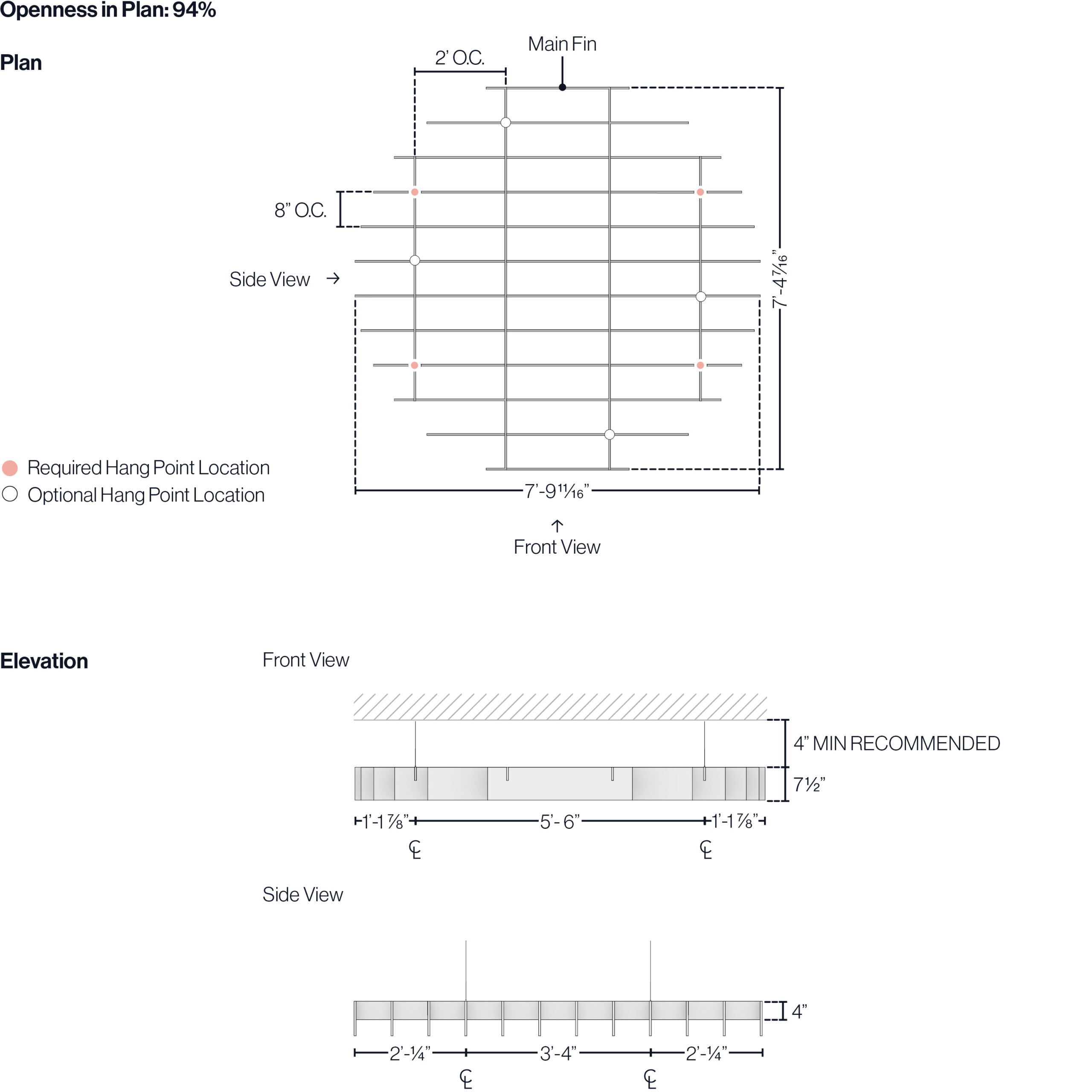

Understanding the Module - Round

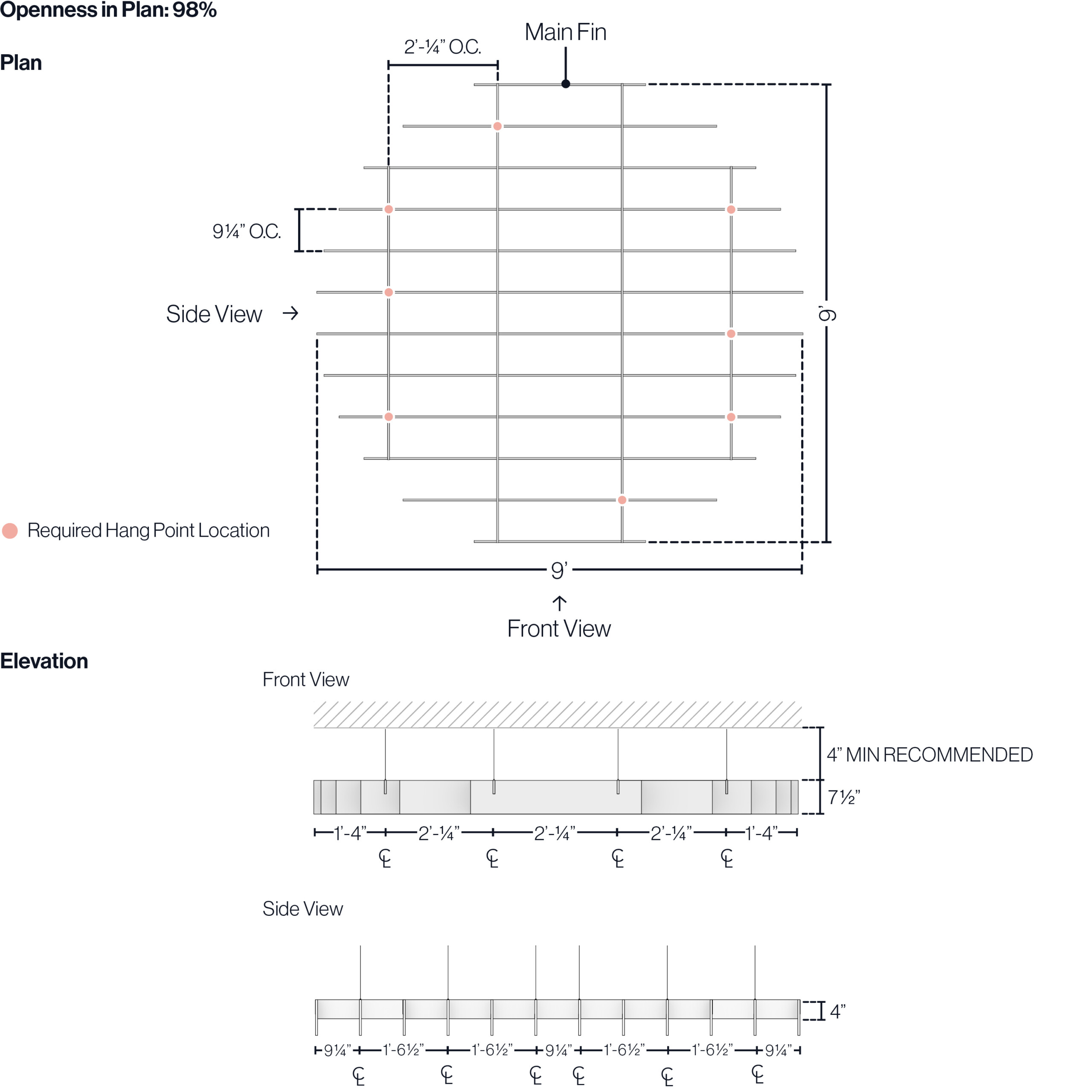

Understanding the Module - Round Max

Attachment Details

Module Configuration

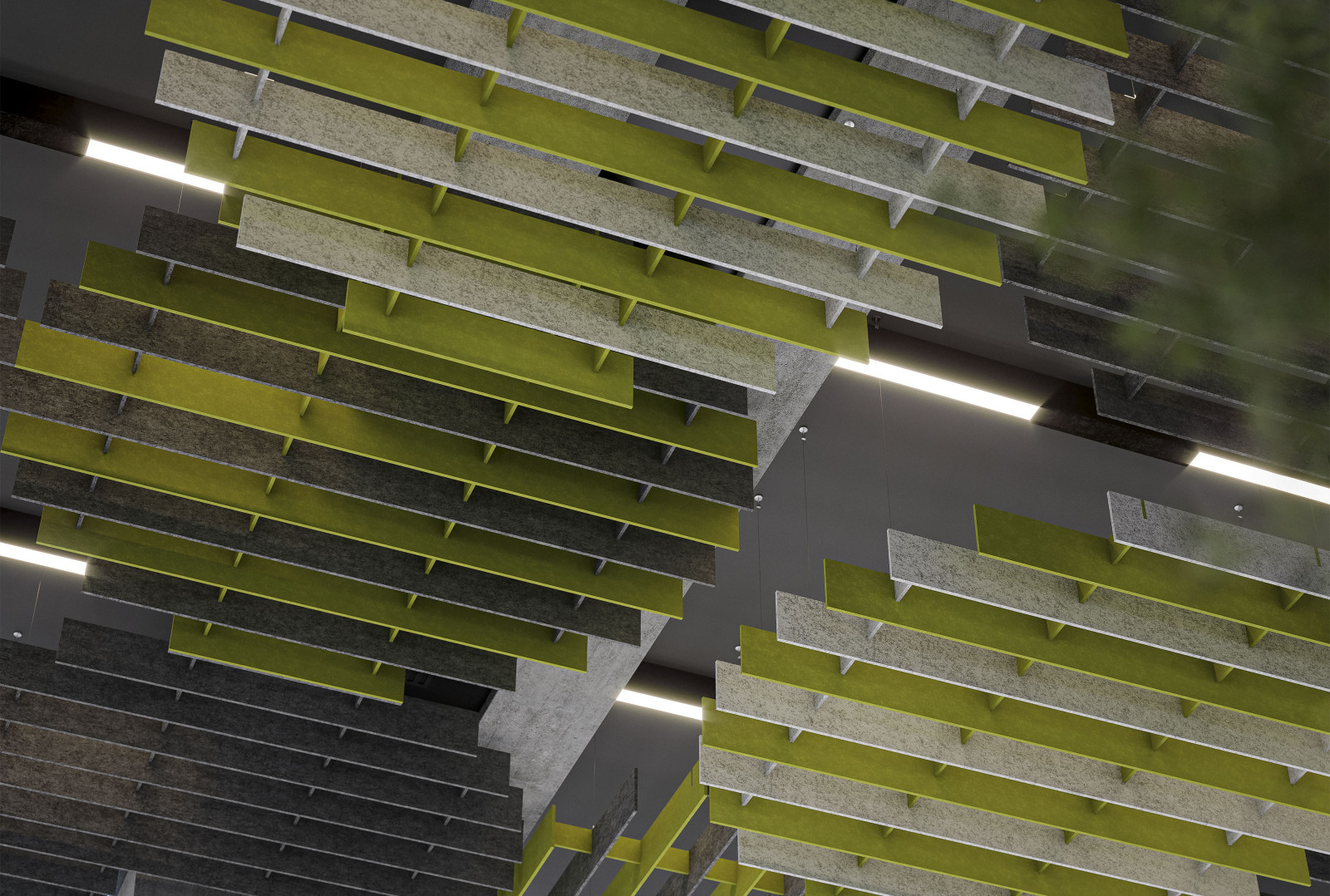

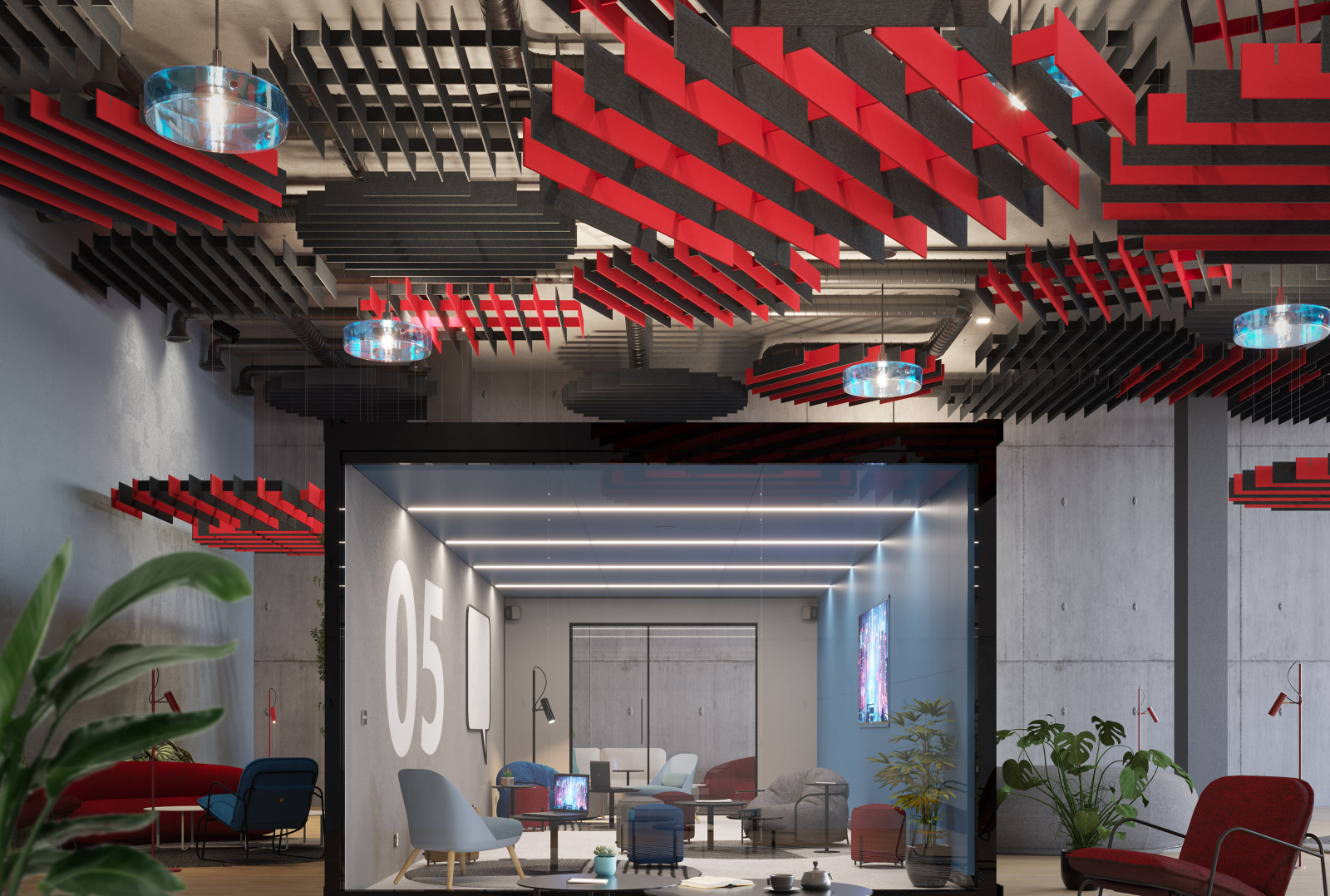

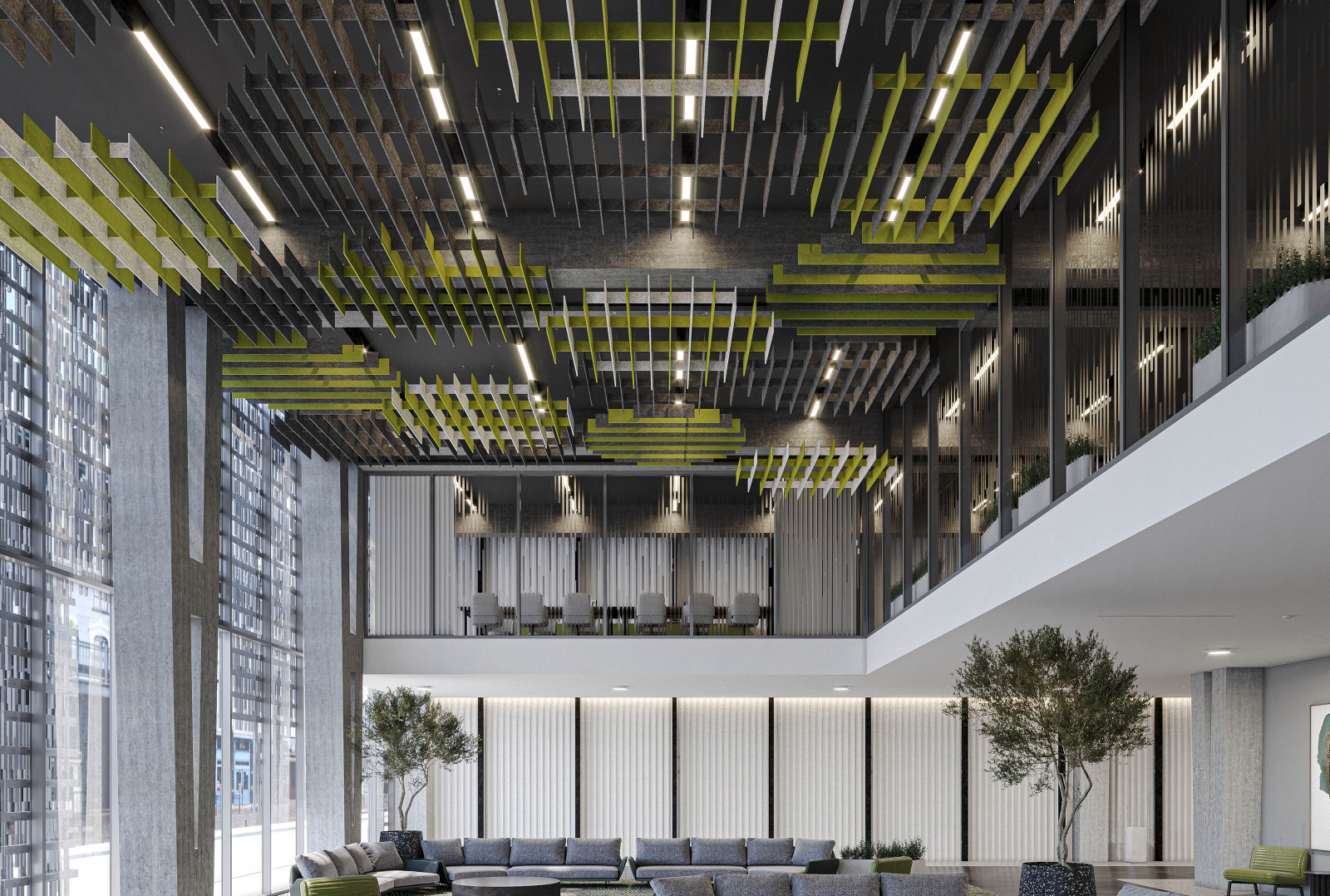

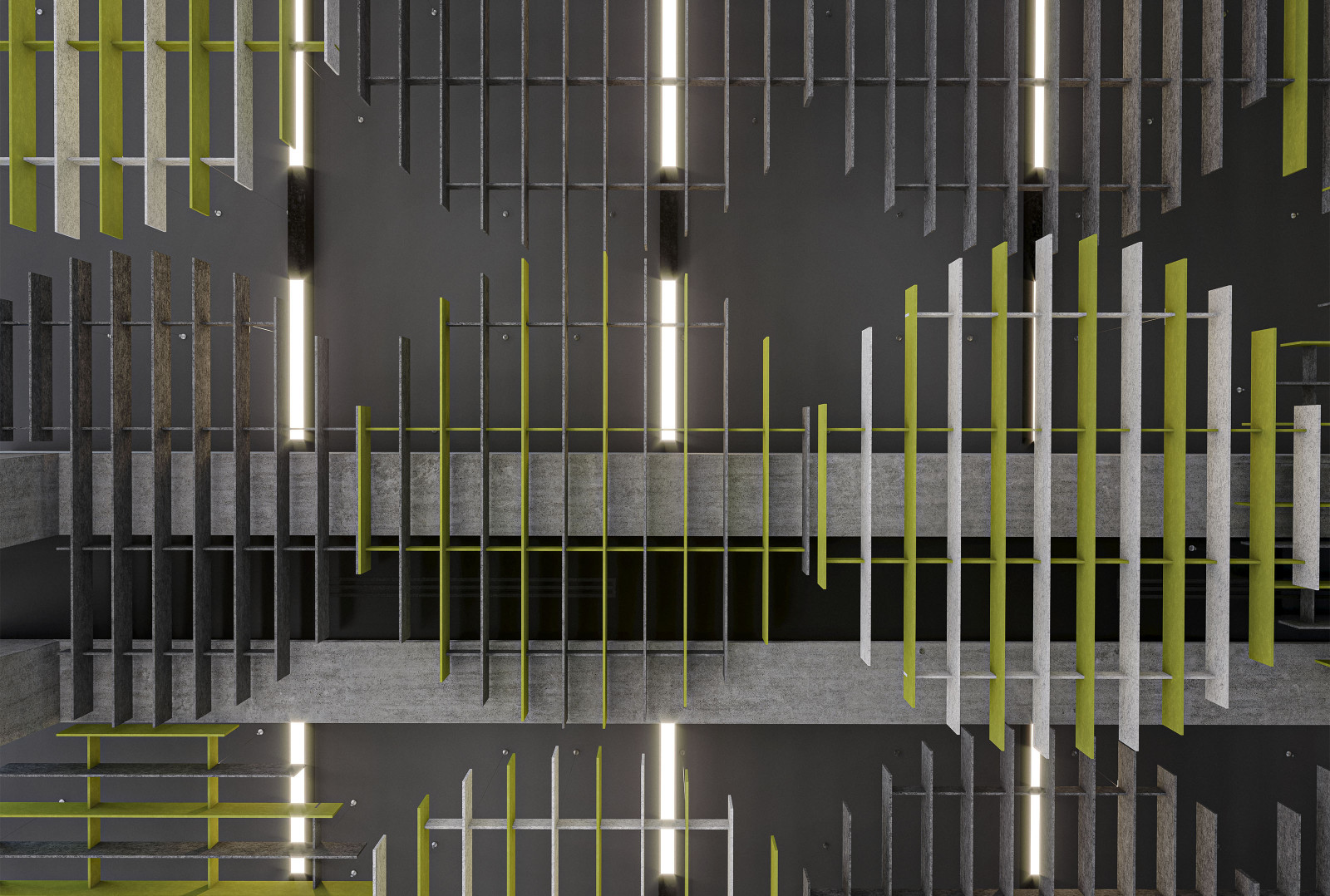

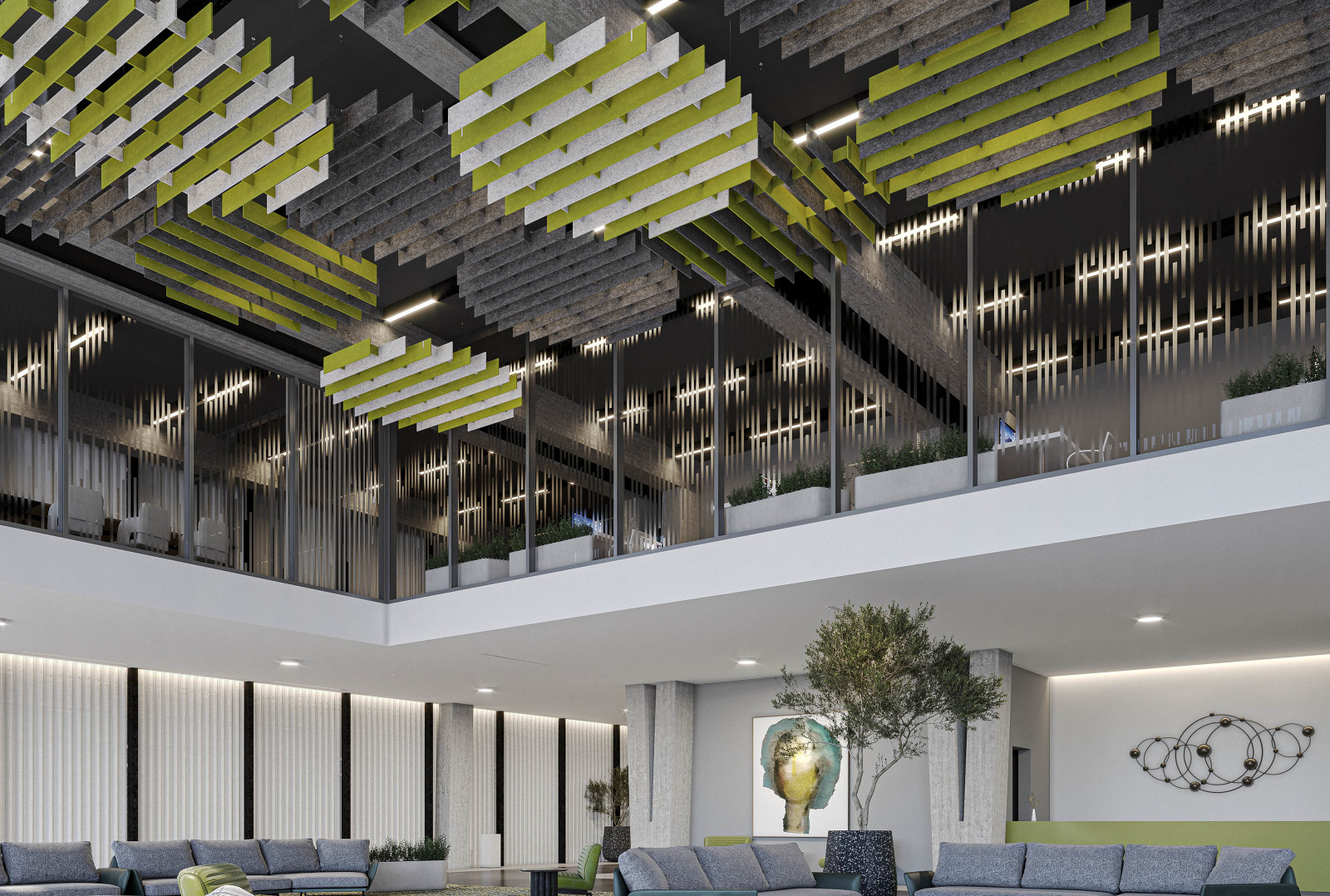

Optional SoftGrid® Round Duo Tone

System Specs

Dimensions (WxLxD)
7'-9 5/8" x 7'-4 1/2" x 7 1/2" Imperial | 238cm x 225cm x 19cm Metric
Fin Material
12mm Soft Sound® (PET)
Openness in Plan
94%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics
Round - True NRC® 0.60: Ceiling F-100 Method
Round - True NRC® 0.70: Wall A Method
Round Max - True NRC® 0.35: Ceiling F-100 Method
Attachment Method
1/32" Stainless Cable
Accessibility
Yes, quick release cables
Trimmability
Yes, per installation manual

Downloads

  • SoftGrid® Round – Product Brochure PDF – Imperial
    Brochure
    2.77 MB
    pdf
  • Soft Sound® Color Brochure & Specifications
    Brochure
    681 KB
    pdf
  • SoftGrid® Round – 3D DWG – Imperial
    3D Model
    168.21 KB
    zip
  • SoftGrid® Round Max – 3D DWG – Imperial
    3D Model
    158.47 KB
    zip
  • SoftGrid® Round – 3D SKP – Imperial
    3D Model
    369.94 KB
    zip
  • SoftGrid® Round Max – 3D SKP – Imperial
    3D Model
    371.85 KB
    zip
  • SoftGrid® Round – 3D RFA – Imperial
    3D Model
    58.34 MB
    zip
  • SoftGrid® Round Max – 3D RFA – Imperial
    3D Model
    58.36 MB
    zip
  • SoftGrid® Round – 3D DWG – Metric (EMEA ONLY)
    3D Model
    54.46 KB
    zip
  • SoftGrid® Round – PDF Tear Sheet – Metric (EMEA ONLY)
    Tear Sheet
    6.61 MB
    pdf

How to Specify:

  1. SELECT A STYLE

    Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.

  2. SELECT A COLOR/DUO TONE OPTION

    Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.

  3. SELECT NUMBER OF MODULES

    All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.

Have questions? Reach out to a Rep to get your project started.

Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
