SoftGrid® Deca
Deca’s acoustic ceiling modules bring faceted, dimensional geometry to your design with its inverted hexagonal shapes. These modules can be combined with other designs for a complex pattern that fills a ceiling or be used individually for a more simple design. Either way, with their Soft Sound® material, Deca will provide you with the acoustic support you need.

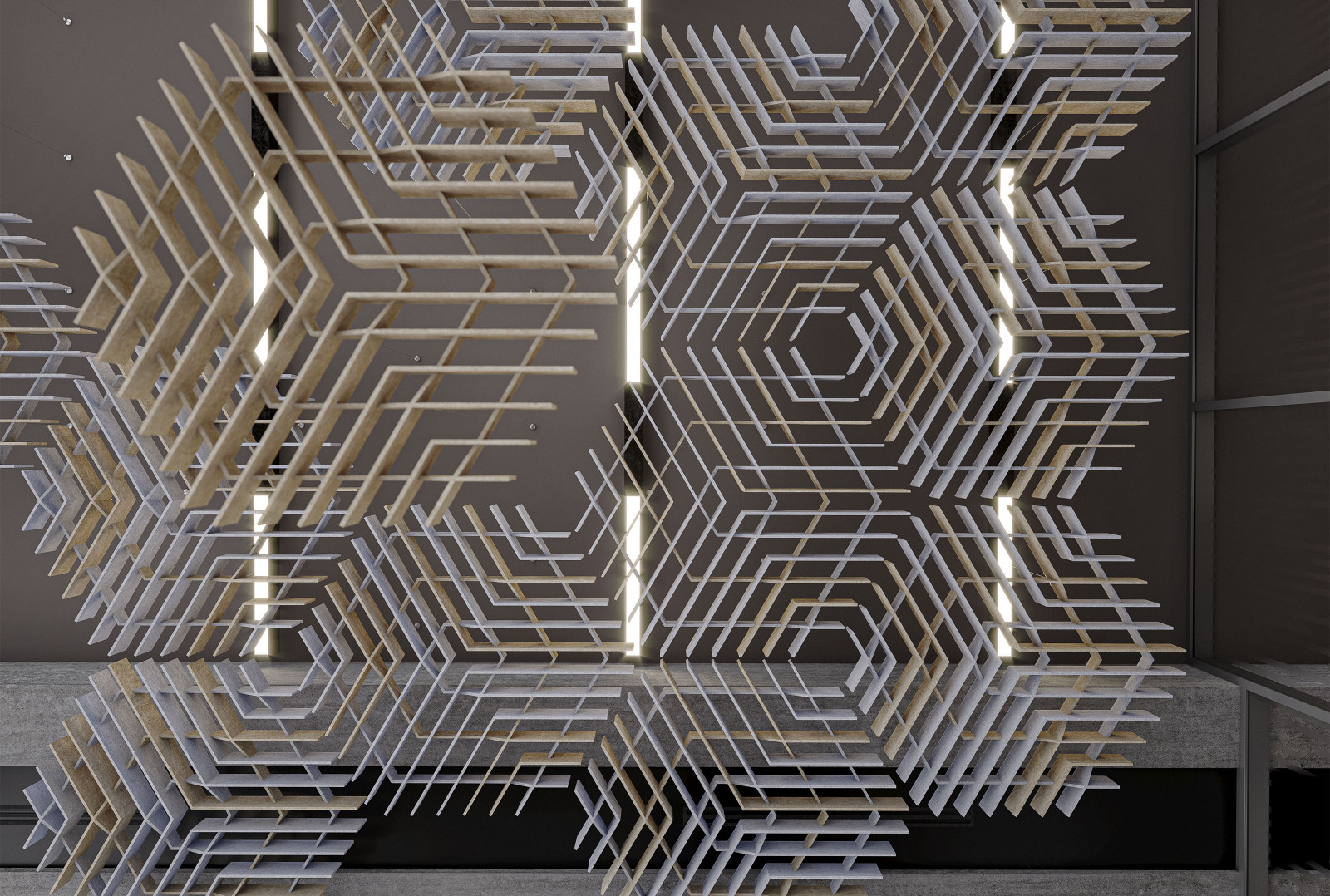

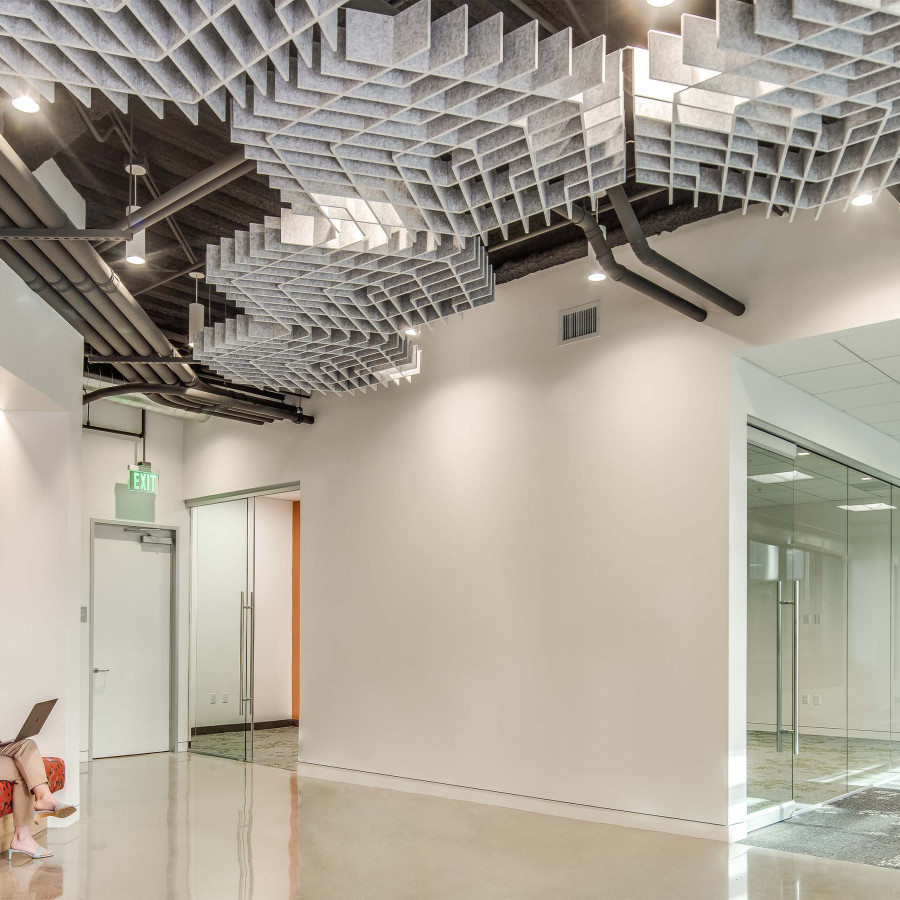

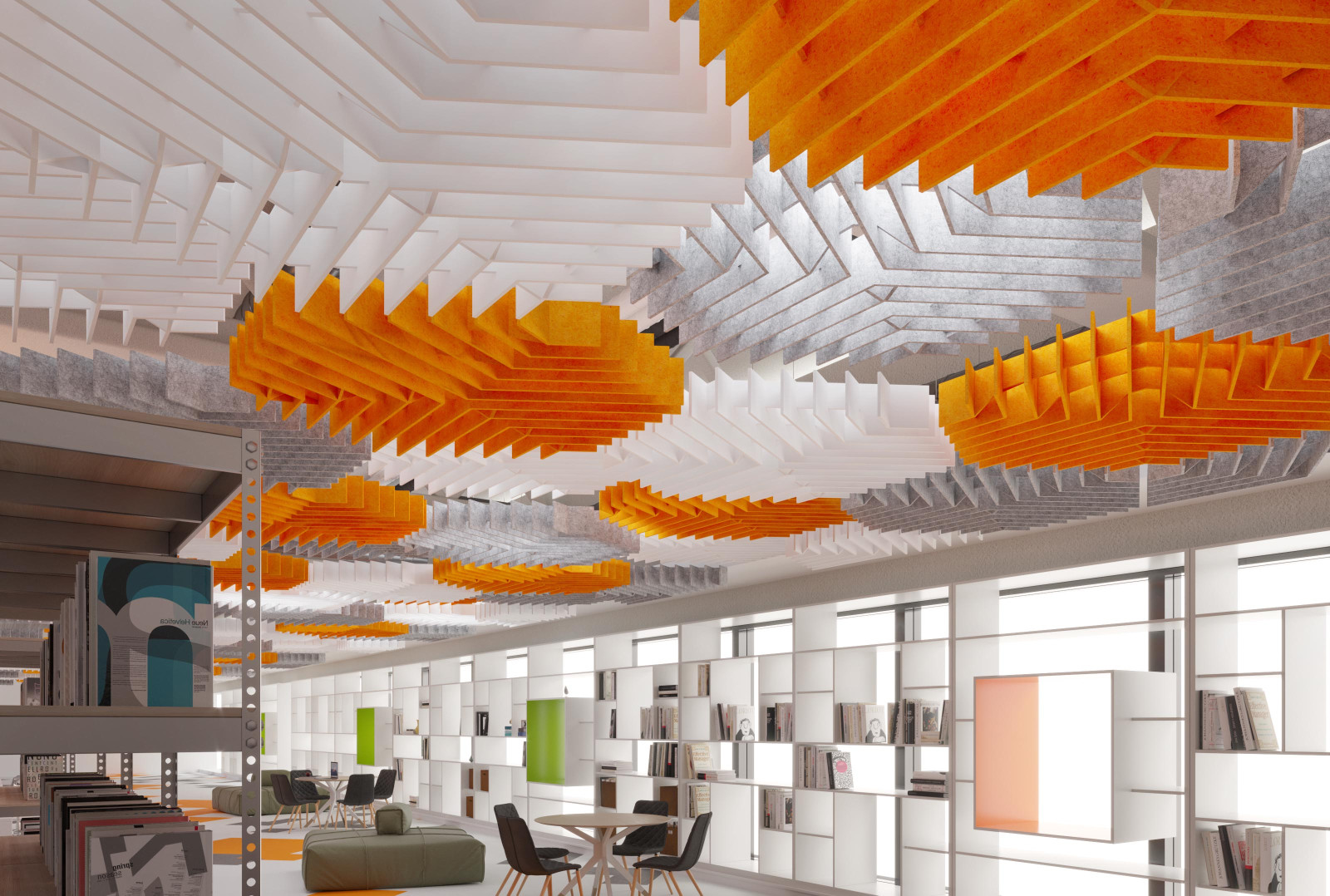

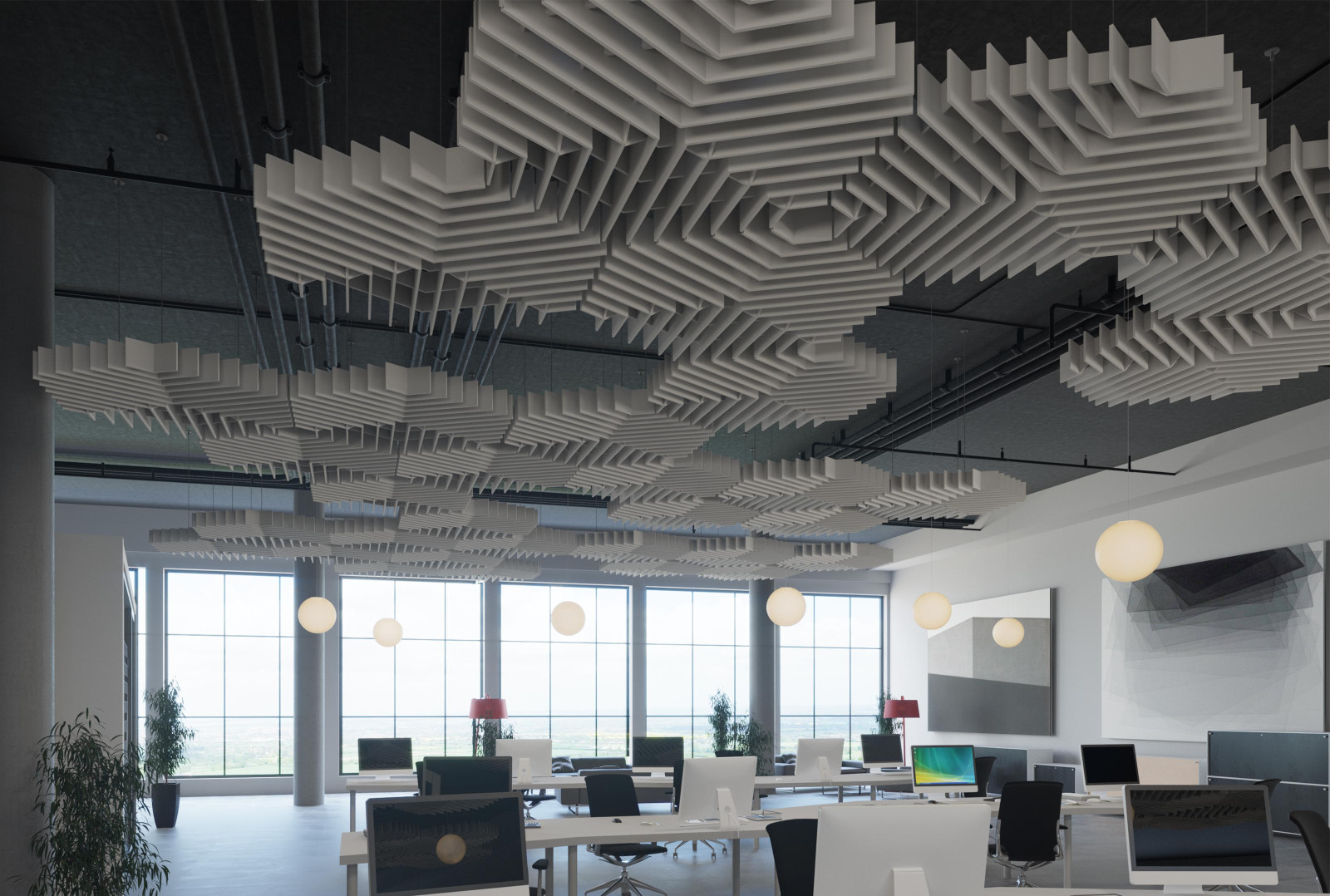

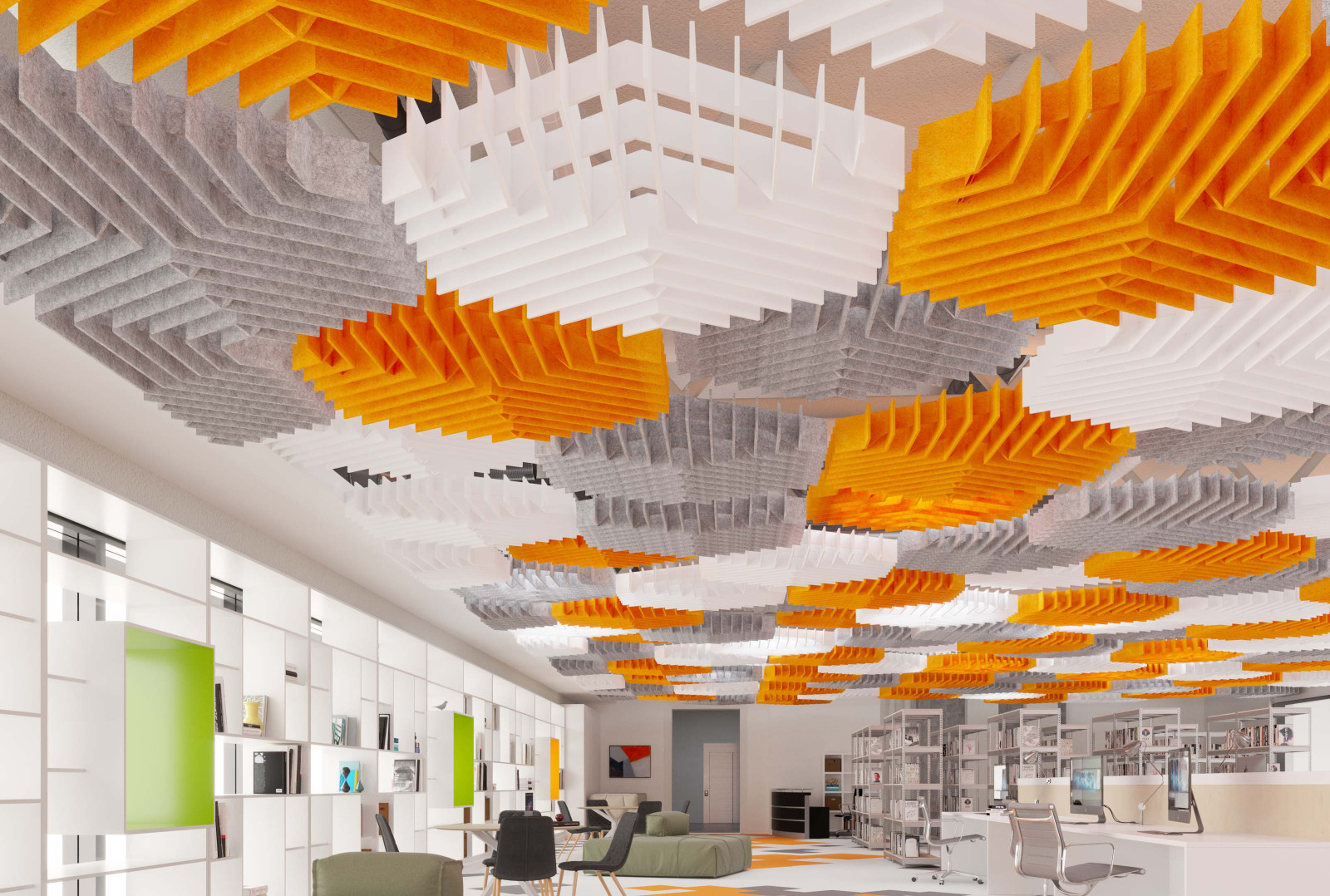

SoftGrid® Deca in use
Key Features
-
Acoustic Performance
SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Expansive Color Library
Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
-
Field Modifiable
SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.
-

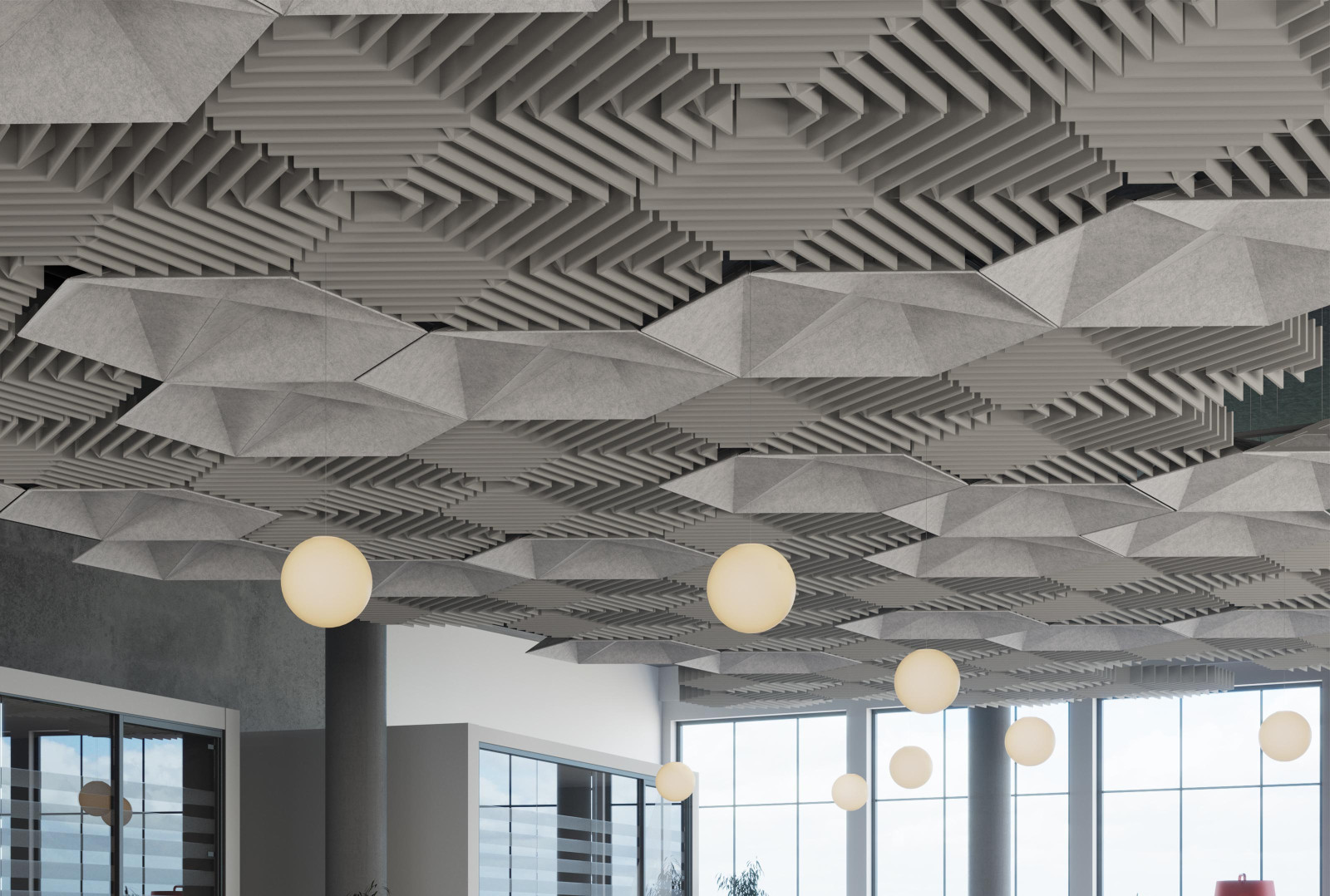

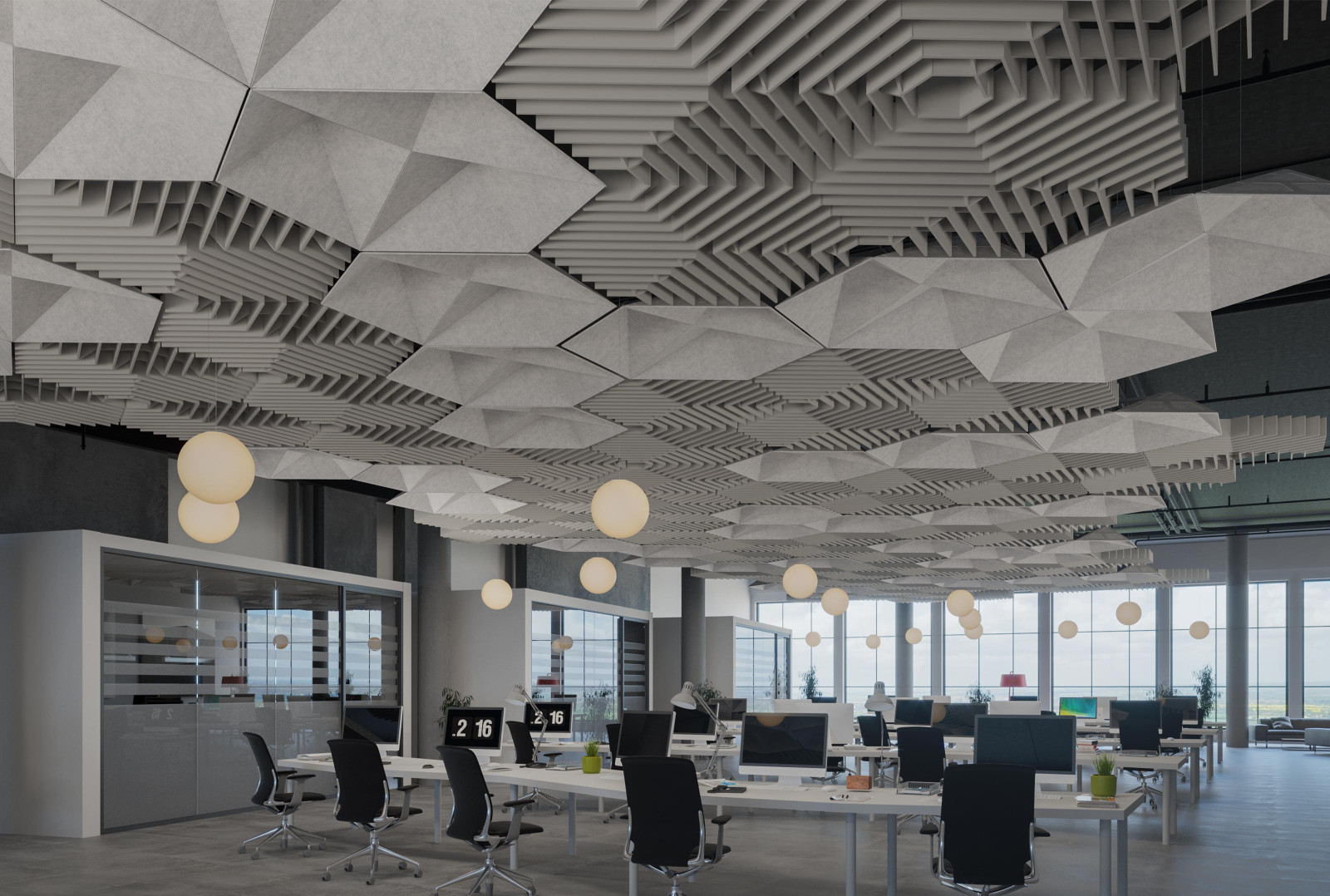

Compatible with SoundStar®
SoftGrid®'s hexagonal modules - Deca, Orbit, and Flux - are compatible with SoundStar®. Create dynamic and transformative design variation in any space.
-
Open Accessibility in Plan
SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETProduct Details
Standard Module
Designing with Modules

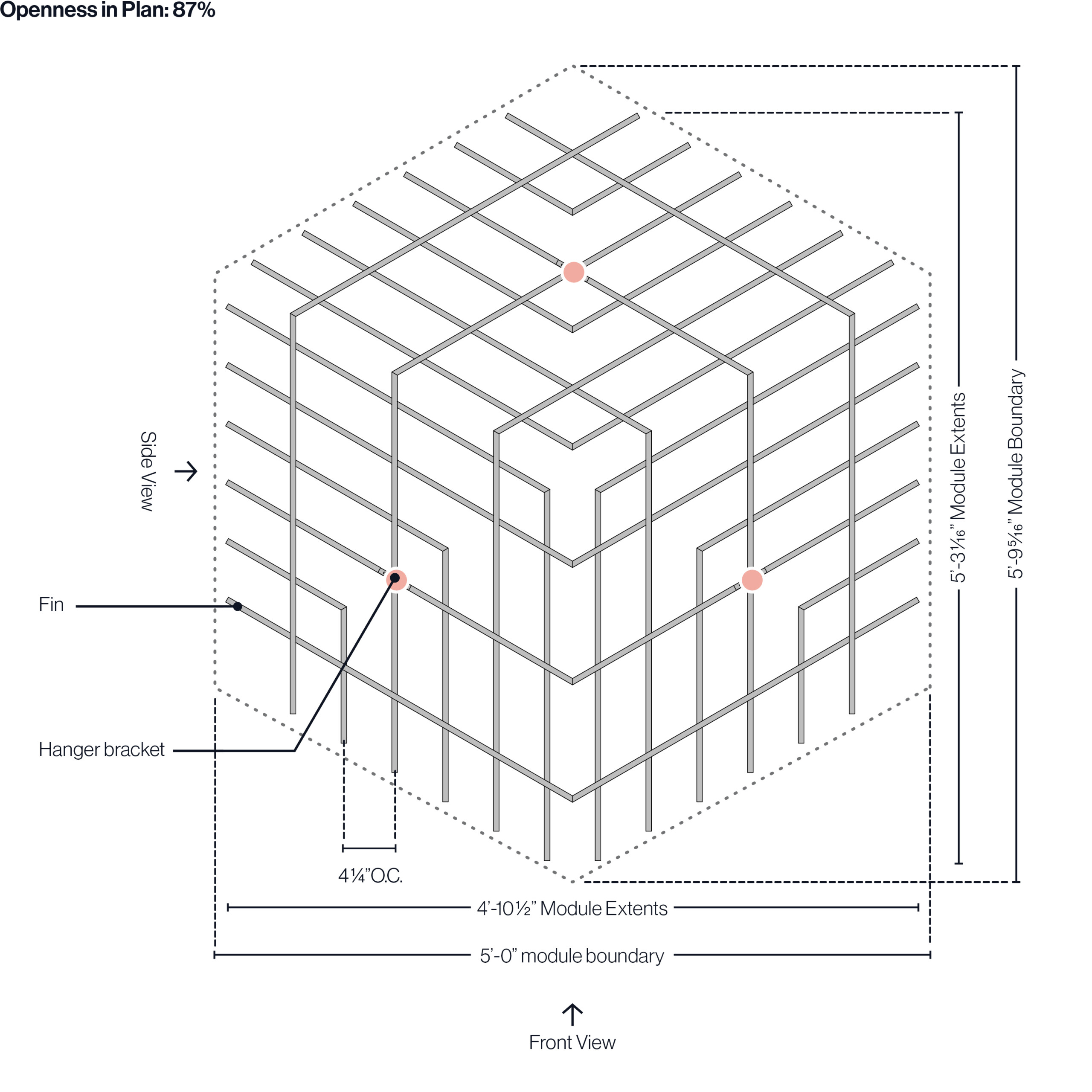

Understanding the Module - Plan

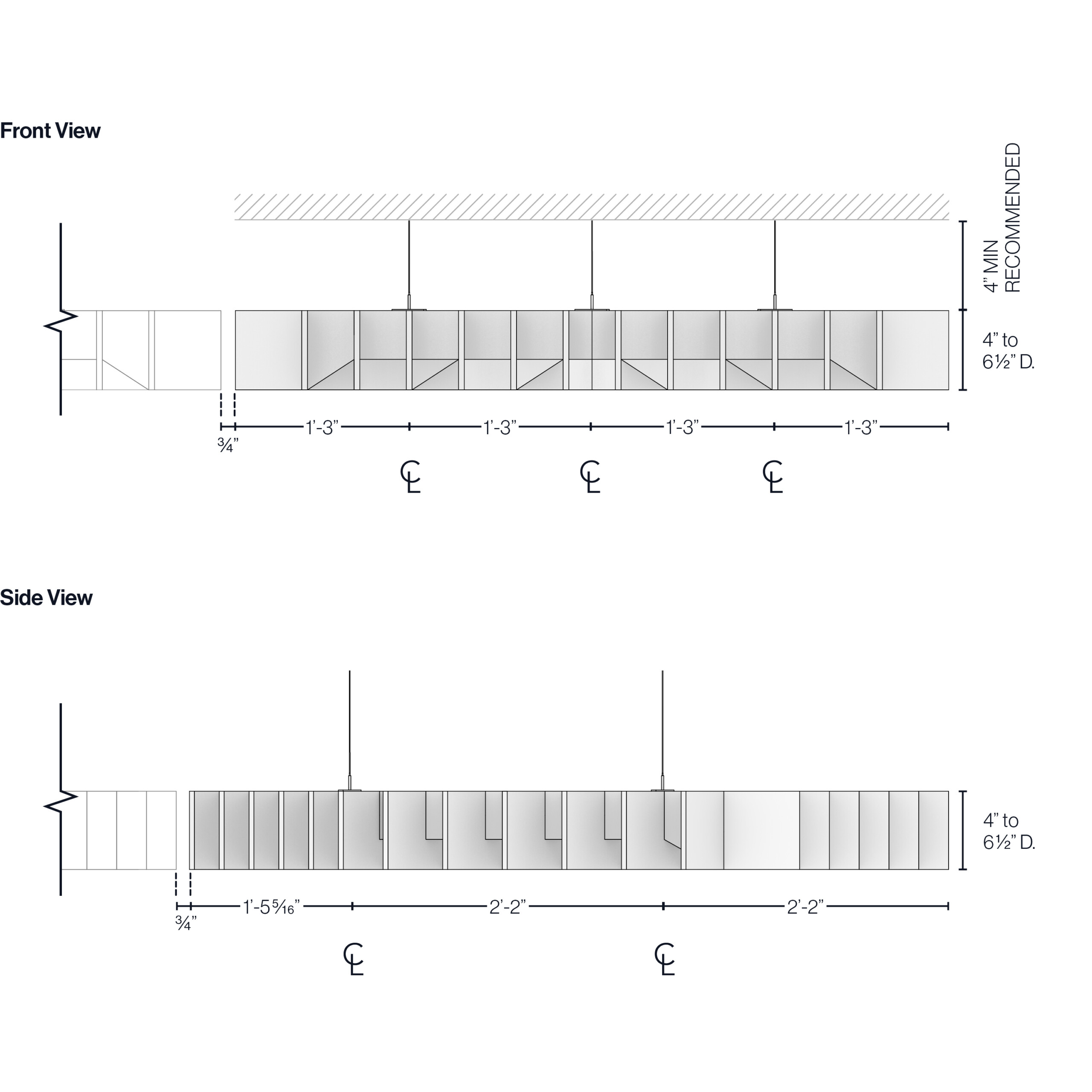

Understanding the Module - Elevations
Attachment & Install
Combining With Other Products

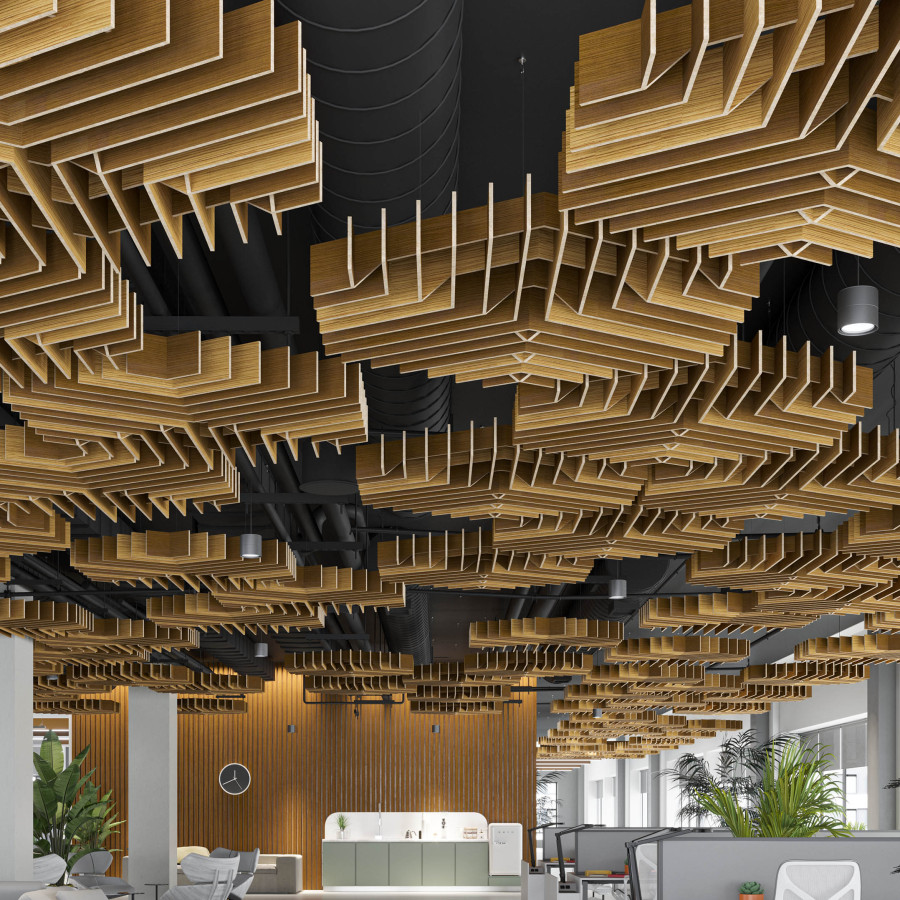

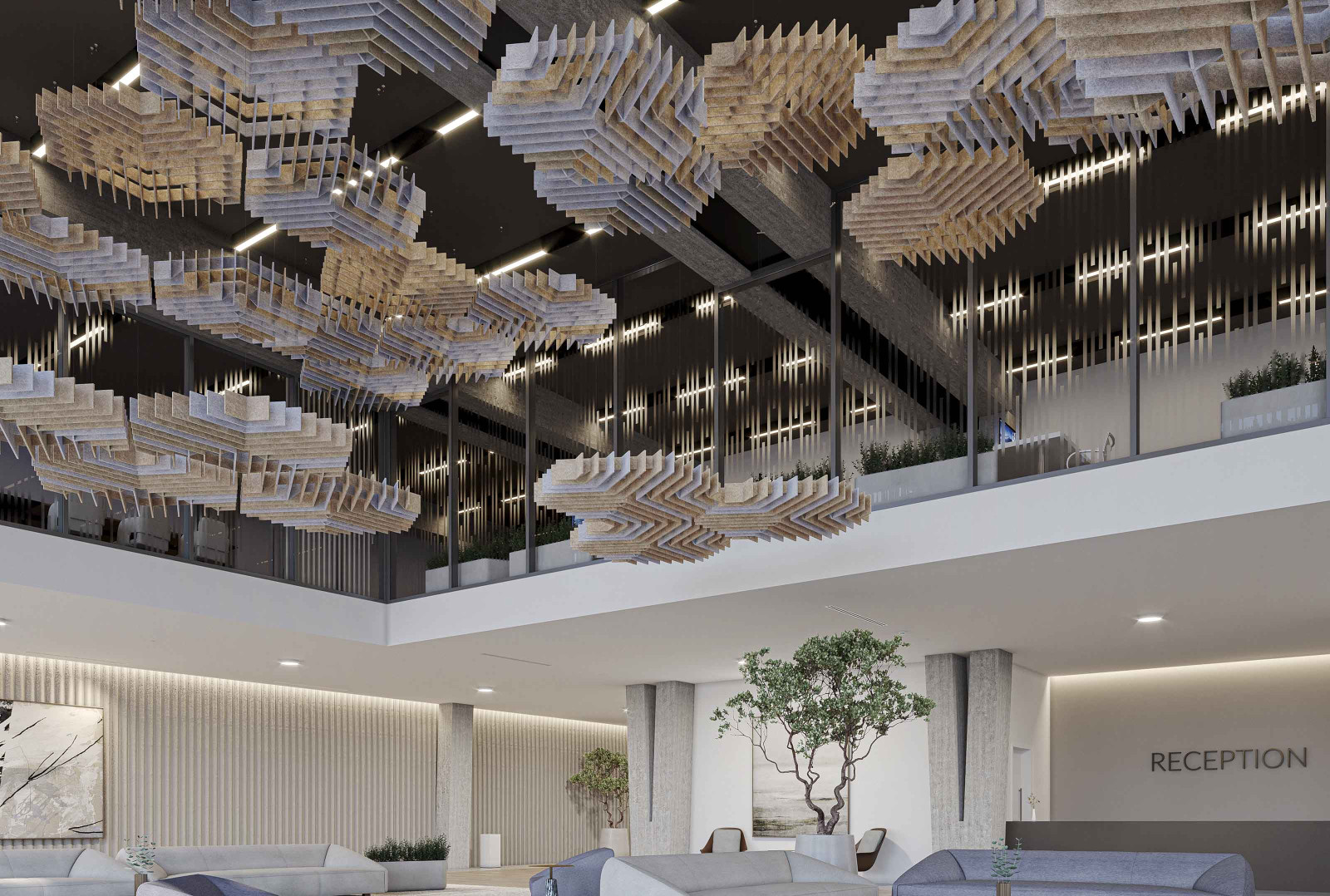

Optional SoftGrid® Deca Duo Tone
System Specs
- Dimensions (WxLxD)
- 5'-9 5/16" x 5' x 6 1/2" Imperial | 176cm x 152cm x 17cm Metric
- Fin Material
- 12mm Soft Sound® (PET)
- Openness in Plan
- 87%
- Fire Rating
- ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
- Acoustics
- True NRC® 0.65: Ceiling F-100 Method
- True NRC® 0.65: Wall A Method
- Attachment Method
- 1/32" Stainless Cable
- Accesibility
- Yes, quick release cables
- Trimmability
- Yes, per installation manual
Downloads
-
SoftGrid® Deca – Product Brochure PDF – ImperialBrochure3.56 MBpdf
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
SoftGrid® Deca – 3D DWG – Imperial3D Model190.58 KBzip
-
SoftGrid® Deca – 3D SKP – Imperial3D Model154.01 KBzip
-
SoftGrid® Deca – 3D RFA – Imperial3D Model58.55 MBzip
-
SoftGrid® Deca – 3D DWG – Metric (EMEA ONLY)3D Model165.18 KBzip
-
SoftGrid® Deca – Product Brochure PDF – Metric (EMEA ONLY)Brochure2.49 MBpdf
How to Specify:
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.
-
SELECT A COLOR/ DUO TONE OPTION
Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.
-
SELECT NUMBER OF MODULES
All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent N° USD890367, CA185459S.
