SoftGrid® Tempo
Tempo elevates the standard rectilinear grid you have come to expect from suspended acoustic systems. Alternating baffles of varying sizes produce an eye-catching and all-at-once mesmerizing pattern reminiscent of a city high-rise across your interior. Made of our noise-attenuating Soft Sound® material, SoftGrid® Tempo provides concentrated acoustic coverage to guests below.

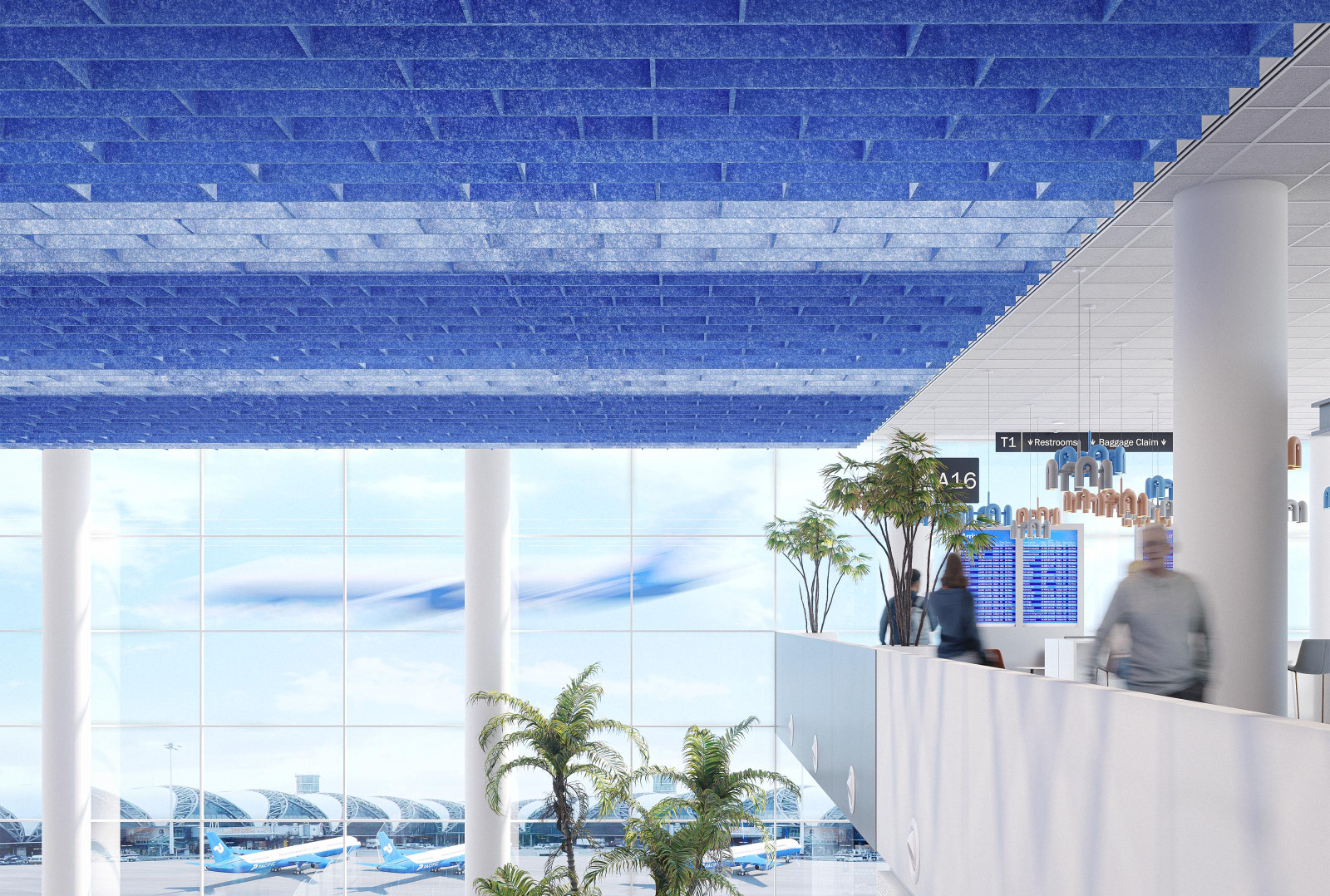

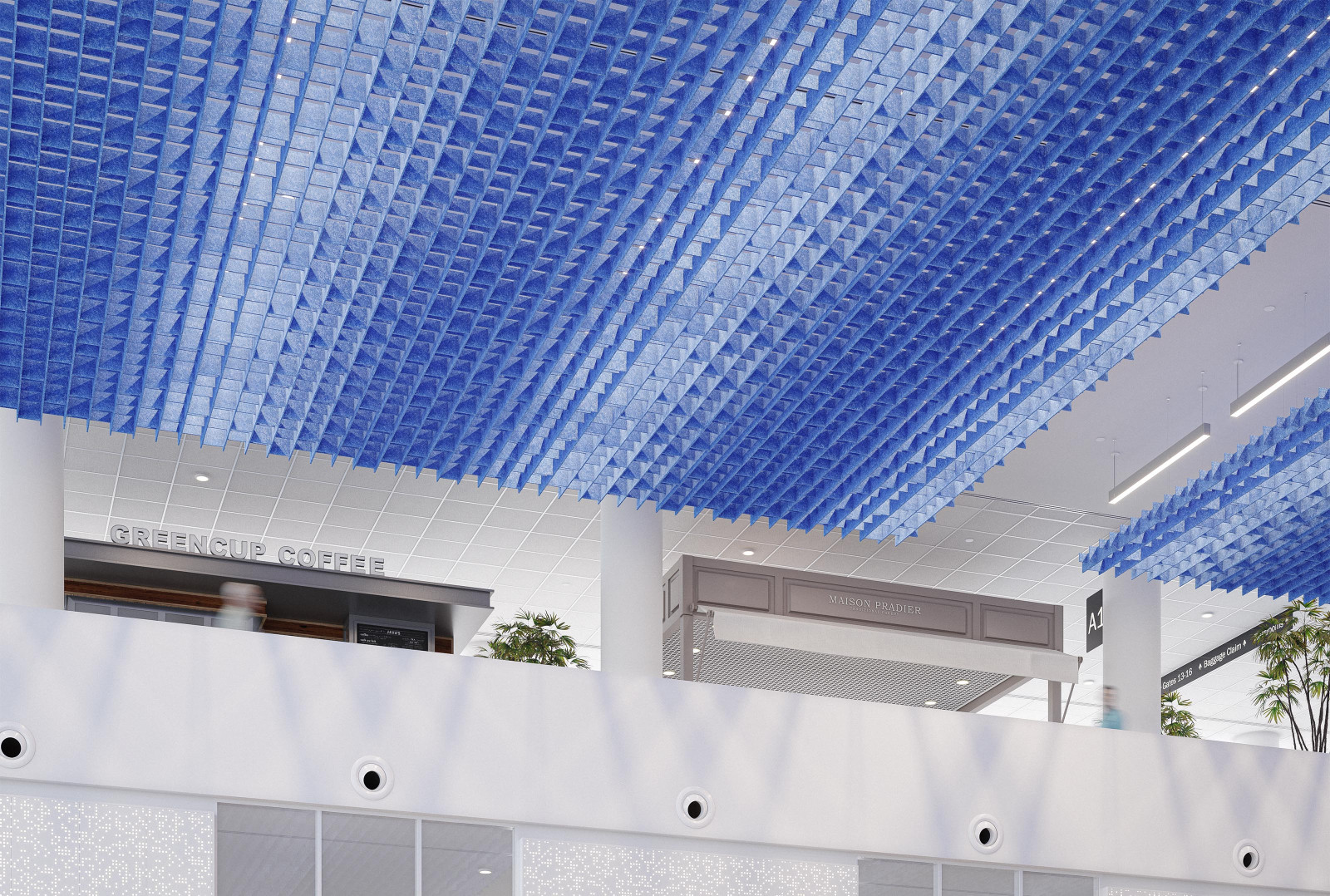

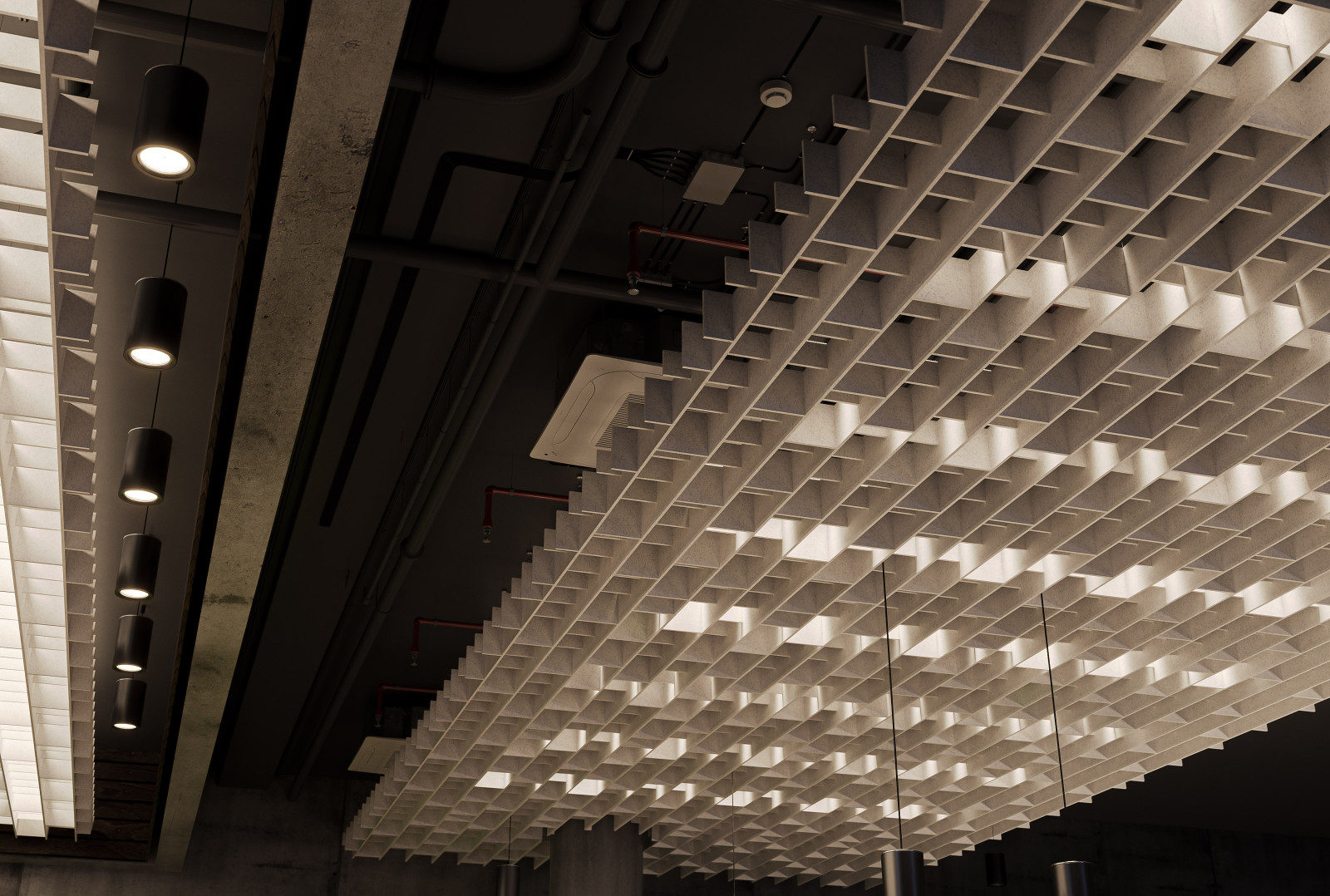

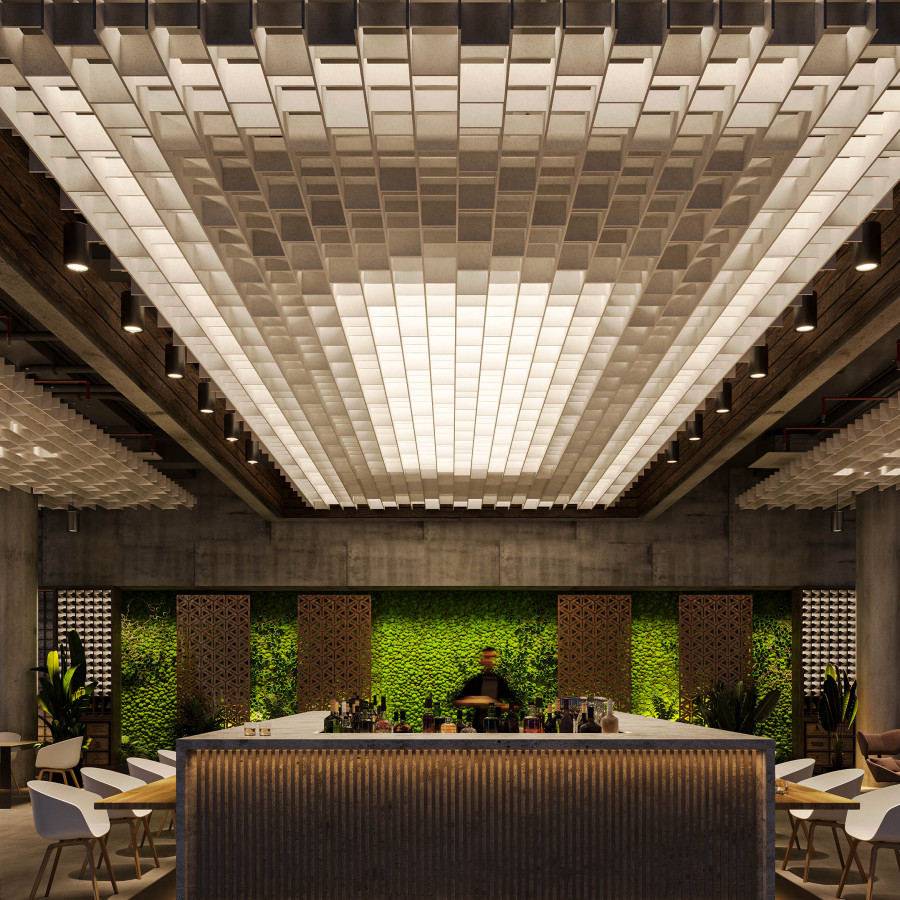

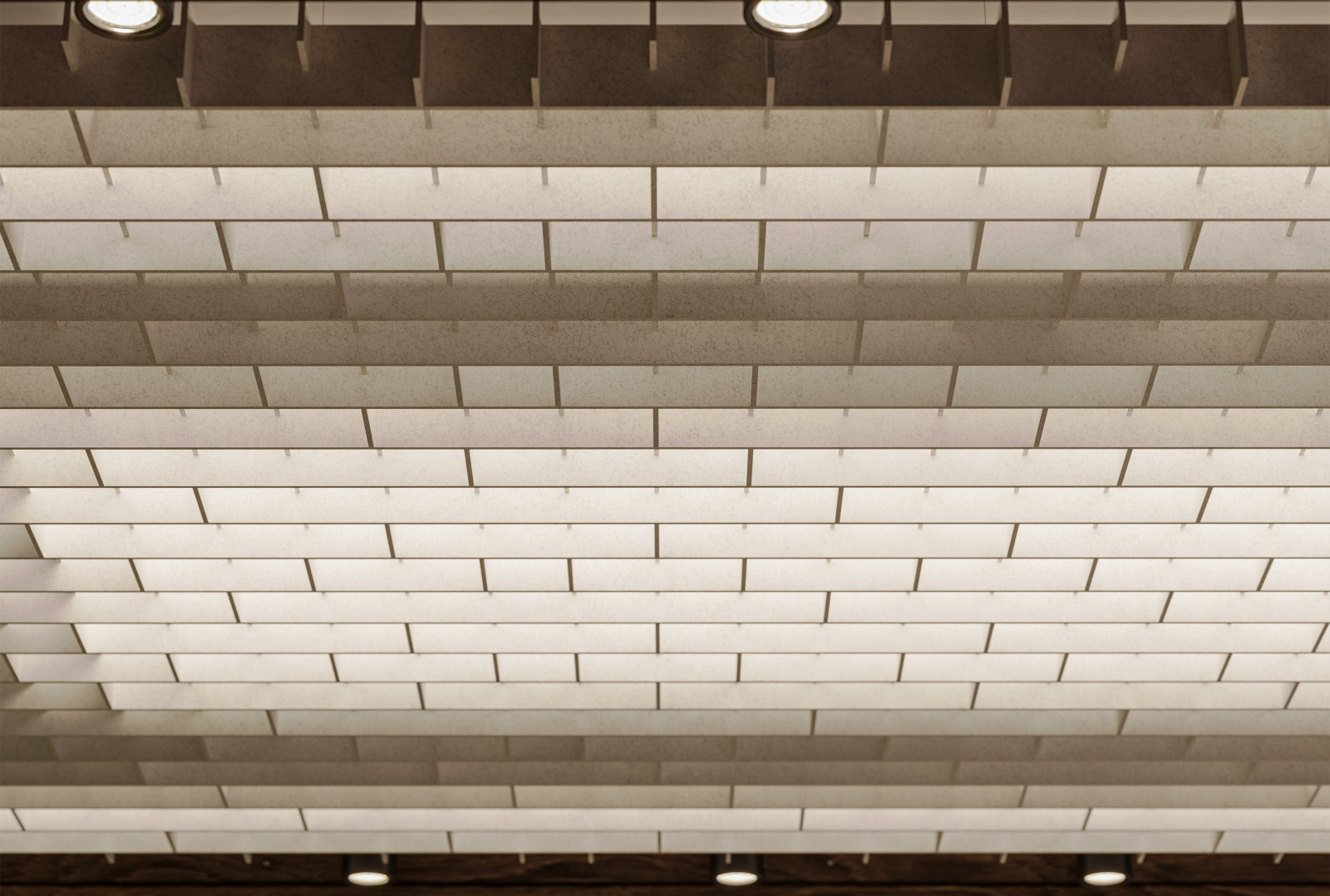

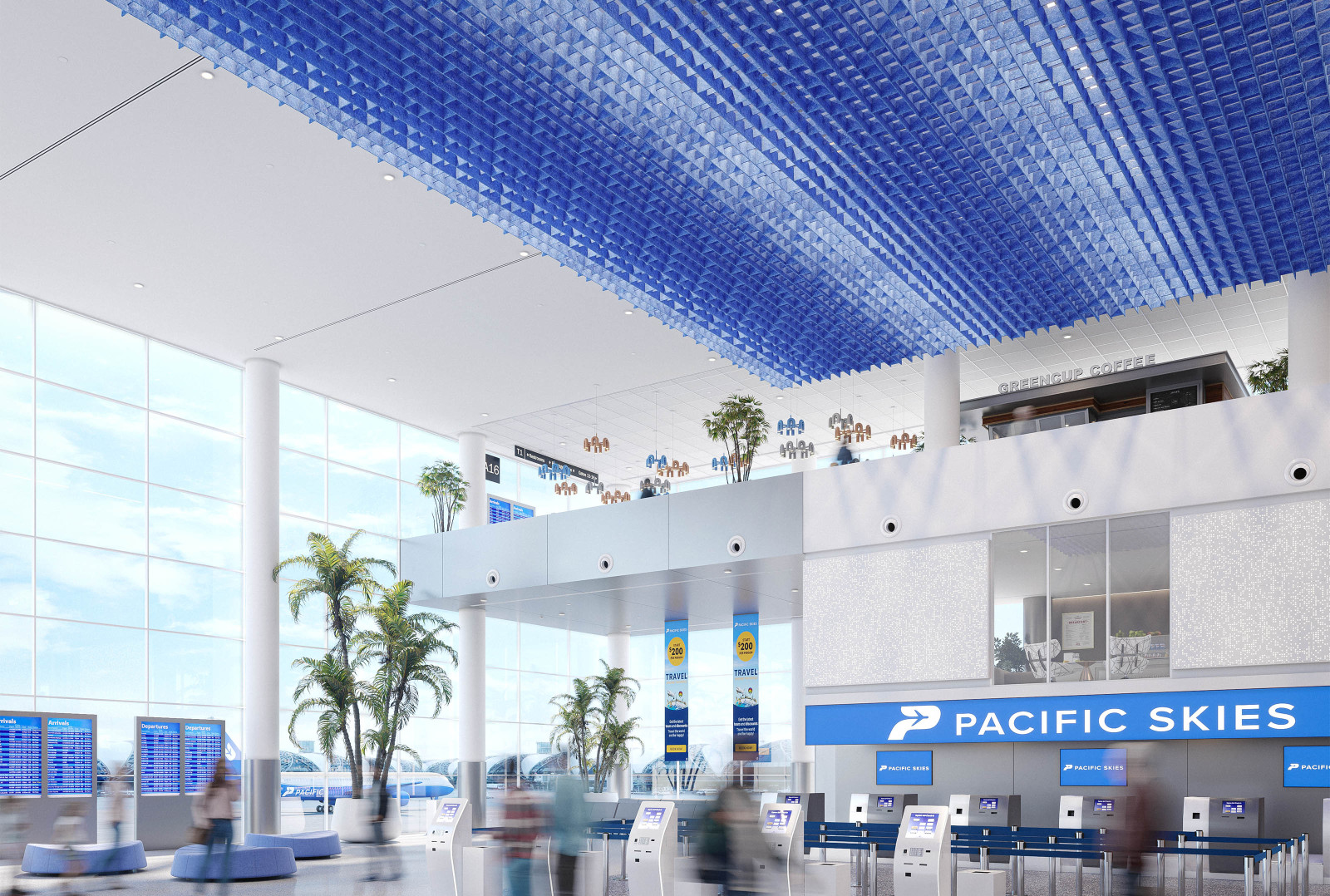

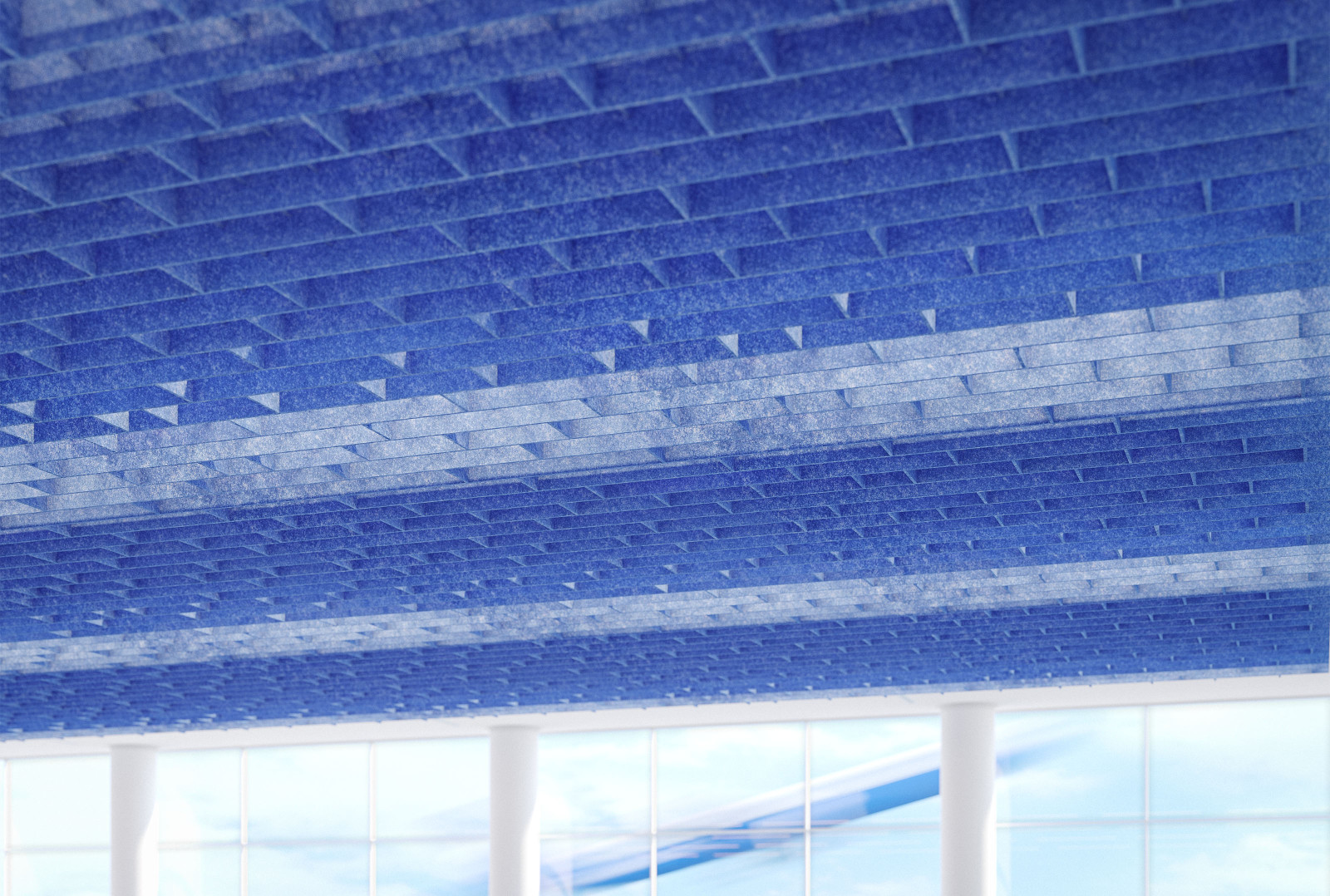

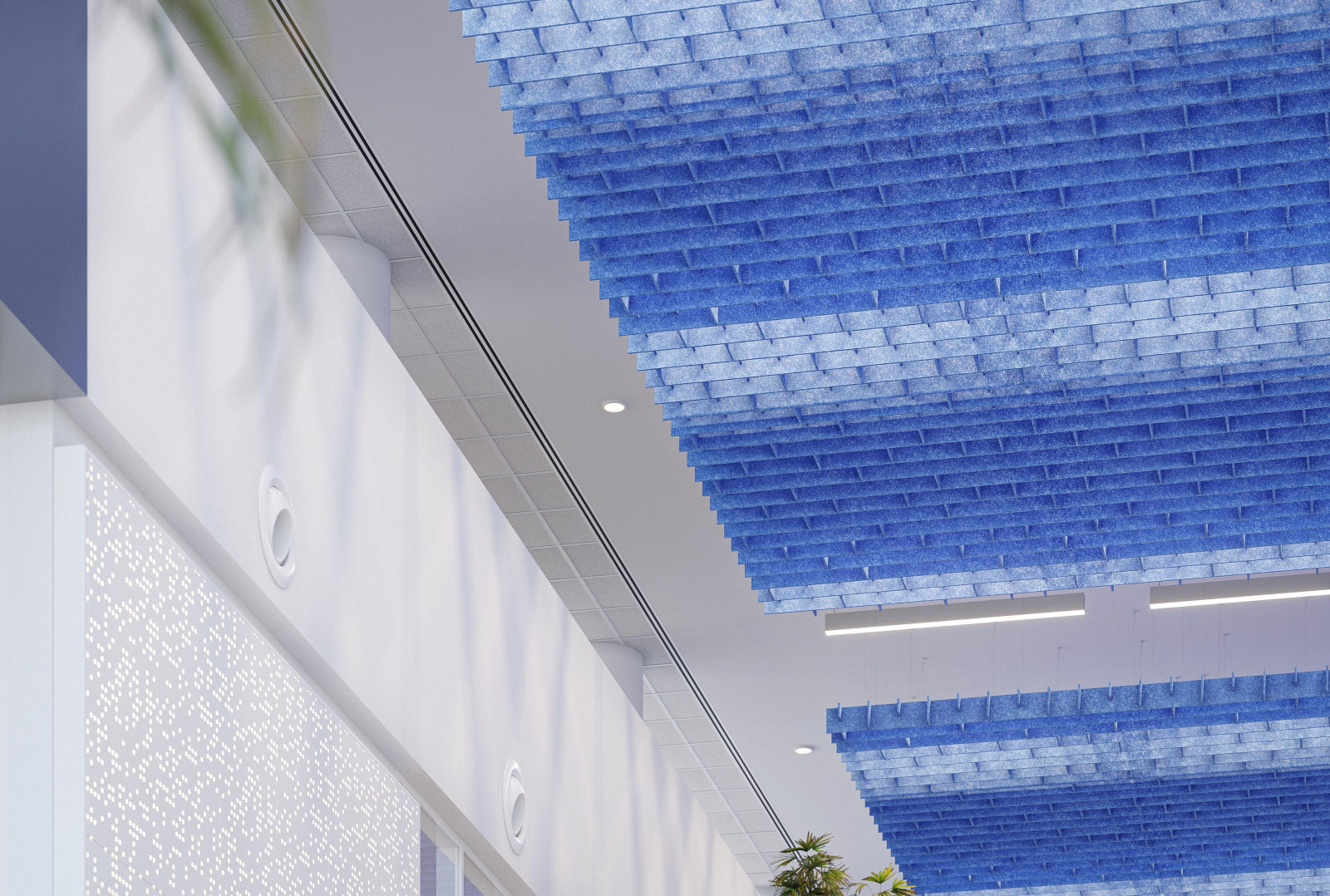

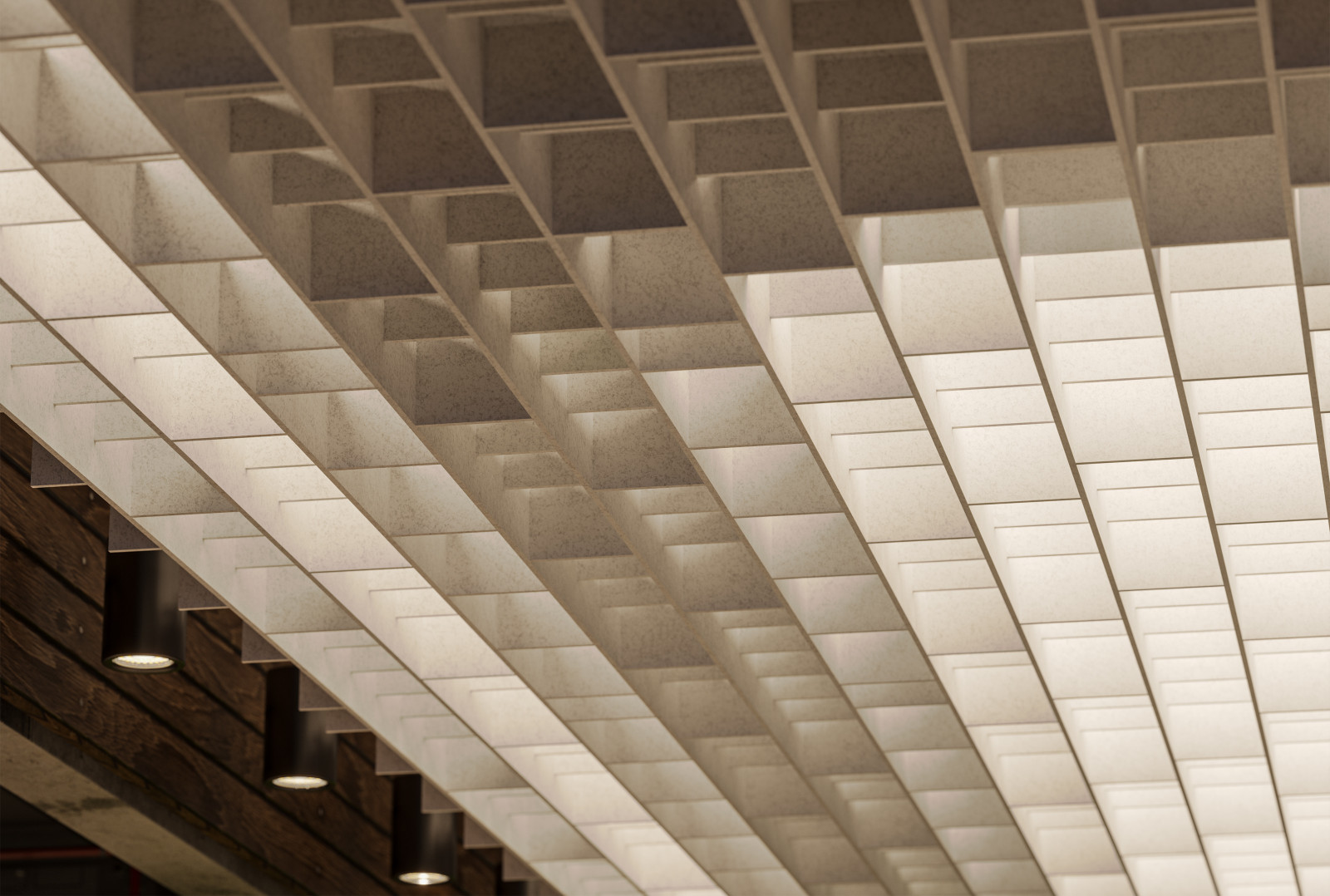

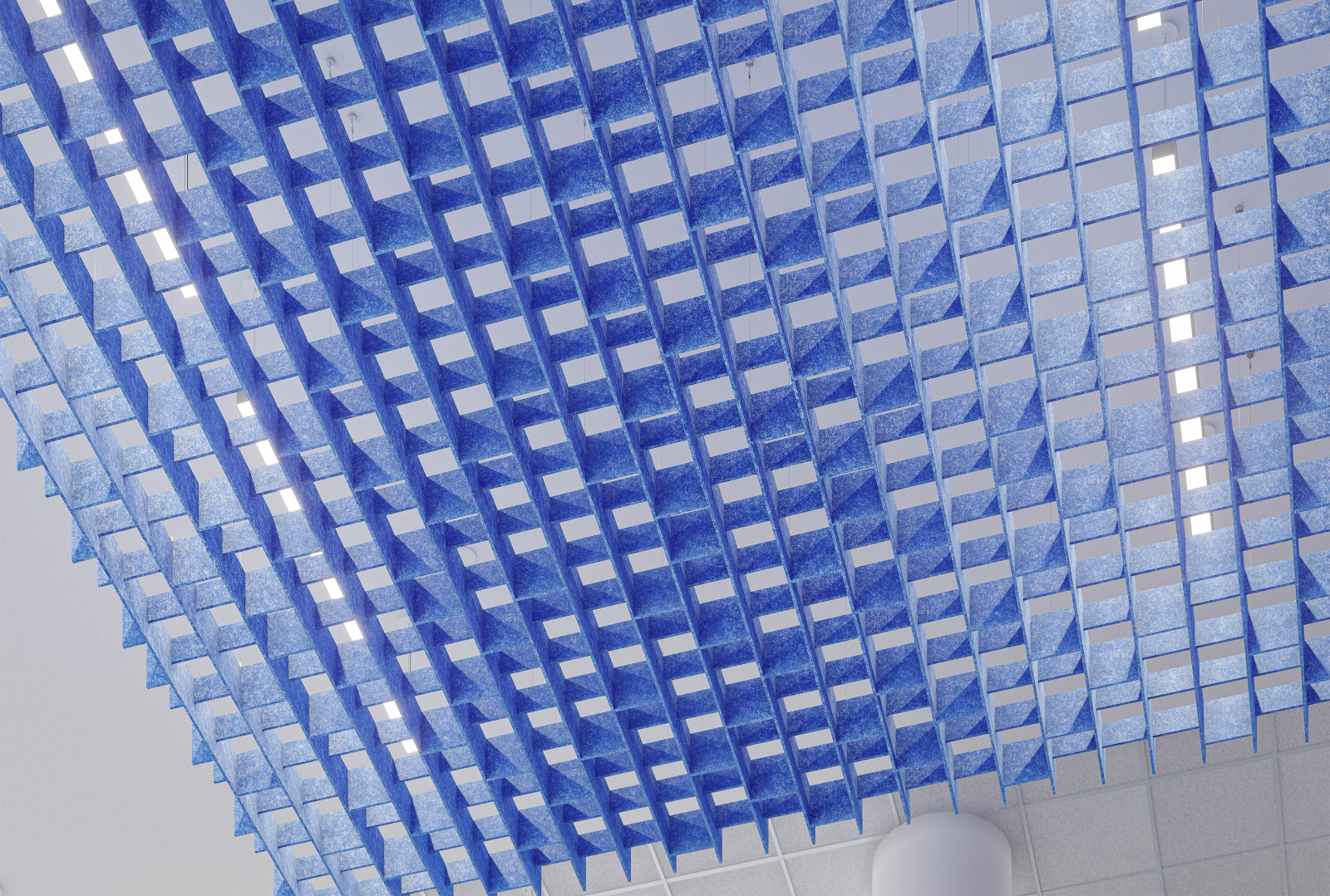

SoftGrid® Tempo in use
Key Features
-
Acoustic Performance
SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Expansive Color Library
Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
-
Preconfigured Solutions
SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.
-
Continuous Baffles
Utilizing a hidden fin-to-fin alignment system, SoftGrid® provides continuity in all directions across your space. In addition, our optional hanging points offer a fine-tuning capability for installers. Our custom formulated material thickness and density ensures rigidity that limits deflection.
-
Open Accessibility in Plan
SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Materials & Colors
Soft Sound® Vivids
Acoustic PET
Soft Sound® Elementals
Acoustic PET
Soft Sound® Wood Textures
Acoustic PET
Soft Sound® Essentials
Acoustic PETProduct Details
Standard Module
Multiple Modules

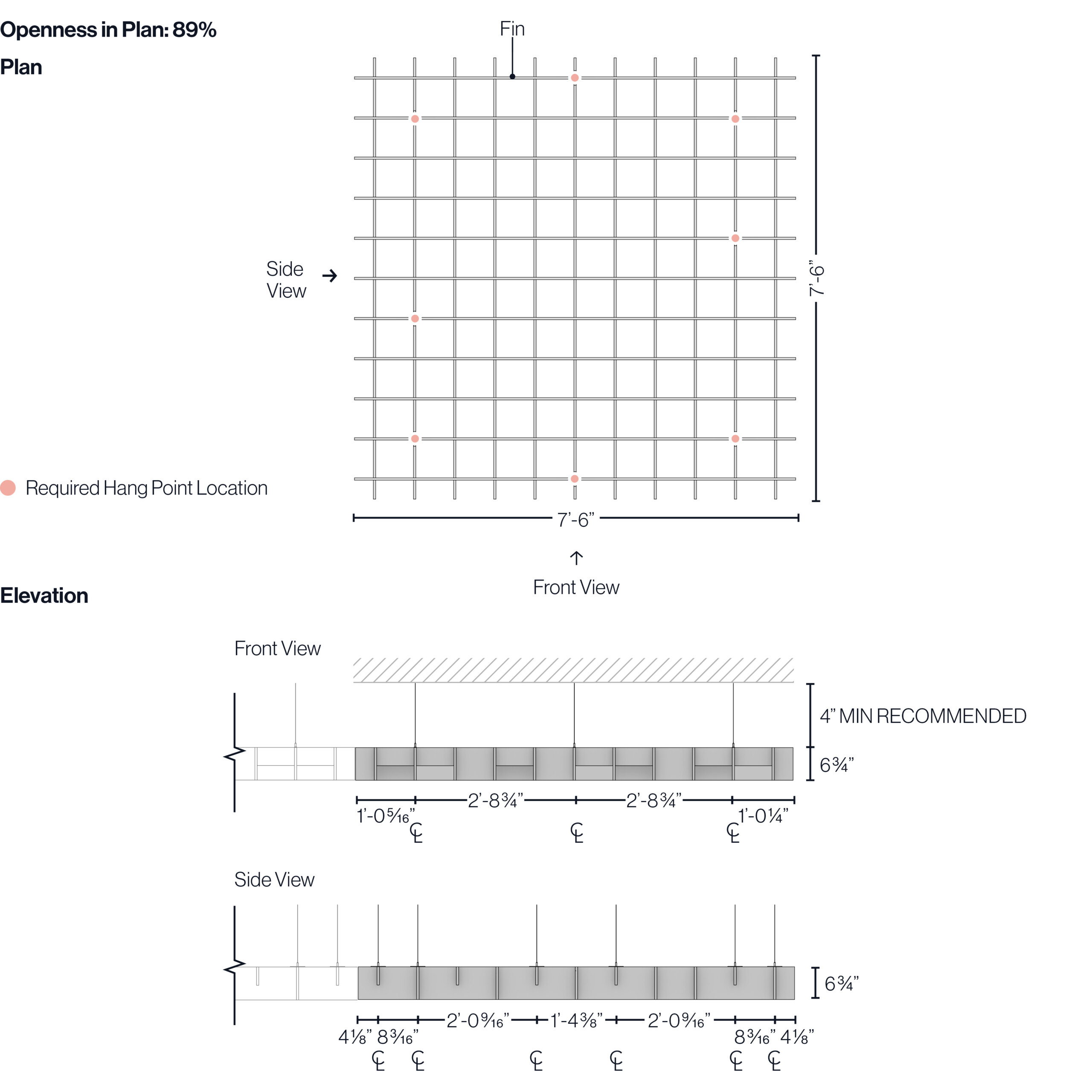

Understanding the Module
Attachment Details
Module Configuration
System Specs
- Dimensions (WxLxD)
- 7’-6” x 7’-6” x 6 3/4”
- Fin Material
- 12mm Soft Sound® (PET), Stainless Steel
- Openness in Plan
- 89%
- Fire Rating
- ASTM E84 - Class A
- Acoustics
- True NRC® 0.70 (F-100 Method)
- Attachment Method
- 1/32’’ Stainless Cable and Hardware
- Accessibility
- Yes, quick release cables
- Trimmability
- Yes, per installation manual
Downloads
-
SoftGrid® Tempo – Product Brochure PDF – ImperialBrochure3.45 MBpdf
-
Soft Sound® Color Brochure & SpecificationsBrochure681 KBpdf
-
SoftGrid® Tempo – 3D DWG – Imperial3D Model243.98 KBzip
-
SoftGrid® Tempo – 3D SKP – Imperial3D Model365.46 KBzip
-
SoftGrid® Tempo – 3D RFA – Imperial3D Model59.14 MBzip
How to Specify:
-
SELECT A STYLE
Select the style that best suits your vision and project needs. Pick from various designs, all made from our Soft Sound® acoustical material, to provide high-performance sound attenuation while enhancing aesthetics.
-
SELECT A COLOR/DUO TONE OPTION
Modules are available in a variety of colors, including naturalistic wood finishes. Add a second Duo Tone finish option to your SoftGrid® modules on select styles.
-
SELECT NUMBER OF MODULES
All SoftGrid® modules are scalable by design. Select the quantity of modules needed for your project.
Discounts available based on project quantity. Contact your local sales representative for pricing.
Additional options available.
Patent Pending.
